ENGLISH (Original instructions)
SPECIFICATIONS
Model DLM380
Mowing width 380 mm
No load speed 3,700 min-1
Dimensions (L x W x H) during operation 1,145 mm x 465 mm x 1,023 mm - 1,070 mm
when stored 680 mm x 470 mm x 505 mm
Rated voltage D.C. 36 V
Standard battery cartridge(s) Warning: Use only the battery
cartridge(s) described.
BL1815N / BL1820 / BL1820B BL1830 / BL1830B / BL1840 /
BL1840B / BL1850 /
BL1850B / BL1860B
Net weight 14.5 kg 15.0 kg
• Due to our continuing program of research and development, the specications herein are subject to change with-
out notice.
• Specications and battery cartridge may di󰀨er from country to country.
• Weight, with battery cartridge, according to EPTA-Procedure 01/2003
Symbols
The following show the symbols used for the equip-
ment. Be sure that you understand their meaning before
use.
Take particular care and attention.
Read instruction manual.
Danger; be aware of thrown objects.
The distance between the tool and
bystanders must be at least 15 m.
Never put your hands and feet near the
blade under the mower.
Remove the lock key before inspecting,
adjusting, cleaning, servicing, leaving and
storing the mower.
Ni-MH
Li-ion
Only for EU countries
Do not dispose of electric equipment or
battery pack together with household waste
material!
In observance of the European Directives,
on Waste Electric and Electronic
Equipment and Batteries and Accumulators
and Waste Batteries and Accumulators
and their implementation in accordance
with national laws, electric equipment and
batteries and battery pack(s) that have
reached the end of their life must be col-
lected separately and returned to an envi-
ronmentally compatible recycling facility.
IMPORTANT SAFETY
INSTRUCTIONS
WARNING! Read all safety warnings and all
instructions. Failure to follow the warnings and instruc-
tions may result in electric shock, re and/or serious
injury.
Save all warnings and instruc-
tions for future reference.
1. Do not insert key into mower until it is ready to
be used.
2. This appliance is not intended for use by per-
sons (including children) with reduced phys-
ical, sensory or mental capabilities, or lack of
experience and knowledge, unless they have
been given supervision or instruction concern-
ing use of the appliance by a person responsi-
ble for their safety.
3. Children should be supervised to ensure that
they do not play with the appliance.
4. Never allow children or people unfamiliar with
these instructions to use the machine. Local
regulations can restrict the age of the operator.
5. Never operate the machine while people, espe-
cially children, or pets are nearby.
6. Keep in mind that the operator or user is
responsible for accidents or hazards occurring
to other people or their property.
7. While operating the machine always wear
substantial footwear and long trousers. Do not
operate the machine when barefoot or wear-
ing open sandals. Avoid wearing clothing or
jewelry that is loose tting or that has hanging
cords or ties. They can be caught in moving
parts.
8. Operate the machine only in daylight or in
good articial light.
9. Avoid operating the machine in wet grass.
10. Never operate the mower in the rain.

7ENGLISH
11. Battery tool use and care
- Recharge only with the charger specied by
the manufacturer. A charger that is suitable for
one type of battery cartridge may create a risk of
re when used with another battery cartridge.
- Use power tools only with specically desig-
nated battery cartridges. Use of any other bat-
tery cartridges may create a risk of injury and re.
- When battery cartridge is not in use, keep
it away from other metal objects, like paper
clips, coins, keys, nails, screws or other small
metal objects, that can make a connection
from one terminal to another. Shorting the bat-
tery terminals together may cause burns or a re.
- Under abusive conditions, liquid may be
ejected from the battery; avoid contact. If con-
tact accidentally occurs, ush with water. If
liquid contacts eyes, additionally seek medical
help. Liquid ejected from the battery may cause
irritation or burns.
12. Always keep a rm hold on the handle.
13. Always be sure of your footing on slopes.
14. Walk, never run.
15. Don't grasp the exposed cutting blades or
cutting edges when picking up or holding the
appliance.
16. Physical condition - Do not operate mower
while under the inuence of drugs, alcohol, or
any medication.
17. KEEP GUARDS IN PLACE and in working
order.
18. Keep hands and feet away from rotating
blades. Caution - Blades coast after turn o󰀨.
19. Remove key before servicing, cleaning
or removing material from the gardening
appliance.
20. Use only the manufacturer genuine blades
specied in this manual.
21. Check the blades carefully for cracks or dam-
age before operation. Replace cracked or
damaged blades immediately.
22. Be sure the area is clear of other people before
mowing. Stop mower if anyone enters the area.
23. Remove foreign matters such as rocks, wire,
bottles, bones and large sticks from the work
area before mowing to prevent personal injury
or damage to the mower.
24. Stop operation immediately if you notice
anything unusual. Switch o󰀨 the mower and
remove the key from the appliance. Then
inspect the mower.
25. Never attempt to make wheel height adjust-
ments while mower is running.
26. Release switch lever and wait for blade rota-
tion to stop before crossing driveways, walks,
roads, and any gravel-covered areas. Also
remove key if you leave it, reach to pick up or
remove something out of your way, or for any
other reason that may distract you from what
you are doing.
27. Objects struck by the lawn mower blade can
cause severe injuries to persons. The lawn
should always be carefully examined and
cleared of all objects prior to each mowing.
28. If lawn mower strikes a foreign object, follow
these steps:
- Stop the mower, release the switch lever and
wait until the blade comes to a complete stop.
- Remove the lock key and the battery
cartridge.
- Thoroughly inspect the mower for any
damage.
- Replace the blade if it is damaged in any way.
Repair any damage before restarting and con-
tinuing to operate the mower.
29. Check the grass basket frequently for wear or
deterioration. For storage, always make sure
the grass basket is empty. Replace a worn
grass basket with a new factory replacement
one for safety.
30. Stop the motor and remove key whenever
you leave the equipment, before cleaning
the mower housing, and before making any
repairs or inspections.
31. Use extreme caution when reversing or pulling
the machine towards you.
32. Stop the blade(s) if the machine has to be tilted
for transportation when crossing surfaces
other than grass, and when transporting the
machine to and from the area to be used.
33. Never operate the machine with defective
guards or shields, or without safety devices,
for example deectors and/or grass collector,
in place.
34. Switch on the motor carefully according to
instructions and with feet well away from the
blade(s).
35. Do not tilt the machine when switching on the
motor, except if the machine has to be tilted
for starting. In this case, do not tilt it more than
absolutely necessary and lift only the part,
which is away from the operator.
36. Do not start the machine when standing in
front of the discharge opening.
37. Do not put hands or feet near or under rotating
parts. Keep clear of the discharge opening at
all times.
38. Do not transport the machine while the mower
is turned on.
39. Stop the machine, and remove the disabling
device. Make sure that all moving parts have
come to a complete stop
- whenever you leave the machine,
- before clearing blockages or unclogging
chute,
- before checking, cleaning or working on the
machine,
- after striking a foreign object. Inspect the
machine for damage and make repairs before
restarting and operating the machine;
40. If the machine starts to vibrate abnormally
(check immediately)
- inspect for damage,
- replace or repair any damaged parts,
- check for and tighten any loose parts.
41. Be careful during adjustment of the machine
to prevent entrapment of the ngers between
moving blades and xed parts of the machine.

8ENGLISH
42. Mow across the face of slopes, never up and
down. Exercise extreme caution when chang-
ing direction on slopes. Do not mow exces-
sively steep slopes.
43. Do not wash with a hose; avoid getting water
in motor and electrical connections.
44. Check the blade mounting bolt at frequent
intervals for proper tightness.
45. Keep all nuts, bolts, and screws tight to
be sure the equipment is in safe working
condition.
46. Always allow the machine to cool down before
storing.
47. When servicing the blades be aware that, even
though the power source is switched o󰀨, the
blades can still be moved.
48. Replace worn or damaged parts for safety.
Use only genuine replacement parts and
accessories.
SAVE THESE INSTRUCTIONS.
WARNING: DO NOT let comfort or famil-
iarity with product (gained from repeated
use) replace strict adherence to safety
rules for the subject product. MISUSE or
failure to follow the safety rules stated in
this instruction manual may cause serious
personal injury.
IMPORTANT SAFETY
INSTRUCTIONS
FOR BATTERY CARTRIDGE
1. Before using battery cartridge, read all instruc-
tions and cautionary markings on (1) battery
charger, (2) battery, and (3) product using
battery.
2. Do not disassemble battery cartridge.
3. If operating time has become excessively
shorter, stop operating immediately. It may
result in a risk of overheating, possible burns
and even an explosion.
4. If electrolyte gets into your eyes, rinse them
out with clear water and seek medical atten-
tion right away. It may result in loss of your
eyesight.
5. Do not short the battery cartridge:
(1) Do not touch the terminals with any con-
ductive material.
(2) Avoid storing battery cartridge in a con-
tainer with other metal objects such as
nails, coins, etc.
(3) Do not expose battery cartridge to water
or rain.
A battery short can cause a large current
ow, overheating, possible burns and even a
breakdown.
6. Do not store the tool and battery cartridge in
locations where the temperature may reach or
exceed 50°C (122°F).
7. Do not incinerate the battery cartridge even if
it is severely damaged or is completely worn
out. The battery cartridge can explode in a re.
8. Be careful not to drop or strike battery.
9. Do not use a damaged battery.
10. Follow your local regulations relating to dis-
posal of battery.
SAVE THESE INSTRUCTIONS.
Tips for maintaining maximum
battery life
1. Charge the battery cartridge before completely
discharged.
Always stop tool operation and charge the bat-
tery cartridge when you notice less tool power.
2. Never recharge a fully charged battery car-
tridge.
Overcharging shortens the battery service life.
3. Charge the battery cartridge with room tem-
perature at 10°C - 40°C (50°F - 104°F). Let a hot
battery cartridge cool down before charging it.
4. Charge the battery cartridge if you do not use
it for a long period (more than six months).
FUNCTIONAL
DESCRIPTION
Installing or removing battery
cartridge
CAUTION:
• Always switch o󰀨 the tool before installing or
removing the battery cartridge.
• Make sure that you lock the battery cover before
use. Otherwise, mud, dirt, or water may cause
damage to the product or the battery cartridge.
• Always install the battery cartridge fully until the
red indicator cannot be seen. If not, it may acci-
dentally fall out of the tool, causing injury to you
or someone around you.
• Do not install the battery cartridge forcibly. If the
cartridge does not slide in easily, it is not being
inserted correctly.
NOTE:
• The tool does not work with only one battery
cartridge.
To install the battery cartridge;
1. Pull the battery cover locking lever toward yourself
and open the battery cover.
► Fig.1: 1. Battery cover locking lever 2. Battery cover

9ENGLISH
2. To install the battery cartridge, align the tongue on
the battery cartridge with the groove in the hous-
ing and slip it into place. Insert it all the way until it
locks in place with a little click. If you can see the
red indicator on the upper side of the button, it is
not locked completely.
► Fig.2: 1. Battery cover 2. Battery cartridge
3. Insert the lock key in the place shown in the gure
as far as it will go.
► Fig.3: 1. Battery cartridge 2. Lock key
4. Close the battery cover and push it on until it is
latched with the locking lever.
To remove the battery cartridge from
the mower;
1. Pull the battery cover locking lever toward yourself
and open the battery cover.
2. Slide it from the tool while sliding the button on the
front of the cartridge.
3. Pull out the lock key.
4. Close the battery cover.
Battery protection system
The tool is equipped with a tool/battery protection sys-
tem. This system automatically cuts o󰀨 power to the
motor to extend tool and battery life.
The tool will automatically stop during operation if the
tool or battery is placed under one of the following con-
ditions. In some conditions, the indicators light up.
Overload protection
When the tool is operated in a manner that causes it to
draw an abnormally high current, the tool automatically
stops without any indication. In this situation, turn the
tool o󰀨 and stop the application that caused the tool to
become overloaded. Then turn the tool on to restart.
Overheat protection
When the tool or battery is overheated, the tool stops
automatically without any indications. The tool does not
start even if turning on the tool. In this situation, let the
tool or battery cool before turning the tool on again.
NOTE: The battery overheat protection works only
with a battery cartridge with a star marking. The tool
overheat protection system works with any battery
cartridges.
► Fig.4: 1. Star marking
Overdischarge protection
► Fig.5: 1. Battery indicator
When the remaining battery capacity gets low, the
battery indicator blinks on the applicable battery side.
By further use, the tool stops and the battery indicator
lights up about 10 seconds. In this situation, charge the
battery cartridge.
Indicating the remaining battery
capacity
Only for battery cartridges with the indicator
► Fig.6: 1. Indicator lamps 2. Check button
Press the check button on the battery cartridge to indi-
cate the remaining battery capacity. The indicator lamps
light up for a few seconds.
Indicator lamps Remaining
capacity
Lighted O󰀨 Blinking
75% to 100%
50% to 75%
25% to 50%
0% to 25%
Charge the
battery.
The battery
may have
malfunctioned.
NOTE: Depending on the conditions of use and the
ambient temperature, the indication may di󰀨er slightly
from the actual capacity.
Power switch action
WARNING:
• Before installing the battery cartridge in the
tool, always check to see that the switch
lever actuates properly and returns to the
original position when released. Operating a
tool with a switch that does not actuate properly
can lead to loss of control and serious personal
injury.
NOTE:
• Trying to mow much grass at a time may not
allow the motor to start due to the overload. At
this time, change the mowing height to higher
level to restart.
• The mower does not start without pressing the
switch button even if the switch lever is pulled.
This mower is equipped with the interlock switch and
handle switch. If you notice anything unusual with either
of these switches, stop operation immediately and
have them checked by your nearest Makita Authorized
Service Center.
1. Install the battery cartridges. Insert the lock key
into the interlock switch and then close the battery
cover.
► Fig.7: 1. Battery cartridge 2. Lock key
2. Press the switch button.
3. Pull the switch lever toward you while pressing the
switch button.
► Fig.8: 1. Switch button 2. Switch lever
4. Release the switch button as soon as the motor
starts running. The mower will continue to run until
you release the switch lever.
5. Release the switch lever to stop the motor.
6. When not in use, remove the lock key. Store the
lock key in a safe place out of reach of children.

10 ENGLISH
Adjusting the mowing height
WARNING:
• Never put your hand or leg under the mower unit
when adjusting the mowing height.
• Always make sure that the lever ts in the
groove properly before operation.
► Fig.9: 1. Mowing height adjusting lever 2. Pins
The mowing height can be adjusted in the range of
between 25 mm - 75 mm.
1. Remove the lock key.
2. Pull the mowing height adjusting lever toward A
side. Move it to your desired mowing height level.
Make sure that the pins on the mowing height
adjusting lever t in the holes and the lever returns
to B side.
NOTE:
• The mowing height gures should be used
just as a guideline, as the state of the lawn or
ground may cause lawn height to be slightly
di󰀨erent to the set height gure.
• Try a test mowing of grass in a less conspicuous
place to get your desired height.
• It is easier to move the mowing height adjusting
lever with holding the tool rmly.
► Fig.10
Grass level indicator
► Fig.11: 1. Grass level indicator
Grass level indicator shows the volume of caught grass.
— When the grass basket is not full, the indicator
oats during mowing.
— When the grass basket is full, the indicator does
not oat during mowing. In this case, stop mowing
immediately and empty the basket. After emptying
the basket, clean it so that its meshwork vents the
air.
NOTE:
• This indicator is rough guide. Depending on the
conditions of inside of the basket, this indicator
may not work properly.
ASSEMBLY
WARNING:
• Always be sure that the lock key and battery
cartridge are removed before carrying out
any work on the mower. Failure to remove the
lock key and the battery cartridge may result in
serious personal injury from accidental start-up.
• Never start the tool unless it is completely
assembled. Operation of the tool in a partially
assembled state may result in serious personal
injury from accidental start-up.
Installing the battery cover
WARNING:
• Do not insert the lock key and battery cartridge
before installing the battery cover. Failure to do
so may cause a serious injury.
Install the battery cover completely before operating the
tool to protect the tool and battery cartridge from mud,
dirt, or water.
1. Place the battery cover on the tool with aligning
the protrusions on the tool and the holes of the
battery cover.
► Fig.12: 1. Battery cover 2. Hole 3. Protrusion
2. Place your hands in the middle of the battery
cover and depress it.
► Fig.13: 1. Battery cover
3. Before the rst operation, check that the pivot
point of the battery cover is assembled properly.
To check it, pull the battery cover locking lever
toward yourself and open the battery cover.
► Fig.14: 1. Battery cover 2. Pivot point 3. Battery
cover locking lever
Installing the handle
WARNING:
• When installing handles, position the wires so
that they are not caught by anything in between
the handles.
1. Loosen the clamping screws (two pcs).
► Fig.15: 1. Lower handle 2. Clamping screw
3. Tighten 4. Loosen 5. Groove
2. Expand the lower handle to its both sides and with
it expanded in that position pivot it backward and
then t it in the groove in the deck.
► Fig.16: 1. Lower handle 2. Upper handle 3. Holes
3. Tighten the clamping screws on both sides to
secure the lower handle.
► Fig.17: 1. Clamping nut 2. Curl washer 3. Screw
4. Tighten
4. Raise the upper handle and align the screw holes
in the upper handle with those in the lower handle.
Secure them with the supplied screws, curl wash-
ers and clamping nuts.
NOTE:
• At this time, keep a rm grip on the upper han-
dle so that it does not drop o󰀨 your hand.
► Fig.18: 1. Holder 2. Upper handle 3. Cord
NOTE:
• Install the upper handle so that the direction of
the upper handle and the power supply cord are
positioned as shown in the gure.

11 ENGLISH
Removing or installing the blade
WARNING:
• Always remove the lock key and battery car-
tridge when removing or installing the blade.
Failure to remove the lock key and battery car-
tridge may cause a serious injury.
• The blade coasts for a few seconds after releas-
ing the switch. Make sure that the blade has
come to a complete stop.
• Always wear gloves when handling the blade.
► Fig.19: 1. Blade 2. Wrench 3. Loosen 4. Lumber
1. Put the mower on its side so that the mowing
height adjusting lever is placed on the upper side.
2. To lock the blade, insert a lumber or similar into
the mower.
3. Loosen the bolt counterclockwise with the box
wrench.
► Fig.20: 1. Blade support 2. Blade 3. Flat washer
4. Spring washer 5. Bolt
4. Remove the bolt, spring washer, at washer, and
blade in order.
To install the blade, take the blade removal procedure
in reverse.
WARNING:
• Install blade carefully as they have a top/bottom
facing.
• Tighten the bolt clockwise rmly to secure the
blade.
• Put the blade so that the blade side with a rota-
tional direction arrow faces outward.
• Make sure that the blade is installed securely.
Installing the grass basket
Remove the lock key.
► Fig.21
Raise the rear guard of the mower unit.
► Fig.22: 1. Groove 2. Hook 3. Grass basket
Hook the grass basket on the groove of the mower unit.
OPERATION
Mowing
WARNING:
• Before mowing, clear away sticks and stones
from mowing area. Furthermore, clear away any
weeds from mowing area in advance.
• Always wear the safety goggles or safety
glasses with side shields when operating the
mower.
Firmly hold the lawn mower handle with both hands
when mowing.
The width between the middle of the front wheels shows
the guideline of the mowing range. For even mowing,
overlap the mowing area partially to the previous
mowed area.
Periodically check the level of the grass basket, and
empty before it becomes full. Before every periodical
check, be sure to stop the mower and remove the lock
key and the battery cartridge.
NOTE:
• Using the lawn mower with the grass basket
full prevents smooth blade rotation and places
an extra load on the motor, which may cause
breakdown.
Mowing a long-grass lawn
► Fig.23
Do not try to cut long grass all in one go. Instead, mow
the lawn in stages, leaving it for a day or two between
mows, until the lawn is evenly short.
NOTE:
• Mowing long grass to a short length all in one go
may cause the grass to die and/or block up the
inside of the main unit.
Emptying the grass basket
WARNING:
• To reduce a risk of accident, regularly check
the grass basket for any damage or weakened
strength and replace it if necessary.
1. Release the switch lever.
2. Remove the lock key.
► Fig.24: 1. Grass basket 2. Handle 3. Rear guard
3. Open the rear guard and take out the grass basket
with its handle.
4. Empty the grass basket.
MAINTENANCE &
STORAGE
WARNING:
• Always be sure that the lock key and battery
cartridge are removed from the mower before
storage or attempting to perform inspection or
maintenance.
• Wear gloves when performing inspection or
maintenance.
CAUTION:
• Never use gasoline, benzine, thinner, alcohol
or the like. Discoloration, deformation or cracks
may result.

12 ENGLISH
MAINTENANCE
1. REMOVE THE LOCK KEY. Store it in a safe place
out of the reach of children.
2. Clean your mower using only mild soap and a
damp cloth. Do not spray or pour water on your
mower when cleaning.
3. Turn mower on its side and clean grass clippings
that have accumulated on the underside of mower
deck.
4. Check all nuts, bolts, knobs, screws, fasteners etc.
for tightness.
5. Inspect moving parts for damage, breakage, and
wear. Have repairs made on any damaged or
missing parts.
6. Before storing the mower, remove the battery
cartridge from it.
7. Store mower indoors in a cool, dry and locked
place. Don't store the mower and charger in loca-
tions where the temperature may reach or exceed
40°C (104°F).
Storage
WARNING:
• When carrying or storing the mower, hold both
the handle and front grip of the mower. Only
holding the handles may cause a serious injury
or damage to the mower.

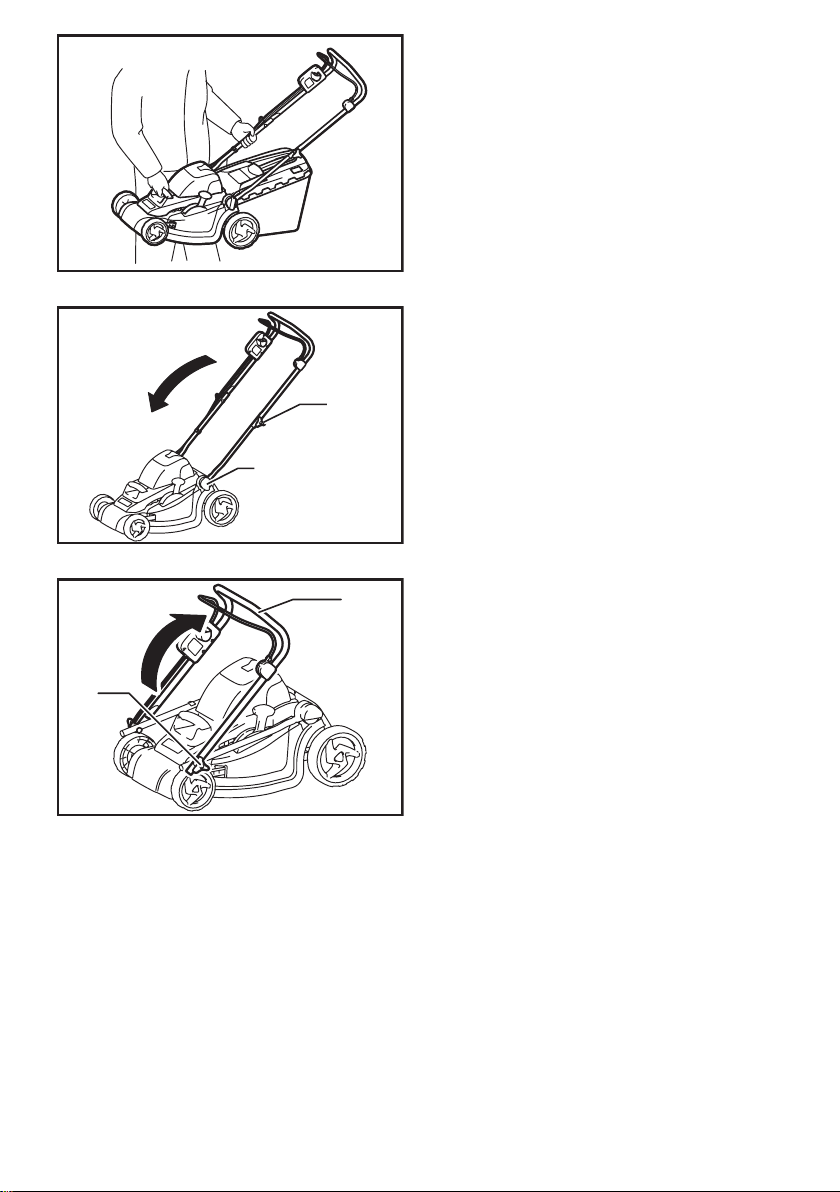

► Fig.25
1. Loosen the clamping screw, expand the lower
handle to both sides and then move down the
handle forward. At this time, keep a rm grip on
the front grip so that it does not fall down to the far
side from the tool.
► Fig.26: 1. Clamping screw 2. Clamping nut
2. Loosen the clamping nut and pivot the upper
handle back.
► Fig.27: 1. Handle 2. Clamping nut
To maintain product SAFETY and RELIABILITY, repairs,
any other maintenance or adjustment should be per-
formed by Makita Authorized Service Centers, always
using Makita replacement parts.

13 ENGLISH
TROUBLE SHOOTING
Before asking for repairs, conduct your own inspection
rst. If you nd a problem that is not explained in the
manual, do not attempt to dismantle the tool. Instead,
ask Makita Authorized Service Centers, always using
Makita replacement parts for repairs.
Malfunction status
Mower does not start.
Cause
Two battery cartridges are not
installed.
Battery problem (under voltage)
Cutting height set is too low.
Battery power is dropping.
Action
Install the charged battery
cartridges.
Remove the foreign object.
Motor stops running after
a little use.
It does not reach maximum
RPM.
Cutting tool does not rotate:
stop the machine immediately!
Abnormal vibration:
stop the machine immediately!
Blade is imbalanced, excessively
or unevenly worn.
The drive system does not work
correctly.
Foreign object such as a branch is
jammed near the blade.
The drive system does
not work correctly.
Battery cartridge is installed
improperly.
Battery's charge level is low.
Recharge the battery cartridge. If
recharging is not effective, replace
battery cartridge.
Recharge the battery cartridge. If
recharging is not effective, replace
battery cartridge.
Recharge the battery cartridge. If
recharging is not effective, replace
battery cartridge.
Ask your local authorized service
center for repair.
Ask your local authorized service
center for repair.
Replace the blade.
Install the battery cartridge as
described in this manual.
Raise the height.
The lock key is not inserted. Insert the lock key.
OPTIONAL
ACCESSORIES
CAUTION:
• These accessories or attachments are recom-
mended for use with your Makita tool specied
in this manual. The use of any other accessories
or attachments might present a risk of injury to
persons. Only use accessory or attachment for
its stated purpose.
If you need any assistance for more details regard-
ing these accessories, ask your local Makita Service
Center.
• Blade
• Makita genuine battery and charger
NOTE:
• Some items in the list may be included in the
tool package as standard accessories. They
may di󰀨er from country to country.

14
中文简体
中文简体 (原本)
规格
型号 DLM380
修剪宽度 380 mm
空载速度 3,700 /min
尺寸
（长 ×宽×高）
操作期间 1,145 mm ×465 mm ×
1,023 mm - 1,070 mm
存放时 680 mm ×470 mm ×505 mm
额定电压 D.C. 36 V
标准电池组 警告：仅可使用指定的电
池组。
BL1815N / BL1820 /
BL1820B
BL1830 / BL1830B /
BL1840 / BL1840B /
BL1850 / BL1850B /
BL1860B
净重 14.5 kg 15.0 kg
·生产者保留变更规格不另行通知之权利。
·规格和电池组可能因销往国家之不同而异。
·重量（带电池组）符合EPTA-Procedure 01/2003
符号
以下显示本工具使用的符号。在使用工具之
前请务必理解其含义。
特别小心和注意。
阅读使用说明书。
危险：注意抛掷物体。
工具和旁观者的距离至少为
15 m。
切勿使手和脚靠近修剪机下
面的刀片。
检查、调节、清洁、维修、
放置或存放修剪机前，请务
必拔下锁定钥匙。
Ni-MH
Li-ion 仅限于欧盟国家
请勿将电气设备或电池组与
家庭普通废弃物一同丢弃！
请务必遵守欧洲关于废弃电
子电气设备、电池和蓄电池
以及废弃电池和蓄电池的指
令并根据法律法规执行。达
到使用寿命的电气设备和电
池组必须分类回收至符合环
境保护规定的再循环机构。
重要安全注意事项
警告！ 请通读所有的安全警告和所有的
说明事项。若不遵循警告和说明事项，可能
导致触电、起火和／或严重的人身伤害。
请保留所有的警告和说明事
项，以备日后参考。
1. 准备使用时才可将钥匙插入修剪机。
2. 本设备不得由不熟悉操作说明的人员
（包括小孩）和体力、感觉及心智不健
全或缺乏经验和知识的人员使用，除非
由负责他们安全的人员在使用时对他们
进行监督和指导。
3. 应看管好儿童，勿让其玩耍本工具。
4. 勿允许儿童或不熟悉这些使用须知的人
员使用本机器。当地法规可能会限制操
作人员的年龄。
5. 切勿在附近有人（特别是儿童）或宠物
的情况下操作机器。
6. 操作时要时刻谨记，如果给他人及其
财产造成损失，操作者或用户要为此
负责。
7. 操作机器期间，务必穿戴厚实的鞋子和
长裤。请勿在赤脚或穿着露趾凉鞋时操
作机器。避免穿着或佩戴宽松或带有线
绳的衣服或首饰。它们可能会被卷入运
动部件中。

15
中文简体
8. 仅可在光线充足或良好照明的情况下操
作机器。
9. 避免在湿草上操作机器。
10. 切勿在雨中操作本修剪机。
11. 用电池驱动的电动工具的使用和保养
- 请仅使用制造商指定的充电器进行充
电。 将适用于某一种类型电池组的充电
器用于其他类型的电池组时，可能会导
致起火。
- 电动工具仅可使用专门指定的电池
组。 使用其他类型的电池组可能会导致
人身伤害或起火。
- 不使用电池组时请将其远离纸夹、硬
币、钥匙、钉子、螺丝或其他小型金属
物体放置。这些物体可能会使电池端子
短路。 使电池端子短路可能会导致灼伤
或起火。
- 使用过度时，电池中可能溢出液体。
请避免接触。如果意外接触到电池漏
液，请用水冲洗。如果液体接触到眼
睛，请就医。 电池漏液可能会导致过敏
发炎或灼伤。
12. 请务必紧握手柄。
13. 请务必确保倾斜站立。
14. 操作时请行走，切勿跑动。
15. 搬动或握住工具时，请勿抓握外露的刀
片或切割边。
16. 身体状态 - 请勿在药品、酒精或其他接
受医疗的情况下操作修剪机。
17. 将保护罩安装到位，使其能正常发挥
作用。
18. 手和脚应远离旋转的刀片。小心 - 电源
关闭之后刀片还将移动一段距离。
19. 维修、清洁或从园艺工具中移除材料
前，请拔掉钥匙。
20. 请仅使用本说明书中指定的正品刀片。
21. 操作之前，请仔细检查刀片上是否有裂
缝或损坏。应立即更换有裂缝或损坏的
刀片。
22. 修剪草坪前确保作业区域内无其他人
员。如有任何人进入作业区域，请停止
修剪机。
23. 修剪草坪前，请清除作业区域内的石
块、铁丝、瓶子、骨头和大的树枝等异
物，以防止人员受伤或损坏修剪机。
24. 若发现有任何异常请立即停止操作。关
闭修剪机，并拔下钥匙。然后检查修
剪机。
25. 切勿尝试在修剪机仍在运转期间调节轮
脚的高度。
26. 在穿过车道、人行道、道路或任何砾石
覆盖的路面前，请释放开关柄并等待刀
片停止旋转。在将其放置，捡取修剪路
径上的异物或在任何可能分散注意力的
情况下，请务必拔下钥匙。
27. 草坪修剪机刀片撞击异物会导致严重的
人身伤害。每次修剪前，请务必仔细检
查草坪并清除所有异物。
28. 如果草坪机撞击到异物，请执行以下
步骤：
- 停止修剪机，释放开关柄并等待刀片
完全停止。
- 拔下锁定钥匙并取出电池组。
- 彻底检查修剪机有无损伤。
- 如果刀片有任何损伤，请予以更换。
重新启动并继续操作修剪机前，请修复
任何损伤。
29. 时常检查草篮是否有磨损或劣化。存放
时，务必确保清空草篮。出于安全需
要，请使用新的原厂替换草篮更换磨损
的草篮。
30. 在清洁修剪机外壳及进行任何维修或检
查前，请在离开设备时随时停止电机并
拔下钥匙。
31. 反转或向自身拉机器时，务必小心
谨慎。
32. 如果必须倾斜机器以搬运修剪机通过非
草坪表面，以及机器进出作业区域时，
请停止刀片。
33. 在保护罩或隔离罩有损坏，或者安全装
置（如火花挡板和／或草篮）未安装到
位时，请勿操作机器。
34. 根据操作指示小心开启电机，并使脚远
离刀片。
35. 除必须倾斜机器进行启动外，请勿在开
启电机时倾斜机器。需要倾斜修剪机
时，切勿使倾斜度大于必要的程度，并
仅提起离操作者较远的部分。
36. 请勿在站立在排出口前部时启动机器。
37. 勿使手和脚靠近旋转部件或置于其下。
请勿在任何时间与排出口成直线站立。
38. 请勿在机器开启时进行搬运。
39. 停止机器，并拆下故障装置。确保所有
运动部件已完全停止
- 离开机器时；
- 清除堵塞物或疏通滑槽前；
- 检查、清洁或处理机器前；
- 击打到异物后。在重新启动并操作机
器前，检查机器损伤并进行修理时；

16
中文简体
40. 如果机器开始异常振动（立即检查）
- 检查损伤；
- 更换或修复任何损坏部件；
- 检查并拧紧松散的部件。
41. 调整机器时请小心谨慎，防止手指卷入
移动刀片和机器的固定部件之间。
42. 修剪斜面草坪时，切勿上下颠簸。在斜
面上改变方向时，请务必小心谨慎。请
勿修剪较陡的倾斜面。
43. 请勿用水管冲洗，避免电机和电气连接
部件进水。
44. 时常检查刀片安装螺栓，确保紧固
妥当。
45. 保证所有螺母、螺栓和螺丝都已拧紧，
确保设备处于安全的工作状态。
46. 存放前，务必使机器充分冷却。
47. 请注意，在维修刀片时，即便已切断电
源，刀片仍可以移动。
48. 出于安全需要，请更换磨损或损坏的部
件。仅使用原厂正品替换部件和附件。
请保留此说明书。
警告： 请勿为图方便或因对产品
足够熟悉（由于重复使用而获得的经
验）而不严格遵循相关产品安全规
则。使用不当或不遵循使用说明书中
的安全规则会导致严重的人身伤害。
重要安全注意事项
电池组相关
1. 在使用电池组之前，请仔细通读所有的
说明以及（1）电池充电器，（2）电
池，以及（3）使用电池的产品上的警
告标记。
2. 请勿拆解电池组。
3. 如果机器运行时间变得过短，请立即停
止使用。否则可能会导致过热、起火甚
至爆炸。
4. 如果电解液进入您的眼睛，请用清水将
其冲洗干净并立即就医。否则可能会导
致视力受损。
5. 请勿使电池组短路：
(1) 请勿使任何导电材料碰触到端子。
(2) 避免将电池组与其他金属物品如钉
子、硬币等放置在同一容器内。
(3) 请勿将电池组置于水中或使其
淋雨。
电池短路将产生大的电流，导致过热，
并可能导致起火甚至击穿。
6. 请勿将工具和电池组置于温度可能达到
或超过50°C（122°F）的场所。
7. 即使电池组已经严重损坏或完全磨损，
也请勿焚烧电池组。电池组会在火中
爆炸。
8. 请小心，勿撞击电池或使其掉落。
9. 请勿使用损坏的电池。
10. 关于如何处理废弃的电池，请遵循当地
法规。
请保留此说明书。
保持电池最大使用寿命的提示
1. 在电池组电量完全耗尽前及时充电。
发现工具电量低时，请停止工具操作，
并给电池组充电。
2. 请勿对已充满电的电池组重新充电。
过度充电将缩短电池的使用寿命。
3. 请在10°C - 40°C（50°F - 104°F）的室
温条件下给电池组充电。请在灼热的电
池组冷却后再充电。
4. 如果电池组长时间（超过六个月）未使
用，请给其充电。
功能描述
安装或拆卸电池组
小心：
•安装或拆卸电池组之前，请务必关闭
工具电源。
•使用前务必锁紧电池盖。以免泥土、
灰尘或有水进入，使产品或电池组
受损。
•务必完全装入电池组，直至看不见红
色指示灯。否则它可能会意外从工具
中脱落，从而造成自身或他人受伤。
•请勿强行安装电池组。如果电池组难
以插入，可能是插入方法不当。
注：
•仅安装单个电池组时，工具无法
工作。

17
中文简体
安装电池组；
1. 向自身拉动电池盖锁定杆并打开电
池盖。
►图片1: 1. 电池盖锁定杆 2. 电池盖
2. 安装电池组时，要将电池组上的舌簧与
外罩上的凹槽对齐，然后推滑到位。将
其完全插入到位，直到锁定并发出卡嗒
声为止。如果插入后仍能看到按钮上侧
的红色指示灯，则说明其未完全锁紧。
►图片2: 1. 电池盖 2. 电池组
3. 在图示位置将锁定钥匙插入到底。
►图片3: 1. 电池组 2. 锁定钥匙
4. 关闭电池盖并推动直至其与锁定杆
扣合。
从修剪机上拆下电池组；
1. 向自身拉动电池盖锁定杆并打开电
池盖。
2. 按下电池组前侧的按钮，同时将电池组
从工具中抽出。
3. 拔出锁定钥匙。
4. 关闭电池盖。
电池保护系统
本工具配备有工具／电池保护系统。该系
统可自动切断电机电源以延长工具和电池
寿命。
作业时，如果工具或电池处于以下情况，工
具将会自动停止运转。部分情况下，指示灯
会亮起。
过载保护
以导致异常高电流的方式操作工具时，工具
会自动停止运转，指示灯不闪烁。在这种情
况下，请关闭工具并停止导致工具过载的应
用操作。然后开启工具重新启动。
过热保护
工具或电池过热时，工具将自动停止运转，
指示灯无闪烁。此时，即使开启工具，工具
也不会启动。在这种情况下，请待工具或电
池冷却后再开启工具。
注： 电池过热保护仅通过带星形标志的电
池组工作。工具过热保护系统通过电池组
工作。
►图片4: 1. 星形标志
过放电保护
►图片5: 1. 电池指示灯
当电池的剩余电量变低时，低电量电池侧的
电池指示灯会闪烁。进一步使用时，工具将
停止运转且电池指示灯亮起约10秒。在这种
情况下，请给电池组充电。
显示电池的剩余电量
仅限带指示灯的电池组
►图片6: 1. 指示灯 2. CHECK（查看）按钮
按电池组上的CHECK（查看）按钮可显示
电池剩余电量。指示灯将亮起数秒。
指示灯 剩余电量
点亮 熄灭 闪烁
75%至
100%
50%至
75%
25%至
50%
0%至
25%
给电池
充电。
电池可
能出现
故障。
注： 在不同的使用条件及环境温度下，指
示灯所示电量可能与实际情况略有不同。
电源开关的操作
警告：
•在将电池组安装至工具之前，请务必
检查开关柄是否能扣动自如，松开时
能否退回至原位。 若工具上的开关无
法正常工作，将可能导致工具失控或
严重的人身伤害。
注：
•试图一次修剪过多的草可能会导致电
机因过载而无法启动。此时，请将修
剪高度改为较高的位置以重新启动。
•在未按下开关按钮时，即便已扣动开
关柄，修剪机也不会启动。

18
中文简体
本修剪机配备有联锁开关和手柄开关。如果
您注意到这些开关有任何异常，请立即停止
操作，并将工具交由最近的Makita（牧田）
授权维修服务中心进行检查。
1. 安装电池组。将锁定钥匙插入联锁开关
中，然后关闭电池盖。
►图片7: 1. 电池组 2. 锁定钥匙
2. 按下开关按钮。
3. 按下开关按钮时，向自身拉开关柄。
►图片8: 1. 开关按钮 2. 开关柄
4. 电机启动运转时即释放开关按钮。修剪
机将会继续运转直至您释放了开关柄。
5. 松开开关柄电机即停止。
6. 不使用时，请拔下锁定钥匙。将锁定钥
匙存于儿童接触不到的安全位置。
调节修剪高度
警告：
•调节修剪高度时，切勿使手和腿置于
修剪机机身之下。
•操作前请务必确保调节柄正确置于凹
槽中。
►图片9: 1. 修剪高度调节柄 2. 销
您可在25 mm - 75 mm范围内调节修剪
高度。
1. 拔下锁定钥匙。
2. 将修剪高度调节杆拉向A侧。将其移动
至您需要的修剪高度。
确保修剪高度调节杆上的销钉与孔相
配，并将杆转向B侧。
注：
•仅可将修剪高度数值作为参考，因为
草坪或地面的状态可能导致草坪高度
与设定的高度略有不同。
•请在不显眼的位置进行测试修剪以获
得理想的修剪高度。
•握紧工具时，更容易移动修剪高度调
节杆。
►图片10
草量指示器
►图片11: 1. 草量指示器
草量指示器显示被割掉的草的量。
— 如草篮未满，指示器在修剪期间处于悬
浮状态。
— 如草篮已满，指示器在修剪期间则不会
处于悬浮状态。在这种情况下，请立即
停止修剪并倒空草篮。然后，清洁草篮
使草篮的网状部分通风。
注：
•指示器仅为粗略指示。视草篮内部
的情况而定，指示器可能无法正常
操作。
装配
警告：
•对修剪机进行任何装配操作前，请务
必拔下锁定钥匙，并取出电池组。 未
拔下锁定钥匙并取出电池组可能会造
成意外启动，导致严重的人身伤害。
•仅可在完整装配后启动工具。 部分装
配的情况下操作工具，将可能因意外
启动而导致严重的人身伤害。
安装电池盖
警告：
•安装电池盖之前请勿插入锁定钥匙
和电池组。否则可能会导致严重人身
伤害。
操作前请安装好电池盖，以保护工具和电池
组，以免进入泥土、灰尘或水。
1. 将电池盖盖在工具上，使工具上的凸起
部分与电池盖上的孔对齐。
►图片12: 1. 电池盖 2. 孔3. 凸起部分
2. 将手放在电池盖的中间并按动。
►图片13: 1. 电池盖
3. 首次操作前，检查电池盖的轴心点是否
已安装正确。检查时，向自身拉动电池
盖锁定杆并打开电池盖。
►图片14: 1. 电池盖 2. 轴心点 3. 电池盖
锁定杆
安装手柄
警告：
•安装手柄时，勿使电线夹在手柄之间
的部件中。
1. 拧松夹紧螺丝（两个）。
►图片15: 1. 下部手柄 2. 夹紧螺丝 3. 拧紧
4. 拧松 5. 凹槽

19
中文简体
2. 向两侧展开下部手柄，展开到位后，将
其向后枢转，放入挡板中的凹槽内。
►图片16: 1. 下部手柄 2. 上部手柄 3. 孔
3. 拧紧两侧的夹紧螺丝以紧固下部手柄。
►图片17: 1. 夹紧螺母 2. 卷曲垫圈 3. 螺
丝4. 拧紧
4. 提起上部手柄，并将上部手柄的螺丝孔
与下部手柄的螺丝扣对齐。用附带的螺
丝、卷曲垫圈和夹紧螺母将其固定。
注：
•此时，紧握上部手柄，以免其从手中
滑落。
►图片18: 1. 支架 2. 上部手柄 3. 导线
注：
•安装上部手柄，使上部手柄和电源线
的方向与图中所示相同。
拆卸或安装刀片
警告：
•拆卸或安装刀片时，请务必拔下锁定
钥匙并取出电池组。未拔下锁定钥匙
并取出电池组可能会造成严重的人身
伤害。
•释放开关后，刀片仍会旋转数秒钟。
确保刀片已完全停止。
•处理刀片时，务必佩戴手套。
►图片19: 1. 刀片 2. 扳手 3. 拧松 4. 木材
1. 侧面放置修剪机，使得修剪高度调节杆
位于上侧。
2. 要锁定刀片，请将木材或类似物品插入
修剪机。
3. 使用套筒扳手逆时针拧松螺栓。
►图片20: 1. 刀片支架 2. 刀片 3. 平垫圈
4. 弹簧垫圈 5. 螺栓
4. 依次拆下螺栓、弹簧垫圈、平垫圈和
刀片。
要安装刀片时，可按与拆卸刀片时相反的步
骤进行。
警告：
•安装刀片时，请小心谨慎，因为其具
有上部／下部朝向。
•顺时针拧紧螺栓以固定刀片。
•放置刀片时，要使得具有旋转方向箭
头的刀片侧朝外。
•确保刀片安装牢固。
安装草篮
拔下锁定钥匙。
►图片21
抬起修剪机机身的后保护罩。
►图片22: 1. 凹槽 2. 挂钩 3. 草篮
将草蓝钩挂到修剪机机身的凹槽上。
操作
修剪
警告：
•开始修剪操作前，请清除修剪区域内
的树枝和石块。此外，还要事先清除
修剪区域内的任何杂草。
•操作修剪机前，请务必佩带带有侧面
罩的护目镜或安全眼镜。
修剪操作时，请用双手牢牢握住草坪修剪机
的手柄。
前轮中部之间的宽度作为修剪范围的参考。
为使修剪齐平，请使修剪区域与之前修剪过
的区域部分重合。
定期检查草篮中的草量，并在装满前将其清
空。每次定时检查前，请务必停止修剪机，
并拔下锁定钥匙和取下电池组。
注：
•在草篮已满的情况下使用草坪修剪
机，会有碍于刀片旋转并给电机带来
额外负载，这可能会导致工具破裂。
修剪长草草坪
►图片23
请勿试图一次性修剪较长的草。相反，应分
阶段修剪草坪，间隔一天或两天进行修剪，
直至草坪高度统一。
注：
•一次性将较长的草修剪得比较短，可
能会导致草枯萎和/或堵塞主机内部。

20
中文简体
清空草篮
警告：
•为降低意外风险，请定期检查草篮是
否有损伤或强度减弱，并在必要时进
行更换。
1. 释放开关柄。
2. 拔下锁定钥匙。
►图片24: 1. 草篮 2. 手柄 3. 后保护罩
3. 打开后保护罩，使用手柄取出草篮。
4. 清空草篮。
保养和存放
警告：
•在存放或尝试执行检查或保养前，请
务必拔下锁定钥匙并取出电池组。
•进行检查和保养操作时，请佩戴
手套。
小心：
•切勿使用汽油、苯、稀释剂、酒精或
类似物品清洁工具。否则可能会导致
工具变色、变形或出现裂缝。
保养
1. 拔下锁定钥匙。将其存于儿童接触不到
的安全位置。
2. 仅可使用温和肥皂和湿布清洁修剪机。
清洁时，请勿喷洒或冲洗修剪机。
3. 将修剪机转向侧面，清除聚集在修剪机
挡板内部的缠绕青草。
4. 检查并确保所有螺母、螺栓、旋钮、螺
丝和紧固装置等都紧固良好。
5. 检查移动部件是否有损伤、破裂和磨
损。请修理任何损坏或遗失的部件。
6. 存放修剪机前，请从中取出电池组。
7. 请将修剪机存于室内清凉、干燥和加
锁的位置。请勿将修剪机和充电器存于
温度可能达到或超过40°C（104°F）的
场所。
存放
警告：
•搬运或存放修剪机时，请握住手柄和
修剪机的前把手。只握住手柄可能会
造成严重的人身伤害或损坏修剪机。
►图片25
1. 拧松夹紧螺丝，展开下部手柄至两侧，
然后向下移动手柄。同时，紧握前把
手，防止其滑落到工具的远端。
►图片26: 1. 夹紧螺丝 2. 夹紧螺母
2. 拧松夹紧螺母，并向后枢转上部手柄。
►图片27: 1. 手柄 2. 夹紧螺母
为了保证产品的安全与可靠性，维修、任
何其他的维修保养或调节需由Makita（牧
田）授权的维修服务中心完成。务必使用
Makita（牧田）的替换部件。
