INSTRUCTION MANUAL
MANUEL D'INSTRUCTION
MANUAL DE INSTRUCCIONES
Cordless Pruning Saw
Scie d'élagage sans l
Sierra Inalámbrica para Podar
DUC101
IMPORTANT: Read Before Using.
IMPORTANT : Lire avant usage.
IMPORTANTE: Lea antes de usar.

2ENGLISH
ENGLISH (Original instructions)
SPECIFICATIONS
Model: DUC101
Overall length
(without guide bar and battery)
357 mm (14″)
Rated voltage D.C. 18 V
Net weight *1 1.1 kg (2.4 lbs)
*2 1.6 - 2.0 kg (3.5 - 4.4 lbs)
Standard guide bar length 100 mm (4″)
Recommended guide bar length 100 mm (4″)
Applicable saw chain type
(refer to the table below)
80TXL
Sprocket Number of teeth 7
Pitch 0.325″
Chain speed 0 - 8.0 m/s
(0 - 480 m/min)
(0 - 1,570 ft/min)
Chain oil tank volume 55 cm3 (1.9  oz)
• Due to our continuing program of research and development, the specications herein are subject to change
without notice.
• Specications may di󰀨er from country to country.
*1: Weight, without the saw chain, guide bar, guide bar cover, oil and battery cartridge(s).
*2: The lightest and heaviest combination of weight, according to EPTA-Procedure 01/2014. The weight may di󰀨er
depending on the attachment(s), including the battery cartridge(s).
Saw chain, guide bar, and sprocket combination
Saw chain type 80TXL
Number of drive links 26
Guide bar Guide bar length 100 mm (4″)
Cutting length 111 mm (4-3/8″)
Part No. 162B84-9
Pitch 0.325″
Gauge 1.1 mm (0.043″)
Type Hard nose bar
Sprocket Number of teeth 7
Pitch 0.325″
WARNING: Use appropriate combination of the guide bar and saw chain. Otherwise personal injury may
result.
Applicable battery cartridge and charger
Battery cartridge BL1815N / BL1820B / BL1830B / BL1840B / BL1850B / BL1860B
Charger DC18RC / DC18RD / DC18RE / DC18SD / DC18SE / DC18SF /
DC18SH / DC18WC
•Some of the battery cartridges and chargers listed above may not be available depending on your region of
residence.
WARNING: Only use the battery cartridges and chargers listed above. Use of any other battery cartridges
and chargers may cause injury and/or re.

3ENGLISH
Recommended cord connected power source
Portable power pack PDC01
•The cord connected power source(s) listed above may not be available depending on your region of residence.
•Before using the cord connected power source, read instruction and cautionary markings on them.
SAFETY WARNINGS
General power tool safety warnings
WARNING: Read all safety warnings, instruc-
tions, illustrations and specications provided
with this power tool. Failure to follow all instructions
listed below may result in electric shock, re and/or
serious injury.
Save all warnings and instruc-
tions for future reference.
The term "power tool" in the warnings refers to your
mains-operated (corded) power tool or battery-operated
(cordless) power tool.
Work area safety
1. Keep work area clean and well lit. Cluttered or
dark areas invite accidents.
2. Do not operate power tools in explosive atmo-
spheres, such as in the presence of ammable
liquids, gases or dust. Power tools create sparks
which may ignite the dust or fumes.
3. Keep children and bystanders away while
operating a power tool. Distractions can cause
you to lose control.
Electrical Safety
1. Power tool plugs must match the outlet. Never
modify the plug in any way. Do not use any
adapter plugs with earthed (grounded) power
tools. Unmodied plugs and matching outlets will
reduce risk of electric shock.
2. Avoid body contact with earthed or grounded
surfaces, such as pipes, radiators, ranges and
refrigerators. There is an increased risk of elec-
tric shock if your body is earthed or grounded.
3. Do not expose power tools to rain or wet con-
ditions. Water entering a power tool will increase
the risk of electric shock.
4. Do not abuse the cord. Never use the cord for
carrying, pulling or unplugging the power tool.
Keep cord away from heat, oil, sharp edges
or moving parts. Damaged or entangled cords
increase the risk of electric shock.
5. When operating a power tool outdoors, use an
extension cord suitable for outdoor use. Use of
a cord suitable for outdoor use reduces the risk of
electric shock.
6. If operating a power tool in a damp location is
unavoidable, use a ground fault circuit inter-
rupter (GFCI) protected supply. Use of a GFCI
reduces the risk of electric shock.
7. Power tools can produce electromagnetic
elds (EMF) that are not harmful to the user.
However, users of pacemakers and other similar
medical devices should contact the maker of their
device and/or doctor for advice before operating
this power tool.
Personal Safety
1. Stay alert, watch what you are doing and use
common sense when operating a power tool.
Do not use a power tool while you are tired or
under the inuence of drugs, alcohol or med-
ication. A moment of inattention while operating
power tools may result in serious personal injury.
2. Use personal protective equipment. Always
wear eye protection. Protective equipment such
as a dust mask, non-skid safety shoes, hard hat or
hearing protection used for appropriate conditions
will reduce personal injuries.
3. Prevent unintentional starting. Ensure the
switch is in the o󰀨-position before connecting
to power source and/or battery pack, picking
up or carrying the tool. Carrying power tools with
your nger on the switch or energising power tools
that have the switch on invites accidents.
4. Remove any adjusting key or wrench before
turning the power tool on. A wrench or a key left
attached to a rotating part of the power tool may
result in personal injury.
5. Do not overreach. Keep proper footing and
balance at all times. This enables better control
of the power tool in unexpected situations.
6. Dress properly. Do not wear loose clothing or
jewellery. Keep your hair and clothing away
from moving parts. Loose clothes, jewellery or
long hair can be caught in moving parts.
7. If devices are provided for the connection of
dust extraction and collection facilities, ensure
these are connected and properly used. Use of
dust collection can reduce dust-related hazards.
8. Do not let familiarity gained from frequent use
of tools allow you to become complacent and
ignore tool safety principles. A careless action
can cause severe injury within a fraction of a
second.
9. Always wear protective goggles to protect
your eyes from injury when using power tools.
The goggles must comply with ANSI Z87.1 in
the USA.
It is an employer's responsibility to enforce the
use of appropriate safety protective equipment
by the tool operators and by other persons in
the immediate working area.
Power tool use and care
1. Do not force the power tool. Use the correct
power tool for your application. The correct
power tool will do the job better and safer at the
rate for which it was designed.

4ENGLISH
2. Do not use the power tool if the switch does
not turn it on and o󰀨. Any power tool that cannot
be controlled with the switch is dangerous and
must be repaired.
3. Disconnect the plug from the power source
and/or remove the battery pack, if detachable,
from the power tool before making any adjust-
ments, changing accessories, or storing power
tools. Such preventive safety measures reduce
the risk of starting the power tool accidentally.
4. Store idle power tools out of the reach of chil-
dren and do not allow persons unfamiliar with
the power tool or these instructions to operate
the power tool. Power tools are dangerous in the
hands of untrained users.
5. Maintain power tools and accessories. Check
for misalignment or binding of moving parts,
breakage of parts and any other condition that
may a󰀨ect the power tool’s operation. If dam-
aged, have the power tool repaired before use.
Many accidents are caused by poorly maintained
power tools.
6. Keep cutting tools sharp and clean. Properly
maintained cutting tools with sharp cutting edges
are less likely to bind and are easier to control.
7. Use the power tool, accessories and tool bits
etc. in accordance with these instructions, tak-
ing into account the working conditions and
the work to be performed. Use of the power tool
for operations di󰀨erent from those intended could
result in a hazardous situation.
8. Keep handles and grasping surfaces dry,
clean and free from oil and grease. Slippery
handles and grasping surfaces do not allow for
safe handling and control of the tool in unexpected
situations.
9. When using the tool, do not wear cloth work
gloves which may be entangled. The entangle-
ment of cloth work gloves in the moving parts may
result in personal injury.
Battery tool use and care
1. Recharge only with the charger specied by
the manufacturer. A charger that is suitable for
one type of battery pack may create a risk of re
when used with another battery pack.
2. Use power tools only with specically desig-
nated battery packs. Use of any other battery
packs may create a risk of injury and re.
3. When battery pack is not in use, keep it away
from other metal objects, like paper clips,
coins, keys, nails, screws or other small metal
objects, that can make a connection from one
terminal to another. Shorting the battery termi-
nals together may cause burns or a re.
4. Under abusive conditions, liquid may be
ejected from the battery; avoid contact. If con-
tact accidentally occurs, ush with water. If
liquid contacts eyes, additionally seek medical
help. Liquid ejected from the battery may cause
irritation or burns.
5. Do not use a battery pack or tool that is dam-
aged or modied. Damaged or modied batteries
may exhibit unpredictable behaviour resulting in
re, explosion or risk of injury.
6. Do not expose a battery pack or tool to re or
excessive temperature. Exposure to re or tem-
perature above 130 °C may cause explosion.
7. Follow all charging instructions and do not
charge the battery pack or tool outside the
temperature range specied in the instruc-
tions. Charging improperly or at temperatures
outside the specied range may damage the
battery and increase the risk of re.
Service
1. Have your power tool serviced by a qualied
repair person using only identical replacement
parts. This will ensure that the safety of the power
tool is maintained.
2. Never service damaged battery packs. Service
of battery packs should only be performed by the
manufacturer or authorized service providers.
3. Follow instruction for lubricating and chang-
ing accessories.
4. Do not modify or attempt to repair the appli-
ance or the battery pack except as indicated in
the instructions for use and care.
General pruning saw safety
warnings
1. Keep all parts of the body away from the saw
chain when the pruning saw is operating.
Before you start the pruning saw, make sure
the saw chain is not contacting anything. A
moment of inattention while operating pruning
saws may cause entanglement of your clothing or
body with the saw chain.
2. Always hold the pruning saw with one hand on
the rear handle and the other hand on the front
handle.
3. Hold the pruning saw by insulated gripping
surfaces only, because the saw chain may con-
tact hidden wiring. Saw chains contacting a "live"
wire may make exposed metal parts of the pruner
saw "live" and could give the operator an electric
shock.
4. Wear eye protection. Further protective equip-
ment for hearing, head, hands, legs and feet is
recommended. Adequate protective equipment
will reduce personal injury from ying debris or
accidental contact with the saw chain.
5. Do not operate a pruning saw in a tree, on a
ladder, from a rooftop, or any unstable sup-
port. Operation of a pruning saw in this manner
could result in serious personal injury.
6. Always keep proper footing and operate the
pruning saw only when standing on xed,
secure and level surface. Slippery or unstable
surfaces may cause a loss of balance or control of
the pruning saw.
7. When cutting a branch that is under tension,
be alert for spring back. When the tension in the
wood bres is released, the spring loaded branch
may strike the operator and/or throw the pruning
saw out of control.
8. Use extreme caution when cutting brush and
saplings. The slender material may catch the saw
chain and be whipped toward you or pull you o󰀨
balance.

5ENGLISH
9. Carry the pruning saw with the pruning saw
switched o󰀨 and away from your body. When
transporting or storing the pruning saw,
always t the guide bar cover. Proper handling
of the pruning saw will reduce the likelihood of
accidental contact with the moving saw chain.
10. Follow instructions for lubricating, chain
tensioning and changing the bar and chain.
Improperly tensioned or lubricated chain may
either break or increase the chance for kickback.
11. Cut wood only. Do not use pruning saw for
purposes not intended. For example: do not
use pruning saw for cutting metal, plastic,
masonry or non-wood building materials. Use
of the pruning saw for operations di󰀨erent than
intended could result in a hazardous situation.
12. This pruning saw is not intended for tree fell-
ing. Use of the pruning saw for operations di󰀨er-
ent than intended could result in serious injury to
the operator or bystanders.
13. Causes and operator prevention of kickback:
Kickback may occur when the nose or tip of the
guide bar touches an object, or when the wood
closes in and pinches the saw chain in the cut.
Tip contact in some cases may cause a sudden
reverse reaction, kicking the guide bar up and
back towards the operator.
Pinching the saw chain along the top of the guide bar may
push the guide bar rapidly back towards the operator.
Either of these reactions may cause you to lose
control of the saw which could result in serious
personal injury. Do not rely exclusively upon the
safety devices built into your saw. As a pruning
saw user, you should take several steps to keep
your cutting jobs free from accident or injury.
Kickback is the result of pruning saw misuse and/
or incorrect operating procedures or conditions
and can be avoided by taking proper precautions
as given below:
•Maintain a rm grip, with thumbs and n-
gers encircling the pruning saw handles,
with both hands on the saw and position
your body and arm to allow you to resist
kickback forces. Kickback forces can be
controlled by the operator, if proper precau-
tions are taken. Do not let go of the pruning
saw.
Fig.1
•Do not overreach and do not cut above
shoulder height. This helps prevent unin-
tended tip contact and enables better control
of the pruning saw in unexpected situations.
•Only use replacement guide bars and saw
chains specied by the manufacturer.
Incorrect replacement guide bars and saw
chains may cause chain breakage and/or
kickback.
•Follow the manufacturer’s sharpening
and maintenance instructions for the saw
chain. Decreasing the depth gauge height
can lead to increased kickback.
14. Follow all instructions when clearing jammed
material, storing or servicing the pruning saw.
Make sure the switch is o󰀨 and the battery
pack is removed.
Additional Safety Instructions
Personal protective equipment
1. Clothing must be close-tting, but must not
obstruct mobility.
2. Wear the following protective clothing during
work:
• A tested safety helmet, if a hazard is pre-
sented by falling branches or similar;
•A face mask or goggles;
• Suitable ear protection (ear mu󰀨s, custom or
mouldable ear plugs). Octave brand analysis
upon request.
•Firm leather safety gloves;
•Long trousers manufactured from strong
fabric;
•Protective dungarees of cut-resistant fabric;
•Safety shoes or boots with non-slip soles,
steel toes, and cut-resistant fabric lining;
•A breathing mask, when carrying out work
which produces dust (e.g. sawing dry wood).
Operation
1. Before starting work, check that the tool is in
proper working order and that its condition
complies with the safety regulations. Check in
particular that:
•The run-down brake is working properly;
• The bar and the sprocket cover are tted
correctly;
•The chain has been sharpened and ten-
sioned in accordance with the regulations.
2. Do not start the tool with the chain cover being
installed on it. Starting the tool with the chain
cover being installed on it may cause the chain
cover to thrown out forward resulting in personal
injury and damage to objects around the operator.
3. Do not stand directly under the branch that
is being cut. Pay attention to the falling
branches.
4. Do not operate the tool in bad weather or if
there is a risk of lightning.
5. When you use the tool on muddy ground, wet
slope, or slippery place, pay attention to your
footing.
Electrical and battery safety
1. Avoid dangerous environment. Don't use the
tool in dump or wet locations or expose it to
rain. Water entering the tool will increase the risk
of electric shock.

6ENGLISH
2. Do not dispose of the battery(ies) in a re.
The cell may explode. Check with local codes for
possible special disposal instructions.
3. Do not open or mutilate the battery(ies).
Released electrolyte is corrosive and may cause
damage to the eyes or skin. It may be toxic if
swallowed.
4. Do not charge battery in rain, or in wet
locations.
5. Do not charge the battery outdoors.
6. Do not handle charger, including charger plug,
and charger terminals with wet hands.
7. Do not replace the battery with wet hands.
8. Do not leave the battery in the rain, nor charge,
use, or store the battery in a damp or wet
place.
9. Do not wet the terminal of battery with liquid
such as water, or submerge the battery. If the
terminal gets wet or liquid enters inside of battery,
the battery may be short circuited and there is a
risk of overheat, re, or explosion.
10. After removing the battery from the machine or
charger, be sure to attach the battery cover to
the battery and store it in a dry place.
11. If the battery cartridge gets wet, drain the
water inside and then wipe it with a dry cloth.
Dry the battery cartridge completely in a dry
place before use.
SAVE THESE INSTRUCTIONS.
WARNING: DO NOT let comfort or familiarity
with product (gained from repeated use) replace
strict adherence to safety rules for the subject
product. MISUSE or failure to follow the safety
rules stated in this instruction manual may cause
serious personal injury.
Symbols
The followings show the symbols used for tool.
volts
direct current
feet per minute
parts number of applicable saw chain and
guide bar
Important safety instructions for
battery cartridge
1. Before using battery cartridge, read all instruc-
tions and cautionary markings on (1) battery
charger, (2) battery, and (3) product using
battery.
2. Do not disassemble or tamper with the battery
cartridge. It may result in a re, excessive heat,
or explosion.
3. If operating time has become excessively
shorter, stop operating immediately. It may
result in a risk of overheating, possible burns
and even an explosion.
4. If electrolyte gets into your eyes, rinse them
out with clear water and seek medical atten-
tion right away. It may result in loss of your
eyesight.
5. Do not short the battery cartridge:
(1) Do not touch the terminals with any con-
ductive material.
(2) Avoid storing battery cartridge in a con-
tainer with other metal objects such as
nails, coins, etc.
(3) Do not expose battery cartridge to water
or rain.
A battery short can cause a large current
ow, overheating, possible burns and even a
breakdown.
6. Do not store and use the tool and battery car-
tridge in locations where the temperature may
reach or exceed 50 °C (122 °F).
7. Do not incinerate the battery cartridge even if
it is severely damaged or is completely worn
out. The battery cartridge can explode in a re.
8. Do not nail, cut, crush, throw, drop the battery
cartridge, or hit against a hard object to the
battery cartridge. Such conduct may result in a
re, excessive heat, or explosion.
9. Do not use a damaged battery.
10.
The contained lithium-ion batteries are subject to
the Dangerous Goods Legislation requirements.
For commercial transports e.g. by third parties,
forwarding agents, special requirement on pack-
aging and labeling must be observed.
For preparation of the item being shipped, consult-
ing an expert for hazardous material is required.
Please also observe possibly more detailed
national regulations.
Tape or mask o󰀨 open contacts and pack up the
battery in such a manner that it cannot move
around in the packaging.
11. When disposing the battery cartridge, remove
it from the tool and dispose of it in a safe
place. Follow your local regulations relating to
disposal of battery.
12. Use the batteries only with the products
specied by Makita. Installing the batteries to
non-compliant products may result in a re, exces-
sive heat, explosion, or leak of electrolyte.
13. If the tool is not used for a long period of time,
the battery must be removed from the tool.
14. During and after use, the battery cartridge may
take on heat which can cause burns or low
temperature burns. Pay attention to the han-
dling of hot battery cartridges.
15. Do not touch the terminal of the tool imme-
diately after use as it may get hot enough to
cause burns.
16. Do not allow chips, dust, or soil stuck into the
terminals, holes, and grooves of the battery
cartridge. It may cause heating, catching re,
burst and malfunction of the tool or battery car-
tridge, resulting in burns or personal injury.

7ENGLISH
17. Unless the tool supports the use near
high-voltage electrical power lines, do not use
the battery cartridge near high-voltage electri-
cal power lines. It may result in a malfunction or
breakdown of the tool or battery cartridge.
18. Keep the battery away from children.
SAVE THESE INSTRUCTIONS.
CAUTION: Only use genuine Makita batteries.
Use of non-genuine Makita batteries, or batteries that
have been altered, may result in the battery bursting
causing res, personal injury and damage. It will
also void the Makita warranty for the Makita tool and
charger.
Tips for maintaining maximum
battery life
1. Charge the battery cartridge before completely
discharged. Always stop tool operation and
charge the battery cartridge when you notice
less tool power.
2. Never recharge a fully charged battery car-
tridge. Overcharging shortens the battery
service life.
3. Charge the battery cartridge with room tem-
perature at 10 °C - 40 °C (50 °F - 104 °F). Let
a hot battery cartridge cool down before
charging it.
4. When not using the battery cartridge, remove
it from the tool or the charger.
5. Charge the battery cartridge if you do not use
it for a long period (more than six months).
PARTS DESCRIPTION
1
2
3
4
5
7
8
10
11
9
6
12
Fig.2
1Front handle 2Safety cover 3Saw chain
4Guide bar 5Oil tank cap 6Guide bar cover
7Sprocket cover 8Lock-o󰀨 lever 9Rear handle
10 Switch trigger 11 Lever 12 Battery cartridge

8ENGLISH
FUNCTIONAL
DESCRIPTION
CAUTION: Always be sure that the tool is
switched o󰀨 and the battery cartridge is removed
before adjusting or checking function on the tool.
Installing or removing battery
cartridge
CAUTION: Always switch o󰀨 the tool before
installing or removing of the battery cartridge.
CAUTION: Hold the tool and the battery car-
tridge rmly when installing or removing battery
cartridge. Failure to hold the tool and the battery
cartridge rmly may cause them to slip o󰀨 your hands
and result in damage to the tool and battery cartridge
and a personal injury.
1
3
2
Fig.3
► 1. Red indicator 2. Button 3. Battery cartridge
To remove the battery cartridge, slide it from the tool
while sliding the button on the front of the cartridge.
To install the battery cartridge, align the tongue on the
battery cartridge with the groove in the housing and slip
it into place. Insert it all the way until it locks in place
with a little click. If you can see the red indicator as
shown in the gure, it is not locked completely.
CAUTION: Always install the battery cartridge
fully until the red indicator cannot be seen. If not,
it may accidentally fall out of the tool, causing injury to
you or someone around you.
CAUTION: Do not install the battery cartridge
forcibly. If the cartridge does not slide in easily, it is
not being inserted correctly.
Indicating the remaining battery capacity
Only for battery cartridges with the indicator
1
2
Fig.4
► 1. Indicator lamps 2. Check button
Press the check button on the battery cartridge to indi-
cate the remaining battery capacity. The indicator lamps
light up for a few seconds.
Indicator lamps Remaining
capacity
Lighted O󰀨 Blinking
75% to 100%
50% to 75%
25% to 50%
0% to 25%
Charge the
battery.
The battery
may have
malfunctioned.
NOTE: Depending on the conditions of use and the
ambient temperature, the indication may di󰀨er slightly
from the actual capacity.
NOTE: The rst (far left) indicator lamp will blink when
the battery protection system works.
Tool / battery protection system
The tool is equipped with a tool/battery protection sys-
tem. This system automatically cuts o󰀨 power to the
motor to extend tool and battery life. The tool will auto-
matically stop during operation if the tool or battery is
placed under one of the following conditions:
Overload protection
When the tool or battery is operated in a manner that
causes it to draw an abnormally high current, the tool
automatically stops. In this situation, turn the tool o󰀨
and stop the application that caused the tool to become
overloaded. Then turn the tool on to restart.

9ENGLISH
Overheat protection
When the tool or battery is overheated, the tool stops
automatically. In this case, let the tool and battery cool
before turning the tool on again.
Overdischarge protection
When the battery capacity is not enough, the tool stops
automatically. In this case, remove the battery from the
tool and charge the battery.
Switch action
WARNING: For your safety, this tool is
equipped with lock-o󰀨 lever which prevents the
tool from unintended starting. NEVER use the tool
if it runs when you simply pull the switch trigger
without pressing the lock-o󰀨 lever. Return the
tool to our authorized service center for proper
repairs BEFORE further usage.
WARNING: NEVER tape down or defeat pur-
pose and function of lock-o󰀨 lever.
CAUTION: Before installing the battery car-
tridge into the tool, always check to see that the
switch trigger actuates properly and returns to
the "OFF" position when released.
NOTICE: Do not pull the switch trigger hard with-
out pressing the lock-o󰀨 lever. This can cause
switch breakage.
To prevent the switch trigger from being accidentally
pulled, a lock-o󰀨 lever is provided. To start the tool,
depress the lock-o󰀨 lever and pull the switch trigger.
Release the switch trigger to stop.
1
2
Fig.5
► 1. Switch trigger 2. Lock-o󰀨 lever
Checking the run-down brake
CAUTION: If the saw chain does not stop
within a few seconds in this test, stop using the
tool and consult our authorized service center.
Run the tool, and then release the switch trigger com-
pletely. The saw chain must come to a standstill within
a few seconds.
ASSEMBLY
CAUTION: Always be sure that the tool is
switched o󰀨 and the battery cartridge is removed
before carrying out any work on the tool.
CAUTION: Do not touch the saw chain with bare
hands. Always wear gloves when handling the saw chain.
Removing or installing saw chain
CAUTION: The saw chain and the guide bar are
still hot just after the operation. Let them cool down
enough before carrying out any work on the tool.
CAUTION: Carry out the procedure of install-
ing or removing saw chain in a clean place free
from sawdust and the like.
Removing the saw chain
To remove the saw chain, perform the following steps:
1. Pull the lever up.
1
Fig.6
► 1. Lever
2. Turn the lever counterclockwise until the sprocket
cover comes o󰀨.
2
1
Fig.7
► 1. Sprocket cover 2. Lever

10 ENGLISH
3. Remove the sprocket cover then remove the saw
chain and guide bar from the tool body.
Installing the saw chain
To install the saw chain, perform the following steps:
1. Pull the lever up.
1
Fig.8
► 1. Lever
2. Turn the lever counterclockwise until the sprocket
cover comes o󰀨.
1
2
Fig.9
► 1. Lever 2. Sprocket cover
3. Remove the sprocket cover.
4.
Align the hole on the guide bar with the pin on the tool
body, and then place the guide bar as shown in the gure.
1
3
2
Fig.10
► 1. Guide bar 2. Hole 3. Pin
5.
Slide the guide bar toward the sprocket to lock the pin.
1
2
Fig.11
► 1. Guide bar 2. Pin
6. Remove the guide bar from the tool body.
7.
Check the direction of the saw chain. Match the direc-
tion of the saw chain with that of the mark on the tool body.
1
Fig.12
► 1. Mark on tool body

11 ENGLISH
8. Fit one end of the saw chain on the top of the
guide bar.
9. Fit the other end of the saw chain around the
sprocket, then attach the guide bar to the tool body so
that the hole on the guide bar is aligned with the pin on
the body.
1
Fig.13
► 1. Sprocket
Press the guide bar against the tool body to release the
pin. The saw chain tension is automatically adjusted.
1
2
3
Fig.14
► 1. Saw chain 2. Pin 3. Sprocket
10. Place the sprocket cover so that the bolt and pin
on the tool body meet their counterparts on the sprocket
cover.
1
3
2
Fig.15
► 1. Sprocket cover 2. Bolt 3. Pin
11. Turn the lever clockwise until the sprocket cover is
secured then return it to the original position.
1
2
Fig.16
► 1. Lever 2. Sprocket cover
Make sure that the saw chain does not loose and the
saw chain can be moved smoothly back and forth. If
necessary, adjust the tension of the saw chain by refer-
ring to the section for adjusting saw chain tension.
Adjusting saw chain tension
CAUTION: A chain which is too loose can
jump o󰀨 the bar and it may cause an injury or
accident.
The saw chain may become loose after many hours
of use. From time to time check the saw chain tension
before use.
If the saw chain is loose, adjust the saw chain tension.
1. Pull the lever up.
1
Fig.17
► 1. Lever

12 ENGLISH
2. Turn the lever counterclockwise a little to loosen
the sprocket cover lightly. The chain tension is adjusted
automatically.
2
1
Fig.18
► 1. Sprocket cover 2. Lever
3. Turn the lever clockwise until the sprocket cover is
secured then return it to the original position.
1
2
Fig.19
► 1. Lever 2. Sprocket cover
OPERATION
Lubrication
CAUTION: Do not operate the tool when the
tank is empty. Replenish the oil in due time before
the tank is empty.
CAUTION: Prevent the oil from coming into
contact with the skin and eyes. Contact with the
eyes causes irritation. In the event of eye contact,
ush the a󰀨ected eye immediately with clear
water, then consult a doctor at once.
CAUTION: Never use waste oil. Waste oil con-
tains carcinogenic substances. The contaminants
in waste oil cause accelerated wear of the oil
pump, the bar and the chain. Waste oil is harmful
to the environment.
NOTICE: When the tool is used for the rst time,
it may take up to two minutes for the saw chain oil
to begin its lubricating e󰀨ect upon the saw mech-
anism. Run the saw without load until it does so.
NOTICE: When lling the chain oil for the rst
time, or relling the tank after it has been com-
pletely emptied, add oil up to the bottom edge of
the ller neck. The oil delivery may otherwise be
impaired.
NOTICE: Use the saw chain oil exclusively for
Makita tools or equivalent oil available in the
market.
NOTICE: Never use oil including dust and parti-
cles or volatile oil.
NOTICE: When pruning trees, use botanical oil.
Mineral oil may harm trees.
NOTICE: Before the cutting operation, make sure
that the provided oil tank cap is screwed in place.
Saw chain is automatically lubricated when the tool is in
operation. Check the amount of remaining oil in the oil
tank periodically through the oil inspection window.
1
2
Fig.20
► 1. Oil inspection window 2. Oil tank cap
To ll the oil, perform the following steps:
1. Clean the area around the oil tank cap thoroughly
to prevent any dirt from entering the oil tank.
2. Lay the tool on its side.

13 ENGLISH
3. Push the button on the oil tank cap so that the
button on the other side stands up, and then remove the
oil tank cap by turning it.
1
23
Fig.21
► 1. Oil tank cap 2. Tighten 3. Loosen
4. Fill the oil tank with the oil. The proper amount of
oil is 55 ml (1.9  oz).
5. Screw the oil tank cap rmly back in place.
6. Wipe away any spilt chain oil carefully.
NOTE: If it is di󰀩cult to remove the oil tank cap, insert
the tip of slotted screwdriver into the slot of the oil
tank cap, and then remove the oil tank cap by turning
it counterclockwise.
21
Fig.22
► 1. Slot 2. Slotted screwdriver
After relling, hold the tool away from the material to
be cut. Start it and wait until lubrication on saw chain is
adequate.
Fig.23
Working with the tool
CAUTION: Keep all parts of the body away
from the saw chain when the tool is operating.
CAUTION: Hold the tool rmly with both
hands when the tool is operating.
CAUTION: Do not overreach. Keep proper
footing and balance at all times.
NOTICE: Never toss or drop the tool.
NOTICE: Do not cover the vents of the tool.
Before starting the tool, bring the root of guide bar and
the support part of tool body in contact with the branch
to be cut as shown in the gure. While contacting the
branch with the tool and guide bar, start the tool and
saw the branch by moving the tool down along the
branch.
Fig.24
CAUTION: Before the cutting operation, make
sure that the branch to be cut is in contact with
the root of guide bar and the support part of tool
body. Otherwise, the tool may be pulled toward the
tip of guide bar and the guide bar may wobble, and
may result in an injury.

14 ENGLISH

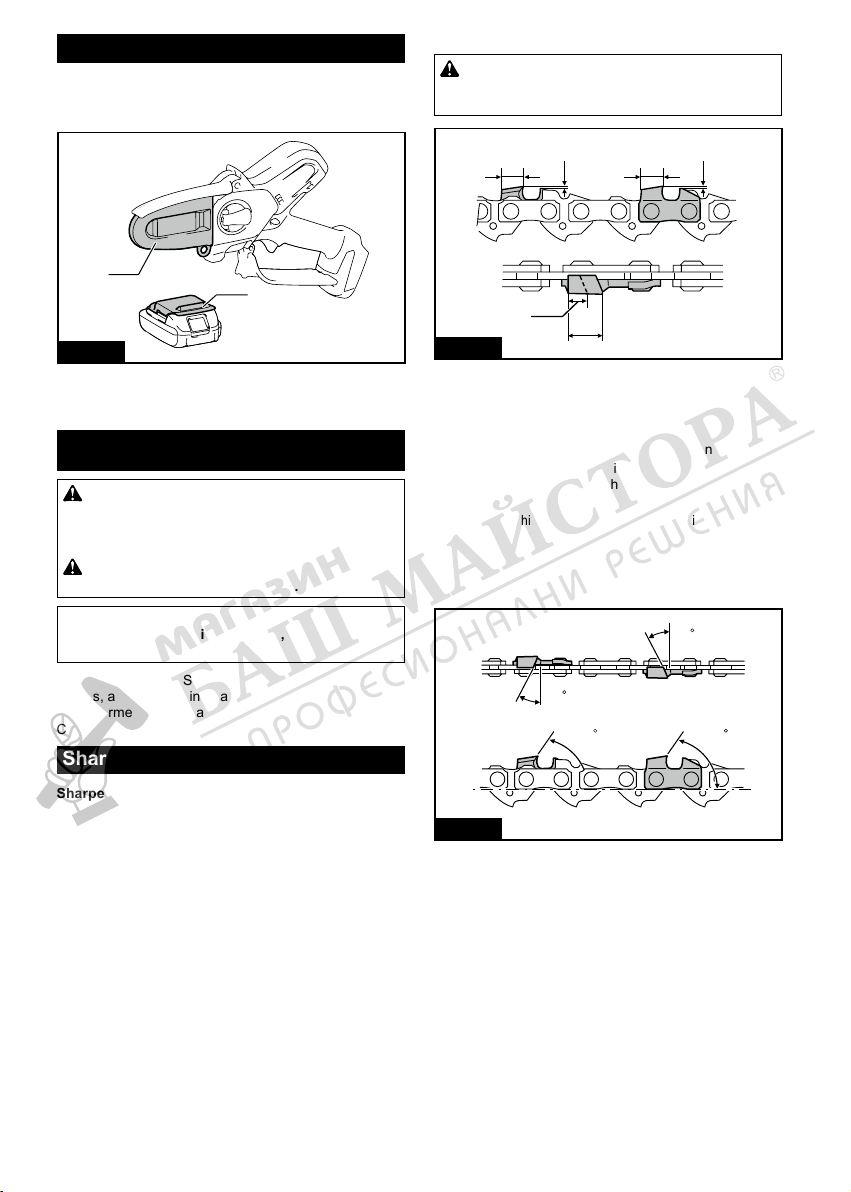

Carrying tool
Before carrying the tool, always remove the battery
cartridge from the tool. Then attach the guide bar cover.
Also cover the battery cartridge with the battery cover.
1
2
Fig.25
► 1. Guide bar cover 2. Battery cover
MAINTENANCE
CAUTION: Always be sure that the tool is
switched o󰀨 and the battery cartridge is removed
before attempting to perform inspection or
maintenance.
CAUTION: Always wear gloves when perform-
ing any inspection or maintenance.
NOTICE: Never use gasoline, benzine, thinner,
alcohol or the like. Discoloration, deformation or
cracks may result.
To maintain product SAFETY and RELIABILITY,
repairs, any other maintenance or adjustment should
be performed by Makita Authorized or Factory Service
Centers, always using Makita replacement parts.
Sharpening the saw chain
Sharpen the saw chain when:
•Mealy sawdust is produced when damp wood is
cut;
• The chain penetrates the wood with di󰀩culty, even
when heavy pressure is applied;
•The cutting edge is obviously damaged;
•The saw pulls to the left or right in the wood.
(caused by uneven sharpening of the saw chain or
damage to one side only)
Sharpen the saw chain frequently but a little each time.
Two or three strokes with a le are usually su󰀩cient for
routine resharpening. When the saw chain has been
resharpened several times, have it sharpened in our
authorized service center.
Sharpening criteria:
WARNING: An excessive distance between
the cutting edge and depth gauge increases the
risk of kickback.
22
11
31
Fig.26
► 1. Cutter length 2. Distance between cutting edge
and depth gauge 3. Minimum cutter length (3 mm)
— All cutter length must be equal. Di󰀨erent cutter
lengths prevent the saw chain from running
smoothly and may cause the saw chain to break.
— Do not sharpen the chain when the cutter length
has reached 3 mm or shorter. The chain must be
replaced with new one.
—
The chip thickness is determined by the distance between
the depth gauge (round nose) and the cutting edge.
— The best cutting results are obtained with following
distance between cutting edge and depth gauge.
• Chain blade 80TXL : 0.65 mm (0.025″)
30
30
55 55
Fig.27
— The sharpening angle of 30° must be the same on
all cutters. Di󰀨erent cutter angles cause the chain
to run roughly and unevenly, accelerate wear, and
lead to chain breaks.
— Use a suitable round le so that the proper sharp-
ening angle is kept against the teeth.
•Chain blade 80TXL : 55°
File and le guiding
— Use a special round le (optional accessory) for
saw chains to sharpen the chain. Normal round
les are not suitable.
—
Diameter of the round le for each saw chain is as follows:
• Chain blade 80TXL : 4.0 mm (5/32″)
— The le should only engage the cutter on the for-
ward stroke. Lift the le o󰀨 the cutter on the return
stroke.

15 ENGLISH
— Sharpen the shortest cutter rst. Then the length
of this shortest cutter becomes the standard for all
other cutters on the saw chain.
— Guide the le as shown in the gure.
1
2
Fig.28
► 1. File 2. Saw chain
— The le can be guided more easily if a le holder
(optional accessory) is employed. The le holder
has markings for the correct sharpening angle of
30° (align the markings parallel to the saw chain)
and limits the depth of penetration (to 4/5 of the
le diameter).
30
1/5
1
Fig.29
► 1. File holder
— After sharpening the chain, check the height of the
depth gauge using the chain gauge tool (optional
accessory).
Fig.30
— Remove any projecting material, however small,
with a special at le (optional accessory).
— Round o󰀨 the front of the depth gauge again.
Cleaning the guide bar
Chips and sawdust will build up in the guide bar groove.
They may clog the bar groove and impair the oil ow.
Clean out the chips and sawdust every time when you
sharpen or replace the saw chain.
Fig.31
Cleaning the sprocket cover
Chips and saw dust will accumulate inside of the
sprocket cover. Remove the sprocket cover and saw
chain from the tool then clean the chips and saw dust.
Fig.32

16 ENGLISH
Cleaning the oil discharge hole
Small dust or particles may be built up in the oil discharge
hole during operation. These dust or particles may impair the
oil to ow and cause an insu󰀩cient lubrication on the whole
saw chain. When a poor chain oil delivery occurs at the top of
guide bar, clean the oil discharge hole as follows.
1. Remove the sprocket cover and saw chain from the tool.
2. Remove the small dust or particles using a slotted
screwdriver or the like.
2
1
Fig.33
► 1. Slotted screwdriver 2. Oil discharge hole
3. Insert the battery cartridge into the tool. Pull the
switch trigger to ow built-up dust or particles o󰀨 the oil
discharge hole by discharging chain oil.
4.
Remove the battery cartridge from the tool. Reinstall the
sprocket cover and saw chain and guide bar on the tool.
Replacing the sprocket
CAUTION: A worn sprocket will damage a new
saw chain. Have the sprocket replaced in this case.
Before tting a new saw chain, check the condition of
the sprocket.
1
2
Fig.34
► 1. Sprocket 2. Areas to be worn out
Always t a new locking ring when replacing the
sprocket.
2
1
Fig.35
► 1. Locking ring 2. Sprocket
NOTICE: Make sure that the sprocket is installed
as shown in the gure.
Storing the tool
1. Clean the tool before storing. Remove any chips
and sawdust from the tool after removing the sprocket
cover.
2. After cleaning the tool, run it under no load to lubri-
cate the saw chain and guide bar.
3. Cover the guide bar with the guide bar cover.
4. Empty the oil tank.

17 ENGLISH
Instructions for periodic maintenance
To ensure long life, prevent damage and ensure the full functioning of the safety features, the following maintenance
must be performed regularly. Warranty claims can be recognized only if this work is performed regularly and properly.
Failure to perform the prescribed maintenance work can lead to accidents! The user of the tool must not perform
maintenance work which is not described in the instruction manual. All such work must be carried out by our autho-
rized service center.
Check item / Operating time Before
operation
Everyday Every week Every 3
month
Annually Before
storage
Whole tool Inspection. -----
Cleaning. -----
Check at
authorized
service center.
----
Saw chain Inspection. -----
Sharpening if
necessary.
-----
Guide bar Inspection. ----
Remove from
the tool.
-----
Chain
lubrication
Check the oil
feed rate.
-----
Switch trigger Inspection. -----
Lock-o󰀨 lever Inspection. -----
Oil tank cap Check
tightness.
-----
Screws and
nuts
Inspection. - - ---

18 ENGLISH
TROUBLESHOOTING
Before asking for repairs, conduct your own inspection rst. If you nd a problem that is not explained in the manual,
do not attempt to dismantle the tool. Instead, ask Makita Authorized Service Centers, always using Makita replace-
ment parts for repairs.
Malfunction status Cause Action
The tool does not start. Battery cartridge is not installed. Install a charged battery cartridge.
Battery problem (low voltage). Recharge the battery cartridge. If recharg-
ing is not e󰀨ective, replace the battery
cartridge.
The motor stops running after a little use. Battery's charge level is low. Recharge the battery cartridge. If recharg-
ing is not e󰀨ective, replace the battery
cartridge.
No oil on the chain. Oil tank is empty. Fill the oil tank.
Oil guide groove is dirty. Clean the groove.
The tool does not reach maximum RPM. Battery cartridge is installed improperly. Install the battery cartridge as described in
this manual.
Battery power is dropping. Recharge the battery cartridge. If recharg-
ing is not e󰀨ective, replace the battery
cartridge.
The drive system does not work correctly. Ask the authorized service center in your
region for repair.
Abnormal vibration:
Stop the tool immediately!
Loose guide bar or saw chain. Adjust the guide bar and saw chain
tension.
Tool malfunction. Ask the authorized service center in your
region for repair.
The saw chain cannot be installed. The combination of saw chain and
sprocket is not correct.
Use the correct combination of saw chain
and sprocket by referring to the section for
specications.
OPTIONAL
ACCESSORIES
CAUTION: These accessories or attachments
are recommended for use with your Makita tool
specied in this manual. The use of any other
accessories or attachments might present a risk of
injury to persons. Only use accessory or attachment
for its stated purpose.
If you need any assistance for more details regard-
ing these accessories, ask your local Makita Service
Center.
•Saw chain
•Guide bar
•Guide bar cover
•File
•Tool bag
•Makita genuine battery and charger
NOTE: Some items in the list may be included in the
tool package as standard accessories. They may
di󰀨er from country to country.
MAKITA LIMITED WARRANTY
Please refer to the annexed warranty sheet for the
most current warranty terms applicable to this product.
If annexed warranty sheet is not available, refer to the
warranty details set forth at below website for your
respective country.
United States of America: www.makitatools.com
Canada: www.makita.ca
Other countries: www.makita.com
