Makita 5005BA User manual

Circular Saw
Blade
diameter
140 mm (542") MODEL 5005BA
Equipped with Electric Blade Brake
. Noload Overall Net
Max. cutting depth
0" 4 5O speed length weight
INSTRUCTION MANUAL
140 mm
(5-1 12")
DOUBLE
INSULATION
45 mm
31 mm
8,000
249 mm 3.1 kg
(1 -314") (1 -3/16")
R/min.
19-1 3/16") 17 Ibs)
SPECIFICATIONS

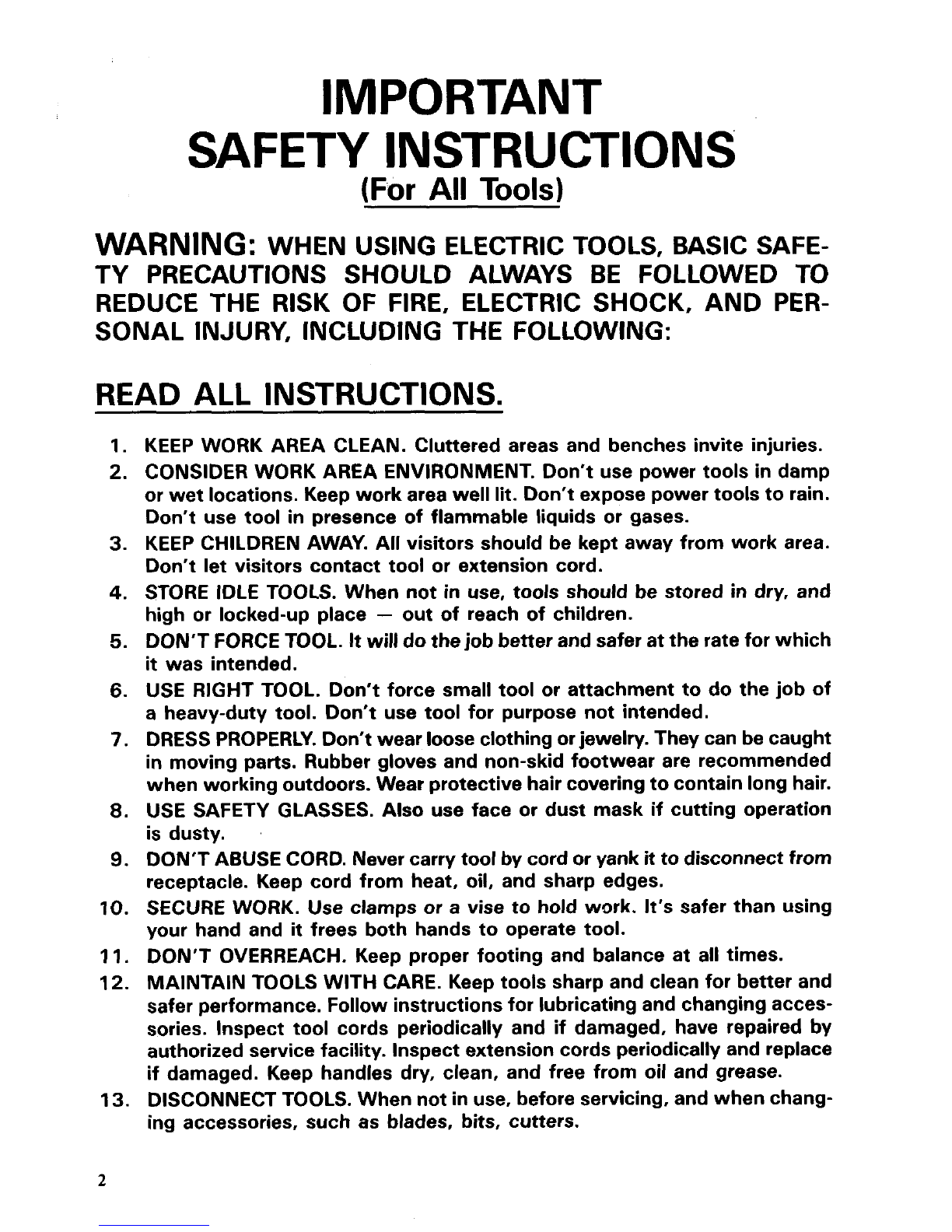

IMPORTANT
SAFETY INSTRUCTIONS
(For All Tools)
WARNING:
WHEN USING ELECTRIC TOOLS, BASIC SAFE-
REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, AND PER-
TY PRECAUTIONS SHOULD ALWAYS BE FOLLOWED TO
SONAL INJURY, INCLUDING THE FOLLOWING:
READ ALL INSTRUCTIONS.
1.
2.
3.
4.
5.
6.
7.
8.
9.
IO.
11.
12.
13.
2
KEEP WORK AREA CLEAN. Cluttered areas and benches invite injuries.
CONSIDER WORK AREA ENVIRONMENT. Don't use power tools
in damp
or wet locations. Keepwork areawell
lit. Don't expose power tools torain.
Don't use tool
in presence of flammable liquids or gases.
KEEP CHILDREN AWAY. All visitors should be kept away from work area.
Don't let visitors contact tool or extension cord.
STORE IDLE TOOLS. When not
in use, tools should be stored in dry, and
high or locked-up place
- out of reach of children.
DON'T FORCETOOL.
It will dothejobbetterandsafer at the ratefor which
it was intended.
USE RIGHT TOOL. Don't force small tool or attachment to do the job
of
a heavy-duty tool. Don't use tool for purpose not intended.
DRESSPROPERLY. Don't wear looseclothingorjewelry. They can becaught
in moving parts. Rubber gloves and non-skid footwear are recommended
whenworking outdoors. Wear protective hair coveringtocontain long hair.
USE SAFETY GLASSES. Also use face or dust mask
if cutting operation
is dusty.
DON'T ABUSE CORD. Never carrytoolby cordor yank
it todisconnectfrom
receptacle. Keep cord from heat, oil, and sharp edges.
SECURE WORK. Use clamps or a vise to hold work. It's safer than using
your hand and
it frees both hands to operate tool.
DON'T OVERREACH. Keep proper footing and balance at all times.
MAINTAINTOOLS WITH CARE. Keep tools sharp and clean for better and
safer performance. Follow instructionsfor lubricatingand changing acces-
sories. Inspect tool cords periodically and
if damaged, have repaired by
authorized service facility. Inspectextensioncords periodically and replace
if damaged. Keep handles dry, clean, and free from oil and grease.
DISCONNECTTOOLS. When not
in use, before servicing, andwhenchang-
ing accessories, such as blades, bits, cutters.

14. REMOVE ADJUSTING KEYS AND WRENCHES. Form habit of checking to
see that keysand adjusting wrenches are removedfromtoolbeforeturning
it on.
15. AVOID UNINTENTIONALSTARTING. Don’t carry plugged-intool withfinger
on switch. Be sure switch
is OFF when plugging in.
16. OUTDOOR USE EXTENSIONCORDS. When tool is usedoutdoors, useonly
extension cords intended for use outdoors and
so marked.
17. STAY ALERT. Watch what you are doing, usecommon sense. Don‘t operate
tool when you are tired.
18. CHECK DAMAGEDPARTS. Before further use of the tool, a guard or other
part that is damaged should be carefully checked to determine that
it will
operate properly and perform itsintended function. Check for alignment of
moving parts, binding of moving parts, breakage of parts, mounting, and
any other conditions that may affect its operation. A guard or other part
that is damaged should be properly repaired or replaced by an authorized
service center unless otherwise indicated elsewhere in this instruction
manual. Havedefective switches replacedby authorizedservicecenter. Don’t
use tool if switch does not turn
it on and off.
19. GUARD AGAINST ELECTRICSHOCK. Preventbody contact withgrounded
surfaces. For example; pipes, radiators, ranges, refrigerator enclosures.
20. REPLACEMENTPARTS. When servicing, useonly identicalreplacementparts.
21. POLARIZEDPLUGS. To reducethe riskof electric shock, this equipment has
a polarized plug (one blade is wider than the other). This plug will fit in a
polarized outlet only one way. If the plug does not fit fully
in the outlet,
reversethe plug. If
it stilldoes not fit, contact aqualifiedelectriciantoinstall
the proper outlet. Do not change the plug in any way.
VOLTAGE WARNING: Before connectingthe tooltoa power source (receptacle,
outlet, etc.) be sure the voltage supplied is the same as that specified on the
nameplate of the tool. A power source with voltage greater than that specified
for the tool can result in SERIOUS INJURY tothe user
- as well as damage to
the tool. If in doubt, DO NOT PLUG IN THE TOOL. Using a power source with
voltage less than the nameplate rating is harmful to the motor.
3

Use Of Extension Cord
If the extension cord is intended to be usedoutdoors, the cord shall be marked
withthe suffix W-A following the cord type designation, for example
- SJTW-
A. to indicate
it is acceptable for outdoor use. Use an extension cord heavy
enough tocarry the current the toolwill draw. Undersizecord will cause a drop
in line voltage resulting in loss of power and over-heating. Make sure the exten-
sion cord is in good condition before using. Use the table below to determine
the proper wire size required in the extension cord.
Ampere rating
(onnameplate)
0- 2.10 - 3.50 - 5.10 - 7.10 - 12.10 -
2.00 3.40 5.00 7.00 12.00 16.00
1 Ext. Cable Lenath I
Wire Size (AmericanWire Gauae)
25 Ft.
50 Ft.
75 Ft.
100 Ft.
150 Ft.
18 18 18 18 16 14
18 18 18 16 14 12
18 18 16 14 12 10
18 16 14 12 10
16 14 12 12
-
- -
1.
2.
3.
4.
ADDITIONAL SAFETY RULES
KeeD Guards In Place and In Working Order.
Never wedge or tie lowerguard open. Checkoperationof lowerguardbefore
each use. Don't use
if lower guard does not close briskly over saw blade.
CAUTION:
If saw isdropped, lower guardmay be bent, restrictingfull return.
Keep Blades Clean and Sharp.
Sharp blades minimize stalling and kickback.
DANGER: Keep Hands Away From Cutting Area.
Keep hands away from blades. Don't reach underneath work while blade
is rotating. Don't attempt to remove cut material when blade is moving.
CAUTION: Blades coast after turn off.
Support Large Panels.
Large panels must be supported
as showninFig.
1 tominimizethe
risk of blade pinching and
kickback.
When cutting operation requires
the restingof the saw onthe work
piece, the saw shall be rested on
the larger portionandthe smaller
piece cut off.
A typical illustration of support large
panels.
To avoid kickback, support the
panel near the cut.
I
Fig. 1
4

5.
6.
7.
8.
9.
10.
11.
12.
13.
Use Rip Fence.
Always use a fence or straight edge guide when ripping.
Guard Against Kickback.
Kickback occurs when the saw stalls rapidly and is driven back towards
theoperator. Releaseswitchimmediately
if bladebindsor saw stalls. Keep
bladessharp. Support largepanelsas shown
in Fig. 1. Usefence or straight
edgeguidewhenripping. Don't forcetool. Stayalert exercisecontrol. Don't
remove saw from work during a cut while the blade is moving.
Lower Guard. Raise lower guard with the retracting handle.
Adjustments. Beforecuttingbesure depth and beveladjustmentsaretight.
UseOnly Correct Blades
In Mounting. Don't use blades withincorrect size
holes. Never use defective or incorrect blade washers or bolts.
Avoid Cutting Nails. Inspect for and remove all nails from lumber before
cutting.

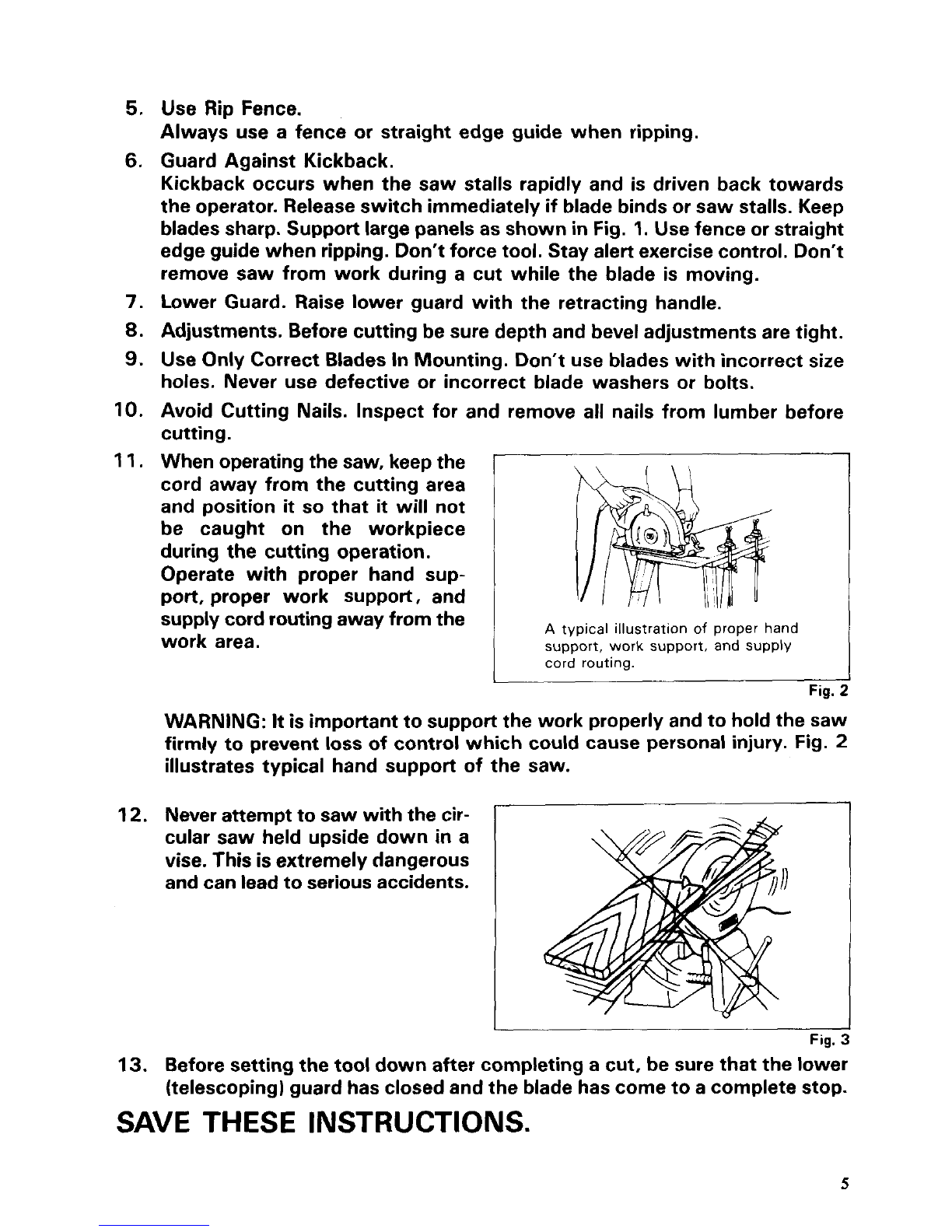

When operatingthe saw, keepthe
cord away from the cutting area
and position
it so that it will not
be caught on the workpiece
during the cutting operation.
Operate with proper hand sup-
port, proper work support, and
supplycordroutingawayfromthe
work area.
A typical illustration of proper hand
support,
work support, and supply
cord routing.
Fig. :
WARNING: It is importanttosupport the work properly andtoholdthe saw
firmly toprevent
loss of control which could cause personalinjury. Fig. 2
illustrates typical hand support of the saw.
Never attempt tosaw withthe cir-
cular saw held upside down
in a
vise.
This isextremely dangerous
andcanleadtoseriousaccidents.
I
Fig.
Beforesetting the tooldownafter completinga cut, be surethat the lower
(telescoping)guardhas closedandthe bladehascome toacomplete stop.
SAVE THESE INSTRUCTIONS.
5

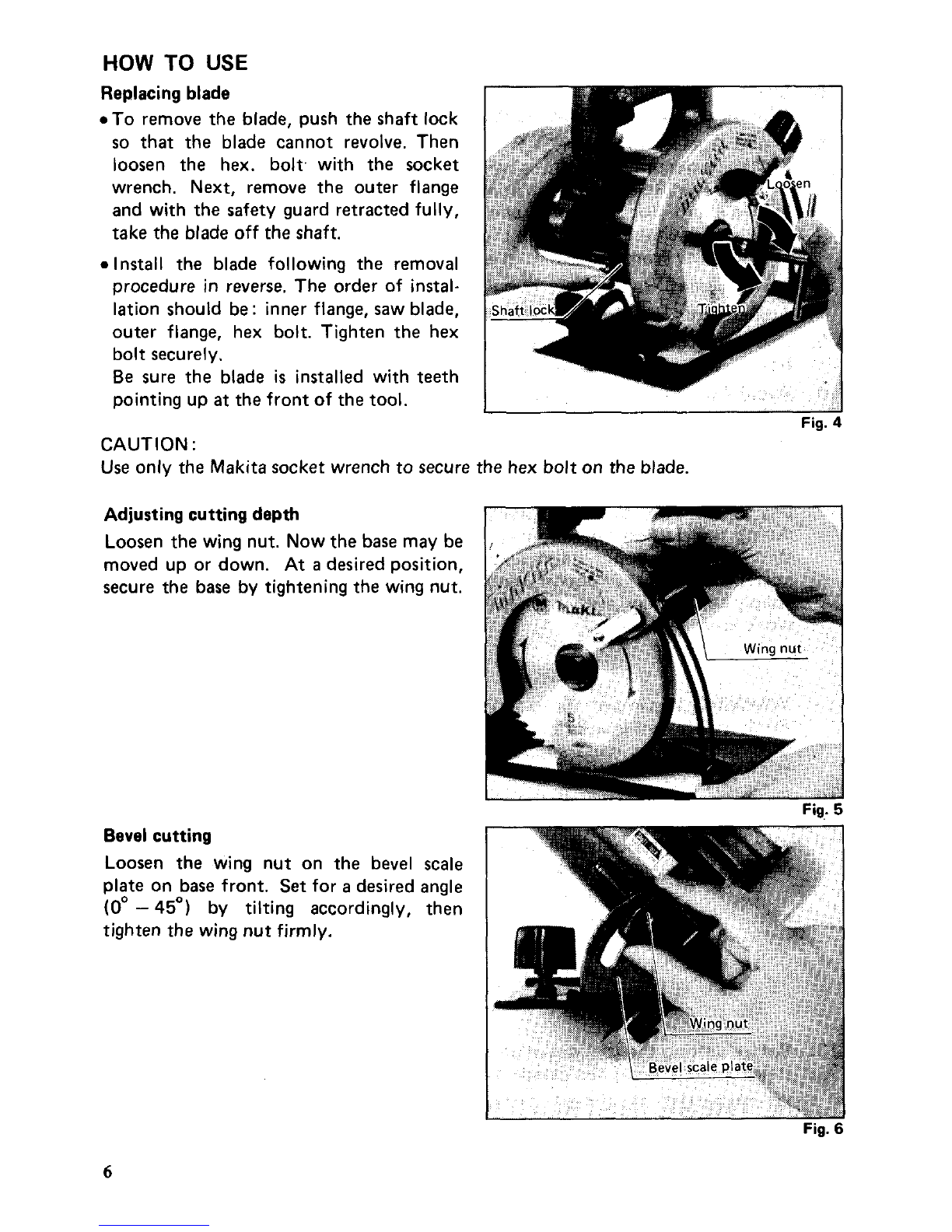

HOW TO USE
Replacingblade
.To remove the blade, push the shaft lock
so that the blade cannot revolve. Then
loosen the hex. bolt. with the socket
wrench. Next, remove the outer flange
and with the safety guard retractedfully,
take the blade off the shaft.
0 Install the blade following the removal
procedure
in reverse. The order of instal-
lation should be
: inner flange, saw blade,
outer flange, hex bolt. Tighten the hex
bolt securely.
Be sure the blade
is installed with teeth
pointing up
at the front of the tool.
CAUTION
:
Use only the Makitasocket wrench tosecur
Adjustingcutting depth
Loosen the wing nut.
Now the base may be
moved up or down. At
a desiredposition,
secure the base by tighteningthe wing nut.
Bevelcutting
Loosen the wing nut on the bevel scale
plate on base front. Set for
a desired angle
(0" - 45') by tilting accordingly, then
tighten the wingnutfirmly.
I I
Fig. 4
the hex bolton the blade.
Fig. 5
Fig. 6
6

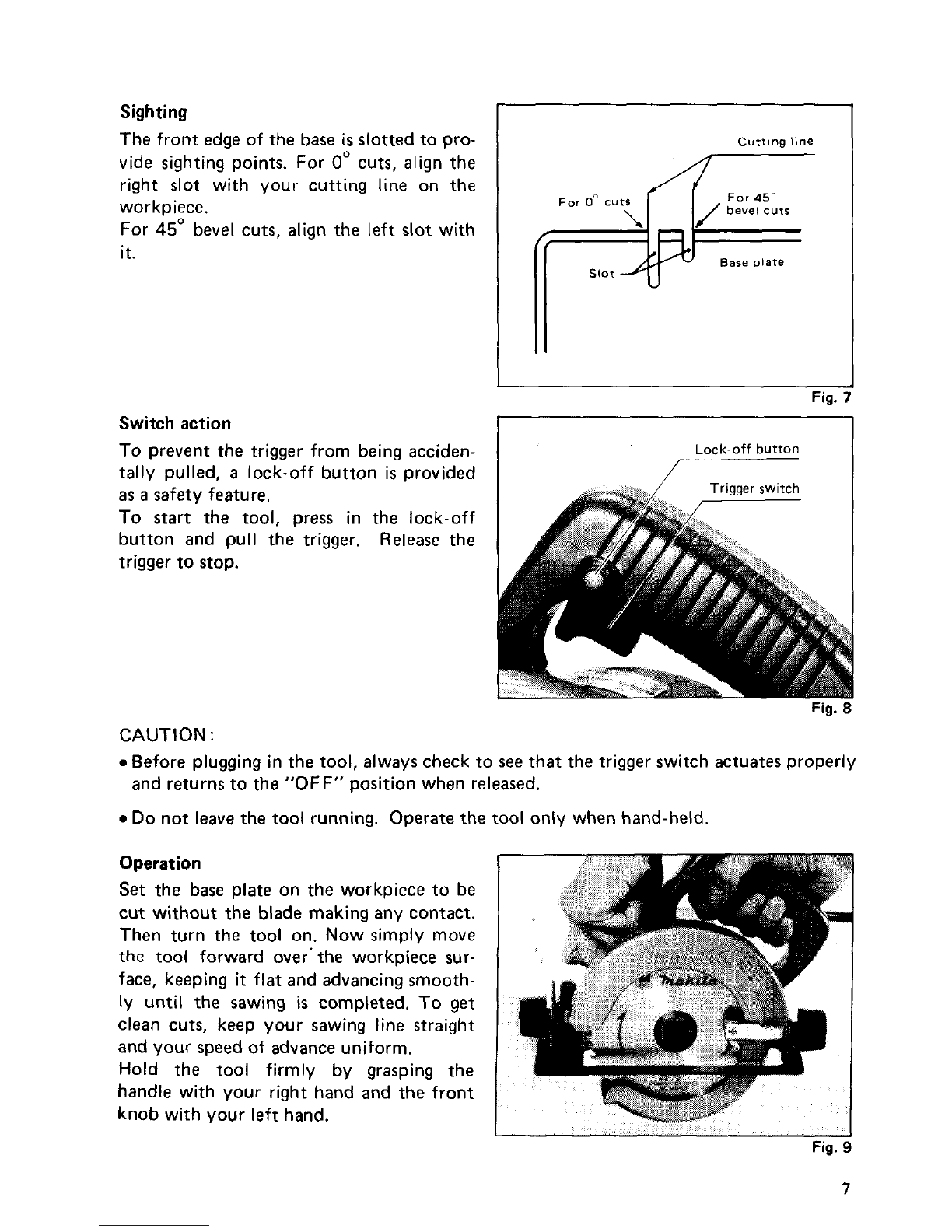

Sighting
The front edge of the base is slottedto pro-
vide sighting points. For
0" cuts, align the
right slot with your cutting line on the
workpiece.
For
45" bevel cuts, align the left slot with
it.
Cutting Line
F Base plate
1
Fig.
Switch action I
I
To prevent the trigger from being acciden-
tally pulled, a lock-off button is provided
Lock-off button
7
as a safety feature.
To start the tool, press in the lock-off
button and pull the trigger.
Release the
trigger to stop.
Fig. 8
CAUTION :
0 Before plugging inthe tool, always check to see that the trigger switch actuates properly
0 Do not leave the tool running. Operate the tool only when hand-held.
and returnsto the
"OFF" position when released.
Operation
Set the base plate on the workpiece to be
cut without the blade makingany contact.
Then turn the tool on. Now simply move
the tool forward over'the workpiece sur-
face, keeping
it flat and advancingsmooth-
ly until the sawing is completed. To get
clean cuts, keep your sawing line straight
and your speed of advance uniform.
Hold the tool firmly by grasping the
handle with your right hand and the front
knob with your left hand.
Fig.
7

MAINTENANCE
CAUTION :
Always be sure that the tool is switchedoff and unpluggedbeforeattempting to perform
inspectionand maintenance.
Replacingcarbon brushes
Remove and check the carbon brushes
regularly. Replace when they wear down
to about
6 mm (1/4") or less. Keep the
brushescleanand free to slip inthe holders.
Both brushes should be changed
at the
same time. Use only Makitacarbonbrushes.
Use
a screwdriver to remove the brush
holdercap
as shown inthe figure.
6mm(1/4")
I
Fig. 11
Fig. 11
Take out the worn brush, insert the new
one and secure the brush holder cap.
1
Fig. 12
To maintain product SAFETY and RELIABILITY, repairs, any other maintenanceand
adjustment should be performed by Makita Authorized or Factory Service Centers,
always using Makita replacementparts.
8

ACCESSORIES
CAUTION :
These accessories or attachments are recommended for use with your Makita tool specified in this
manual. The use of any other accessories or attachments might present a risk of injury to persons.
The accessories or attachments should be usedonly
in the proper and intended manner.
140
Cross-cut saw blade
For smoother crossgrain cuts. 792333-4 (5-1/2")
Guide rule
(Part No. 164095-8)
15.88
(5/8") 70
Socket wrench 9
(Part No. 782209-3)
792335-0
Saw blades
Combinationsaw blade
For ripand cross-cut work.
Hasfewer teeth than cross-
cut blade for faster cutting.
140 15.88 18
(5-1/2")
(5/8")
teeth
-"S* - t
bination blades.
Plywood saw blade
For smooth splinter-free
cutting
of plywood and
other laminates.
Chisel tooth combination
saw blade
For ripand cross-cut work.
Most frequently
used for
general carpentry.
Carbide-tippedsaw blade
Faster, smoother, longer
sawing without blade
sharpening.
Cuts wood, dry wall,
plastics, hard wood, etc.
9

Sep-19 -'E4 us
140 mm (5-1/2")
CIRCULAR SAW
Model 5005BA
Note:The switch and other part configurations
may differ
from country to country.
10

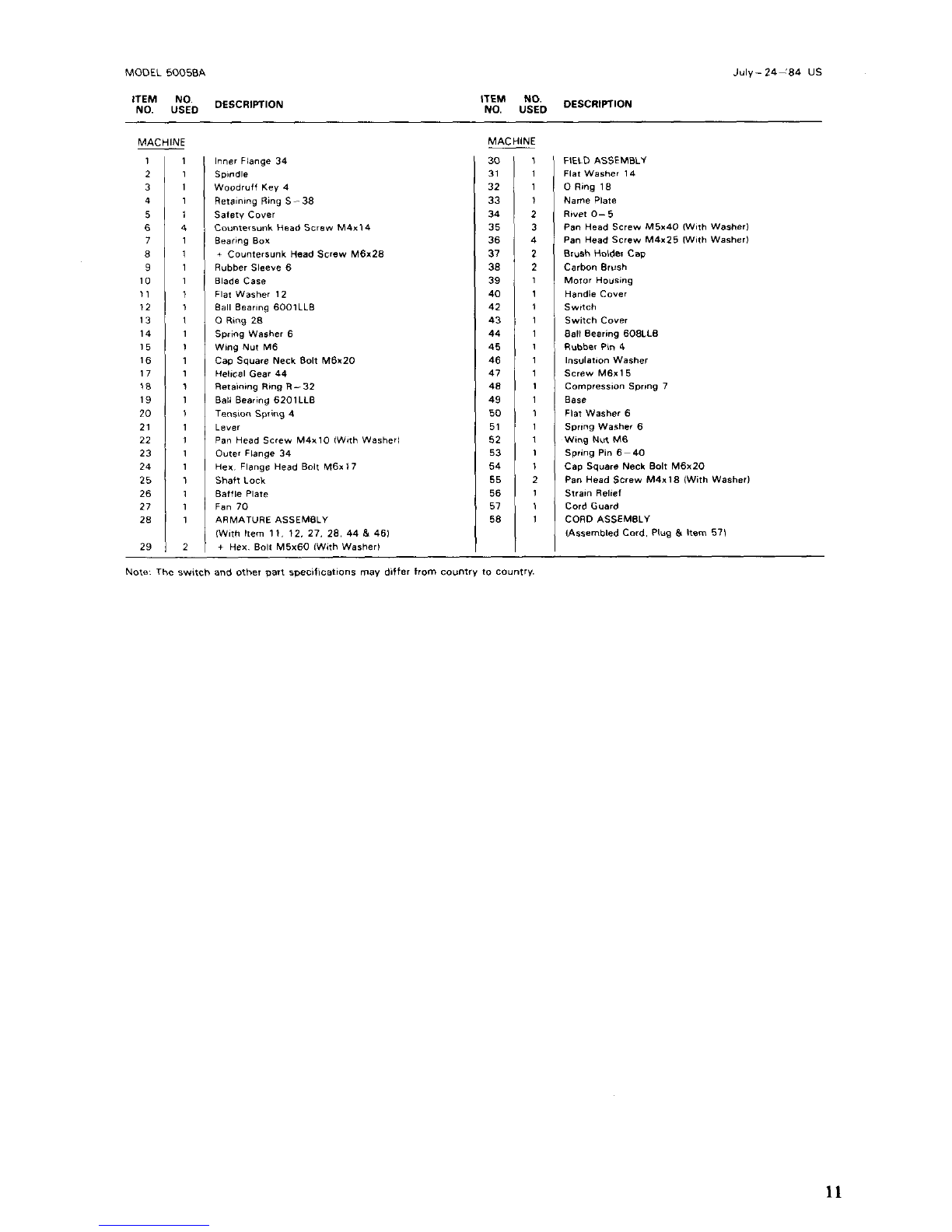

MODEL 6005BA
‘yc &tD DESCRIPTION
__
10
11
12
13
14
15
16
17
18
19
20
21
July- 24-’84 US
’yc $2, DESCRIPTION
11
21
31
41
51
64
71
91
1
1
1
1
1
1
1
1
1
1
1
1
ni
MnCHlNE
30
31
32
33
34
35
36
37
38
39
40
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
26
1
27 1 1
1
1
1
1
2
3
4
2
2
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
2
1
1
1
Inner Flange 34
Spindle
Woodruff Key 4
Retaining Ring S-38
Safely cover
Countersunk Head Screw M4x14
nearing B~X
+ Countersunk Head Screw M6x28
Rubber Sleeve 6
Blade Care
Flat
Washer 12
Ball Bearing 6001LLB
Spring Washer 6
Wing Nut M6
Cap Square Neck Bolt M6x20
Helicsl Gear 44
Retaining Ring R-32
Ball Bearing 6201LLB
Tension Spring 4
Lever
Pan
Head Screw M4x10 lWith Washerl
Outer Flange 34
Hex Flange Head Bolt M6x17
Shaft Lock
Baffle
Plafe
Fan 70
ARMATURE ASSEMBLY
IWith
Item 11 12 27 28 44 & 461
+ Hex Bolt M5x60 (With Washer)
o Ring 28
FlECD ASSEMBLY
Flat Washer 14
0 Ring 18
Name Plate
Rivet 0-5
Pan Head Screw M5r40IWith Warherl
Pan Head Screw M4x25 IWith Washerl
Brush Holder Cap
Carbon
Brush
Maror
Housing
Hmdle Cover
Swwh
Switch
Cover
Ball
Bearing 608LLB
Rubber Pm 4
Insulatmn Washer
Screw M6x15
Base
Flat Washer 6
Spring Washer 6
Wing Nut M6
Spring Pin 6-40
Cap Square Neck Bolt M6x20
Pan Head Screw M4xlBIWith Washer)
Strain Relief
Cord Guard
CORD
ASSEMBLY
Wsrembled Cord Plug & Item 571
COmpreSSlOn SWng 7
Note
The switch and other part specifications may differ from country to country
11

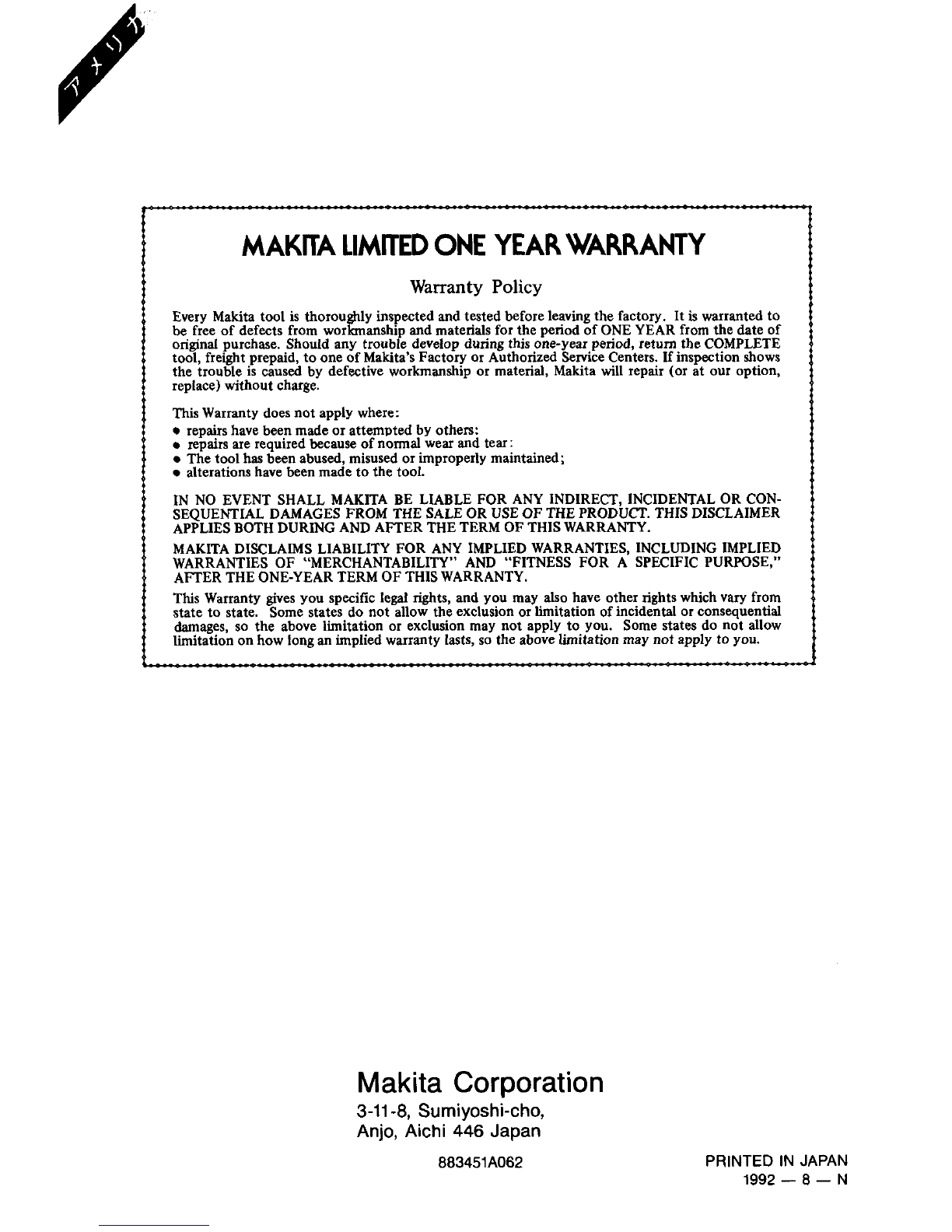

MAKITA LIMITED ONE YEAR WARRANTY
Warranty Policy
Every Makita tool is thoroughly inspected and tested before leavingthe factory. It is warranted to
be free of defects from workmanship and materials for the period of ONE YEAR from the date of
original purchase. Should any trouble develop during this one-year period, return the COMPLETE
tool, freight prepaid, toone of Makita’s Factory or Authorized ServiceCenters. If inspection shows
the trouble is caused by defective workmanship or material, Makita will repair (or at our option,
replace) without charge.
This Warranty does not apply where:
0 repairs have been made or attempted by others:
0 repairs are required because of normal wear and tear :
0 Thetool has been abused, misused or improperly maintained;
0 alterationshave been made to the tool.
IN
NO EVENT SHALL MAKITA BE LIABLE FOR ANY INDIRECT, INCIDENTALOR CON-
SEQUENTIAL DAMAGES
FROM THE SALE OR USE OF THE PRODUCT. THISDISCLAIMER
APPLIESBOTH DURING AND AFTER THETERM
OF THISWARRANTY.
MAKITA DISCLAIMS LIABILITY FOR ANY IMPLIED WARRANTIES, INCLUDING IMPLIED
WARRANTIES OF “MERCHANTABILITY” AND “FITNESS FOR A SPECIFIC PURPOSE,”
AFTER THEONE-YEARTERM
OF THISWARRANTY.
This Warranty gives you specific legal
rights, and you may also have other rights which vary from
state to state. Some states do not allow the exclusion or limitation
of incidentalor consequential
damages,
so the above limitation or exclusion may not apply to you. Some states do not allow
limitation
on how long an implied warranty lasts, so the above limitation may not apply toyou.
Makita Corporation
3-11 -8, Sumiyoshi-cho,
Anjo, Aichi 446 Japan
883451A062
PRINTED IN JAPAN
1992 - 8 - N
