Makita LS1011N Manual

Continuous Rating (W)
Voltage (V) Cycle (Hz) Input Output Max. Output(W)
120 13 50 - 60
Models No.
Description
NEW TOOL
Current (A)

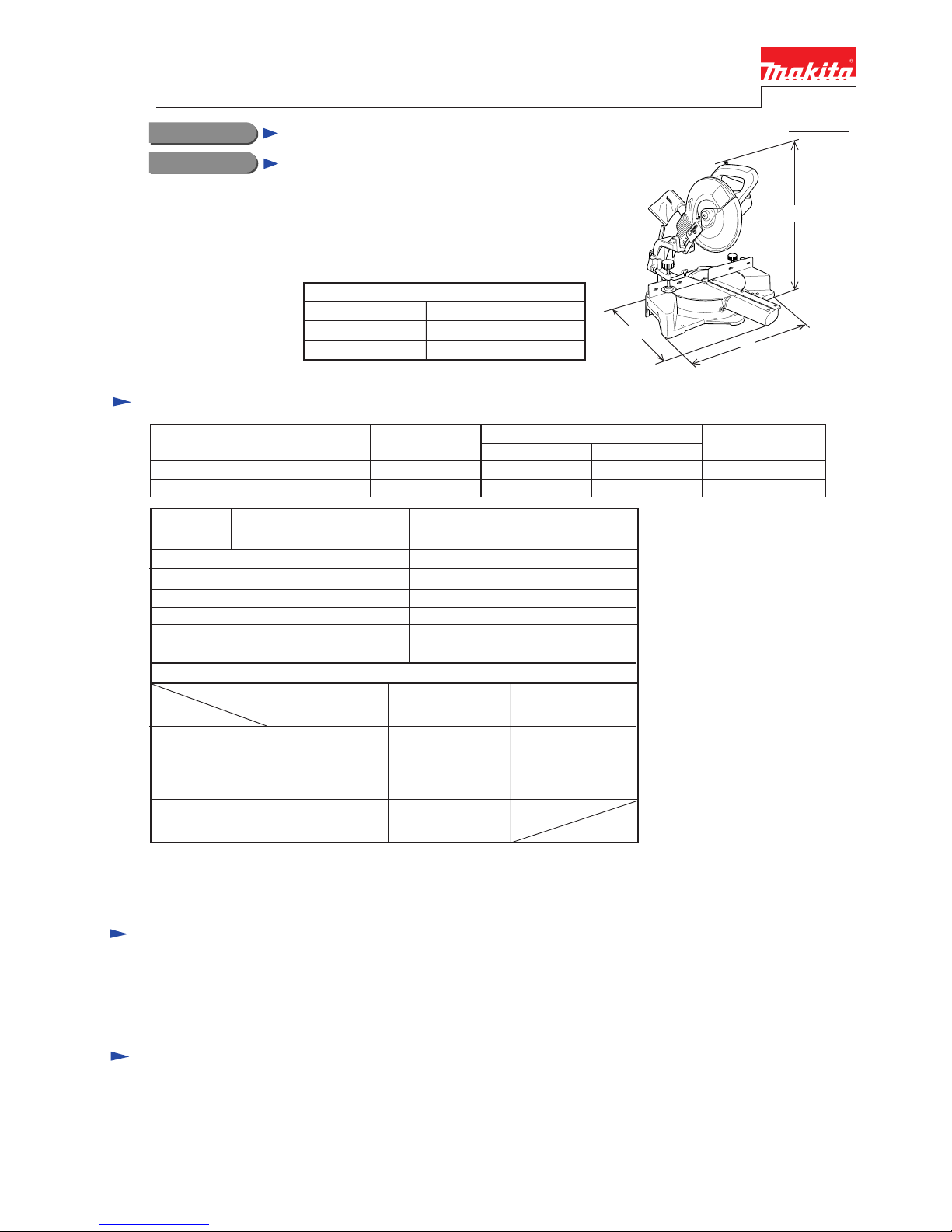

TECHNICAL INFORMATION
CONCEPTION AND MAIN APPLICATIONS
Specification
Standard equipment
Optional accessories
< Note > The standard equipment for the tool shown may differ from country to country.
P 1 / 13
Dimensions : mm ( " )
Width (W )
Height ( H )
510 (20)
542 (21-3/8)
557 (22)
Length ( L )
H
LW
LS1011N
Slide compound saw 255mm
The above model is the high power version of the existing
model LS1011. The power input has been increased from 1,380W
to 1,500W.
1,500 2,200800
Diameter : mm (")
Arbor : mm (")
No load speed (min-1 = rpm)
Protection from electric shock
255-260 (10 - 10-1/4)
15.88 (5/8)
5,200
by double insulation
Net weight : Kg (lbs)
Capacity : mm (")
Cord length : m (ft)
Lock off switch
Electric brake
17.2 (38.0)
2.5 (8.2)
Blade
Miter angle
Bevel angle
0 ° 45
°
(left and right)
57 °
(right)
0 °
45 °
(left)
*When cutting with a wood facing 33mm (1-3/8") thick set between stock and guide fence.
**When cutting with a wood facing 25mm (1-3/16") thick set between stock and guide fence.
***When cutting with a wood facing 20mm (9/16") thick set between stock and guide fence.
75 x 305
(2-15/16 x 12)
*90 x 240
*(3-1/2 x 9-1/2)
(2-15/16 x 8-1/2)
**(3-1/2 x 6-1/2)
* Dust bag ........................ 1 pc.
* Triangular rule .............. 1 pc.
* Socket wrench .............. 1 pc.
* Vertical vise ................... 1 pc.
* Lock off button ............ 1 pc. (for spare)
* Carbide-tipped saw blade 25 .............. 1 pc.
75 x 215
**90 x 165
(2-15/16 x 6-1/2)
***(3-1/2 x 4-7/8)
75 x 165
40 x 305 40 x 215
***90 x 125
Yes
Yes
* Holder assembly
* Set plate
* Various saw blades
* Holder set
(1-9/16 x 12) (1-9/16 x 8-1/2)

Comparison of products
Features and benefits P 2 / 13
LS1011N
Equipped with powerful
N94 type 1,500W motor
45 ° bevels (left)
Convenient Carrying Handle
for Easy Transport
Miters up to
57° Right and 47° Left
Comes with a
T. C. Tipped Saw Blade
with 64 teeth
Socket wrench for
blade replacing can be
stored in the machine.
Comes with a Vertical Vise
Comes with dust bag
Easily operatable lever for
bevel angle adjustment
Holder set for cutting of long material
(Optional accessory)
Set plate
(Optional accessory)
Model No.
Specifications
MAKITA
Blade diameter : mm ( " )
Rated current ( A ) under 120V
No load speed (min-1 = rpm)
Bevel angle
Miter angle
45 ° (left)
255 (10)
47 ° (left) - 57° (right)
Capacity
: mm ( " )
Miter
angle
Bevel
angle
0 °
45 °
(left and right)
57 ° (right)
0 °
0 °
45 °
(left and right)
75 x 305
(2-15/16 x 12) *90 x 240
*(3-1/2 x 9-1/2)
(2-15/16 x 8-1/2) **(3-1/2 x 6-1/2)
75 x 215 **90 x 165
(2-15/16 x 6-1/2) ***(3-1/2 x 4-7/8)
75 x 165 ***90 x 125
LS1011N LS1011
13 12
*When cutting with a wood facing 33mm (1-3/8") thick set between stock and guide fence.
**When cutting with a wood facing 25mm (1-3/16") thick set between stock and guide fence.
***When cutting with a wood facing 20mm (9/16") thick set between stock and guide fence.
5,200 4,600
40 x 305
(1-9/16 x 12)
40 x 215
(1-9/16 x 8-1/2)
45 ° (Left)
Noise level at no load operation
Net weight w/o saw blade: Kg (lbs)
91 dB(A)
17.2 (38.0) 15.8 (34.8)
95 dB(A)

Repair P 3 / 13

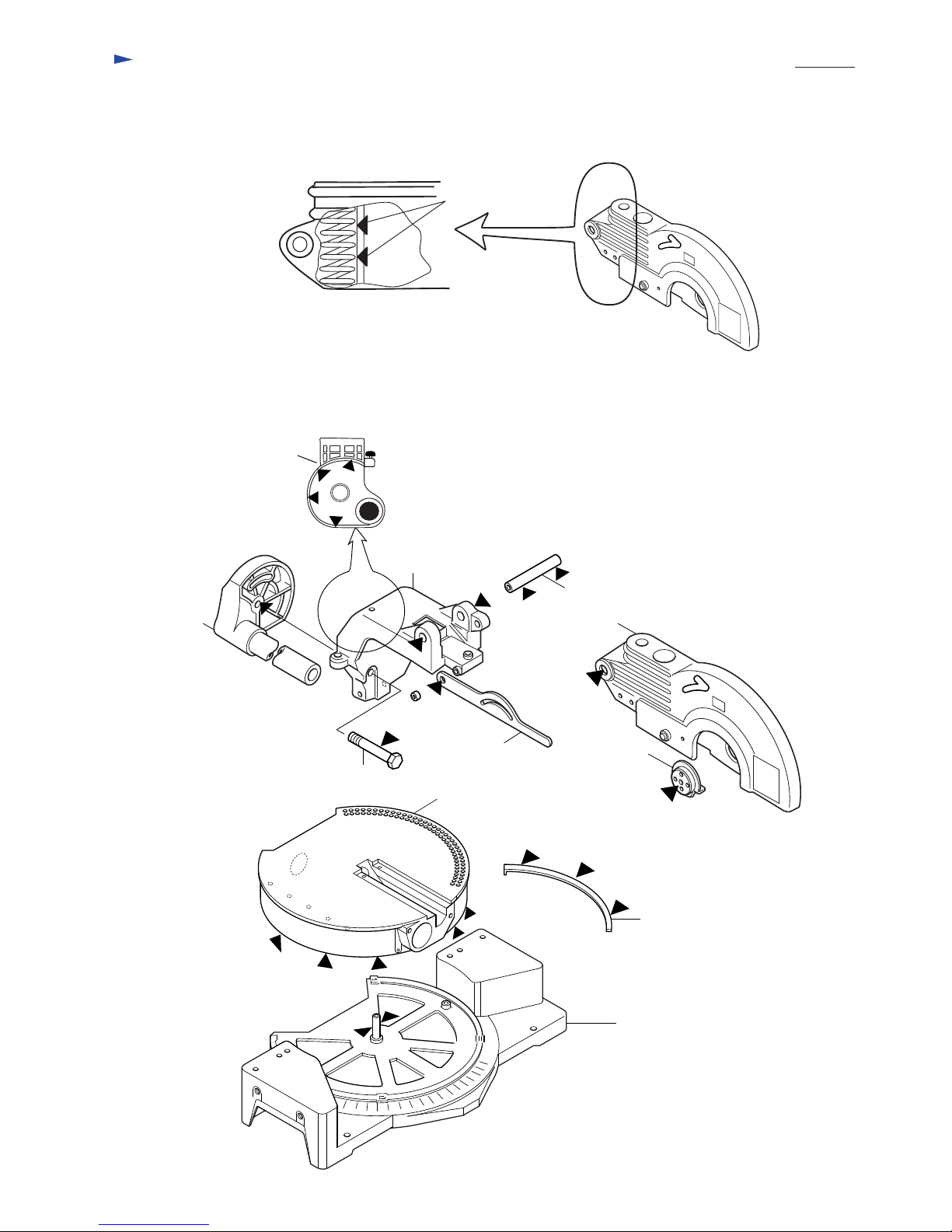

< 1 > Lubrication
Apply MAKITA grease N No.1 to the following parts.
* The following portion of blade case on which compression spring rubs.
* The portions marked with black triangle of the following parts.
Apply here MAKITA
grease N No.1.
87
81
82
58
62
49
39
39 Arm 49 Pipe 16-90 58 Hex bolt M16 x 78
62 Link plate 81 Center plate 82 Blade case
87 Arm holder 110 Turn base 126 Slide plate
128 Base
View from
87 side
Arm
110
128
126

Repair P 4 / 13
< 2 > Disassembling slide section
1) Disassemble guide rule from base. Then, take off pan head screw M5 x 12 and flat washer 5.
So, turn base can be disassembled from base as illustrated in Fig. 1.
Base
Guide rule
Turn base
Pan head screw M5 x 12
Flat washer 5
2) Slide pipe (integrated part of arm holder) can be removed as follows.
1. Remove under cover from the reverse of turn base as illustrated in Fig. 2A.
2. Remove slide guide, slide guide support and slide guide plate by loosening 5 pcs. of hex socket head
bolts M5 x 40. And take off rod from lock ring 30 by loosening hex socket hd. bolt M5 x 6
as illustrated in Fig. 2B. ( No need to take off hex socket head bolt M5 x 6 from lock ring 30.)
3. Slide pipe (integrated part of arm holder) can be removed as illustrated in Fig. 2C.
< Note > Take off saw blade from the machine for your safety, before repairing or maintenance !
* You can also remove motor section from arm when repairing turn base and base section, if you want.
Under cover
Arm
Turn base
Arm
Fig. 1
Hex socket
hd. bolt M5 x 40
Slide guide plate
Slide guide support
Slide guide
Rod
Hex socket
hd. bolt M5 x 6
Arm holder
Arm
Arm holder
Slide pipe
Lock ring 30
Fig. 2A
Arm holder
Fig. 2B
Fig. 2C

Repair P 5 / 13

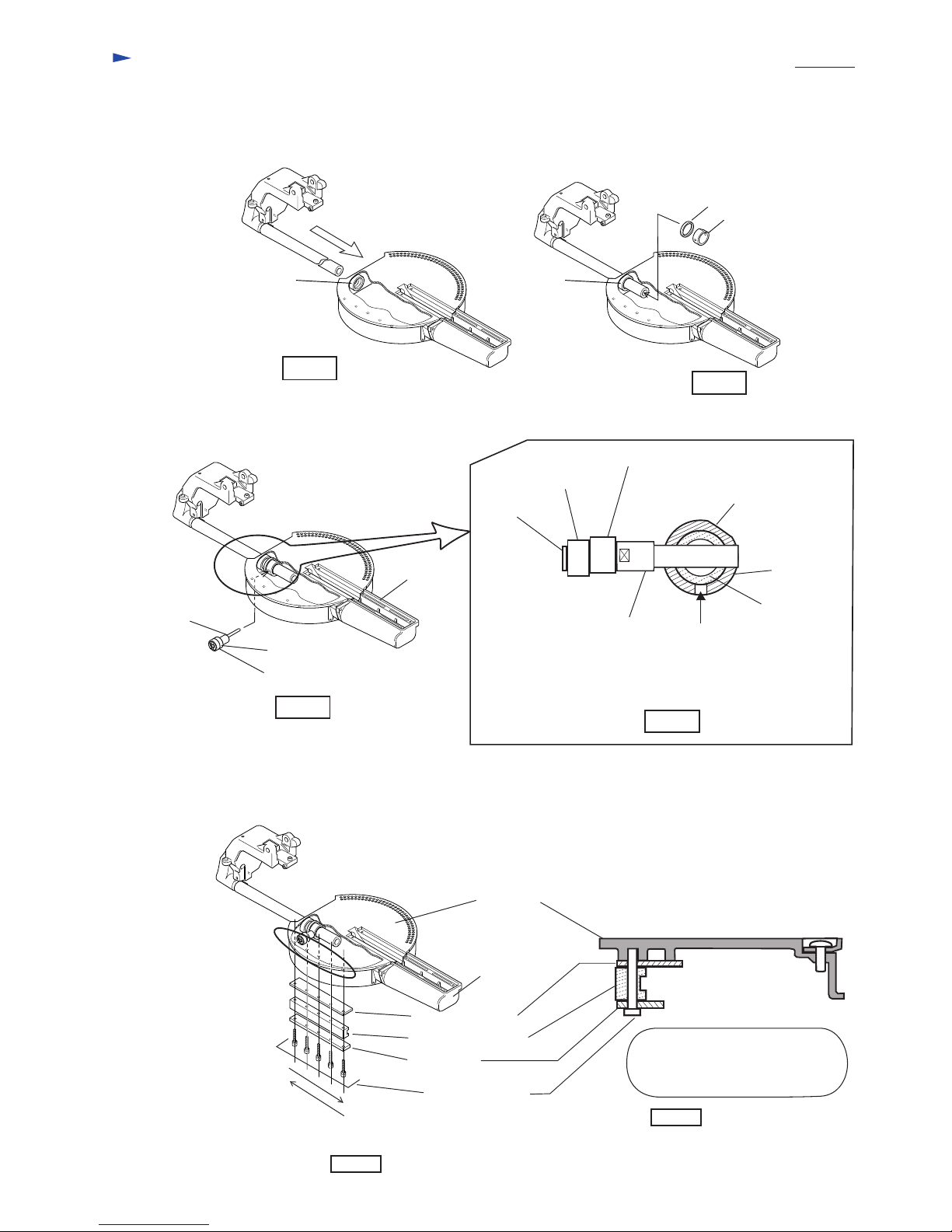

< 3 > Assembling slide section
1) Pass slide pipe through bearing 30 (integrated part of turn base) as illustrated in Fig 3A.
Assemble rubber washer and lock ring 30 to slide pipe as illustrated in Fig. 3B.
Bearing 30 Bearing 30
Rubber washer
Lock ring 30
Fig. 3A Fig. 3B
< Note > When rod is mounted to lock ring 30, the flat portion of lock ring 30
has to be faced as illustrated in Fig. 4B.
2) Insert rod to which needle bearings 808 and 708 are assembled in advance, into the hole of slide pipe
through the hole of lock ring 30 as illustrated in Fig. 4B.
Rod
Needle bearing 808
Needle bearing 708
Fig. 4A Fig. 4B
Front cover
View from front cover side
Needle bearing 808
Needle bearing 708
Stop ring
Rod
Lock ring 30
Sliding pipe
Flat portion
Not screw hex socket head
bolt M5 x 6 in this process.
3) Assemble slide guide plate, slide guide support and slide guide by screwing hex socket head bolt M5 x 40
as illustrated in Fig. 5A and Fig. 5B.
Hex socket
hd. bolt M5 x 40
Slide guide plate
Slide guide support
Slide guide
Front cover
The hex socket hd. bolts have to be fastened in
order of any of the above arrows. Not fasten them in random order.
Fig. 5A
Assembled parts for sliding the
slide pipe
View from front cover side
Turn base
Fig. 5B

Repair P 6 / 13
4) After assembling slide guide plate, slide guide support and slide guide, fix rod with adjusting the
rolling position of needle bearings 808 and 708. Shown in Fig. 6A and 6B are the correctly assembled parts.
Fig. 6A
( View from front cover side )
Slide guide plate
Slide guide support
Slide guide
Turn base
Lock ring 30
Slide pipe
Hex socket hd.
bolt M5 x 6
Rod
Flat portion of rod
Needle bearing 708
Needle bearing 808
* Adjusting the rolling position of needle bearings 808 and 708
Needle bearing 708 rolls on slide guide and needle bearing 808 rolls under slide guide plate as illustrated
in Fig. 6B. Because of this functional reason, needle baring 708 is assembled to the eccentric rotation axis
as illustrated in Fig. 6C.
Fig. 6C
Needle
bearing 808
Needle
bearing 708
Turn the rod gripping its flat portion with wrench, until needle bearing 708 touches on slide guide and
needle bearing 808 touches on slide guide plate. However, these needle bearings have to slightly touch
on them to keep smooth sliding. And then, fix the rod with hex socket hd. bolt M5 x 6.
Thus, the rod can be assembled correctly as illustrated in Fig. 6A and 6B.
Flat portion of rod where
is gripped with wrench.
Rod
View from slide guide side
View from
font cover side
Turn base
Slide guide plate
Slide guide support
Slide guide
Needle bearing 708
Needle bearing 808
Stop ring
Stop ring
Rod
Slide pipe
Lock ring 30
Linear ball
bearing 3064
Rubber washer
Fig. 6B
Under cover
Turn base
Arm
Arm holder
Fig. 6D
5) Check, whether arm (slide pipe) can be slid smoothly.
If it can be slid smoothly, assemble under cover as
illustrated in Fig. 6D.
If not, check again with referring to Fig. 6A and 6B.
< Note > The following parts have to be always kept clean.
* Slide pipe * Linear ball bearing 3064
* Bearing 30 ( integrated part of turn base)
* Needle bearings 708 and 808
* Slide guide * Slide guide support
* Slide guide plate
Otherwise, the trouble in sliding may happen.

Repair P 7 / 13
6) Assembling linear ball bearing 3064
Cap
Felt ring 30
Linear ball
bearing 3064
Turn base
Fig. 7
Fig. 7B Fig. 7C
Fig. 7A
1. In this bearing, slide pipe is held with
balls which is lined in 6 streaks.
Put linear ball bearing 3064 on
the hole of turn base.
When putting it, the balls
have to be located as illustrated
in Fig. 7A.
2. Put 1R033 "bearing setting plate" on the
linear ball bearing 3064, and slowly
press them with arbor press as
illustrated in Fig. 7B.
Approx.
3mm.
1R 033 Bearing
setting plate
3. So, the linear ball bearing can be
assembled to turn base with protrusion
of approx. 3mm as illustrated in Fig. 7C.
7) Disassembling and assembling felt ring and cap
[ Disassembling ]
1. Hitch the inside of cap and pull it out of turn base.
The disassembled cap can not be reassembled
because of its deformation. It has to be replaced with
new one, when assembling.
[ Assembling ]
1. Apply enough oil to felt ring 30 before assembling, for smooth sliding of slide pipe.
And then, mount the felt ring 30 into cap as illustrated in Fig. 8.
Felt ring 30 (applied enough oil)
Cap
2. Assemble cap together with felt ring 30 to turn base by pressing them with arbor press
as illustrated in Fig. 8.
Fig. 8
Turn base

Repair P 8 / 13
8) Assembling front cover
1. Front cover has to be assembled to turn base as illustrated in Fig. 9A.
Turn base
Front cover
Front cover
Turn base
Fig. 9A
The surfaces for assembling kerf boards have to
be flat.
Fig. 9
< 4 > Disassembling motor section
1. Down the motor section to the lowest position and
insert 2 pcs. of round bars into the holes of blade case
in order to block compression spring 28 and
spring holder in the blade case.
Round bars
diameter : 4mm or 5mm
length : longer than 60mmn
Hex bolt M10 x 105
Link plate
2. Disassemble link plate from arm
by loosen hex socket hd. bolt M6 x 20
as illustrated in Fig. 10A.
Fig. 10
Fig. 10A
Hex socket head
bolt M6 x 20

Repair P 9 / 13
Hex bolt M10 x 105
Hex lock nut M10
Flat washer 10
Pipe 16-90
Round bars for blocking
compression spring 28
and spring holder

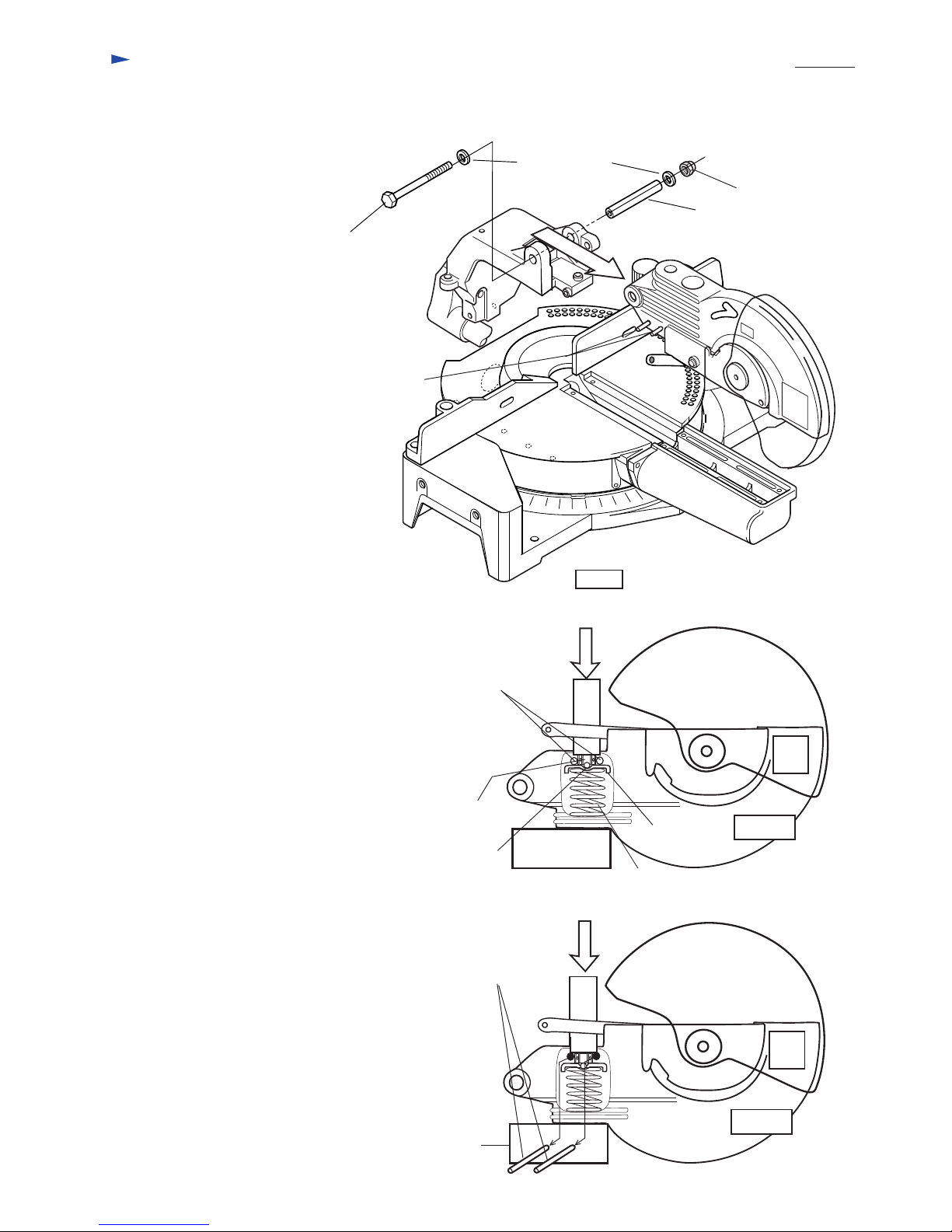

3. Disassemble hex bolt M10 x 105, 2 pcs. of flat washers 10 and pipe 16-90. Then, motor section can be
removed from arm as illustrated in Fig. 11.
Compression spring 28 and spring holder are still locked in blade case with 2 pcs. of round bars in this process.
Fig. 11
Round bars for blocking
compression spring 28
and spring holder
Spring
holder
Compression
spring 28
Press with arbor press.
Steel ball 6.4
as a jig
Ball bearing 606
as a jig
4. Put blade case on the turn table of arbor press as
illustrated in Fig. 12A. Put a steel ball 6.4
on the concave portion of spring holder
and ball bearing 606 as illustrated in
Fig. 12A.
Round bars for blocking
compression spring 28
and spring holder
Fig. 12A
Fig. 12B
5. Press them down with arbor press
as illustrated in Fig. 12B. And take
off 2 pcs. of round bars from
blade case.
6. Make compression spring 28 free
by slowly loosening the pressure on it.
And spring holder and compression
spring 28 can be removed from
blade case.
Turn table of
arbor press
Turn table of
arbor press

Repair P 10 / 13
< 4 > Assembling motor section
Spring
holder
Compression
spring 28
Ball bearing 606
as a jig
1. Put blade case on the turn table of arbor press as
illustrated in Fig. 13A.
Put compression spring 28 and spring holder in
the blade case. And then, put steel ball 6.4 and
ball bearing 606 for jigs as illustrated in Fig. 13A.
Fig. 13A
Turn table of
arbor press
Steel ball 6.4
as a jig
Round bars for blocking
compression spring 28
and spring holder
Turn table of
arbor press
Fig. 13B
2. And press them down with arbor press as
illustrated in Fig. 13B. Insert 2 pcs. of
round bars into the holes of blade case
for blocking compression spring 28
and spring holder.
Hex bolt M10 x 105
Hex lock nut M10
Flat washer 10
Pipe 16-90
3. Put the above motor section to arm of
base section, and pass pipe 16-90 through the holes
of arm and blade case as illustrated in Fig. 13C.
And assemble the motor section to arm by fastening
hex bolt M10 x 105 and hex lock nut M10.
Fig. 13C
< Note 2> Do not take off the round bars
which are inserted for blocking
compression spring 28
and spring holder, in this process.
< Note 1> Do not forget to assemble
flat washer 10.

Repair P 11 / 13
Round bars for blocking
compression spring 28 and
spring holder
3. Assemble link plate by fastening hex socket
head bolt M6 x 20 as illustrated in Fig. 13E.
And then, take off round bars which were
inserted for blocking compression spring 28
and spring holder, as illustrated in Fig. 13D.
Hex bolt M10 x 105
Hex socket head
bolt M6 x 20 Link plate
Fig. 13E
Fig. 13D
< 5 > Adjusting the saw blade's angle
1. 0 ° bevel and miter angle (right angle)
Push the motor section to the nearest position
to guide rule, and fasten screw M6 x 20 to secure
the motor section in the above position.
Loosen lever 125 to the direction indicated
with arrow as illustrated in Fig. 14A.
Screw M6 x 20
Lever 125
Saw blade
Hex bolt M8 x 50
View from lever 125 side
Fig. 14A
Fig. 14B
Turn hex bolt M8 x 50 two or three revolutions
counterclockwise so that the motor section tilts
the right.
Fig. 14C
Adjust the saw blade's right angle as illustrated in
Fig. 14C.
After adjusting, fasten hex bolt M8 x 50 again.
Guide rule
Guide rule
Turn base Turn base
1R208
"90 degree set square"
Adjusting
bevel angle Adjusting
miter angle

Repair P 12 / 13

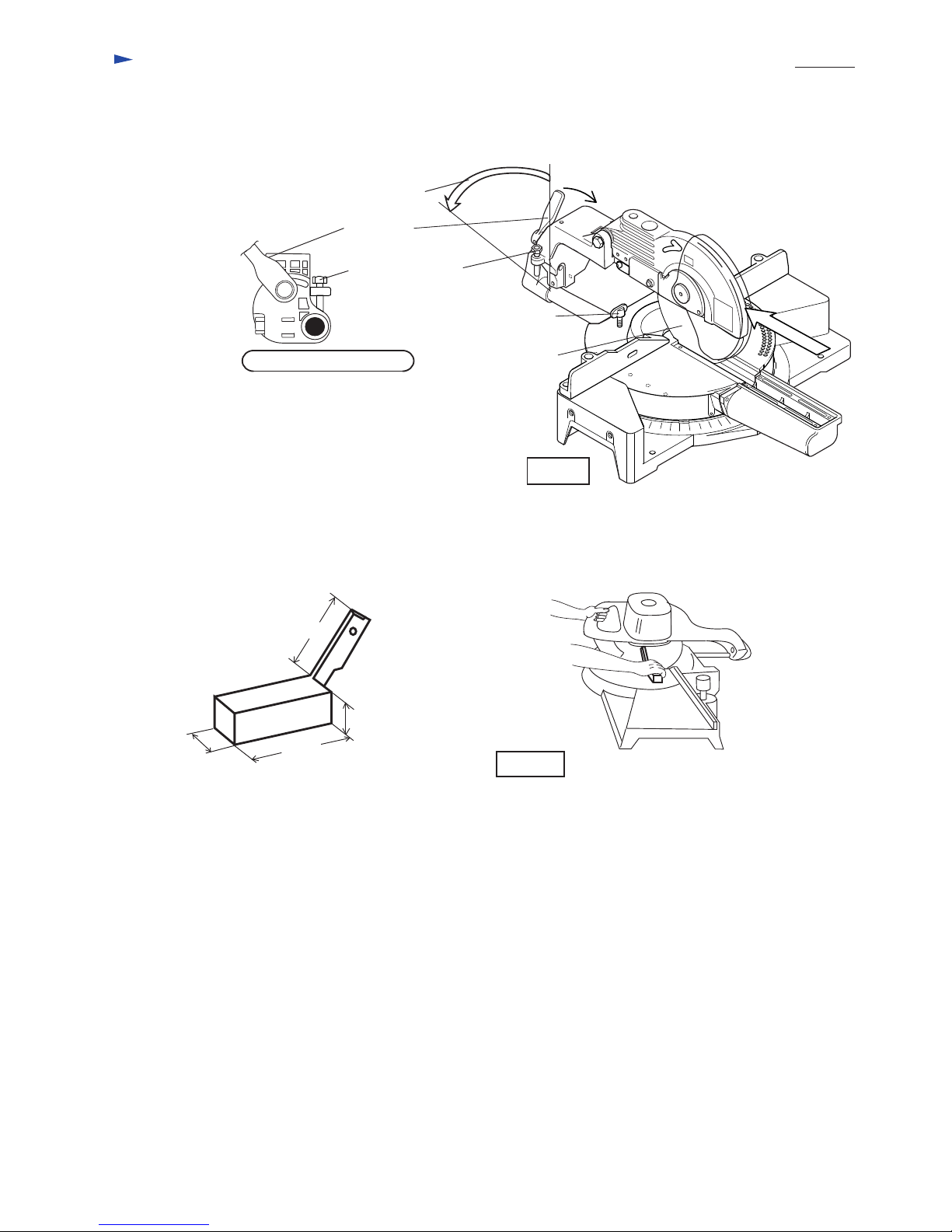

2. 45° bevel angle
Push the motor section to the nearest position to guide rule, and fasten screw M6 x 20 to secure the motor section
in the above position.
Loosen lever 125 to the direction indicated with arrow as illustrated in Fig. 15A . Tilt the motor section fully
to the left.
Screw M6 x 20
Lever 125
View from lever 125 side Saw blade
Tilt fully to the left.
Hex bolt M8 x 30
Adjust the saw blade's 45 ° with hex bolt M8 x 30
and 1R207 "45 degrees set square" as illustrated in
Fig. 15 B.
After adjusting, fasten hex bolt M8 x 30 again.
No.1R207 : 45 Degrees set square
60mm
75mm
25mm
20mm
Fig. 15 B
Fig. 15A

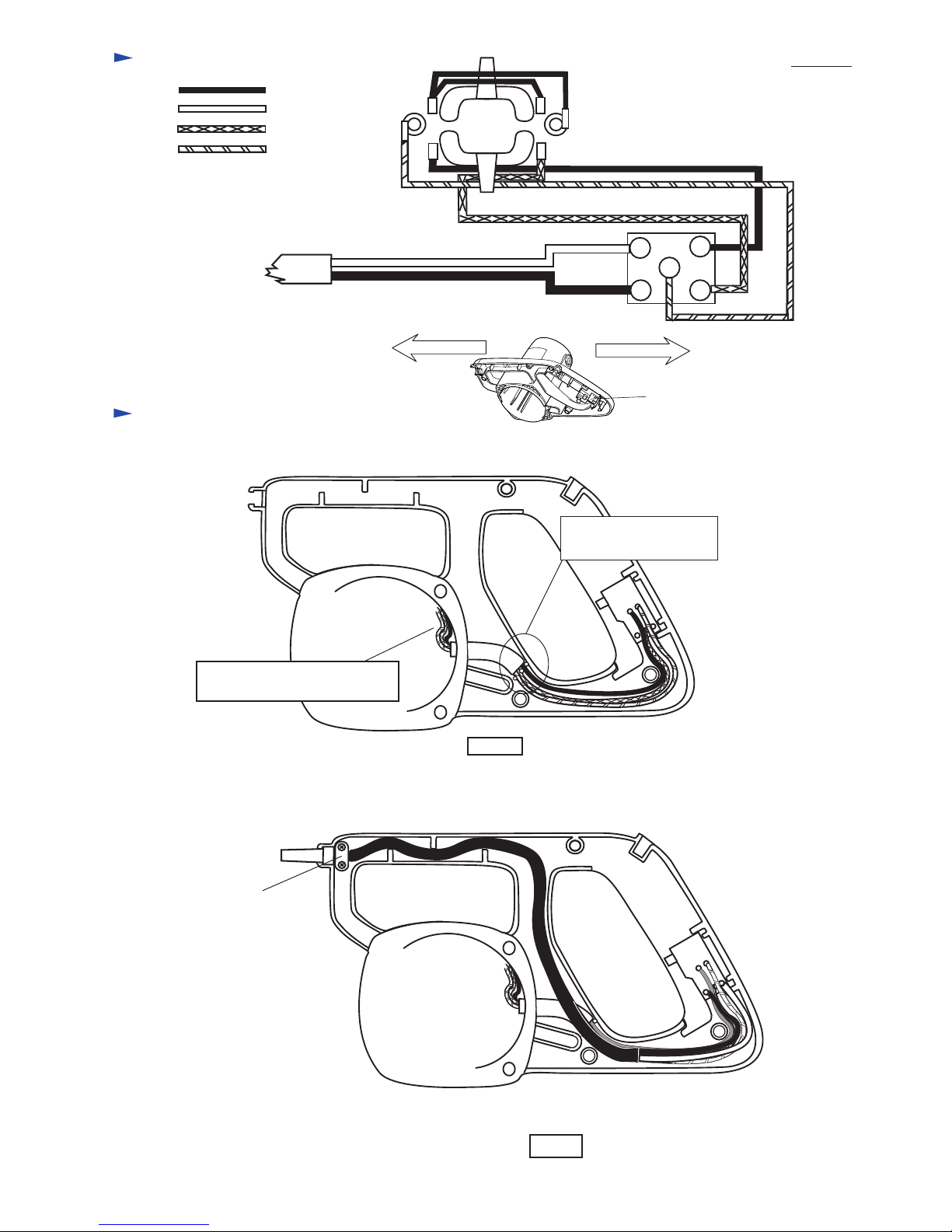

Circuit diagram
Wiring diagram
P 13 / 13
1
4
5
3
Black
Orange
Yellow
White
Switch
2
Power supply cord
Field
Switch
Side A
Power supply cord side Side B
Switch side
Side A Side B
Fix all of field lead wires
with lead holder.
Do not slack the field lead wires
in motor housing.
1. Connect the field lead wires to switch.
2. Pass power supply cord in the handle after connecting it to switch as ilustrated in Fig. 17.
And fix power supply cord with strain relief.
Fig. 16
Fig. 17
Strain relied
