Makita LS1016 User manual

GB Slide Compound Miter Saw Instruction Manual
F Scie à Onglet Radiale Manuel d’instructions
D Kapp- und Gehrungssäge Betriebsanleitung
I Sega combinata a slitta Istruzioni per l’uso
NL Schuifbare afkortverstekzaag Gebruiksaanwijzing
E Sierra de Inglete Telescópica Manual de instrucciones
P Serra de Esquadria c/ Braço Telescópico Manual de instruções
DK Afkorter-geringssav Brugsanvisning
GR
∆ισκοπρίονο σύνθετησ λοξοτοµήσ µήκουσ
ολίσθησησ
Οδηγίεσ χρήσεωσ
LS1016
LS1016L
LS1016F
LS1016FL

2
12
34
5
6
2
22
5
6
4
789
4
3
3
1
009483 010593
009485 009486
009488
001538

3
7
8
910
11 12
10
21
22
20
19
14
17
16 18
12
13
14
15
10
11
009496
009518
009737 009736
009487 009517

4
13 14
15 16
17 18
19 20
33
32
31
23
24
25
26
24
27
29
28
30
28
29
23
30
10
11
009489 010322
009513 009496
009886 009491
010533 009492

5
21 22
23 24
25
26
AB
34
35
36
35
37
3
38
39
37
19
1
009493 009494
012597 009483
012591
012592

6
m
27 28
29 30
31 32
33 34
36
44 2
3
37
37 41 5
43 45
42
1
34
44
40 40
39 5
009500 012594
012593 009495
009483 009497
009498 009500
38 39
2
40 40
39 5

7
35 36
37 38
39 40
41 42
241 5
42
43 45
49
52
49
50
51
2
48
47 46
52
49 53
54 55
23
56
009925 012680
009501 006793
010592 010591
001549 009508

8
43 44
45 46
47 48
49 50
64 65 60
60
61
62
63
57 58
59
66 63
10
11
010594 009611
009502 009606
005232 009607
009503 009496

9
51 52
53 54
55 56
57 58
72 73
55
70
71
(1)
(2)
(1)
(2)
(2)
(1)
(2)
(1)
(1)
(2)
(3)
(4)
70 71
(1)(2) (3)(4)
67 68 69
52
38
45
45
45
45
18
76
74 75
55
009504 009505
001555 001556
001557 009521
009522 009520

10
59 60
61 62
63 64
65 66
63
27
82
81
1
80
18
77
78
79
78
84
23
24
27
23
83
009523 001563
009483 009506
009509 009525
009512 009511

11
67 68
69 70
71 72
73 74
92
93
94
91
89
90
27
86
87 88
83
27
81
5
85
95
94
001819 009490
009608 009526
009527 009609
009610 001145

12
75
92
96
009516

13
END210-6
Symbols
The followings show the symbols used for the equipment. Be sure that you understand their meaning before use.
Symboles
Nous donnons ci-dessous les symboles utilisés pour l’outil. Assurez-vous que vous en avez bien compris la
signification avant d’utiliser l’outil.
Symbole
Die folgenden Symbole werden für die Maschine verwendet. Machen Sie sich vor der Benutzung unbedingt mit ihrer
Bedeutung vertraut.
Symboli
Per questo utensile vengono usati i simboli seguenti. Bisogna capire il loro significato prima di usare l’utensile.
Symbolen
Voor dit gereedschap worden de volgende symbolen gebruikt. Zorg ervoor dat u de betekenis van deze symbolen
begrijpt alvorens het gereedschap te gebruiken.
Símbolos
A continuación se muestran los símbolos utilizados con esta herramienta. Asegúrese de que entiende su significado
antes de usarla.
Símbolos
O seguinte mostra os símbolos utilizados para a ferramenta. Certifique-se de que compreende o seu significado antes
da utilização.
Symboler
Nedenstående symboler er anvendt i forbindelse med denne maskine. Vær sikker på, at De har forstået symbolernes
betydning, før maskinen anvendes.
Σύµβολα
Τα ακλουθα δείχνουν τα σύμβολα που χρησιμοποιούνται για το μηχάνημα. Βεβαιωθείτε τι καταλαβαίνετε
τη σημασία τους πριν απ τη χρήση.
• Read instruction manual. • Lea el manual de instrucciones.
• Lire le mode d’emploi. • Leia o manual de instruções.
• Bitte Bedienungsanleitung lesen. • Læs brugsanvisningen.
• Leggete il manuale di istruzioni. • Διαβάστε τις οδηγίες χρήσης.
• Lees de gebruiksaanwijzing.
• DOUBLE INSULATION • DOBLE AISLAMIENTO
• DOUBLE ISOLATION • DUPLO ISOLAMENTO
• DOPPELT SCHUTZISOLIERT • DOBBELT ISOLERET
• DOPPIO ISOLAMENTO • ΔΙΠΛΗ ΜΟΝΩΣΗ
• DUBBELE ISOLATIE
• To avoid injury from flying debris, keep holding the saw head down, after making cuts, until the
blade has come to a complete stop.
• Pour éviter les blessures causées par les objets projetés, maintenez la tête de la scie en posi-
tion basse une fois la coupe terminée, jusqu’à ce que la lame soit complètement arrêtée.
• Um Verletzungen durch herausgeschleuderte Teile zu vermeiden, halten Sie den Sägekopf
nach Ausführung von Schnitten abgesenkt, bis das Sägeblatt völlig zum Stillstand gekommen
ist.
• Per evitare lesioni dalle schegge volanti, dopo aver eseguito il taglio tenere abbassata la testa
sega finché la lama non si è arrestata completamente.
• Om verwonding door weggeslingerd zaagafval te voorkomen, dient u na het voltooien van een
snede de zaagkop omlaag te houden totdat het zaagblad volledig tot stilstand is gekomen.
• Para evitar sufrir heridas a causa de restos que salen despedidos, siga sujetando la cabeza de
la sierra hacia abajo, al terminar los cortes, hasta que el disco se haya parado completamente.
• Para evitar danos causados por aparas que saltem, mantenha a cabeça da serra para baixo,
depois de terminar os cortes, até que a lâmina esteja completamente parada.
• For at undgå at komme til skade på grund af flyvende affald, skal man holde savhovedet nede
efter skæring, indtil savklingen står helt stille.
• Για να αποφύγετε τραυματισμ απ ιπτάμενα τεμαχίδια, κρατάτε το πρινι με το
κεφάλι προς τα κάτω, αφού κάνετε κοπές, μέχρι η λάμα να σταματήσει τελείως.

14
• When performing slide cut, first pull carriage fully and press down handle, then push carriage
toward the guide fence.
• Lorsque vous effectuez une coupe en glissière, tirez d’abord complètement le chariot et abais-
sez la poignée, puis poussez le chariot vers le guide.
• Ziehen Sie den Schlitten zur Ausführung von Schiebeschnitten zunächst ganz vor, drücken Sie
den Griff nach unten, und schieben Sie dann den Schlitten zum Gehrungsanschlag.
• Per eseguire un taglio di scorrimento, tirare prima completamente il carrello, premere giù il
manico e spingere poi il carrello verso la guida pezzo.
• Bij drukkend (glijdend) zagen, dient u eerst de slede volledig naar u toe te trekken en het hand-
vat omlaag te drukken. Duw daarna de slede naar de geleider toe.
• Cuando haga cortes de deslizamiento, primero tire del carro completamente y presione hacia
abajo la empuñadura, después empuje el carro hacia la guía lateral.
• Quando executa corte corrediço, puxe primeiro o carro completamente e empurre a pega para
baixo e em seguida empurre o carro na direcção da placa guia.
• Når man udfører savning ved gliden, skal man først trække slæden helt og trykke håndtaget
ned og derefter trykke slæden mod anslaget.
• Οταν εκτελείτε ολισθητική κοπή, πρώτα τραβήχτε την κινητή βάση πλήρως και
πατήστε την λαβή κάτω, μετά σπρώχτε την κινητή βάση προς τον φράχτη οδηγ.
• Do not place hand or fingers close to the blade.
• Ne pas placer les mains ou les doigts près de la lame.
• Halten Sie Hände oder Finger vom Sägeblatt fern.
• Non avvicinare le mani o le dita alla lama.
• Kom met uw handen of vingers niet te dicht bij het zaagblad.
• No ponga la mano ni los dedos cerca del disco.
• Não coloque a sua mão ou dedos perto da lâmina.
• Hold hænder og fingre på god afstand af klingen.
• Μη βάζετε το χέρι ή τα δάκτυλα κοντά στην λάμα.
• Never look into the laser beam. Direct laser beam may injure your eyes.
• Ne jamais regarder directement la source du faisceau laser. L’exposition directe au faisceau
laser comporte un risque de blessure aux yeux.
• Blicken Sie auf keinen Fall in den Laserstrahl. Der direkte Laserstrahl kann Ihre Augen ver-
letzen.
• Mai guardare direttamente il raggio laser. Il raggio laser può danneggiare gli occhi.
• Kijk nooit in de laserstraal. Een directe laserstraal kan oogletsel veroorzaken.
• No mire nunca directamente al rayo láser. El rayo láser directo puede dañar sus ojos.
• Nunca olhe para o raio laser. Se olhar directamente para o raio laser pode ferir os seus olhos.
• Se aldrig ind i laserstrålen. Direkte udsættelse for laserstråling kan skade dit syn.
• Ποτέ μη κυττάτε απευθείας την ακτίνα λέιζερ. Η απευθείας ακτίνα λέιζερ μπορεί να
προκαλέσει τραυματισμ στα μάτια σας.
123

15
• Only for EU countries
Do not dispose of electric equipment together with household waste material!
In observance of European Directive 2002/96/EC on waste electrical and electronic equipment and its
implementation in accordance with national law, electric equipment that have reached the end of their
life must be collected separately and returned to an environmentally compatible recycling facility.
• Pour les pays européens uniquement
Ne pas jeter les équipements électriques dans les ordures ménagères !
Conformément à la directive européenne 2002/96/EG relative aux déchets d’équipements électriques
ou électroniques (DEEE), et à sa transposition dans la législation nationale, les équipements élec-
triques doivent être collectés à part et être soumis à un recyclage respectueux de l’environnement.
• Nur für EU-Länder
Werfen Sie Elektrogeräte nicht in den Hausmüll!
Gemäß Europäischer Richtlinie 2002/96/EG über Elektro- und Elektronik-Altgeräte und Umsetzung in
nationales Recht müssen verbrauchte Elektrogeräte getrennt gesammelt und einer umweltgerechten
Wiederverwertung zugeführt werden.
• Solo per Paesi UE
Non gettare le apparecchiature elettriche tra i rifiuti domestici.
Secondo la Direttiva Europea 2002/96/CE sui rifiuti di apparecchiature elettriche ed elettroniche e la
sua attuazione in conformità alle norme nazionali, le apparecchiature elettriche esauste devono
essere raccolte separatamente, al fine di essere riciclate in modo eco-compatibile.
• Alleen voor EU-landen
Geef elektrische apparaten niet met het huisvuil mee!
Volgens de Europese richtlijn 2002/96/EG inzake oude elektrische en elektronische apparaten en de
toepassing daarvan binnen de nationale wetgeving, dient gebruikt elektrische apparaten gescheiden te
worden ingezameld en te worden afgevoerd naar een recycle bedrijf dat voldoet aan de geldende
milieu-eisen.
• Sólo para países de la Unión Europea
¡No deseche los aparatos eléctricos junto con los residuos domésticos!
De conformidad con la Directiva Europea 2002/96/CE sobre residuos de aparatos eléctricos y elec-
trónicos y su aplicación de acuerdo con la legislación nacional, los aparatos eléctricos cuya vida útil
haya llegado a su fin se deberán recoger por separado y trasladar a una planta de reciclaje que cumpla
con las exigencias ecológicas.
• Apenas para países da UE
Não deite ferramentas eléctricas no lixo doméstico!
De acordo com a directiva europeia 2002/96/CE sobre ferramentas eléctricas e electrónicas usadas e
a sua aplicação para as leis nacionais, as ferramentas eléctricas usadas deven ser recolhidas em sep-
arado e encaminhadas a uma instalação de reciclagem dos materiais ecológicos.
• Kun for EU-lande
Elværktøj må ikke bortskaffes som almindeligt affald!
I henhold til det europæiske direktiv 2002/96/EF om bortskaffelse af elektriske og elektroniske produk-
ter og gældende national lovgivning skal brugt elværktøj indsamles separat og returneres til miljøgodk-
endt genindvinding.
• Μνο για τις χώρες της ΕΕ
Μη πετάτε τα είδη ηλεκτρικού εξοπλισμού μαζί με τα οικιακά απορρίμματα.
Σε τήρηση της Eυρωπαϊκής Oδηγίας 2002/96/ΕΚ, περί απορριμμάτων ειδών ηλεκτρικού και
ηλεκτρονικού εξοπλισμού και την εφαρμογή της σύμφωνα με την εθνική νομοθεσία, τα είδη
ηλεκτρικού εξοπλισμού που έχουν φθάσει στο τέλος της ζωής τους πρέπει να συλλέγονται
ξεχωριστά και να επιστρέφονται σε μιά περιβαλλοντικά συμβατή εγκατάσταση ανακύκλωσης.

16
ENGLISH (Original instructions)

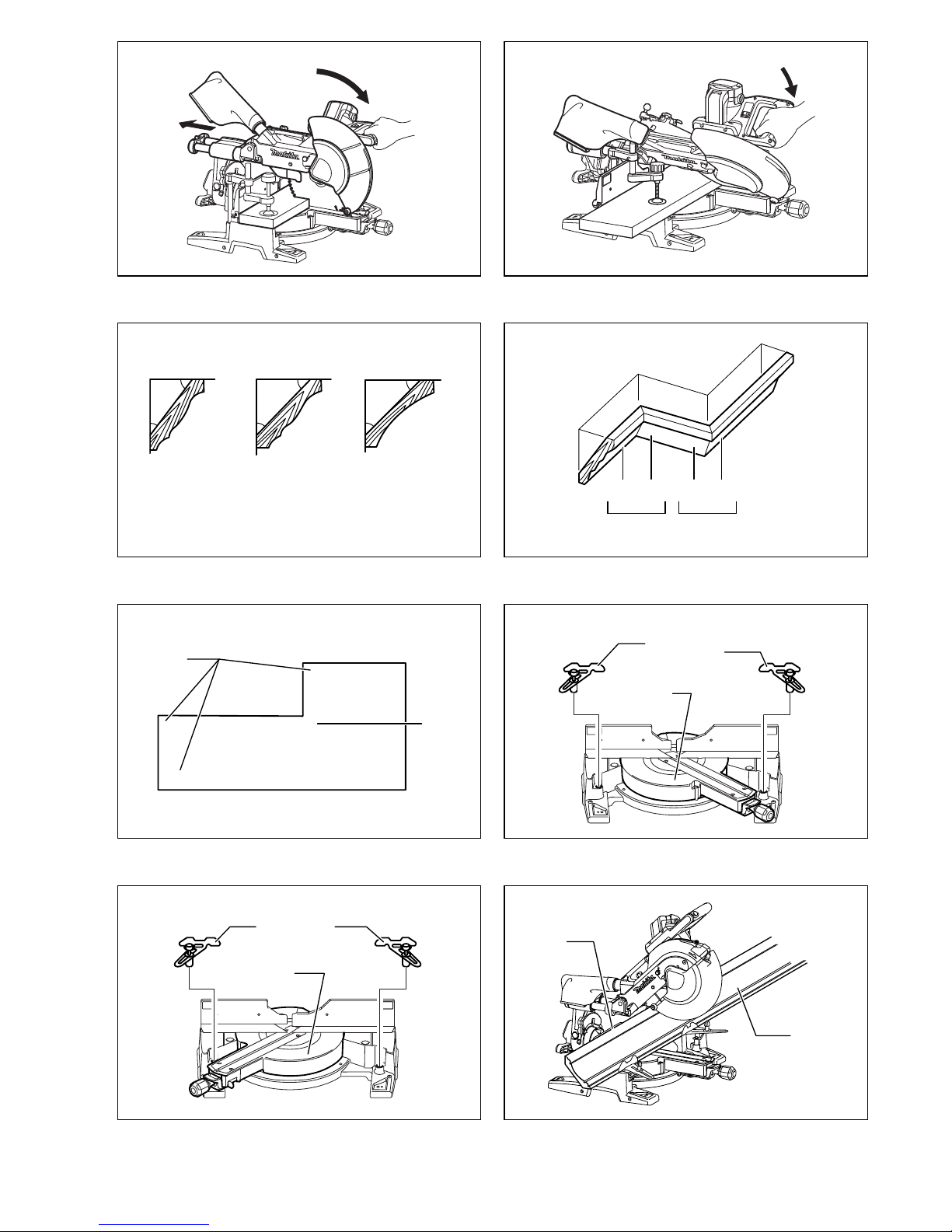

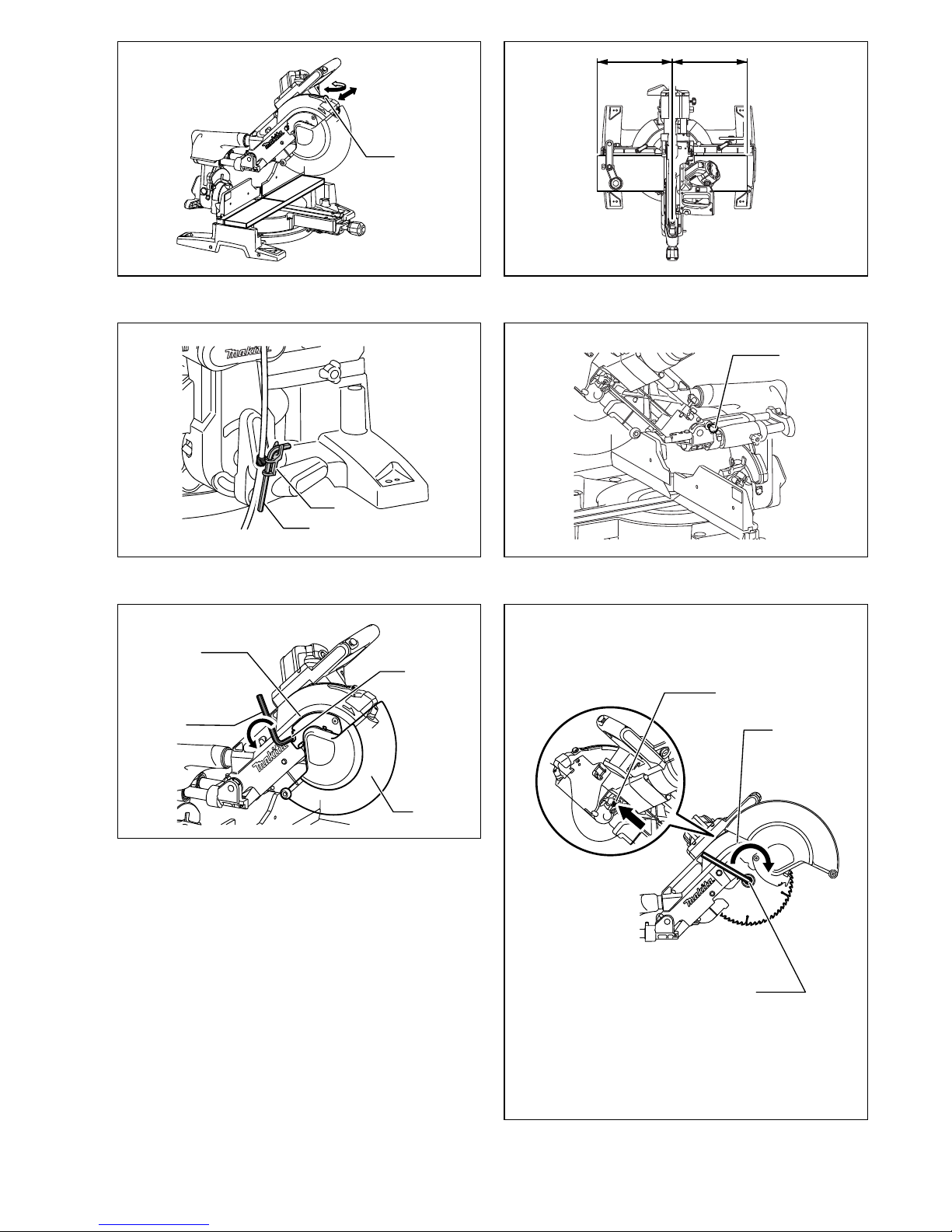

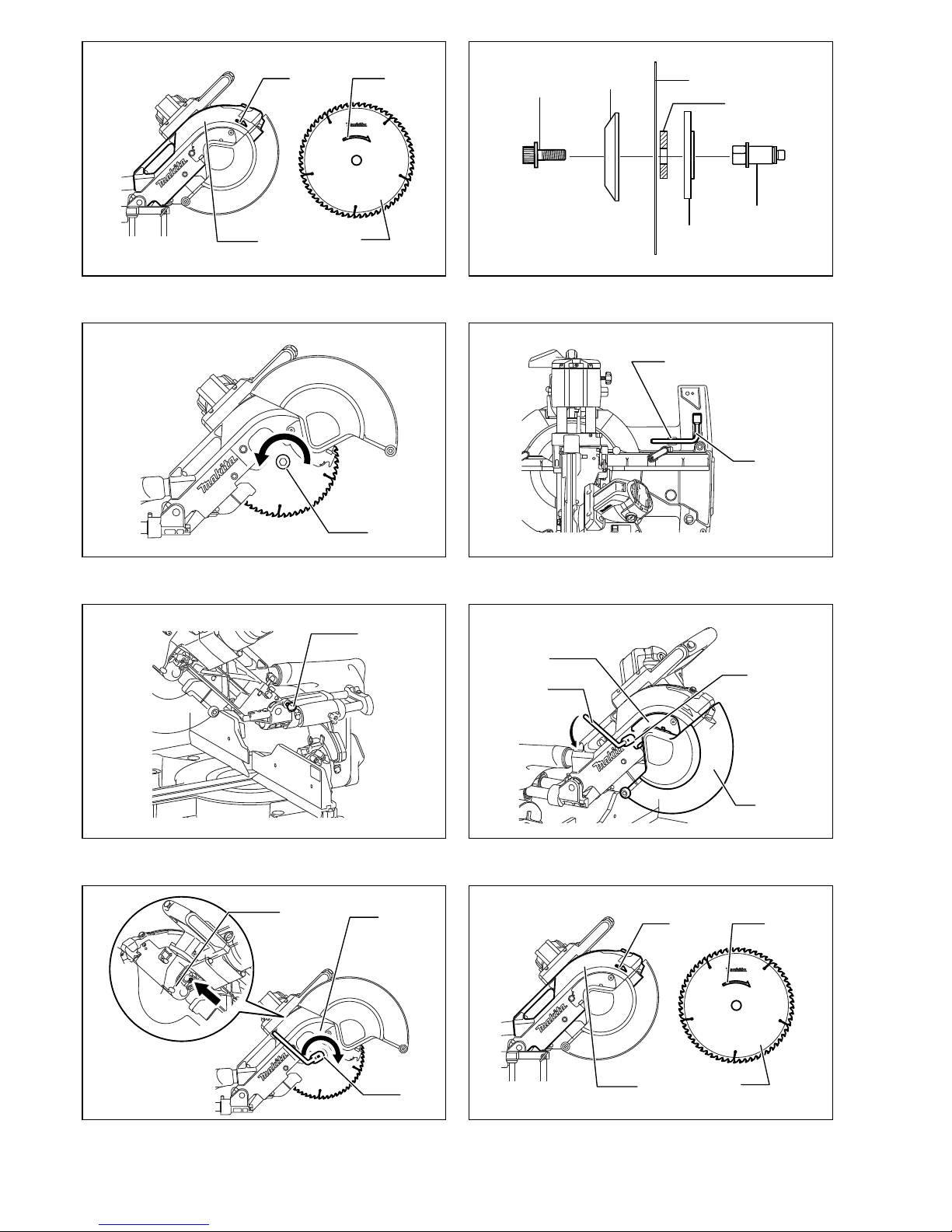

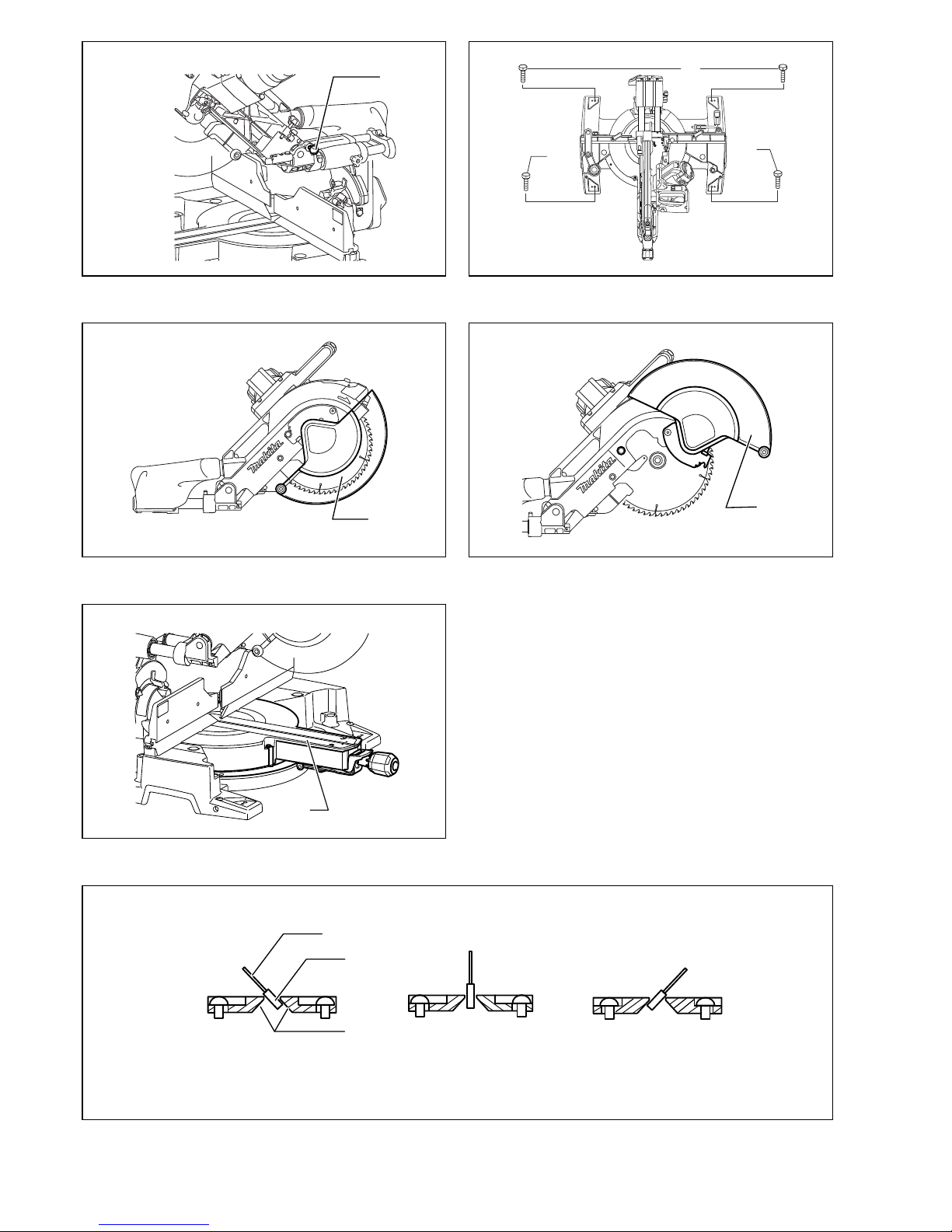

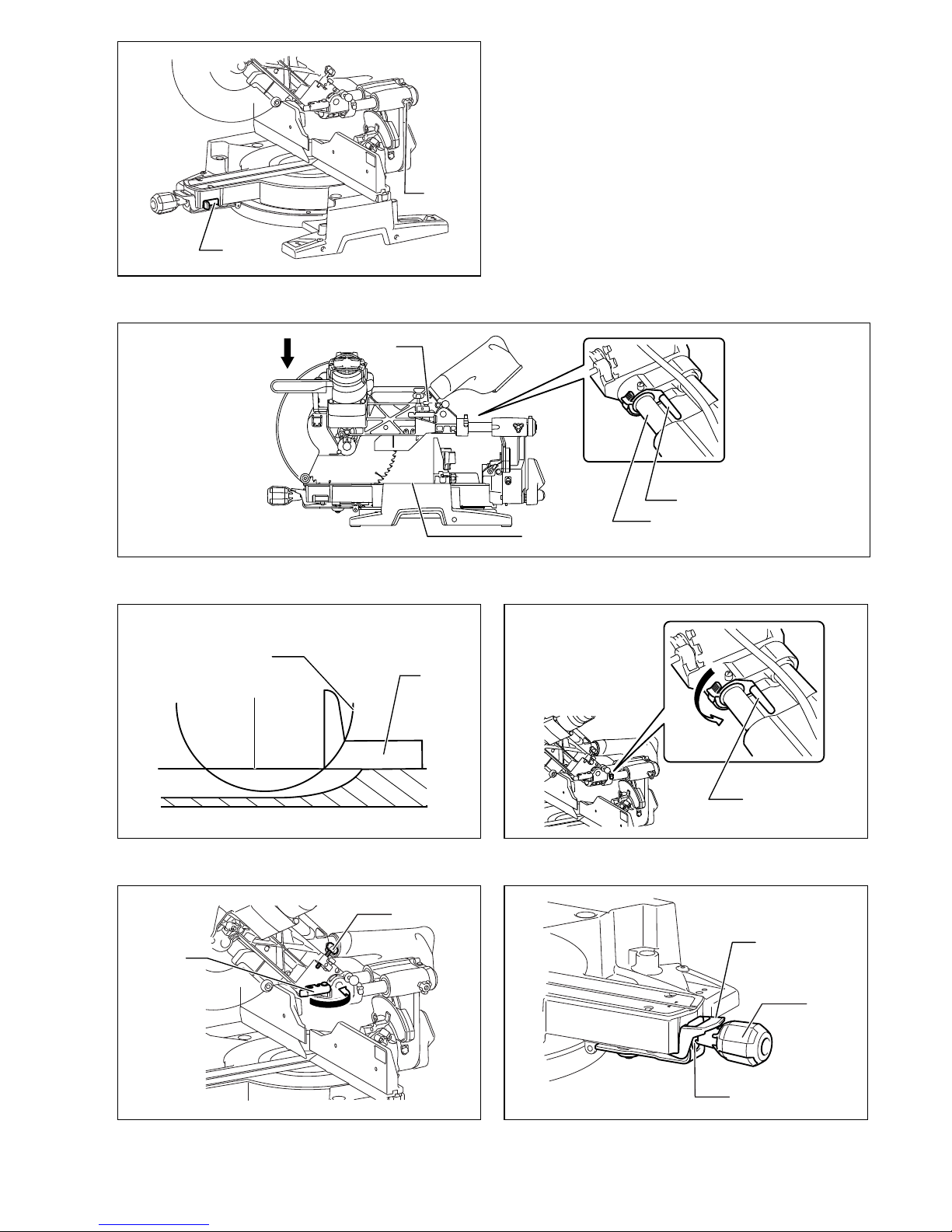

Explanation of general view
1 Stopper pin
2Hexbolt(s)
3 Blade guard
4 Kerf board
5 Saw blade
6 Blade teeth
7 Left bevel cut
8 Straight cut
9 Right bevel cut
10 Lock lever
11 Locking screw
12 Adjusting bolt
13 Turn base
14 Stopper lever
15 Slide pipe
16 Top surface of turn base
17 Periphery of blade
18 Guide fence
19 Adjusting screw
20 Stopper arm
21 Grip
22 Cam
23 Lever(s)
24 Latch lever
25 Scale plate
26 Release button
27 Pointer
28 Lock-off button
29 Switch trigger
30 Hole for padlock
31 Switch for light
32 Light
33 Switch for laser
34 Wrench holder
35 Hex wrench
36 Center cover
37 Hex socket bolt
38 Shaft lock
39 Blade case
40 Arrow
41 Outer flange
42 Ring
43 Inner flange
44 Socket wrench
45 Spindle
46 Dust nozzle
47 Dust bag
48 Fastener
49 Dust box
50 Cover
51 Button
52 Cylinder section
53 Sawdust
54 Support
55 Turn base
56 Clamping screws
57 Upper fence
58 Lower fence
59 Red indicating area
60 Vise knob
61 Vise arm
62 Vise rod
63 Screw
64 Vise plate
65 Vise nut
66 Holder
67 52/38° type crown molding
68 45° type crown molding
69 45° type cove molding
70 Inside corner
71 Outside corner
72 Crown molding stopper L
(Optional accessory)
73 Crown molding stopper R
(Optional accessory)
74 Crown molding stopper L
75 Crown molding stopper R
76 Crown molding
77 Vise
78 Spacer block
79 Aluminum extrusion
80 Cut grooves with blade
81 Triangular rule
82 Miter scale
83 Bevel scale plate
84 0° angle adjusting bolt
85 Top surface of turn table
86 Scale plate
87 Left 45° bevel angle adjusting
bolt
88 Right 45° bevel angle adjusting
bolt
89 Workpiece
90 Laser line
91 Vertical vise
92 Screwdriver
93 Screw (one piece only)
94 Lens for the laser light
95 Limit mark
96 Brush holder cap
SPECIFICATIONS
Model LS1016/LS1016L/LS1016F/LS1016FL
Blade diameter
For all countries other than European countries ............................................................................. 255 mm – 260 mm
For European countries.................................................................................................................................... 260 mm
Blade body thickness ........................................................................................................................... 1.6 mm – 2.4 mm
Hole diameter
For all countries other than European countries ............................................................................................. 25.4 mm
For European countries...................................................................................................................................... 30 mm
Max. cutting capacities (H x W) with 260 mm in diameter
Miter angle Bevel angle
45° (left) 0° 45° (right)
0° 42 mm x 310 mm 68 mm x 310 mm 29 mm x 310 mm
58 mm x 279 mm 91 mm x 279 mm 43 mm x 279 mm
45° (right and left) 42 mm x 218 mm 68 mm x 218 mm 29 mm x 218 mm
58 mm x 197 mm 91 mm x 197 mm 43 mm x 197 mm
52° (right and left) – 68 mm x 190 mm –
91 mm x 171 mm
60° (right) – 68 mm x 155 mm –
91 mm x 139 mm

17
Special Max. cutting capacities
No load speed (min–1) ............................................................................................................................................ 3,200
Laser Type (LS1016L, LS1016FL)..........................................................Red Laser 650 nm, <1.6 mW (Laser Class 2M)
Dimensions (L x W x H) .....................................................................................................718 mm x 640 mm x 671 mm
Net weight
For all countries other than European countries
LS1016 .............................................................................................................................................................. 23.6 kg
LS1016L/LS1016F............................................................................................................................................. 23.7 kg
LS1016FL .......................................................................................................................................................... 23.8 kg
For European countries
LS1016 .............................................................................................................................................................. 24.1 kg
LS1016L/LS1016F............................................................................................................................................. 24.2 kg
LS1016FL .......................................................................................................................................................... 24.3 kg
Safety class ............................................................................................................................................................. /II
• Due to our continuing program of research and devel-
opment, the specifications herein are subject to change
without notice.
• Specifications may differ from country to country.
• Weight according to EPTA-Procedure 01/2003
ENE006-1
Intended use
The tool is intended for accurate straight and miter cut-
ting in wood. With appropriate saw blades, aluminum can
also be sawed.
ENF002-2
Power supply
The tool should be connected only to a power supply of
the same voltage as indicated on the nameplate, and can
only be operated on single-phase AC supply. They are
double-insulated and can, therefore, also be used from
sockets without earth wire.
GEA010-1
General Power Tool Safety Warnings
WARNING Read all safety warnings and all
instructions. Failure to follow the warnings and
instructions may result in electric shock, fire and/or
serious injury.
Save all warnings and instructions for future refer-
ence.
ENB034-6
ADDITIONAL SAFETY RULES FOR TOOL
1. Wear eye protection.
2. Keep hands out of path of saw blade. Avoid con-
tact with any coasting blade. It can still cause
severe injury.
3. Do not operate saw without guards in place.
Check blade guard for proper closing before
each use. Do not operate saw if blade guard
does not move freely and close instantly. Never
clamp or tie the blade guard into the open posi-
tion.
4. Do not perform any operation freehand. The
workpiece must be secured firmly against the turn
base and guide fence with the vise during all opera-
tions. Never use your hand to secure the workpiece.
5. Never reach around saw blade.
6. Turn off tool and wait for saw blade to stop
before moving workpiece or changing settings.
7. Unplug tool before changing blade or servicing.
8. Always secure all moving portions before carry-
ing the tool.
9. Stopper pin which locks the cutter head down is
for carrying and storage purposes only and not
for any cutting operations.
10. Do not use the tool in the presence of flammable
liquids or gases. The electrical operation of the tool
could create an explosion and fire when exposed to
flammable liquids or gases.
11. Check the blade carefully for cracks or damage
before operation.
Replace cracked or damaged blade immediately.
12. Use only flanges specified for this tool.
13. Be careful not to damage the arbor, flanges
(especially the installing surface) or bolt. Dam-
age to these parts could result in blade breakage.
14. Make sure that the turn base is properly secured
so it will not move during operation.
15. For your safety, remove the chips, small pieces,
etc. from the table top before operation.
16. Avoid cutting nails. Inspect for and remove all
nails from the workpiece before operation.
17. Make sure the shaft lock is released before the
switch is turned on.
18. Be sure that the blade does not contact the turn
base in the lowest position.
19. Hold the handle firmly. Be aware that the saw
moves up or down slightly during start-up and
stopping.
20. Make sure the blade is not contacting the work-
piece before the switch is turned on.
21. Before using the tool on an actual workpiece, let
it run for a while. Watch for vibration or wobbling
that could indicate poor installation or a poorly
balanced blade.
22. Wait until the blade attains full speed before cut-
ting.
23. Stop operation immediately if you notice any-
thing abnormal.
24. Do not attempt to lock the trigger in the on posi-
tion.
25. Be alert at all times, especially during repetitive,
monotonous operations. Don’t be lulled into a
false sense of security. Blades are extremely
unforgiving.
Crown molding 45° type
(with Crown molding stopper used) 168 mm
Base board (H)
(with Horizontal vise used) 120 mm

18
26. Always use accessories recommended in this
manual. Use of improper accessories such as
abrasive wheels may cause an injury.
27. Do not use the saw to cut other than wood, alu-
minum or similar materials.
28. Connect miter saws to a dust collecting device
when sawing.
29. Select saw blades in relation to the material to
be cut.
30. Take care when slotting.
31. Replace the kerf board when worn.
32. Do not use saw blades manufactured from high
speed steel.
33. Some dust created from operation contains
chemicals known to cause cancer, birth defects
or other reproductive harm. Some examples of
these chemicals are:
• lead from lead-based-painted material and,
• arsenic and chromium from chemically-treated
lumber.
Your risk from these exposures varies, depend-
ing on how often you do this type of work. To
reduce your exposure to these chemicals: work
in a well ventilated area and work with approved
safety equipment, such as those dust masks
that are specially designed to filter out micro-
scopic particles.
34. To reduce the emitted noise, always be sure that
the blade is sharp and clean.
35. The operator is adequately trained in the use,
adjustment and operation of the machine.
36. Use correctly sharpened saw blades. Observe
the maximum speed marked on the saw blade.
37. Refrain from removing any cut-offs or other
parts of the workpiece from the cutting area
whilst the tool is running and the saw head is not
in the rest position.
38. Use only saw blades recommended by the
manufacturer which conform to EN847-1.
39. Wear gloves for handling saw blade (saw blades
shall be carried in a holder wherever practicable)
and rough material.
40. When fitted with laser, no exchange with differ-
ent type of laser is permitted. Repairs shall only
be carried out correctly.
SAVE THESE INSTRUCTIONS.
INSTALLATION
Bench mounting
When the tool is shipped, the handle is locked in the low-
ered position by the stopper pin. Release the stopper pin
by simultaneously applying a slight downward pressure
on the handle and pulling the stopper pin. (Fig. 1)
WARNING:
•Ensure that the tool will not move on the support-
ing surface. Movement of the miter saw on the sup-
porting surface while cutting may result in loss of
control and serious personal injury.
This tool should be bolted with four bolts to a level and
stable surface using the bolt holes provided in the tool’s
base. This will help prevent tipping and possible injury.
(Fig. 2)
FUNCTIONAL DESCRIPTION
WARNING:
• Always be sure that the tool is switched off and
unplugged before adjusting or checking function on
the tool.
Failure to switch off and unplug the tool may
result in serious personal injury from accidental start-up.
Blade guard (Fig. 3 & 4)
When lowering the handle, the blade guard rises auto-
matically. The blade guard returns to its original position
when the cut is completed and the handle is raised.
WARNING:
•Never defeat or remove the blade guard or the
spring which attaches to the guard. An exposed
blade as a result of defeated guarding may result in
serious personal injury during operation.
In the interest of your personal safety, always maintain
the blade guard in good condition. Any irregular opera-
tion of the blade guard should be corrected immediately.
Check to assure spring loaded return action of guard.
WARNING:
•Never use the tool if the blade guard or spring are
damaged, faulty or removed. Operation of the tool
with a damaged, faulty or removed guard may result in
serious personal injury.
If the see-through blade guard becomes dirty, or sawdust
adheres to it in such a way that the blade and/or work-
piece is no longer easily visible, unplug the saw and
clean the guard carefully with a damp cloth. Do not use
solvents or any petroleum-based cleaners on the plastic
guard because this may cause damage to the guard.
If the blade guard becomes dirty and needs to be
cleaned for proper operation follow the steps below:
With the tool switched off and unplugged, use the sup-
plied socket wrench to loosen the hex bolt holding the
center cover. Loosen the hex bolt by turning it counter-
clockwise and raise the blade guard and center cover.
With the blade guard so positioned, cleaning can be
more completely and efficiently accomplished. When
cleaning is complete, reverse procedure above and
secure bolt. Do not remove spring holding blade guard. If
guard becomes damaged through age or UV light expo-
sure, contact a Makita service center for a new guard.
DO NOT DEFEAT OR REMOVE GUARD.
Positioning kerf board (Fig. 5, 6 & 7)
This tool is provided with the kerf boards in the turn base
to minimize tearing on the exit side of a cut. The kerf
boards are factory adjusted so that the saw blade does
not contact the kerf boards. Before use, adjust the kerf
boards as follows:
First, unplug the tool. Loosen all the screws (2 each on
left and right) securing the kerf boards. Re-tighten them
only to the extent that the kerf boards can still be easily
moved by hand. Lower the handle fully and push in the
stopper pin to lock the handle in the lowered position.
Loosen the locking screw counterclockwise which
secures the upper slide poles and also push forward the
lock lever which secures the lower slide poles. Pull the
carriage toward you fully. Adjust the kerf boards so that
the kerf boards just contact the sides of the blade teeth.
Tighten the front screws (do not tighten firmly). Push the
carriage toward the guide fence fully and adjust the kerf
boards so that the kerf boards just contact the sides of
blade teeth. Tighten the rear screws (do not tighten
firmly).

19
After adjusting the kerf boards, release the stopper pin
and raise the handle. Then tighten all the screws
securely.
NOTICE:
•After setting the bevel angle ensure that the kerf
boards are adjusted properly. Correct adjustment of
the kerf boards will help provide proper support of the
workpiece minimizing workpiece tear out.
Maintaining maximum cutting capacity
(Fig. 8, 9 & 10)
This tool is factory adjusted to provide the maximum cut-
ting capacity for a 260 mm saw blade.
Unplug the tool before any adjustment is attempted.
When installing a new blade, always check the lower limit
position of the blade and if necessary, adjust it as follows:
First, unplug the tool. Lower the stopper lever to position
the saw blade as shown in the figure. Push the carriage
toward the guide fence fully and lower the handle com-
pletely. Use the socket wrench to turn the adjusting bolt
until the periphery of the blade extends slightly below the
top surface of the turn base at the point where the front
face of the guide fence meets the top surface of the turn
base.
With the tool unplugged, rotate the blade by hand while
holding the handle all the way down to be sure that the
blade does not contact any part of the lower base. Re-
adjust slightly, if necessary.
After adjustment, always return the stopper lever to the
original position by turning it counterclockwise.
WARNING:
•After installing a new blade and with the tool
unplugged, always be sure that the blade does not
contact any part of the lower base when the handle
is lowered completely. If a blade makes contact with
the base it may cause kickback and result in serious
personal injury.
Stopper arm (Fig. 11)
The lower limit position of the blade can be easily
adjusted with the stopper arm. To adjust it, rotate the
stopper arm in the direction of the arrow as shown in the
figure. Adjust the adjusting screw so that the blade stops
at the desired position when lowering the handle fully.
Adjusting the miter angle (Fig. 12)
Push the grip so that the cams engages and turn it clock-
wise until it stops. Turn the turn base while pressing
down the lock lever. When you have moved the grip to
the position where the pointer points to the desired angle
on the miter scale, turn the grip 90° counterclockwise to
lock the turn base.
CAUTION:
• After changing the miter angle, always secure the turn
base by turning the grip 90° counterclockwise.
NOTICE:
• When turning the turn base, be sure to raise the handle
fully.
Adjusting the bevel angle (Fig. 13, 14 & 15)
To adjust the bevel angle, loosen the lever at the rear of
the tool counterclockwise. Push the latch lever forward as
shown in the figure fully while supporting the weight of
the saw head so as to release the pressure on the lock
pin.
When tilting the carriage to the right, tilt the carriage to
the left slightly after loosening the lever and press the
releasing button. With the releasing button being
pressed, tilt the carriage to the right.
Tilt the saw blade until the pointer points to the desired
angle on the bevel scale. Then tighten the lever clock-
wise firmly to secure the arm.
When the latch lever is pulled towards the front of the
saw, the saw blade can be locked using positive stops at
the right and left 22.5° and 33.9° angle to the base sur-
face.
When the latch lever is pushed to the back of the saw as
shown in the figure, the saw blade can be locked at any
desired angle within the specified bevel angle range.
CAUTION:
• After changing the bevel angle, always secure the arm
by tightening the lever clockwise.
NOTICE:
• When tilting the saw blade be sure the handle is fully
raised.
• When changing bevel angles, be sure to position the
kerf boards appropriately as explained in the “Position-
ing kerf board” section.
Slide lock adjustment (Fig. 16)
To lock the lower slide pole, pull the lock lever towards
the front of the saw.
To lock the upper slide pole, turn the locking screw clock-
wise.
Switch action
For European countries (Fig. 17)
To prevent the switch trigger from being accidentally
pulled, a lock-off button is provided. To start the tool,
push the lever to the left, press in the lock-off button and
then pull the switch trigger. Release the switch trigger to
stop.
WARNING:
•Before plugging in the tool, always check to see
that the switch trigger actuates properly and
returns to the “OFF” position when released. Do
not pull the switch trigger hard without pressing in
the lock-off button. This can cause switch break-
age. Operating a tool with a switch that does not actu-
ate properly can lead to loss of control and serious
personal injury.
A hole is provided in the switch trigger for insertion of
padlock to lock the tool off.
For all countries other than European countries
(Fig. 18)
To prevent the switch trigger from being accidentally
pulled, a lock-off button is provided. To start the tool,
press in the lock-off button and pull the switch trigger.
Release the switch trigger to stop.
WARNING:
•Before plugging in the tool, always check to see
that the switch trigger actuates properly and
returns to the “OFF” position when released. Do
not pull the switch trigger hard without pressing in
the lock-off button. This can cause switch break-
age. Operating a tool with a switch that does not actu-
ate properly can lead to loss of control and serious
personal injury.
A hole is provided in the switch trigger for insertion of
padlock to lock the tool off.

20
WARNING:
•Do not use a lock with a shank or cable any smaller
than 6.35 mm in diameter. A smaller shank or cable
may not properly lock the tool in the off position and
unintentional operation may occur resulting in serious
personal injury.
•NEVER use tool without a fully operative switch
trigger. Any tool with an inoperative switch is HIGHLY
DANGEROUS and must be repaired before further
usage or serious personal injury may occur.
• For your safety, this tool is equipped with a lock-off but-
ton which prevents the tool from unintended starting.
NEVER use the tool if it runs when you simply pull the
switch trigger without pressing the lock-off button. A
switch in need of repair may result in unintentional
operation and serious personal injury. Return tool to a
Makita service center for proper repairs BEFORE fur-
ther usage.
• NEVER defeat the lock-off button by taping down or
some other means. A switch with a defeated lock-off
button may result in unintentional operation and serious
personal injury.
Lighting up the lamps
For Models LS1016F and LS1016FL only (Fig. 19)
CAUTION:
• This is not a rainproof light. Do not wash the light in
water or use it in a rain or a wet area. Such a conduct
can cause an electric shock and fume.
• Do not touch the lens of the light, as it is very hot while
it is lighted or shortly after it is turned off. This may
cause a burn to a human body.
• Do not apply impact to the light, which may cause dam-
age or shorted service time to it.
• Do not keep casting the beam of the light to your eyes.
This can cause your eyes to be hurt.
• Do not cover the light with clothes, carton, cardboard or
similar objects while it is lighted, which can cause a fire
or an ignition.
To turn on the light, press the upper position (I) of the
switch. To turn off the light, press the lower position (O) of
the switch.
Move the light to shift an area of lighting.
NOTE:
• Use a dry cloth to wipe the dirt off the lens of lamp. Be
careful not to scratch the lens of light, or it may lower
the illumination.
Electronic function
Constant speed control
• The tool is provided with an electronic speed control
which helps maintain a constant blade rotation speed
even under load. A constant blade rotation speed will
result in a very smooth cut.
Soft start feature
• This function allows the smooth start-up of the tool by
limiting the start-up torque.
Laser beam action
For Models LS1016L and LS1016FL only (Fig. 20 &
21)
CAUTION:
• Never look into the laser beam. Direct laser beam may
injure your eyes.
• LASER RADIATION, DO NOT STARE INTO THE
BEAM OR VIEW DIRECTLY WITH OPTICAL INSTRU-
MENTS, CLASS 2M LASER PRODUCT.
To turn on the laser beam, press the upper position (I) of
the switch. To turn off the laser beam, press the lower
position (O) of the switch.
Laser line can be shifted to either the left or right side of
the saw blade by adjusting the adjusting screw as fol-
lows.
1. Loosen the adjusting screw by turning it counter-
clockwise.
2. With the adjusting screw loosened, slide the adjust-
ing screw to the right or left as far as it goes.
3. Tighten the adjusting screw firmly at the position
where it stops sliding.
Laser line is factory adjusted so that it is positioned within
1 mm from the side surface of the blade (cutting posi-
tion).
NOTE:
• When laser line appears dim and hard to see because
of direct sunlight, relocate the work area to a place
where there is less direct sunlight.
Aligning the laser line (Fig. 22)
Laser line can be shifted to either the left or right side of
the blade according to the applications of cutting. Refer
to explanation titled “Laser beam action” regarding its
shifting method.
NOTE:
• Use wood facing against the guide fence when aligning
the cutting line with the laser line at the side of guide
fence in compound cutting (bevel angle 45 degrees and
miter angle right 45 degrees).
A) When you obtain the correct size on the left side of
workpiece
• Shift the laser line to the left of the blade.
B) When you obtain the correct size on the right side
of workpiece
• Shift the laser line to the right of the blade.
Align the cutting line on your workpiece with the laser
line.
ASSEMBLY
WARNING:
•Always be sure that the tool is switched off and
unplugged before working on the tool. Failure to
switch off and unplug the tool may result in serious per-
sonal injury.
Storage
For model with hex wrench (Fig. 23)
The hex wrench is stored as shown in the figure. When
the hex wrench is needed it can be pulled out of the
wrench holder.
After using the hex wrench it can be stored by returning it
to the wrench holder.
Installing or removing saw blade
WARNING:
•Always be sure that the tool is switched off and
unplugged before installing or removing the blade.
Accidental start up of the tool may result in serious per-
sonal injury.
