Makita UH5580 User manual

1
GB Hedge Trimmer INSTRUCTION MANUAL
SHäcktrimmer BRUKSANVISNING
NHekktrimmer BRUKSANVISNING
FIN Pensasleikkuri KÄYTTÖOHJE
LV Dzīvžoga griezējs LIETOŠANAS INSTRUKCIJA
LT Gyvatvorės žirklės NAUDOJIMO INSTRUKCIJA
EE Hekitrimmer KASUTUSJUHEND
RUS Электрический кусторез
РУКОВОДСТВО ПО ЭКСПЛУАТАЦИИ
UH5580
UH6580
UH7580

2
12
3
1
2
3
1
2
1
2
12
3

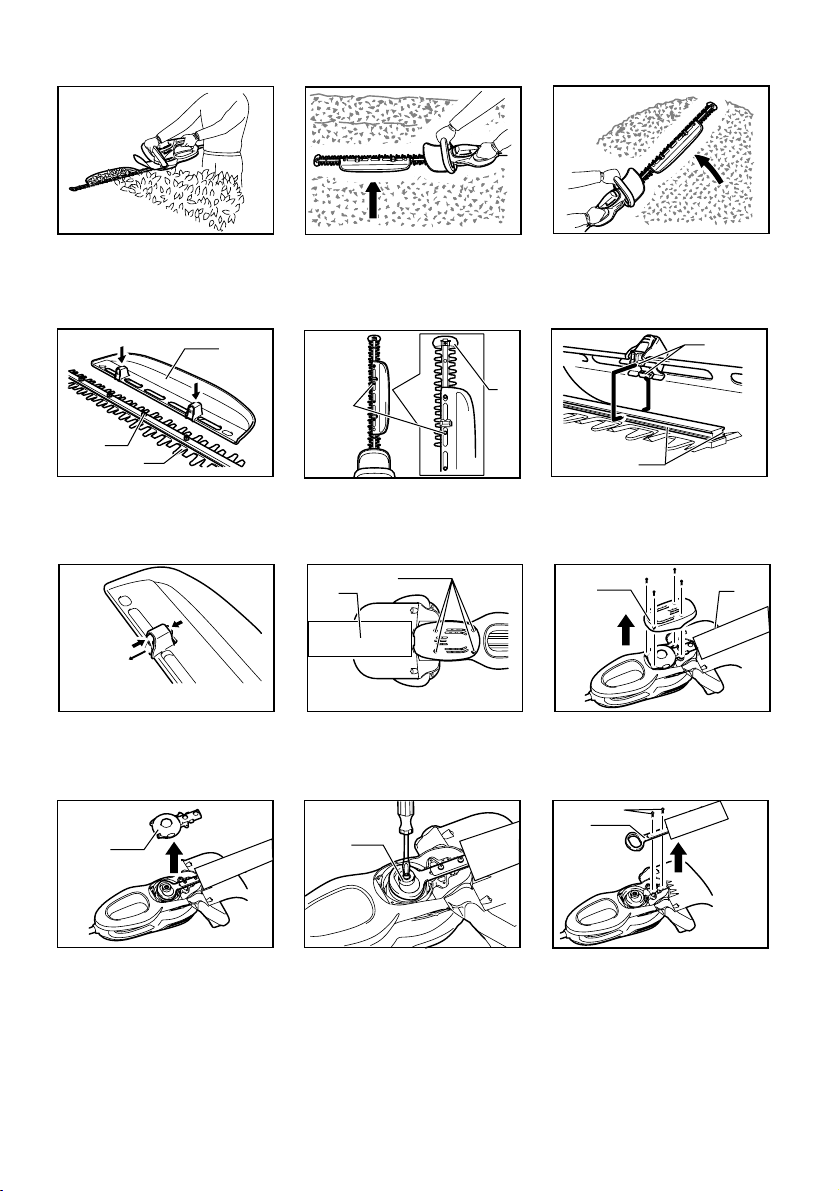

1 009317 2 009319 3 009281
4 009313 5 007542 6 007545
7 009324 8 007559 9 009315
10 009318 11 009285 12 009320

3
13 009321 14 009322 15 009323
12
3
4
16 009290
1
2
17 009291
1
2
3
18 009292
1
2
19 009293
1
2
20 009295
12
21 009296
1
22 009297
1
23 009298
1
2
24 009299

4
1
25 009300
1
26 009301
27 009302
1
2
28 009303
1
29 009304 30 009325

5
ENGLISH (Original instructions)

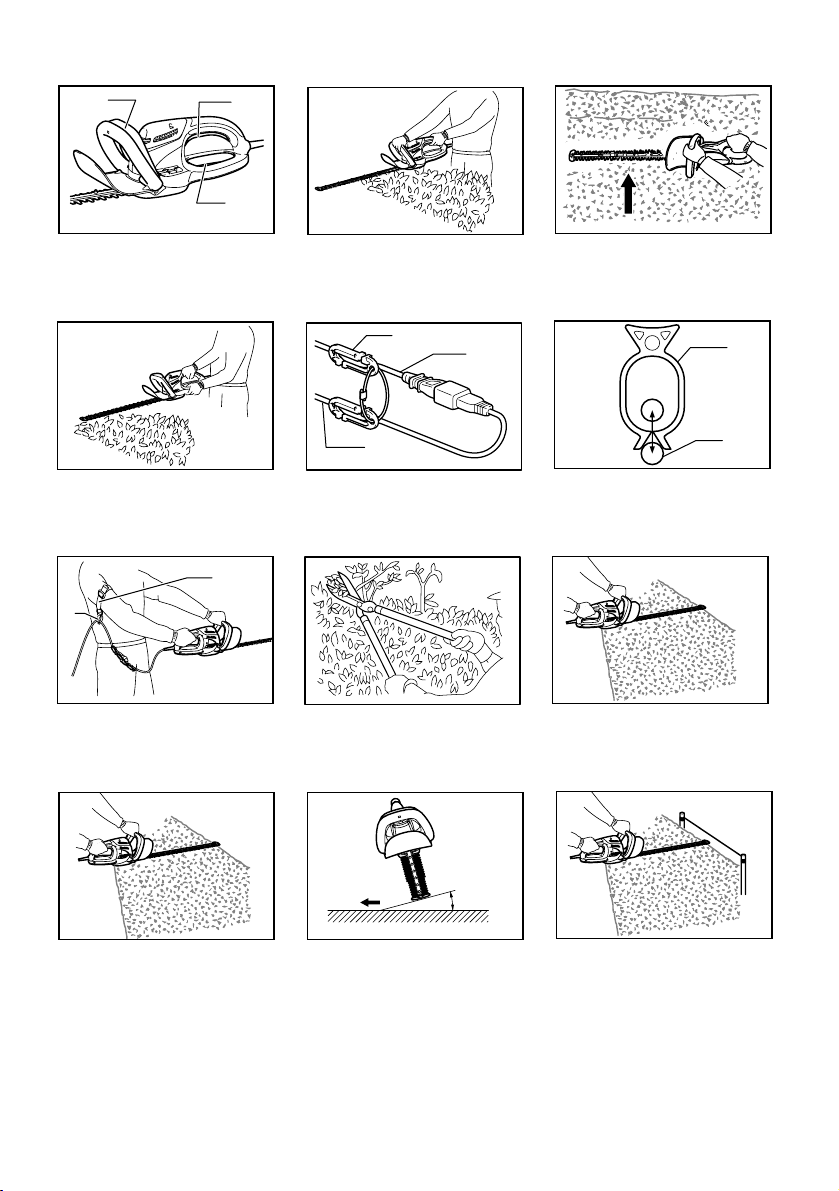

Explanation of general view
1-1. Switch trigger B
1-2. Switch trigger A
1-3. Switch trigger C
5-1. Hook complete
5-2. Tool's cord
5-3. Extension cord
6-1. Holder
6-2. Cord
7-1. Holder
7-2. Arm cord hook
11-1. Trimming direction
11-2. Tilt the blades
11-3. Hedge surface to be trimmed
16-1. Press
16-2. Chip receiver
16-3. Nut
16-4. Shear blade
17-1. Nut
17-2. Branch catcher
18-1. Hooks
18-2. Fit the hooks into groove
18-3. Grooves
19-1. Press the levers on both sides
19-2. Unlock the hooks
20-1. Screws
20-2. Blade cover
21-1. Under cover
21-2. Blade cover
22-1. Gear housing cover

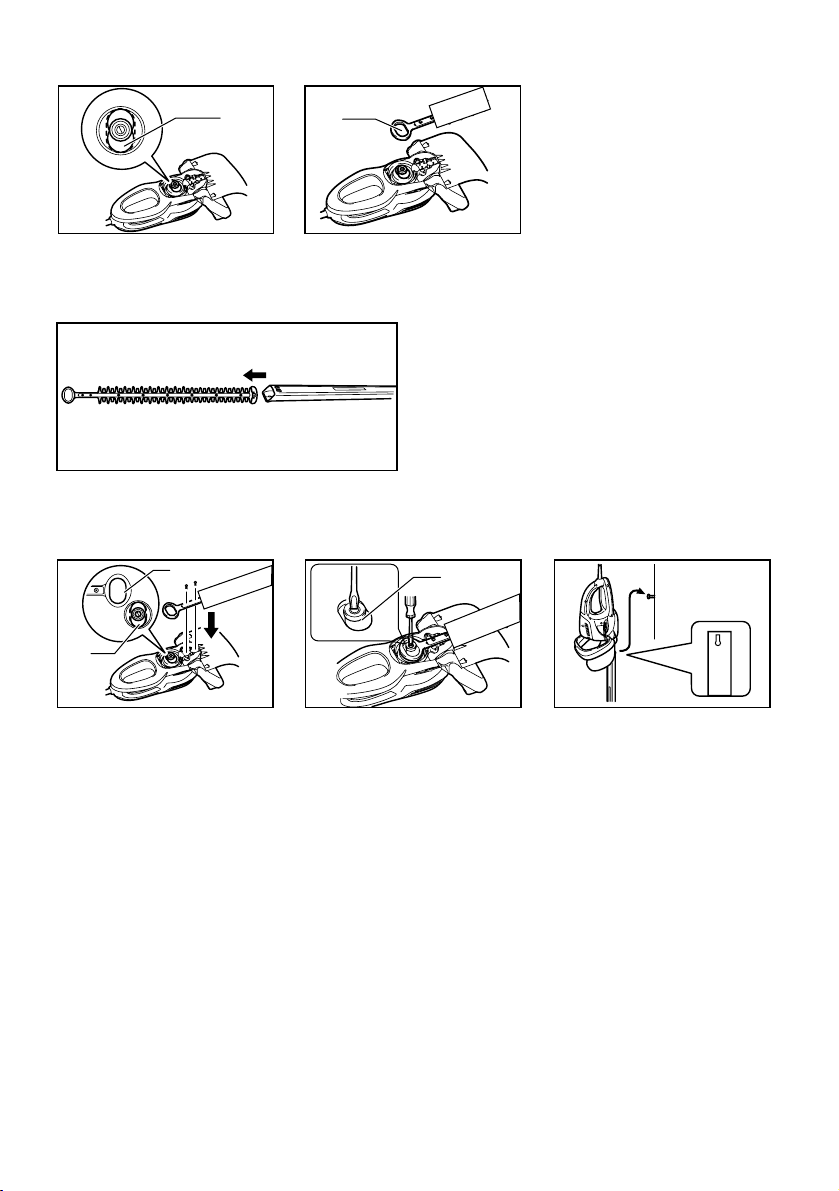

23-1. Crank
24-1. Screws
24-2. Shear blade
25-1. Crank
26-1. Ellipse of shear blade
28-1. Ellipse of shear blade
28-2. Crank
29-1. Crank
SPECIFICATIONS
Model UH5580 UH6580 UH7580
Blade length 550 mm 650 mm 750 mm
Strokes per minute (min-1) 1,500 1,500 1,500
Overall length 970 mm 1,049 mm 1,157 mm
Net weight 4.3 kg 4.4 kg 4.6 kg
Safety class /II
• Due to our continuing program of research and development, the specifications herein are subject to change without notice.
• Specifications may differ from country to country.
• Weight according to EPTA-Procedure 01/2003
END220-5
Symbol
The following show the symbols used for the equipment.
Be sure that you understand their meaning before use.
･Read instruction manual.
･DOUBLE INSULATION
･Do not expose to rain.
･Remove plug from the mains
immediately if the cable is damaged or
cut.
･Only for EU countries
Do not dispose of electric equipment
together with household waste
material!
In observance of European Directive
2012/19/EU on waste electric and
electronic equipment and its
implementation in accordance with
national law, electric equipment that
have reached the end of their life must
be collected separately and returned to
an environmentally compatible
recycling facility.
ENE014-1
Intended use
The tool is intended for trimming hedges.
ENF002-2
Power supply
The tool should be connected only to a power supply of
the same voltage as indicated on the nameplate, and
can only be operated on single-phase AC supply. They
are double-insulated and can, therefore, also be used
from sockets without earth wire.
ENG905-1
Noise
The typical A-weighted noise level determined
according to EN60745:
Sound pressure level (LpA) : 86.5 dB(A)
Sound power level (LWA) : 94.5 dB(A)
Uncertainty (K) : 0.7 dB(A)
Wear ear protection
ENG900-1
Vibration
The vibration total value (tri-axial vector sum)
determined according to EN60745:
Work mode : hedge trimming
Vibration emission (ah) : 4.4 m/s2
Uncertainty (K) : 1.5 m/s2

6
ENG901-1
• The declared vibration emission value has been
measured in accordance with the standard test
method and may be used for comparing one tool
with another.
• The declared vibration emission value may also be
used in a preliminary assessment of exposure.
WARNING:
• The vibration emission during actual use of the
power tool can differ from the declared emission
value depending on the ways in which the tool is
used.
• Be sure to identify safety measures to protect the
operator that are based on an estimation of
exposure in the actual conditions of use (taking
account of all parts of the operating cycle such as
the times when the tool is switched off and when it
is running idle in addition to the trigger time).
ENH021-7
For European countries only
EC Declaration of Conformity
We Makita Corporation as the responsible
manufacturer declare that the following Makita
machine(s):
Designation of Machine:
Hedge Trimmer
Model No./ Type: UH5580, UH6580, UH7580
Specifications: see "SPECIFICATIONS" table.
are of series production and
Conforms to the following European Directives:
2000/14/EC, 2006/42/EC
And are manufactured in accordance with the following
standards or standardised documents:
EN60745
The technical documentation is kept by:
Makita International Europe Ltd.
Technical Department,
Michigan Drive, Tongwell,
Milton Keynes, Bucks MK15 8JD, England
The conformity assessment procedure required by
Directive 2000/14/EC was in Accordance with annex V.
Measured Sound Power Level: 94.5dB (A)
Guaranteed Sound Power Level: 96dB (A)
30.1.2009
000230
Tomoyasu Kato
Director
Makita Corporation
3-11-8, Sumiyoshi-cho,
Anjo, Aichi, 446-8502, JAPAN
GEA010-1
General Power Tool Safety
Warnings
WARNING Read all safety warnings and all
instructions. Failure to follow the warnings and
instructions may result in electric shock, fire and/or
serious injury.
Save all warnings and instructions for
future reference.
GEB041-9
HEDGE TRIMMER SAFETY
WARNINGS
1. Keep all parts of the body away from the
cutter blade. Do not remove cut material or
hold material to be cut when blades are
moving. Make sure the switch is off when
clearing jammed material. A moment of
inattention while operating the hedge trimmer
may result in serious personal injury.
2. Carry the hedge trimmer by the handle with
the cutter blade stopped. When transporting
or storing the hedge trimmer always fit the
cutting device cover. Proper handling of the
hedge trimmer will reduce possible personal
injury from the cutter blades.
3. Hold the power tool by insulated gripping
surfaces only, because the cutter blade may
contact hidden wiring or its own cord. Cutter
blades contacting a "live" wire may make
exposed metal parts of the power tool "live" and
could give the operator an electric shock.
4. Keep cable away from cutting area. During
operation the cable may be hidden in shrubs and
can be accidentally cut by the blade.
5. Do not use the hedge trimmer in the rain or in wet
or very damp conditions. The electric motor is not
waterproof.
6.
First-time users should have an experienced hedge
trimmer user show them how to use the trimmer.
7. The hedge trimmer must not be used by children
or young persons under 18 years of age. Young
persons over 16 years of age may be exempted
from this restriction if they are undergoing training
under the supervision of an expert.
8. Use the hedge trimmer only if you are in good
physical condition. If you are tired, your attention
will be reduced. Be especially careful at the end
of a working day. Perform all work calmly and
carefully. The user is responsible for all damages
to third parties.
9. Never use the trimmer when under the influence
of alcohol, drugs or medication.
10. Check to make sure that the voltage and
frequency of the power supply correspond to the

7
specifications given on the identification plate. We
recommend the use of a residual-current-
operated circuit breaker (ground-fault circuit
interrupter) with a tripping current of 30 mA or
less, or an earth leakage current protector.
11. Work gloves of stout leather are part of the basic
equipment of the hedge trimmer and must always
be worn when working with it. Also wear sturdy
shoes with anti-skid soles.
12. Before starting work check to make sure that the
trimmer is in good and safe working order. Ensure
guards are fitted properly. Check cable for
damage before starting work and replace if
necessary. The hedge trimmer must not be used
unless fully assembled.
13. Keep cable away from the cutting area. Always
work in such a way that the extension power cord
is behind you.
14. Remove plug from the mains immediately if cable
is damaged or cut.
15. Make sure you have a secure footing before
starting operation.
16. Hold the tool firmly when using the tool.
17. Do not operate the tool at no-load unnecessarily.
18.
Immediately switch off the motor and unplug the
mains plug if the cutter should come into contact
with a fence or other hard object. Check the cutter
for damage, and if damaged repair immediately.
19. Before checking the cutter, taking care of faults,
or removing material caught in the cutter, always
switch off the trimmer and unplug the mains plug.
20.
Switch off the trimmer and disconnect and secure
the mains plug before doing any maintenance work.
21. When moving the hedge trimmer to another location,
including during work, always unplug the mains plug
and put the blade cover on the cutter blades. Never
carry or transport the trimmer with the cutter running.
Never grasp the cutter with your hands.
22. Clean the hedge trimmer and especially the cutter
after use, and before putting the trimmer into
storage for extended periods. Lightly oil the cutter
and put on the cover. The cover supplied with the
unit can be hung on the wall, providing a safe and
practical way to store the hedge trimmer.
23. Store the hedge trimmer with the cover on, in a
dry room. Keep it out of reach of children. Never
store the trimmer outdoors.
24. Do not operate the tool at no-load
unnecessarily.
SAVE THESE INSTRUCTIONS.
WARNING:
DO NOT let comfort or familiarity with product (gained
from repeated use) replace strict adherence to safety
rules for the subject product. MISUSE or failure to
follow the safety rules stated in this instruction
manual may cause serious personal injury.
FUNCTIONAL DESCRIPTION
CAUTION:
• Always be sure that the tool is switched off and
unplugged before adjusting or checking function
on the tool.
Switch action
Fig.1
For your safety, this tool is equipped with a triple
switching system. To turn on the tool, press two out of
three triggers A, B and C. Release either one of the two
pressed triggers to turn off. The sequence of switching
is unimportant as the tool only starts when both
switches are activated.
Straight cut
Fig.2
To trim the hedge straight, pull triggers A and B.
Vertical cut
Fig.3
Cut upwards with both hands pull the switch triggers B
and C and move it in front of your body.
Far area cut
Fig.4
To trim the hedge in far area with both hands pull the
switch triggers A and C.
ASSEMBLY
CAUTION:
• Always be sure that the tool is switched off and
unplugged before carrying out any work on the
tool.
Engage the extension cord
CAUTION:
• Make sure that the extension cord is unplugged to
the mains outlet.
Fig.5
When engaging the extension cord, secure it to the
tool's cord with the hook complete. Attach the hook
about 100 - 200 mm from the extension cord connector.
This will help prevent unintentional disconnection.

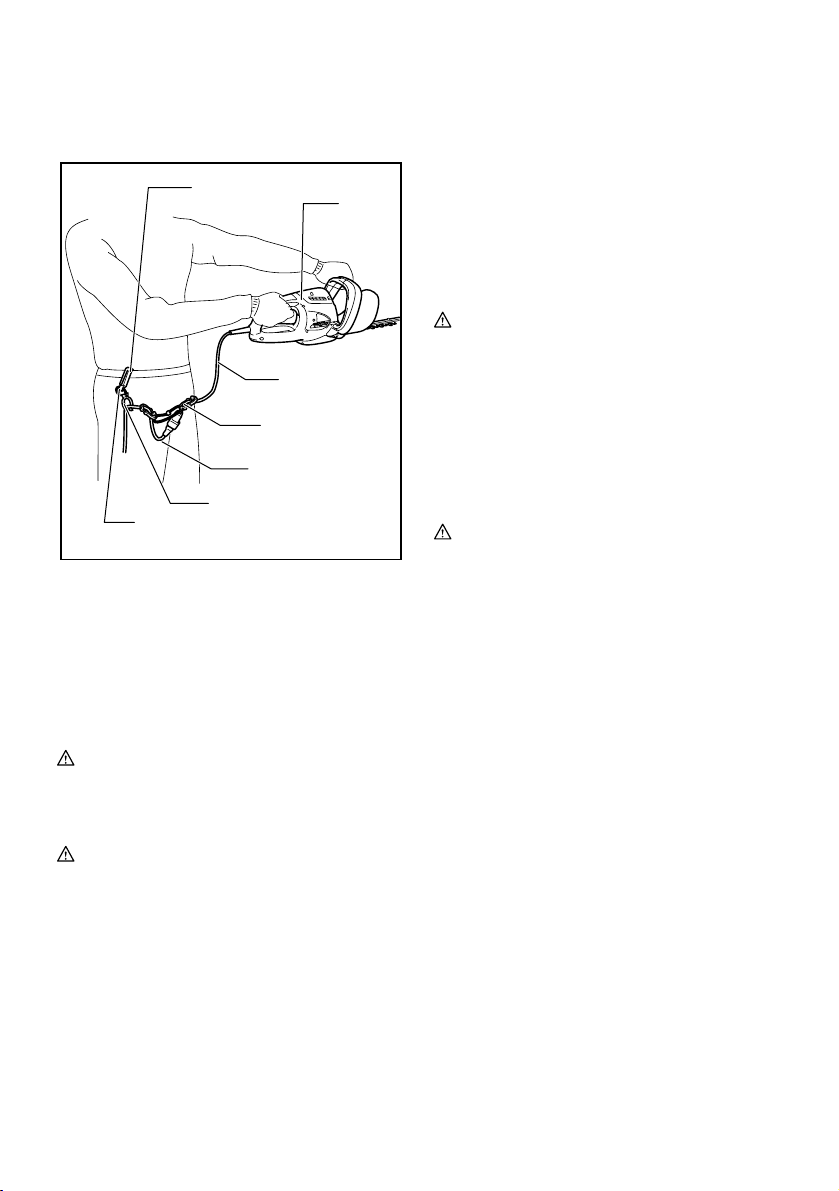

Waist cord hook
CAUTION:
• Do not attach the holder of waist cord hook to
other than the extension cord. Do not attach it in a
position closer to the tool beyond the hook
complete. Failure to do so may cause an accident
or personal injury.
• Attach firmly one hook of the hook complete to the
tool's cord and the other hook of hook complete to
the extension cord. Working with the tool with a

8
sole hook only attached may cause an accident
and injury.
Using the waist cord hook helps to minimizing a risk of
cutting off the extension cord unexpectedly caused by
the loose extension cord.
12
3
4
5
6
7
009316
Press in or pull out the cord through the opening of the
holder.
Fig.6
CAUTION:
• Do not force the opening of the holder. Failure to
do so may cause deflection and damage to it.
Arm cord hook (Accessory)
CAUTION:
• Do not attach the holder of arm cord hook to other
than the extension cord. Do not attach it in a
position closer to the tool beyond the hook
complete hooks. Failure to do so may cause an
accident or personal injury.
• Attach firmly one hook of the hook complete to the
tool's cord and the other hook of hook complete to
the extension cord. Working with the tool with a
sole hook only attached may cause an accident
and injury.
Using the arm cord hook helps to minimize a risk of
cutting off the extension cord unexpectedly caused by
the loose extension cord.
Fig.7
Attach firmly the arm cord hook placing around your arm
and pass the extension cord through the holder. The
length of the arm cord hook band is adjustable.
NOTE:
• Do not pass the extension cord through the band.
• Do not force the opening of the holder. Failure to
do so may cause deflection and damage to it.
• Using the arm cord hook together with the waist
cord hook is more helpful.
OPERATION
CAUTION:
• Be careful not to accidentally contact a metal
fence or other hard objects while trimming. The
blade will break and may cause serious injury.
• Overreaching with a hedge trimmer, particularly
from a ladder, is extremely dangerous. Do not
work from anything wobbly or infirm.
Do not attempt to cut branches thicker than 10 mm
diameter with this trimmer. These should first be cut with
shears down to the hedge trimming level.
Fig.8
CAUTION:
• Do not cut off dead trees or similar hard objects.
Failure to do so may damage the tool.
Hold the trimmer with both hands pull the switch trigger
A or B and move it in front of your body.
Fig.9
As a basic operation, tilt the blades towards the
trimming direction and move it calmly and slowly at the
speed rate of 3 - 4 seconds per meter.
Fig.10
Fig.11
To cut a hedge top evenly, it helps to tie a string at the
desired hedge height and to trim along it, using it as a
reference line.
Fig.12
Attaching the chip receiver (accessory) on the tool when
trimming the hedge straight can avoid cut off leaves’
being thrown away.
Fig.13
To cut a hedge side evenly, it helps to cut from the
bottom upwards.
Fig.14
Trim boxwood or rhododendron from the base toward
the top for a nice appearance and good job.
Fig.15
1. Hook
2. Tool
3. Tool's cord
4. Hook complete
5. Extension cord
6. Holder
7. Waist cord hoo
k

9
Installing or removing chip receiver
(accessory)
CAUTION:
• Always be sure that the tool is switched off and
unplugged before installing or removing chip
receiver.
NOTE:
• When replacing the chip receiver, always wear
gloves so that hands and face does not directly
contact the blade. Failure to do so may cause
personal injury.
• Always be sure to remove the blade cover before
installing the chip receiver.
• The chip receiver receives cut-off leaves and
alleviates collecting thrown-away leaves. This can
be installed on either side of the tool.
Fig.16
Press the chip receiver on the shear blades so that its
slits overlap with the nuts on the shear blades. At this
time, make sure that the chip receiver does not contact
branch catcher at the top of the shear blades.
Fig.17
At this time, the chip receiver needs to be installed so
that its hooks fit into grooves in the shear blade unit.
Fig.18
To remove the chip receiver, press its lever on both
sides so that the hooks are unlocked.
Fig.19
CAUTION:
• The blade cover (standard equipment) cannot be
installed on the tool with the chip receiver being
installed. Before carrying or storing, uninstall the
chip receiver and then install the blade cover to
avoid blade exposure.
NOTE:
• Check the chip receiver for secure installment
before use.
• Never try to uninstall the chip receiver by an
excessive force with its hooks locked in the blade
unit grooves. Using the excessive force may
damage it.
MAINTENANCE
CAUTION:
• Always be sure that the tool is switched off and
unplugged before attempting to perform inspection
or maintenance.
Cleaning the tool
Clean out the tool by wiping off dust with a dry or soap-
dipped rag.
CAUTION:
• Never use gasoline, benzine, thinner, alcohol or
the like. Discoloration, deformation or cracks may
result.
Blade maintenance
Smear the blade before and once per hour during
operation using machine oil or similars.
After operation, remove dust from both sides of the
blade with wired brush, wipe off it with a rag and then
apply enough low-viscosity oil, such as machine oil etc.
and spray-type lubricating oil.
CAUTION:
• Do not wash the blades in water. Failure to do so
may cause rust or damage on the tool.
Removing or installing shear blade
CAUTION:
• Before removing or installing shear blade, always
be sure that the tool is switched off and unplugged.
• When replacing the shear blade, always wear
gloves without removing blade cover so that hands
and face does not directly contact the blade.
Failure to do so may cause personal injury.
NOTE:
• Do not wipe off grease from the gear and crank.
Failure to do so may cause damage to the tool.
• For specific way of removing and installing shear
blades refer to the reverse of a package for
accessory shear blades.
Removing the shear blades
Reverse the tool and loosen four screws.
Fig.20
NOTE:
• Be careful not to get your hands dirty as grease is
applied in the shear blade driving area.
Remove the under cover.
Fig.21
Remove the gear housing cover.
Fig.22
Set the crank at the angle as shown in the figure with a
slotted bit screwdriver.

10
Fig.23
Remove two screws from the shear blades and the
shear blade unit will be taken out.
Fig.24
CAUTION:
• Return the gear to the original position in such a
manner as it was installed if it should be taken
away by mistake.
Installing the shear blade
Prepare 4 removed screws (For under cover), 2 screws
(For shear blade), gear housing cover, under cover, and
new shear blades.
Adjust the crank position as shown in the figure. At this
time, apply some grease provided with new shear
blades to the periphery of the crank.
Fig.25
Overlap the oval hole in the upper blade with that in the
lower one.
Fig.26
Take out the blade cover from the old shear blades and
fit it onto the new ones for easy handling during the
replacement of blades.
Fig.27
Place the new shear blades on the tool so that the oval
holes in the shear blades fit onto the crank. Overlap the
holes in the shear blades with the screw holes in the
tool and then secure them with two screws.
Fig.28
Check the crank for smooth turn with a slotted bit
screwdriver.
Fig.29
Install the gear housing, under cover on the tool.
Tighten the screw firmly.
Remove the blade cover and then turn on the tool to
check it for proper movement.
NOTE:
• When the shear blades does not operate properly,
there is a poor fit between the blades and crank.
Redo from the beginning.
Storage
The hook hole in the bottom of the blade cover is
convenient for hanging the tool from a nail or screw on
the wall.
Fig.30
Put the blade cover on the shear blades so that the
blades are not exposed. Store the tool out of the reach
of children carefully.
Store the tool in the place not exposed to water and rain.
To maintain product SAFETY and RELIABILITY, repairs,
carbon brush inspection and replacement, any other
maintenance or adjustment should be performed by
Makita Authorized Service Centers, always using Makita
replacement parts.
OPTIONAL ACCESSORIES
CAUTION:
• These accessories or attachments are
recommended for use with your Makita tool
specified in this manual. The use of any other
accessories or attachments might present a risk of
injury to persons. Only use accessory or
attachment for its stated purpose.
If you need any assistance for more details regarding
these accessories, ask your local Makita Service Center.
• Blade cover
• Hook complete
• Shear blade assembly
• Waist cord hook
• Arm cord hook
NOTE:
• Some items in the list may be included in the tool
package as standard accessories. They may differ
from country to country.
