Makita HP333DWYE User manual

INSTRUCTION MANUAL
Cordless Grass Shear / Cordless
Hedge Trimmer
UM600D / UH201D
ENGLISH: Original instructions
Read before use.

2ENGLISH
SPECIFICATIONS
UM600D with shear blade for grass shear installed
Model: UM600D
Cutting width 160 mm
Strokes per minute 2,500 min-1
Dimensions
(L x W x H)
347 mm x 177 mm x 131 mm
Rated voltage D.C. 10.8 V - 12 V max
Net weight 1.3 - 1.5 kg
UH201D with shear blade for hedge trimmer installed
Model: UH201D
Blade length 200 mm
Strokes per minute 2,500 min-1
Dimensions
(L x W x H)
504 mm x 120 mm x 131 mm
Rated voltage D.C. 10.8 V - 12 V max
Net weight 1.3 - 1.5 kg
• Duetoourcontinuingprogramofresearchanddevelopment,thespecicationshereinaresubjecttochange
without notice.
• Specicationsandbatterycartridgemaydifferfromcountrytocountry.
• Theweightmaydifferdependingontheattachment(s),includingthebatterycartridge.Thelightestandheavi-
est combinations, according to EPTA-Procedure 01/2014, are shown in the table.
Applicable battery cartridge and charger
Batterycartridge BL1015 / BL1016 / BL1020B / BL1021B / BL1040B / BL1041B
Charger DC10SA / DC10SB / DC10WC / DC10WD / DC18RE
• Someofthebatterycartridgesandchargerslistedabovemaynotbeavailabledependingonyourregionof
residence.
WARNING: Only use the battery cartridges and chargers listed above.Useofanyotherbatterycartridges
andchargersmaycauseinjuryand/orre.
Symbols
Thefollowingsshowthesymbolsusedfortheequip-
ment.Besurethatyouunderstandtheirmeaningbefore
use.
Take particular care and attention.
Read instruction manual.
Danger;beawareofthrownobjects.
Keepbystandersaway.
Cutting means continues to run after the
motor is switched off.
Do not expose to moisture.
Ni-MH
Li-ion
OnlyforEUcountries
Donotdisposeofelectricequipmentor
batterypacktogetherwithhouseholdwaste
material!
In observance of the European Directives,
on Waste Electric and Electronic
EquipmentandBatteriesandAccumulators
and Waste Batteries and Accumulators
and their implementation in accordance
withnationallaws,electricequipmentand
batteriesandbatterypack(s)thathave
reached the end of their life must be col-
lectedseparatelyandreturnedtoanenvi-
ronmentallycompatiblerecyclingfacility.
Intended use
UM600D with shear blade for grass shear installed
The tool is intended for cutting lawn edges or sprouts.
UH201D with shear blade for hedge trimmer
installed
The tool is intended for trimming hedges.

3ENGLISH
Noise
ThetypicalA-weightednoiseleveldeterminedaccord-
ing to EN50636-2-94:
UM600D/UH201D with shear blade for grass shear
installed
Sound pressure level (LpA) : 75 dB(A)
Uncertainty(K):0.11dB(A)
Thenoiselevelunderworkingmayexceed80dB(A).
NOTE: The declared noise emission value(s) has
been measured in accordance with a standard test
methodandmaybeusedforcomparingonetoolwith
another.
NOTE: The declared noise emission value(s)
mayalsobeusedinapreliminaryassessmentof
exposure.
WARNING: Wear ear protection.
WARNING: The noise emission during actual
use of the power tool can differ from the declared
value(s) depending on the ways in which the
tool is used especially what kind of workpiece is
processed.
WARNING: Be sure to identify safety mea-
sures to protect the operator that are based on an
estimation of exposure in the actual conditions of
use (taking account of all parts of the operating
cycle such as the times when the tool is switched
off and when it is running idle in addition to the
trigger time).
ThetypicalA-weightednoiseleveldeterminedaccord-
ing to EN60745-2-15:
UM600D/UH201D with shear blade for hedge trim-
mer installed
Sound pressure level (LpA) : 74 dB(A)
Uncertainty(K):3dB(A)
Thenoiselevelunderworkingmayexceed80dB(A).
NOTE: The declared noise emission value(s) has
been measured in accordance with a standard test
methodandmaybeusedforcomparingonetoolwith
another.
NOTE: The declared noise emission value(s)
mayalsobeusedinapreliminaryassessmentof
exposure.
WARNING: Wear ear protection.
WARNING: The noise emission during actual
use of the power tool can differ from the declared
value(s) depending on the ways in which the
tool is used especially what kind of workpiece is
processed.
WARNING: Be sure to identify safety mea-
sures to protect the operator that are based on an
estimation of exposure in the actual conditions of
use (taking account of all parts of the operating
cycle such as the times when the tool is switched
off and when it is running idle in addition to the
trigger time).
Vibration
The vibration total value (tri-axial vector sum) deter-
mined according to EN50636-2-94:
UM600D/UH201D with shear blade for grass shear
installed
Vibration emission (ah) : 2.5 m/s2or less
Uncertainty(K):1.5m/s2
The vibration total value (tri-axial vector sum) deter-
mined according to EN60745-2-15:
UM600D/UH201D with shear blade for hedge trim-
mer installed
Vibration emission (ah) : 2.5 m/s2or less
Uncertainty(K):1.5m/s2
NOTE: The declared vibration total value(s) has been
measured in accordance with a standard test method
andmaybeusedforcomparingonetoolwithanother.
NOTE:Thedeclaredvibrationtotalvalue(s)mayalso
beusedinapreliminaryassessmentofexposure.
WARNING:
The vibration emission during actual
use of the power tool can differ from the declared val-
ue(s) depending on the ways in which the tool is used
especially what kind of workpiece is processed.
WARNING:
Be sure to identify safety measures
to protect the operator that are based on an estimation
of exposure in the actual conditions of use (taking
account of all parts of the operating cycle such as the
times when the tool is switched off and when it is run-
ning idle in addition to the trigger time).
EC Declaration of Conformity
For European countries only
TheECdeclarationofconformityisincludedasAnnexA
to this instruction manual.
SAFETY WARNINGS
General power tool safety warnings
WARNING: Read all safety warnings and
all instructions. Failure to follow the warnings and
instructionsmayresultinelectricshock,reand/or
seriousinjury.
Save all warnings and instruc-
tions for future reference.
Theterm"powertool"inthewarningsreferstoyour
mains-operated(corded)powertoolorbattery-operated
(cordless) power tool.
Work area safety
1. Keep work area clean and well lit. Cluttered or
dark areas invite accidents.
2. Do not operate power tools in explosive atmo-
spheres, such as in the presence of ammable
liquids, gases or dust. Power tools create sparks
whichmayignitethedustorfumes.

4ENGLISH
3. Keep children and bystanders away while
operating a power tool. Distractions can cause
youtolosecontrol.
Electrical Safety
1. Power tool plugs must match the outlet. Never
modify the plug in any way. Do not use any
adapter plugs with earthed (grounded) power
tools. Unmodiedplugsandmatchingoutletswill
reduce risk of electric shock.
2. Avoid body contact with earthed or grounded
surfaces, such as pipes, radiators, ranges and
refrigerators. There is an increased risk of elec-
tricshockifyourbodyisearthedorgrounded.
3. Do not expose power tools to rain or wet con-
ditions. Water entering a power tool will increase
the risk of electric shock.
4. Do not abuse the cord. Never use the cord for
carrying, pulling or unplugging the power tool.
Keep cord away from heat, oil, sharp edges
or moving parts. Damaged or entangled cords
increase the risk of electric shock.
5. When operating a power tool outdoors, use an
extension cord suitable for outdoor use. Use of
a cord suitable for outdoor use reduces the risk of
electric shock.
6. If operating a power tool in a damp location
is unavoidable, use a residual current device
(RCD) protected supply. Use of an RCD reduces
the risk of electric shock.
Personal Safety
1. Stay alert, watch what you are doing and use
common sense when operating a power tool.
Do not use a power tool while you are tired or
under the inuence of drugs, alcohol or med-
ication. A moment of inattention while operating
powertoolsmayresultinseriouspersonalinjury.
2. Use personal protective equipment. Always
wear eye protection.Protectiveequipmentsuch
asadustmask,non-skidsafetyshoes,hardhator
hearing protection used for appropriate conditions
willreducepersonalinjuries.
3. Prevent unintentional starting. Ensure the
switch is in the off-position before connecting
to power source and/or battery pack, picking
up or carrying the tool.Carryingpowertoolswith
yourngerontheswitchorenergisingpowertools
that have the switch on invites accidents.
4. Remove any adjusting key or wrench before
turning the power tool on.Awrenchorakeyleft
attachedtoarotatingpartofthepowertoolmay
resultinpersonalinjury.
5. Do not overreach. Keep proper footing and
balance at all times. This enables better control
of the power tool in unexpected situations.
6. Dress properly. Do not wear loose clothing or
jewellery. Keep your hair, clothing, and gloves
away from moving parts.Looseclothes,jewel-
leryorlonghaircanbecaughtinmovingparts.
7. If devices are provided for the connection of
dust extraction and collection facilities, ensure
these are connected and properly used. Use of
dust collection can reduce dust-related hazards.
Power tool use and care
1. Do not force the power tool. Use the correct
power tool for your application. The correct
powertoolwilldothejobbetterandsaferatthe
rate for which it was designed.
2. Do not use the power tool if the switch does
not turn it on and off.Anypowertoolthatcannot
be controlled with the switch is dangerous and
must be repaired.
3. Disconnect the plug from the power source
and/or the battery pack from the power tool
before making any adjustments, changing
accessories, or storing power tools. Such pre-
ventivesafetymeasuresreducetheriskofstarting
thepowertoolaccidentally.
4. Store idle power tools out of the reach of chil-
dren and do not allow persons unfamiliar with
the power tool or these instructions to operate
the power tool. Power tools are dangerous in the
hands of untrained users.
5. Maintain power tools. Check for misalignment
or binding of moving parts, breakage of parts
and any other condition that may affect the
power tool’s operation. If damaged, have the
power tool repaired before use.Manyaccidents
arecausedbypoorlymaintainedpowertools.
6. Keep cutting tools sharp and clean.Properly
maintained cutting tools with sharp cutting edges
arelesslikelytobindandareeasiertocontrol.
7. Use the power tool, accessories and tool bits
etc. in accordance with these instructions, tak-
ing into account the working conditions and
the work to be performed. Use of the power tool
for operations different from those intended could
result in a hazardous situation.
Battery tool use and care
1. Recharge only with the charger specied by
the manufacturer. A charger that is suitable for
onetypeofbatterypackmaycreateariskofre
whenusedwithanotherbatterypack.
2. Use power tools only with specically desig-
nated battery packs.Useofanyotherbattery
packsmaycreateariskofinjuryandre.
3. When battery pack is not in use, keep it away
from other metal objects, like paper clips,
coins, keys, nails, screws or other small metal
objects, that can make a connection from one
terminal to another.Shortingthebatterytermi-
nalstogethermaycauseburnsorare.
4. Under abusive conditions, liquid may be
ejected from the battery; avoid contact. If con-
tact accidentally occurs, ush with water. If
liquid contacts eyes, additionally seek medical
help.Liquidejectedfromthebatterymaycause
irritation or burns.
Service
1. Have your power tool serviced by a qualied
repair person using only identical replacement
parts.Thiswillensurethatthesafetyofthepower
tool is maintained.
2. Follow instruction for lubricating and chang-
ing accessories.
3. Keep handles dry, clean and free from oil and
grease.

5ENGLISH
Cordless Grass Shear Safety Warnings
General instructions
1. To ensure correct operation, user has to read
this instruction manual to make himself famil-
iar with the handling of the equipment. Users
insufcientlyinformedwillriskdangertothem-
selves as well as others due to improper handling.
2.
Never allow children, persons with reduced physi-
cal, sensory or mental capabilities or lack of experi-
ence and knowledge or people unfamiliar with these
instructions to use the machine, local regulations
may restrict the age of the operator.
3. Use the equipment with the utmost care and
attention.
4. Operate the equipment only if you are in good
physical condition. Perform all work calmly
and carefully. Use common sense and keep in
mind that the operator or user is responsible
for accidents or hazards occurring to other
people or their property.
5. Never operate the machine while people, espe-
cially children, or pets are nearby.
6. The motor is to be switched off immediately in
case that the equipment shows any problem or
abnormal sign.
7.
Switch off and remove the battery cartridge when
resting and when leaving the equipment unat-
tended, and place it in a safe location to prevent
danger to others or damage to the equipment.
8. Avoid using the machine in bad weather
conditions especially when there is a risk of
lightning.
Personal protective equipment
1. Wear eye protection and stout shoes at all
times while operating the machine.
2. Always wear substantial footwear and long
trousers while operating the machine.
Starting up the equipment
1. Make sure that there are no children or other
people nearby, also pay attention to any ani-
mals in the working vicinity. Otherwise stop
usingtheequipment.
2. Before use always check that the equipment
is safe for operation. Check the security of the
cutting tool and the guard and the switch trig-
ger/lever for easy and proper action. Check for
clean and dry handles and test the function of
the start/stop.
3.
Check damaged parts before further use of the
equipment. A guard or other part that is damaged
should be carefully checked to determine that it will
operate properly and perform its intended function.
Check for alignment of moving parts, binding of
moving parts, breakage of parts, mounting, and
any other condition that may affect its operation. A
guard or other part that is damaged should be prop-
erly repaired or replaced by our authorized service
center unless indicated elsewhere in this manual.
4. Switch on the motor only when the hands and
feet are away from the cutting tool.
5. Before starting make sure that the cutting tool
has no contact with any objects.
Method of operation
1. Only use the equipment in good light and
visibility. During the winter season beware
of slippery or wet areas, ice and snow (risk
of slipping). Always ensure a safe footing on
slopes and be sure to walk and never run.
2. Take care against injury to feet and hands from
the cutting tool.
3. Never stand on a ladder and run the
equipment.
4. Never climb up into trees to perform cutting
operation with the equipment.
5. Never work on unstable surfaces.
6. Remove sand, stones, nails etc. found within
the working range.Foreignparticlesmaydam-
age the cutting tool and can cause dangerous
kick-backs.
7. Should the cutting tool hit stones or other hard
objects, immediately switch off the motor and
inspect the cutting tool.
8. Inspect the cutting tool at short regular inter-
vals for damage (detection of hairline cracks
by means of tapping-noise test).
9. Before commencing cutting, the cutting tool
must have reached full working speed.
10.
The cutting tool has to be equipped with the appro-
priate guard. Never run the equipment with dam-
aged guards or without guards in place!
11. All protective installations and guards sup-
plied with the equipment must be used during
operation.
12. Always remove the battery cartridge from the
equipment:
— whenever leaving the equipment
unattended;
— before clearing a blockage;
— before checking, cleaning or working on
the equipment;
— after striking a foreign object;
— whenever the equipment starts vibrating
abnormally.
13. Always ensure that the ventilation openings
are kept clear of debris.
14. Cutting means continues to run after the motor
is switched off.
15.
If the blades stop moving due to the stuck of for-
eign objects between the blades during operation,
switch off the tool and remove the battery cartridge,
and then remove the foreign objects using tools
such as pliers.Removingtheforeignobjectsbyhand
maycauseaninjuryforthereasonthatthebladesmay
moveinreactiontoremovingtheforeignobjects.
Cutting Tools
Employ only the correct cutting tool for the job
in hand.
Maintenance instructions
1. The condition of the equipment, in particular of
the cutting tool of the protective devices must
be checked before commencing work.
2. Turn off the motor and remove the battery
cartridge before carrying out maintenance,
replacing cutting tools or cleaning the equip-
ment or cutting tool.

6ENGLISH
3.
When not in use, store the equipment indoors in
dry and high or locked-up place - out of the reach of
children. Clean and maintain before storage.
SAVE THESE INSTRUCTIONS.
WARNING: DO NOT let comfort or familiarity
with product (gained from repeated use) replace
strict adherence to safety rules for the subject
product. MISUSE or failure to follow the safety
rules stated in this instruction manual may cause
serious personal injury.
Cordless Hedge Trimmer Safety
Warnings
1. Keep all parts of the body away from the cut-
ter blade. Do not remove cut material or hold
material to be cut when blades are moving.
Make sure the switch is off when clearing
jammed material. A moment of inattention while
operatingthehedgetrimmermayresultinserious
personalinjury.
2. Carry the hedge trimmer by the handle with
the cutter blade stopped. When transporting or
storing the hedge trimmer always t the cut-
ting device cover. Proper handling of the hedge
trimmerwillreducepossiblepersonalinjuryfrom
the cutter blades.
3.
Hold the power tool by insulated gripping surfaces
only, because the cutter blade may contact hidden
wiring.Cutterbladescontactinga"live"wiremaymake
exposed metal parts of the power tool "live" and could
give the operator an electric shock.
4.
DANGER - Keep hands away from blade. Contact
withbladewillresultinseriouspersonalinjury.
5. Do not use the hedge trimmer in the rain or in
wet or very damp conditions. The electric motor
is not waterproof.
6. First-time users should have an experienced
hedge trimmer user show them how to use the
trimmer.
7. The hedge trimmer must not be used by
children or young persons under 18 years of
age.Youngpersonsover16yearsofagemaybe
exemptedfromthisrestrictioniftheyareundergo-
ing training under the supervision of an expert.
8.
Use the hedge trimmer only if you are in good phys-
ical condition.Ifyouaretired,yourattentionwillbe
reduced.Beespeciallycarefulattheendofaworking
day.Performallworkcalmlyandcarefully.Theuseris
responsible for all damages to third parties.
9. Never use the trimmer when under the inu-
ence of alcohol, drugs or medication.
10. Work gloves of stout leather are part of the
basic equipment of the hedge trimmer and
must always be worn when working with it.
Also wear sturdy shoes with anti-skid soles.
11. Before starting work check to make sure
that the trimmer is in good and safe working
order. Ensure guards are tted properly. The
hedge trimmer must not be used unless fully
assembled.
12. Make sure you have a secure footing before
starting operation.
13. Hold the tool rmly when using the tool.
14. Do not operate the tool at no-load
unnecessarily.
15. Immediately switch off the motor and remove
the battery cartridge if the cutter should come
into contact with a fence or other hard object.
Check the cutter for damage, and if damaged
repair immediately.
16. Before checking the cutter, taking care of
faults, or removing material caught in the cut-
ter, always switch off the trimmer and remove
the battery cartridge.
17. Switch off the trimmer and remove the battery
cartridge before doing any maintenance work.
18. When moving the hedge trimmer to another
location, including during work, always
remove the battery cartridge and put the blade
cover on the cutter blades. Never carry or
transport the trimmer with the cutter running.
Never grasp the cutter with your hands.
19. Clean the hedge trimmer and especially the
cutter after use, and before putting the trimmer
into storage for extended periods. Lightly oil
the cutter and put on the cover. The cover sup-
plied with the unit can be hung on the wall, pro-
vidingasafeandpracticalwaytostorethehedge
trimmer.
20. Store the hedge trimmer with the cover on, in
a dry room. Keep it out of reach of children.
Never store the trimmer outdoors.
21. Never point the shear blades to yourself or
others.
22. If the blades stop moving due to the stuck of
foreign objects between the blades during
operation, switch off the tool and remove the
battery cartridge, and then remove the foreign
objects using tools such as pliers. Removing
theforeignobjectsbyhandmaycauseaninjury
forthereasonthatthebladesmaymoveinreac-
tiontoremovingtheforeignobjects.
23. Avoid dangerous environment. Don't use the
tool in damp or wet locations or expose it to
rain. Water entering the tool will increase the
risk of electric shock.
24. Do not dispose of the battery(ies) in a re. The
cell may explode. Check with local codes for
possible special disposal instructions.
25. Do not open or mutilate the battery(ies).
Released electrolyte is corrosive and may
cause damage to the eyes or skin. It may be
toxic if swallowed.
26. Do not charge battery in rain, or in wet
locations.
27. Check the hedges and bushes for foreign
objects, such as wire fences or hidden wiring
before operating the tool.
SAVE THESE INSTRUCTIONS.
WARNING: DO NOT let comfort or familiarity
with product (gained from repeated use) replace
strict adherence to safety rules for the subject
product. MISUSE or failure to follow the safety
rules stated in this instruction manual may cause
serious personal injury.

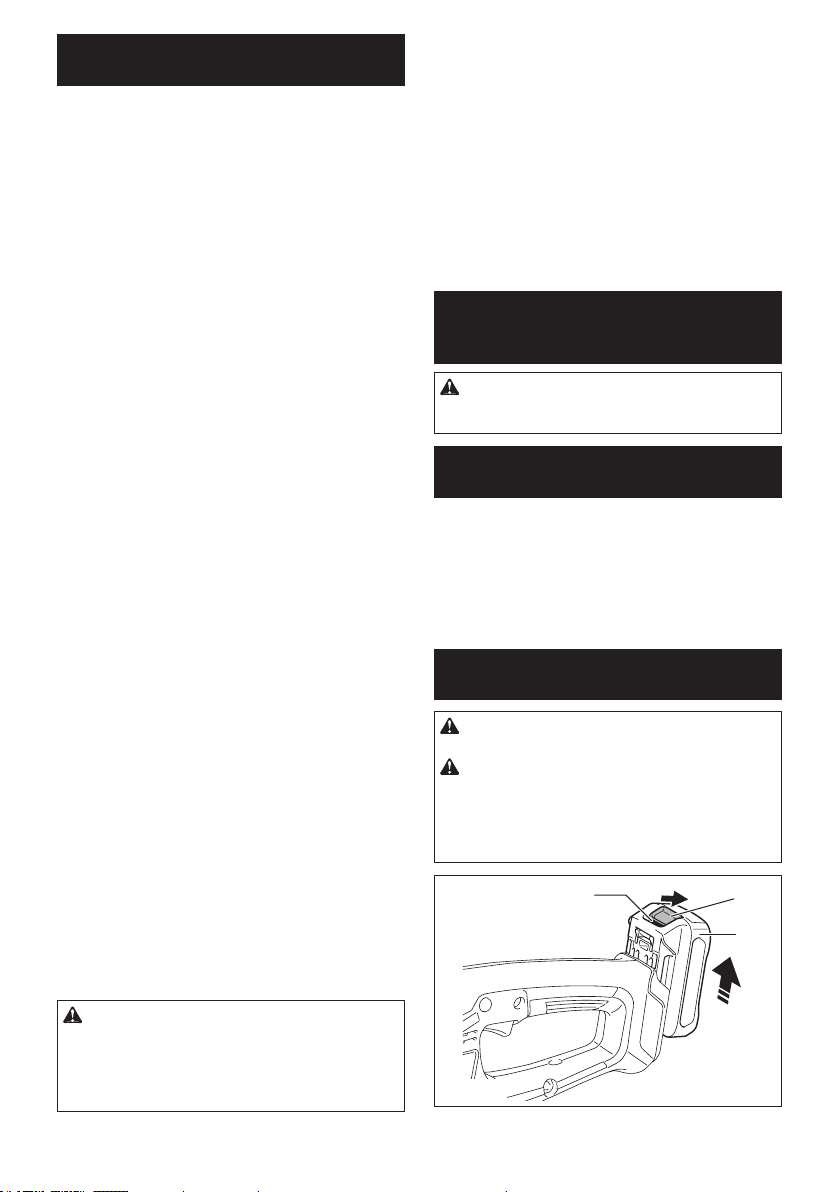

7ENGLISH
Important safety instructions for
battery cartridge
1. Before using battery cartridge, read all instruc-
tions and cautionary markings on (1) battery
charger, (2) battery, and (3) product using
battery.
2. Do not disassemble battery cartridge.
3. If operating time has become excessively
shorter, stop operating immediately. It may
result in a risk of overheating, possible burns
and even an explosion.
4. If electrolyte gets into your eyes, rinse them
out with clear water and seek medical atten-
tion right away. It may result in loss of your
eyesight.
5. Do not short the battery cartridge:
(1) Do not touch the terminals with any con-
ductive material.
(2) Avoid storing battery cartridge in a con-
tainer with other metal objects such as
nails, coins, etc.
(3) Do not expose battery cartridge to water
or rain.
A battery short can cause a large current
ow, overheating, possible burns and even a
breakdown.
6. Do not store the tool and battery cartridge in
locations where the temperature may reach or
exceed 50 °C (122 °F).
7. Do not incinerate the battery cartridge even if
it is severely damaged or is completely worn
out. The battery cartridge can explode in a re.
8. Be careful not to drop or strike battery.
9. Do not use a damaged battery.
10. The contained lithium-ion batteries are subject
to the Dangerous Goods Legislation require-
ments.
Forcommercialtransportse.g.bythirdparties,
forwardingagents,specialrequirementonpack-
aging and labeling must be observed.
For preparation of the item being shipped, consult-
inganexpertforhazardousmaterialisrequired.
Pleasealsoobservepossiblymoredetailed
national regulations.
Tape or mask off open contacts and pack up the
batteryinsuchamannerthatitcannotmove
around in the packaging.
11. Follow your local regulations relating to dis-
posal of battery.
12. Use the batteries only with the products
specied by Makita. Installing the batteries to
non-compliantproductsmayresultinare,exces-
siveheat,explosion,orleakofelectrolyte.
SAVE THESE INSTRUCTIONS.
CAUTION: Only use genuine Makita batteries.
Use of non-genuine Makita batteries, or batteries that
havebeenaltered,mayresultinthebatterybursting
causingres,personalinjuryanddamage.Itwill
alsovoidtheMakitawarrantyfortheMakitatooland
charger.
Tips for maintaining maximum
battery life
1. Charge the battery cartridge before completely
discharged. Always stop tool operation and
charge the battery cartridge when you notice
less tool power.
2. Never recharge a fully charged battery car-
tridge. Overcharging shortens the battery
service life.
3.
Charge the battery cartridge with room temperature
at 10 °C - 40 °C (50 °F - 104 °F). Let a hot battery
cartridge cool down before charging it.
FUNCTIONAL
DESCRIPTION
CAUTION: Always be sure that the tool is
switched off and the battery cartridge is removed
before adjusting or checking function on the tool.
Using the tool as cordless hedge
trimmer/grass shear
For UM600D
Thistoolcanbeusedascordlesshedgetrimmerby
installing the shear blades for hedge trimmer (optional
accessory).
For UH201D
Thistoolcanbeusedascordlessgrassshearby
installing the shear blades for grass shear (optional
accessory).
Installing or removing battery
cartridge
CAUTION: Always switch off the tool before
installing or removing of the battery cartridge.
CAUTION: Hold the tool and the battery car-
tridge rmly when installing or removing battery
cartridge.Failuretoholdthetoolandthebattery
cartridgermlymaycausethemtoslipoffyourhands
andresultindamagetothetoolandbatterycartridge
andapersonalinjury.
12
3
►1. Red indicator 2. Button 3.Batterycartridge

8ENGLISH
Toremovethebatterycartridge,slideitfromthetool
while sliding the button on the front of the cartridge.
Toinstallthebatterycartridge,alignthetongueonthe
batterycartridgewiththegrooveinthehousingandslip
itintoplace.Insertitallthewayuntilitlocksinplace
withalittleclick.Ifyoucanseetheredindicatoronthe
uppersideofthebutton,itisnotlockedcompletely.
CAUTION: Always install the battery cartridge
fully until the red indicator cannot be seen. If not,
itmayaccidentallyfalloutofthetool,causinginjuryto
youorsomeonearoundyou.
CAUTION: Do not install the battery cartridge
forcibly.Ifthecartridgedoesnotslideineasily,itis
notbeinginsertedcorrectly.
Indicating the remaining battery
capacity
Only for battery cartridges with the indicator
1
2
►1. Indicator lamps 2. Check button
Pressthecheckbuttononthebatterycartridgetoindi-
catetheremainingbatterycapacity.Theindicatorlamps
light up for a few seconds.
Indicator lamps Remaining
capacity
Lighted Off
75% to 100%
50% to 75%
25% to 50%
0% to 25%
NOTE: Depending on the conditions of use and the
ambienttemperature,theindicationmaydifferslightly
fromtheactualcapacity.
Tool / battery protection system
Thetoolisequippedwithatool/batteryprotectionsys-
tem.Thissystemautomaticallycutsoffpowertothe
motortoextendtoolandbatterylife.Thetoolwillauto-
maticallystopduringoperationifthetoolorbatteryis
placed under one of the following conditions:
Overload protection
Whenthebatteryisoperatedinamannerthatcauses
ittodrawanabnormallyhighcurrent,thetoolautomati-
callystops.Inthissituation,turnthetooloffandstopthe
application that caused the tool to become overloaded.
Then turn the tool on to restart.
Overheat protection
Whenthetoolorbatteryisoverheated,thetoolstops
automaticallyandthelampblinks.Inthiscase,letthe
toolandbatterycoolbeforeturningthetoolonagain.
Overdischarge protection
Whenthebatterycapacityisnotenough,thetoolstops
automatically.Ifyouturnthetoolon,themotorruns
againbutstopssoon.Inthiscase,removethebattery
fromthetoolandchargethebattery.
Switch action
WARNING: Before installing the battery car-
tridge into the tool, always check to see that the
switch trigger actuates properly and returns to
the "OFF" position when released.
WARNING: For your safety, this tool is
equipped with the lock-off button which prevents
the tool from unintended starting. Never use the
tool if it starts when you pull the switch trigger
without pressing the lock-off button.Askyourlocal
Makita Service Center for repairs.
WARNING: Never disable the lock function or
tape down the lock-off button.
NOTICE: Do not pull the switch trigger forcibly
without pressing the lock-off button. The switch
maybreak.
1
2
►1. Switch trigger 2. Lock-off button
Topreventtheswitchtriggerfrombeingaccidentally
pulled, a lock-off button is provided.
To start the tool, press the lock-off button and pull the
switch trigger. Release the switch trigger to stop. The
lock-off button can be pressed from either the right or
left side.

9ENGLISH

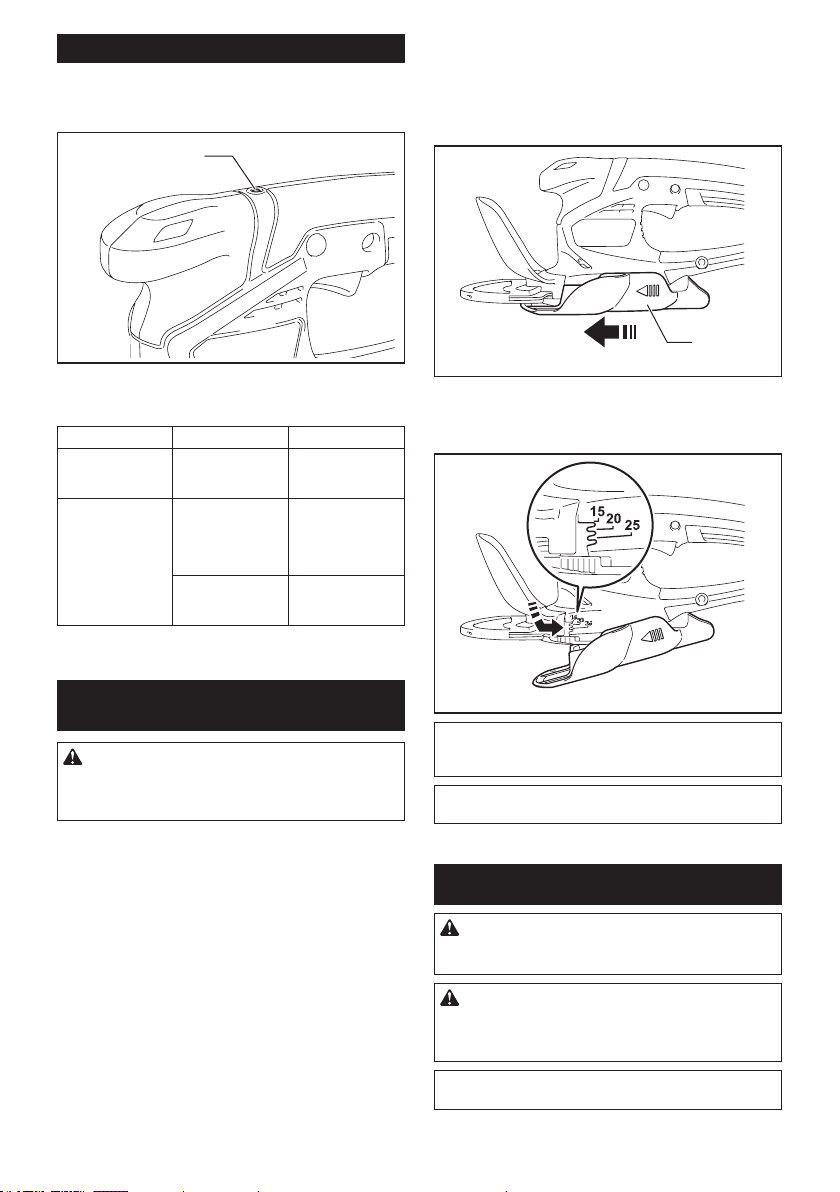

Indicator lamp
The indicator lamp blinks or lights up when the remain-
ingbatterycapacityisloworempty.Theindicatorlamp
also lights up when the tool becomes overloaded.
1
►1. Indicator lamp
Lamp status and action to be taken
Indicator lamp Status Action to be taken
The lamp blinks
red.
The remaining
batterycapacity
is low.
Chargethebattery.
The lamp lights up
red. *
The tool has
stopped because
the remaining
batterycapacityis
empty.
Chargethebattery.
The tool has
stopped due to
overload.
Turn off the tool.
* The time at which the indicator lamp lights up varies depending
onthetemperaturearoundtheworkareaandthebatterycar-
tridge conditions.
Adjusting the shearing height (for
grass shear)
CAUTION: When changing the shearing
height, be sure to attach the blade cover and be
careful not to trap ngers between the tool and
grass receiver.
The shearing height can be set to three levels (15 mm,
20mm,and25mm)bychangingthexedpositionof
the grass receiver. The shearing height without the
grass receiver is about 10 mm.
1. Slide the grass receiver toward the front of the
tool.
1
►1. Grass receiver
2. Changethexedpositionofthegrassreceiverby
moving it in the direction of the arrow.
NOTE: The shearing height value is a guideline. The
actualshearingheightmayvarydependingonthe
condition of the lawn or the ground.
NOTE:Tryatestshearinginalessconspicuous
placetogetyourdesiredheight.
ASSEMBLY
CAUTION: Always be sure that the tool is
switched off and the battery cartridge is removed
before carrying out any work on the tool.
CAUTION: When replacing the shear blades,
always wear gloves and attach the blade cover so
that your hands and face do not directly contact
the blades.
NOTICE: When replacing the shear blades, do
not wipe off grease from the gear and crank.

10 ENGLISH

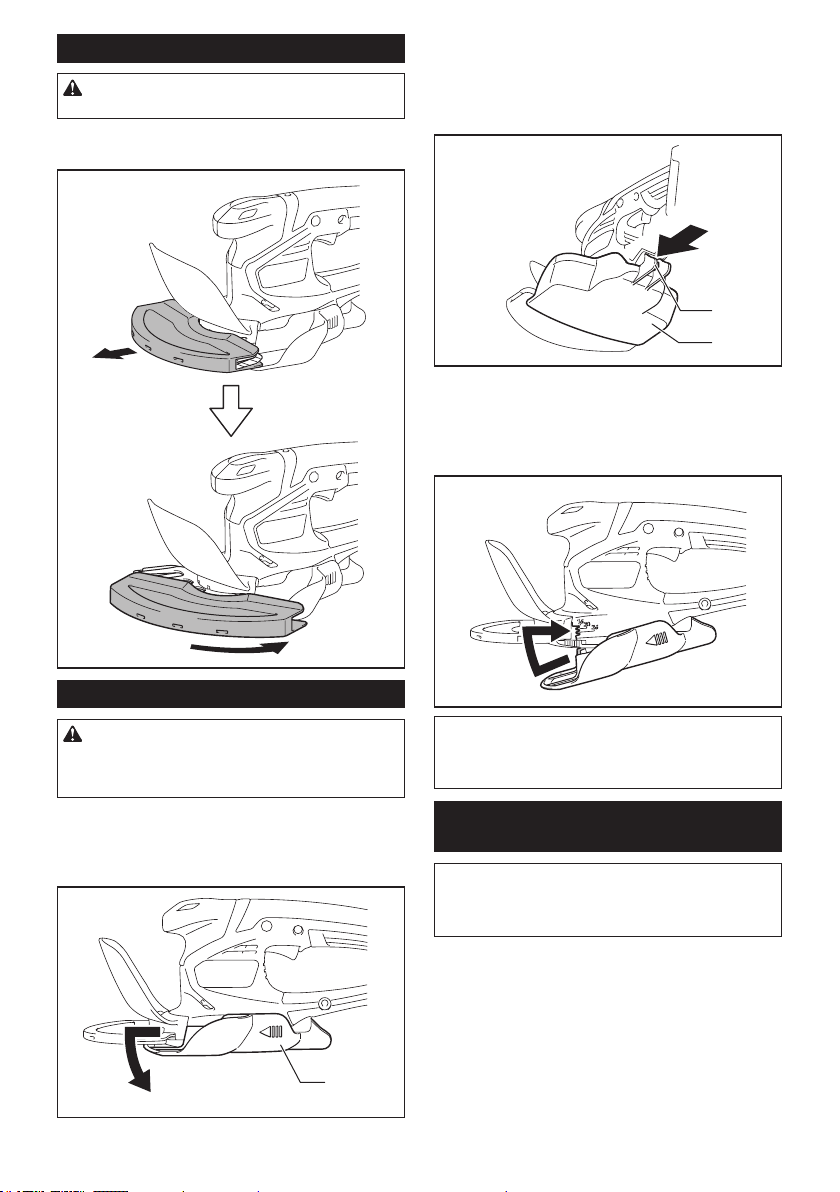

Installing or removing the blade cover
CAUTION: Be careful not to touch the blades
when installing or removing the blade cover.
Toremovethebladecover,pullitslightly,andthenslideitside-
ways.Toinstallthebladecover,performthestepsinreverse.
Installing or removing the grass receiver
CAUTION: When installing or removing the
grass receiver, be sure to attach the blade cover
and be careful not to trap your ngers between
the tool and grass receiver.
Removing the grass receiver
1. Release the protrusions on the grass receiver
from the grooves on the tool while sliding the grass
receiver toward the front of the tool.
1
►1. Grass receiver
2. Release the hinge of the grass receiver from the
tool.
Installing the grass receiver
1. Hook the hinge of the grass receiver on the groove
of the tool.
2
1
►1. Hinge 2. Grass receiver
2. Align the protrusions on the grass receiver with
thegroovesonthetoolbyslidingthegrassreceiver
toward the front of the tool and moving it in the direction
of the arrow.
NOTICE: Do not attach the hinge of the grass
receiver to the tool forcibly after aligning the pro-
trusions on the grass receiver with the grooves
on the tool.
Installing or removing the shear
blades for grass shear
NOTICE: If the parts other than the shear blades
such as the crank are worn out, ask Makita
Authorized Service Centers for parts replacement
or repairs.

11 ENGLISH

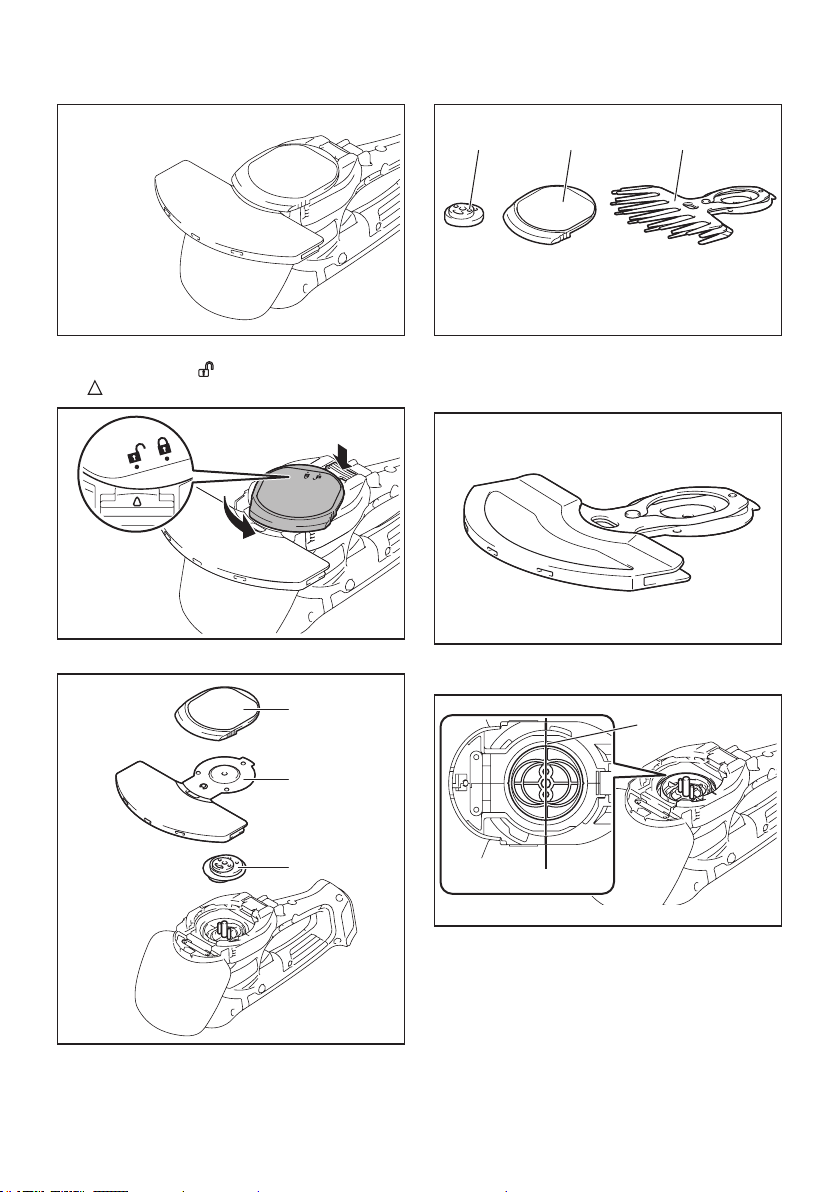

Removing the shear blades
1. Remove the grass receiver and place the tool
upside down.
2. While pressing the lock lever, turn the undercover
counterclockwise until on the undercover is aligned
with on the lock lever.
3. Remove the undercover, shear blades, and crank.
3
2
1
►1. Undercover 2. Shear blades 3. Crank
Installing the shear blades

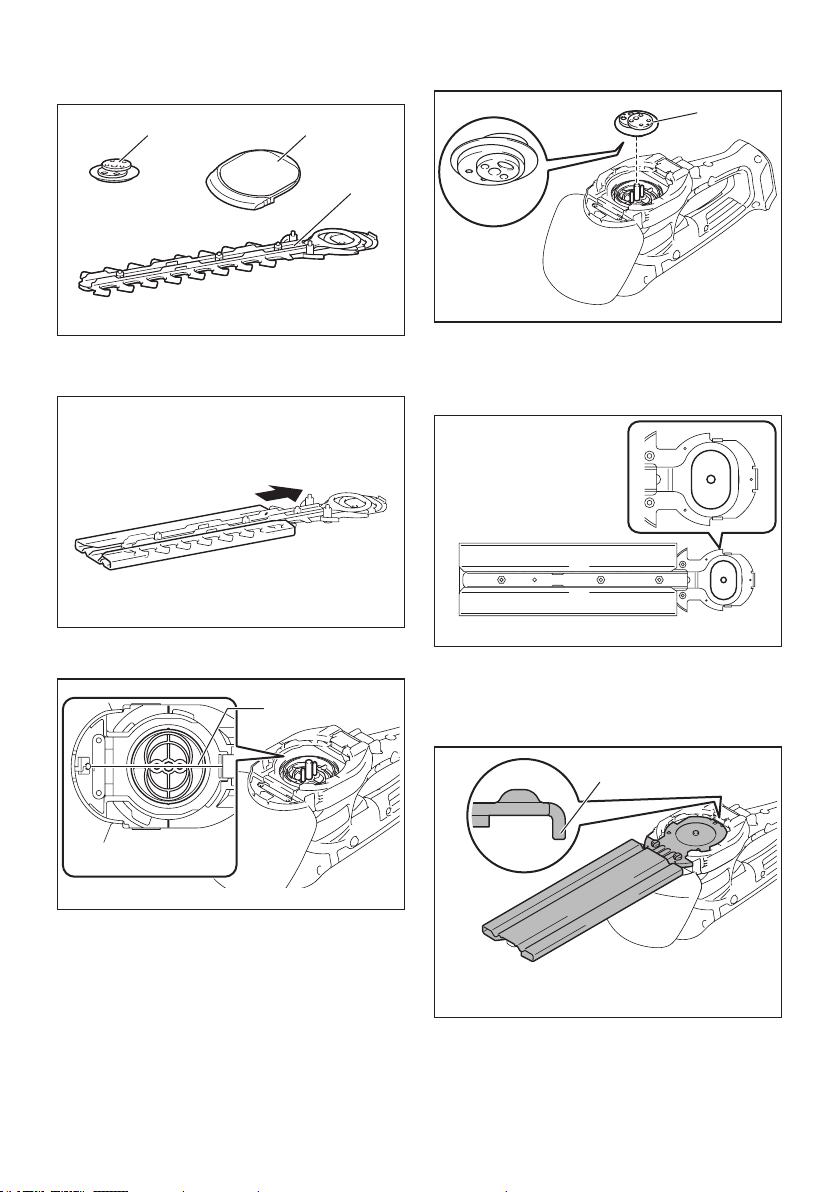

1. Prepare the crank, undercover, and new shear
blades.
1 2 3
►1. Crank 2. Undercover 3. Shear blades
2. Remove the blade cover from the old shear
blades, and then attach it to the new ones.
3. Adjustthethreepinssothattheyarelinedupon
the alignment line.
1
►1. Alignment line

12 ENGLISH
4. Applyasmallamountofgreasetotheperiphery
of the crank. Attach the crank to the pins with the small
and large rounds facing up.
1
►1. Crank
5. Adjustthebladesandbaseplatesothatthehole
in the base plate and the two protrusions on the blades
are lined up.
6. Turn the shear blades upside down and install
themsothatthepinsonthetooltintheholeonthe
baseplate.Makesurethattheshearbladesarexed
securelyinplace.
7. Place the undercover so that on the under-
cover is aligned with on the lock lever.
8. While pressing the undercover, turn the under-
cover clockwise until on the undercover is aligned
with on the lock lever.
9. Makesurethatthelocklevertsinthegrooveon
the undercover.
1
►1. Lock lever
CAUTION: Never use the tool without install-
ing the undercover.
10. Remove the blade cover, and then turn on the tool
tocheckthatitworksproperly.
NOTICE: If the shear blades do not operate prop-
erly, the blades are not engaging the crank prop-
erly. Remove the blades and install them again.

13 ENGLISH
Installing or removing the shear
blades for hedge trimmer
CAUTION: Attach the blade cover before
removing or installing the shear blades.
NOTICE: If the parts other than the shear blades
such as the crank are worn out, ask Makita
Authorized Service Centers for parts replacement
or repairs.
Removing the shear blades
1. Place the tool upside down.
2. While pressing the lock lever, turn the undercover
counterclockwise until on the undercover is aligned
with on the lock lever.
3. Remove the undercover.
4. Loosen the two screws with a screwdriver and
remove the shear blades.
1
►1. Screws
NOTE: The shear blades can be removed without
removing the screws.
5. Remove the crank from the shear blades.
1
►1. Crank
NOTE:Thecrankmayremaininthetool.
Attach the blade cover and the storage case to the
removed shear blades, and then store the blades.

14 ENGLISH
Installing the shear blades
1. Prepare the crank, undercover, and new shear
blades.
1 2
3
►1. Crank 2. Undercover 3. Shear blades
2. Attach the blade cover to the shear blades.
3. Adjustthethreepinssothattheyarelinedupon
the alignment line.
1
►1. Alignment line
4. Applyasmallamountofgreasetotheperiphery
of the crank. Attach the crank to the pins with the small
and large rounds facing down.
1
►1. Crank
5. Slide the shear blades so that the hole on the
base plate is positioned at the center of the rings of the
blades.
6. Turn the shear blades upside down and install
themsothatthepinonthetooltsintheholeonthe
shear blades. Insert the claw of the base plate into the
groove on the tool. Make sure that the shear blades are
xedsecurelyinplace.
1
►1. Claw

15 ENGLISH
7. Tightenthetwoscrewsrmlywithascrewdriver.
1
►1. Screws
8. Place the undercover so that on the under-
cover is aligned with on the lock lever.
9. While pressing the undercover, turn it clockwise
until on the undercover is aligned with on the lock
lever.
10. Makesurethatthelocklevertsinthegrooveon
the undercover.
1
►1. Lock lever
CAUTION: Never use the tool without install-
ing the undercover.
11. Remove the blade cover, and then turn on the tool
tocheckthatitworksproperly.
NOTICE: If the shear blades do not operate prop-
erly, the blades are not engaging the crank prop-
erly. Remove the blades and install them again.
Installing or removing the chip
receiver
Optional accessory
CAUTION: When installing or removing the
chip receiver, always wear gloves and attach the
blade cover so that your hands and face do not
directly contact the blade.
The chip receiver gathers discarded leaves and makes
clean-up afterward much easier. It can be installed on
either side of the tool.
To install the chip receiver, press it against the shear
bladessothatthehookstintotheholesoftheshear
blades.
1
2
►1. Hooks 2. Holes
To remove the chip receiver, press the levers on both
sides to release the hooks.

16 ENGLISH
1
►1. Levers
NOTICE: Never try to remove the chip receiver
by an excessive force with its hooks locked in the
holes of the blades.
OPERATION
WARNING: Before shearing, clear away sticks
and stones from the shearing area. Furthermore,
clear away any weeds from the shearing area in
advance.
WARNING: Keep hands away from blades.
CAUTION: Avoid operating the tool in very
hot weather as much as practicable. When operat-
ing the tool, be careful of your physical condition.
Shearing (for grass shear)
Turnthetoolonafteradjustingtheshearingheightand
hold it so that the bottom of the tool rests on the ground.
Gentlymovethetoolforward.
When trimming around curbs, fences or trees, move the
tool along them. Be careful that the blades do not come
into contact with them.
When trimming sprouts or foliage of a small tree, trim
littlebylittle.
Trim large branches to the desired height using branch
cutters before using this tool.
NOTICE: Do not use the tool in a way that causes
the motor to stop or to rotate extremely slowly.
NOTICE: Do not attempt to cut thick branches.
NOTICE: Do not allow the shear blades to con-
tact the ground during operation. The blades will
be dulled, causing poor performance.

17 ENGLISH
NOTICE: Do not trim the wet grass or foliage of
small trees.

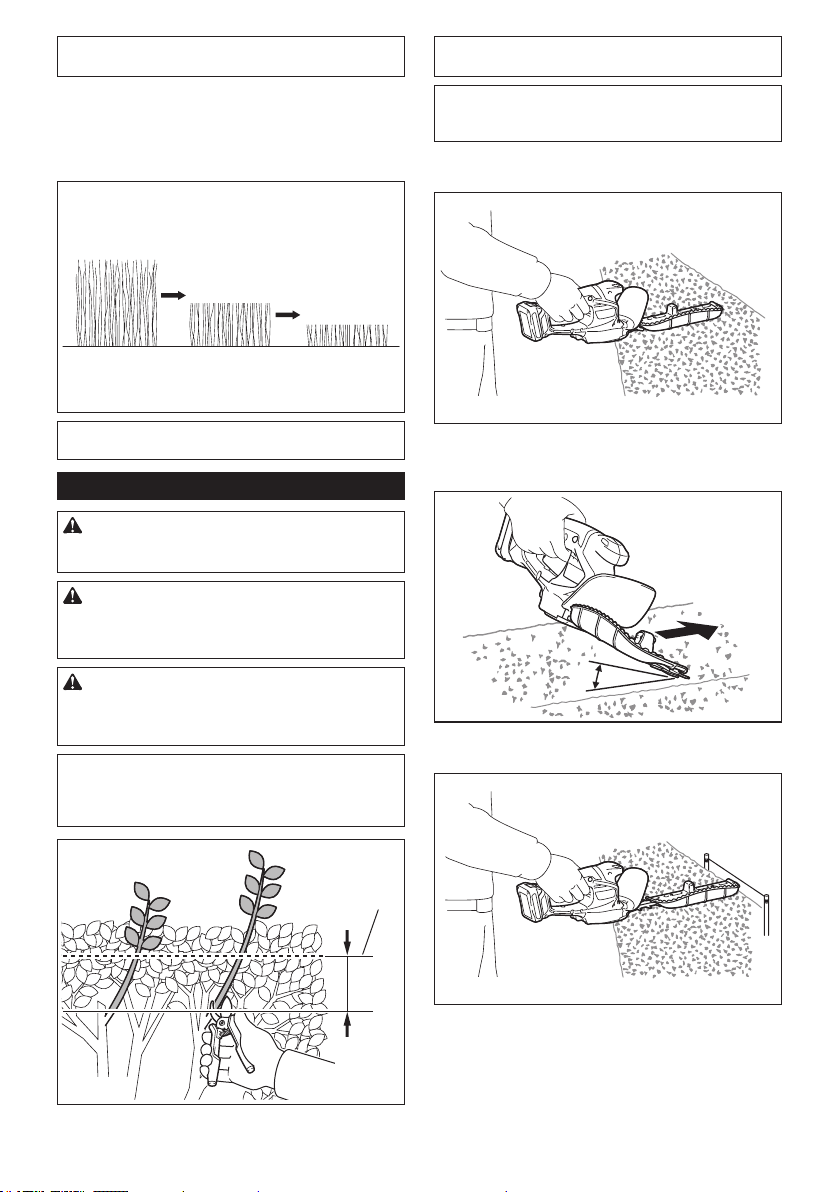

Cutting long lawn
Donottrytocutlonggrassallatonce.Instead,cutthe
lawninsteps.Leaveadayortwobetweencutsuntilthe
lawnbecomesevenlyshort.
NOTE: Cutting long grass to a short length all at once
maycausethegrasstodie.
Trimming (for hedge trimmer)
CAUTION: Be careful not to accidentally
contact a metal fence or other hard objects while
trimming.Thebladesmaybreakandcauseaninjury.
CAUTION: Be careful not to allow the shear
blades to contact the ground.Thetoolmayrecoil
andcauseaninjury.
CAUTION: Overreaching with a hedge trim-
mer, particularly from a ladder, is extremely
dangerous.Donotworkwhilestandingonanything
wobblyorinrm.
NOTICE: Do not attempt to cut branches thicker
than 10 mm in diameter with the tool. Cut branches
to 10 cm lower than the cutting height using branch
cutters before using the tool.
(1)
(2)
►(1) Cutting height (2) 10 cm
NOTICE: Do not cut down dead trees or similar
hard objects.Doingsomaydamagethetool.
NOTICE: Do not trim the grass or weeds while
using the shear blades.Thebladesmaybecome
tangled in the grass or weeds.
Hold the tool with one hand, pull the switch trigger while
pressing the lock-off button, and then move it forward.
For basic operation, tilt the blades toward the trimming
directionandmoveitcalmlyandslowlyatthespeed
rate of 3 to 4 seconds per meter.
To tie a string at the desired height and to trim along it
helpyoutocutahedgetopevenly.

18 ENGLISH
If the chip receiver is attached to the blades, it gathers
discarded leaves and makes clean-up afterward much
easier.
Tocutahedgesideevenly,cutfromthebottomtotop.
When trimming to make a round shape (trimming box-
wood or rhododendron, etc.), trim from the root to the
topforabeautifulnish.
MAINTENANCE
CAUTION: Always be sure that the tool is
switched off and the battery cartridge is removed
before attempting to perform inspection or
maintenance.
To maintain product SAFETY and RELIABILITY,
repairs,anyothermaintenanceoradjustmentshould
beperformedbyMakitaAuthorizedorFactoryService
Centers,alwaysusingMakitareplacementparts.
Cleaning the tool
Cleanthetoolbywipingoffdustwithadryclothorone
dippedinsoapywaterandwrungout.
NOTICE: Never use gasoline, benzine, thinner,
alcohol or the like. Discoloration, deformation or
cracks may result.
Blade maintenance

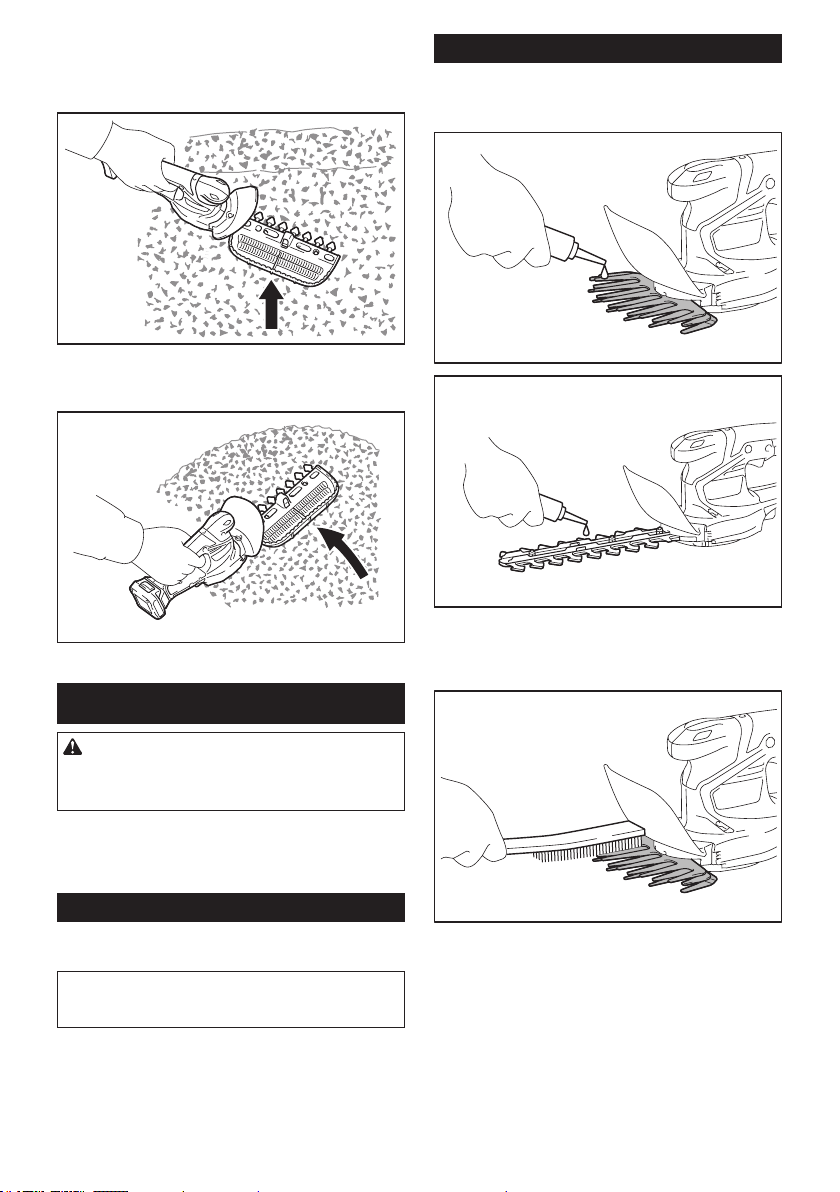

Before the operation or once per hour during operation,
applylow-viscosityoil(machineoil,orspray-typelubri-
cating oil) to the blades.
After operation, remove dust from both sides of the
blades with a wired brush, wipe it off with a cloth and
thenapplylow-viscosityoil(machineoil,orspray-type
lubricating oil) to the blades.

19 ENGLISH
NOTICE: Do not wash the blades in water. Doing
somaycauserustordamagetothetool.
NOTICE: Dirt and corrosion cause excessive
blade friction and shorten the operating time per
battery charge.
Storage
The hook hole in the tool bottom is convenient for hang-
ing the tool from a nail or screw on the wall.
Attach the blade cover to the shear blades so that the
blades are not exposed. Store the tool out of the reach
of children. Store the tool in a place not exposed to
moisture or rain.
1
►1. Hole
1
►1. Hole
OPTIONAL
ACCESSORIES
CAUTION: These accessories or attachments
are recommended for use with your Makita tool
specied in this manual.Theuseofanyother
accessories or attachments might present a risk of
injurytopersons.Onlyuseaccessoryorattachment
for its stated purpose.
Ifyouneedanyassistanceformoredetailsregard-
ingtheseaccessories,askyourlocalMakitaService
Center.
• Shearbladeassembly(forgrassshearuse)
• Shear blade cover (for grass shear use)
• Grass receiver (for grass shear use)
• Long handle attachment (for grass shear use)
• Shearbladeassembly(forhedgetrimmeruse)
• Shear blade cover (for hedge trimmer use)
• Chip receiver (for hedge trimmer use)
• Storage case
• Makitagenuinebatteryandcharger
NOTE:Someitemsinthelistmaybeincludedinthe
toolpackageasstandardaccessories.Theymay
differfromcountrytocountry.

www.makita.com
Makita Europe N.V.
Makita Corporation
3-11-8, Sumiyoshi-cho,
Anjo, Aichi 446-8502 Japa
n
Jan-Baptist Vinkstraat 2,
3070 Kortenberg, Belgium
885549B225
EN
20190214
This manual suits for next models
3
Table of contents
Other Makita Trimmer manuals

Makita
Makita UH422D Manual

Makita
Makita DUR368A User manual

Makita
Makita UR012GZ04 User manual

Makita
Makita DUR361U Manual

Makita
Makita UR007GT101 User manual

Makita
Makita UH4570 User manual

Makita
Makita DUN461W User manual

Makita
Makita LXRU03 User manual

Makita
Makita EN4950H User guide

Makita
Makita DUH506 User manual

Makita
Makita UR3500 User manual

Makita
Makita BBC300L User manual

Makita
Makita 3711 User manual

Makita
Makita EN4950H User guide

Makita
Makita UR100DZ User manual

Makita
Makita UH4570 User manual

Makita
Makita DUR187U User manual

Makita
Makita DUR190U User manual

Makita
Makita UM600D User manual

Makita
Makita DUR369A User manual
