MAKSIWA FM350CA User manual

CYCLONE DUST COLLECTOR
OPERATING MANUAL
FM300CA-1800H FM350CA-1900H
CAREFULLY READ THE INSTRUCTION MANUAL BEFORE USE THE MACHINE
KEEP THIS INSTRUCTION MANUAL FOR FUTURE REFERENCE.
CYCLONE 3HP DUST COLLECTOR
INSTRUCTION MANUAL
FM350CA
Attention: Read this manual before using the machine.

Table of contents
1. Safety ................................................................................................................................................. 1
1.1 Safety instructions for general machinery....................................................................................... 1
1.11 Personal protective equipment .................................................................................................. 2
1.2 Safety instructions for dust collector ............................................................................................... 2
2. Technical Specification.................................................................................................................... 4
2.1 Specification .................................................................................................................................... 4
2.2 Dimensions...................................................................................................................................... 5
3. Assembly ......................................................................................................................................... 6
3.1 Grounding instructions.................................................................................................................... 6
3.2 Placement location .......................................................................................................................... 6
3.3 Unpacking....................................................................................................................................... 6
3.4 Assembly ......................................................................................................................................... 7

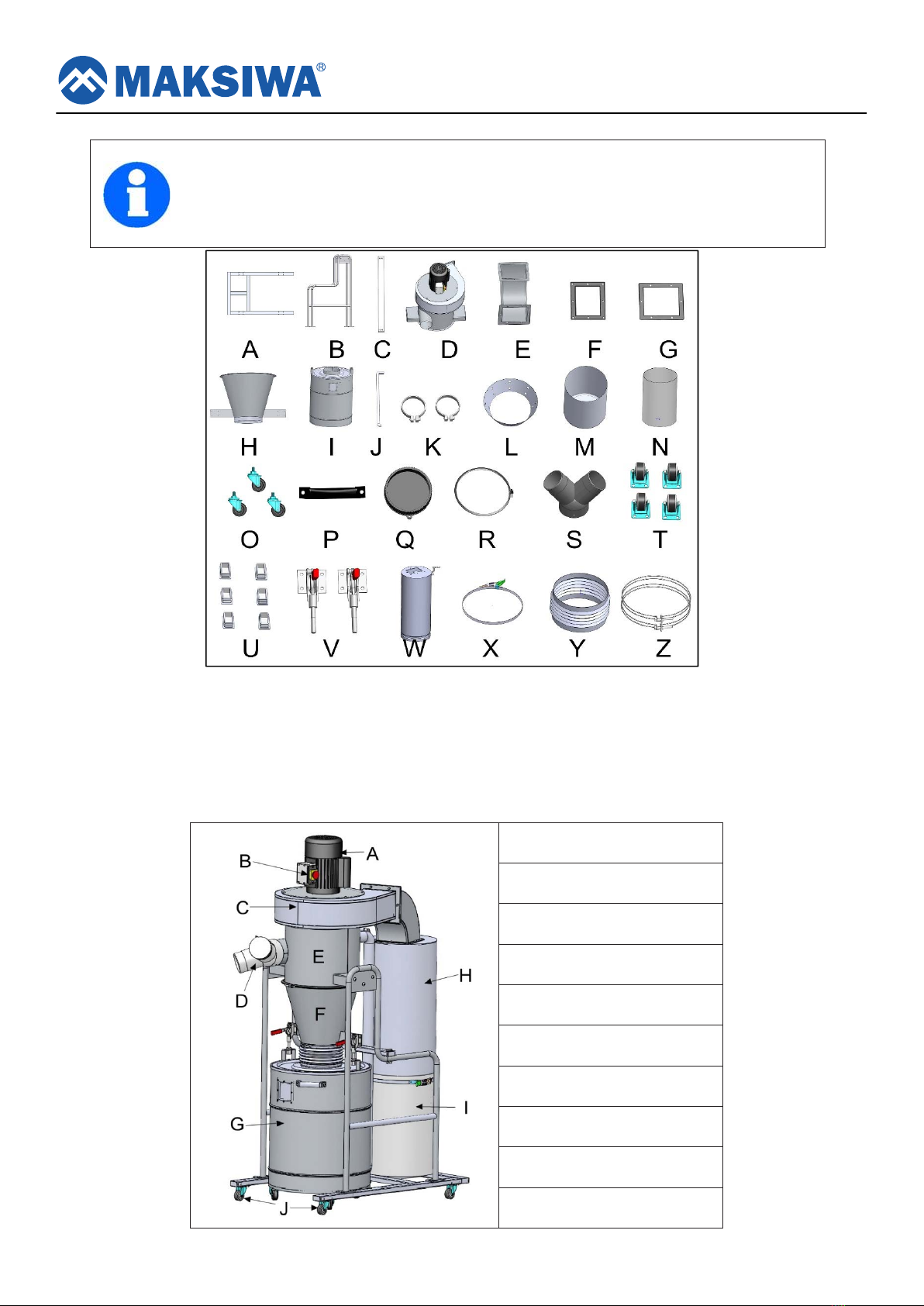

3.4.1 Know your cyclone dust collector.............................................................................................. 7

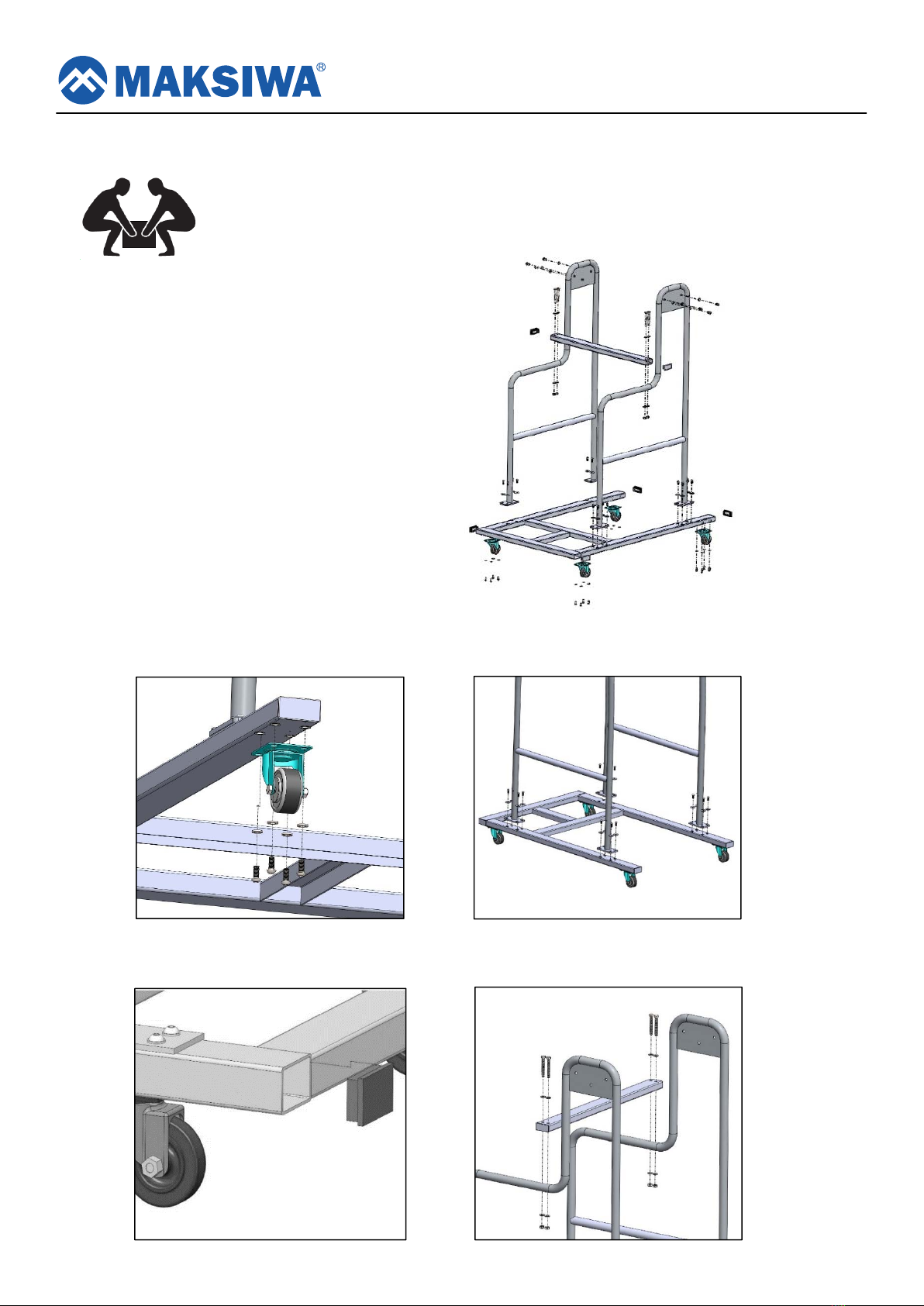

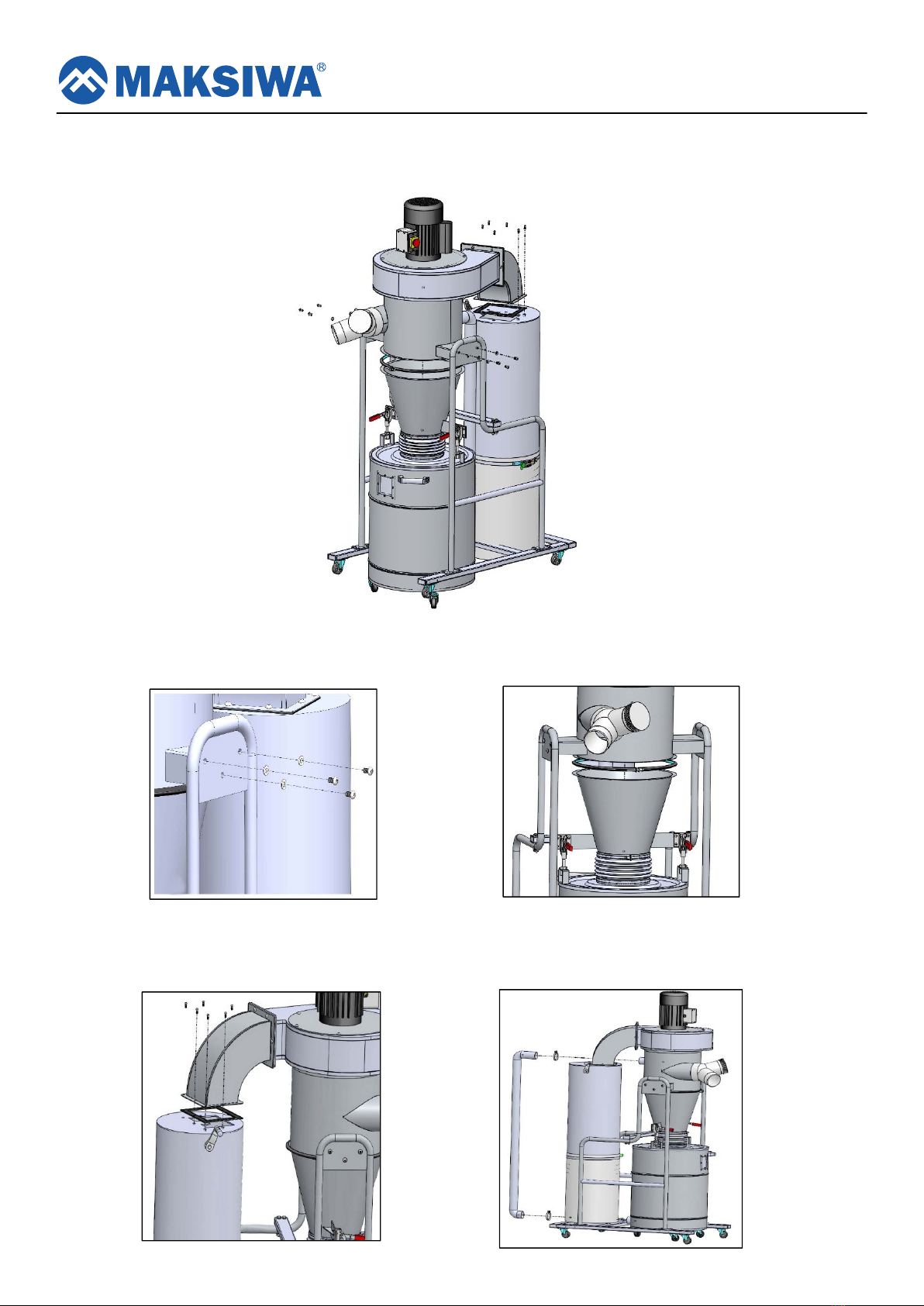

3.4.2 To assemble machine............................................................................................................... 8
3.5 Initial commissioning .................................................................................................................... 13
3.6 Optional accessories for dust collector ......................................................................................... 13
4. Operation......................................................................................................................................... 14
4.1 Tips for optimum performance...................................................................................................... 15
4.2 Required CFMs ............................................................................................................................ 15
5. Maintenance .................................................................................................................................... 16
5.1 Schedule........................................................................................................................................ 16

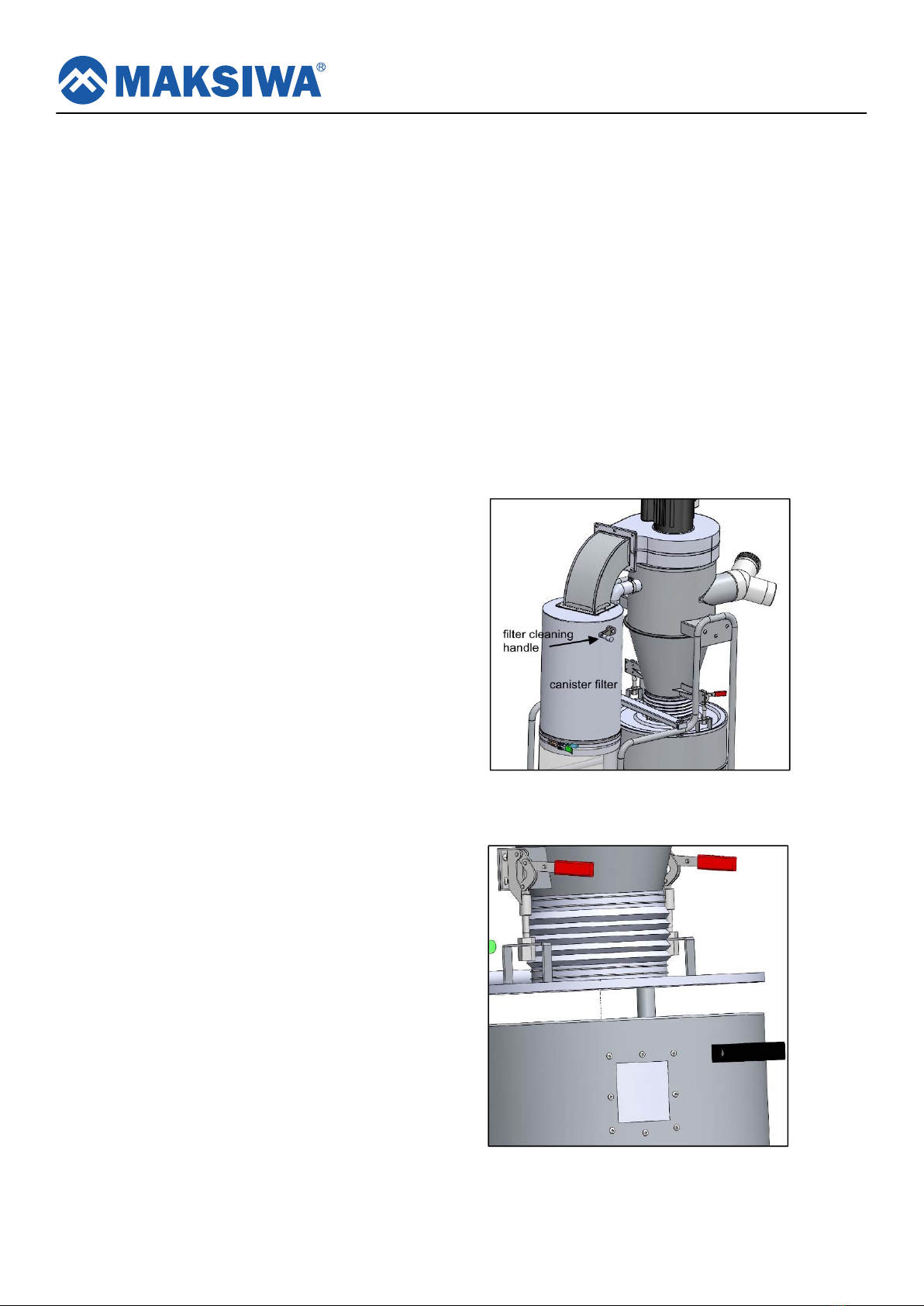

5.2 Cleaning canister filter ................................................................................................................... 16
5.3 Removing/Replacing collection drum bag...................................................................................... 16
5.4 Removing/Replacing filter bag....................................................................................................... 17

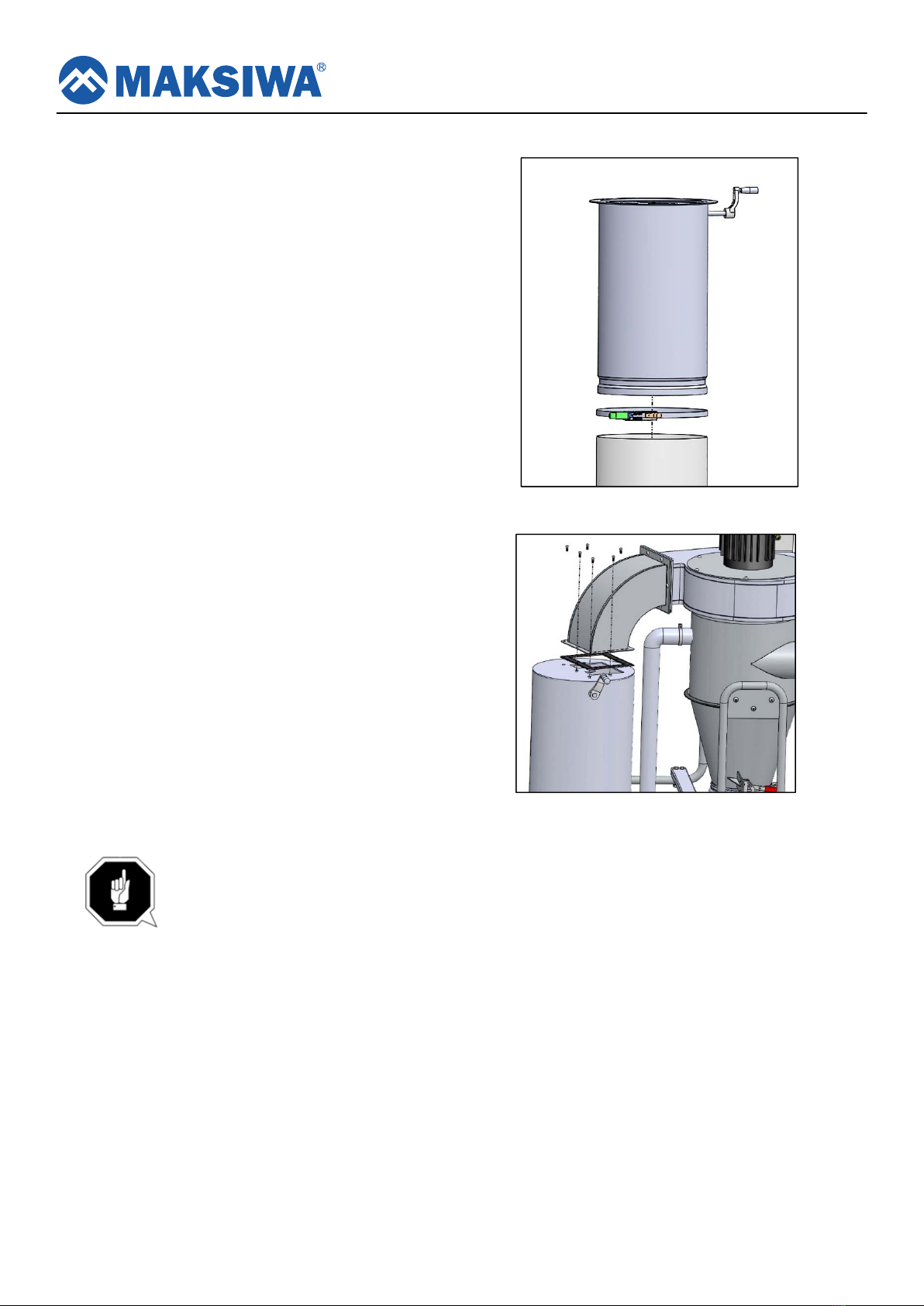

5.5 Removing/Replacing canister filter ................................................................................................ 17
6. Troubleshooting ............................................................................................................................. 18
7. Diagram and part list ...................................................................................................................... 20
7.1 Diagram for FM350CA................................................................................................................... 20
7.2 Part list for FM350CA .................................................................................................................... 21
7.3 Wiring diagram .............................................................................................................................. 22
2
Greetings,
Congratulations, you just purchased the BMS.3200.IR Precision Saw, which was developed with the
Maksiwa’s highest standards of technology and quality. Your BMS.3200.IR Precision Saw allows you
to have the highest productivity in woodworking. Besides a great nish, the BMS.3200.IR ensures that
your cuts are always precise. It should be noted that to use this machine with maximum eciency,
you should read and understand the instructions in this manual.
Visit our website to know about our launches and other product lines:
www.maksiwa.com

1
1. Safety
This operating instructions
▲explains the meaning and use of the warning notes included in the operating instructions
▲points out the dangers that might arise for you or others if these instructions are not
observed.
▲informs you how to avoid dangers.
In addition to these operation instructions, please observe
▲the applicable laws and regulations
▲the statutory provisions for accident prevention
▲the prohibition, warning and mandatory signs as well as the warning notes on the machine.
If required, the relevant measures to comply with the country-specific regulations must be taken
before commissioning the machine.
Always keep this documentation close to the machine.
1.1Safety instructions for general machinery
The purpose of safety symbols is to attract your attention to possible hazardous conditions. This
manual uses a series of symbols and signal words intended to convey the level of importance of the
safety messages. The progression of symbols is described below. Remember that safety messages
by themselves do not eliminate danger and are not a substitute for proper accident prevention
measures.
WARNING
Some dust created by power sanding, sawing, grinding, drilling, and other construction activities
may contain chemicals, including lead, birth defects, or other reproductive harm. Wash hands after
handling. Some examples of these chemicals are:
•Lead from lead-based paints.
•Crystalline silica from bricks, cement, and other masonry products.
•Arsenic and chromium from chemically treated lumber.
Your risk from these exposures varies depending on how often you do this type of work. To reduce
your exposure to these chemicals, work in a well-ventilated area with approved safety equipment
such as dust masks specially designed to filter out microscopic particles.
2
Greetings,
Congratulations, you just purchased the BMS.3200.IR Precision Saw, which was developed with the
Maksiwa’s highest standards of technology and quality. Your BMS.3200.IR Precision Saw allows you
to have the highest productivity in woodworking. Besides a great nish, the BMS.3200.IR ensures that
your cuts are always precise. It should be noted that to use this machine with maximum eciency,
you should read and understand the instructions in this manual.
Visit our website to know about our launches and other product lines:
www.maksiwa.com

2
For your own safety, read instruction manual before operating the machine. Learn
the machine’s application and limitations as well as the specific hazards peculiar.
Always wear approved safety glasses or a face shield when operating or observing
machinery to reduce the risk of eye injury or blindness from flying particles everyday.
Eyeglasses are not approved safety glasses.
Dust created while using machinery may cause cancer, birth defects, or long-term
respiratory damage. Be aware of dust hazards associated with each workpiece
material, and always wear an approved respirator to reduce your risk.
Always wear hearing protection when operating or observing loud machinery.
Extended exposure to this noise without hearing protection can cause permanent
hearing loss.
Keep hands and clothing away from moving parts. Always tie back or cover long hair.
Wear non-slip footwear to avoid accidental slips which could cause a loss of
workpiece control.
1.11 Personal protective equipment
Dirty or contaminated personal protective equipment can cause illness. Clean your
personal protective equipment after each use and once a week.
1.2Safety instructions for dust collector
Long-term respiratory damage can occur from using dust collectors without proper
use of a respirator. Fire or explosions can result in smoke inhalation, serious burns,
or death—if machine is used to collect incorrect materials, is operated near
potential explosion sources, or ducting is improperly grounded. Entanglement, amputation, or
death can occur if hair, clothing, or fingers are pulled into the inlet. To reduce the risk of these
hazards, operator and bystanders MUST completely heed the hazards and warnings below.
protective suit safety shoes protective gloves protective glasses
2
Greetings,
Congratulations, you just purchased the BMS.3200.IR Precision Saw, which was developed with the
Maksiwa’s highest standards of technology and quality. Your BMS.3200.IR Precision Saw allows you
to have the highest productivity in woodworking. Besides a great nish, the BMS.3200.IR ensures that
your cuts are always precise. It should be noted that to use this machine with maximum eciency,
you should read and understand the instructions in this manual.
Visit our website to know about our launches and other product lines:
www.maksiwa.com

3
INTENDED USE
This dust collector is only intended for collecting wood dust and
chips from woodworking machines. Do not use this dust collector
to collect metal, dirt, pebbles, drywall, asbestos, lead paint, silica,
liquids, aerosols, or any flammable, combustible, or hazardous
materials.
HAZARDOUS DUST
Dust created while using machinery may cause cancer, birth
defects, or long-term respiratory damage. Be aware of dust
hazards associated with each work piece material, and always
wear a NIOSH-approved respirator to reduce your risk.
DUST ALLERGIES
Dust from certain woods may cause an allergic reaction in people
and animals.
Make sure you know what type of wood dust you will be exposed
to in case there is a possibility of an allergic reaction.
WEAR RESPIRATOR
Fine dust that is too small to be caught in the filter will be blown
into the ambient air during operation. Always wear a NIOSH-
approved respirator during operation and for a short time after to
reduce your risk of permanent respiratory damage.
EMPTYING DUST
When emptying dust from the collection container, wear a
respirator and safety glasses. Empty dust away from ignition
sources and into an approved container.
DISCONNECTING POWER
SUPPLY
Turn the switch off, disconnect the dust collector from the power
supply, and allow the impeller to come to a complete stop before
leaving the machine unattended or doing any service, cleaning,
maintenance, or adjustments.
SUSPENDED DUST
PARTICLES AND IGNITION
SOURCES
Do not operate the dust collector in areas where explosion risks
are high. Areas of high risk include, but are not limited to, areas
near pilot lights, open flames, or other ignition sources.
FIRE SUPPRESSION Only operate the dust collector in locations that contain a fire
suppression system or have a fire extinguisher nearby.
IMPELLER HAZARDS
Do not place your hands or tools near the open inlet during
operation for any reason. The powerful suction could easily cause
accidental contact with the impeller, which will cause serious
personal injury or damage to the machine. Always keep small
animals and children away from open dust collection inlets.
AVOIDING SPARKS
Do not allow steel or rocks to strike the impeller—this may produce
sparks. Sparks can smolder in wood dust for a long time before a
fire is detected. If you accidentally cut into wood containing tramp
metal (nails, staples, spikes, etc.), immediately turn off the dust
collector, disconnect it from power, and wait for the impeller to
stop—then empty the collection container into an approved airtight
metal container.
OPERATING LOCATION
To reduce respiratory exposure to fine dust, locate permanently
installed dust collectors away from the working area, or in another
room that is equipped with a smoke detector. Do not operate the
dust collector in rainy or wet locations—exposure to water may
create a shock hazard or decrease the life of the machine.
2
Greetings,
Congratulations, you just purchased the BMS.3200.IR Precision Saw, which was developed with the
Maksiwa’s highest standards of technology and quality. Your BMS.3200.IR Precision Saw allows you
to have the highest productivity in woodworking. Besides a great nish, the BMS.3200.IR ensures that
your cuts are always precise. It should be noted that to use this machine with maximum eciency,
you should read and understand the instructions in this manual.
Visit our website to know about our launches and other product lines:
www.maksiwa.com

4
STATIC ELECTRICITY
Plastic dust lines generate high amounts of static electricity as dust
chips pass through them. Although rare, sparks caused by static
electricity can cause explosions or fire. To reduce this risk, make
sure all dust lines are thoroughly grounded by Using a grounding
wire.
REGULAR CLEANING
Regularly check/empty the collection bags or drum to avoid the
buildup of fine dust that can increase the risk of fire. Make sure to
regularly clean the surrounding area where the machine is
operated—excessive dust buildup on overhead lights, heaters,
electrical panels, or other heat sources will increase the risk of fire.
No list of safety guidelines can be complete. Every shop environment is different.
Accidents are frequently caused by lack of familiarity or failure to pay attention. Use
this machine with respect and caution to lessen the possibility of operator injury. If
normal safety precautions are overlooked or ignored, serious personal injury may occur.
FAILURE TO FOLLOW THESE RULES MAY RESULT IN SERIOUS PERSONAL INJURY.
FOR YOUR OWN SAFETY, READ AND UNDERSTAND THE INSTRUCTION MANUAL
BEFORE OPERATING THE MACHINE.
KEEP WORK AREA CLEAN. Cluttered areas and benches invite accidents.
DON’T USE IN DANGEROUS ENVIRONMENT. Don’t use this unit in damp or wet
locations, or expose it to rain. Keep work area well-lighted.
KEEP CHILDREN AND VISITORS AWAY. All children and visitors should be kept a
safe distance from work area.
DISCONNECT UNIT before servicing.
CHECK DAMAGED PARTS. Before further use of the unit, properly repair or replace
any part that isdamaged.
2. Technical Specification
The following information represents the detailed data and dimension for reference.
2.1 Specification
MODEL NO. FM300CA FM350CA
Motor Power 1500W 2200W
Fan diameter 305mm 356mm
Inlet diameter 125mm 150mm
Number of intake holes 2x100mm 3x100mm
h / ³m0531h / ³m0511wolFr iA
Cartridge Filter size Φ340mm×600mm Φ340mm×800mm
2
Greetings,
Congratulations, you just purchased the BMS.3200.IR Precision Saw, which was developed with the
Maksiwa’s highest standards of technology and quality. Your BMS.3200.IR Precision Saw allows you
to have the highest productivity in woodworking. Besides a great nish, the BMS.3200.IR ensures that
your cuts are always precise. It should be noted that to use this machine with maximum eciency,
you should read and understand the instructions in this manual.
Visit our website to know about our launches and other product lines:
www.maksiwa.com

5
Cartridge Filter rate 99% at 1 micro 99% at 1 micro
Collection drum size Φ500mm×600mm Φ500mm×600mm
Collection drum volume 0.118m³ 0.118m³
Collection bag size Φ500mm×1100mm
Φ370mm×750mm
Φ500x1100mm
Φ370x750mm
Overall size 1136x654x1810mm 1145x654x1830mm
Packing size 1080X650X1044mm;
1150X715X140mm;
650×430×430mm
1160X650X1044mm;
1150X715X140mm;
650×430×430mm
Net weight 72.8KG 82.3KG
2.2 Dimensions
FM350CA-
1900H
2
Greetings,
Congratulations, you just purchased the BMS.3200.IR Precision Saw, which was developed with the
Maksiwa’s highest standards of technology and quality. Your BMS.3200.IR Precision Saw allows you
to have the highest productivity in woodworking. Besides a great nish, the BMS.3200.IR ensures that
your cuts are always precise. It should be noted that to use this machine with maximum eciency,
you should read and understand the instructions in this manual.
Visit our website to know about our launches and other product lines:
www.maksiwa.com

6
3. Assembly
The cyclone dust collector is not pre-assembled. After unpacking, the machine must be installed.
Transport the dust collector in its packing crate to a place near its final installation site
before unpacking it. If the packaging shows signs of possible transport damage, take the
necessary precautions not to damage the machine when unpacking. If any damage is
discovered, the carrier and/or shipper must be notified of this fact immediately to
establish any claim which might arise.
3.1Grounding instructions
The appliance must be grounded, if it should malfunction or breakdown, grounding provides a path of
least resistance for electric current to reduce the risk of electric shock. This appliance is equipped
with a cord having equipment-ground conductor and grounding plug. The plug must be inserted into
an appropriate outlet that is properly installed and grounded in accordance with all local codes and
ordinances.
For grounded, cord-connected appliances: Make sure that the appliance is connected to an outlet
having the same configuration as the plug. No adaptor should be used with this appliance. If the
appliance must be reconnected for use on a different type of electric circuit, qualified service personnel
should make the reconnection.
For a permanently connected appliance: This appliance must be connected to a grounded metal,
permanent wiring system; or an equipment-grounding conductor must be run with the circuit
conductors and connected to the equipment grounding terminal or lead on the appliance.
Inspect the machine completely and carefully, making sure that all materials, such as shipping
documents, instructions and accessories supplied with the machine have been received.
3.2 Placement location
Consider anticipated workpiece sizes and additional space needed for auxiliary stands, work tables,
or other machinery when establishing a location for this machine in the shop. See 2.2 Dimensions for
reference.
3.3Unpacking
The machine is packed in three packages (One plywood cases and two cartons.)The following is a
list of items shipped with your machine. Before beginning setup, lay these items out and inventory
them.
A. Base J. Vacuum hose S. Adapter
B. Bracket K. Hose clamp T. Casters for base
C. Connecting rod L. Vacuum ring U. End cap
D. Impeller housing M. Dust bag for drum V. Quick–locking clamp
E. Elbow N. Dust bag for filter W. Canister filter
F. Rubber gasket O. Casters for drum X. Bag clamp
G. Rubber gasket P. Drum handle Y. Flexible hose
H. Cyclone funnel Q. Cap for Y adapter Z. Hose clamps
I. Dust collection drum R. Steel clamp
2
Greetings,
Congratulations, you just purchased the BMS.3200.IR Precision Saw, which was developed with the
Maksiwa’s highest standards of technology and quality. Your BMS.3200.IR Precision Saw allows you
to have the highest productivity in woodworking. Besides a great nish, the BMS.3200.IR ensures that
your cuts are always precise. It should be noted that to use this machine with maximum eciency,
you should read and understand the instructions in this manual.
Visit our website to know about our launches and other product lines:
www.maksiwa.com

7
3.4 Assembly
The machine must be fully assembled before it can be operated. Before beginning the assembly
process, gather all listed items. To ensure the assembly process goes smoothly, first clean any parts
that are covered or coated in heavy-duty rust preventative (if applicable).
3.4.1 Know your cyclone dust collector
If you cannot find an item on this list, carefully check around/inside the machine
and packaging materials. Often, these items get lost in packaging materials while
unpacking or they are pre-installed at the factory.
A: Motor
B: ON/OFF switch
C: Impeller housing
D: Inlet adapter
E: Intake barrel
F: Cyclone funnel
G: Dust collection drum
H: Canister filter
I: Dust collection bag
J: Casters
2
Greetings,
Congratulations, you just purchased the BMS.3200.IR Precision Saw, which was developed with the
Maksiwa’s highest standards of technology and quality. Your BMS.3200.IR Precision Saw allows you
to have the highest productivity in woodworking. Besides a great nish, the BMS.3200.IR ensures that
your cuts are always precise. It should be noted that to use this machine with maximum eciency,
you should read and understand the instructions in this manual.
Visit our website to know about our launches and other product lines:
www.maksiwa.com

8
3.4.2 To assemble machine
The machine is heavy.
DO NOT over-exert yourself while assemble the machine. 2-3 manpower
required to safely assemble it.
STEP-1 Install the main bracket.
Please refer to the diagram and step 1.1-1.4
for detail diagram.
1.1 Fix the casters on the base by hexagon
socket flat head bolts and flat washers.
1.2 Fix the bracket on the base by hexagon socket
flat head bolts and washers.
1.3 Insert the end cap into the four sides of
the base.
1.4 Fix the connecting rod to the bracket by long
bolts, flat washers and nuts.
2
Greetings,
Congratulations, you just purchased the BMS.3200.IR Precision Saw, which was developed with the
Maksiwa’s highest standards of technology and quality. Your BMS.3200.IR Precision Saw allows you
to have the highest productivity in woodworking. Besides a great nish, the BMS.3200.IR ensures that
your cuts are always precise. It should be noted that to use this machine with maximum eciency,
you should read and understand the instructions in this manual.
Visit our website to know about our launches and other product lines:
www.maksiwa.com

9
STEP-2 Install the dust collection drum, cyclone
funnel assembly. Please refer to the diagram and
Step 2.1-2.4 for detail diagram.
2.1 Install the 2 inch casters on the bottom of the
dust collection drum.
2.2 Install the handle on the drum by hexagon
socket head bolts, flat washers and self-locking
nuts.
2.3 Connect the cyclone funnel and the drum
cover by steel clamps and flexible hose.
2.4 Install the quick-locking handle, then lock the
drum cover onto the cyclone funnel by the
quick-locking handle.
2
Greetings,
Congratulations, you just purchased the BMS.3200.IR Precision Saw, which was developed with the
Maksiwa’s highest standards of technology and quality. Your BMS.3200.IR Precision Saw allows you
to have the highest productivity in woodworking. Besides a great nish, the BMS.3200.IR ensures that
your cuts are always precise. It should be noted that to use this machine with maximum eciency,
you should read and understand the instructions in this manual.
Visit our website to know about our launches and other product lines:
www.maksiwa.com

10
STEP-3 Install the relevant components on the impeller housing assembly. Please refer to
the following diagram.
3.1 Connect the elbow, rubber gasket and
impeller housing by hexagon socket pan
head screws together.
3.2 Install the connector on the intake barrel by
three screws and then buckle the cap on the
connector.
STEP-4 Install the dust collection bag on the air filter by bag clamp.
2
Greetings,
Congratulations, you just purchased the BMS.3200.IR Precision Saw, which was developed with the
Maksiwa’s highest standards of technology and quality. Your BMS.3200.IR Precision Saw allows you
to have the highest productivity in woodworking. Besides a great nish, the BMS.3200.IR ensures that
your cuts are always precise. It should be noted that to use this machine with maximum eciency,
you should read and understand the instructions in this manual.
Visit our website to know about our launches and other product lines:
www.maksiwa.com

11
STEP-5 Combine the bracket, cyclone funnel, impeller housing, cartridge filter together.
Please refer to the diagram and step 5.1-5.4 for detail diagram.
5.1 Fix the intake barrel and impeller housing
assembly on the bracket by hexagon socket flat
head screws and flat washers.
5.2 Connect the intake barrel and cyclone
funnel together by the steel hoop.
5.3 Connect the canister filter, rubber gasket
and elbow together by the screws.
5.4 Place hose clamps on each end of vacuum
hose, then connect hose to ports on cyclone
funnel and collection drum.
11
STEP-5 Combine the bracket, cyclone funnel, impeller housing, cartridge filter together.
Please refer to the diagram and step 5.1-5.4 for detail diagram.
5.1 Fix the intake barrel and impeller housing
assembly on the bracket by hexagon socket flat
head screws and flat washers.
5.2 Connect the intake barrel and cyclone
funnel together by the steel hoop.
5.3 Connect the canister filter, rubber gasket
and elbow together by the screws.
5.4 Place hose clamps on each end of vacuum
hose, then connect hose to ports on cyclone
funnel and collection drum.
11
STEP-5 Combine the bracket, cyclone funnel, impeller housing, cartridge filter together.
Please refer to the diagram and step 5.1-5.4 for detail diagram.
5.1 Fix the intake barrel and impeller housing
assembly on the bracket by hexagon socket flat
head screws and flat washers.
5.2 Connect the intake barrel and cyclone
funnel together by the steel hoop.
5.3 Connect the canister filter, rubber gasket
and elbow together by the screws.
5.4 Place hose clamps on each end of vacuum
hose, then connect hose to ports on cyclone
funnel and collection drum.
11
STEP-5 Combine the bracket, cyclone funnel, impeller housing, cartridge filter together.
Please refer to the diagram and step 5.1-5.4 for detail diagram.
5.1 Fix the intake barrel and impeller housing
assembly on the bracket by hexagon socket flat
head screws and flat washers.
5.2 Connect the intake barrel and cyclone
funnel together by the steel hoop.
5.3 Connect the canister filter, rubber gasket
and elbow together by the screws.
5.4 Place hose clamps on each end of vacuum
hose, then connect hose to ports on cyclone
funnel and collection drum.
11
STEP-5 Combine the bracket, cyclone funnel, impeller housing, cartridge filter together.
Please refer to the diagram and step 5.1-5.4 for detail diagram.
5.1 Fix the intake barrel and impeller housing
assembly on the bracket by hexagon socket flat
head screws and flat washers.
5.2 Connect the intake barrel and cyclone
funnel together by the steel hoop.
5.3 Connect the canister filter, rubber gasket
and elbow together by the screws.
5.4 Place hose clamps on each end of vacuum
hose, then connect hose to ports on cyclone
funnel and collection drum.
11
STEP-5 Combine the bracket, cyclone funnel, impeller housing, cartridge filter together.
Please refer to the diagram and step 5.1-5.4 for detail diagram.
5.1 Fix the intake barrel and impeller housing
assembly on the bracket by hexagon socket flat
head screws and flat washers.
5.2 Connect the intake barrel and cyclone
funnel together by the steel hoop.
5.3 Connect the canister filter, rubber gasket
and elbow together by the screws.
5.4 Place hose clamps on each end of vacuum
hose, then connect hose to ports on cyclone
funnel and collection drum.
2
Greetings,
Congratulations, you just purchased the BMS.3200.IR Precision Saw, which was developed with the
Maksiwa’s highest standards of technology and quality. Your BMS.3200.IR Precision Saw allows you
to have the highest productivity in woodworking. Besides a great nish, the BMS.3200.IR ensures that
your cuts are always precise. It should be noted that to use this machine with maximum eciency,
you should read and understand the instructions in this manual.
Visit our website to know about our launches and other product lines:
www.maksiwa.com

12
The machine is installed well as the following picture.
Attention: Before use the machine, please check all the screws and bolts are tightened.
M350CA-1900H:
2
Greetings,
Congratulations, you just purchased the BMS.3200.IR Precision Saw, which was developed with the
Maksiwa’s highest standards of technology and quality. Your BMS.3200.IR Precision Saw allows you
to have the highest productivity in woodworking. Besides a great nish, the BMS.3200.IR ensures that
your cuts are always precise. It should be noted that to use this machine with maximum eciency,
you should read and understand the instructions in this manual.
Visit our website to know about our launches and other product lines:
www.maksiwa.com

13
3.5 Initial commissioning
Once assembly is complete, test run the machine to ensure it is properly connected to power and
safety components are functioning correctly.
If you find an unusual problem during the test run, immediately stop the machine, disconnect it from
power, and fix the problem BEFORE operating the machine again.
DO NOT start machine until all preceding setup instructions have been performed.
Operating an improperly set up machine may result in malfunction or unexpected results
that can lead to serious injury, death, or machine/property damage.
To test run machine:
1. Clear all setup tools away from machine.
2. Lock all swivel casters on base stand and dust collection drum.
3. Connect machine to the cyclone dust collector or place covers over inlet adapter ports.
DO NOT operate the machine without first connecting it to a dust-collection system
or covering an inlet adapter port. Otherwise, the lack of airflow resistance will
cause the motor to operate at full amperage load, which could trip your circuit
breaker or blow a fuse.
4. Connect machine to power.
5. Standing away from intake port, press button “ON” to turn machine on.
6. Verify motor starts up and runs smoothly without any problems or unusual noises.
7. Press “OFF” button to turn machine OFF.
3.6 Optional accessories for dust collector
4
Blast gate Elbow Adaptor Connector Connector
Canister filter Flexible hose Hose clamp Bag clamp Dust bag
2
Greetings,
Congratulations, you just purchased the BMS.3200.IR Precision Saw, which was developed with the
Maksiwa’s highest standards of technology and quality. Your BMS.3200.IR Precision Saw allows you
to have the highest productivity in woodworking. Besides a great nish, the BMS.3200.IR ensures that
your cuts are always precise. It should be noted that to use this machine with maximum eciency,
you should read and understand the instructions in this manual.
Visit our website to know about our launches and other product lines:
www.maksiwa.com

14
4. Operation
The purpose of this overview is to provide the novice machine operator with a basic understanding
of how the machine is used during operation, so the machine controls/components discussed later
in this manual are easier to understand. Due to the generic nature of this overview, it is not intended
to be an instructional guide. To learn more about specific operations, read this entire manual, seek
additional training from experienced machine operators, and do additional research outside of this
manual by reading "how-to" books, trade magazines, or websites.
If you are not experienced with this type of machine, WE STRONGLY
RECOMMEND that you seek additional training outside of this manual. Read
books/magazines or get formal training before beginning any projects.
This cyclone dust collector creates a vortex of incoming air that extracts heavy wood chips and large
dust particles, and then drops them into the collection drum.
The remaining fine dust travels past the impeller and is then caught by a canister filter and deposited
in the plastic collection bag below. The spun-bond polyester filters are pleated to provide maximum
surface area for efficient air flow.
To maintain CFM during heavy dust-collection operations, turn the filter cleaning handle to knock
caked-on dust into the plastic collection bag.
Always lock the swivel casters before operation.
2
Greetings,
Congratulations, you just purchased the BMS.3200.IR Precision Saw, which was developed with the
Maksiwa’s highest standards of technology and quality. Your BMS.3200.IR Precision Saw allows you
to have the highest productivity in woodworking. Besides a great nish, the BMS.3200.IR ensures that
your cuts are always precise. It should be noted that to use this machine with maximum eciency,
you should read and understand the instructions in this manual.
Visit our website to know about our launches and other product lines:
www.maksiwa.com

15
4.1Tips for optimum performance
▲Avoid using more than 10' of flexible hose on any ducting line. The ridges inside flexible hose
greatly increase static pressure loss, which reduces suction performance.
▲Keep ducts between the dust collector and machines as short as possible.
▲Keep ducting directional changes to a minimum. The more curved fittings you use, the greater the
loss of suction at the dust-producing machine.
▲Gradual directional changes are more efficient than sudden directional changes (i.e. use 45°
elbows in place of 90° elbows whenever possible).
▲The simpler the system, the more efficient and less costly it will be.
4.2Required CFMs
Since each machine produces a different amount of sawdust, the requirements for the minimum
amount of CFM to move that sawdust is unique to the machine (for example, a planer produces more
sawdust than a table saw). Knowing this required CFM is important to gauging which size of duct to
use.
Refer to the figure below for a close estimation of the airflow each machine requires. Keep in mind
that machines that generate the most sawdust should be placed closest to the dust collector. If the
machine has multiple dust ports, the total CFM required is the sum of all ports.
Machine dust port Size 2" 2.5" 3" 4" 5" 6" 7" 8" 9" 10"
Approximate Required CFM 100 150 250 400 600 850 1200 1600 2000 2500
2
Greetings,
Congratulations, you just purchased the BMS.3200.IR Precision Saw, which was developed with the
Maksiwa’s highest standards of technology and quality. Your BMS.3200.IR Precision Saw allows you
to have the highest productivity in woodworking. Besides a great nish, the BMS.3200.IR ensures that
your cuts are always precise. It should be noted that to use this machine with maximum eciency,
you should read and understand the instructions in this manual.
Visit our website to know about our launches and other product lines:
www.maksiwa.com

16
5. Maintenance
5.1 Schedule
For optimum performance from this machine, this maintenance schedule must be strictly followed
ongoing.
To maintain a low risk of injury and proper machine operation, if you ever observe any of the items
below, shut down the machine immediately and fix the problem before continuing operations:
▲Loose mounting bolts.
▲Damaged filter canister, cleaning paddle components, or collection bags.
▲Worn or damaged wires.
▲Suction leaks.
▲Any other unsafe condition.
Monthly Check
▲Clean/vacuum dust buildup off machine body and motor.
5.2 Cleaning canister filter
This dust collector uses a handle and internal
paddles to remove dust buildup and debris from the
filter pleats. Turn the handle through its range of
motion to clean the canister filter and knock dust
cake into the filter bag.
For a more thorough cleaning every few months
under heavy use, wash the filter by hand.
IMPORTANT: To contain wood dust and
minimize risk of exposure, firmly tie bag closed.
5.3 Removing/Replacing collection drum bag
Dispose of the collection drum bag when dust fills it
34 full. Replace the bag if it develops a leak or
becomes damaged.
1. DISCONNECT MACHINE FROM POWER!
2. Loose the two drum lock handles which tighten
the drum cover to the collection drum
3. Take out the inner drum from the collection
drum.
4. Clean or replace the bag.
5. Put the inner drum into the cleaned or new bag.
6. Tighten the drum cover to the collection drum by
using the clamps.
2
Greetings,
Congratulations, you just purchased the BMS.3200.IR Precision Saw, which was developed with the
Maksiwa’s highest standards of technology and quality. Your BMS.3200.IR Precision Saw allows you
to have the highest productivity in woodworking. Besides a great nish, the BMS.3200.IR ensures that
your cuts are always precise. It should be noted that to use this machine with maximum eciency,
you should read and understand the instructions in this manual.
Visit our website to know about our launches and other product lines:
www.maksiwa.com

17
5.4 Removing/Replacing filter bag
Remove and replace the filter bag when it is about
12 full.
To remove & replace filter bag or bags:
1. DISCONNECT MACHINE FROM POWER!
2. Release clamp around bottom of canister filter,
then remove filter bag.
3. Attach new filter bag around bottom of canister
filter and secure with clamp.
5.5 Removing/Replacing canister filter
If the canister filter is clogged or dirty and cleaning it
does not improve dust-collection performance, the
canister filter must be replaced.
To remove and replace canister filter:
1. DISCONNECT MACHINE FROM POWER!
2. Loose thescrews which fixed the rubber gasket
and canister filter to the elbow.
3. Install the rubber gasket and new canister filter to
the elbow by the screws.
Dust exposure created while using machinery may cause cancer, birth defects, or
long-term respiratory damage. Always wear goggles and a NIOSH approved
respirator when working with the dust collection bags or canisters.
2
Greetings,
Congratulations, you just purchased the BMS.3200.IR Precision Saw, which was developed with the
Maksiwa’s highest standards of technology and quality. Your BMS.3200.IR Precision Saw allows you
to have the highest productivity in woodworking. Besides a great nish, the BMS.3200.IR ensures that
your cuts are always precise. It should be noted that to use this machine with maximum eciency,
you should read and understand the instructions in this manual.
Visit our website to know about our launches and other product lines:
www.maksiwa.com

18
6. Troubleshooting
Review the troubleshooting procedures in this section if a problem develops with your machine. If you
need replacement parts or additional help with a procedure, please contact with us.
Note: Please gather the serial number and manufacture date of your machine before calling.
Motor & Electrical
Symptom Possible Cause Possible Solution
Machine does not
start, or power supply
fuse/breaker trips
immediately after
startup.
1. Cyclone dust collector not properly
connected to ducting.
2. Incorrect power supply voltage or circuit
size.
3. Power supply circuit breaker tripped or
fuse blown.
4. Motor overheated.
5. Wiring open/has high resistance.
6. Power switch at fault.
7.Capacitor at fault.
8. Motor at fault.
1. Connect dust collector to ducting.
2. Ensure correct power supply voltage and circuit
size.
3. Ensure circuit is sized correctly and free of shorts.
Reset circuit breaker or replace fuse.
4. Allow motor to cool, reset overload if necessary.
5. Check/fix broken, disconnected, or corroded
wires.
6. Test/replace.
7. Replace.
8. Test/repair/replace.
Machine seems
underpowered.
1. Motor overheated.
2. Dust-collection ducting problem.
3. Canister filter clogged/at fault.
4. Dust collector too far from machine or
undersized for dust-collection system.
5. Capacitor at fault.
6. Motor bearings at fault.
1. Allow motor to cool, reset overload if necessary.
2. Clear blockages, seal leaks, use smooth-wall
duct, eliminate bends, close other branches.
3. Clean canister filter; replace canister filter.
4. Move closer to machine/redesign ducting layout/
upgrade dust collector.
5. Test/repair/replace.
6. Test by rotating shaft; rotational grinding/loose
shaft requires bearing replacement.
Machine has vibration
or noisy operation.
1. Motor or component loose.
2. Motor fan rubbing on fan cover.
3. Motor mount loose/broken.
4. Impeller damaged, unbalanced, or loose.
5. Motor bearings at fault.
6. Motor shaft bent.
1. Inspect/replace damaged bolts/nuts, and
retighten with thread-locking fluid.
2. Fix /replace fan cover; replace loose/damaged
fan.
3. Tighten/replace.
4. Inspect/tighten/replace.
5. Test by rotating shaft; rotational grinding/loose
shaft requires bearing replacement.
6. Test with dial indicator. Replace motor if
damaged.
2
Greetings,
Congratulations, you just purchased the BMS.3200.IR Precision Saw, which was developed with the
Maksiwa’s highest standards of technology and quality. Your BMS.3200.IR Precision Saw allows you
to have the highest productivity in woodworking. Besides a great nish, the BMS.3200.IR ensures that
your cuts are always precise. It should be noted that to use this machine with maximum eciency,
you should read and understand the instructions in this manual.
Visit our website to know about our launches and other product lines:
www.maksiwa.com
