Grizzly G0562 User manual

3 HP DUST COLLECTOR
MODEL G0562
INSTRUCTION MANUAL
COPYRIGHT © DECEMBER, 2003 BY GRIZZLY INDUSTRIAL, INC.
WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE
OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.
#5934 PRINTED IN TAIWAN

WARNING
Some dust created by power sanding, sawing, grind-
ing, drilling, and other construction activities contains
chemicals known to the State of California to cause
cancer, birth defects or other reproductive harm.
Some examples of these chemicals are:
• Lead from lead-based paints.
• Crystalline silica from bricks, cement, and
other masonry products.
• Arsenic and chromium from chemically treated
lumber.
Your risk from these exposures varies, depending on
how often you do this type of work. To reduce your
exposure to these chemicals: work in a well ventilated
area, and work with approved safety equipment, such
as those dust masks that are specially designed to fil-
ter out microscopic particles.

Table of Contents
SECTION 1: SAFETY............................................................................................................................2
Safety Instructions for Power Tools ................................................................................................2
Additional Safety For Dust Collectors ............................................................................................4
SECTION 2: GENERAL INFORMATION..............................................................................................5
Commentary....................................................................................................................................5
SECTION 3: CIRCUIT REQUIREMENTS ............................................................................................6
Amperage Draw ..............................................................................................................................6
Circuit Breaker ................................................................................................................................6
Plug-Type........................................................................................................................................6
Grounding........................................................................................................................................7
Circuit Capacity ..............................................................................................................................7
Extension Cords..............................................................................................................................7
SECTION 4: MACHINE FEATURES ....................................................................................................8
SECTION 5: SET UP ............................................................................................................................9
Unpacking ......................................................................................................................................9
Inventory..........................................................................................................................................9
Hardware Recognition Chart ........................................................................................................11
Clean Up ......................................................................................................................................12
Site Considerations ......................................................................................................................12
Motor and Impeller ........................................................................................................................13

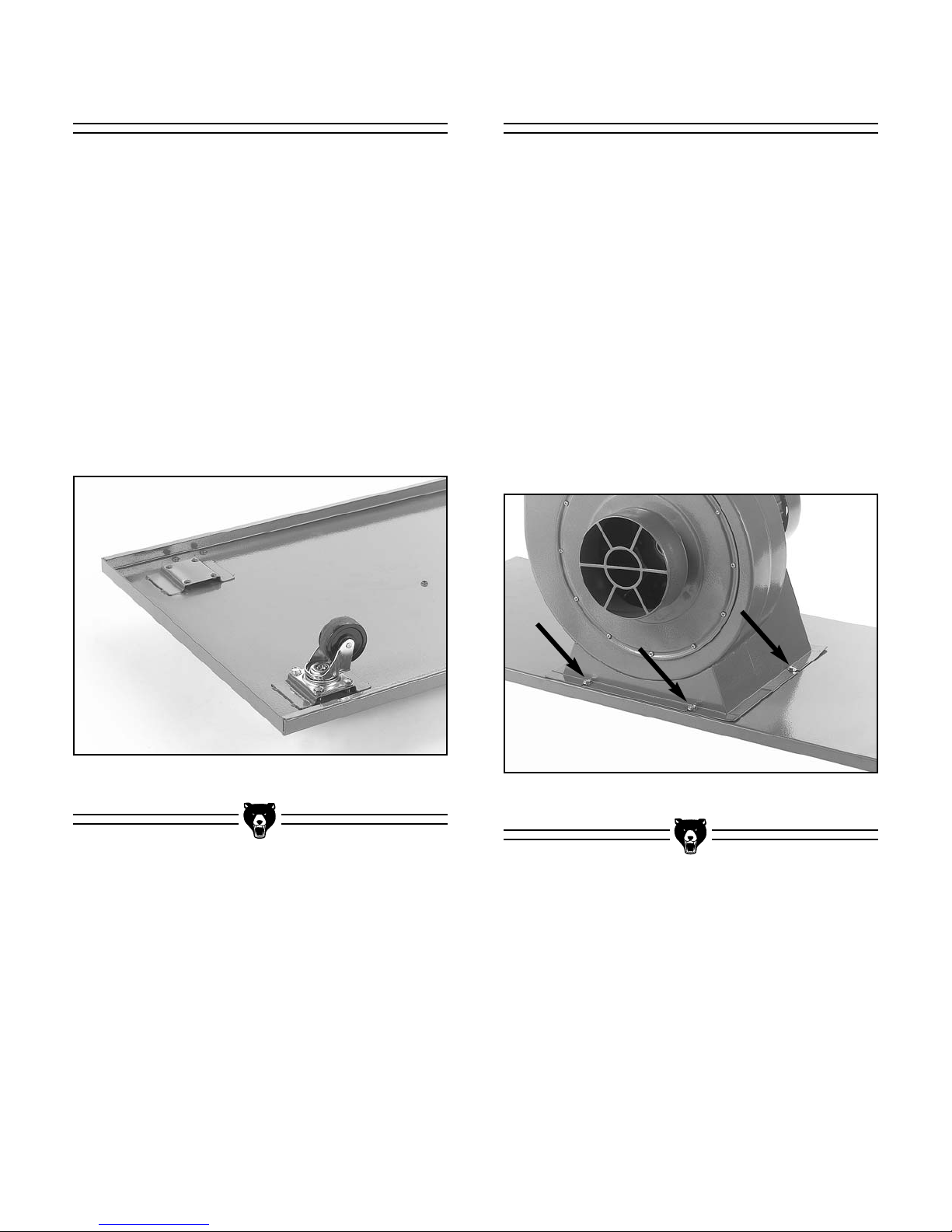

Base ..............................................................................................................................................13
Intake ............................................................................................................................................14
Canister Support ..........................................................................................................................14
Canister Filter................................................................................................................................15
Collector Ring................................................................................................................................15
Collection Bag ..............................................................................................................................16
Inlet................................................................................................................................................17
SECTION 6: Collection System ........................................................................................................18
General..........................................................................................................................................18
Material Selection..........................................................................................................................18
System Grounding ........................................................................................................................19
Design Suggestions ......................................................................................................................21
SECTION 7: OPERATION ..................................................................................................................22
Test Run........................................................................................................................................22
General..........................................................................................................................................22
SECTION 8: MAINTENANCE ............................................................................................................23
General..........................................................................................................................................23
Lubrication ....................................................................................................................................23
Bag and Canister Cleaning ..........................................................................................................23
Baffle Adjustment ..........................................................................................................................24
SECTION 9: REFERENCE INFO ........................................................................................................25
G0562 Data Sheet ........................................................................................................................26
G0562 Parts Breakdown and Parts Lists......................................................................................27
H5783 Canister Filter Parts ..........................................................................................................28
Warranty and Returns ..................................................................................................................30

-2- G0562 3 HP Dust Collector
5. KEEP CHILDREN AND VISITORS
AWAY. All children and visitors should be
kept at a safe distance from work area.
6. MAKE WORKSHOP CHILD PROOF with
padlocks, master switches, or by removing
starter keys.
7. DO NOT FORCE TOOL. It will do the job
better and safer at the rate for which it was
designed.
8. USE RIGHT TOOL. DO NOT force tool or
attachment to do a job for which it was not
designed.
1. KEEP GUARDS IN PLACE and in working
order.
2. REMOVE ADJUSTING KEYS AND
WRENCHES. Form a habit of checking to
see that keys and adjusting wrenches are
removed from tool before turning on.
3. KEEP WORK AREA CLEAN. Cluttered
areas and benches invite accidents.
4. DO NOT USE IN DANGEROUS ENVI-
RONMENT. DO NOT use power tools in
damp or wet locations, or where any flam-
mable or noxious fumes may exist. Keep
work area well lighted.
For Your Own Safety, Read Instruction
Manual Before Operating this Equipment
Indicates an imminently hazardous situation which, if not avoided,
WILL result in death or serious injury.
Indicates a potentially hazardous situation which, if not avoided,
COULD result in death or serious injury.
Indicates a potentially hazardous situation which, if not avoided,
MAY result in minor or moderate injury. It may also be used to alert
against unsafe practices.
This symbol is used to alert the user to useful information about
proper operation of the equipment.
The purpose of safety symbols is to attract your attention to possible hazardous conditions. This
manual uses a series of symbols and signal words which are intended to convey the level of
importance of the safety messages. The progression of symbols is described below. Remember
that safety messages by themselves do not eliminate danger and are not a substitute for proper
accident prevention measures.
NOTICE
Safety Instructions for Power Tools
SECTION 1: SAFETY

G0562 3 HP Dust Collector -3-
9. USE PROPER EXTENSION CORD. Make
sure your extension cord is in good condi-
tion. Conductor size should be in accor-
dance with the chart below. The amperage
rating should be listed on the motor or tool
nameplate. An undersized cord will cause
a drop in line voltage resulting in loss of
power and overheating. Your extension
cord must also contain a ground wire and
plug pin. Always repair or replace exten-
sion cords if they become damaged.
Minimum Gauge for Extension Cords
10. WEAR PROPER APPAREL. DO NOT
wear loose clothing, gloves, neckties,
rings, bracelets, or other jewelry which may
get caught in moving parts. Non-slip
footwear is recommended. Wear protective
hair covering to contain long hair.
11. ALWAYS USE SAFETY GLASSES. Also
use face or dust mask if cutting operation is
dusty. Everyday eyeglasses only have
impact resistant lenses, they are NOT
safety glasses.
12. SECURE WORK. Use clamps or a vise to
hold work when practical. It is safer than
using your hand and frees both hands to
operate tool.
13. DO NOT OVERREACH. Keep proper foot-
ing and balance at all times.
14. MAINTAIN TOOLS WITH CARE. Keep
tools sharp and clean for best and safest
performance. Follow instructions for lubri-
cating and changing accessories.
Safety Instructions for Power Tools
15. USE RECOMMENDED ACCESSORIES.
Consult the instruction manual for recom-
mended accessories. The use of improper
accessories may cause risk of injury.
16. REDUCE THE RISK OF UNINTENTION-
AL STARTING. On machines with mag-
netic contact starting switches there is a
risk of starting if the machine is bumped or
jarred. Always disconnect from power
source before adjusting or servicing. Make
sure switch is in OFF position before
reconnecting.
17. MANY WOODWORKING TOOLS CAN
“KICKBACK” THE WORKPIECE toward
the operator if not handled properly. Know
what conditions can create “kickback” and
know how to avoid them. Thoroughly read
the manual accompanying the machine.
18. CHECK DAMAGED PARTS. Before fur-
ther use of the tool, a guard or other part
that is damaged should be carefully
checked to determine that it will operate
properly and perform its intended function.
Check for alignment of moving parts, bind-
ing of moving parts, breakage of parts,
mounting, and any other conditions that
may affect its operation. A guard or other
part that is damaged should be properly
repaired or replaced.
19. NEVER LEAVE TOOL RUNNING UNAT-
TENDED. TURN POWER OFF. DO NOT
leave tool until it comes to a complete stop.
20. NEVER OPERATE A MACHINE WHEN
TIRED, OR UNDER THE INFLUENCE OF
DRUGS OR ALCOHOL. Full mental alert-
ness is required at all times when running
a machine.
21. NEVER ALLOW UNSUPERVISED OR
UNTRAINED PERSONNEL TO OPER-
ATE THE MACHINE. Make sure any
instructions you give in regards to the
operation of the machine are approved,
correct, safe, and clearly understood.
LENGTH
AMP RATING 25ft 50ft 100ft
0-6 16 16 16
7-10 16 16 14
11-12 16 16 14
13-16 14 12 12
17-20 12 12 10
21-30 10 10 No

-4- G0562 3 HP Dust Collector
Additional Safety For Dust Collectors
5. DO NOT ALLOW STEEL TO STRIKE
AGAINST IMPELLER WHICH MAY PRO-
DUCE A SPARK. Sparks can smolder in
wood dust for a long time before fire or
flame is detected. If metal contacts metal
during operation, immediately turn off the
dust collector, unplug the power cord from
the outlet or flip the disconnect switch and
wait for all moving parts to stop. Remove
collection bags and empty the dust into an
approved air tight metal container in case of
spark. Remedy the metal to metal contact
problem before resuming operation.
6. WHEN EMPTYING DUST FROM THE
COLLECTION BAGS, wear a respirator
and safety glasses. Empty dust into an
approved container and dispose of properly.
7. IF AT ANY TIME YOU ARE EXPERIENC-
ING DIFFICULTIES PERFORMING THE
INTENDED OPERATION, stop using the
machine! Then contact our service depart-
ment or ask a qualified expert how the oper-
ation should be performed.
8. BE AWARE THAT CERTAIN WOODS
MAY CAUSE AN ALLERGIC reaction in
people and animals, especially when
exposed to fine dust. Make sure you know
what type of wood dust you will be exposed
to in case there is a possibility of an allergic
reaction. Always wear an approved respira-
tor!
1. THIS DUST COLLECTOR IS TO BE USED
FOR WOOD DUST COLLECTION ONLY.
Do not use this dust collector to pick up liq-
uids and metal scrap including, but not lim-
ited to, nails and filings. Metallic debris will
contact the spinning impeller and could
spark. The spark could then cause a saw-
dust explosion and severe fire hazard. Also,
do not pick up material which cannot safely
pass through the impeller such as solid
wood scraps.
2. DO NOT PLACE YOUR HANDS OR
TOOLS NEAR THE OPEN INLET during
operation for any reason including, but not
limited to, unclogging material and testing
suction. The impeller could cause serious
damage to body parts if touched while spin-
ning.
3. PROBLEMS CONCERNED WITH ANY
MOVING PARTS or accessories must be
investigated and corrected with the power
disconnected and after everything has
come to a complete stop.
4. SUSPENDED DUST PARTICLES IN CON-
JUNCTION WITH AN IGNITION SOURCE,
may cause an explosion. Do not operate the
dust collector in areas where explosion risks
would be high if dust were dispersed into
the area. Areas of high risk include, but are
not limited to, areas near pilot lights and/or
open flames.
No list of safety guidelines can be com-
plete. Every shop environment is different.
Always consider safety first, as it applies to
your individual working conditions. Use
this and other machinery with caution and
respect. Failure to follow guidelines could
result in serious personal injury, damage to
equipment or poor work results.
DO NOT use the dust collector for any other
purpose besides collecting dust from con-
nected woodworking machines. A dust col-
lector should NEVER be used as an air
cleaner. For safest use, wear a respirator
and use an air cleaner in addition to the
dust collector.

G0562 3 HP Dust Collector -5-
Grizzly Industrial, Inc. is proud to offer the Model
G0562 3 HP Dust Collector. This machine is part
of Grizzly’s growing family of fine machinery.
When used according to the guidelines stated in
this manual, you can expect years of trouble-free,
enjoyable operation.
We are also pleased to provide this manual with
the Model G0562. It was written to guide you
through assembly, review safety considerations,
and cover general operating procedures. It repre-
sents our latest effort to produce the best docu-
mentation possible.
If you have any comments or criticisms that you
feel we should address in our next printing,
please write to us at:
Grizzly Industrial, Inc.
C⁄OTechnical Documentation
P.O. Box 2069
Bellingham, WA 98227
Most important, we stand behind our machines.
We have excellent regional service departments
at your disposal should the need arise.
If you have any service questions or parts
requests, please call or write to us at the location
listed below.
Grizzly Industrial, Inc
1203 Lycoming Mall Circle
Muncy, PA 17756
Phone:[phone]
Fax:[phone]
E-Mail: [email protected]
Web Site: http://www.grizzly.com
The specifications, drawings, and photographs
illustrated in this manual represent the Model
G0562 as supplied when the manual was pre-
pared. However, owing to Grizzly’s policy of con-
tinuous improvement, changes may be made at
any time with no obligation on the part of Grizzly.
For your convenience, we always keep current
Grizzly manuals available on our website at
www.grizzly.com. Any updates to your machine
will be reflected in these manuals as soon as they
are complete.
If you DO NOT read this
entire manual before
operating the machine,
you will greatly increase
your chances of serious
personal injury. To pro-
tect yourself, read and
understand this entire
manual!
Commentary
SECTION 2: GENERAL INFORMATION

-6- G0562 3 HP Dust Collector
The Model G0562 features a single phase 220V
3 HP motor.
Amperage Draw
220V .................................................... 18 Amps
Use the following guidelines when choosing a cir-
cuit breaker (circuit breakers rated any higher are
not adequate to protect the circuit):
Circuit Breaker
220V ..........................................20 Amp, 2 Pole
Figure 1. NEMA 6-20 plug and receptacle.
Figure 1a. 220 wiring diagram.
RED WHITE
BLACK YELLOW
MOTOR WIRES
GREEN (GROUND)
TO 220 VOLT
POWER SUPPLY
We recommend using a NEMA 6-20 plug (Figure
1). You may also “hard-wire” the dust collector
directly to your panel, provided you place a dis-
connect near the machine. Check the electrical
codes in your area for specifics on wiring require-
ments. The motor is wired according to the dia-
gram in Figure 1a.
Plug-Type
Circuit Breaker
Amperage Draw
SECTION 3: CIRCUIT REQUIREMENTS

G0562 3 HP Dust Collector -7-
Electrocution or a fire
can result if the machine
is not grounded correct-
ly. Make sure all electri-
cal circuits are ground-
ed. DO NOT use the
machine if it is not
grounded.
We do not recommend the use of extension cords
with 220V equipment. Instead, arrange the place-
ment of your equipment and the installed wiring to
eliminate the need for extension cords. Should
the situation be necessary to use an extension,
make sure the cord is rated Standard Service
(grade S) or better. The extension cord must also
contain a ground wire and plug pin. Always repair
or replace extension cords when they become
worn or damaged.
NOTICE
The wire on the power cord with green or
green and yellow striped insulation is the
grounding conductor.
In the event of an electrical short, grounding
reduces the risk of electric shock by providing a
path of least resistance to disperse electric cur-
rent. This tool is equipped with a power cord that
has an equipment-grounding prong. The outlet
must be properly installed and grounded in accor-
dance with all local codes and ordinances.
Always check to see if the wires in your circuit are
capable of handling the amperage draw from
your machine, as well as any other machines that
could be operating on the same circuit. If you are
unsure, consult a qualified electrician.
If the circuit breaker trips or the fuse blows regu-
larly, your machine may be operating on a circuit
that is close to its amperage draw capacity.
However, if an unusual amperage draw does not
exist and a power failure still occurs, contact a
qualified electrician.
Extension Cords
Circuit CapacityGrounding

-8- G0562 3 HP Dust Collector
1. Canister Filter Cleaning Handle
2. Canister Filter
3. 7" Inlet with Three 4" Ports
4. Clear Collection Bag
Figure 2. Main view of machine features.
3
4
2
1
SECTION 4: MACHINE FEATURES

G0562 3 HP Dust Collector -9-
Your machine left our warehouse in three care-
fully packed boxes. If you discover the machine is
damaged after you have signed for delivery,
please immediately call Customer Service at
[phone] for advice.
Save the containers and all packing materials for
possible inspection by the carrier or its agent.
Otherwise, filing a freight claim can be difficult.
When you are completely satisfied with the con-
dition of the shipment, you should inventory the
equipment.
Wear safety glasses dur-
ing the entire set up
process!
This machine presents
serious injury hazards
to untrained users. Read
through this entire man-
ual to become familiar
with the controls and
operations BEFORE
starting the machine!
Inventory
The Model G0562 is a
heavy machine (220 lbs.
shipping weight). DO
NOT over-exert yourself
while unpacking or mov-
ing your machine—get
assistance.
After all the parts have been removed from the
three boxes, you should have the following items:
2 Boxes: Canister Components (Figure 3).
The items in Figure 3 show the contents of one
canister box. The contents and quantity of both
boxes are listed below.
A. Canister Filter ..............................................2
B. Foam Adhesive Bag....................................2
— Wide Foam Strip ....................................2
— Narrow Foam Strip ................................2
C. Canister Filter Cleaning Handle ..................2
D. Metal Belt Clamp ........................................2
Figure 3. Canister filter box components.
Unpacking
SECTION 5: SET UP
A
C
BD

-10- G0562 3 HP Dust Collector
Figure 4. Main box items.
Figure 5. Main box items.
1 Box: Main Components (Figure 4 & 5)
E. Motor and Impeller ......................................1
F. 7" Inlet w/Three 4" Fittings ..........................1
G. Base ............................................................1
H. Metal “Y” Outlet ..........................................1
I. Collector (L) ................................................1
J. Collector (R) ................................................1
K. Hardware Bag ............................................1
— Casters ..................................................4
— Phillips Head Tap Screw #10 x 3⁄8" ........1
— Flange Bolts 5⁄16"-18 x 1⁄2"......................52
— Combo Wrench 10 x 12mm....................1
— Hex Wrench 4mm ..................................1
L. Canister Supports ......................................2
M. Collection Hardware Bag ..........................1
— Metal Belt Clamps ..................................2
— Clear Collection Bags ............................4
N. Rubber Gaskets (not shown) ......................3
In the event that any nonproprietary parts are
missing (e.g. a nut or a washer), we would be
glad to replace them, or, for the sake of expedi-
ency, replacements can be obtained at your local
hardware store.
E
F
H
I
J
K
L
M
G

G0562 3 HP Dust Collector -11-
Hardware Recognition Chart

-12- G0562 3 HP Dust Collector
The unpainted surfaces are coated with a waxy
oil to protect them from corrosion during ship-
ment. Remove this protective coating with a sol-
vent cleaner or citrus-based degreaser such as
Grizzly’s G7895 Degreaser. To clean thoroughly,
some parts may need to be removed. Avoid chlo-
rine-based solvents as they may damage painted
surfaces should they come in contact.
Gasoline and petroleum
products have low flash
points and could explode
if used to clean machin-
ery. DO NOT use gaso-
line or petroleum prod-
ucts to clean the machin-
ery.
Unsupervised children
and visitors inside your
shop could receive seri-
ous personal injury.
Ensure child and visitor
safety by keeping all
entrances to the shop
locked at all times. DO
NOT allow unsupervised
children or visitors in the
shop at any time.
Floor Load
The Model G0562 weighs 209 lbs and has a base
footprint of 32" x 577⁄8". Most commercial floors
are suitable for the machine. Some residential
floors may require additional reinforcement to
support both the machine and operator.
Working Clearances
Consider existing and anticipated needs, size of
material to be processed through each machine,
and space for auxiliary stands, work tables or
other machinery when establishing a location for
the machine. See Figure 6 for the overall dimen-
sions of the Model G0562.
Figure 6. Overall machine dimensions.
577⁄8"
32"
Site ConsiderationsClean Up

G0562 3 HP Dust Collector -13-
Components and Hardware Needed: Qty
Base ..................................................................1
Casters ..............................................................4
Flange Bolts 5⁄16"-18 x 1⁄2"..................................16
Tools Needed:
Wrench or Socket 12mm....................................1
To assemble the dust collector base:
1. Place the base upside down.
2. Secure the casters into the mounting brack-
ets under the base with the flange bolts
(Figure 7).
Base
Components and Hardware Needed: Qty
Base ..................................................................1
Motor and Impeller ............................................1
Flange Bolts 5⁄16"-18 x 1⁄2"....................................4
Tools Needed:
Wrench or Socket 12mm....................................1
To install the motor and impeller:
1. Flip the base over onto the casters and
locate the mounting holes for the motor and
impeller.
2. Position the motor and impeller on the base
and secure it with the flange bolts (Figure 8).
Motor and Impeller
Figure 7. Caster installed on mounting bracket.
Figure 8. Motor and impeller attached to base.

-14- G0562 3 HP Dust Collector
Components and Hardware Needed: Qty
Base ..................................................................1
Canister Supports ..............................................2
Flange Bolts 5⁄16"-18 x 1⁄2"....................................4
Tools Needed:
Wrench or Socket 12mm....................................1
To install the canister support:
1. Place the canister support over the holes on
the base edge (Figure 11).
Canister Support
Figure 11. Canister support attached to base.
Components and Hardware Needed: Qty
Metal “Y” Outlet ................................................1
Flange Bolts 5⁄16"-18 x 1⁄2"....................................8
Rubber Gasket ..................................................1
Tools Needed:
Wrench or Socket 12mm....................................1
To install the metal “Y” outlet:
1. Place the rubber gasket around the impeller
outlet rim as shown in Figure 9.
Outlet
Figure 10. Metal “Y” outlet attached
to the impeller.
Figure 9. Placing rubber gaskets over outlet.
2. Secure the metal “Y” outlet in place with the
flange bolts (Figure 10). 2. Secure the canister support in place with 2
flange bolts.
3. Repeat steps 1 & 2 for the second brace.

G0562 3 HP Dust Collector -15-
Components and Hardware Needed: Qty
Collector Rings (R & L) ......................................2
Flange Bolts 5⁄16"-18 x 1⁄2"..................................20
Rubber Gaskets ................................................2
Tools Needed:
Wrench or Socket 12mm....................................1
To install the collector:
1. Place one of the rubber gaskets around the
rim of the intake on the collector ring.
2. Secure one of the collector rings to the metal
“Y” outlet with 8 flange bolts (Figure 12).
Collector Ring
Figure 12. Collector ring installed.
Figure 13. Collector rings installed.
Canister Filter
Components and Hardware Needed: Qty
Canister Filters ..................................................2
Canister Filter Cleaning Handles ......................2
Metal Belt Clamps ..............................................2
Wide Foam Strips ..............................................2
Tools Needed:
Wrench or Socket 10mm....................................1
To install the canister:
1. Secure the wide foam strip around the out-
side top rim of the collector ring as shown in
Figure 14.
Figure 14. Installing wide foam strip.
3. Attach the canister support to the side of the
collector ring with the 2 remaining flange
bolts.
4. Repeat steps 1-3 for the other collector ring
(Figure 13).

-16- G0562 3 HP Dust Collector
Collection Bag
Components and Hardware Needed: Qty
Clear Collection Bag ..........................................2
Metal Belt Clamp ................................................2
Narrow Foam Strip ............................................2
Tools Needed:
Wrench or Socket 10mm....................................1
To assemble the canister:
1. Secure the narrow foam strip around the out-
side bottom rim of the collector ring and trim
the excess.
2. Hook the clear collection bag on the hooks
around the bottom of the collector. (Figure
18).
Figure 15. Trimmed foam strip.
2. Trim the excess foam strip so the ends come
together evenly as shown in Figure 15.
Figure 16. Installing canister handle.
Figure 17. Installed canister.
3. Install the canister handle onto the top of the
canister filter by tightening the bolt against
the flat of the shaft (Figure 15).
4. Place the canister filter on top of the collec-
tor ring.
5. Position the metal belt clamp around the bot-
tom of the canister so it will compress around
the foam strip (Figure 17).
6. Repeat steps 1-5 for the other canister.

G0562 3 HP Dust Collector -17-
Figure 18. Trimmed foam strip and collector
hook locations.
Figure 20. Lower collection bag installed.
3. Tighten the belt clamp around the narrow
foam strip to seal and secure the lower col-
lection bag (Figure 20).
Inlet
Components and Hardware Needed: Qty
7" Inlet w/Three 4" Ports ....................................1
Phillips Head Tap Screw #10 x 3⁄8" ....................1
Tools Needed:
Phillips Screwdriver ............................................1
To install the inlet:
1. Insert the inlet over the impeller intake hole.
2. Secure the inlet in place with the Phillips
head tap screw (Figure 21).
Figure 21. Installed inlet.
Collector Hooks

-18- G0562 3 HP Dust Collector
You have many choices regarding main line and
branch line duct material. In most commercial
workshops, the main line and branch lines are
usually metal duct. Flexible hose is then used to
connect each machine to the branch lines. In the
case of small home shops, flexible hose may be
used for both main line and branch line ducts.
Plastic duct is also a popular material for home
shops. Please be aware that there is a fire or
explosion hazard if plastic duct material is used
for dust collection without being grounded
against static electrical charge build-up. This
topic will be discussed later in the manual.
METAL DUCT
Metal duct comes in many varieties. Stove pipe,
heating/ventilation duct and duct made especial-
ly for dust collection are all options. Advantages
of metal duct is its conductivity and that it does
not contribute to static electrical charge build-up.
However, static charges are still produced when
dust particles strike other dust particles as they
move through the duct. Since metal duct is a
conductor, it can be grounded quite easily to dis-
sipate any static electrical charges. However,
metal duct is generally more expensive than
plastic duct and it is not usually airtight unless
specifically manufactured for dust collection.
Specially manufactured metal duct, on the other
hand, is quite expensive. Metal duct is also gen-
erally more difficult to cut and assemble.
FLEXIBLE HOSE
Flexible rubber hose, polyethylene, plastic flex-
hose and other flexible ribbed hose is generally
used for short runs, small shops and at rigid duct-
to-tool connections. There are many different
types of flex hose on the market today. These
are manufactured from materials such as poly-
ethylene, PVC, cloth hose dipped in rubber and
even metal, including steel and aluminum.
The Model G0562 can be operated as either a
stationary or a mobile unit. There are advantages
and disadvantages to both set-ups. The advan-
tage of the mobile system is eliminating the cost
of many ducts and fittings. On the other hand, the
stationary system is more versatile and conve-
nient.
The Model G0562 is designed to be a central
dust collector system. Locate the dust collector in
an out of the way location such as a corner or
separate room. The dust collector is capable of
collecting dust from up to two machines running
simultaneously. Because of the large suction
capacity of the Model G0562, great flexibility is
possible in the planning and designing of your
dust collection duct layout. Grizzly offers a com-
plete line of dust collection accessories for setting
up a stationary system. Additionally, Grizzly
offers a guide book entitled Dust Collection
Basics.
Whatever system you choose, always make sure
there are no open flames or pilot lights in the
same room as the dust collector. There is a risk
of explosion if dust is dispersed into the air.
Material Selection
General
SECTION 6: COLLECTION SYSTEM
