Mammoth Tents Elite+ User manual

Step 6Step 5Step 4
Step 3Step 2Step 1
Elite & Elite HC 1200L
mammothtents.nl
++
Four Person +Assembly Recommended

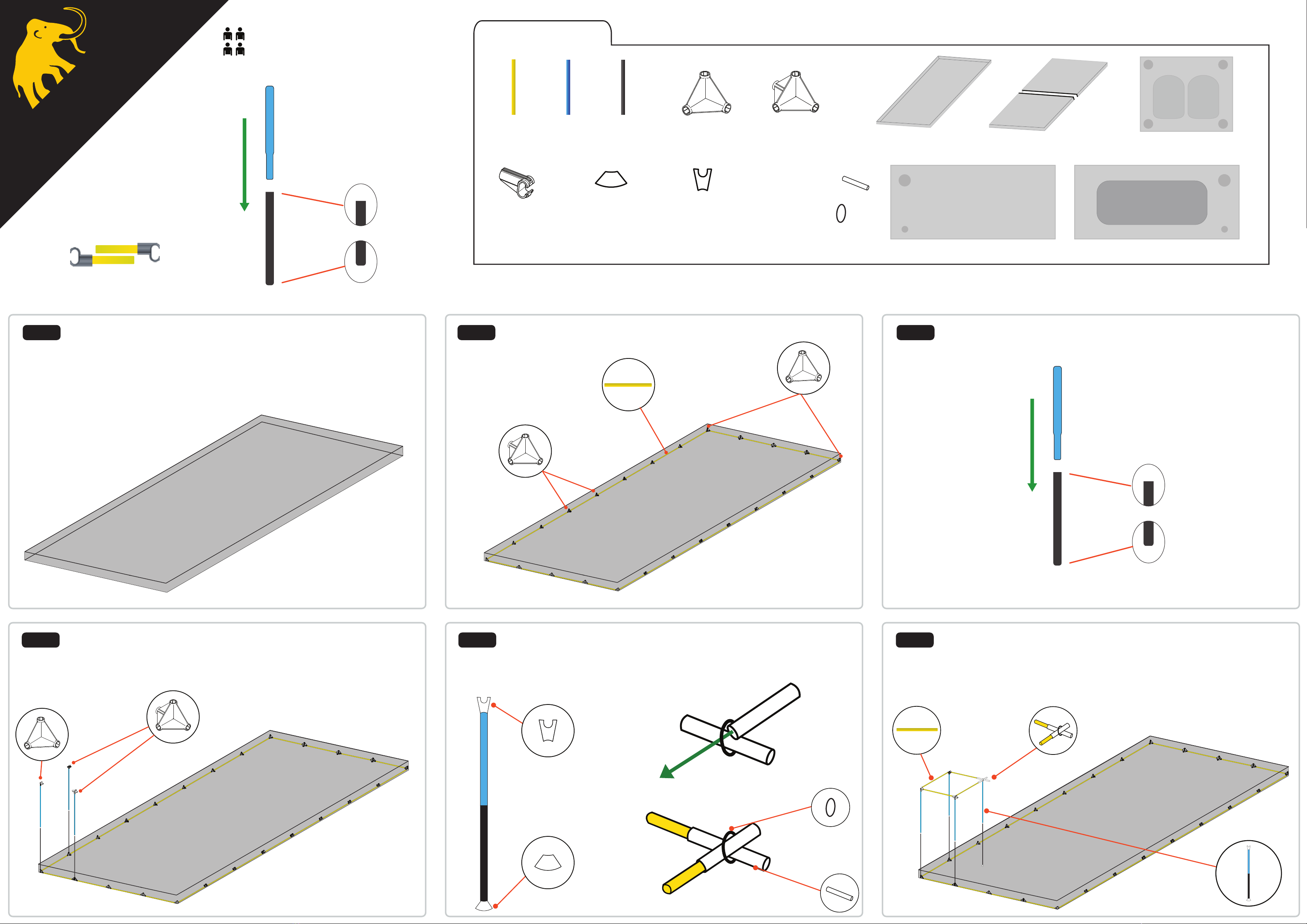

Assembly Instructions
+Parts List
Base
x1
Roof
x2
End Panel
x2
Left Side Panel
x2
Right Side Panel
x2
Check all parts and layout in groups before assembly
Insert upper pole into
lower pole
Note:
Upper Equipment Hanger
Lower Equipment Hanger
Flat edge of pole
Curved edge of pole
Lay out base.
TIP: Ensure 360° Access.
Fit 3 of the vertical poles
Fit 3-way corner
Fit 4-way joins
Fit roof poles
Fit support pole
Fit straight pole connectors with centre securing ring
Blue Pole
x45
3-Way
Corner
x8
Equipment
Hanger Ends
x128
Yellow Pole
x164
Support Pole
Rubber Foot
x21
Support Pole
Rubber Top
x21
Straight Pole Connectors x42
Centre Securing Ring x21
4-Way
Join
x40
Black Pole
x45
4-Way Join x20
Yellow Poles x24
4-Way Join
3-Way Corner x4
3-Way Corner
Assemble oor poles,
3-way corners and
4-way joins as shown.
Assemble vertical poles x45
Yellow Poles
Insert upper pole into
lower pole
Note:
Flat edge of pole
Curved edge of pole
Link straight pole connectors and t centre securing ring as shown.
Refer to step 6 for location.
Fit support pole top and foot
to x21 vertical poles
Centre
Securing Ring
Straight Pole
Connectors
Support Pole
Rubber Top x21
Support Pole
Rubber Foot x21
Straight Pole Connectors
Support Pole

Step 7 Step 8 Step 9
Step 10 Step 11 Step 12
Step 13 Step 14 Step 15
Repeat as shown. Repeat as shown. Zip roof panels together as shown.
Repeat for end panel 2.
Fit Roof
TIP: Start at one end and pull along from inside tent.
Fit end panel 1 as shown.
TIP: Zip panel to roof first 1
1
2
Fit left side panel as shown.
TIP: Zip panel to roof first 1
1
3
2
Fit right side panel as shown.
TIP: Zip panel to roof first
Repeat for other side
1
1
3
4
2
Fit equipment hangers ends and place as required.
Upper Equipment Hanger
Lower Equipment Hanger
Equipment
Hanger End
