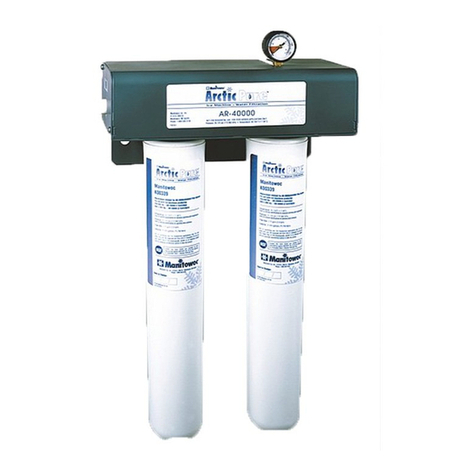

ArcticPure® Plus
Water Filter System
Installation, Operation and Maintenance Manual
Original Document
,Caution
Read this instruction before operating this equipment.
Engineered for Ease

Table of Contents
Part Number: 000016341 Rev00 1/21 3
Section 1
General Information
Model Numbers ................................................................................................................ 5
Specifications .................................................................................................................... 5
Warranty Information........................................................................................................ 5
Warranty Registration & Claim Procedures.....................................................................5
Authorized Warranty Service............................................................................................. 5
Exclusions........................................................................................................................ 6
Safety Notices ................................................................................................................... 6
Definitions....................................................................................................................... 6
Section 2
Installation
General ............................................................................................................................. 7
Safety................................................................................................................................ 7
Location ............................................................................................................................ 8
Water Service.................................................................................................................... 8
Assembly - AR-10000-P/AR-20000-P/AR-40000-P...........................................................8
Installation - AR-Pre-P ....................................................................................................... 9
Installation - AR-10000-P/AR-20000-P/AR-40000-P .......................................................... 10
Installation Checklist ....................................................................................................... 10
Start-Up Procedure.......................................................................................................... 10
Changing Cartridges ........................................................................................................ 11
Section 3
Troubleshooting
Troubleshooting Chart..................................................................................................... 13
Repairing Inlet/Outlet Connections ................................................................................. 13
Replacement Filter Part Numbers.................................................................................... 13

Table of Contents
4 Part Number: 000016341 Rev00 1/21
THIS PAGE INTENTIONALLY LEFT BLANK

Part Number: 000016341 Rev00 1/21 5
Model Numbers
This manual covers the following models:
Model # Range Claims Replacement
Cartridge
AR-10000-P
15,000 gal
(56,800 liter)
capacity
For ice machines
0 - 600 lbs
(0 - 272 kg)
Chlorine taste
and odor
reduction, scale
inhibition, Cyst
& Particulate
Class I claims
Case of 12
K00493
AR-20000-P
20,000 gal
(75,700 liter)
capacity
For ice machines
601 - 1,000 lbs
(273 - 453 kg)
Chlorine taste
and odor
reduction, scale
inhibition, Cyst
& Particulate
Class I claims
Case of 12
K00494
AR-40000-P
40,000 gal
(151,400 liter)
capacity
For ice machines
1,001 - 2,500 lbs
(454 - 1134 kg)
Chlorine taste
and odor
reduction, scale
inhibition, Cyst
& Particulate
Class I claims
Case of 12
K00495
AR-Pre-P
For use in
conjunction
with AR-10000-P
AR-20000-P
AR-40000-P
Sediment
reduction,
Particulate Class
III claim
Case of 12
K00496
Specifications
Model # Specifications Flow Rate
AR-10000-P
Pressure: 35 - 125 psi (207 - 862 kPa)
Temperature: 35 - 100°F (1.6 - 38°C)
Connections: 3/8"
Parker Quick Connect
Micron Rating: 0.5
.75 gpm
(2.84 lpm)
AR-20000-P
Pressure: 35 - 125 psi (207 - 862 kPa)
Temperature: 35 - 100°F (1.6 - 38°C)
Connections: 3/8"
Parker Quick Connect
Micron Rating: 0.5
1.25 gpm
(4.73 lpm)
AR-40000-P
Pressure: 35 - 125 psi (207 - 862 kPa)
Temperature: 35 - 100°F (1.6 - 38°C)
Connections: 3/8"
Parker Quick Connect
Micron Rating: 0.5
2.0 gpm
(7.57 lpm)
AR-Pre-P
Pressure: 35 - 125 psi (207 - 862 kPa)
Temperature: 35 - 100°F (1.6 - 38°C)
Connections: 3/8"
Parker Quick Connect
Micron Rating: 5.0
1.5 gpm
(5.6 lpm)
Warranty Information
For warranty information visit: www.manitowocice.com/
Service/Warranty
• Warranty Coverage Information
• Warranty Registration
• Warranty Verification
Warranty coverage begins the day the ice machine is
installed.
WARRANTY REGISTRATION & CLAIM PROCEDURES
Scan the QR code with your smart device or enter the link in
a web browser to access:
• Warranty information
• Warranty labor claim form
WWW.MANITOWOCICE.COM/SERVICE/WARRANTY
Authorized Warranty Service
To comply with the provisions of this warranty, a
refrigeration service company, qualified and authorized
by your Manitowoc distributor, or a Contracted Service
Representative must perform the warranty repair. If the
dealer you purchased the ArcticPure® Plus system from is
not authorized to perform warranty service, contact your
Manitowoc distributor or Manitowoc Ice for the name of the
nearest authorized service representative.
Section 1
General Information

6 Part Number: 000016341 Rev00 1/21
General Information Section 1
EXCLUSIONS
The following items are not included in the ArcticPure® Plus
system(s) warranty coverage:
• Wear items such as filter cartridges or o-rings.
• Normal maintenance or adjustments as outlined in this
manual.
• Repairs due to unauthorized modifications to the filter
system or use of non-standard parts without prior written
approval from Manitowoc Ice.
• Damage caused by improper installation of the filter
system or the ice machine, electrical supply, water supply
or drainage, or damage caused by floods, storms or other
acts of God.
• Premium labor rates due to holidays, overtime, etc.;
travel time; flat rate service call charges; mileage and
miscellaneous tools and material charges not listed on
the payment schedule. Additional labor charges resulting
from the inaccessibility of equipment are also excluded.
• Parts or assemblies subjected to misuse, abuse, neglect
or accidents.
• Damage or problems caused by installation, and/or
maintenance procedures inconsistent with the technical
instructions provided in this manual.
Safety Notices
DEFINITIONS
DANGER
Indicates a hazardous situation that, if not avoided, will
result in death or serious injury. This applies to the most
extreme situations.
nWarning
Indicates a hazardous situation that, if not avoided, could
result in death or serious injury.
,Caution
Indicates a hazardous situation that, if not avoided, could
result in minor or moderate injury.
Notice
Indicates information considered important, but not
hazard-related (e.g. messages relating to property
damage).
NOTE: Indicates useful, extra information about the
procedure you are performing.

Part Number: 000016341 Rev00 1/21 7
Section 2
Installation
General
These instructions are provided to assist the qualified
installer. Check your local Yellow Pages for the name of the
nearest Manitowoc distributor, or call Manitowoc Ice for
information.
The ArcticPure® Plus water filtration systems are designed
to reduce coarse and fine particulate matter from the
incoming potable water supply. Chlorine will be reduced in
the water so as not to adversely affect the ice produced or
the equipment components. Scale inhibitor is automatically
fed into the water to inhibit the formation of scale on
water solenoids and evaporator plates. The IAPMO R&T
mark indicates that these products have met certification
requirements under the NSF/ANSI & CSA standards listed in
the Performance Data Sheet. The UPC mark indicates that
these products have met the applicable U.S. and Canadian
requirements for plumbing products.
• DO NOT install on line pressure above 125 psi (862 kPa).
• DO NOT install on hot water line. Maximum temperature
allowed is 100°F (38°C).
• DO NOT install in direct sunlight.
• DO NOT reverse connections. The system must be
installed with the inlet and outlet as labeled.
• DO NOT install ArcticPure® Plus filter systems in locations
where they can be damaged by other free-standing
equipment.
• PROTECT from freezing.
• INSTALLATION must comply with existing state or local
plumbing codes.
This piece of equipment has American sizes on hardware. All
metric conversions are approximate and vary in size.
Safety
Always follow these safety precautions when installing and
operating the water filter system.
nWarning
DO NOT use with water that is microbiologically unsafe or
of unknown quality without adequate disinfection before
or after the system.
Notice
DO NOT use a torch or other high temperature sources
near filter or cartridge.
https://www.iapmort.org/media/5271/rt_markguidelines.pdf
AR-Pre-P, AR-10000-P, AR-20000-P and AR-40000-P systems are certified by IAPMO R&T against CSA B483.1; NSF/ANSI 372 for
Low Lead Content; NSF/ANSI 42 and/or *NSF/ANSI 53 for the reduction of claims listed in the Performance Data Sheet.
*NSF/ANSI 53 Cyst reduction claims are valid only when system flow is restricted at or below the specified range and/or
as specified in the ice machine capacity ranges on page 5. System flow rates should be verified after installation to ensure
filterable cyst reduction per the above.
Please see ice machine manufacturer’s technical publications for internal flow controller maximum operating flow rate
specifications.

8 Part Number: 000016341 Rev00 1/21
Installation Section 2
Location
ArcticPure® Plus water filtration systems must be located
on the incoming cold water line and preferably away from
heavy traffic areas. The system must be mounted on a wall
or structure that will support the weight of the system when
filled with water.
Notice
This product is designed for cold water use only (less than
100°F [38°C]). Passing hot water through this product
may seriously damage filter housings and/or cartridges
and affect warranty coverage.
Important
Do not disassemble manifold head. No user serviceable
parts are available. The entire manifold head is the only
available replacement part.
ArcticPure® Plus systems may be used with metal or non-
metallic piping systems.
NOTE: Any non-metallic fittings used in the installation must
be of adequate rating for the line pressure.
Water Service
All ArcticPure® Plus systems come with 3/8" Parker
connections on the inlet and outlet ports.
Parker connections are suitable for use with the following
tubing:
• Polyethylene
• Nylon
• Polyurethane
• Seamless Brass (soft)
• Seamless Copper (soft)
• Seamless Mild Steel (soft)
Notice
DO NOT use with hard metal tubing such as:
• Stainless steel
• Chrome plated copper
• Hard metal polished tubing

NOTE: The head/bracket will be packed separately from the
filter cartridge in the product box.
1. Locate position to mount the filter system. Be sure
to leave enough clearance (a minimum of 2" [5 cm]
beneath the filter cartridge length is recommended) to
allow for cartridge change out.
2. Mark and drill mounting holes.
3. Mount filter head, using key hole slots in the mounting
bracket.
4. Remove the protective cap from the cartridge.
5. Inspect the cartridge and o-rings for damage. See
Recommended Replacement Parts List in Replacement
Filter Part Numbers if replacement is required.
,Caution
Do not use petroleum jelly to lubricate o-rings.
6. Lubricate o-rings with food grade lubricant - Do not use
petroleum jelly.
7. With the product label facing to the left, insert the
cartridge into the filter head. Rotate 1/4 turn to the right
to secure. Product label will face forward.

Part Number: 000016341 Rev00 1/21 9
Section 2 Installation

NOTE: If the AR-Pre-P is being retrofitted to an existing
ArcticPure® Plus system, shut off the incoming water supply,
relieve the filter pressure by removing the existing filter
cartridge(s), and disengage the water inlet line. A small
quantity of water will be vented from the cartridge body.
1. Mark and drill the mounting holes for the AR-Pre-P.
2. Insert the precut tubing into the outlet fitting of the AR-
Pre-P head.
3. Insert opposite end of the tubing into the inlet fitting of
the primary filter assembly.
Notice
The fitting will grip before it seals. Tubing must be pushed
into the tube stop to prevent leaks.
4. Pull on the tubing to be sure it is secure. If the tubing
releases, refer to the Troubleshooting section of this
manual to reinstall.
5. Align the prefilter mounting keyhole slots with the
predrilled holes.
6. Install mounting screws and tighten.
7. Insert incoming water line into the inlet port of the
AR-Pre-P. Follow notes and steps 1-3 under “Installation -
AR-10000-P/AR-20000-P/AR-40000-P”.
8. Remove the protective cap from the cartridge.
9. Inspect the cartridge and o-rings for damage. See
Recommended Replacement Parts List if replacement is
required.
,Caution
Do not use petroleum jelly to lubricate o-rings.
10. Lubricate o-rings with food grade lubricant - Do not use
petroleum jelly.
11. With the product label facing to the left, insert the
cartridge into the filter head. Rotate 1/4 turn to the right
to secure. Product label will face forward.

10 Part Number: 000016341 Rev00 1/21
Installation Section 2

Shut off the incoming water supply.

NOTE: Please review the following recommendations before
installing the water lines.
• Tubing must be 3/8" O.D., (.371 - .376).
• Cut the tube square. The outside diameter must be free
of score marks.
• Burrs and sharp edges must be removed prior to
installation.
NOTE: Use a tube insert for thin-walled plastic tubing.
To install water lines into the inlet/outlet ports:
1. Insert water line tubing into the inlet port fitting.
Notice
The fitting will grip before it seals. Tubing must be pushed
into the tube stop to prevent leaks.
2. Pull on the tubing to be sure it is secure. If the tubing
releases, refer to the Troubleshooting section of this
manual to reinstall.
3. Repeat for the outlet port fitting. Connect outlet water
line to the potable water connection on the ice machine.
NOTE: For water-cooled machines, be sure that the filter
system only feeds the potable water connection.

Have the min.-max. water temperature and pressure
been checked? (Refer to “Installation” on page 7)
Has the filter system been installed away from heavy
traffic areas?
Is the system installed securely to the mounting surface?
Has the water supply line been checked for suitability?
(Refer to “Water Service”)
Have the water supply lines been securely installed
into the inlet/outlet ports? (Refer to “Installation - AR-
10000-P/AR-20000-P & AR-40000-P”)

1. Turn on the incoming water supply.
2. Check for leaks. If the connections are leaking, refer to
the Troubleshooting section of this manual to reinstall.
NOTE: System should be flushed for 10 minutes to remove
trapped air and carbon fines.
NOTE: The filter pressure will decrease as the cartridge life
decreases.
AR-Pre-P, AR-10000-P, AR-20000-P and AR-40000-P systems are certified by IAPMO R&T against CSA B483.1; NSF/ANSI 372 for
Low Lead Content; NSF/ANSI 42 and/or *NSF/ANSI 53 for the reduction of claims listed in the Performance Data Sheet.
*NSF/ANSI 53 Cyst reduction claims are valid only when system flow is restricted at or below the specified range and/or
as specified in the ice machine capacity ranges on page 5. System flow rates should be verified after installation to ensure
filterable cyst reduction per the above.
Please see ice machine manufacturer’s technical publications for internal flow controller maximum operating flow rate
specifications.
Model Flow Rate
AR-10000-P At or below 0.75 gpm (2.84 lpm)
AR-20000-P At or below 1.25 gpm (5.68 lpm)
AR-40000-P At or below 2.0 gpm (7.57 lpm)

Part Number: 000016341 Rev00 1/21 11
Section 2 Installation

ArcticPure® Plus cartridges will need to be changed for one
or more of the following reasons:
• The filter has trapped water-borne sediment and the
water flow has stopped or water pressure through the
filter has dropped below 20 psi (138 kPa).
• The maximum life of the carbon filter has been reached
and the filter will no longer reduce chlorine to acceptable
levels.
• The scale inhibitor has been completely dissolved and
hard scale build-up may accelerate.
It is recommended that ArcticPure® Plus filter cartridges be
changed out:
• Every 6 months or when water pressure through the
system drops below 20 psi (138 kPa), whichever occurs
first.
To change the filter:
1. Rotate the cartridge 1/4 turn to the left and pull down.
The cartridge should easily release. Dispose of used
cartridge.
Important
ArcticPure® Plus systems are equipped with internal shut-
off valves. It is not necessary to shut off the incoming
water supply during cartridge change out.
2. Remove the protective cap from the cartridge.
3. Inspect the cartridge and o-rings for damage. See
Replacement Parts list if replacement is required.
Lubricate o-rings with food grade lubricant.
,Caution
Do not use petroleum jelly to lubricate o-rings.
4. With the product label facing to the left, insert the
cartridge into the filter head and push up. Rotate 1/4 turn
to the right to secure. Product label will face forward.
,Caution
Should the cartridge drop from a height of greater than 3
feet, inspect the outer casing. If there is any evidence of
the case cracking do not use.

12 Part Number: 000016341 Rev00 1/21
Installation Section 2
THIS PAGE INTENTIONALLY LEFT BLANK

Part Number: 000016341 Rev00 1/21 13
Important
Please use the Troubleshooting Chart to repair the system.
If system still does not work properly, contact Manitowoc
Service for assistance.
Troubleshooting Chart
Problem Cause To Correct
No water through filter system Water to filter system shut off Turn on water supply
Filter cartridges plugged Replace filter cartridges — See “Changing Cartridges”
Low water flow through filter System below 25 psi Restore system pressure Repair water supply to filter
Filter cartridges plugged Replace filter cartridges — See “Changing Cartridges”
Water leak on water inlet/outlet Water line ends are damaged Trim water line to remove damaged area — See
“Repairing Inlet/Outlet Connections”
O-ring in filter head is damaged Replace o-ring — See “Changing Cartridges”
Water leak between head and filter cartridge Damaged o-ring on filter cartridge Replace o-ring — See “Changing Cartridges”
Repairing Inlet/Outlet Connections
A leak may occur at the inlet/outlet connections because of
defective tubing. To repair:
1. Turn off incoming water supply and depressurize system
by removing the filter cartridge(s).
2. Disconnect the water line by pushing the collet squarely
against the face of the fitting.
3. Pull the tubing to release.
4. To repair the connection, cut off at least 3/8" (6.4 mm)
from the end of the tubing. Tubing ends must be cut
square to ensure a positive seal.
5. Refer to notes and instructions under “Installation -
AR-10000-P/AR-20000-P/AR-40000-P” to reconnect the
water line.
Replacement Filter Part Numbers
Part Number
Case Description
K00496 AR-Pre-P Cartridge
K00493 AR-10000-P Cartridge
K00494 AR-20000-P Cartridge
K00495 AR-40000-P Cartridge
Section 3
Troubleshooting

14 Part Number: 000016341 Rev00 1/21
Troubleshooting Section 3
THIS PAGE INTENTIONALLY LEFT BLANK

MANITOWOC ICE
2110 SOUTH 26TH STREET, MANITOWOC, WI 54220
800-545-5720
WWW.MANITOWOCICE.COM
©2021 Welbilt except where explicitly stated otherwise. All rights reserved. Connuing product improvement may necessitate change of specicaons without noce.
Part Number: 000016341 Rev00 1/21

Número de pieza: 000016341 Rev00 1/21
ArcticPure® Plus
Sistema de filtrado de agua
Manual de instalación, operación y mantenimiento
Documento original
,Precaución
Lea estas instrucciones antes de comenzar a operar este equipo.
Diseñado para la facilidad

Tabla de Contenidos
Número de pieza: 000016341 Rev00 1/21 3
Sección 1
Información general
Números de modelo.......................................................................................................... 5
Especificaciones ................................................................................................................ 5
Información de garantía .................................................................................................... 5
Registro de la garantía y procedimientos de reclamación ..............................................5
Servicio de garantía autorizado ......................................................................................... 5
Exclusiones......................................................................................................................6
Avisos de seguridad........................................................................................................... 6
Definiciones.....................................................................................................................6
Sección 2
Instalación
Generalidades ................................................................................................................... 7
Seguridad.......................................................................................................................... 7
Ubicación .......................................................................................................................... 8
Servicio de agua ................................................................................................................ 8
Montaje: AR-10000-P/AR-20000-P/AR-40000-P..............................................................8
Instalación: AR-Pre-P ......................................................................................................... 9
Instalación: AR-10000-P/AR-20000-P/AR-40000-P............................................................ 10
Lista de verificación de instalación................................................................................... 10
Procedimiento de arranque............................................................................................. 10
Cambio de cartuchos....................................................................................................... 11
Sección 3
Solución de problemas
Cuadro de solución de problemas.................................................................................... 13
Reparación de conexiones de entrada o salida................................................................. 13
Números de pieza de los filtros de repuesto .................................................................... 13

Tabla de Contenidos
4 Número de pieza: 000016341 Rev00 1/21
ESTA PÁGINA SE DEJÓ EN BLANCO INTENCIONALMENTE
