MANN LAKE HH-170 User manual

18/9 Frame Radial Hand Crank
EXTRACTOR
HH-170
Holds 18 - 5⅜” (13.65
cm) Frames
Holds 18 - 6¼”
(15.88 cm) Frames
Holds 9 - 9⅛”
(23.18 cm) Frames
501 1st St S, Hackensack, MN 56452
500 Santa Anita Dr., Woodland, CA 95776
485 Stewart Rd, Wilkes-Barre, PA 18706
1600 Commerce Street, Marshall, TX 75672
Telephone: [phone]
www.mannlakeltd.com

Congratulations on your new extractor. If you have diculty with using your new extractor or
if you have any questions at all, please feel free to contact your nearest Mann Lake location.
Experienced help is only a phone call away.
For added stability, we recommend bolting the extractor to a 4’x4’ (121.92cm x 121.92cm)
piece of plywood using the pre-drilled holes in each of the legs.
Frames should be uncapped prior to extracting. Make sure your load is balanced in the extrac-
tor and that your honey gate remains open during extraction. Your extractor is not meant to be
a storage tank. Promptly move any honey to a storage container or bottling tank. You need to
begin extracting at a slower speed to help balance the load and lessen the chance of blowouts
of natural wax foundation before turning the crank at a higher speed.

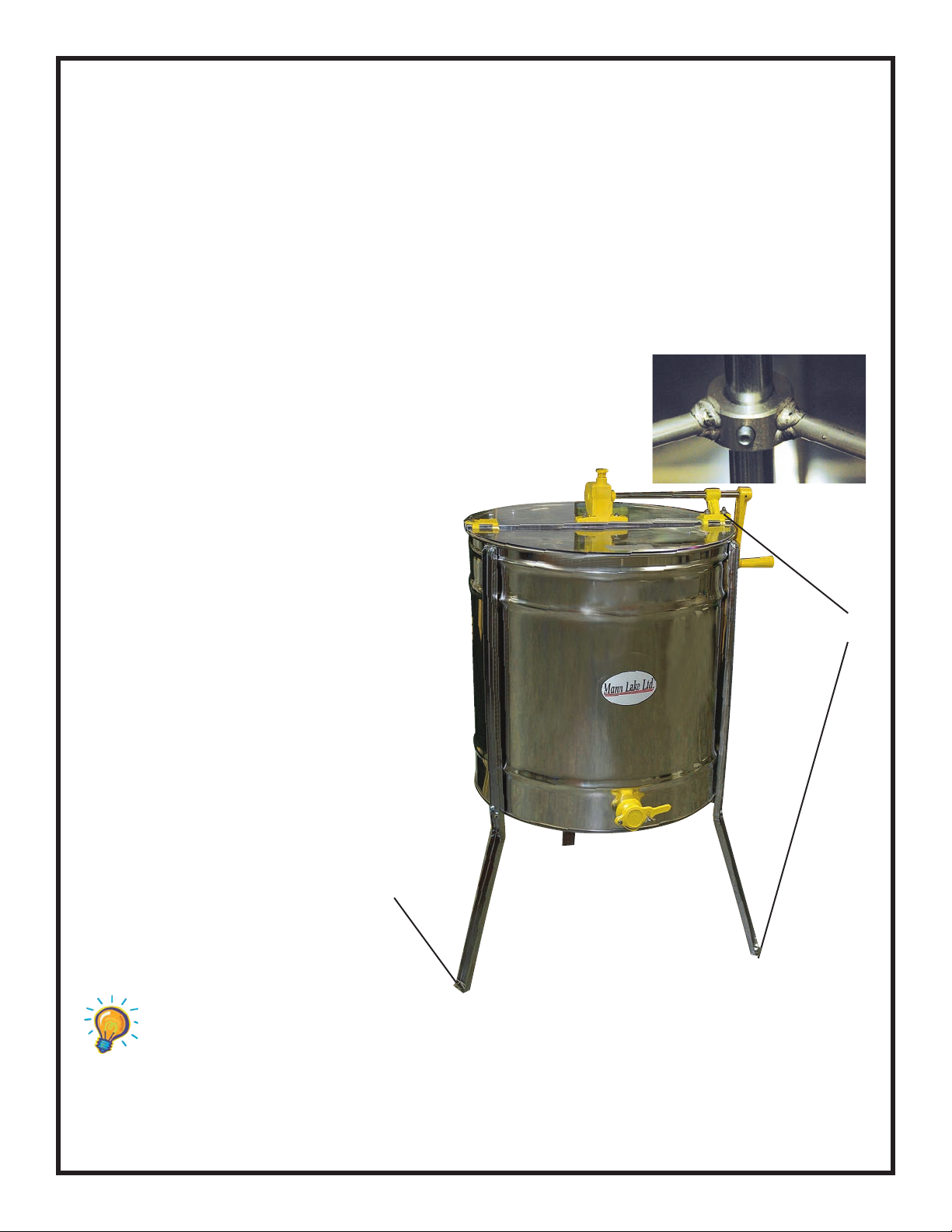

The basket is supported by allen screws located along the shaft at
the top and bottom of the basket. Be sure to tighten these screws
prior to using. If at any time the shaft spins but the basket does
not, you will need to tighten them again.
Keep your honey gate open when extracting
to ensure the basket moves freely. Your
extractor is not intended to be a storage tank.
Promptly move any honey to a storage
container or bottling tank.
TIP Place a 5 gallon pail with a honey gate and double sieve under your extractor to lter your
honey as you extract! You can bottle from the pail too!
39”
(99.06cm)
Each leg is pre drilled for
easy mounting
Height from oor to honey
gate is 14” (35.56cm)
One Year Limited Warranty: Mann Lake warrants this product, to original purchaser, for one year from purchase date to
be free of defects in materials and workmanship. This warranty is the only written or express warranty given by Mann Lake
ALL IMPLIED WARRANTIES OF MERCHANTABILITY AND OF FITNESS ARE HEREBY EXCLUDED. Mann Lake’s obligation under
this warranty is limited to repair or replacement of the product, at its option. IN NO CASE SHALL MANN LAKE BE LIABLE FOR
ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES FROM BREACH OF THIS WARRANTY.

HH-170 18/9 Frame Hand
Crank Extractor
PARTS LIST
Part # DescriPtion Quantity √
Handle For Top Crank 1
80-001 Large Oval Mann Lake Label 1
36-123 6 MM Allen Wrench 1
36-122 3 MM Allen Wrench 1
Instruction Sheet 1
New Part List 1
Lid With****Caution Label On Lid**** 1
Part # DescriPtion
HH-195 ½ Lid Replacement
HH-810 Replacement Hinge
HH-606 Honey Gate
insPecteD By-
Wash all equipment before use. To clean extractors, use warm to hot water with a
soft cloth. Please do not use anything rough and abrasive on extractor. If the extractor is
still not clean you may use a small amount of dish soap. There is no need to disassemble
the extractor while cleaning it. If you feel the need to disassemble the extractor please
be aware of the small ball bearing on the bottom of the extractor.
Cleaning Instructions
18/9 Frame Radial Hand Crank Extractor
REPLACEMENT PARTS LIST
Boom of Barrel
(inside) Ball Bearing
The Sha sits on Ball

HH-226 Sideliner Uncapper
