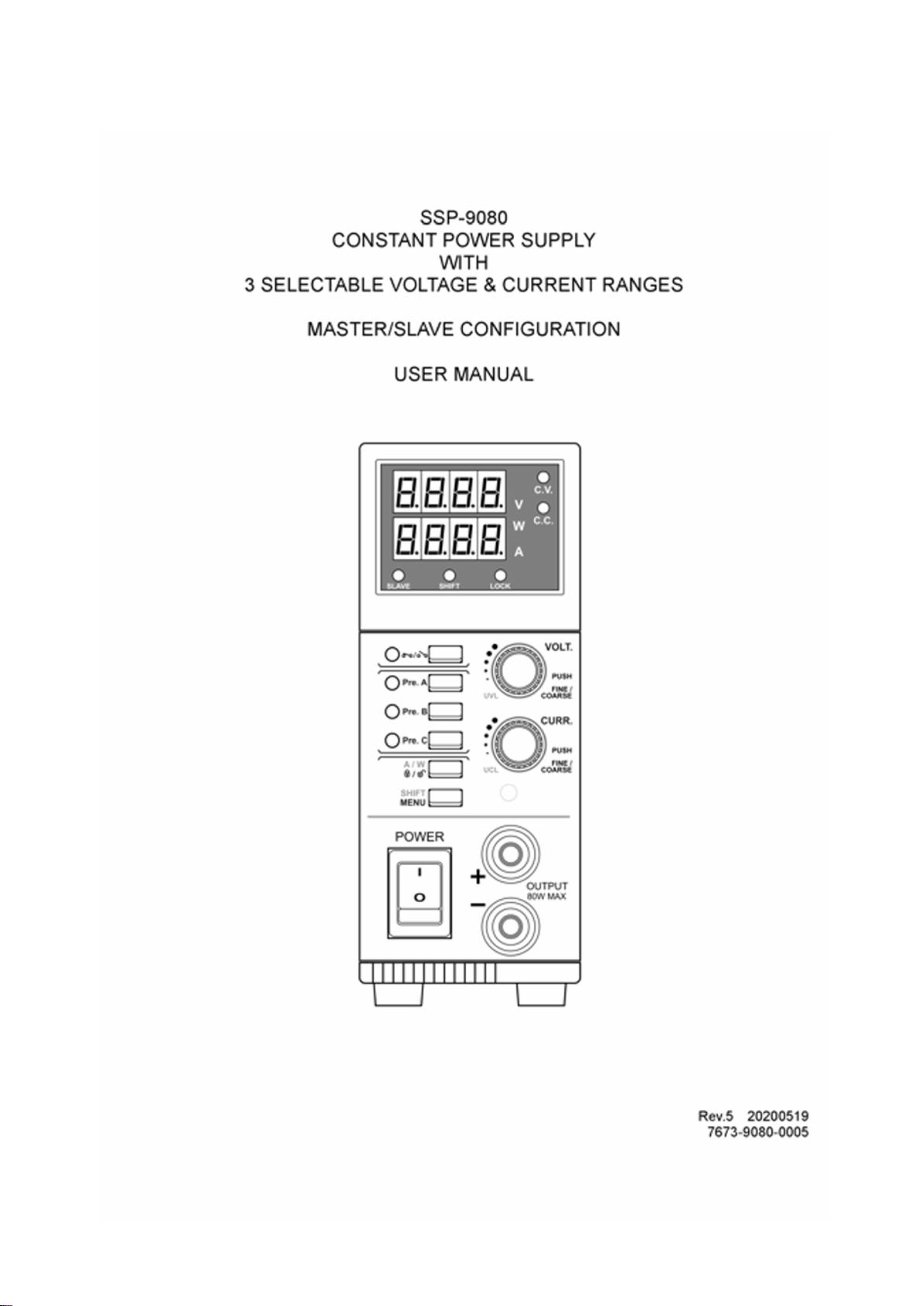

Manson Engineering Industrial SSP-9080 User manual

Copyright © <202005> by<Manson Eng. Ind. Ltd.>. All Rights Reserved.

SSP-9080 User manual
2 / 17
Table of contents
Precautions and Warning .................................................................................... 3
Warning ........................................................................................................ 3
Caution ......................................................................................................... 3
Operating environmental condition .................................................................. 3
Accessories ....................................................................................................... 4
Introduction ...................................................................................................... 4
Display and Indications ....................................................................................... 5
Back Panel ......................................................................................................... 7
Operation Procedures ......................................................................................... 8
Adjusting output voltage and current ............................................................... 9
Set upper voltage limit and upper current limit .................................................. 9
Select and adjust 3 preset value of Voltage and Current .................................... 11
Output ON/OFF and power up ON/OFF setting ................................................ 11
Lock and unlock of front panel ....................................................................... 11
Watt-meter and Amp-meter selection ............................................................. 12
Master/Slave configuration ............................................................................ 13
Remote sensing operation ............................................................................. 14
Factory reset ................................................................................................ 14
Specifications ................................................................................................... 15
Troubleshooting ............................................................................................... 16

SSP-9080 User manual
3 / 17
Precautions and Warning
Keep this manual in a safe place for quick reference at all times.
This manual contains important safety and operation instructions for the correct use of the power supply.
Read through the manual and pay special attention to the markings and labels of this unit and equipment to
be connected.
Pay special attention to these two types of notices used in this manual.
Warning
Caution
Operation environmental condition
Warning
Failure to observe this warning may cause injury to persons and damage to power supply or connected
equipment.
1. Do not use this power supply near water.
2. Do not operate or touch this power supply with wet hands.
3. Do not open the casing of the power supply when it is connected to ac mains.
4. Refer all servicing to qualified service personnel only.
5. Before replacing theAC fuse find out and clear up the cause first.
6. Replace theAC fuse with the same type and rating as the original fuse.
Caution
Failure to observe this warning may result in damage to equipment and Improper functioning of the power
supply.
1. Use a grounded 3 pinAC source.
2. This unit is for indoor use only.
3. Do not operate or place this unit in a humid, dusty, in direct sunlight location or near any heat source.
4. Before plugging into local AC mains, check with the rating label at the back of the unit.
5. Do not block any ventilation openings of the unit.
6. This unit must be used within the specified rating, regular excessive continuous overloading may cause
damage to the power supply.
7. The gauge size of input power cable must be at least 0.75 mm² and the total length of power cable must
not exceed 3m.
8. Input Fuse Recommended: T2AL250V (Time-Lag from 2A)
Operating environmental condition
Relative humidity : 10-80%
Altitude : <2000m
Installation category: Category II
Pollution degree 2
Mains supply voltage fluctuation up to ±10% of the specified operating voltage

SSP-9080 User manual
4 / 17
Accessories
Introduction
This 80W Constant Power lab. grade power supply has an automatic range of 0.5-36V and 0-5A.
The max. limits of current & voltage are calculated by Imax x Vmax = 80W. So at 36V its maximum current
is 80W/ 36V = 2.2A , the max. voltage at 5A = 80W/ 5 = 16V. Its operation voltage and current spectrum is
larger than 3 conventional power supplies of the same power rating.
Adjustable upper voltage and current limits are necessary functions to protect sensitive devices against the
wide swing of output current or voltage available.
3 user presets of V&I for frequently used output settings.
Master & Slave configuration with either SSP-9080 or SSP-9081 as Master for parallel connection of up to
30 Units of either SSP-9080 or SSP-9081as slave units.
When SSP-9081 is set as Master, all the special functions e.g. remote program, dc ramp waveform
generator and Ethernet connectivity are operational with the increase of current output from SSP-9080 slave
units.

SSP-9080 User manual
5 / 17
Display and Indications
Fig. Display panel
4 digitsdisplays
The upper part of display is volt-meter and the lower part of display is amp-meter or watt-meter.
Constant Voltage Mode LED
Indicates the Power Supply is working in Constant Voltage mode.
The output voltage of power supply is kept constant at the set voltage in this mode. The power supply
remains in CV as long as the loading current is lower than the set current limit otherwise power supply will
cross over to CC mode.
Constant Current Mode LED
Indicates the Power Supply is working in Constant Current mode.
When the loading is higher than the set current limit of the set voltage in CV mode, the Constant Current
Mode kicks in. The output current of power supply is kept constant at the set current level provided that the
loading is sufficiently large to draw current equal to or larger than set current, otherwise power supply will
cross over to CV mode.
Watt-meter LED
Indicates the lower row of the 4 digit LED is read as watt-meter. The value is showing output power in Watt.
Amp-meter LED

SSP-9080 User manual
6 / 17
Indicates the lower row of the 4 digit LED is Amp-meter. The value is showing output current inAmpere.

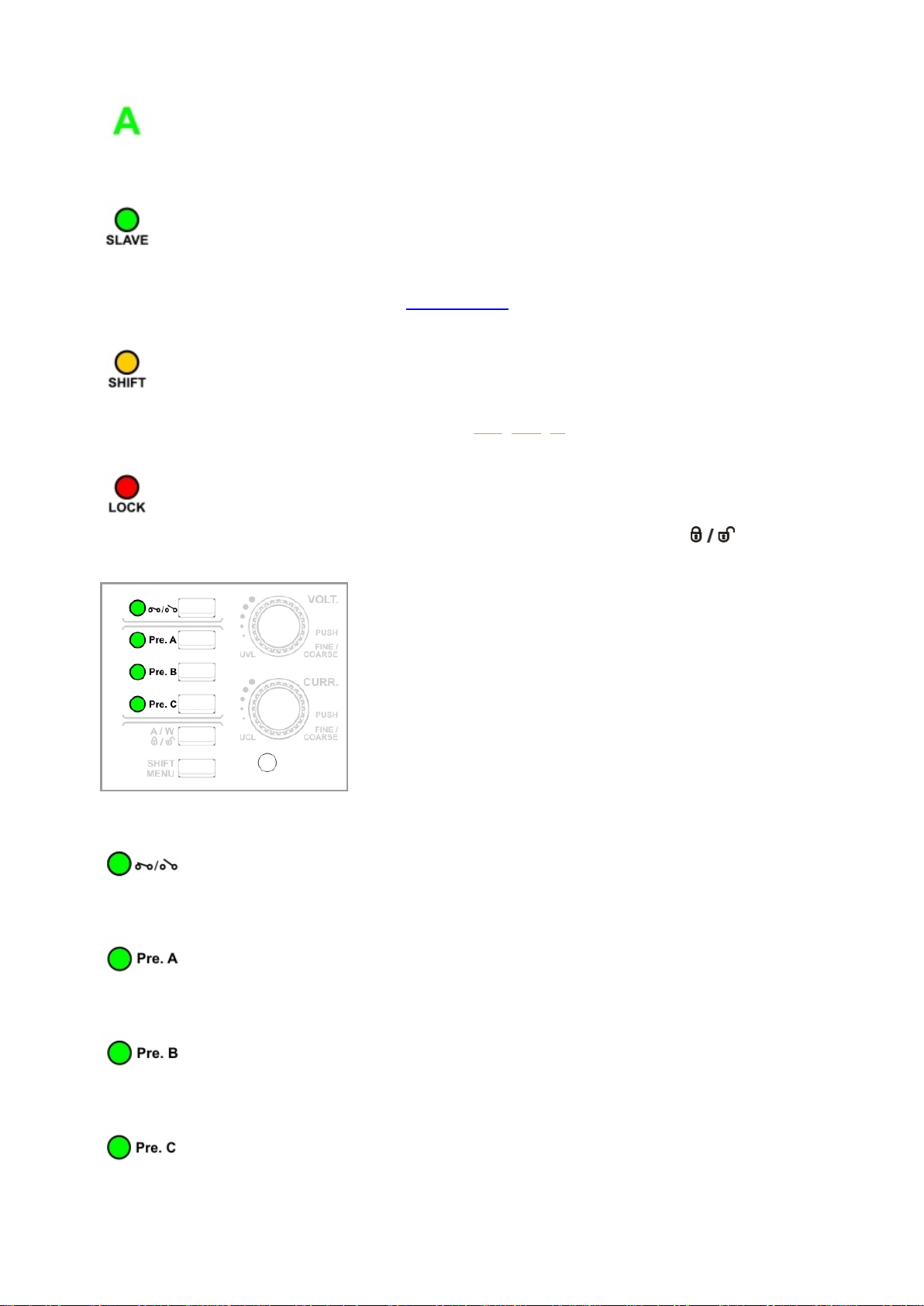

Slave LED
Indicates the Power Supply is in slave mode and controlled by the master unit. The voltage and current
setting of slave units are controlled by the master unit. The buttons and knobs of slave units are locked. The
master unit controls all units. (Details refer to Master & Slave section)
Shift LED
Indicates the Shift key is pressed and the second function in orange imprints of buttons & knobs will be
activated Quick press on Shift key to activate setting of UVL,UCL,W.
Lock LED
Indicates the panel of power supply is being locked. This LED will being ON when press button. Then
the output is ON.
Fig. LED in button panel
Output ON/OFF LED
Indicates output ON / OFF status
Preset A LED
Indicates Preset A is selected, the output voltage and current are fixed as in preset A settings.
Preset B LED
Indicate Preset B is selected, the output voltage and current are fixed as in preset B settings.
Preset C LED
Indicate Preset C is selected, the output voltage and current are fixed as in preset C settings.

SSP-9080 User manual
7 / 17

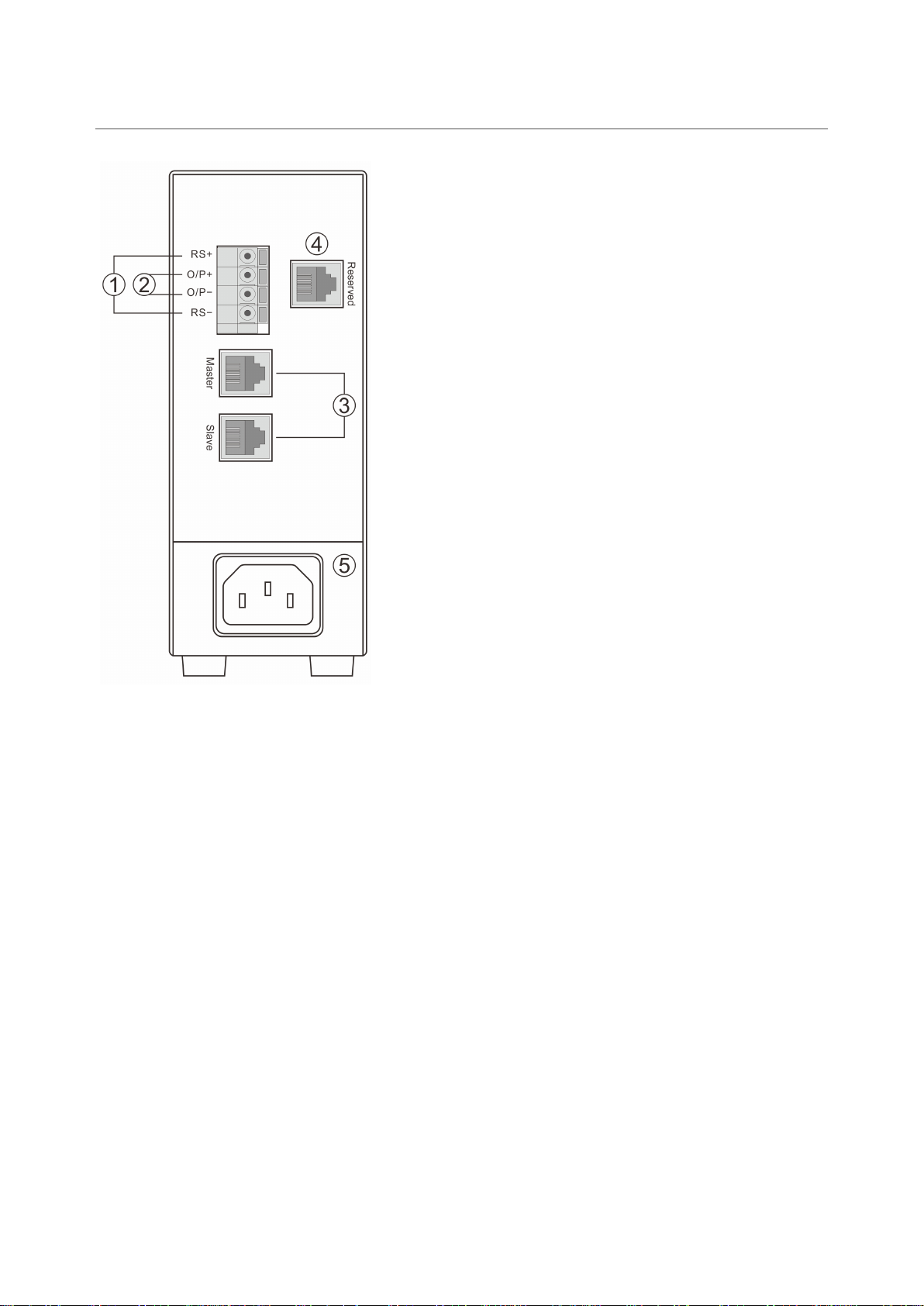

Back Panel
1. Remote sensing terminals
2. DC output terminal which has same power rating as the front output
3. Master / Slave connection
4. Factory reserved
5. AC Input socket

SSP-9080 User manual
8 / 17
Operation Procedures
Adjusting output voltage and current
Set upper voltage limit and upper current limit
Select and adjust 3 preset value of Voltage and Current
Output ON/OFF and power up ON/OFF setting
Lock and unlock of front panel
Watt-meter andAmp-meter selection
Master/Slave configuration
Remote sensing operation
Factory reset

SSP-9080 User manual
9 / 17

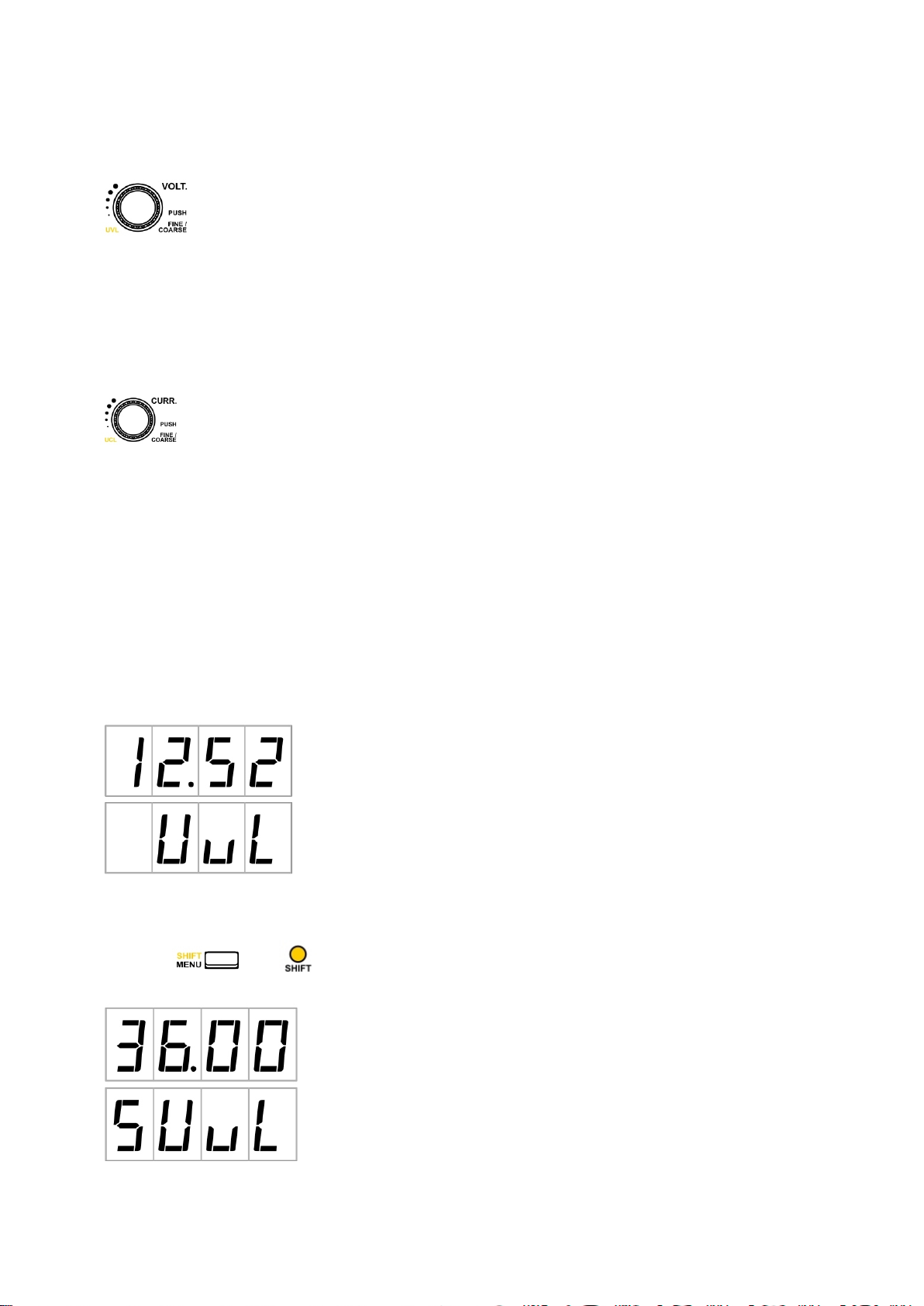

Adjusting output voltage and current
Voltage adjust knob
Adjust output voltage
-Rotate Voltage Knob clockwise to INCREASE output voltage.
-Rotate Voltage Knob anti-clockwise to REDUCE output voltage.
-Press Voltage knob to switch between COARSE and FINE adjustment. When press the knob the digit
will be high-lighted for tuning.
Current adjust knob
Adjust output current limit
-Rotate Current Knob clockwise to increase output voltage
-Rotate Current Knob anti-clockwise to reduce output voltage
-Press Current knob to switch between COARSE and FINE adjustment. When press the knob the digit
will be high-lighted for tuning.
Set upper voltage limit and upper current limit
Upper voltage Limit
This safety feature prevents test piece expose to damaging high voltage due to changes in load or current
setting. Also the warning UVL comes up with the set voltage value to remind user that the newly adjusted
output voltage has exceeded the UVL.
Adjusting upper voltage Limit
·The second function of Voltage Knob is for UVL adjustment.
·Press and LED is ON.
·Then press Voltage Knob. The display will show as follow,
·Rotate Voltage Knob to adjust the UVL value.

SSP-9080 User manual
10 / 17

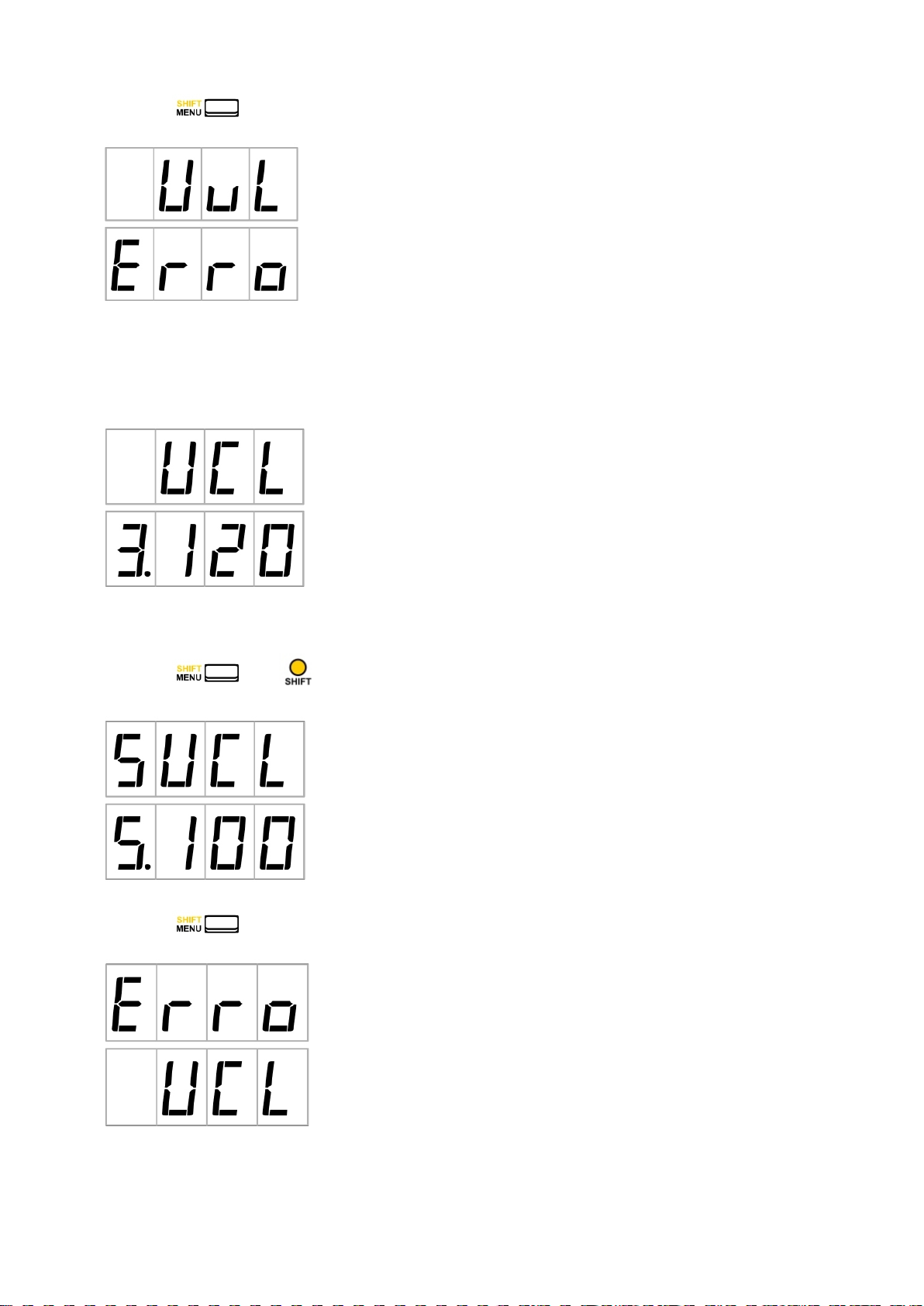

·Press to confirm setting. If the new UVL value is lower than set output voltage, it will show
UVL Error alert.
Just reduce the set output voltage to lower than the UVL value. Then the UVL Error will be OFF.
Upper current limit (UCL)
The Upper Current Limit is feature to let user to set maximum value for current adjustment. This feature can
help to prevent unintentional setting for maximum output current to damage test piece.
When increasing output current and hit the UCL threshold limit the display will show you alert as following
Adjusting upper current limit
·The second function of Current Knob is for UCL adjustment.
·Press and LED ON
·Then press Current Knob. The display will show as following,
·Rotate Current Knob to adjust the value.
·Press to confirm setting. If the new UCL value is lower than set output current, it will show
UCL Error alert.
Just reduce the set output current to lower than the UCL value. Then the UCL Error will OFF.

SSP-9080 User manual
11 / 17

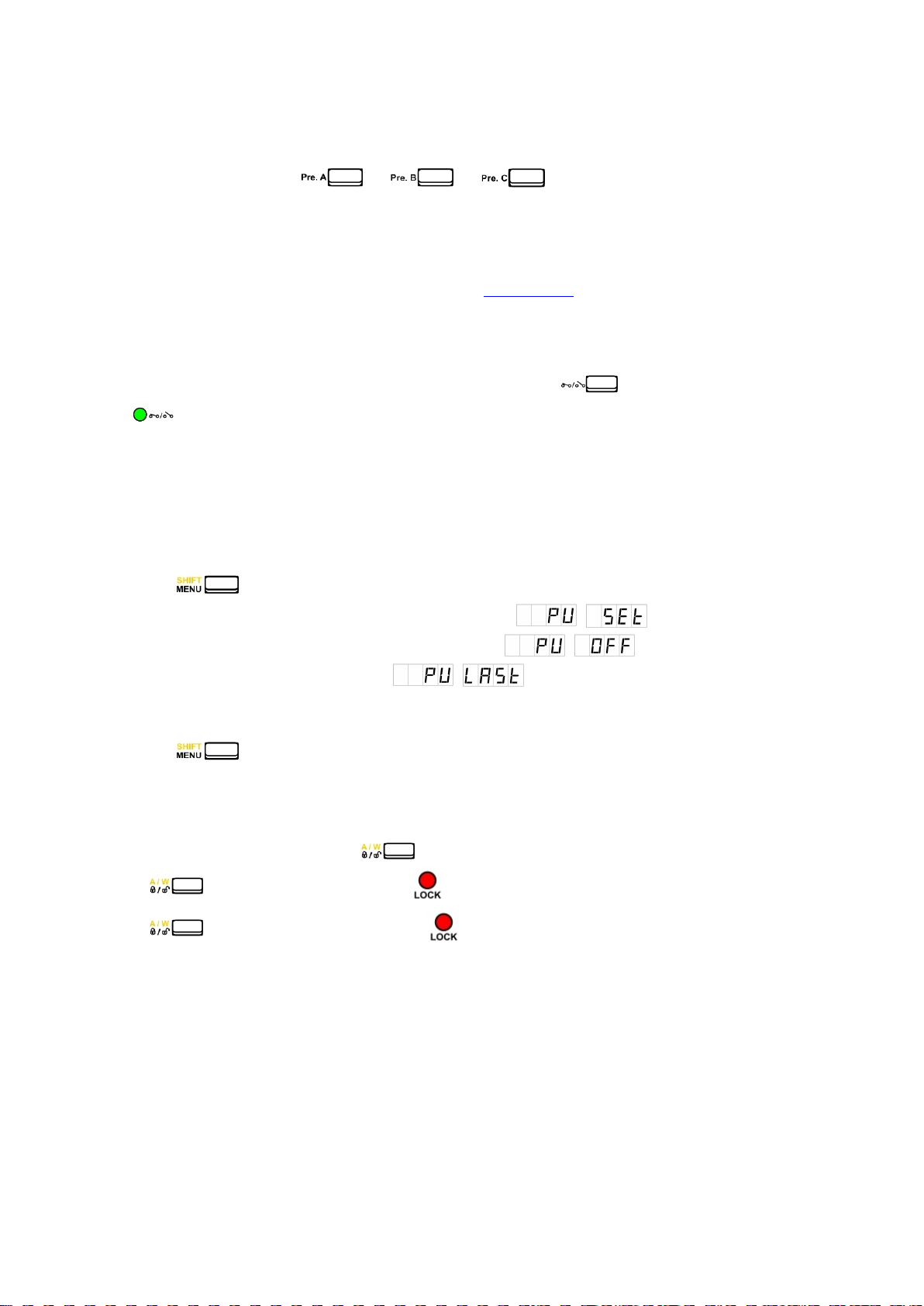

Select and adjust 3 preset value of Voltage and Current
This power supply has 3 preset of Voltage and Current value for quick recall to use.
Select preset value by press / /
Adjust value of preset
After the preset is selected, use Voltage and Current knob to adjust value for that preset program.
The new setting will be saved automatically.
*The values can be reset to factory default in menu. (See Factory reset section)
Output ON/OFF and power up ON/OFF setting
The power supply has feature to switch output ON/OFF by pressing button.
The LED will be ON when the output is ON. The display will show the actual output voltage & current
or watt.
Set power up with Output ON or OFF status
The default setting is output OFF when power supply is powered up.
The output on/off status can be set to keep the last status just before the power supply is switched off.
Steps to change setting,
·Press and hold to enter menu mode
·Rotate Volt. Knob to select PU menu. The display shows
·Press Volt. Knob to enter PU setting. The display show
·Rotate Curr. Knob to change setting to . The output is set to as same as last
status.
·Press Volt. Knob to confirm.
·Press to exit menu.
Lock and unlock of front panel
In case the front panel is locked, only is functional. All other buttons and knobs are locked.
Press to LOCK the front panel and LED is on.
Press to UNLOCK the front panel and LED is off.

SSP-9080 User manual
12 / 17
Watt-meter and Amp-meter selection
The lower row 4 digit display can use as Watt-meter orAmp-meter.
Select Watt-meter
Press and LED is ON.
Press . If LED is ON, the display is showing output in watt.
Select Amp-meter
Press and LED is ON.
Press . If LED is ON, the display is showing output in ampere.

SSP-9080 User manual
13 / 17
Master/Slave configuration
The SSP-9080 and SSP-9081 can be configured for Master/Slave connection either with the same model or
in combination of both models.
Every slave unit should be assigned an uniqueAddress ID from 1-30. The Master unit must be assigned an
Address ID=0 (factory default)
The load current is shared equally by all units and the Masterʼs output voltage is the output voltage of all
units. All the functions of the Master supply can be utilized.
Example: one SSP-9081 as Master and 3 SSP-9080 Slave units, the maximum combined output current is
20 Amp and functions of SSP-9081 are usable.
Wiring of master and slave units
·Make sure that the output cables from each power supply must be of the same length and thickness.
You can use power distribution block from car audio shop to tidy up the wiring.
·Always double check if the terminator plug is installed at the last slave unit.
·Look for the SLAVE GREEN LED which lights up to indicate that Master & Slave connection is correct.
·The full Master & Slave operation begins when output cables are connected to the load and the Master
output is switched to ON.
·The current reading on the Master Unit Xthe total number of units connected = Total Current to the
Load.
Steps for Changing the addressID,
·Press and hold button to enter setting menu.
·Rotate VOLT. knob to select address menu. The display shows
·Press VOLT. knob to enter address menu.
·Rotate CURR knob to change address ID.
·Press VOLT. knob to confirm.
·Press to exit menu.

SSP-9080 User manual
14 / 17
Remote sensing operation
When the output current is large or long cable to load, there is a voltage drop across the connecting cable
such that the voltage at the load point is less than at the output terminal of the power supply. By connecting
the Remote Sense terminals to the load point, the voltage reading at the output display and the voltage at
the load point will be the same.
Connecting remote sensing
·Connect the power supply output terminals to the load (use the front or rear O/P terminals)
·Connect the Remote Sensing terminals to the Load
·Connect RS+ to the Positive (+) connection at the load
·Connect RS- to the Negative (-) connection at the load
Factory reset
The Factory reset feature is reset the Preset program, UVL, UCL to factory default setting.

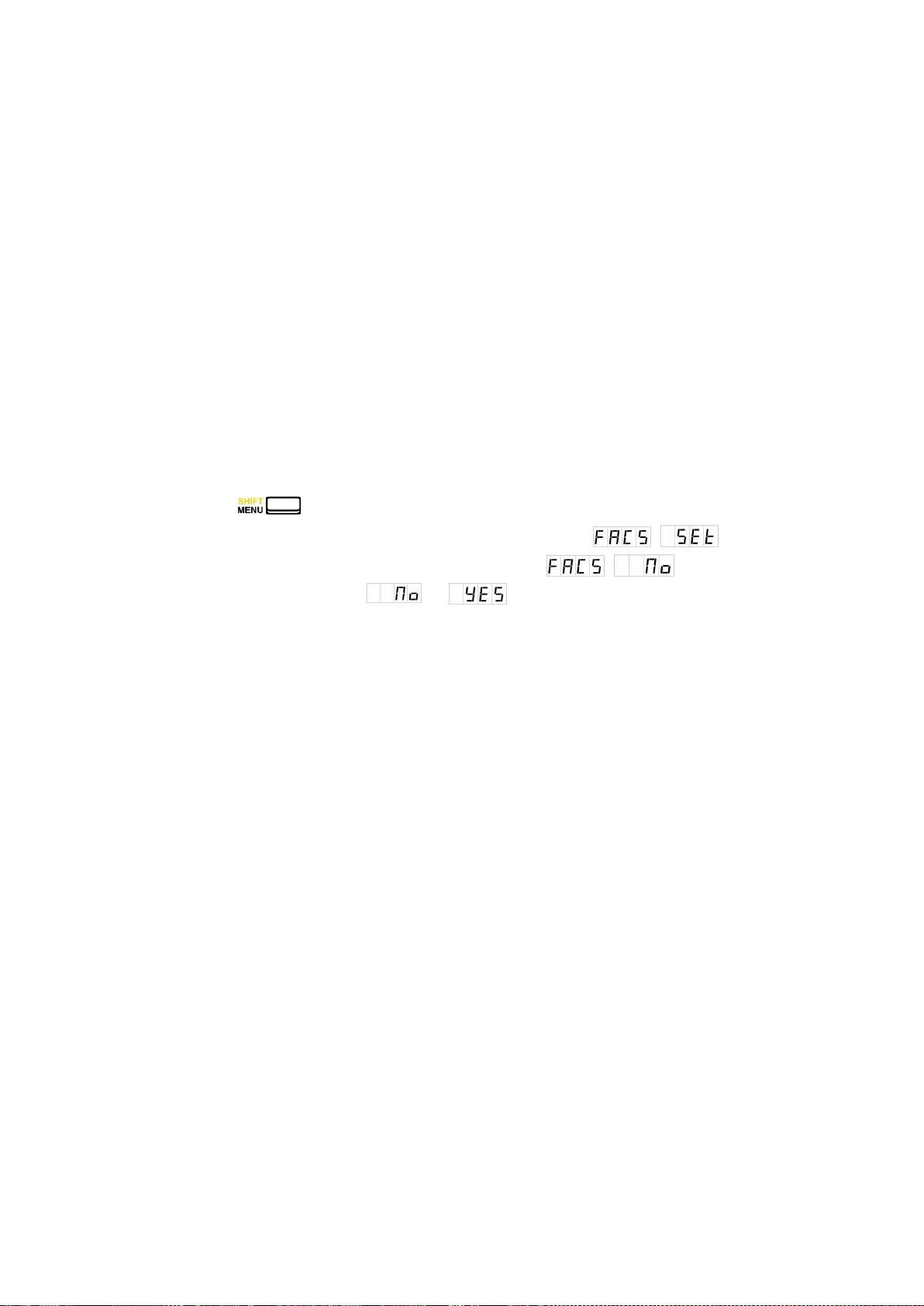

Steps for Factory reset
·Press and hold button to enter setting menu.
·Rotate VOLT. knob to select factory reset menu. The display shows
·Press VOLT. knob to enter address menu. The display shows
·Rotate CURR knob to change from to
·Press CURR. knob to reset unit.
The power will reset immediately.

SSP-9080 User manual
15 / 17
Specifications
Models SSP-9080
Input Voltage Range 100 – 240V~
No Load Input Current at 230V~ ≤150mA
Full Load Input Current at 230V~ ≤500mA
AC input Frequency 50/ 60 Hz
Efficiency ≥78%
Power Factor ≥0.9
Constant Voltage and Current Range Selection:
0.5-36V / 0-5A Auto range with maximum output power 80W (V x A≤80W)
Constant Voltage Characteristics:
Adjust Resolution 10mV (start from 0.5V)
Load Regulation (10 – 90%) ≤30mV
Line Regulation (±10%) ≤4mV
Ripple & Noise (peak-peak) ≤35mA
Constant Current Characteristics:
Adjust Resolution 1mA (start from 30mA)
Load Regulation (10 – 90%) ≤10mA
Line Regulation (±10%) ≤10mA
MeterAccuracy
Voltage Meter Accuracy ±(0.5% +5counts)
Current MeterAccuracy ±(0.5% +5counts)
User adjustable upper voltage & current limit Yes
Number of frequently used V & I presets 3
Remote Sensing Yes
Protection Tracking Over Voltage Protection, Current Limiting Protection, Short Circuit, Overload, Over Temperature, Upper Voltage Limit,
Upper Current Limit.
Additional Function Master/Slave Control
Cooling Method Natural Convection
Dimensions (WxHxD) 53.5 x 127 x 330mm 2 x 5 x 13 inch
Weight Approx. 1.9kgs 4.2lbs

SSP-9080 User manual
16 / 17
Troubleshooting
Error Message Description Resolve
UVL (Upper Voltage Limit) setting error.
This error message indicates thatyou tryto seta value
of UCL which is less than the output current set value.
e.g. Set Output Voltage is 15V. Set UVL to 12V, this
error message comes out.
Solution 1 - Rotate Volt knob clockwise.
Both UVL and Output will be setto new
UVL setting 12Vas in the example.
Solution 2 - Reset Unit byOff &On Power
Switch same result as Solution 1.
UCL (Upper CurrentLimit) setting error.
This error message indicate thatyou tryto seta value
of UCL which is less than the output current set value.
e.g. Output Current is set to 3A. Then you tryto set UCL
to 2A.
Solution 1 - Rotate Volt knob
clockwise.Both UCL and Output will be
set to new UCL setting 12Vas in the
example.
Solution 2 - Reset Unit byOff &On Power
Switch same result as Solution 1.
OuP (OutputOver Voltage Protection error)
This error message indicates thatthe detected voltage
at output terminal is higher than the set voltage.
Step 1: Switch off Power supply.
Step 2: Disconnect load.
Step 3: Switch on Power supply.
(If this error show again, please contact
the shop for inspection.)
Output Over Current Protection error.
This error message indicates thatthe detected output
current is higher than the set current.
Step 1: Switch off Power supply.
Step 2: disconnect load.
Step 3: Switch on Power supply.
(If this error show again, please contact
the shop for inspection.)
System Over Temperature Protection error.
This error message indicates thatthe detected the
system internal temperature is too higher.
Step 1: Switch off Power supply.
Step 2: disconnect load.
Step 3: wait for 30 minutes to cool down
the power supply
Step 4: Switch on power supply.
(If this error show again, please contact
the shop for inspection.)
Warning Message
You cannot increase your voltage setting as you have reached the Upper Voltage Limit.
Reset and increase the Upper Voltage Limit or decrease your output voltage setting.
You cannot increase your currentsetting as you have reached the Upper Current Limit.
Reset and increase the Upper Current Limit or decrease your output current setting.

SSP-9080 User manual
17 / 17
