Mantis 8580 User manual

Cordless Pole Pruner
Warning! Read through the operating instructions carefully and observe the instructions
contained herein. Familiarise yourself with the machine, its correct use and the safety devices by
means of these operating instructions.
Perche élagueuse à batterie
Attention ! Lisez attentivement la notice d‘utilisation et respectez-en les consignes. Cette notice
vous permettra de vous familiariser avec l‘appareil, avec son utilisation correcte et avec les
prescriptions de sécurité.
Akku-Hochentaster
Lesen Sie diese Hinweise zur Handhabung des Gerätes aufmerksam durch. Verwenden Sie das
Gerät erst, wenn Sie sich sicher sind, dass Sie alle Anweisungen verstanden haben.
OPERATOR / PARTS MANUAL
MANUEL D’UTILISATION
GEBRAUCHSANWEISUNG
- Originalbetriebsanleitung
- Traduction du mode d’emploi d’origine
- Translation of the original Operating Instructions
8580*
* AAS 2420

Contact us at www.mantis.uk.com
3
This Operator / Parts Manual is part of the machine. Suppliers of both new
and second-hand machines must take sure that this manual is provided
with the machine.
Important message
Thank you for purchasing this Mantis product. You have purchased a world class product, one of the best designed
and built anywhere.
This machine comes with an Operator / Parts Manual. The useful life and good service you receive from this machine
depends to a large extent on how well you read and understand this manual. Treat your machine properly, lubricate
and adjust it as instructed, and it will give you many years of reliable service.
Your safe use of this Mantis product is one of our prime design objectives. Many safety features are built in, but we
also rely on your good sense and care to achieve accident-free operation. For best protection, study the manuals
thoroughly. Learn the proper operation of all controls. Observe all safety precautions. Follow all instructions and
warnings completely. Do not remove any safety features. Make sure those who operate this machine are as well
informed and careful in its use as you are.
Mantis designs and built its equipment to serve many years in a safe and productive manner. For longest life, use
the machine only as directed in the manuals, keep it in good repair and follow safety warnings and instructions. You’ll
always be glad you did.
Schiller Grounds Care, Inc.
1028 Street Road
Southampton, PA 18966 U.S.A.
PHONE [phone] • FAX [phone]

1
1
3
2
10
5
6
4
12
9
13
14
7
8
15
11
16
4

5
DE: Bezeichnung der Teile (Abb. 1)
1. Ein-/Ausschalter
2. Akku
3. Handgriff
4. Teleskopstiel
5. Griffbereich gepolstert
6. Teleskop- Schnellverriegelung
7. Kettenzahnradabdeckung
8. Öltankdeckel
9. Sägekette
10. Schwert
11. Schwertschutz
12. Motorgehäuse
13. Multifunktionswerkzeug
14. Ladegerät
15. Einschaltsperre
16. Schultertragegurt
GB: Description of the parts (Fig. 1)
1. On/off switch
2. Accumulator
3. Handle
4. Telescope arm
5. Padded grip
6. Telescope quick-acting lock
7. Chain sprocket cover
8. Oil tank cover
9. Saw chain
10. Guide bar
11. Guide bar guard
12. Motor housing
13. Multi-function tool
14. Charging unit
15. Switch lock
16. Shoulder belt
FR: Désignation des pièces (g. 1)
1. Bouton marche/arrêt
2. Accu
3. Poignée
4. Manche télescopique
5. Poignée rembourrée
6. Verrouillage rapide télescopique
7. Protection du pignon d‘entraînement à chaîne
8. Couvercle du réservoir d‘huile
9. Chaîne de scie
10. Lame
11. Protection de la lame
12. Boîtier moteur
13. Outil multifonction
14. Station de charge de l’accu
15. Verrouillage de l‘activation
16. Bandoulière

6
45
7
62 mm 8
2
9
10
A
3

9
8.1 8.2
8.3
10
7

6
15
1
13
12
16
15
a
b
c
14
11
8

17 18
19
9
20
X
ABC

Cordless Pole Pruner Operator’s Manual
10
TABLE OF CONTENTS
General Safety Regulations....................................................10
Explanation of Symbols..........................................................13
Description of the Machine and Scope of Delivery.................14
Intended Use...........................................................................14
Assembly.................................................................................14
Operation................................................................................15
Working with the Pole Pruner.................................................16
Technical Data........................................................................18
Maintenance...........................................................................19
Cleaning and Storage.............................................................19
Information for Environmental protection / disposal................19
Ordering Spare Parts..............................................................19
Repair Service........................................................................20
Fault Remedy..........................................................................20
Warranty..................................................................................21
Declaration of Conformity.......................................................22
Packaging
This machine is packaged to prevent damage during transportation. The packaging is raw material and can thus be
reused or fed back into the raw materials cycle.
When using the machine certain safety precautions must be taken in order to prevent injuries and damage:
• Read through the operating instructions carefully and observe the instructions contained therein. Familiarise your-
self with the machine, its correct use and the safety devices by means of these operating instructions.
• Store these carefully so that the information is always available to you.
• In the event of the machine being handed over to another party, please include these operating instructions with it.
We accept no liability for accidents and damage caused as a result of disregarding these instructions.
1. General Safety Regulations
This machine is not intended for use by persons (including children) with an impaired physical, sensory or mental
capacity or insufcient experience and/or insufcient knowledge unless they are supervised by a person responsible
for their safety or receive instructions from that person in the use of the machine. Children should be supervised in
order to ensure that they do not play with the machine.
Remain alert, pay attention to what you are doing and proceed sensibly when working with an electric tool. Do not use
the machine if you are tired or under the inuence of drugs, alcohol or medication.
General safety information for power tools
Warning! Read all safety-related information and safety instructions! Failure to observe the safety informa-
tion and instructions may result in electric shock, burns and/or severe injury.
Keep the safety information and instructions for future reference.
The term ‘power tool’as used in the safety information and instructions includes both mains-operated tools (with power
cord) and battery-operated tools (without power cord).
1) Safety at the workplace
a) Keep your working area clean, tidy and well-lit. Disorder and poorly lit working areas may result in accidents.
b) Do not operate the power tool in potentially explosive environments containing combustible uids,
gases or dusts. Power tools generate sparks that may ignite dust or fumes.
c)
Keep children and other persons away while you are operating the power tool. Distractions may result in the
operator losing control over the tool.

Contact us at www.mantis.uk.com
11
2) Electrical safety
a) The plug of the power tool must t into the mains socket. The plug must not be modied in any way. Do
not use adapter plugs/connectors in combination with tools with protective earthing. Unmodied plugs
and tting sockets reduce the risk of electric shock.
b) Avoid physical contact with earthed surfaces as pipes, heaters, ovens and refrigerators. There is an
increased risk of electric shock if your body is earthed.
c) Keep the tool out of the rain or moisture in general. The penetration of water into a power tool increases the
risk of electric shock.
d) Do not use the cord to carry or hang up the tool or to pull the plug out of the socket. Keep the cord away
from heat, oil and sharp edges or moving parts of the tool. Damaged or tangled cords increase the risk of
electric shock.
3) Personal safety
a) Always pay attention to what you do and apply reasonable care when working with a power tool. Do
not use the power tool when you are tired or under the inuence of medication, drugs or alcohol. When
working with power tools, even a short moment of inattentiveness may result in severe injury.
b) Wear personal protection equipment and always wear eye protection (safety goggles). Wearing personal
protection equipment as a dust mask, nonslip safety shoes, safety helmet or ear protectors (depending on the
type and application of the tool) reduces the risk of injury.
c) Avoid unintentional operation. Make sure that the power tool is switched off before you connect it to the
mains supply and/or the battery and whenever you pick up or carry the tool. When carrying the tool with
your nger on the on/off switch or connecting the tool to the mains supply with the switch in ‘ON’ position, this
may result in accidents.
d) Remove adjustment tools or wrenches and the like before you switch the power tool on. Awrench or other
tool that is inside or on a rotating part of the tool may cause injury.
e) Avoid unusual postures. Make sure to have a safe footing and keep your balance at all times. This will
allow you to better control the power tool in unexpected situations.
f) Wear suitable clothes. Do not wear wide clothing or jewellery. Keep your hair, clothes and gloves clear
of all moving parts. Loose clothing, jewellery or long hair may get caught in moving parts.
g) If dust extraction/collection devices are provided make sure that they are connected and used properly.
The use of a dust extraction device may reduce risks caused by dust.
4) Use and handling of the power tool
a) Do not overtax the power tool. Use the power tool intended for your type of work in each case. The use
of the suitable power tool within the stated range of performance makes working more effective and safer.
b) Do not use a power tool with a damaged switch. A power tool that cannot be switched on or off any more is
dangerous and must be repaired.
c) Pull the mains plug and/or remove the battery before adjusting a tool, changing accessories or putting
the tool aside. This precaution avoids the unintentional start of the tool.
d) Store power tools that are currently not used out of the reach of children. Do not allow persons to use
the tool if they are not familiar with the tool or these instructions. Power tools are dangerous if used by
inexperienced persons.
e) Thoroughly maintain your power tool. Check whether moving parts are working properly and are not
jamming/sticking, and whether parts are broken or otherwise damaged in a way that may affect the func-
tion of the power tool. Have damaged parts repaired before using the tool. Many accidents are the result
of poorly maintained power tools.
f) Keep cutting tools sharp and clean. Thoroughly maintained cutting tools with sharp cutting edges are jamming
less often and are easier to guide.
g) Use power tools, accessories, add-on tools, etc. in accordance with these instructions and in the way
prescribed for the respective type of tool. You should also consider the working conditions and the work
to be carried out. The use of power tools for purposes other than those intended for the respective tool may
result in dangerous situations.
5) Appropriate handling and use of battery-operated power tools
a) Make sure that the device has been switched off before inserting the battery. Inserting a battery into a
switched-on power tool may lead to accidents!
b) Only use charging devices recommended by the manufacturer to charge the batteries. Charging units are
usually designed for certain types of batteries; if used with other types there is a risk of re!

Cordless Pole Pruner Operator’s Manual
12
c) Only use batteries designed for your power tool. The use of other batteries may lead to injury and risk of re!
d) Keep unused batteries clear of paper clips, coins, keys, nails, screws or other small metal objects that
may bridge the contacts. A short circuit between the battery contacts may lead to burns or re!
e) Improper use may result in uid leaking out of the battery. Avoid any contact with battery uid. Flush
with water in case of contact. If battery uid should get into your eyes seek medical advice additionally.
Leaking battery uid may lead to irritations of the skin or burns!
6) Service
a) Have the power tool serviced by qualied technical personnel only; repairs should be carried out using
exclusively original spare parts. This will ensure the continued safe operation of the power tool.
Device-specic safety instructions
• Keep all parts of your body clear of the chain while the unit is running. Before starting the unit, make sure
that the chain does not touch any objects. When working with a pole pruner, even a short moment of inattentive-
ness may result in clothes or parts of the body being caught by the chain.
• Always hold the pole pruner with your right hand at the rear handle and your left hand at the front handle.
Holding the pole pruner differently (left hand – rear handle / right hand – front handle) during operation will increase
the risk of injury and is not permitted.
• Wear eye and hearing protection. Other personal protection equipment for the head, hands, legs and feet
is recommended. Proper protective clothing and protection equipment reduce the risk of injury caused by thrown-
about wood chips and accidental contact with the chain.
• Do not operate the pole pruner on trees. Operating a pole pruner while situated on a tree involves a high risk
of injury.
• Make sure to have a safe stand at any time, and only use the pole pruner when standing on solid, safe and
level ground. A slippery ground or instable surfaces as the steps of a ladder may lead to loosing balance or the
control over the pole pruner.
• When cutting a branch that is under tension take into account that it will spring back. When the tension of the
wood bres is released the tensioned branch may hit the operator and/or the pole pruner resulting in a loss of control.
• Apply particular caution when cutting brush and young trees. The thin material may get caught in the chain
and hit you or throw you off balance.
• Carry the switched-off pole pruner using the handle with the chain pointing away from your body. Always
put on the protection cover when transporting or storing the pole pruner. The careful handling of the pole
pruner reduces the risk of accidentally touching the sharp cutting chain.
• Follow the instructions for lubrication, chain tension and changing accessories. An improperly tensioned or
lubricated chain may either break or considerably increase the risk of a kickback.
• Keep the handles dry, clean and free from oil and grease. Fatty, oily handles are slippery and may lead to a
loss of control.
• Use the pole pruner for cutting wood only! Do not use the pole pruner for works it is not designed for. –
Example: Do not use the pole pruner for cutting plastics, brickwork or other construction materials that
are not made of wood. The use of the pole pruner for applications, for which it is not designed, may result in
dangerous situations.
• Never attempt to use an incomplete machine or one which an unauthorised alteration has been implemented.
• This machine is not intended for use by persons (including children) with an impaired physical, sensory or mental
capacity or insufcient experience and/or insufcient knowledge unless they are supervised by a person responsib-
le for their safety or receive instructions from that person in the use of the machine. Children should be supervised
in order to ensure that they do not play with the machine.
• Remain alert, pay attention to what you are doing and proceed sensibly when working with an electric tool. Do not
use the machine if you are tired or under the inuence of drugs, alcohol or medication.
• Young persons under the age of 16 are not permitted to operate these devices.
• Please note that permissible uses for the tool could be limited by national regulations.
• Please note that improper maintenance, the use of non-compliant spare parts, or the removal or modication of
safety devices can cause damage to the tool and serious injuries to the operator.

Contact us at www.mantis.uk.com
13

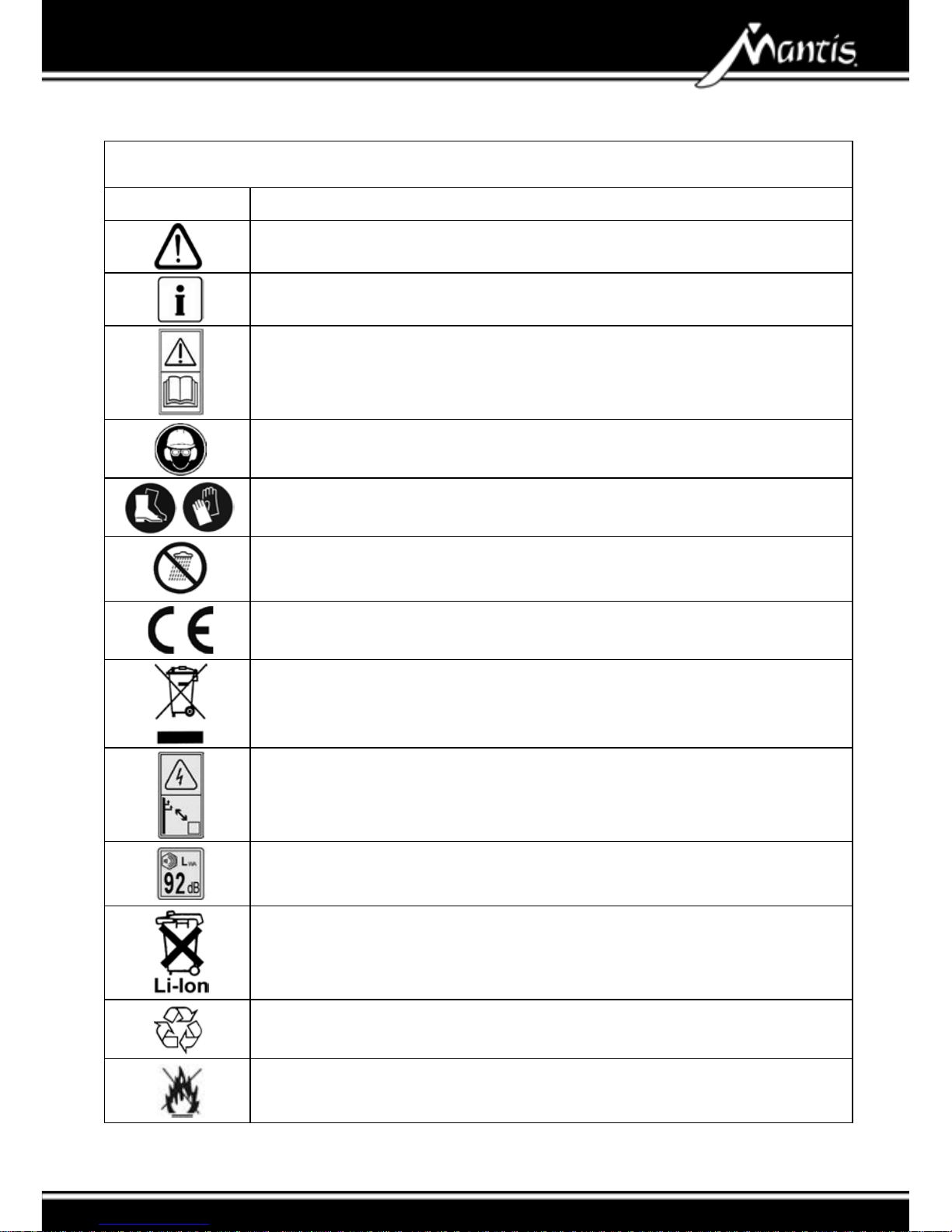

The following symbols are used on this electric tool. You can operate this electric tool more safely and effectively
with the correct interpretation of these symbols.
SYMBOLS MEANING
WARNING
INFORMATION
If you do not adhere to the instructions and safety measures described in the Operating
Instructions severe injuries may occur. Read the Operating Instructions before you start and
operate this device.
Wear eye and ear protection devices when operating this device. Falling objects may cause
serious injuries of the head; wear a head protection when operating this device.
Always wear safety boots and gloves when operating the device.
Do not use the tool under wet weather conditions!
Conrms the conformity of the electric tool with the Directives of the European Community.
This device may not be disposed of with general/household waste. Dispose of only at an
authorised disposal site.
Maintain clearance from current-carrying lines.
Life-threatening danger from electric shock.
Guaranted acoustic capacity level 92 dB(A).
Battery contains lithium! Do not dispose of as household refuse.
Defective batteries should be recycled!
Risk of explosion! Never throw batteries into a re.
2. Explanation of Symbols

Cordless Pole Pruner Operator’s Manual
14
3. Description of the Machine and Scope of
Delivery (Fig. 1)
1. On/off switch
2. Battery
3. Handle
4. Telescope arm
5. Padded grip
6. Telescope quick-acting lock
7. Chain sprocket cover
8. Oil tank cover
9. Saw chain
10. Guide bar
11. Guide bar guard
12. Motor housing
13. Multi-function tool
14. Charging unit
15. Switch lock
16. Shoulder belt
4. Intended Use
The pole pruner arm is intended for removing branches
from trees. It is not suitable for extensive sawing work
and felling trees or for the sawing of materials other
than wood. Please observe that our machine was not
designed for use in commercial, technical or industrial
applications. We assume no liability if the machine is
used in commercial, technical or industrial applications
or for equivalent activities.
5. Assembly
Caution! Only connect the pole pruner to the battery
when it is fully assembled and the chain tension has
been adjusted. Always wear protective gloves when car-
rying out work on the chainsaw in order to prevent injury.

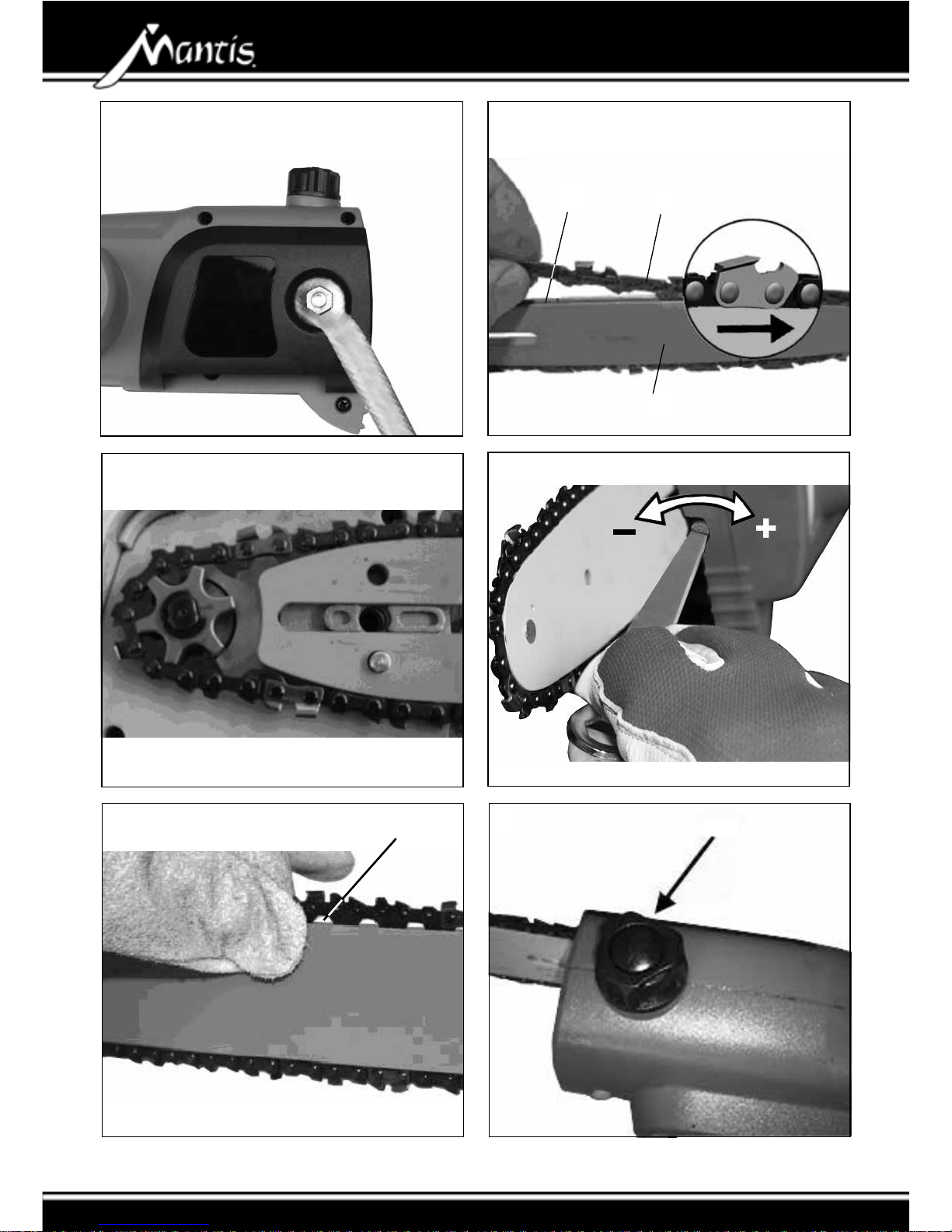

5.1 Assembly of guide bar and saw chain
Carefully unpack and inspect all parts for completeness.
(Fig.1)
• Loosen the fastening bolt for the chain sprocket cover.
(Fig.2)
• Remove the chain sprocket cover.
• Place the chain in the groove of the guide bar as
shown. (Fig.3/Pos. A)
• Insert the guide bar and chain into the mount on the
chainsaw. (Fig. 4) In the process, guide the chain
around the pinion and hang the guide bar in the chain
tensioning bolts.
• Re-mount and hand-tighten the chain sprocket cover
with the fastening bolt. (Fig.5)
Attention! Only tighten the fastening bolt once the
chain tension has been adjusted.
5.2 Tensioning the saw chain
Caution! Always remove the battery before ins-
pection and adjustment work. Always wear protec-
tive gloves when carrying out work on the chainsaw
in order to prevent injury.
• Loosen the fastening bolt of the chain sprocket cover
a few rotations.
• Adjust the chain tension with a screwdriver at the
chain tensioning screw. (Fig.5)
• Clockwise rotation increases the chain tension; anti-
clockwise rotation reduces the chain tension. The saw
chain is correctly tensioned if it can be raised approx.
2 mm in the centre of the guide bar. (Fig.6)
Attention! All chain links must lie properly in the
guide groove of the guide bar.
Information regarding the tensioning of the chain
The saw chain must be tensioned properly in order to
ensure safe operation. The chain tension is optimal if the
saw chain can be lifted 2 mm in the centre of the guide
bar. Since the saw chain heats up during the sawing
process, whereby its length changes, you must check
the chain tension at least once every 10 min. and adjust
it as necessary. This applies in particular for new saw
chains. Slacken the saw chain after work is completed,
because it shortens when cooling down. In doing so,
you can prevent damage to the chain.
5.3 Saw chain lubrication
Caution! Always remove the battery before ins-
pection and adjustment work. Always wear protec-
tive gloves when carrying out work on the chainsaw
in order to prevent injury.
Attention! Never operate the chain without chain-
saw oil! The use of the pole pruner without chain-
saw oil or with an oil level below the minimum oil
level mark results in damage to the pole pruner!
Attention! Only use special chainsaw oil. The war-
ranty is voided with the use of used oil.
Filling the oil tank (Fig. 7)
• Place the pole pruner on a leveled surface.
• Clean the area around the oil tank cap (Pos.8) and
then open it.
• Fill the oil tank with saw chain oil. In doing so, make
sure that no dirt gets into the oil tank so that the oil
nozzle does not clog.
• Close the oil tank cap (Pos.8).
Instructions for using the battery
1. When the pole pruner is delivered, the replaceable
battery is not charged. Before starting the machine
for the rst time, the battery must be charged.
2. You must never open the battery.
3. Never throw the used batteries in re - RISK OF
EXPLOSION!

Contact us at www.mantis.uk.com
15
4. Connect the battery charger only to mains with such
a voltage as stated on the type-bearing plate.
5. Use only the original battery.
6. Never charge the battery with a battery charger from
other producer. This can result in the battery being
damaged or it can result in an injury due to over-
heating.
7. During a long-term operation, the battery may heat
up. Let it cool down before charging it.
8. Do not store the battery charger and the batteries
within children‘s reach.
9. Do not use the battery charger in an environment
with vapors or inammable uids.
10. Charge the batteries only at a temperature within the
range of 10°C to 40°C.
11. Store the battery at temperatures up to 30°C only.
Higher storage temperatures may result in damage
to the battery. The ideal storage temperature range
is 10-15°C.
12. Never short-circuit the contacts of the batteries and
never interconnect them with metal objects.
13. When transporting the battery, take care that the
contacts are not interconnected, do not use metal
transportation containers.
14. Short-circuit of the battery can lead to explosion. In
any case, the short-circuit connection will damage
the battery.
15. Check the cable regularly on whether it is damaged.
If the cable is damaged, have it replaced.
16. Never discharge the batteries up to the point when
the shears completely stop to operate.
17. Before storing the batteries for the wintertime,
charge them fully once more.
Disposal of accumulators
Please observe the following directions for the disposal
of your accumulator/battery. Batteries are not to be put
into the rubbish. As a consumer you are legally obliged
to return used batteries and accumulators. At the end of
the duration of your apparatus, the batteries or accumu-
lators have to be taken from the apparatus, disposing of
them separately. You have the possibility of delivering
your old batteries and accumulators to the local collect-
ing points of your municipality or to your dealer or to the
distribution centers.
Charging the batteries (g. 8)
Caution! Only use the charger in dry areas.
• To take out the battery, press both push-buttons on
the sides designated with the number 1 and take out
the battery. (g. 8.1)
• Connect the battery charger to the socket. Make
sure that the voltage stated on the battery charger
corresponds with the mains voltage in your socket.
(g. 8.3)
• Connect the charging set to the charging station using
the jack plug of the charging set with the socket on the
top of the charging station. (g. 8.2)
• Information on the charger:
- LED is red: Battery is charging
- LED is green: Charging complete
- LED is ashing alternatively red and green:
Fault (e.g. battery overheating)
• The period of charging amounts approximately 3 to
5 hours. During the process of charging, the battery
heats up. This is normal and it indicates no defect.
• If the battery is not lit up, check if there is electric cur-
rent in the socket. If the charging of the batteries is not
possible, give the battery charger and the batteries to
a service shop.
The batteries will self-discharge! Remove the
battery from the charge as soon as it is fully
charged.
General information on the battery: In the
interests of ensuring that the battery has a
long service life, pay attention to the following
points:
• When the battery is at low voltage, the gardening tool
switches off automatically. In this case, the battery
must be charged.
• The lithium ion battery must be charged before long
breaks in use, e.g. before winter storage.
• When the battery is fully discharged, charging time
is 5 hours.
• The lithium ion battery can be charged whatever its
current state of charge, and charging can be interrup-
ted at any time, without damaging the battery (there
is no memory effect).
6. Operation

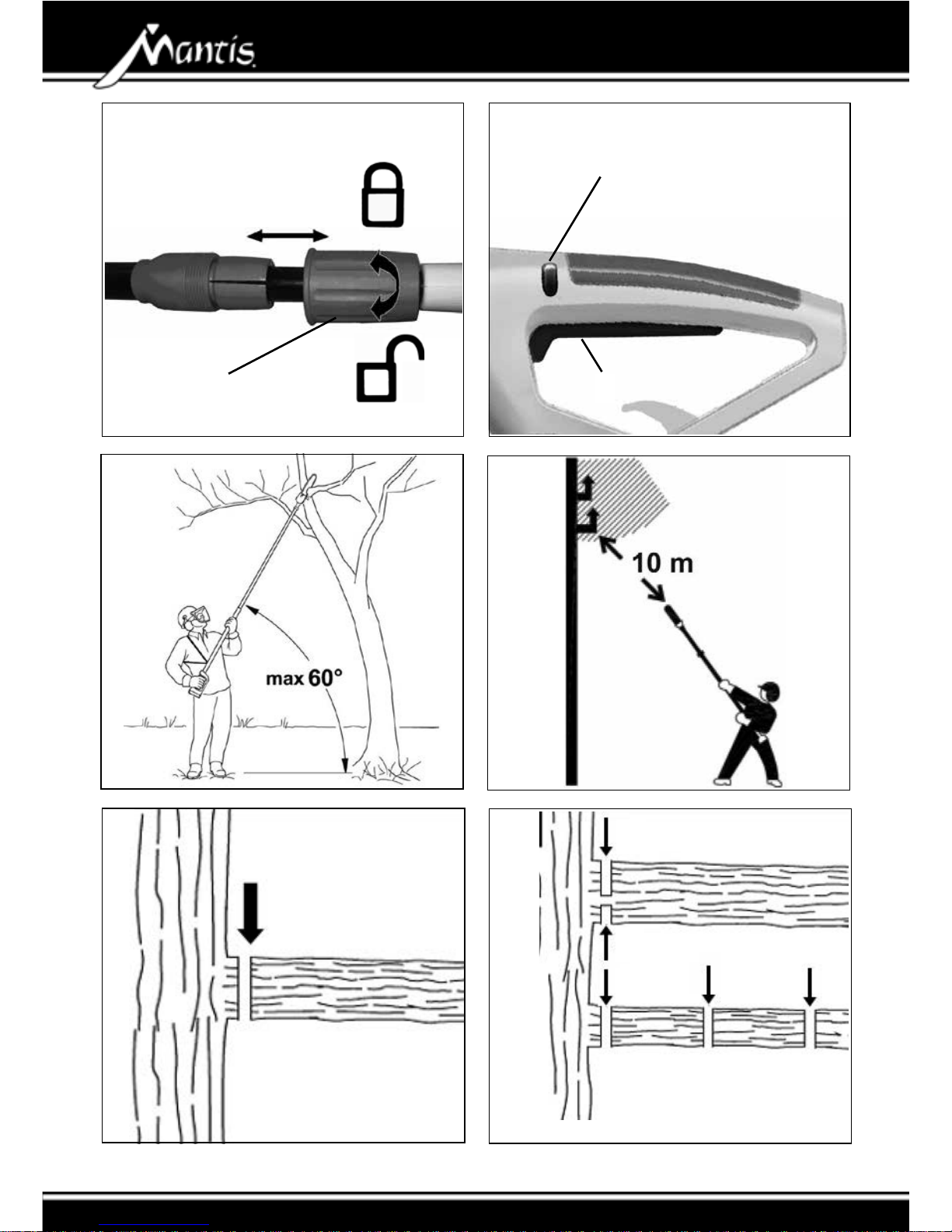

6.1 Adjusting the telescope length
1. Rotate the locking cap nut (Fig.9) anti-clockwise.
2. The lock is released and can be adjusted to the desi-
red length by pulling the ends out from one another
to the desired length.
3. Then rmly tighten the locking cap nut in clockwise
motion.
6.2 Switching on/off
Switching on
• Hold the pole pruner rmly with both hands on the
handle (thumb under the handle).
• Press and hold the switch lock (Fig.12).
• Switch the pole pruner on with the on/off switch (3).
The switch lock (15) can now be released again.
Switching off
• Release the on/off switch (3). Always remove the
battery when stopping work.

Cordless Pole Pruner Operator’s Manual
16
7. Working with the Pole Pruner
7.1 Preparation
Before each use, check the following to ensure safe
work:
Condition of the pole pruner
Inspect the pole pruner, before starting work, for damage
to the housing, the battery, the saw chain, and the blade.
Never put an obviously damaged tool into use.
After dropping or other impacts, check the tool for signi-
cant damage or defects.
Oil tank
Fill level of the oil tank. Also check whether there is
sufcient oil available while working. Never operate the
saw if there is no oil or the oil level has dropped below
the minimum oil level mark in order to prevent damage
to the chain saw. On average, an oil lling is sufcient
for 10 minutes of operation, depending on the duration
of pauses and the stress.
Saw chain
Tension of the saw chain, condition of the cutters. The
sharper the pole pruner is, the easier and more manage-
able the pole pruner is to operate. The same applies for
the chain tension. Also check the chain tension at least
once every 10 minutes while working in order to increase
safety! New saw chains, in particular, tend to have a
higher degree of elongation.
Protective clothing
Make absolutely sure to wear the appropriate, close-
tting protective clothing, such as chainsaw-protective
pants, gloves and safety shoes.
Hearing protection and protective goggles
Wear a safety helmet with integrated hearing protection
and a face guard. This provides protection against falling
branches and recoiling branches.
Installing the shoulder strap
1. When working with the tool, always use the carrying
strapand hold the tool with both hands by the handles
provided. (see Fig. 9) Close your ngers and thumbs
around the handles and pole.
2. Attach the spring hook to the shaft bracket on the
shaft (Fig.10).
Nevercarrythebeltdiagonallyacrossyourshoulders
andchest,butratheronlyononeshoulder,sothatyou
canrapidlymoveawayfromthetoolincaseofdanger.
Quick release locking device (gure 20)
Theshoulderbeltisequippedwithaquickreleasemecha-
nism as indicated in gure 20. Position the quick release
locking device (X) on front side of body (gure 20C). Open
the fastener to remove the machine from your body.
Safe work
• In order to ensure safe work, a maximum working
angle of 60° is prescribed. (Fig.13)
• Never stand below the branch to be sawed.
• Exercise caution when sawing branches under tensi-
on or splintering wood.
• Potential risk of injury from falling branches and ying
wood projectiles!
• If the machine is in operation, keep persons and ani-
mals away from the danger area.
• The machine is not protected against electric shock
when coming into contact with high-voltage lines.
Maintain a minimum clearance of 10 m from current-
carrying lines. Life-threatening danger from electric
shock! (Fig.14)
• When working on an incline, always stand above or to
the side of the branch to be sawed.
• Hold the machine as close as possible to your body.
By doing so, you maximise your balance.
• Before cutting clear the working area of disruptive
branches and undergrowth. Then create a fallback
area, away from the point where sawn branches
could fall, and remove all obstructions from this area.
Keep the working area free of obstruction; remove
fallen branches immediately. Place other tools and
machines at a safe distance from the branches you
are working on, but not in the fallback area.
• Pay attention to falling branches! As soon as a cut
branch begins to break off, immediately move off to
the side and maintain sufcient distance from the
falling wood.
Sawing techniques
• When removing branches, hold the machine at an an-
gle ranging from a maximum 60° to horizontal in order
to avoid being struck by a falling branch.
• Saw off the lower branches on the tree rst. By do-
ing so, it is easier for the cut branches to fall to the
ground.
• At the end of the cut, the weight of the saw suddenly
increases for the user, because the saw is no longer
supported on the branch. There is the risk of losing
control of the saw.
• Only pull the saw out of the cut with the saw chain
running. By doing so, you can prevent it from getting
jammed.
• Do not saw with the tip of the guide bar.
Sawing off smaller branches (Fig.15)
Place the stop face of the saw on the branch. This pre-
vents tful movements of the saw at the beginning of the
cut. Applying light pressure, guide the saw through the
branch from top to bottom.

Contact us at www.mantis.uk.com
17
Sawing off larger and longer branches (Fig.16)
Make a relief cut when sawing larger branches.
a) First saw through 1/3 of the branch diameter from
bottom to top using the top side of the guide bar.
b) Then saw from top to bottom to the rst cut using the
bottom side of the guide bar.
c) Saw off longer branches in sections in order to
maintain control over the location of impact.
Kickback
The term kickback refers to when the pole pruner sud-
denly jumps up and back. This is usually caused by the
workpiece coming into contact with the guide bar tip or
the clamping of the saw chain.
Akickback generates abrupt, powerful forces. Therefore,
the pole pruner usually reacts in an uncontrolled manner.
The consequence is often the severe injury of the user
or nearby persons.
The danger of a kickback is greatest if you apply the area
near the guide bar tip to a branch, because the leverage
effect is greatest there. Therefore, always apply the saw
as atly as possible.
Avoid recoil! (Abb.17)
Recoil can occur when the running saw chain on the top
quarter of the guide rail strikes a xed object or jams
(Fig. 17).
Pulling in! (Abb.18)
If the chain suddenly becomes stuck, jammed or strikes
a foreign object in the wood, the saw will be pulled for-
wards into the wood with a jerk (Fig. 18).
Avoid kickback! (Abb.19)
Kickback occurs when the chain suddenly becomes
stuck on the top of the rail, because it is jammed or has
struck a foreign object in the wood. The chain can then
jerk the saw back against the user (Fig. 19).
Attention!
• Always make sure that the chain tension is correct!
• Only use properly functioning pole pruner!
• Only work with a saw chain sharpened according to
regulations!
• Never saw with the upper edge or tip of the guide bar!
• Always hold the pole pruner rmly with two hands!
Sawing wood under tension
Sawing wood which is under tension necessitates ele-
vated caution! Wood that is under tension and is then
released from that tension when cut occasionally reacts
in a completely uncontrolled manner. This can result in
severe to deadly injuries. Such work may only be perfor-
med by trained specialists.

Cordless Pole Pruner Operator’s Manual
18
8. Technical Specications
Battery-operated pole pruner 8580 (AAS 2420)
Rated Voltage 24 V DC / 1,9 Ah / 45,6 Wh
No-load Speed 1800 min-1
Guide Bar 200 mm
Cutting length ca. 17,5 cm
Variable height adjustment from 1.85 m to 3.15 m
Working height up to 4.5 m
Oil 60 ml
Weight with bar+chain 3.8 kg
Chain type 91PJ033X
Guide Bar type 080SDEA041
Sound Pressure Level (EN ISO 11680-1) 76,60 dB(A) K = 2.5 dB
Acoustic capacity level LWA (EN ISO 11680-1) 92 dB(A) K = 3 dB
Vibration (EN ISO 11680-1) 1.251 m/s2K = 1.5 m/s2
Mains battery charger
Mains voltage 230 V~ / 50 Hz
Charging voltage / Charging current 25.9 V DC / 500 mA
Period of charging approx 3-5 hour
Technical changes are reserved.
Noise emission information in accordance with the German Product Safety Act (ProdSG) and the EC Machine Direc-
tive: the noise pressure level at the place of work can exceed 80 dB(A). In such cases the operator will require noise
protection (e.g. wearing of ear protectors).
Wear hearing protection. The inuence of noise can cause hearing loss.
Attention!
The vibration value will change on the basis of the area of application of the electric tool and may lie above the
specied value in exceptional situations.
Keep the development of noise and vibration to a minimum!
• Only use properly functioning machines.
• Maintain and clean the machine regularly.
• Adapt your working method to the machine.
• Do not overstress the machine.
• If necessary, have the machine inspected.
• Switch the machine off when it is not in use.
• Wear work gloves.
Attention: Noise protection! Please observe the local regulations when operating your device.
Warning!
The prolonged utilisation of a tool will subject the user to vibration and shocks that could lead to Raynaud‘s syndrome
or Carpal tunnel syndrome.
This condition reduces the ability of the hand to sense and regulate temperature, causes numbness and a sensation
of heat and can lead to damage to the nervous system and the circulatory system and to necrosis.
Not all factors that lead to Raynaud‘s syndrome are known but cold water, smoking and illnesses that impact the blood
vessels and the circulatory system as well as severe or long-lasting exposure to vibrations are known to be factors in
the development of Raynaud‘s syndrome. Observe the following in order to reduce the risk of Raynaud‘s syndrome
and Carpal tunnel syndrome:
• Wear gloves and keep your hands warm.
• Make sure the device is well maintained. A tool with loose components or with damaged or worn-out dampers will
have a disposition towards increased vibrations.
• Always hold the handle rmly but do not clutch it constantly with excessive force. Take breaks often.
All of the above precautions cannot exclude the risk of Raynaud‘s syndrome or Carpal tunnel syndrome. Therefore,
with long-term or regular use it is advisable to keep a close watch on the condition of your hands and ngers. Seek
medical attention immediately in the event of any of the above symptoms appearing.

Contact us at www.mantis.uk.com
19
Attention!
• Always replace the protective cover for transport or
storage of the chainsaw.
• Remove the battery each time before cleaning.
• Never immerse the machine in water or other liquids.
• Store the pole pruner in a safe and dry place and out
of the reach of children.
11. Information for Environmental Protection/
Disposal
Dispose of the machine properly after it is worn out. Dis-
connect the mains cable in order to prevent misuse. Do
not dispose of the machine with the household waste. In
the interest of environmental protection, take it to a coll-
ection point for electric machines. Your responsible local
authority can provide you with addresses and operating
times. Also take the packaging materials and worn out
accessories to the appropriate collection points.
Only for EU countries
Do not discard electric tools in the household
waste!
In accordance with European Directive 2002/96/EC
on waste electrical and electronic equipment and its
implementation in national law, waste electric tools must
be collected separately for environmentally-compatible
re-use.
Recycling alternative to the return invitation:
Instead of returning the electric equipment, the owner is
alternatively obligated to take part in the proper recycling
in the case of relinquishment of ownership. The waste
equipment can also be taken to a collection facility which
disposes of it in the sense of the national recycling ma-
nagement and waste acts. This does not pertain to the
accessory parts and auxiliary equipment without elec-
trical components accompanying the waste equipment.
12. Ordering Spare Parts
The following information should be provided when
ordering spare parts:
• Type of machine
• Item number of the machine
9. Maintenance
9.1 Replacing the saw chain and guide bar
The guide bar must be replaced if
• the guide groove of the guide bar is worn out.
• the spur wheel in the guide bar is damaged or worn
out.
For this purpose, proceed as described in the chapter
“Assembly of the guide bar and saw chain“!
9.2 Checking the automatic chain lubrication
Regularly check the functionality of the automatic chain
lubrication in order to prevent overheating and the
subsequent damage to the guide bar and saw chain
associated with it. For this purpose, align the guide bar
tip against a smooth surface (board, cut-in of a tree) and
allow the pole pruner to run. If an increasing amount of
oil appears, the automatic chain lubrication functions
properly. If no clear trace of oil appears, please read the
appropriate information in the chapter “Fault remedy“!
If this information does not help, please contact our cu-
stomer service or a similarly qualied workshop.
Attention! Do not touch the surface during the
process. Maintain a sufcient safety clearance
(approx. 20 cm).
9.3 Sharpening the saw chain
Effective work with the pole pruner is only possible if
the saw chain is in good condition and sharp. This also
reduces the danger of a kickback. The saw chain can
be resharpened by a specialty dealer. Do not attempt
to sharpen the saw chain yourself if you do not have a
suitable tool and the necessary experience.
10. Cleaning and Storage
• Regularly clean the tensioning mechanism by blowing
compressed air onto or cleaning it with a brush. Do
not use any tools for the cleaning.
• Keep oil away from the handle in order to ensure a
secure hold.
• Clean the machine as necessary with a damp cloth
and a mild cleanser, if appropriate.
• If the pole pruner is not used for an extended period of
time, remove the chain oil from the tank. Briey place
the pole pruner and the guide bar in an oil bath and
then wrap it in oil paper.
Caution! The saw chain is sharp.
• When storing and transporting the tool, always t the
protective cover.
• Secure the tool during transport, in order to avoid
damage or injuries.
• Always clean and perform maintenance work on the
tool before placing it in storage.

Cordless Pole Pruner Operator’s Manual
20
Cause Fault Remedy
Chainsaw operates irregularly External loose connection Take saw to a specialty workshop
Internal loose connection Take saw to a specialty workshop
Defective on/off switch Take saw to a specialty workshop
Saw chain dry No oil in the tank Re-ll oil
Ventilation in the oil tank cap clogged Clean oil tank cap
Oil tank ow channel clogged Unclog oil ow channel
Chain/guide rail hot No oil in the tank Re-ll oil
Ventilation in the oil tank cap clogged Clean oil tank cap
Oil tank ow channel clogged Unclog oil ow channel
Dull chain Re-sharpen or replace chain
Chainsaw jumps up, vibrates or
does not saw properly Chain tension too loose Adjust chain tension
Dull chain Re-sharpen or replace chain
Chain worn out Replace chain
Saw teeth pulling in the wrong
direction Re-mount saw chain with teeth in the correct direction
13. Repair Service
Repairs to electric power tools should only be carried out
by specialist electrical personel.
UK Mantis UK Limited
Orchard House
Hempshaw Lane
Stockport
Cheshire SK1 4LH
Phone - 4401614741525
Europe Mantis France SARL
20 rue des Garennes
57155 Marly
France
Tél [phone]
Or contact your local Mantis authorised dealer.
14. Fault Finding
Caution!
Before performing troubleshooting, switch off the
tool and remove the battery.
The following table shows fault symptoms and describes
how they can be rectied if your machine is not function-
ing properly. If this does not help you localise and rectify
the problem, contact your service workshop.
