manvia DG-50 Instruction manual

DEGASSING SYSTEM DG-50 INSTALLATION OPERATION & MAINTENANCE MANUAL
INSTALLATION, OPERATION &
MAINTENANCE MANUAL
MANVIA SAMPLE DEGASSING SYSTEMS
MANVIA ESPAÑA
Camino Fontán Porceyo 590
33392 - Porceyo
Asturias - Es aña
([phone]
[e-mail]
www.analyzersmanvia.com
SAMPLE DEGASSING SYSTEM DG
-
50

DEGASSING SYSTEM DG-50 INSTALLATION OPERATION & MAINTENANCE MANUAL
MA-DG-50r01
2
INDEX
Notes on Safety ........................................................................................................................................3
1 APPLICATIONS ..........................................................................................................................................4
2 SPECIFICATIONS .......................................................................................................................................4
3 GENERAL DESCRIPTION ............................................................................................................................5
4 INSTALLATION ..........................................................................................................................................9
4.1 Mechanical .......................................................................................................................................9
4.2 Process connections ...................................................................................................................... 10
4.3 Electrical connections ................................................................................................................... 12
5 START UP ............................................................................................................................................... 13
6 OPERATION ........................................................................................................................................... 15
7 PROGRAMMING .................................................................................................................................... 15
7.1 Tem erature set oint adjusting .................................................................................................. 16
7.2 PID control arameters adjusting ................................................................................................. 18
8 MAINTENANCE ...................................................................................................................................... 19
8.1 Preventive maintenance ............................................................................................................... 19
8.2 S are arts .................................................................................................................................... 19
8.3 Standard warranty ........................................................................................................................ 20

DEGASSING SYSTEM DG-50 INSTALLATION OPERATION & MAINTENANCE MANUAL
MA-DG-50r01
3
Notes on Safety
In this manual, you will find various notes categorized under the following levels with the signal
words “DANGER” and “CAUTION”.
DANGER Indica es a hazardous si ua ion which, if ma erialized, could resul in a
serious injury and even in dea h.
CAUTION Indica es a hazardous si ua ion which, if ma erialized, could resul in
ma erial damage or a modera e injury.
DANGER
Never use the in ut and out ut signals of the unit for o erations that may
threaten human life, cause damage to the system.
Turn off the ower su ly when you set u the unit, connect new cables, or
erform maintenance or ins ections. Failure to do so could cause electric shock
or damage to the unit.
Never touch any terminals while the ower is on. Otherwise, electric shock may
occur.
CAUTION
Periodically check that the terminal screws on the ower su ly terminal block
and mounting nuts are firmly tightened. Using the unit with loose screws may
result in fire or malfunction.
Connect the cables correctly to the
ower su ly
terminals of the unit in
accordance with the s ecified voltage and wattage. Failure to su ly the
correct voltage or wattage, or im ro er cable connection may cause fire,
malfunction, or damage to the unit
Do not attem t to re air, disassemble, or modify
DG
-
50
sam le degassing
system, MANVIA is not res onsible for any damages resulting from re airs,
disassembly, or modification by unauthorized ersonnel.
Do not use shar
-
ointed tools to ress touch switches. Doing so may damage
the screen.
Do not uninstall or remove the rotection agains
t thermal contacts. It could
cause moderate burns to the o erator.
Only ersonnel who ossess the required knowledge and technical skills are
authorized to set u the unit, connect the cables, and erform maintenance
and ins ections.

DEGASSING SYSTEM DG-50 INSTALLATION OPERATION & MAINTENANCE MANUAL
MA-DG-50r01
4
1APPLICATIONS
MANVIA DG-50 System offers a new design for conductivity measurement for water-steam cycle
chemistry monitoring. This system ensures an effective CO₂ removal from sam le and an
a ro riate tem erature conditioning for an accurate degassed conductivity measurement.
Therefore, maximizing ower roduction and minimizing corrosion of equi ment. Furthermore,
o tional sam le self-cooling is available.
2SPECIFICATIONS
Max Pressure/Temp Ratin : 4 bar( ) / 50 ⁰C
Sample Flow: 80 - 250 ml /min.
Sample Connections Inlet/Outlet: 1/4” NPTF
Drain (sample and condensates common) ½” NPTM
Cooler Coolin Water Connect. (Only external coolin Opt) ¼” NPTF
Coolin Water Consumption (Only external coolin Opt) 4 l/min
Input Power: 120 VAC 60 Hz or 230 VAC 50 Hz
Power Consumption: 1600 Watts
Plate mountin material : Stainless steel AISI 304
Electric Enclosure Ratin : IP66 / NEMA 4
Dimensions (HxWxD) 850 x 350 x 328 mm. (33.5 x 13.8 x 12.9”)
Wei ht 25 k (55.1 lbs.)

DEGASSING SYSTEM DG-50 INSTALLATION OPERATION & MAINTENANCE MANUAL
MA-DG-50r01
5
3GENERAL DESCRIPTION
The objective of the degassing system is to raise the tem erature of the sam le to its boiling oint,
in order to remove the greatest amount of CO₂ from it. To maximize the extraction efficiency of
CO₂ and minimize the roduction of water va or, recise tem erature control has been designed
by means of a control loo formed by a tem erature controller, an RTD and a heating cartridge
that rovides the necessary heat, to raise and maintain the tem erature at the required set oint.
The CO₂ extracted from the sam le leaves the atmos here through a tube, which travels through
the interior of a cooler, which guarantees that, in case of va or occur at any time, it will condense
and will be removed by means of the general drainage of the system.

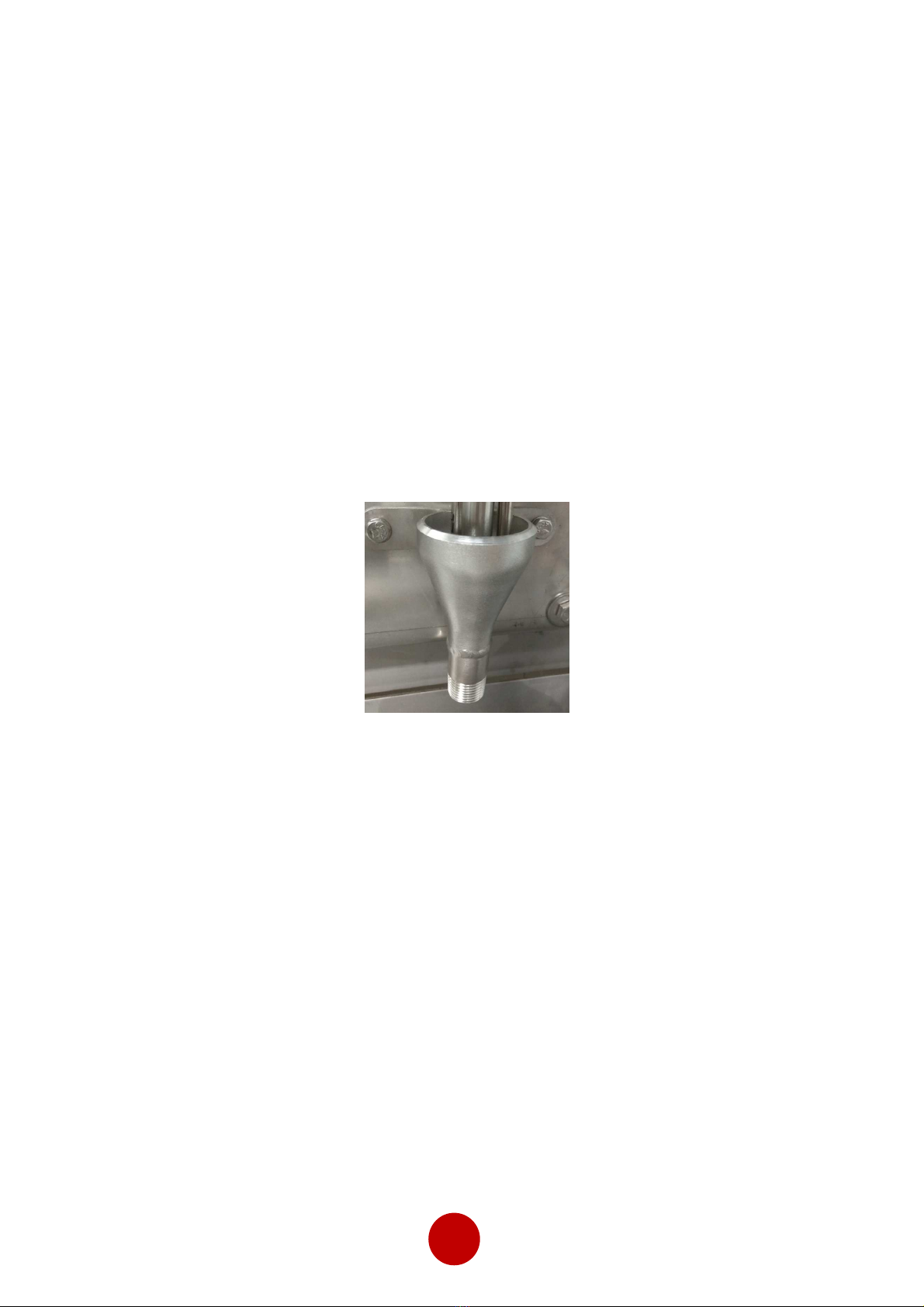

Drainage funnel
After the elimination of CO₂, the sam le requires cooling to erform a measurement of degassed
conductivity under o timal conditions. That is why the sam le is directed to a cooler, for the
o eration of which, there are two o tions: Sam le is cooled with cooling water from an external
source or it exchanges heat with itself, by assing the sam le through the cooler rior to assing
through the heater.

DEGASSING SYSTEM DG-50 INSTALLATION OPERATION & MAINTENANCE MANUAL
MA-DG-50r01
6
Heat exchanger Heating cartridge
The o tion of self-cooling, guarantees great stability to the system in the event of disturbances in
the flow or tem erature of the sam le, as well as, not requiring a consum tion of cooling water
and the installation required for cooling water su ly.

DEGASSING SYSTEM DG-50 INSTALLATION OPERATION & MAINTENANCE MANUAL
MA-DG-50r01
7
Self-cooling option dimensional drawing
CCD Measurement
DRAIN
350 328
50
600
850
230
100
180
SAMPLE OUT
1/4" NPT
SAMPLE IN.
1/4" NPT
Ø 10
VACUUM BREAK
NOTE:
TAKE INTO ACCOUNT
THE HEIGHT FOR THE
INSTALLATION OF
THE VACUUM
BREAKER LEVEL
350
300
150mm
Elevation from
DG Inlet
140 mm
Recommended height for
VACUUM BREAK installation
NOT INCLUDED

DEGASSING SYSTEM DG-50 INSTALLATION OPERATION & MAINTENANCE MANUAL
MA-DG-50r01
8
External cooling water option dimensional drawing
350 328
50
600
850
230
100
180
SAMPLE OUT
1/4" NPT
SAMPLE IN.
1/4" NPT
Ø 10
350
300
100
COOLING W.
IN
1/4" NPT
COOLING W.
OUT
1/4" NPT
150mm
Elevation from
DG Inlet
140 mm
Recommended height for
VACUUM BREAK installation
CCD Measurement
DRAIN
VACUUM BREAK
NOTE:
TAKE INTO ACCOUNT
THE HEIGHT FOR THE
INSTALLATION OF
THE VACUUM
BREAKER LEVEL
NOT INCLUDED

DEGASSING SYSTEM DG-50 INSTALLATION OPERATION & MAINTENANCE MANUAL
MA-DG-50r01
9
4INSTALLATION
CAUTION: THE NECESSARY PROTECTIVE EQUIPMENT MUST BE USED IN ORDER TO AVOID
KNOCKS, CUTS AND ENTRAPMENTS DURING INSTALLATION. FOLLOW THIS PROCEDURE FOR
CORRECT INSTALLATION.
4.1 Mechanical
This device must be located avoiding vibrations and direct ex osition to sunlight. The system incor orates
four holes in the four corners of degassing system anel, in order to fix it to a vertical wall. The degassing
system must be mounted in vertical osition, using four M-10 bolts in order to fix it to a smooth and bare
wall. It is im ortant that in normal o eration, the rear art of the mounting late doesn’t be accessible in
order to avoid burns to o erators.
Anchorage holes in mounting plate

DEGASSING SYSTEM DG-50 INSTALLATION OPERATION & MAINTENANCE MANUAL
MA-DG-50r01
10
4.2 Process connections
De ending on the degassing system o tion chosen, rocess connections may vary in number and ty e,
according to the next chart:
CONNECTION
DESCRIPTION DG50-0-C DG50-0-D DG50-1-C DG50-1-D
SAMPLE INLET 1/4“ NPTF 1/4“ NPTF 1/4“ NPTF 1/4“ NPTF
SAMPLE OUTLET 1/4“ NPTF 1/4“ NPTF 1/4“ NPTF 1/4“ NPTF
DRAIN 1/2“ NPTM 1/2“ NPTM 1/2“ NPTM 1/2“ NPTM
COOLING WATER INLET N/A N/A 1/4“ NPTF 1/4“ NPTF
COOLING WATER OUTLET N/A N/A 1/4“ NPTF 1/4“ NPTF
Cooling water connections
Cooling water connections are not required when self-cooling o tion is installed. In case of external cooling
water o tion, follow next ste s:
•Kee the length of all tubing to a minimum. Only 80 mm of straight tube, must be res ected
from connection fitting (¼” NPTF) to the revious curve u stream.
•Connect the cooling water IN. Should be i ed to the left lower side of the mounting late, in
¼” nominal bore tube and connected by means of ¼” NPTM fitting to ¼ NPTF connector.
Connection is labelled with the indication “COOLING W. IN”.
•Pi e the cooling water OUT. Should be i ed to the left lower side of the mounting late, in ¼”
nominal bore tube and connected by means of ¼” NPTM fitting to ¼ NPTF connector.
Connection is labelled with the indication “COOLING W. OUT”.
Cooling water inlet and outlet connections

DEGASSING SYSTEM DG-50 INSTALLATION OPERATION & MAINTENANCE MANUAL
MA-DG-50r01
11
Sample inlet and outlet connections
•It is advisable, the use of corrosion resistant i ework, suitable for the fluid being sam led, in
order to connect degasser system, to sam ling stream.
•Kee the length of tubing to a minimum. Only 80 mm of straight tube, must be res ected from
connection fitting (¼” NPTF), to the revious curve u stream.
•Connect sam le IN, in the left u er side connections of the degasser system by using ¼” NPTM
fitting to ¼ NPTF connector. Connection is labelled with the indication “SAMPLE IN”.
•Connect sam le OUT, in the left u er side connections of the degasser system by using ¼”
NPTM fitting to ¼ NPTF connector. Connection is labelled with the indication “SAMPLE OUT”.
Sample inlet and outlet connections
Drain connections
All ossible effluents roduced by the degassing system, are directed to a funnel in the lower art of the
anel. Therefore, there is an only drain connection in the system. The drain i e, must be connected to the
½” NPTM threaded connection, in the lower art of the funnel.
Drain i e length must be as short as ossible, and minimum size ½” in order to avoid back ressure.
Furthermore, funnel must be higher than any other oint in drain i e ath and drain oint, must be at
atmos heric ressure.
Drain connection

DEGASSING SYSTEM DG-50 INSTALLATION OPERATION & MAINTENANCE MANUAL
MA-DG-50r01
12
4.3 Electrical connections
CAUTION: IT WILL BE NECESSARY TO VERIFY THAT THERE IS NO VOLTAGE IN POWER SUPPLY CABLE
BEFORE TO START ELECTRIC WIRING. FOLLOW THIS PROCEDURE FOR CORRECT INSTALLATION:
Power supply connection
Degassing system, must be electrically su lied by connecting ower su ly cable to terminals X0. Required
cable has to be three wires and size of wires must be 4 mm² (L+N+PE). Before connect cable, voltage su ly
must be checked and must be between 100-240 VAC 50/60 Hz.
Power supply terminals block
Follow next ste s:
•O en the steel electrical box, located in the u er art of the anel.
•Verify that the automatic switch (Q1) is switched off. If not, switch them off.
•Introduce three wire ower su ly cable by using M-20 gland in left lower side of electrical box
•Connect the main cables in terminals 1, 2, and ground cable in green/yellow terminal, in X0
terminals block, in the lower side of terminals.
•Finally, adjust gland to the cable and ensure that is correctly clam ed.

DEGASSING SYSTEM DG-50 INSTALLATION OPERATION & MAINTENANCE MANUAL
MA-DG-50r01
13

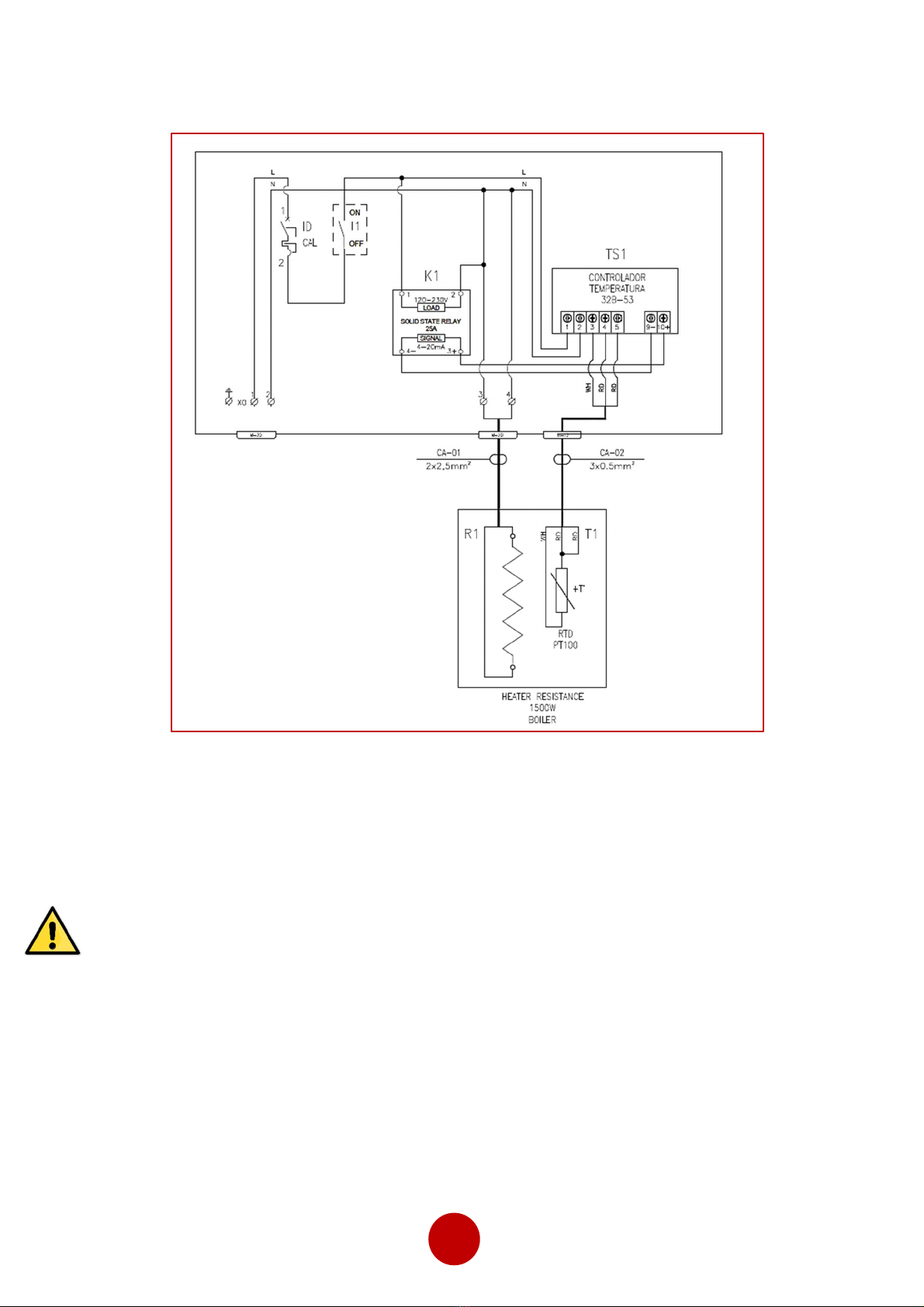

Degassing system electric wiring diagram
5START UP
DANGER: TO AVOID THE RISK OF BURNS, IT IS ESSENTIAL BEFORE START-UP, VERIFY THAT IS
NOT POSSIBLE TO ACCESS THE REAR PART OF THE MOUNTING PLATE. IF INSTALLED AS SPECIFIED
IN THIS MANUAL, THERE IS NO RISK FOR ACCIDENTAL CONTACT WITH HOT PARTS. FOLLOW THIS
PROCEDURE FOR SAFE OPERATION:
•O en the cooling water inlet and outlet valves (if installed), for non self-cooling systems and
ensure that a full flow can be seen at the cooling water outlet.
•Gradually o en the sam le inlet valve (not included in the system) and regulate the flow to
achieve a value between 100 to 250 cm³/min. Then is necessary to wait the time required for
the sam le to go out from sam le outlet.

DEGASSING SYSTEM DG-50 INSTALLATION OPERATION & MAINTENANCE MANUAL
MA-DG-50r01
14
CAUTION: BEFORE TO START-UP THE SYSTEM, IT MUST BE VERIFIED THAT THERE IS SAMPLE
FLOW, FLOWING AT THE SAMPLE OUTLET. IF NOT, HEATER MAY BE DAMAGED BY INTERNAL
OVERHEATING.
•Switch on the circuit breaker (Q1) inside the electrical box to start u the equi ment and close
the electrical box.
•Then, in order to energize heater and tem erature controller, interru ter in electric box cover
must be switched on.
•In normal conditions, after circuit breaker is activated, and interru ter in electric box cover is
switched on, heater and tem erature controller, both will be energized.
Circuit breaker
•In case of cold starting wait at least half an hour until tem erature gets stabilized for getting
accurate measurements.
Tem erature controller arameters (with exce tion of tem erature set oint) are worksho adjusted and
usually, it won´t be necessary to modify it, but if required, this o eration is described in cha ter 7
(Programming).

DEGASSING SYSTEM DG-50 INSTALLATION OPERATION & MAINTENANCE MANUAL
MA-DG-50r01
15
6OPERATION
Main o eration dis lay is shown when controller is energized and looks like a ears bellow:
The arameters shown in figure above are:
1. These digits, indicate tem erature measured inside boiler in the selected tem erature units, if
system is stabilized, that will be the boiling oint of water in this moment.
2. These digits, indicate the adjusted tem erature set oint in the selected tem erature units. This
arameter must be adjusted according to installation site altitude.
3. If working ro erly, out ut 1 should control heater, then OUT1 light must be green. AT, OUT2 or
ALM, never must be lighted.
4. De ending on the tem erature units selected, green light close to ⁰C or close to ⁰F will be lighted,
only one must be lighted.
7PROGRAMMING
Next figures, show the function name of each key:
Enter key
Index key
Down arrow
U arrow

DEGASSING SYSTEM DG-50 INSTALLATION OPERATION & MAINTENANCE MANUAL
MA-DG-50r01
16
7.1 Temperature set point adjustin
There are only two arameters which is mandatory to adjust, before to start-u the system, these
arameter is tem erature set oint, and must be adjusted according to next rocedure:
•First of all, tem erature units must be adjusted, by default, the controller is worksho rogrammed
for °C:
 Press enter key and hold for at least 5 seconds. Then a ears the next menu:
Then ress index key and the next menu a ears:
By ressing down arrow key is ossible to change tem erature units to °F:
To return to °C units, ress u arrow key
Finally, to return to o eration main dis lay, ress enter key.
•Second stage, is site installation altitude in meters verification.
•Once installation altitude is obtained, the corres onding values must be searched in the “Altitude”
field of the next table:

DEGASSING SYSTEM DG-50 INSTALLATION OPERATION & MAINTENANCE MANUAL
MA-DG-50r01
17
Altitude Boiling
temperature Boiling temperature Altitude Boiling temperature Boiling temperature Altitude Boiling temperature Boiling temperature
meters °C °F meters °C °F meters °C °F
0 100 212,0 1800 94 201,2 4150 86,1 187,0
50 99,8 211,6 1850 93,9 201,0 4200 85,9 186,6
100 99,7 211,5 1900 93,7 200,7 4250 85,8 186,4
150 99,5 211,1 1950 93,5 200,3 4300 85,6 186,1
200 99,3 210,7 2000 93,3 199,9 4350 85,5 185,9
250 99,2 210,6 2050 93,2 199,8 4400 85,3 185,5
300 99 210,2 2100 93 199,4 4450 85,1 185,2
350 98,8 209,8 2150 92,8 199,0 4500 84,9 184,8
400 98,7 209,7 2200 92,7 198,9 4550 84,8 184,6
450 98,5 209,3 2250 92,5 198,5 4600 84,6 184,3
500 98,3 208,9 2300 92,4 198,3 4650 84,4 183,9
550 98,2 208,8 2350 92,2 198,0 4700 84,3 183,7
600 98 208,4 2400 92 197,6 4750 84,1 183,4
650 97,9 208,2 2450 91,9 197,4 4800 84 183,2
700 97,7 207,9 2500 91,7 197,1 4850 83,8 182,8
750 97,5 207,5 2550 91,5 196,7 4900 83,6 182,5
800 97,3 207,1 2600 91,3 196,3 4950 83,4 182,1
850 97,2 207,0 2650 91,2 196,2 5000 83,3 181,9
900 97 206,6 2700 91 195,8 5050 83,1 181,6
950 96,8 206,2 2750 90,9 195,6 5100 82,9 181,2
1000 96,7 206,1 2800 90,7 195,3 5150 82,7 180,9
1050 96,5 205,7 2850 90,5 194,9 5200 82,6 180,7
1100 96,3 205,3 2900 90,3 194,5 5250 82,4 180,3
1150 96,2 205,2 2950 90,2 194,4 5300 82,3 180,1
1200 96 204,8 3000 90 194,0 5350 82,1 179,8
1250 95,9 204,6 3050 89,8 193,6 5400 81,9 179,4
1300 95,7 204,3 3100 89,7 193,5 5450 81,7 179,1
1350 95,5 203,9 3150 89,5 193,1 5500 81,6 178,9
1400 95,3 203,5 3200 89,3 192,7 5550 81,4 178,5
1450 95,2 203,4 3250 89,2 192,6 5600 81,2 178,2
1500 95 203,0 3300 89 192,2 5650 81,1 178,0
1550 94,8 202,6 3350 88,8 191,8 5700 80,9 177,6
1600 94,7 202,5 3400 88,7 191,7 5750 80,7 177,3
1550 94,8 202,6 3900 87 188,6 5800 80,6 177,1
1600 94,7 202,5 3950 86,8 188,2 5850 80,4 176,7
1650 94,5 202,1 4000 86,6 187,9 5900 80,2 176,4
1700 94,3 201,7 4050 86,5 187,7 5950 80,1 176,2
1750 94,2 201,6 4100 86,3 187,3 6000 80 176
*If altitude value is between two values, linear inter olation can be done.

DEGASSING SYSTEM DG-50 INSTALLATION OPERATION & MAINTENANCE MANUAL
MA-DG-50r01
18
•To adjust tem erature set oint, follow the next ste s:
Push enter key an hold for three seconds and the next menu a ears:
Then ush index key two times and next dis lay a ears:
By ressing down arrow key or u arrow key, is ossible to change tem erature set oint the
required value.
7.2 PID control parameters adjustin
If is required, from tem erature adjusting dis lay, is ossible to access to PID control arameters:
•If index key is ushed once, then is ossible to adjust ro ortional band in % (by using arrow keys), in
the next dis lay.
•If index key is ushed twice, then is ossible to adjust integration time in seconds (by using arrow keys),
in the next dis lay.

DEGASSING SYSTEM DG-50 INSTALLATION OPERATION & MAINTENANCE MANUAL
MA-DG-50r01
19
•If index key is ushed three times, then is ossible to adjust derivative time in seconds (by using arrow
keys), in the next dis lay.
•Finally, to return to o eration main dis lay, ress enter key.
DANGER: MANVIA IS NOT RESPONSIBLE FOR ANY PROGRAMMING CHANGE NOT DESCRIBED IN
THIS MANUAL, NEITHER FOR ANY PID CONTROL PARAMETERS CHANGE WHAT ARE WORKSHOP
ADJUSTED.
8MAINTENANCE
8.1 Preventive maintenance
In case of non self-cooling systems, remove scale from cooler by circulating an inhibited sulfamic acid
cleaning solution through the cooling water side. No other reventive maintenance o eration is needed.
8.2 Spare parts
DEGASSER SYSTEM SPARE PARTS
Par #
Name
H
-
1500
-
120
Heating cartridge 120 VAC
H
-
1500
-
230
Heating cartridge 230 VAC
RD
-
105
Solid State relay 110
-
230 VAC 50/60 Hz
MV
-
PT105
Tem erature sensor
TC
-
50
Programmed
tem erature controller

DEGASSING SYSTEM DG-50 INSTALLATION OPERATION & MAINTENANCE MANUAL
MA-DG-50r01
20
H-1500-120/230 TC-50 RD-105
MV-PT105
8.3 Standard warranty
MANVIA warrants roducts manufactured and su lied by it, to be free from defects in
workmanshi and, to the extent materials are selected by Seller, to be free from defects in
materials, for a eriod of twelve months from shi ment.
All rights reserved. All roduct and com any names are ro erty of their res ective owners. This
document contains ro rietary information. No art of this document may be hotoco ied or
re roduced without the rior written consent of Manvia S.A. Sucursal Es aña.
