Marantz SR2100 User manual

Model SR2100 User Guide
Tuner Amplifier
R

ENGLISH
WARRANTY
For warranty information, contact your local Marantz distributor.
RETAINYOUR PURCHASE RECEIPT
Your purchase receipt is your permanent record of a valuable purchase.
It should be kept in a safe place to be referred to as necessary for
insurance purposes or when corresponding with Marantz.
IMPORTANT
When seeking warranty service, it is the responsibility of the consumer
to establish proof and date of purchase.Your purchase receipt or in-
voice is adequate for such proof.
FOR U.K. ONLY
This undertaking is in addition to a consumer's statutory rights and does
not affect those rights in any way.
FRANÇAIS
GARANTIE
Pour des informations sur la garantie, contacter le distributeur local
Marantz.
CONSERVER L'ATTESTATION D'ACHAT
L'attestation d'achat est la preuve permanente d'un achat de valeur.La
conserver en lieu sur pour s'y reporter aux fins d'obtention d'une
couverture d'assurance ou dans le cadre de correspondances avec
Marantz.
IMPORTANT
Pour l'obtention d'un service couvert par la garantie, il incombe au cli-
ent d'établir la preuve de l'achat et d'en corroborer la date.Le reçu ou la
facture constituent des preuves suffisantes.
DEUTSCH
GARANTIE
Bei Garantiefragen wenden Sie sich bitte an Ihren Marantz-Händler.
HEBEN SIE IHRE QUITTING GUT AUF
Die Quittung dient Ihnen als bleibende Unterlage für Ihren wertvollen
Einkauf Das Aufbewahren der Quittung ist wichtig, da die darin
enthaltenen Angaben fürVersicherungswecke oder bei Korrespondenz
mit Marantz angeführt werden müssen.
WICHTIG!
Bei Garantiefragen muß der Kunde eine Kaufunterlage mit Kaufdatum
vorlegen.Ihren Quittung oder Rechnung ist als Unterlage ausreichend.
NEDERLANDS
GARANTIE
Voorinlichtingen omtrent garantiedient u zich tot uw plaatselijke Marantz.
UW KWITANTIE, KASSABON E.D. BEWAREN
Uw kwitantie, kassabon e.d. vormen uw bewijs van aankoop van een
waardevol artikel en dienen op een veilige plaats bewaard te worden
voorevt, verwijzingbijv,in verbend met verzekering of bij correspondentie
met Marantz.
BELANGRIJK
Bij een evt, beroep op de garantie is het de verantwoordelijkheid van de
consument een gedateerd bewijs van aankoop te tonen. Uw kassabon
of factuurzijn voldoende bewijs.
ESPAÑOL
GARANTIA
Para obtener información acerca de la garantia póngase en contacto
con su distribuidor Marantz.
GUARDE SU RECIBO DE COMPRA
Su recibo de compra es su prueba permanente de haber adquirido un
aparato de valor, Este recibo deberá guardarlo en un lugar seguro y
utilizarlo como referencia cuando tenga que hacer uso del seguro o se
ponga en contacto con Marantz.
IMPORTANTE
Cuando solicite el servicio otorgado por la garantia el usuario tiene la
responsabilidad de demonstrar cuándo efectuó la compra. En este caso,
su recibo de compra será la prueba apropiada.
ITALIANO
Condizioni di garanzia
L'apparecchio e' garantito per 365 giorni dalla data di acquisto
comprovata da un documento attestante il nominativo del rivenditore e
la data di vendita. La garanzia sara' prestata con la sostituzione o
riparazione gratuita delle parti difettose.
Non sono coperti da garanzia difetti derivanti da uso improprio, errata
installazione, manutenzione effettuata da personale non autorizzato o,
comunque, da circostanze che non possano riferirsi a difetti di
tunzionamento dell'apparecchio. Sono inoltre esclusi dalla garanzia gli
interventi inerenti l'installazione e l'allacciamento agli impianti di
alimentazione.
Gli apparecchi verranno riparati presso i nostri Centri di Assistenza.Le
spese ed i rischi di trasporto sono a carico del cliente.
La casa costruttrice declina ogni responsabilita' per danni diretti o indiretti
provocati dalla inosservanza delle prescrizioni di installazione, uso e
manutenzione dettagliate nel presente manuale.
Per informazioni sull'abbonamento al Servizio Assistenza postgaranzia
e per conoscere l'indirizzo dei Centri Assistenza Marantz rivolgetevi al
nostro servizio consumatori (telefono 1678-20026 - numero verde).
PORTUGUÊS
GARANTIA
Para informações sobre a garantia, contactar o distribuidor Marantz
local.
GUARDAR O RECIBO DE COMPRA
O recibo é o registo permanente da compra que fez.Deve ser guardado
num local seguro, para ser apresentado em questões relacionadas com
o seguro ou para quando tiver de contactar a Marantz.
IMPORTANTE
Quando procurar assisténcia técnica ao abrigo da garantia, é da
responsabilidade do consumidor estabelecer a prova e data de compra.
O recibe é prova adequada.
SVENSKA
GARANTI
För information om garantin, kontakta Marantz lokalagent.
SPAR KVITTOT
Kvittot är ett inköpsbevis på en värdefull vara.Det skall förvaras säkert
och hänvisas till vid försäkringsfall eller vidkorrespondens mod Marantz.
VIKTIGT
Fö att garantin skall gälla är det kundens sak att framställa bevis och
datum om köpet.Kvitto eller faktura är tillräokligt bevis fö detta.
DANSK
GARANTI
Henvend dem til Deres MARANTZ-forhandler angående inrformation
om garantien.
GEM DERES KVITTERING
Deres købskvittering er Deres varige bevis på et dyrt køb. Den bør
gemmes godt og anvendes som bevis, hvis De vil tegne en forsikring,
eller hvis De kommunikerer med Marantz.
VIGTIGT
Det påhviler forbrugeren at skaffe bevis for købet og købsdatoen, hvis
han eller hun ønsker garantiservice. Deres købskvittering eller faktura
er et fuldgyldigt bevis herpå.
i

English
To ventilate the unit, do not install the unit in a rack or bookshelf, and
note the followings.
- Do not touch the top of the enclosure during operation.
- Do not block the openings in the enclosure during operation.
- Do not insert objects beneath the unit.
- Do not block the ventilation slots at the top of the unit.
Do not place anything about 1 meter above the top panel.
- Make a space of about 0.2 meter around the unit.
Français
Pour que l'appareil puisse être correctement ventilé, ne pas l'installer
dans un meuble ou une bibliothèque et respecter ce qui suit.
- Ne pas toucher le dessus du coffret.
- Ne pas obstruer les ouïes de ventilation du coffret pendant le
fonctionnement.
- Ne placer aucun objet sous l'appareil.
- Ne pas obstruer les ouães de ventilation du panneau supérieur. Ne
placer aucun objet à moins d'un mètre environ du panneau supérieur.
- Veiller à ce qu'aucun objet ne soit à moins de 0,2 mètre des côtés de
l'appareil.
Deutsch
Um eine einwandfreie Belüftung des Geräts zu gewährleisten, darf das
Gerät nicht in einem Gestell oder Bücherregal aufgestellt werden; die
folgenden Punkte sind besonders zu beachten:
- Während des Betriebs das Oberteil des Gehäuses nicht berühren.
- Während des Betriebs die Öffnungen im Gehäuse nicht blockieren.
- Keine Gegenstände in das Gerät einführen.
- Die Belüftungsschlitze an der Oberseite des Geräts dürfen nicht
blockiert werden. Darauf achten, daß über dem Gerät ein Freiraum
von mindestens 1 meter vorhanden ist.
- Auf allen Geräteseiten muß ein Zwischenraum von ungefähr 0,2 meter
vorhanden sein.
Nederlands
Installeer het toestel niet in een rek of boekenkast waar de ventilatie
mogelijk wordt gehinderd.Let tevens op de volgende punten:
- Raak de bovenkant van het toestel niet aan als het in gebruik is.
- Blokkeer de openingen van het toestel niet als het in gebruik is.
- Plaats geen onderwerpen onder het toestel.
- Blokkeer de ventilatie-openingen aan de bovenkant van het toestel
niet. Zorg dat er tenminste 1 meter vrije ruimte boven het toestel is.
- Zorg dat er 0,2 meter vrije ruimte rond het toestel is.
Español
Para ventilar la unidad no la instale en una estantería ni estante para
libros, y tenga en cuenta lo siguiente:
- No toque la parte superior de la caja durante el funcionamiento.
- No tape las ranuras en la caja durante el funcionamiento
- No ponga objetos debajo de la unidad.
- No tape las ranuras de ventilación de la parte superior de la unidad.
No ponga nada a menos de 1 metro por encima del panel superior.
- Deje un espacio de unos 0,2 metro alrededor de la unidad.
Italiano
Perch é l'unità possa essere sempre ben ventilata, non installarla in
scaffali o librerie e tenere presente quanto segue.
- Non toccare la parte superiore del rivestimento durante il
funzionamento.
- Non bloccare le aperture sul rivestimento durante il funzionamento.
- Non inserire oggetti al di sotto dell'unità.
- Non bloccare le fessure di ventilazione sopra l'unità.
Non posare nulla per circa un metro sopra il pannello superiore.
- Lasciare 0,2 metro liberi tutto intorno l'unità.
Português
Para ventilar o aparelho, não instalá-lo dentro duma estante ou algo
similar, e observar as seguintes recomendações:
- Não tocar a parte superior do aparelho durante a operação.
- Não bloquear as aberturas do aparelho durante a operação.
- Não insertar objectos debaixo do aparelho.
- Não bloquear as aberturas de ventilação na parte de cima do
aparelho. Deixar um espaço completamente livre de cerca de 1 metro
acima do painel superior.
- Deixar um espaço de cerca de 0,2 metro ao redor do aparelho.
Svenska
För att ventilera enheten, ställ den inte i ett ställ eller bokhylla och tänk
på följande.
- Vidrör inte ytterhöljets ovansida under pågående drift.
- Blockera inte öppningarna i ytterhöljet under pågående drift.
- Stick inte in föremål under enheten.
- Blockera inte ventialtionshålen ovanpå enheten.
Placera inte någonting närmare än 1 meter ovanför apparaten eller
enheten.
- Se till att det finns omkring 0,2 meter fri plats runt omkring enheten.
Dansk
Anbring ikke apparatet i et rack eller en boghylde, da dette kan bloke
luftcirkulationen omkring apparatet. Iagttag ligeledes følgende:
- Berør ikke oversiden af kabinettet under anvendelsen.
- Bloker ikke åbningerne i kabinettet under anvendelsen.
- Stik ikke genstande ind under apparatet.
- Bloker ikke ventilationsåbningerne ovenpå apparatet.
Anbring ikke noget nærmere end 1 m over apparatets overside,
- Sørg for, at der er et frit område på omkring 0,2 m omkring apparatet.
CE MARKING
English
The SR2100 is in conformity with the EMC directive and low-voltage directive.
Français
Le SR2100 est conforme à la directive EMC et à la directive sur les basses tensions.
Deutsch
Das Modell SR2100 entspricht den EMC-Richtlinien und den Richtlinien für Niederspannungsgeräte.
Nederlands
De SR2100 voldoet aan de EMC eisen en de vereisten voor laag-voltage.
Español
El SR2100 está de acuerdo con las normas EMC y las relacionadas con baja tensión.
Italiano
Il SR2100 è conforme alle direttive CEE ed a quelle per i bassi voltaggi.
Português
O SR2100 conforma com as diretrizes EMC e de baixa voltagem.
Svenska
SR2100 är tillverkad i enlighet med EMC direktiven och direktiven för lågvoltsutrusning.
Dansk
Model SR2100 er i overensstemmelse med EMC-direktiveet og direktivet om lavspænding.
ii

T.TONE
ENTER
AMP
MENU
MEMO
/
PROGTEXT
/
DISP
6CH
/
TIMER
LOUDNESS
CH
SURROUND
MODE
VOLUME
TV/AMP
SOUND
VIDEO PTY
/
.
/..
+10
SLEEP
/
TREBLE
BASS
LD/VCD
FM/AM
CD
DVD
MUTE
DOOR
132
5
7
64
RC2100SR
0
98
TV
AUX
MD
VCR
CD-R
NEWS
/
TA
SR2100
STANDBY
OPEN/CLOSE
-+
(PUSH ENTER)
MULTI JOG
MEMORY
BAND
TIMER
TUNER
AMP
VOLUME
DISPLAY
PHONES
TUNER MODE
OPEN/CLOSE
STANDBY
!1 !2
qw
!3 @0 @7
@8
er t yu o !0i
!5!4 !6 !7 !8 !9 @1 @22 @3 @4 @5 @6
iii

1
ENGLISH
FOREWORD
This section must be read before any connection is made to the mains
supply.
WARNINGS
Do not expose the equipment to rain or moisture.
Do not remove the cover from the equipment.
Do not push anything inside the equipment through the
ventilation holes.
Do not handle the mains lead with wet hands.
EQUIPMENT MAINS WORKING SETTING
Your Marantz product has been prepared to comply with the
household power and safety requirements that exist in your area.
SR2100 can be powered by 230 V AC only.
IMPORTANT: (FOR UK VERSION)
This apparatus is fitted with an approved moulded 13 Amp plug.
To change a fuse in this type of plug proceed as follows:
1. Remove fuse cover and fuse.
2. Fix new fuse which should be a BS1362 13A, A.S.T.A. or BSI
approved type.
3. Refit the fuse cover.
If the fitted plug is not suitable for your socket outlets, it should be
cut off and an appropriate plug fitted in its place.
If the mains plug contains a fuse, this should have a value of 13A.
If a plug without a fuse is used, the fuse at the distribution board
should not be greater than 5A.
Note:
The severed plug must be destroyed to avoid a possible shock
hazard should it be inserted into a 13A socket elsewhere.
HOW TO CONNECT A PLUG
The wires in the mains lead are coloured in accordance with the
following code:
BLUE—“NEUTRAL” (“N”)
BROWN—“LIVE” (“L”)
1. The BLUE wire must be connected to the terminal which is
marked with the letter “N” or coloured BLACK.
2. The BROWN wire must be connected to the terminal which is
marked with the letter “L” or coloured RED.
3. Do not connect either wires to the earth terminal in the plug which
is marked by the letter “E” or by the safety earth symbol or
coloured green or green-and-yellow.
Before replacing the plug cover, make certain that the cord grip is
clamped over the sheath of the lead — not simply over the two wires.
COPYRIGHT
Recording and playback of any material may require consent. For
further information refer to the following:
— Copyright Act 1956
— Dramatic and Musical Performers Act 1958
— Performers Protection Acts 1963 and 1972
— any subsequent statutory enactments and orders
ABOUT THIS USER GUIDE
Refer to the figures on page iv of this user guide. The numbers on the
figures correspond to those in the text. All references to the
connections and controls that are printed in BOLD type are as they
appear on the unit.
PRECAUTIONS
The following precautions should be taken when operating the
equipment.
GENERAL PRECAUTIONS
When siting the equipment ensure that:
— the ventilation holes are not covered;
— air is allowed to circulate freely around the equipment
— it is on a vibration free-surface;
— it will not be exposed to interference from an external source;
— it will not be exposed to excessive heat, cold, moisture or dust;
— it will not be exposed to direct sunlight;
— it will not be exposed to electrostatic discharges
Never place heavy objects on the equipment.
If a foreign body or water does enter the equipment, contact your
nearest dealer or service centre.
Do not pull out the plug by pulling on the mains lead, hold the plug.
It is advisable when leaving the house, or during a thunderstorm, to
disconnect the equipment from the mains supply.
FEATURES
Easy operation with remote control bus in SYSTEM mode operation
Top-end model of the Marantz AV system
This model has a very slim shape and a height of 68 mm. All
buttons, with the exception of the power and door open/close
buttons, are concealed behind a front flap.
High power output of 50W + 50W (DIN, into 8 ohms)
The discrete configuration possesses a high level of reliability.
Door open/close mechanism operate both by switch and remote
control
50-Station random preset tuner
Station names consisting of 8 characters can be stored together
with the frequencies.
RDS (Radio Data System) compatibility
PTY (Programme Type) Auto Seek
PS (Programme Service name) Display
TA (Traffic Announcement) Seek
TP (Traffic Programme) Seek
EON (Enhanced Other Network) Seek for TA and NEWS
Independent/System operation switch
This unit can be operated as a system component in combination
with the CD-R and DVD players from the Marantz AV system.
3-Program Timer/Sleep Timer
Stylish New LCD (Liquid Crystal Display) Panel with Backlight
The New LCD panel backlight can be controlled with dimmer
control.

2
ENGLISH
CONNECTIONS
Connection of Remote control Bus: For Marantz AV system
(DR2100, DV2100)
This unit is equipped with the remote control bus function. Connecting
it to Marantz AV system components equipped with REMOTE
CONTROL jacks, such as a CD-R player (DR2100) and DVD player
(DV2100), means that these components can be remote controlled
from this unit (SR2100).
Connect the REMOTE CONTROL jacks of this unit to the REMOTE
CONTROL jacks of another component using RCA-type pin lead
provided.
To operate the SR2100 in the SYSTEM mode, the leads from the
other components must be connected to the SR2100.
The lead from OUTPUT terminal of other component is connected to
INPUT terminal of the SR2100. Please refer below.
Note:
If the component connected with the REMOTE CONTROL jacks
has an INT/EXT/SYSTEM switch on the rear panel, set the switch
to SYSTEM position.
Connection of Remote control Bus: For Marantz Models or
without connecting any component (Single use)
This unit is equipped with the REMOTE CONTROL bus function. By
connecting it to Marantz system components equipped with remote
control jacks, such as a CD player and MD player, these components
can be remote controlled from this unit. The system control switch
must be set to INT position for single use (no connection to other
components).
Connect the REMOTE CONTROL jacks of this unit to the REMOTE
CONTROL jacks of another component using RCA-type pin lead
provided. Please refer below.
Note:
If the component connected with the REMOTE CONTROL jacks
has an INT/EXT switch on the rear panel, set the switch to EXT.
Connection of Remote control Bus: For use in combination
with Marantz AV system
If you connect this unit to the Marantz AV system component, the
system control switch must be set to SYSTEM position.
If other components which are not Marantz AV system are connected,
the system control switch must be set to INT position.
Therefore, components other than Marantz AV system are controlled
by their own remote controls.
Connect the REMOTE CONTROL jacks of this unit only to the
REMOTE CONTROL jacks of Marantz AV system, using RCA-type
pin lead provided. Do not connect the remote control cable to the other
models. Please refer below.
Connection of SYSTEM IN/OUT Bus: For Marantz AV system
(DR2100, DV2100)
The SYSTEM IN/OUT terminal is for AUDIO signal input and output.
To use the remote control in the SYSTEM mode (system control
switch set to SYSTEM position), be sure to connect the AUDIO
terminals of the SYSTEM IN/OUT jacks to those of the other
component.
You can also use the terminals AUX 1, 2, 3, 4 in the SYSTEM mode.
These terminals are used with Marantz models or components of
other brands. Please refer to the following figure. Be sure to set the
system control switch to SYSTEM position.
Note:
If these components are to be stacked, always observe the
stacking order shown in this illustration, that is, the receiver on top,
the CD-R player in the middle and the DVD player on the bottom.
Be sure to set the main power switches of the DR2100 and DV2100
ON.
Connection of Audio IN/OUT: For other models
The connections for audio inputs and outputs of other models are
connected to the individual terminals, CD, CD-R, MD or AUX 1.
Please refer to the figure on next page. In this situation, the system
control switch must be set to INT position.

3
ENGLISH
OUT
IN
OUTIN
CD OUT
OUTIN
OUT
COAX.
110V-240V〜50/60HZ
AC OUTLET
UNSWITCHED 200W MAX
REMOTE CONTROL
EXT.
INT.
LEFT
RIGHT
ANALOG OPT.
SYSTEM AUDIO DIGITAL
IN CDR/CD CDR/CD
AC IN
SYSTEM
MONITOR TV for MULTI ROOM
VIDEO
IN
SET TO
SYSTEM
SET TO
SYSTEM
SET TO
SYSTEM
TO CENTER, SUBWOOFER AMPLIFIER TO SURROUND AMPLIFIER
REMOTE BUS
REMOTE BUS
SYSTEM BUS(AUDIO)
SYSTEM BUS(AUDIO)
REMOTE BUS
Connect the provided
detachable power cord
To household
AC outlet
To DR2100 or
household AC outlet
AC CORD
AC CORD
Connect the provided
detachable power cord To SR2100 or
household AC outlet
AC CORD
Connect the provided
detachable power cord
FM EXTERNAL ANTENNA FM FEEDER ANTENNA
AM LOOP ANTENNA
F-type converter plug (attached)
When using the FM antenna
attach to this apparatus
SPEAKER SYSTEM
(L)(R)
(IF YOU WANT PLAY
5.1CH SURROUND.)
SR2100
DR2100
DV2100
(Not connect
to DR2100)
CONNECTION FOR SYSTEM CONTROL
(System switch set to SYSTEM position)

4
ENGLISH
CONTROL BUTTON ON THE
REMOTE CONTROL UNIT
zPower switch
Press this switch to turn the power of the unit ON. If components of
Marantz AV system are connected through the REMOTE CONTROL
bus, this will turn these components ON.Press this switch again to turn
the unit OFF, and the unit enters standby mode.
xDOOR button
Press this button to open or close the door.If components of Marantz AV
system are connected through the remote control bus, the DOOR button
allows the doors on the system components to be opened or closed.
Note:
The DOOR button is invalid if the components are not connected
through the remote control bus or the system control switch is not
set to SYSTEM position. (The system control switch is on the rear
panel.)
cFunction buttons
There are FM/AM, CD, CD-R, MD, VCR, AUX, DVD, LD/VCD, and TV
buttons. These buttons are used to select the source to be played or
recorded.
To switch the input selector of the receiver, press the button twice.
vAMP button
Press this button to switch to AMP mode of the remote control and
receiver.
bMENU button
This button is used to turn ON the menu system of other components.
nCursor buttons and ENTER button
These buttons are used to move the cursor of the menu system of the
components, in the same way as the receiver’s JOG control, left, right
and enter.
mTEXT/DISP (display) button
This button is used to display the text or other information from the DVD,
CD, CD-R and MD.
Pressing this button can also indicate the present time on the main unit
or display information from the RDS data system.To change the backlight
of the LCD to dimmer or normal, press this button for more than 3
seconds.
,MEMO/PROG (program) button
This button is used to store the preset memory of the tuner and clock or
to program CD, DVD, CD-R tracks.
Button Numeric Amp control
1 1 6CH Direct
2 2 TREBLE down
3 3 TREBLE up
4 4 SURROUND mode selection for
PS2100
5 5 BASS down
6 6 BASS up
7 7 CHANNEL selection for PS2100
8 8 TEST TONE is activated (Only for
PS2100)
9 9 LOUDNESS control is activated
0 0 or +10 No action
.Numeric (ten keypad) or amp control
button
These buttons are used to select the preset memory of the tuner, or to
control the BASS,TREBLE and LOUDNESS of the receiver.
Please refer below. To switch to amp control mode, press the AMP
button before pressing the numeric buttons.
⁄0 4/TIMER program
This button is used to decrease the number on the tuner preset memory
or return to previous tracks on CD, DVD, or CD-R.
To activate the timer program of the receiver in AMP mode, press this
button.
⁄1 ¢/SLEEP timer
This button is used to increase the number on the tuner preset memory
or advance to next track on CD, DVD, or CD-R.
To activate the sleep timer of the receiver in AMP mode, press this button.
⁄2 Control buttons (PLAY, STOP, PAUSE,
FF, REW, REPEAT mode)
By switching input source, these buttons can be used to operate the CD
player, DVD player, CD-R, MD recorder and VCR, and can be used to
operate the TV and tuner.
Please refer below.
⁄3 TV/AMP VOLUME button
These buttons are used to change the volume for listening. Press the
5button to increase and the ∞button to decrease the volume.
⁄4 MUTE button
Press to mute the sound from the speakers.When this button is pressed,
the speakers’sound level is muted and “MUTE”appears on the display.
Pressing this button again cancels the muting function, and it can also
be cancelled by pressing one of the function buttons.
This button is used to mute the sound level of theTV set when the selected
function is TV.
Button CD, DVD, CD-R, TV Tuner
MD, VCR, LD/VCD
Play Play ./.. Digit PTY
Stop Stop Video No output
Pause Pause or still OSD NEWS/TA
FF FF CH-CALL No output
Repeat mode Repeat No output No output
Rew Rew SOUND No output

5
ENGLISH
OPERATION OF REMOTE CONTROL UNIT
1. REMOTE CONTROL
The distance between the transmitter of the remote control unit and
the IR SENSOR of the SR2100 should be less than about 5 meters. If
the transmitter is pointed to a direction other than the IR SENSOR or if
there is an obstacle between them, remote control may not be
possible.
Remote-controllable range
2. LOADING BATTERIES
The life of the batteries used with the remote control unit is about 6
months with normal use. Also be sure to replace batteries earlier when
you notice that they are getting weak.
1. Remove the back cover.
2. Insert the new batteries (AAA type) with correct (+) and (–)
polarity.
3. Close until it clicks.
5 m
60°

6
ENGLISH
CONNECTORS AND CONTROLS
ON THE MAIN UNIT
qTerminal for FM antenna, 75 ohms
For connecting an external FM antenna with a circular plug, or for
connecting a cable network.
wTerminals for AM antenna and
Grounding
To connect the supplied AM loop antenna, use the terminals marked
“AM” and “GND”.
In areas where the AM loop antenna gives unsatisfactory results, it is
recommended that the receiver be connected to an outdoor antenna.
Use the terminal marked‘AM’for this. A grounding lead can be connected
to the terminal marked ‘GND’to further reduce interference.In this case,
it must be connected together with the supplied loop antenna.
eAUX 1 Input jacks
Connect to the audio output jacks of theTV set, DVD player, etc.
rCD (AUX 2) input jacks
Connect to the audio output jacks of a CD player. If the system control
switch is set to SYSTEM position, AUX 2 can be selected with the AUX
button or JOG control on the remote control or with the JOG control on
the main unit.
tMD (AUX 3) input/output jacks
Connect the IN jacks to the output jacks of a MD player, and the OUT
jacks to its input jacks.
If the system control switch is set to SYSTEM position, AUX 3 can be
selected with the AUX button or JOG control on the remote control or
with the JOG control on the main unit.
yCD-R (AUX 4) Input jacks
Connect to the audio output jacks of a CD-R player.If the system control
switch is set to SYSTEM position, AUX 4 can be selected with the AUX
button or JOG control on the remote control or with the JOG control on
the main unit.
uOutput jacks (SYSTEM OUT)
Connect to the audio input jacks of a CD-R recorder.If the system control
switch is set to SYSTEM position, these jacks must be connected to the
SYSTEM IN jacks of DR2100 or DV2100.
iSPEAKER SYSTEM terminals
Connect the left and right speaker leads, observing the + and – polarity
of the leads and terminals.
oREMOTE CONTROL jacks
Connect to a component equipped with remote control jacks. (Refer to
page 3.)
!0 System control switch
This switch selects the system operation mode.Set to SYSTEM position
when the unit is being used in combination with a CD-R (DR2100) or
DVD (DV2100).If your component is not capable of system connection,
set this switch to INT position.
!1 AC OUTLET (UNSWITCHED)
Connectthe power cords of components such as a CD-R player(DR2100)
or DVD player (DV2100) to this outlet.
Note:
The DR2100 and DV2100 also have AC OUTLET, so they can be
run from the SR2100 without being plugged into a household
outlet.
Please refer to page 3, “System Connection”.
!2 AC inlet
Connect the supplied power cord.After connection, plug the power cord
into an AC 230V household outlet.
!3 STANDBY/power switch and indicator
Press to turn power ON and press again to switch to STANDBY mode.
The indicator lights GREEN when power is ON, and lights RED when in
STANDBY mode.The indicator lights ORANGE when the timer program
is set during STANDBY mode.
!4 Infrared sensor
The infrared signal from the remote control unit enters the unit through
this window.To operate the unit with the receiver door open, point the
remote control infrared signal transmitter toward this window.
!5 PHONES jack
For connecting a pair of stereo headphones.When the headphones are
connected to this jack, the speaker sound is turned off.
Note:
If the headphones are connected to this jack, the receiver door
does not close even if you press the door CLOSE button or the unit
is in standby mode.
!6 TUNER MODE button
Press to change FM broadcasting to MONO or STEREO.
The “MONO” indicator lights up on the display in MONO position, the
“AUTO”indicator lights up when there is no signal and “STEREO” lights
up when a stereo signal is received.
!7 TUNER button
Press to select FM or AM tuner when another source is selected and
select the JOG operation for TUNER selection.Use this button to select
the JOG operation for a scan of frequency, preset memory or RDS mode.
The TUNER button changes modes as below.
FREQUENCY mode: To scan tuning by frequency by JOG control.
PRESET mode: To scan tunings in the preset memory by JOG
control.
RDS mode: To select RDS control (PTY, TP, TA, and EON
SEEK) by JOG control.
Please refer to page 10 for tuner operations.
!8 BAND button
Press to change the reception band to FM, MW or LW.
!9 MEMORY button
Press to set the preset memory of the tuner, clock time or timer program.
Please refer to the tuner and timer operations.

7
ENGLISH
@0 LCD (Liquid Crystal Display) panel
This panel shows information on the status of the unit.
a: RDS indicator
EON: EON indicator
TA: TA indicator
TP: TP indicator
NEWS: NEWS indicator
b: Preset station number and FM broadcast mode (STEREO)
indicator, etc.
c: Selected source indicator, etc.
d: FM 106.50 Band and frequency indicator.
e: MHz (kHz) Unit of frequency
@1 Infrared sensor
The infrared signal from the remote control enters the unit through this
window.To operate the unit with the receiver door closed, point the remote
control infrared signal transmitter toward this window.
@2 DISPLAY button
Press to change the display for information such as clock time or data in
RDS mode.
Press this button for more than 3 seconds to change the brightness of
the LCD backlight to dimmer or normal,
@3 TIMER button
Press this button to program and check the timer program.Please refer
to page 14 for timer program operation.
@4 AMP button
The JOG control can be used in the TUNER, AMP or TIMER modes.
Press to change the mode of JOG control to AMP mode.
5 seconds after the previous JOG operation is finished, the mode of
JOG control will return to AMP mode automatically.You can also use
this button to return to AMP mode immediately. The function of JOG
control in AMP mode is changed as follows:
SOURCE select mode: To select input mode.

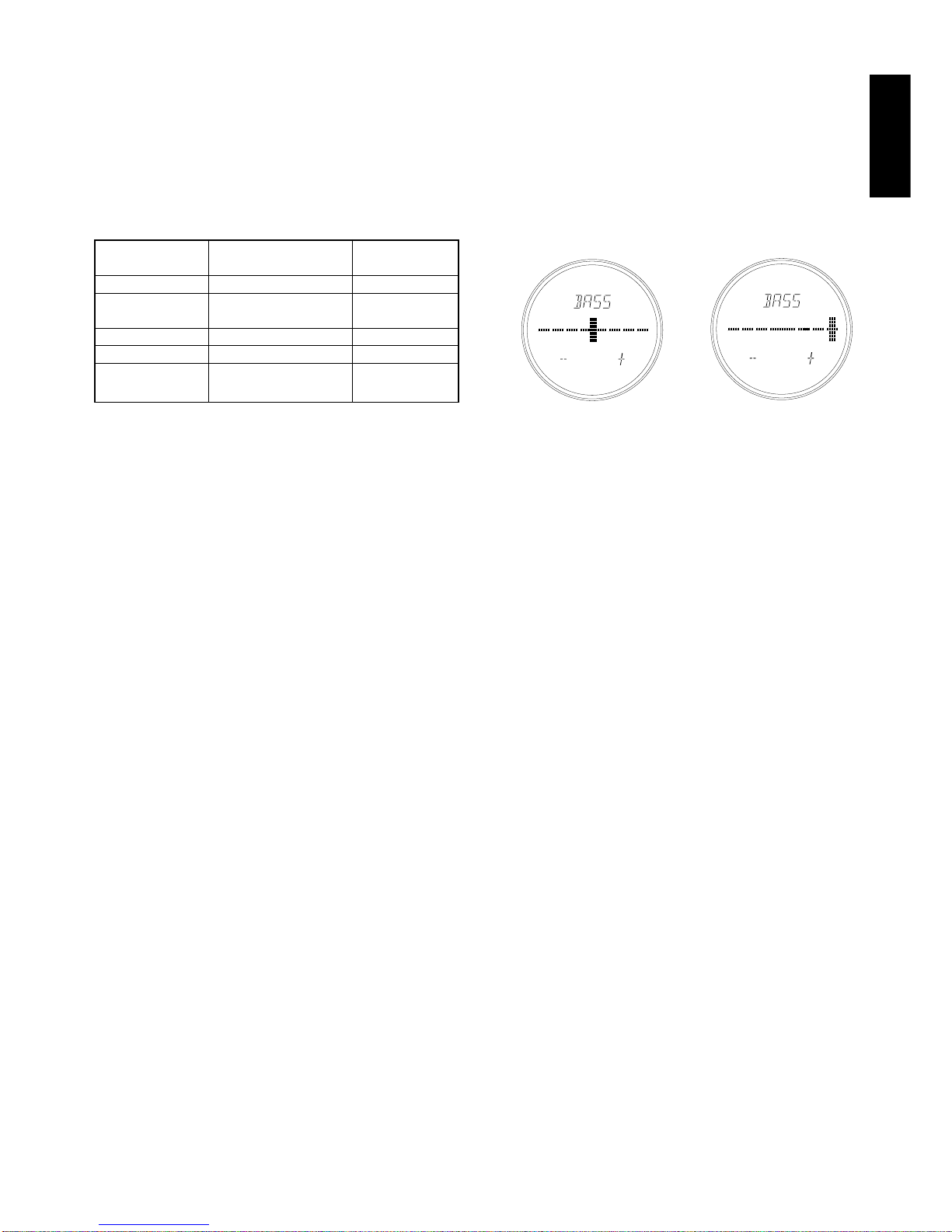

BASS control mode: Tone control (Low frequency)
TREBLE control mode: Tone control (High frequency)
The AMP mode is used for tone control (BASS/TREBLE) and to change
also source for JOG control.
@5 JOG control
The JOG control can be used in the AMP, TUNER and TIMER modes.
Details of operation are as follows:
AMP mode: Source select (Usual setting)
Bass control (AMP button is pressed once)
Treble control (AMP button is pressed twice)
TUNER mode: Frequency scan mode (last operation is memorised)
Preset memory scan mode (last operation is
memorised)
RDS mode selection for PTY SEEK, TP SEEK, TA
SEEK, EON SEEK (last operation is memorised)
TIMER mode: Program and confirm timer setting
For more detail, refer to the respective page.
@6 VOLUME control
To increase or decrease sound level.To increase the sound level turn
clockwise, and to decrease turn counter-clockwise.Each time the unit is
turned ON, the sound level is indicated first.
@7 Door OPEN/CLOSE button
To open or close the door, press this button. In SYSTEM mode
(system control switch set to SYSTEM position), the doors of
components which are connected to the REMOTE CONTROL
terminal (DR2100 and DV2100) are controlled simultaneously by the
remote control.
Note:
If the door is opened manually in standby mode, the unit will turn
power ON.
@8 Front panel door
This door can be operated by door OPEN/CLOSE button.
When the unit is turned into standby mode, this door closes automatically.
a
b
c
d
e

8
ENGLISH
WHAT IS THE SYSTEM
CONTROL?
The remote control system can be used to control Marantz system
components equipped with REMOTE CONTROL (Bus) jacks and
SYSTEM (Bus) jacks, such as DR2100 and DV2100. An example
procedure for system operation is described below. Here, we take as
an example the connection of a CD-R player (DR2100) to this receiver
(SR2100) through the REMOTE CONTROL jacks. (CD playing using a
CD-R player) (The numbers of controls and buttons on the main unit
are enclosed in , and those on the remote control are enclosed in
.)
1. Press the power switch !3 or zto turn the receiver power ON.
2. All the components connected to the REMOTE CONTROL jacks
are turned ON.
3. Press the CD button twice to select CD as a source and set the
remote control to CD mode.
4. Press the “5” of the numeric button to select track number 5 of the
CD.
5. Press the PLAY button (£) or the play button of the DR2100 to
play the CD.
6. The CD-R player (DR2100) starts to play the CD.
7. Press the VOLUME buttons ⁄3 or turn the VOLUME control @6 to
adjust the listening volume.
8. Press the STOP ⁄2 button to stop the CD.
9. Press the power switch !3 or zto turn the power off and into the
standby mode.
10. The SR2100 receiver and all the components connected to it are
turned OFF.
FEATURES OF SYSTEM CONTROL
1. Synchronized power ON/OFF
By switching the power switch !3 or z, you can turn the CD-R
player and DVD player connected through the REMOTE
CONTROL bus connection ON or OFF.
2. Synchronized door open/close
Pressing the DOOR button of the remote control opens or closes
the doors of the components in the system.
3. Auto source selection
When the CD in the DR2100 starts playing by pressing the play
button on the DR2100, the SR2100 receiver will change source
automatically and stop playing another source component.
4. Simple connection
The system can be connected very easily with a small number of
cables.
Note:
If the SYSTEM bus connection has been made, it is possible to dub
a CD to CD-R in the DR2100 while playing another source (Tuner
or DVD, etc.) Please refer to the instruction manual of the DR2100
for more details.
5. A large number of connectable sources in AUX 1, 2, 3, 4, without
the SYSTEM bus (connectable to the DR2100 and DV2100 units).
A total of 7 sources (including Tuner).
NO SYSTEM CONNECTION
When you use this unit in combination with other Marantz components
for which a system connections is not possible, or components of
other brands, you can use them independently by setting the system
control switch to INT position.
To operate the RC2100SR remote control, it is necessary to connect
to Marantz components to REMOTE CONTROL bus.
Please refer to page 3 for No System Connection.
OUT
IN
OUTIN
CD OUT
OUTIN
OUT
COAX.
110V-240V〜
5
AC OUT
UNSWITCHED
2
REMOTE CONTROL
EXT.
INT.
LEFT
RIGHT
ANALOG
OPT.
SYSTEM AUDIO DIGITAL
IN CDR/CD CDR/CD
SYSTEM
SYSTEM SW OUT
SETTO
EXT
(MD PLAYER MD2020)
SET TO
EXT
SET TO
EXT
SET TO
EXT
SET TO
INT
TO CENTER
SUBWOOFER AMPLIFIER TO SURROUND CH.
AMPLIFIER
Connection for system control
(System switch set to INT position)

9
ENGLISH
BASIC OPERATIONS
PLAYING A PROGRAM SOURCE
NORMAL PLAY
1. Press the power switch !3/zto turn the power ON. (The display
briefly indicates the volume level, and you can confirm it at this
time.)
2. Press the optimum function button or turn JOG control @5 in the
SOURCE select mode to select the source to be played. Please
refer to the next table.
3. Start playing the source component. Adjust the listening volume
with the VOLUME control @6 or VOLUME buttons ⁄3.
Adjust the tone control (BASS/TREBLE) by JOG control @5 after
pressing the AMP button @4 or with the numeric buttons 2/3/5/6
.on the remote control after pressing the AMP button @4. The
source selector will change players automatically in SYSTEM
mode.
Note:
The SR2100’s CPU (Microprocessor) only detects the components
which use the system connection in SYSTEM mode (when the
system control switch set to SYSTEM position). The SR2100’s
source selector cannot make a selection without detecting the
component. Component which is not capable of system connection
will not be displayed in SYSTEM mode.
As of 2000, a system connection with this unit can only be made
using the DR2100 and the DV2100. Please set the system control
switch to INT position when connecting components of other
models, or connect these components to AUX 1, 2, 3, 4 in SYSTEM
mode.
*1
The source selector cannot select a source that is not connected to
the REMOTE CONTROL jacks when the system control switch is set
to SYSTEM position. Therefore, when the DR2100 is connected to the
SR2100, it is necessary to connect to the REMOTE CONTROL jacks
and set the system control switch to SYSTEM position.
*2
As of year 2000, no MD player capable of system connection with this
unit has been released. To use the Marantz MD2020 or CM6000 or an
MD player of another brand, set the system control switch to INT
position or connect to AUX 2 in SYSTEM mode. (You can change the
source name AUX 2 to MD. Please refer to page 16, RE-NAME
function.)
*3
The source selector cannot select the DV2100 without a SYSTEM
connection, so it is necessary to connect the SR2100 REMOTE
CONTROL jacks to the DV2100 SYSTEM OUT jacks and set the
system control switch to SYSTEM.
*4
The source selector can select AUX 2, 3, 4 in SYSTEM mode. To
select these sources by remote control, press the AUX button twice or
more until the desired source name is displayed. (You can change the
source name of AUX 1, 2, 3, 4 to another name. Please refer to page
16, RE-NAME function.)
Source to be played Function button control JOG control
on the remote on main unit
FM or AM (MW, LW) FM/AM TUNER
CD-R player (DR2100) CD for CD, CD-R CD-R (*1)
for CD-R (*1)
MD player MD (*1, *2) MD (*1)
DVD player (DV2100) DVD (*1, *3) DVD (*1, *2)
AUX 1, 2, 3, 4 AUX (press each time) (*4) AUX 1, 2, 3, 4 (*4)
(TV game, etc.)
TO ADJUST TONE CONTROL (BASS AND TREBLE)
The Bass and Treble frequencies can be controlled by JOG control.
Details of operation are as follows.
By Main Unit
1. Press the AMP button @4 once or twice to set the mode of JOG
control @5 to TONE control mode. “BASS”or “TREBLE”is displayed.
(Fig.1)
2. Within approx. 5 seconds, turn the JOG control @5 to the left to
decrease, or to the right to increase step by step.
You can both increase and decrease the tone for 7 step. (Fig.2) To
cancel the tone adjustment operation, press the ENTER button
@5.
Fig.1 Fig.2
By Remote control
1. Press the AMP button vto set the ten keypad to AMP mode.
2. Press the BASS (5, 6) or TREBLE (2, 3) button .to increase or
decrease directly.
TO RECORD SOUND ONTO A CD-R OR MD:
Use the following procedure to record, for example, a CD onto a CD-R
while listening to the CD.
1. Select the CD function by remote control or JOG control.
2. Play the CD in the CD-R player (DR2100).
3. Operate the CD-R to record the CD onto CD-R. The recorded
sound will be the same as that reproduced through the speakers.
TO DUB FROM A CD TO CD-R WHILE LISTENING TO THE
TUNER, ETC.:
The SR2100 can dub a CD while you are listening to another source in
SYSTEM mode (system control switch set to SYSTEM position), when
used in combination with the DR2100.
For details of operation, please refer to the instruction manual of the
DR2100.

10
ENGLISH
TUNER OPERATION
TO LISTEN TO THE TUNER
1. Press the power switch !3/zto turn the power ON.
2. Press the FM/AM cbutton or the TUNER button !7.
3. To select the band of reception, press the BAND button !8 or the
FM/AM cbutton on the remote control.
4. Press the 1(rewind) or ¡(fast forward) button ⁄2 to scan the
frequency by remote control.
Scan frequency on the main unit as follows:
A: Press the TUNER button until the display indicates “FREQ”to
set the mode of JOG control @5 to frequency scan mode.
B: Turn the JOG control @5 clockwise to increase or counter-
clockwise to decrease the frequency.
C: To start the auto scan tuning, turn the JOG control @5 or press
and hold 1/¡button on the remote control for a while
continuously.
Auto scan tuning stops automatically when a broadcasting station
is tuned in, and the “TUNED”or “STEREO”display lights up.
5. Adjust the volume with the VOLUME control @6 or VOLUME
buttons ⁄3. To receive sound in monaural, press the TUNER
MODE button !6 or the MODE button ⁄2 so that the “MONO”lights
up.
Note:
Muting of the FM band is not activated when the tuner mode is set
to MONO. Please take care with the volume.
PRESET MEMORY OPERATION
The SR2100 receiver can store up to 50 stations selected in the FM,
MW and LW bands.
The preset memory function allows frequency, receiving mode
(STEREO or MONO) and also station name to be stored in the
memory. The preset memory can be stored in two ways:
Manual preset memory
1. Select the desired station, referring to “TUNER OPERATION”.
2. Press the MEMORY !9 or MEMO button ,.
The MEMORY indicator will blink for approx. 5 seconds. During
this period, select the preset number with one of the following
procedures.
A: Select the preset number by turning the JOG control @5 right for
up or left for down and press MEMORY !9 button or ENTER
button of JOG control @5 .
B: Select the preset number by directly entering it with the
numeric buttons on the remote control.
In this case, entering two-digit is required for all numbers. (e.g. for
1 to 9, press 01 to 09)
Auto preset memory (main unit only)
This allows a band to be scanned automatically, a station with good
reception to be found and to be stored in the preset memory.
1. Select the desired band and frequency.
2. While holding down the MEMORY !9 for more than 3 seconds.
The auto preset memory operation starts. The display indicates
“AUTOMEMO”and “AUTO”starts to blink.
Auto scanning will then start from the low-end of the band.
3. When a station is received, scanning pauses for 5 seconds. In this
period, you can change TUNER mode to STEREO or MONO.
4. If no button is pressed during 5 seconds, the frequency being
received is stored. If the JOG control is turned again within 5
seconds, scanning restarts and the frequency being received is
not stored in the memory.
5. When up to 50 stations have been preset or scanning of all bands
has been finished, the auto preset memory function automatically
stops and the unit tunes to the frequency where auto scanning
start.
To stop in mid-operation, press ENTER of JOG control @5 or the
“0”button on the remote control.
-+
(PUSHENTER)
MULTI JOG
MEMORY
BAND
TIMER
TUNER
AMP
VOLUME
DISPLAY
PHONES
TUNER MODE
OPEN/CLOSE
STANDBY
23
4-B4-A
-+
(PUSHENTER)
MULTI JOG
MEMORY
BAND
TIMER
TUNER
AMP
VOLUME
DISPLAY
PHONES
TUNER MODE
OPEN/CLOSE
STANDBY
2
2-A
-+
(PUSHENTER)
MULTI JOG
MEMORY
BAND
TIMER
TUNER
AMP
VOLUME
DISPLAY
PHONES
TUNER MODE
OPEN/CLOSE
STANDBY
245

11
ENGLISH
ADVANCED OPERATIONS
STATION NAME PRESET
The station name preset function allows the name of each preset
channel to be entered using alphabetic and numeric characters.
Before the station name preset operation, store stations with the
preset memory operation described on the previous page.
The operation procedure is as follows:
1. Tune to the desired preset channel. (It is not available if no station
is preset.)
2. Press and hold the MEMORY !9 or MEMO button ,for more than
3 seconds.
3. The extreme left column of the station name indicator will flash,
indicating character entry ready status.
4. When the JOG control @5 is turned right or the right cursor button
is pressed, alphabetic and numeric characters will be displayed in
the following order:
A →B →C ... Z →1 →2 →3 ... 0 →space →’ →, →/ →+ →– →A
←Left Right →
5. After selecting the first character to be entered, press the ENTER
button of JOG control @5. The entry in this column is fixed and the
next column starts to flash. Fill all columns, and make sure all
characters are flashing.
Press the ENTER button of JOG control @5 to confirm the entry.
Note:
To finish entering during operation, press the ENTER button for
more than 3 seconds.
To change the character in the previous column, turn the JOG
control and press the ENTER button.
RECALLING A STATION FROM THE PRESET MEMORY
1. For direct selection, press numeric button . If you want to select a
1-digit number it should be preceded by 0, for example “05”.
2. It is possible to select a station by using the 4⁄0 or the ¢
button ⁄1 of the remote control, or by turning the JOG control @5
left or right on the main unit in PRESET mode. To change the
mode of the JOG control @5 to PRESET mode, press the TUNER
button !7 on the main unit until “PRESET”appears in the display.
CLEARING THE PRESET MEMORY
The preset memory contents can be cleared with the following
procedure.
1. Recall the preset number to be cleared by the way of the previous
page.
2. Press the MEMORY !9 or MEMO button ,, press 0 button .on
remote control more than 3 seconds. For example, when you want
to clear preset number 12, “CLEAR 12”is displayed.
COPYING THE PRESET MEMORY
The preset memory can copy to other preset number.
1. Recall the original preset station.
2. Press the MEMORY !9 or MEMO button ,, and turn the JOG
control @5 until the desired preset number is displayed, or press
the desired number on the ten keypad ..
3. Press the ENTER button nto complete entry.
RECEPTION OF RDS BROADCASTING
The SR2100 receiver provides the following functions for use with the
RDS (Radio Data System).
PTY (Program Type) Auto Seek
Automatic searching only for stations broadcasting the specified type
(genre) of programs.
RADIOTEXT display
Some RDS stations broadcast RADIOTEXT, which contains
additional information on the station and programme being
broadcasted.
RADIOTEXT information appears as ‘running’text on the display.
RADIOTEXT is transmitted character-by-character by the radio
station. As a result, it may take some time until the entire text has been
received.
PS (Programme Service name) display
The name of the station being tuned is displayed automatically.
CT (Clock Time) display
The clock time is displayed from the broadcasted data. It is local area
time. This time can be copied to the unit’s clock display. Please refer
to page 16, “CT to CL”.
RDS Display
When a receiver is tuned to an FM station that is transmitting RDS
data, the display will automatically show the station name or RDS
TEXT.
To change the display, press the DISPLAY button @2/min TUNER
mode. The display will change as follows:
PS (Programme Service) →RT (Radio Text) →PTY (Programme
Type) →CT (Clock Time) →PS
Note:
To display the clock (not RDS CT), press the AMP and DISPLAY
button in TUNER mode.
When no RDS station is received or the received station does not
broadcast the required data, the display will indicate as follows:
“NO NAME”for PS, “NO TEXT”for RADIOTEXT, “NO CT”for CT.
PTY AUTO SEEK
The SR2100 receiver automatically searches for stations transmitting
any of 29 different programme types. To search for a PTY, follow
these steps:
By remote control
1. Press PTY./.. button ⁄2 on the remote control until “PTY SEEK”
appears on the display. If you press the ENTER button of JOG
control n, the current station’s program type will be displayed
when the RDS data is present, or the currently selected PTY
group will be displayed blinking if no station or the RDS data is
present.
2. To change to a new programme type, turn the JOG control nleft
or right until the desired PTY is shown in the display.
3. To select a specified program type, use the ten keypad .on the
remote control by entering the corresponding number in the table
on the following page.
4. Once the desired PTY group or type has been selected, press the
ENTER button of JOG control nwhile the display is blinking
(approx. 5 seconds). The PTY Auto search will start, and the tuner
will detect all station broadcasting RDS whose PTY information
corresponds to the selected choice.
5. The auto search will stop at a station with the specified PTY. To
advance to the next RDS station, press the ENTER button n
again within 5 seconds.
To cancel this function, turn the JOG control nleft or right.
-+
(PUSHENTER)
MULTI JOG
MEMORY
BAND
TIMER
TUNER
AMP
VOLUME
DISPLAY
PHONES
TUNER MODE
OPEN/CLOSE
STANDBY
245

12
ENGLISH
By main unit
1. To change the mode of JOG control @5 to RDS, press the TUNER
button !7 until “RDS MODE”appears on the display.
Turn the JOG control @5 until the display indicates “PTY SEEK”
and press the ENTER button @5.
2. The current station’s PTY or the currently selected PTY group will
be shown in the display.
To select a PTY group, turn the JOG control @5 until the specified
PTY is shown in the display and press the ENTER button @5.
3. The PTY Auto seek will start, and the tuner will detect each station
broadcasting RDS whose PTY information corresponds to the
selected choice.
4. The auto search will stop at a station with the specified PTY. To
advance to the next RDS station with the specified PTY, press the
ENTER button @5 again within 5 seconds.
To cancel this function, press the ENTER button during scanning.
RDS SEEK BY JOG CONTROL
TP (TRAFFIC PROGRAMME) SEEK
TP is the information of traffic programme in RDS. It is possible that
the programme will be broadcasted with a TP flag. (But this is not
always the case.) The TP SEEK function searches for this flag.
By remote control
1. Press the PTY./.. button ⁄2 a few times until “TP SEEK”is shown
on the display.
2. Press the ENTER button nto start TP SEEK, and scanning will
start.
3. The tuner will stop scan when a broadcast is received and TP flag
is detected. “TP”segment of the display lights up.
By main unit
1. To change the JOG mode to RDS mode press the TUNER button
!7 until the display indicates “RDS MODE”and press the ENTER
button of JOG control @5. Turn the JOG control @5 until the display
indicates “TP SEEK”and press the ENTER button.
2. The TP SEEK will start, and the tuner will stop scanning when a
broadcast is received and TP flag is detected. “TP”segment of the
display lights up.
TA (TRAFFIC ANNOUNCEMENT) SEEK
TA is the information of traffic announcement in RDS. TA is an audio
announcement, and can be heard through the speakers.
By remote control
1. Press the PTY./.. button ⁄2 a few times until the display indicates
“TA SEEK”.
2. Press ENTER button n to start TA SEEK, and scanning will start.
3. The tuner will stop scanning when a broadcast is received and TA
flag is detected. “TA”segment of the display lights up. The tuner
outputs traffic information through the speaker. Volume level can
be adjusted.
By main unit
1. To change the mode of JOG control @5 to RDS mode, press the
TUNER button !7 until the display indicates “RDS MODE”and
then press the ENTER button of JOG control @5. Turn the JOG
control @5 until the display indicates “TA SEEK”and press the
ENTER button @5.
2. The TA SEEK will start, and the tuner will stop scanning when a
broadcast is received and TA flag is detected. “TA”segment of the
display lights up. The tuner outputs traffic information through
speaker.
NUMBER DISPLAY PROGRAMME TYPE
1 POP Pop Music
2 ROCK Rock Music
3 MOR M. O. R. Music
4 LIGHT Light classical
5 CLASSIC Serious classical
6 NEWS News
7 AFFAIR Current Affairs
8 INFO Information
9 SPORT Sport
10 EDUCATE Education
11 DRAMA Drama
12 CULTURE Culture
13 SCIENCE Science
14 OTHERS Varied
15 OTHER Other Music
16 WEATHER Weather
17 FINANCE Finance
18 CHILDREN Children’s programmes
19 SOCIAL Social Affairs
20 RELIGION Religion
21 PHONE IN Phone In
22 TRAVEL Travel
23 HOBBIES Hobbies
24 JAZZ Jazz Music
25 COUNTRY Country Music
26 NATION National Music
27 OLDIES Oldies Music
28 FOLK Folk Music
29 DOCUMENT Documentary
(PUSH ENTER)
MULTI JOG
TUNER
(PUSH
E
MULTI JOG
(PUSH ENTER)
MULTI JOG
(PUSH EN
T
MULTI JOG
MULTI JOG
MULTI JOG
MULTI JOG MULTI JOG
(PUSH ENTER)
MULTI JOG
(PUSH ENTER)
MULTI JOG
(PUSH ENTER)
MULTI JOG
(PUSH ENTER)
MULTI JOG
RDS MODE
PTY SEEK TP SEEK TA SEEK EON SEEK
Start RDS function

13
ENGLISH
EON (ENHANCED OTHER NETWORK) SEEK
The EON gives information from the other network of RDS.
Information, such as TA, PTY, etc., can be obtained from other
stations. The SR2100 has a special function for this EON data, as
follows:
[Features of EON function]:
This feature automatically changes source from CD (for example)
to tuner when desired programme (NEWS or TA) is received by the
tuner.
For example, if while listening to a CD, the tuner receives NEWS or
a traffic announcement program, the receiver will change its
source from CD to tuner automatically. When the program is
finished, the receiver’s source will return to CD.
By remote control
1. To change the mode to tuner, press the FM/AM button c, and the
NEWS/TA button ⁄2 among the control buttons.
2. The display indicates “EON SEEK”. Press the ENTER button of
JOG control n.
3. The EON SEEK starts to scan, and will stop scanning when the
tuner receives a station which has EON information. The “EON”
indicator lights up. To advance to the next EON station with an
EON flag, press the ENTER button nagain within 5 seconds.
4. After the above procedure, press the NEWS/TA button ⁄2 until the
display shows the desired programme, NEWS or TA or NEWS
and TA.
5. The desired program name lights up in the display (the NEWS or
TA or NEWS and TA segments).
6. Change to the source you desire, for example CD, and play a CD.
7. The source will change automatically to tuner when the desired
programme for EON information is detected. The NEWS or TA
indicator blinks at this time. (The CD player will not stop)
8. The source selector will return to the previous source, CD, when
the desired programme is finished.
By main unit
1. To change the mode of JOG control @5 to RDS mode, press the
TUNER button !7 until “RDS MODE”is displayed and press the
ENTER button @5 of JOG control . Turn the JOG control until the
display indicates “EON SEEK”and press the ENTER button @5.
2. The EON SEEK starts to scan, and will stop scanning when the
tuner receives a station which has EON information.
The “EON”indicator lights up. To advance to the next EON station
with the EON flag, press the ENTER button @5 again within 5
seconds.
3. After the above procedure, press the NEWS/TA button until the
display shows the desired programme, NEWS or TA or NEWS
and TA.
4. The display will show the desired program name (NEWS or TA or
NEWS and TA).
5. Change to the source you desire, for example CD, and play a CD.
6. The source will change automatically to tuner when the desired
programme for EON information is detected. The NEWS or TA
segment indicator blinks at this time. (The CD player will not stop.)
7. The source selector will return to the previous source, for example
CD, when the desired programme has finished.
CT (CLOCK TIME) IN RDS
The CT is clock time information from the RDS. This data can be
copied to the present time by the CPU (microprocessor).
You can also turn this feature ON or OFF, and select a preset station
when it is set to ON position. (The initial preset station is M01)
For detail of this feature, please refer to page 16, SPECIAL
FUNCTIONS.
1. To display the RDS clock time, press the DISPLAY button @2/m.
Note:
When the RDS clock time is displayed, please check the local time
in your country.
PRESENT TIME SETTING
Operation using the main unit
The initial clock display is “0:00”. To operate the timer program, you
must set the present time.
The following shows as an example how to set the time as 13:30, or
1:30 PM.
1. Press the DISPLAY button @2 except when ”TUNER”is shown.
The display changes to clock time.
2. Press the MEMORY button !9. The hour digit blinks in the display.
3. Turn the JOG control @5 to set the digits displayed to the left of the
colon to “13”, or “1”.
Press the ENTER button of JOG control @5, to set he hour digits
have been set. Then minute digit starts blinking.
4. Turn the JOG control @5 to set the digits displayed in the minutes
to “30”.
5. Press the MEMORY button !9 to set the clock. The clock now
starts.
Note:
The 12-hour system can be set through the SPECIAL FUNCTION
menu. Please refer page 16.
CORRECTING THE TIME
The displayed time can be corrected simply if it is done near the “00”
minute of an hour.
The following example shows the displayed time, 13:58, is to be
corrected to 14:00.
1. To change the display mode to clock, press the DISPLAY button
@2. The display indicates the clock.
2. Press the MEMORY button !9 for more than 3 seconds.
3. All digits start to blink.
4. Press the MEMORY button !9 to set the clock. The display
changes to “14:00”.
Note:
The displayed hour does not change if the minute figures displayed
are between 00 and 29. If they are between 30 and 59, the
displayed hour increases by one. (e.g: 12:29 →12:00, 13:58 →
14:00)
DISPLAY MEMORY
(PUSH ENTER)
MULTI JOG
(PUSH ENTER)
MULTI JOG
MEMORY
(PUSH ENTER)
MULTI JOG

14
ENGLISH
PROGRAMME TIMER SETTING
The timer function is built into this receiver allows you to perform the
following operations:
•Three timer settings at the same time: Program-1, Program-2 and
Program-3;
•Setting of ON time and OFF time;
•Setting of source: The source can be selected from tuner preset
number 1 to 50, CD , CD-R, MD, AUX and AUTO;
•It is possible to specify the track numbers of CD, CD-R, DVD or MD;
•It is possible to select recording or playing media;
•Setting of single operation (ONCE) or everyday operation (DAILY).
IMPORTANT:
The timer setting with track number specified can be used only
when the system control switch is set to SYSTEM position except
with using the tuner.
In the following procedure, each button should be pressed within 5
seconds after pressing the previous button.
1. Press the power switch !3/zto turn the power of the unit ON.
2. Press the TIMER button @2/⁄0. The display indicates “TMR
PROG”.
3. [SET THE ON TIME]
3-1. After a few seconds, “PROG-1”appears and starts blinking.
Turn the JOG control @5 to select the desired timer program,
and press the ENTER button @5. (If the selected program was
used before, the details of the previous setting appear.)
3-2. The display indicates “ON TIME”in the upper segment of the
display, and the present time is displayed in the middle
segment. (In this case, the present time is 10:05.)
3-3. “10”blinks. Turn the JOG control @5 to adjust the hour. To
increase, turn to the right. To decrease, turn to the left. For
example, set the hour to 12. (In this case, AM changes to PM.)
3-4. Press the ENTER button @5 to set the hour, and the minutes
start to blink.
3-5. “05”blinks. Turn the JOG control @5 to adjust the minutes. For
example, set the minutes to 30. (12:30)
3-6. Press the ENTER button @5 to set the minutes and all segments
start to blink. When all segments blink, the time can be
re-adjusted using the JOG control.
3-7. Press the ENTER button @5 to complete ON time setting. The
display stops blinking.
4. [SET THE OFF TIME]
4-1. “OFF TIME”then appears in the upper segment of the display,
and the time set as ON time (12:30) appears in the middle
segment.
4-2. “12”blinks. Turn the JOG control @5 to adjust the time of timer
stop. For example, “1”.
4-3. Press the ENTER button @5 to set the time, and the minutes
start to blink.
4-4. Turn the JOG control @5 to adjust the minute of timer stop, and
press the ENTER button @5 to set the minute.
4-5. All segments blink in the display. The time can be re-adjusted
by turning the JOG control @5 left or right.
4-6. Press the ENTER button @5 to complete the OFF time setting.
5. [SET THE MANUAL or AUTO] (only in SYSTEM mode)
5-1. The display indicates “AUTO”in the middle segment.
Note:
If “AUTO”is selected, the auto play function is activated, and it
detects the source that can be played. For example, if a disk is set
to CD side of DR2100, and no other player is set, the SR2100 will
play the CD in DR2100 automatically. (The order of priority is CD
→CD-R →DVD.)
5-2. If you want to play a specified source in AUTO mode, you have
to set it.
5-3. If you want to select a source, you should select “MANUAL”.
6. [SET TO MANUAL]
6-1. Turn the JOG control @5 to select “MANUAL”and press the
ENTER button @5. The display indicates “MANUAL”for 2 seconds.
6-2. The display indicates the source name, for example CD. Turn
the JOG control @5 to select the source and press the ENTER
button @5.
At this time, you need to select the track number of the playing
medium. The display indicates “NUMBER XX”.
6-3. Turn the JOG control @5 to select the track number. To increase
the number, turn the JOG control @5 to the right, and to
decrease, turn to the left. You can select number from 1 to 99.
Please confirm the desired track number of the selected
medium.
6-4. Press the ENTER button @5 to set the track number to be
played. Next, select whether to record or not.
7. [SET TO “AUTO”]: This is available only when system control
switch is set to SYSTEM position
7-1. Turn the JOG control @5 to select “AUTO”and press the
ENTER button. The display indicates “AUTO”for 2 seconds.
Next, set volume level.
TIMER
(PUSH ENTER)
MULTI JOG
(PUSH ENTER)
MULTI JOG
(PUSH ENTER)
MULTI JOG
(PUSH ENTER)
MULTI JOG
(PUSH ENTER)
MULTI JOG
(PUSH ENTER)
MULTI JOG
(PUSH ENTER)
MULTI JOG
(PUSH ENTER)
MULTI JOG
(PUSH ENTER)
MULTI JOG
(PUSH ENTER)
MULTI JOG MULTI JOGMULTI JOG
(PUSH ENTER)
MULTI JOG
(PUSH ENTER)
MULTI JOG
MULTI JOG

15
ENGLISH
8. [SELECT WHETHER TO RECORD or NOT]: This is available
only when system control switch is set to SYSTEM position
8-1. The display indicates “RECORDING?”in the upper segment
and indicates “YES:FUNC”in the middle segment and indicates
“NO:ENTER”in the lower segment. If you want to record, turn
the JOG control @5 for the selected recording medium.
8-2. For example, if you want to record on CD-R, select “CDR”and
press the ENTER button @5 to set recording to CD-R.
8-3. If there is no disc or a non-recordable disc in the CD-R player,
the display will indicate “NG DISC”.
If this is indicated, please check the recorder or the disc.
9. [SETTING THE VOLUME LEVEL]
9-1. Next, set the volume level. The display indicates the volume
level.
9-2. Turn the VOLUME control @6 to set the sound level. The volume
is adjusted to setting level when timer is activated.
9-3. The volume will fade up to the setting level when timer is
activated, and fade out to the minimum level when timer is off.
9-4. Next set ONCE or DAILY.
10. [ONCE or DAILY]
10-1. The display indicates “ONCE”, if you select it, the timer will
activate only once.
10-2. Turn the JOG control @5 to select “DAILY”, if you want to
activate the timer once a day.
10-3. Press the ENTER button @5 to set the time of execution after
selecting DAILY or ONCE. The display indicates the details of
the timer programme one by one. Press the power button to set
this unit in the timer standby mode.
The standby indicator lights up in AMBER to indicate the timer
programme is set to ON.
11. [CONFIRM THE PROGRAMM]
11-1.
Press the TIMER button @3 /⁄0. The display indicates “PROG-1”.
Turn the JOG control @5 to select the desired program number
and press the TIMER button @3 again. If you want to erase this
program memory, press the ENTER button at this time.
11-2. The display indicates the details of the timer programme one by
one.
11-3. You can change the setting of selected program if necessary.
12. [NOT EXECUTING THE TIMER PROGRAMME] (REMOTE
CONTROL ONLY)
The timer programs that have been set can be cancelled
temporarily when they are not required.
12-1. When the timer indicator (the standby indicator lights up in
AMBER) is displayed in standby mode, press the TIMER button
⁄0. The colour of the standby indicator is changed from AMBER
to RED, and the timer program will not be executed.
12-2. The timer program can be reactivated by pressing the TIMER
button ⁄0 again to display the timer indicator.
Note:
If all programs have been set (PROG-1, -2 and -3), it is not possible
to cancel only one of them temporarily.
IMPORTANT:
A: Be sure to set the present time before setting the timer.
B: If the times set for two or three timer programs overlap, the timer
will operate as follows:
1) If the ON time of one program comes after the ON time of the
other program:
(Example)
In the case shown on the left,
PROG-2 is not executed.
2) If the ON time of one program coincides with the OFF time of
the other program:
(Example)
In the case shown on the left,
PROG-2 is also executed.
However, there is a possibility
that the OFF time of PROG-1
may be earlier than set. (For
example, if you set an OFF
time of 13:00, the program may actually finish at 12:55.) This is
because the system takes some time to prepare the next
function.
3) There is a priority between recording and playing programs
when two or three timer programs start at the same time.
The priority is recording, so that the program of normal playing
cannot be executed.
There is a priority between PROG-1, -2 and PROG-3. The order
of priority is PROG-1 →PROG-2 →PROG-3.
SLEEP TIMER SETTING (REMOTE CONTROL ONLY)
The sleep timer function allows the unit to be in standby mode
automatically after a specified period of time.
1. While the power is ON, press the SLEEP button ⁄1 in the AMP
mode.
2. The display shows “SLEEP OF (OFF)”for 5 seconds
3. Press the SLEEP button ⁄1 within 5 seconds. Each press
changes the sleep timer period in the order 10 →20 →30 →40
→50 →60 →70 →80 →90 →OF (OFF).
4. When the desired period is displayed, release the SLEEP button
⁄1. After that, setting of the sleep timer is completed and the count
starts.
5. Press the SLEEP button ⁄1 during the sleep timer count to display
the remaining period in standby mode. To change the setting after
the sleep timer has started the count, display the remaining time,
press the SLEEP button ⁄1 while the remaining period is
displayed, and repeat steps 3 and 4 above.
6. To cancel the sleep timer, press SLEEP button ⁄1 until “SLEEP
OF (OFF)”is displayed.
(PUSH ENTER)
MULTI JOG
(PUSH ENTER)
MULTI JOG
(PUSH ENTER)
MULTI JOG
(PUSH ENTER)
MULTI JOG
PROG-1
PROG-2
ON ON OFF OFF
PROG-1 PROG-2
ON OFF/ON OFF

16
ENGLISH
SPECIAL FUNCTIONS
The special functions are used to the settings as follows.
1. Press the MEMORY button !9 and the ENTER button @5 of JOG
control simultaneously. The display indicates “SP FUNC”and
“DEMO”.
2. Turn the JOG control @5 to select the function and press the
ENTER button @5. Details of the operation are as follows.
DEMO MODE:
The DEMO mode is used for in store demonstrations. It operates as
follows:
Door OPEN and CLOSE with system components
LCD Back light dimmer turns on and off
1. Turn the JOG control @5 to select “DEMO”and press the ENTER
button.
2. Turn the JOG control @5 to select “DEMO ON”and press the
ENTER button.
3. Display shows “PUSH ENTER”and “DEMO”.
4. Press the ENTER button to execute the DEMO mode.
5. To exit this function, press the STANDBY button !3.
Note:
This is executed automatically after a 15-minute passage of time if
the unit is switched ON but is not being used.
BK LIGHT (BACKLIGHT):
This function adjusts the brightness of the backlight of LCD.
1. To change the brightness turn the JOG control @5 and press the
ENTER button @5.
RE-NAME:
This function is used to change the name of the source for AUX 1, 2, 3
and 4 when the system control switch is set to SYSTEM position.
This function can only be used in SYSTEM mode.
1. Turn the JOG control @5 to select the source name to be cleared.
Then, enter the special function.
2. Turn the JOG control @5 to select “RE-NAME”and press the
ENTER button.
3. The display shows the existing source name, and the left column
blinks. (You can change the names for AUX 1, 2, 3 and 4)
4. To select alphabetic and numeric characters, turn the JOG control
@5 and press the ENTER button @5.
This operation is the same as the station name preset operation.
12H/24H: (12-HOUR SYSTEM/24-HOUR SYSTEM)
This function is used to change the clock mode to the 12-hour or 24-
hour system.
1. To change this system, turn the JOG control @5 until the desired
system is displayed and press the ENTER button @5.
MEMO CLR (MEMORY CLEAR)
This function is used to clear the preset memory and station name.
1. Turn the JOG control @5 to select “MEMO CLR”, and press the
ENTER button @5.
“MEMO CLR”blinks and the memory is cleared.
CT TO CL (COPY CLOCK TIME DATA TO CLOCK)
This function is used to copy the clock time from RDS data to present
time. The preset memory station picks up the CT data when it receives
the RDS station. You can select a preset station to receive CT data.
1. Turn the JOG control @5 to select “CT to CL”and press the
ENTER button @5. The display indicates “OFF”.
2. To select the preset number, turn the JOG control and press the
ENTER button. The initial setting of the preset number is M01. If
you want to change the station to pick up CT data, turn the JOG
the desired preset number is displayed.
Note:
The CT data is included in RDS data. However, there is a
possibility that the station received does not transmit the same time
as your local time. Please recheck your local time and the CT in
RDS data.
EXIT
1. To exit this function press the ENTER button @5.
(PUSH ENTER)
MULTI JOG
(PUSH ENTER)
MULTI JOG
(PUSH ENTER)
MULTI JOG
(PUSH ENTER)
MULTI JOG
(PUSH ENTER)
MULTI JOG
(PUSH ENTER)
MULTI JOG
(PUSH ENTER)
MULTI JOG
