Marantz PM6007 User manual

.
Integrated Amplifier
PM6007
Owner’s Manual
Contents Connections Playback Settings Tips Appendix
1
Front panel Rear panel
Remote control
unit
Index

Accessories 4
Inserting the batteries 5
Operating range of the remote control unit 5
Part names and functions 6
Front panel 6
Rear panel 8
Remote control unit 10
Connections
Connecting speakers 16
Speaker A/B connection 17
Bi-wiring connection 18
Subwoofer connection 19
Connecting a playback device 20
Connecting a recording device 21
Connecting to a device with digital audio output connectors 22
Connecting devices with remote control connectors 23
Performing operations by RC on this unit without visual contact 23
Remotely connecting Marantz audio devices 23
Connecting the power cord 24
Playback
Turning the power on 26
Switching the power to standby 26
Selecting the speakers for audio output 27
Selecting the input source 27
Adjusting the volume 27
Turning off the sound temporarily (Muting) 27
Adjusting the tone and balance 28
Playing CDs 28
Connecting and playing back from a digital device (Coaxial/
Optical) 29
Recording 30
Contents Connections Playback Settings Tips Appendix
2
Front panel Rear panel
Remote control
unit
Index

Settings
Setting the Auto Standby mode 32
Setting the remote signal receiving function 33
Disabling the remote signal receiving function of the remote
control unit 33
Enabling the remote signal receiving function of the remote
control unit 33
Setting remote control codes 34
Setting remote control codes for the remote control 35
Setting remote control codes for the main unit 35
Tips
Tips 37
Troubleshooting 38
Power does not turn on / Power is turned off 39
Operations cannot be performed through the remote control unit 40
No sound comes out 41
Desired sound does not come out 41
Sound is interrupted or noise occurs 42
FILTER 1・2 indicator does not light 42
Appendix
D/A converter 43
Explanation of terms 43
Trademark information 44
Specifications 45
Index 48
Contents Connections Playback Settings Tips Appendix
3
Front panel Rear panel
Remote control
unit
Index

Thank you for purchasing this Marantz product.
To ensure proper operation, please read this owner’s manual carefully before using the product.
After reading this manual, be sure to keep it for future reference.
Accessories
Check that the following parts are supplied with the product.
.
Quick Start Guide Safety Instructions
R03/AAA batteries
Power cord Remote control unit
(RC004PMCD)
CD-ROM
(Owner’s Manual)
Warranty
(for USA/for CANADA)
Contents Connections Playback Settings Tips Appendix
4
Front panel Rear panel
Remote control
unit
Index

Inserting the batteries
1Remove the rear lid in the direction of the arrow and
remove it.
.
2Insert two batteries correctly into the battery
compartment as indicated.
.
Batteries
3Put the rear lid back on.
NOTE
0To prevent damage or leakage of battery fluid:
0Do not use a new battery together with an old one.
0Do not use two different types of batteries.
0Remove the batteries from the remote control unit if it will not be in use for long
periods.
0If the battery fluid should leak, carefully wipe the fluid off the inside of the battery
compartment and insert new batteries.
Operating range of the remote control
unit
Point the remote control unit at the remote sensor when operating it.
.
Approx. 23 ft/7 m
30° 30°
Contents Connections Playback Settings Tips Appendix
5
Front panel Rear panel
Remote control
unit
Index

Part names and functions
Front panel
.
uQ2 Q3oQ0 Q1iy
reqw t
For details, see the next page.
Contents Connections Playback Settings Tips Appendix
6
Front panel Rear panel
Remote control
unit
Index

.
uQ2 Q3o
Q
0Q1iy
reqw t
APower operation button (X)
This turns the power on/off. (v p. 26)
BPower indicator
This is lit as follows according to the power status:
0Power on : Off
0Standby : Red
0Power off : Off
CINPUT SELECTOR knob
This selects the input source. (v p. 27)
DInput indicators (v p. 27)
EVOLUME knob
These adjust the volume level. (v p. 27)
FHeadphones jack (PHONES)
Used to connect headphones.
Turn off speaker output when using headphones. (v p. 27)
NOTE
0To prevent hearing loss, do not raise the volume level excessively when using
headphones.
GBASS control knob
This setting adjusts the volume level for the bass. (v p. 28)
HSOURCE DIRECT button/indicator
This turns source direct mode on/off. (v p. 28)
ITREBLE control knob
This setting adjusts the volume level for the treble. (v p. 28)
JSpeaker switching buttons/indicators (SPEAKERS A/B)
These select the speaker for audio output. (v p. 27)
KFILTER 1・2 button/indicator
Switches the filter characteristics when digital audio is input.
(v p. 29)
LBALANCE control knob
This adjusts the balance of the volume output from the left and right
speakers. (v p. 28)
MRemote control sensor
This receives signals from the remote control unit. (v p. 5)
07, 9 and b can be adjusted when 8 is off (Source direct mode is off).
Contents Connections Playback Settings Tips Appendix
7
Front panel Rear panel
Remote control
unit
Index

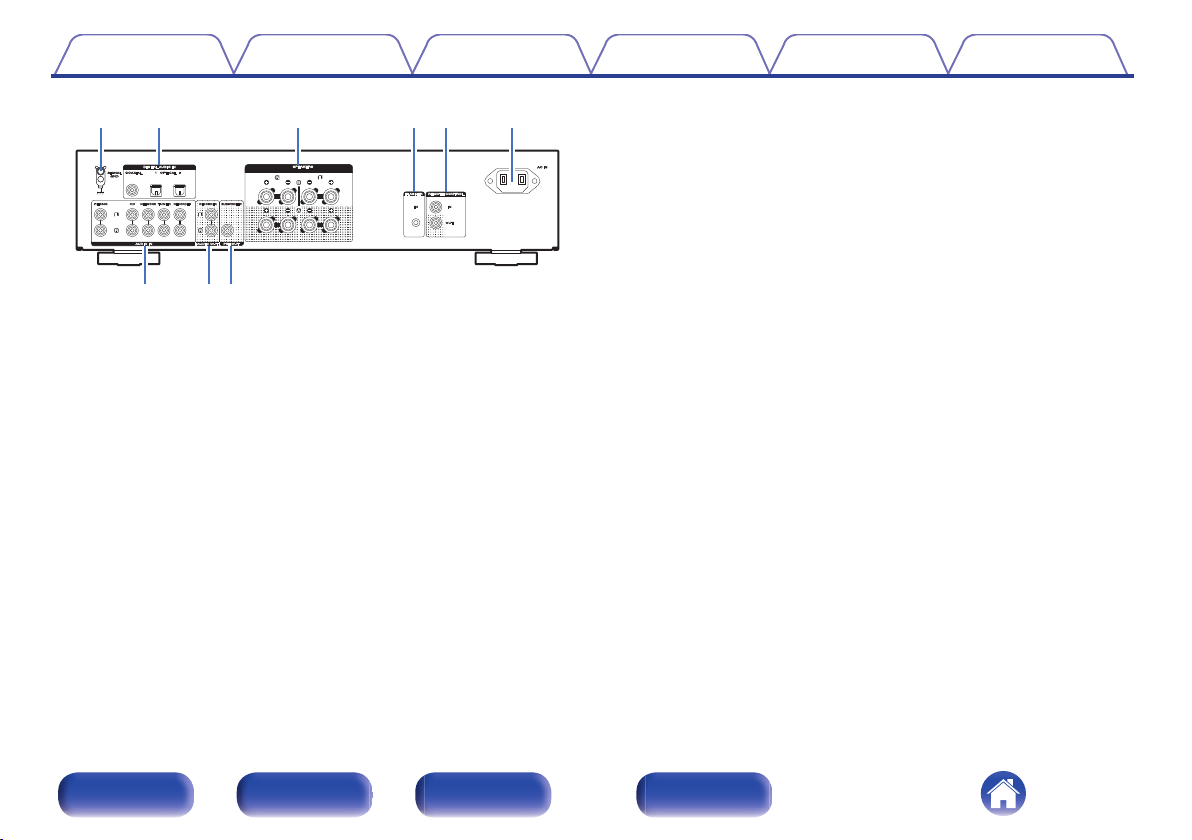

Rear panel
.
q w e tr y
uio
For details, see the next page.
Contents Connections Playback Settings Tips Appendix
8
Front panel Rear panel
Remote control
unit
Index

.
qw e try
uio
ASIGNAL GND terminal
Used to connect a turntable. (v p. 20)
BDigital audio input connectors (DIGITAL AUDIO IN)
Used to connect devices equipped with digital audio output connectors.
(v p. 22)
CSpeaker terminals (SPEAKERS)
Used to connect speakers. (v p. 16)
DFLASHER IN jack
Used when using a control BOX or other such control devices to control
this unit.
ERemote control input/output connectors (REMOTE CONTROL)
Used to connect to a Marantz audio device that is compatible with the
remote control function. (v p. 23)
FAC inlet (AC IN)
Used to connect the power cord. (v p. 24)
GAnalog audio input connectors (AUDIO IN)
Used to connect devices equipped with analog audio output
connectors.
0“Connecting a playback device” (v p. 20)
0“Connecting a recording device” (v p. 21)
HAUDIO OUT connectors (RECORDER)
Used to connect the input connector of a recorder. (v p. 21)
IPRE OUT connector (SUBWOOFER)
Used to connect a subwoofer with a built-in amplifier. (v p. 19)
Contents Connections Playback Settings Tips Appendix
9
Front panel Rear panel
Remote control
unit
Index

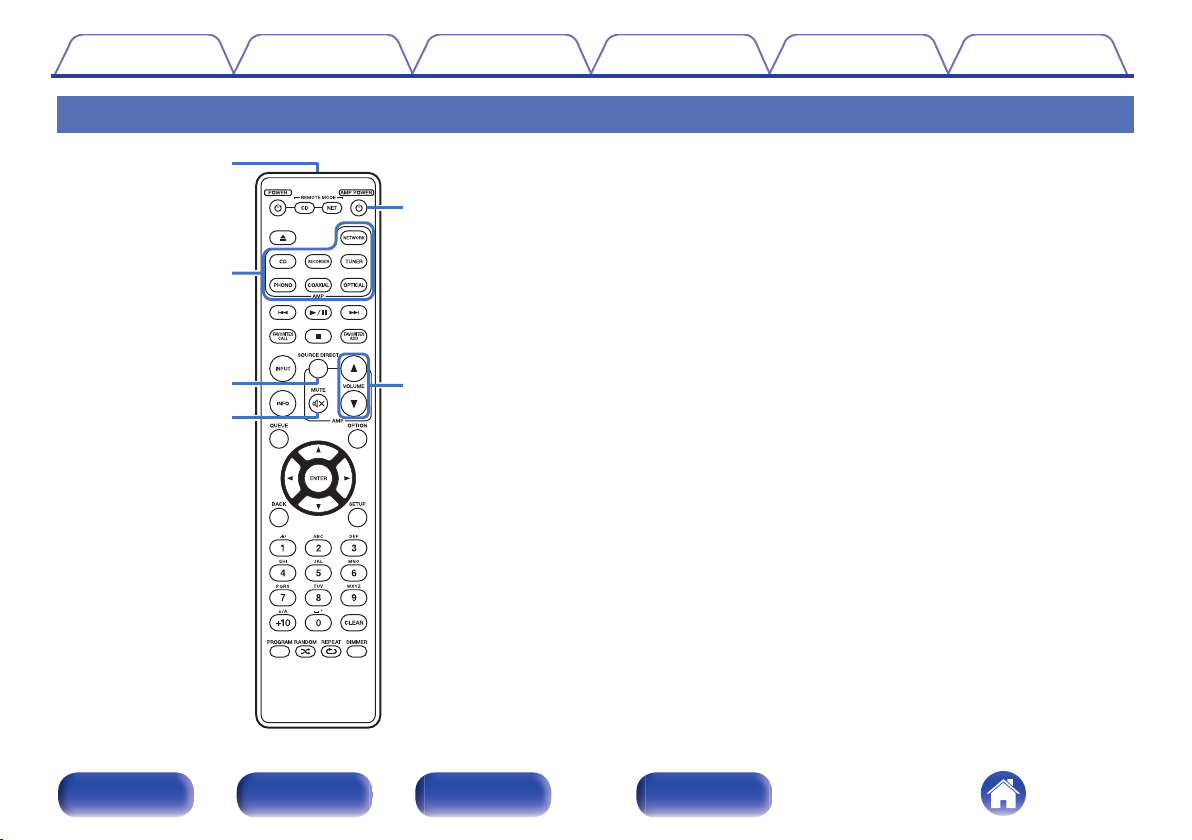

Remote control unit
.
t
y
r
e
w
q
The remote control provided with this unit can control a network audio
player in addition to a Marantz CD player.
0“CD player operations” (v p. 11)
0“Network audio player operations” (v p. 13)
oOperating this unit
ARemote control signal transmitter
This transmits signals from the remote control unit. (v p. 5)
BInput source select buttons
This selects the input source. (v p. 27)
CSOURCE DIRECT button
This turns source direct mode on/off. (v p. 28)
DMUTE button (:)
This mutes the output audio. (v p. 27)
EPower operation button (AMP POWER X)
This turns the power on/off (standby). (v p. 26)
FVOLUME buttons (df)
These adjust the volume level. (v p. 27)
Contents Connections Playback Settings Tips Appendix
10
Front panel Rear panel
Remote control
unit
Index

.
w
q
e
r
o
i
u
y
t
Q2
Q0
Q1
oCD player operations
You can operate a Marantz CD player. To operate a Marantz CD
player, press the REMOTE MODE CD button to switch the remote
control to the CD player operation mode.
0REMOTE MODE CD button lights for approximately two seconds.
APower operation button (POWER X)
BRemote mode select button (REMOTE MODE CD)
CDisc tray open/close button ( )
DSystem buttons
EMedia mode select button (INPUT)
FInformation button (INFO)
GENTER button
HCursor buttons (uio p)
IBACK button
JNumber buttons (0 – 9)
KPROGRAM button
LRANDOM button (P)
Contents Connections Playback Settings Tips Appendix
11
Front panel Rear panel
Remote control
unit
Index

Q5
Q6
Q7
Q3
Q4
MOPTION button
NSETUP button
OCLEAR button
PDIMMER button
QREPEAT button (L)
0The remote control may not operate some products.
0The amp can be operated with the amp operation buttons even when the remote
control operation mode is set to CD.
Contents Connections Playback Settings Tips Appendix
12
Front panel Rear panel
Remote control
unit
Index

.
w
e
q
t
r
o
i
u
y
Q0

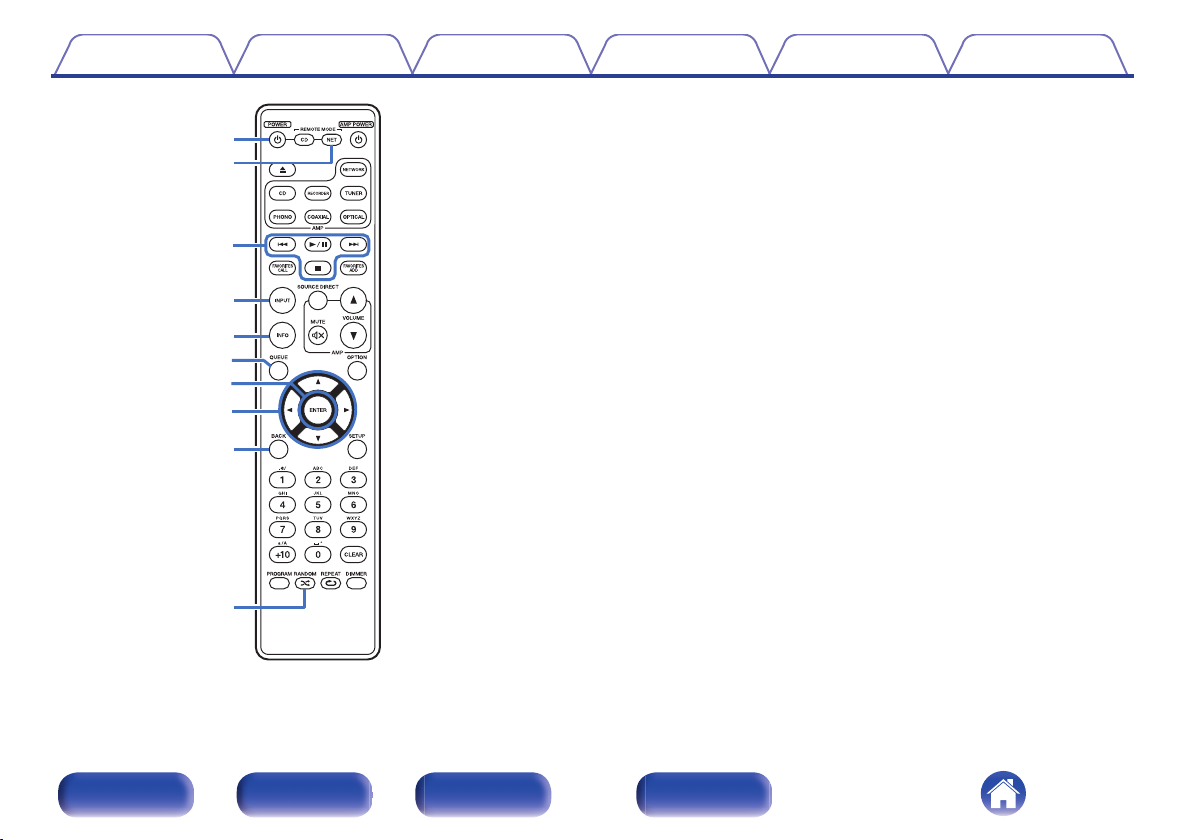

oNetwork audio player operations
You can operate a Marantz network audio player. To operate a
Marantz network audio player, press the REMOTE MODE NET button
to switch the remote control to the network audio player operation
mode.
0REMOTE MODE NET button lights for approximately two seconds.
APower operation button (POWER X)
BRemote mode select button (REMOTE MODE NET)
CSystem buttons
DInput source select button (INPUT)
EInformation button (INFO)
FQUEUE button
GENTER button
HCursor buttons (uio p)
IBACK button
JRANDOM button (P)
Contents Connections Playback Settings Tips Appendix
13
Front panel Rear panel
Remote control
unit
Index

Q2
Q1
Q3
Q5
Q4
Q6
Q7
KFAVORITES ADD / CALL buttons
LOPTION button
MSETUP button
NNumber/letter buttons (0 – 9, +10)
OCLEAR button
PDIMMER button
QREPEAT button (L)
0The remote control may not operate some products.
0The amp can be operated with the amp operation buttons even when the remote
control mode is NET.
Contents Connections Playback Settings Tips Appendix
14
Front panel Rear panel
Remote control
unit
Index

oContents
Connecting speakers 16
Connecting a playback device 20
Connecting a recording device 21
Connecting to a device with digital audio output connectors 22
Connecting devices with remote control connectors 23
Connecting the power cord 24
NOTE
0Do not plug in the power cord until all connections have been completed.
0Do not bundle power cords together with connection cables. Doing so can result in
humming or noise.
oCables used for connections
Provide necessary cables according to the devices you want to
connect.
Speaker cable
.
Subwoofer cable
.
Coaxial digital cable
.
Optical cable
.
Audio cable
.
R
L
R
L
Remote connector cable
.
Contents Connections Playback Settings Tips Appendix
15
Front panel Rear panel
Remote control
unit
Index

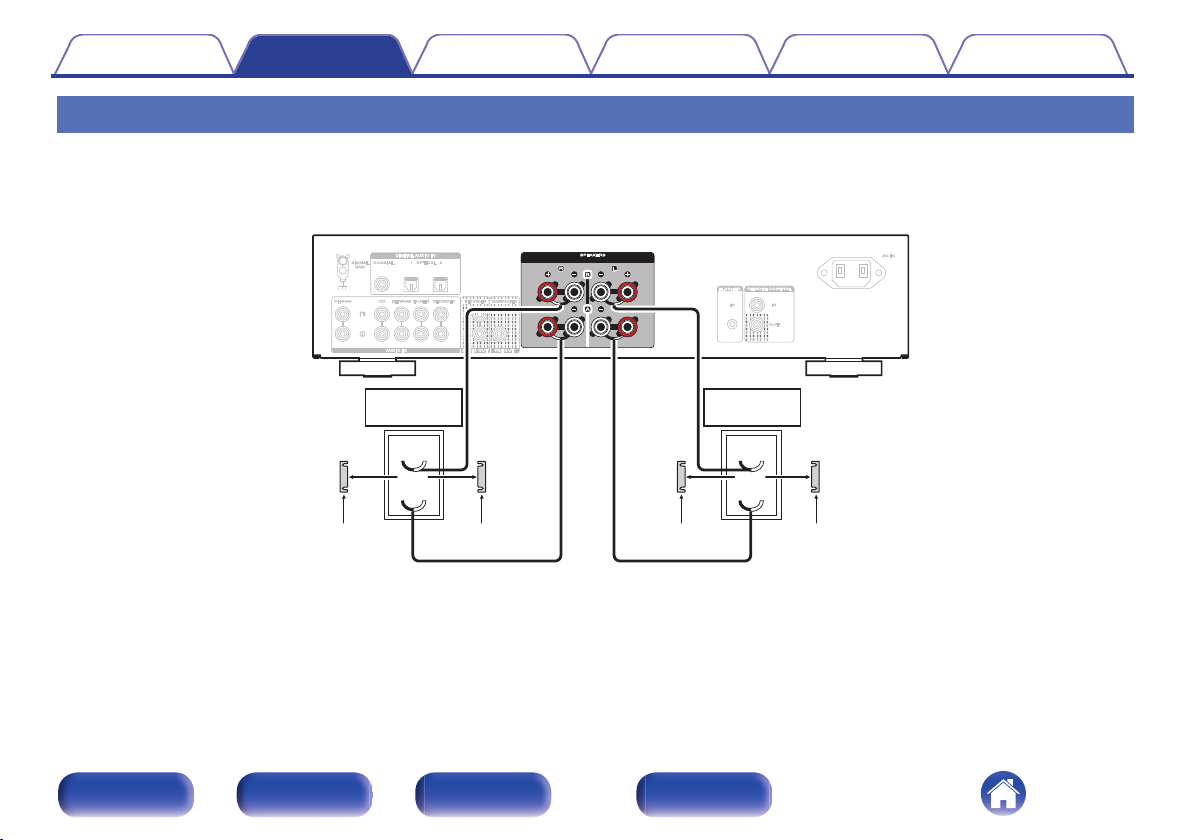

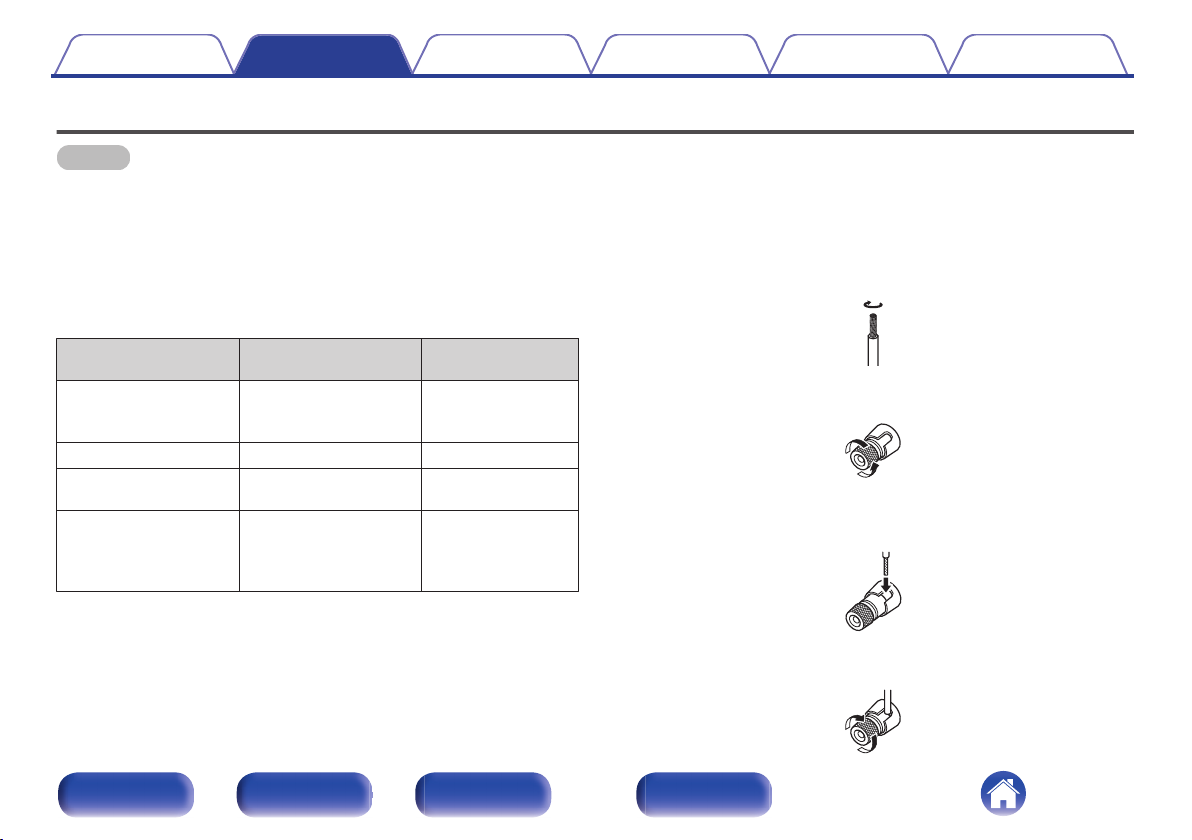

Connecting speakers
NOTE
0Disconnect this unit’s power plug from the power outlet before connecting the
speakers.
0Connect so that the speaker cable core wires do not protrude from the speaker
terminal. The protection circuit may be activated if the core wires touch the rear
panel or if the + and - sides touch each other. (“Protection circuit” (v p. 43))
0Never touch the speaker terminals while the power cord is connected. Doing so
could result in electric shock.
0Use speakers with impedances within the ranges shown below to suit how they
are used.
Speaker terminals
used on this unit
No. of connected
speakers
Speaker
Impedance
SPEAKERS A
(Standard
connection)
2 (one set) 4 – 16 Ω/ohms
SPEAKERS B 2 (one set) 4 – 16 Ω/ohms
SPEAKERS A and
SPEAKERS B 4 (two sets) 8 – 16 Ω/ohms
SPEAKERS A and
SPEAKERS B
(Bi-wiring
connection)
2 (one set) 4 – 16 Ω/ohms
oConnecting the speaker cables
Carefully check the left (L) and right (R) channels and + (red) and –
(black) polarities on the speakers being connected to this unit, and be
sure to connect the channels and polarities correctly.
1
Peel off about 3/8 inch (10 mm) of sheathing from the tip of the
speaker cable, then either twist the core wire tightly or terminate it.
.
2
Turn the speaker terminal counterclockwise to loosen it.
.
3Insert the speaker cable’s core wire to the hilt into the
speaker terminal.
.
4Turn the speaker terminal clockwise to tighten it.
.
Contents Connections Playback Settings Tips Appendix
16
Front panel Rear panel
Remote control
unit
Index

Speaker A/B connection
This unit is equipped with two sets of speaker terminals (SPEAKER A and SPEAKER B). One set of speakers can be connected to each set of terminals,
and a total of two sets of speakers can be connected.
The same signal is output from the SPEAKERS A and SPEAKERS B terminals.
When only one set of speakers is to be connected, use either the SPEAKERS A or SPEAKERS B terminals.
.
wqwq wqwq
SPEAKERS A SPEAKERS B
(R) (L) (R) (L)
Contents Connections Playback Settings Tips Appendix
17
Front panel Rear panel
Remote control
unit
Index

Bi-wiring connection
This connection limits the effects of signal interference between the high range speakers (tweeters) and low range speakers (woofers), allowing you to
enjoy high quality playback.
When bi-wiring with bi-wireable speakers, connect the mid and high range terminals to SPEAKERS B (or SPEAKERS A), the low range terminals to
SPEAKERS A (or SPEAKERS B).
.
wq
wq
HIGH
LOW
wq
wq
HIGH
LOW
Speaker
(R)
Speaker
(L)
Remove shorting bar Remove shorting bar Remove shorting bar Remove shorting bar
Contents Connections Playback Settings Tips Appendix
18
Front panel Rear panel
Remote control
unit
Index

Subwoofer connection
Use a subwoofer cable to connect the subwoofer.
.
Subwoofer
0The subwoofer volume is linked to the Speaker A volume.
0This unit does not output to the subwoofer when not set to output audio from the SPEAKERS A terminal. (v p. 27)
Contents Connections Playback Settings Tips Appendix
19
Front panel Rear panel
Remote control
unit
Index

Connecting a playback device
You can connect turntables, CD players, network audio players and tuners to this unit.
This unit is compatible with turntables equipped with a moving magnet (MM) phono cartridge. When you connect to a turntable with a low output moving
coil (MC) cartridge, use a commercially available MC head amp or a step-up transformer.
If you set this unit’s input source to “PHONO” and you accidentally increase the volume without having a turntable connected, you may hear a hum noise
from the speakers.
.
GND
AUDIO
OUT
L
R
AUDIO
OUT
LR
AUDIO
OUT
LR
AUDIO
OUT
LR
L
L
R
R
L
L
R
R
L
L
R
R
Tu n e r
Turntable
CD player Network audio
player
NOTE
0The earth terminal (SIGNAL GND) of this unit is not for safety grounding purposes. If this terminal is connected when there is a lot of noise, the noise can be reduced. Note
that depending on the turntable, connecting the ground line may have the reverse effect of increasing noise. In this case, it is not necessary to connect the ground line.
Contents Connections Playback Settings Tips Appendix
20
Front panel Rear panel
Remote control
unit
Index
