Marantz DV2100 User manual

Service
Manual
Please use this service manual with referring to the user guide (D.F.U) without fail.
404K855010 AO
3120 785 22520
First Issue:2001.07
DVD Player
DV2100
DV2100
SYSANAMANU OPTSYNC RANDTRKPROGSCAN REPT ALL A-BDIG
REM TITL TIME TIMETRK CHP TOTL TOTLREM REM STEPTRK
DOWN MIXANGLE LAST MEMO
Dolby V
96kHz 5.1CH CONDITIONOSD
DUBBING
R
L
CD-RW CD -RW
OPEN/CLOSE
STANDBY
TABLE OF CONTENTS
1. TECHNICAL SPECIFICATIONS .............................................................................1
2. CONNECTION FACILITIES....................................................................................2
3. INFORMATIONS.....................................................................................................3
4. SERVICE HINTS AND TOOLS ...............................................................................4
5. WARNING AND LASER SAFETY INSTRUCTIONS...............................................5
6. BLOCK DIAGRAM ..................................................................................................7
7. WIRING DIAGRAM.................................................................................................9
8. SCHEMATIC DIAGRAMAND PARTS LOCATION ............................................... 11
9. SERVICE MODE ..................................................................................................25
10. WAVEFORM ......................................................................................................... 26
11. REMOVE THE DVD MECHANISM.......................................................................27
12. IC DATA ................................................................................................................28
13. EXPLODED VIEW AND PARTS LIST...................................................................33
14. ELECTRICAL PARTS LIST...................................................................................36
DB-VLD101/102 DVD Loader
2.1 EXTERIOR.......................................................................................................... 2-1
2.2 LOARDING MECHANISM ASS’Y ....................................................................... 2-2
2.3 TRAVERSE MECHANISM ASS’Y....................................................................... 2-3
DB-VPB220/221 DVD PCB Module
3.1 BLOCK DIAGRAM AND SCHEMATIC DIAGRAM .............................................. 3-1
3.2 PCB CONNECTION DIAGRAM........................................................................ 3-12
3.3 PCB PARTS LIST ............................................................................................. 3-25
DV2100/N1S, /C1S

MARANTZ DESIGN AND SERVICE
Using superior design and selected high grade components, MARANTZ company has created the ultimate in stereo sound.
Only original MARANTZ parts can insure that your MARANTZ product will continue to perform to the specifications for which
it is famous.
Parts for your MARANTZ equipment are generally available to our National Marantz Subsidiary or Agent.
ORDERING PARTS :
Parts can be ordered either by mail or by Fax.. In both cases, the correct part number has to be specified.
The following information must be supplied to eliminate delays in processing your order :
1. Complete address
2. Complete part numbers and quantities required
3. Description of parts
4. Model number for which part is required
5. Way of shipment
6. Signature : any order form or Fax. must be signed, otherwise such part order will be considered as null and void.
SHOCK, FIRE HAZARD SERVICE TEST :
CAUTION : After servicing this appliance and prior to returning to customer, measure the resistance between either primary AC
cord connector pins ( with unit NOT connected toAC mains and its Power switch ON ), and the face or Front Panel of product and
controls and chassis bottom.
Any resistance measurement less than 1 Megohms should cause unit to be repaired or corrected before AC power is applied, and
verified before it is return to the user/customer.
Ref. UL Standard No. 1492.
In case of difficulties, do not hesitate to contact the Technical
Department at above mentioned address.
010620 A.O
USAUSA
MARANTZ AMERICA, INCMARANTZ AMERICA, INC.
1100 MAPLEWOOD DRIVE
ITASCA, IL. 60143
USA
PHONE : 630 - 741 - 0300
FAX : 630 - 741 - 0301
BRAZILBRAZIL
PHILIPS DA AMAZONIA IND. ELET. ITDAPHILIPS DA AMAZONIA IND. ELET. ITDA
CENTRO DE INFORMACOES AO
CEP 04698-970
SAO PAULO, SP, BRAZIL
PHONE : 0800 - 123123(Discagem Direta Gratuita)
FAX : [phone]
JAPANJAPAN Technical
MARANTZ JAPAN, INC.MARANTZ JAPAN, INC.
35- 1, 7- CHOME, SAGAMIONO
SAGAMIHARA - SHI, KANAGAWA
JAPAN 228-8505
PHONE : [phone]
FAX : [phone]
EUROPE / TRADINGEUROPE / TRADING
MARANTZ EUROPE B.V.MARANTZ EUROPE B.V.
P.O.BOX 80002, BUILDING SFF2
5600 JB EINDHOVEN
THE NETHERLANDS
PHONE : +31 - 40 - 2732241
FAX : +31 - 40 - 2735578
TECHNICAL AUDIO GROUP PTY, LTDTECHNICAL AUDIO GROUP PTY, LTD
558 DARLING STREET,
BALMAIN, NSW 2041,
AUSTRALIA
PHONE : 61 - 2 - 9810 - 5300
FAX : 61 - 2 - 9810 - 5355
CANADACANADA
LENBROOK INDUSTRIES LIMITEDLENBROOK INDUSTRIES LIMITED
633 GRANITE COURT,
PICKERING, ONTARIO L1W 3K1
CANADA
PHONE : 905 - 831 - 6333
FAX : 905 - 831 - 6936
AUSTRALIAAUSTRALIA
QualiFi Pty Ltd,QualiFi Pty Ltd,
24 LIONEL ROAD,
MT. WAVERLEY VIC 3149
AUSTRALIA
PHONE : +61 - (0)3 - 9543 - 1522
FAX : +61 - (0)3 - 9543 - 3677
NEW ZEALANDNEW ZEALAND
WILDASH AUDIO SYSTEMS NZWILDASH AUDIO SYSTEMS NZ
14 MALVERN ROAD MT ALBERT
AUCKLAND NEW ZEALAND
PHONE : +64 - 9 - 8451958
FAX : +64 - 9 - 8463554
THAILANDTHAILAND
MRZ STANDARD CO.,LTDMRZ STANDARD CO.,LTD
746 - 754 MAHACHAI ROAD.,
WANGBURAPAPIROM, PHRANAKORN,
BANGKOK, 10200 THAILAND
PHONE : +66 - 2 - 222 9181
FAX : +66 - 2 - 224 6795
TAIWANTAIWAN
PAI- YUING CO., LTD.PAI- YUING CO., LTD.
6 TH FL NO, 148 SUNG KIANG ROAD,
TAIPEI, 10429, TAIWAN R.O.C.
PHONE : +886 - 2 - 25221304
FAX : +886 - 2 - 25630415
MALAYSIAMALAYSIA
WO KEE HONG ELECTRONICS SDN. BHD.WO KEE HONG ELECTRONICS SDN. BHD.
SUITE 8.1, LEVEL 8, MENARA GENESIS,
NO. 33, JALAN SULTAN ISMAIL,
50250 KUALA LUMPUR, MALAYSIA
PHONE : +60 3 - 2457677
FAX : +60 3 - 2458180
AMERICASAMERICAS
SUPERSCOPE TECHNOLOGIES, INC.SUPERSCOPE TECHNOLOGIES, INC.
MARANTZ PROFESSIONAL PRODUCTS
2640 WHITE OAK CIRCLE, SUITE A
AURORA, ILLINOIS 60504 USA
PHONE : 630 - 820 - 4800
FAX : 630 - 820 - 8103
AUSTRALIAAUSTRALIA
KOREAKOREA
MK ENTERPRISES LTD.MK ENTERPRISES LTD.
ROOM 604/605, ELECTRO-OFFICETEL, 16-58,
3GA, HANGANG-RO, YONGSAN-KU, SEOUL
KOREA
PHONE : +822 - 3232 - 155
FAX : +822 - 3232 - 154
SINGAPORESINGAPORE
WO KEE HONG DISTRIBUTION PTE LTDWO KEE HONG DISTRIBUTION PTE LTD
130 JOO SENG ROAD
#03-02 OLIVINE BUILDING
SINGAPORE 368357
PHONE : [phone]
FAX : [phone]

1
1. TECNICAL SPECIFICATIONS
General
System............................................................................................. DVD system and Compact Disc digital audio system
Power requirements
N Version........................................................................................................................................AC230V, 50Hz, 17W
C Version........................................................................................................................................AC220V, 60Hz, 16W
Weight........................................................................................................................................................................ 4.2kg
Dimensions........................................................................................................................420 (W) x 309 (D) x 76 (H) mm
(Not including protruding cables, etc.)
Operating temperature....................................................................................................... +5 C to 35 C (+36 F to 96 F)
Operating humidity............................................................................................................... 5% to 85% (no condensation)
S-Video output
Y (luminance) - Output level...........................................................................................................................1 Vp-p (75 )
C (color) -Output level.............................................................................................................................286 mVp-p (75 )
Jacks............................................................................................................................................................. S-VIDEO jack
Video output
Output level....................................................................................................................................................1 Vp-p (75 )
Jacks.................................................................................................................................................................... RCA jack
RGB output in SCART jack (N1S Version)
Output level.................................................................................................................................................0.7 Vp-p (75 )
Jacks.............................................................................................................................................................. SCART jacks
Component video output (C1S Version)
(Y, C
B , C R ) Output level..........................................................................................................................Y : 1.0 Vp-p (75 )
C
B , C R : 0.7 Vp-p (75 )
Jacks.................................................................................................................................................................. RCA jacks
SYSTEM Audio output
Output level
During audio output.................................................................................................................. 200 mVrms (1kHz, -20 dB)
Number of channels..........................................................................................................................................................2
Jacks.................................................................................................................................................................. RCA jacks
5.1 CH SURROUND Audio output
Output level
During audio output................................................................................................................. 200 mVrms (1 kHz, -20 dB)
Number of channels..........................................................................................................................................................6
Jacks.................................................................................................................................................................. RCA jscks
Digital audio characteristics
Frequency response........................................................................................................4 Hz to 44 kHz (DVD fs : 96kHz)
S/N ratio................................................................................................................................................. More than 100 dB
Dynamic range.......................................................................................................................................More than 100 dB
Total harmonic distortion...................................................................................................................................... 0.0025 %
Wow and flutter................................................................................................................................. Limit of measurement
( 0.001% W, PEAK) or lower
Digital output
Optical digital output.............................................................................................................................. Optical digital jack
Coaxial digital output............................................................................................................................................ RCA jack
Accessories
Remote control unit............................................................................................................................................................
AA (R6P) dry cell battery...................................................................................................................................................
Audio/Video Cable..............................................................................................................................................................
Audio Cable.......................................................................................................................................................................
Euro SCART Cable (N1S Version).....................................................................................................................................
Power Cable.......................................................................................................................................................................
Remote Control Cable........................................................................................................................................................
Operating Instructions........................................................................................................................................................
Note
The specifications and design of this product are subject to change without, due to improvement.
1
2
1
2
1
1
1
1

1 2
2
2
5
5
4
4
3
6
Map of DVD Regions
What are "regional codes"?
Motion picture studios want to control the home release of movies in different countries because theater releases arenít
simultaneous (a movie may come out on DVD in the US when itís just hitting screens in Europe).Therefore they have
required that the DVD standard include codes which can be used to lock out the playback of certain discs in certain geo-
graphical regions.Players sold in each region will have that regionís code built into the player.The player will refuse to play
these "region coded" discs which are not allowed in the region.However, regional codes are entirely optional.Discs without
codes will play on any player in any country. Some studios have already announced that only their new releases will have
regional codes.There are six regions:
1. United States and Canada
2. Europe and Japan
3. Far East (except Japan & China)
4. South America and Oceania
5. Africa and the Middle East
6. China (except Hong Kong)
2. CONNECTION FACILITIES
1 3 5 7 9 11 13 15 17 19 21
2 4 6 8 10 12 14 16 18 20
2-1 Video performance (/N1S only)
SCART (/N1S versions only)
Full according PQR3 IMS
Connector implementation according EN50049-1; color = black; dual SCART
Fully according to prEN1057-2-1
Signal switching is P50 controlled; supported features of mode 3 see survey of applicable standards.
2-1-1 SCART II (connected to TV)
Pin signals:
1 Output Audio R 1.8V RMS
2
3 Output Audio L 1.8V RMS
4 Audio GND
5 Blue/Chroma GND
6
7 Bi-dir Blue out/Chroma in 0.7pp +/-0.1V into 75 Ohm (*)
8 Output Function switch 2V = TV
4.5V / 7V = asp. ratio 16:9 DVD
9.5V / 12V = asp. ratio 4:3 DVD
9 Green GND
10 Bi-dir P50 control
11 Output Green 0.7Vpp +/-0.1V into 75 Ohm (*)
12 not connected
not connected
not connected
not connected
13 Red/Chroma GND
14 fast switch GND
15 Output Red out/Chroma out0.7Vpp +/-0.1V into 75 Ohm (*)
+/-3dB 0.3Vpp in case of Chroma
16 Output fast switch RGB 1V / 3V into 75 Ohm = RGB
/CVBS or Y
0.4V into 75 Ohm = CVBS
17 Y/CVBS GND
18 fast switching GND
19 Output CVBS/Y/RGB sync 1Vpp +/-0.1V into 75 Ohm (*)
20
21 Shield (*) for 100% white
2

3
3. INFORMATIONS

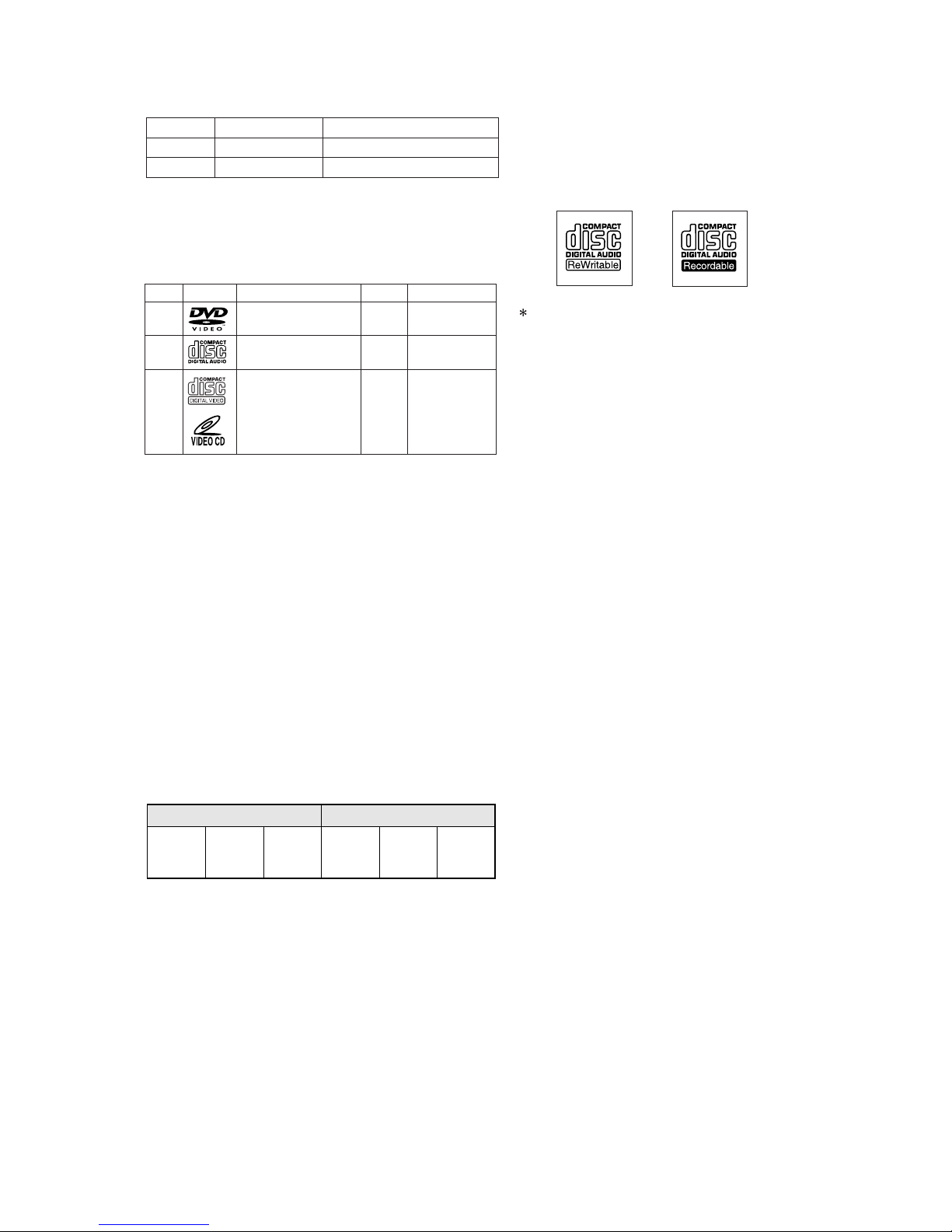

REGION CODE
THE DISCS THAT THE DV2100 CAN HANDLE
The following discs can be played back with a DV2100.
Note: The regional code of the discs must meet to the regional
code of the DV2100.
DVD INFORMATION
Below is a glossary of the new terms related to DVD.
Title:
A disc may have more than one story/movie on it, so each
story/movie is called a “title”.
For example, if there are 2 movies on the disc, they are
separated into Title 1 and Title 2.
Chapter:
A title may also be separated into chapters.
For example, a movie (title) may be separated into 3 scenes
(chapters).
Subtitles:
DVDs are recorded with up to 32 different subtitle languages.
If a disc has more than one subtitle language, you can select
the subtitle language that you want to read.
Soundtrack language:
DVDsare recorded with upto8differentsoundtrack languages.
If a disc has more than one language, you can select the
soundtrack language that you want to listen to.
disc mark playback capability size side
DVD Audio/Video 12 cm single/double
8 cm
CD Audio 12 cm single
8 cm
12 cm
VCD Audio/Video single
8 cm
VERSION REGION CODE COUNTRY
/N1S 2 EUROPE
/C1S 3 ASIAN PACIFIC
Multi-angles:
On some DVDs, scenes have been filmed from different angles
(up to a maximum of 9). On these discs, you can select the
angle that you want to watch. Please refer to the DVD’s manual
to see which scenes have multi-angles.
Title 1 Title 2
Chapter
3Chapter 1Chapter 2Chapter 3
Chapter
1Chapter 2
It is important to note that CD-R, CD-RW discs must be
FINALIZED before they can be played on this player. The disc
types which run on the player feature one or more of these
Resetting the Player to System Settings
To reset the player, press and hold stop button on the front
panel when pressing Power button to turn the power on.
All program memory, saved settings from functions such as
last memory and cndition memory are cleared, and all setup
screen menus are returned to factory settings.
logos on the disc packaging.

4
SERVICE TOOLS
The tools listed below are standard test tools that can be used for repairing and testing Marantz
CD Players & Recorders.
Audio signals disc 4822 397 30184
Disc without errors (SBC444)+
Disc with DO errors, black spots and fingerprints (SBC444A) 4822 397 30245
Disc (65 min 1kHz) without no pause 4822 397 30155
Max. diameter disc (58.0 mm) 4822 397 60141
Torx screwdrivers
Set (straight) 4822 395 50145
Set (square) 4822 395 50132
13th order filter 4822 395 30204
Hexagon socket screw button (No. 1.5)

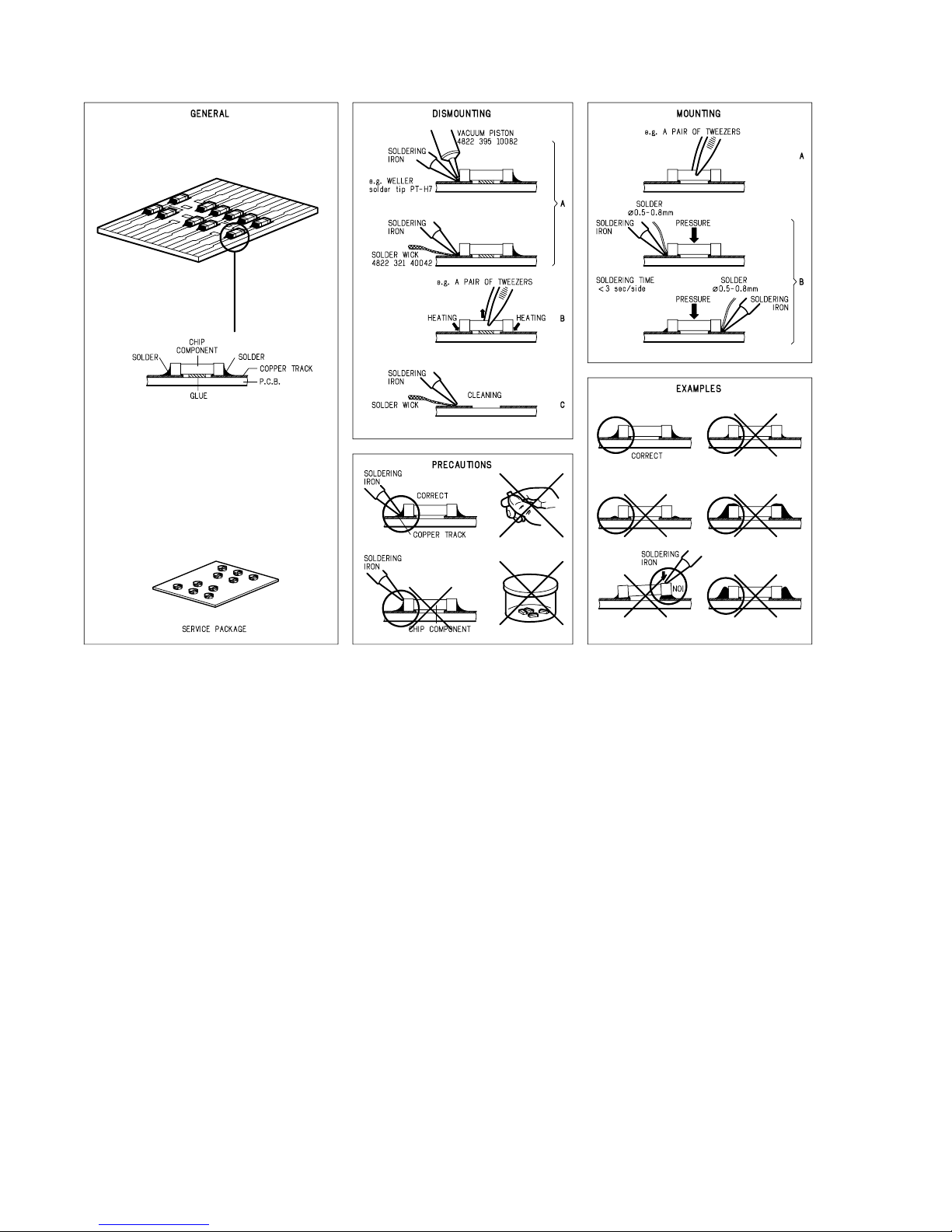

4. SERVICE HINTS AND TOOLS

5
5. WARNING AND LASER SAFETY INSTRUCTIONS
SHOCK, FIRE HAZARD SERVICE TEST:
CAUTION: After servicing this appliance and prior to returning to customer, measure the resistance between
either primary AC cord connector pins (with unit NOT connected to AC mains and its Power switch ON), and the
face or Front Panel of product and controls and chassis bottom,
Any resistance measurement less than 1 Megohms should cause unit to be repaired or corrected before AC
power is applied, and verified before return to user/customer.
Ref.UL Standard NO.1492.
NOTE ON SAFETY:
Symbol : Fire or electrical shock hazard. Only original parts should be used to replace any part with symbol
Any other component substitution(other than original type), may increase risk or fire or electrical shock hazard.
FATTENTION
Tous les IC et beaucoup d’autres semi-
conducteurs sont sensibles aux décharges
statiques (ESD).
Leur longévité pourrait être considérablement
écourtée par le fait qu’aucune précaution
n’est prise a leur manipulation.
Lors de réparations, s’assurer de bien être
relié au même potentiel que la masse de
l’appareil et enfiler le bracelet serti d’une
résistance de sécurité.
Veiller a ce que les composants ainsi que les
outils que l’on utilise soient également a ce
potentiel.
DWARNUNG
Alle IC und viele andere Halbleiter sind
empfindlich gegen elektrostatische
Entladungen (ESD).
Unsorgfältige Behandlung bei der Reparatur
kann die Lebensdauer drastisch vermindern.
Sorgen sie dafür, das Sie im Reparaturfall
über ein Pulsarmband mit Widerstand mit
dem Massepotential des Gerätes verbunden
sind.
Halten Sie Bauteile und Hilfsmittel ebenfalls
auf diesem Potential.
WAARSCHUWING
Alle IC’s en vele andere halfgeleiders zijn
gevoelig voor elektrostatische ontladingen
(ESD).
Onzorgvuldig behandelen tijdens reparatie
kan de levensduur drastisch doen
verminderen.
Zorg ervoor dat u tijdens reparatie via een
polsband met weerstand verbonden bent met
hetzelfde potentiaal als de massa van het
apparaat.
Houd componenten en hulpmiddelen ook op
ditzelfde potentiaal.
AVVERTIMENTO
Tutti IC e parecchi semi-conduttori sono
sensibili alle scariche statiche (ESD).
La loro longevita potrebbe essere fortemente
ridatta in caso di non osservazione della piu
grande cauzione alla loro manipolazione.
Durante le riparazioni occorre quindi essere
collegato allo stesso potenziale che quello
della massa dell’apparecchio tramite un
braccialetto a resistenza.
Assicurarsi che i componenti e anche gli
utensili con quali si lavora siano anche a
questo potenziale.
All ICs and many other semi-conductors are
susceptible to electrostatic discharges (ESD).
Careless handling during repair can reduce
life drastically.
When repairing, make sure that you are
connected with the same potential as the
mass of the set via a wrist wrap with
resistance.
Keep components and tools also at this
potential.
WARNING
Safety regulations require that the set be restored to its original condition
and that parts which are identical with those specified be used.
Veiligheidsbepalingen vereisen, dat het apparaat in zijn oorspronkelijke
toestand wordt terug gebracht en dat onderdelen, identiek aan de
gespecifieerde worden toegepast.
Bei jeder Reparatur sind die geltenden Sicherheitsvorschriften zu beachten.
Der Originalzustand des Gerats darf nicht verandert werden.
Fur Reparaturen sind Original-Ersatzteile zu verwenden.
Le norme di sicurezza esigono che l’apparecchio venga rimesso nelle
condizioni originali e che siano utilizzati pezzi di ricambiago idetici a quelli
specificati.
Les normes de sécurité exigent que l’appareil soit remis a l’état d’origine et
que soient utilisées les pièces de rechange identiques à celles spécifiées.
GB NL
I
D
I
F
GB
NL

LASER SAFETY
This
thisunit employs a laser. Only a qualified service person should remove the cover or attempt to service
device, due to possible eye injury.
LASER DEVICE UNIT
Type: SemiconductorlaserGaAlAs
Wave length: 650 nm (DVD)
780 nm (VCD/CD)
Output Power: 7 mW (DVD)
10 mW (VCD/CD)
Beam divergence: 60 degree
USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURE OTHER THAN
THOSESPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.
AVOID DIRECT EXPOSURETO BEAM
WARNING
The use of optical instruments with this product will increase eye hazard.
Repair handling should take place as much as possible with a disc loaded inside the player
WARNING LOCATION: INSIDE ON LASER COVERSHIELD
CAUTION VISIBLE AND INVISIBLE LASER RADIATION WHEN OPEN AVOID EXPOSURE TO BEAM
ADVARSEL SYNLIG OG USYNLIG LASERSTRÅLING VED ÅBNING UNDGÅ UDSÆTTELSE FOR STRÅLING
ADVARSEL SYNLIG OG USYNLIG LASERSTRÅLING NÅR DEKSEL ÅPNES UNNGÅ EKSPONERING FOR STRÅLEN
VARNING SYNLIG OCH OSYNLIG LASERSTRÅLNING NÄR DENNA DEL ÄR ÖPPNAD BETRAKTA EJ STRÅLEN
VARO! AVATT AESSA OLET ALTTIINA NÄKYVÄLLE JA NÄKYMÄTTÖMÄLLE LASER SÄTEILYLLE. ÄLÄ KATSO SÄTEESEEN
VORSICHT SICHTBARE UND UNSICHTBARE LASERSTRAHLUNG WENN ABDECKUNG GEÖFFNET NICHT DEM STRAHL AUSSETSEN
DANGER VISIBLE AND INVISIBLE LASER RADIATION WHEN OPEN AVOID DIRECT EXPOSURE TO BEAM
ATTENTION RAYONNEMENT LASER VISIBLE ET INVISIBLE EN CAS D'OUVERTURE EXPOSITION DANGEREUSE AU FAISCEAU
6

QF13,QF14
QF05
DF06
SF01 - SF08
SF10,SF11
DF02 - DF05
VF01
Q451
Q502
Q551
Q441
AV
DEC
DIR
Q501
DTS
DEC
DSP
DVD
DVD_DTS
DIR_LRCK
DIR_BCK
AV_LRCK
AV_BCK
DIR_DATA
DIR_LRCK
DIR_BCK
L/R(2CH) ,AV1_LRCK
AV1_BCK
DIR
DTS
2CH L/R
6CH L/R DTS_L/R
DTS_LS/RS
DTS_C/LFE
2CH/6CH
L/R(2CH)
LS/RS
C/LFE
Video
ENC
Y ,V/Cb
C/Cr
T
AC3/PCM
OPT
COAX
DVD MODULE
DVD/THROUGH
Q401
6CH
DAC
SYS-R
SYS-L
L
R
LS
RS
SW
C
QV04
V-IF
V
Y
C
Y
C
Cr
L
R
V/Y
R/C
B
G
INT
EXT
SYSTEM
NTSC/PAL
VIDEO_SEL
SYS_SW
IR
IN
OUT
IR_SW
QF02
FRONT
CPU
SYS_OUT
SYS_IN
E
EP-ROM
I2C
LCD
DRIVER
LCD
DISPLAY
KEY
SUPPLY
DOOR
MOTOR
BLOCK
POWER_ON
KEY_IN_0 - 2
D_MOTOR_FWD
DOOR_OPEN_SW
LCD
BL
LCD_BL
LED
DOOR_CLOSE_SW
D_MOTOR_REV
POWER_LED
STB_LED
VERSION
STB_MUTE
SYS_MUTE
DVD/THROUGH
SYS_MUTE
STB_MUTE
FL/FR , C/LFE LS/RS
QF01
J102
J101
J301
J201
JV02
JV03
J802
CD
7
6. BLOCK DIAGRAM
8
C ONLY
N ONLY

910
7. WIRING DIAGRAM
JV01 15 VSEL1
14 SQUEEZE
13 LETTER
12 Y
11 V-GND
10 VIDEO/Cb
9V-GND
8C/Cr
7NTSC/PAL
6SEL-IR
5IR
4+5V
3+12V
2XRESET
1VIDEO-SEL
CN901
1
VSEL_SW 2
XRESET 3
V+12D 4
V+5D 5
IR 6
SEL_IR 7
NAPSW 8
C/Cr 9
GNDD 10
V/Cb/S 11
GNDD 12
Y13
LETTER 14
SQUEEZE 15
V_SEL
JF03
15 SW+5V
14 D-OPEN-SW
13 D-CLOSE-SW
12 XREADY
11 LT
10 XRESET
9 S-CLK
8 S-IN
7 S-OUT
6 GND
5 EV+5V
4 POWER_ON
3 D-MOTOR-REW
2 D-MOTOR-FWD
1 P-MUTE
CN602
1-12V 2AC1 3AC2 4POWERON 5EV+5V 6GNDD 7SSO 8SSI 9SSCK 10XRESET 11LT1 12XRDY 13SEL_IR 14IR 15SW+5V
JV05
7R/C
6V-GND
5G
4V-GND
3B
2V-GND
1VSEL2
CN904
1
VSEL2
2
V_GND
3
B
4
V_GND
5
G
6
V_GND
7
R/C
JF06 1
KEY_STBY 2
S-LED 3
P-LED 4
STB+5 5
GND 6
RC2
CN110
1M+6V 2M+6V 3GNDM 4GNDM 512V 6GND 712V 8GND 9GND
10 SW+5V 11 SW+5V 12 SW+5V 13 +3.3V 25 AC1 14 +3.3V 26 -27V 15 +3.3V 16 +3.3V 17 GND 18 GND 19 GND 20 GND 21 GND 22 EV+5V 23 POWERON 24 AC2
JP07
26
M+6V 25 M+6V 24
M-GND 23 M-GND 22
SW+12V 21
GND 20
SW+12V 19
GND 18 GND 17
SW+5V 16
SW+5V 15 SW+5V 14
SW+3.4V
2
M-FWD
13
SW+3.4V
1
P-MUTE
12
SW+3.4V 11 SW+3.4V 10
GND 9 GND 8 GND 7 GND 6 GND 5
E+5V 4
STB_CTL 3
M-REW
CN120
1A
2B2
3B1
23 TRKGRTN
5VREF(2.5V)
6B4
7B3
8C
9GND
10 RF
11 VCC
12 MPD-VR(650)
13 MPD(650)
24 FOCSDRV
41/2SW
14 GND(650)
15 LD(650)
16 VSHF
17 MPD-VR(780)
18 MPD(780)
19 LD(780)
20 GND(780)
21 FOCSRTN
22 TRKGDRV
1
A2
B2 3
B1
23
TRKGRTN
5
VREF(2.5V) 6
B4 7
B3 8
C9
GND 10
RF 11
VCC 12
MPD-VR(650) 13
MPD(650)
24
FOCSDRV
4
1/2SW
14
GND(650) 15
LD(650) 16
VSHF 17
MPD-VR(780) 18
MPD(780) 19
LD(780) 20
GND(780) 21
FOCSRTN 22
TRKGDRV
CN301
1S_GND
2INSIDE
3FG
4SLDE_F
5V+5S
6SLDR_R
7LOAD+
8SPDL+
9LOAD-
10SPDL-
11SW1(S_GND)
12SW2
CN1030
12 S_GND
11 INSIDE
10 FG
9 SLDE_F
8 V+5S
7 SLDR_R
6 LOAD+
5 SPDL+
4 LOAD-
3 SPDL-
2 SW1(S_GND)
1 SW2
CN202 1INSIDE
2S_GND
3SLDRF
4FG
5SLDR_R
6V+5S
7SPDL+
8SPDL-
CN302
1 SPDL-
2 SPDL+
3 V+5S
4 SLDR_R
5FG
6 SLDRF
7 S_GND
8 INSIDE
CN201
1
V+5S
2
FG
3
S_GND
CN203
1 2
CN303
1 LOAD-
2 LOAD+
CN401
1
LOAD+ 2
LOAD-
JP06
1
2
JP05
1 2
JP01 1
2
CN106
1TXD
2RXD
3DTR
4CTS
5V+5D
6GNDD
7N.C.
J601
29 +3.3V
28 DIRBCK
27 DIRLRCK
26 DIRDATA
25 6CH/2CH-
24 LFEON
23 LF.RF
22 C.LFE
21 LS.RS
20 DTSSD0
19 DTSMD
18 DTSXCSB
17 DTSXCS
5D-GND
16 XAUDRESET
4DACCLK
15 CD/DVD
3D-GND
14 SDATA
2+5V
13 SCLK
1+12V
12 XRESET
11 XMUTE
10 DCXCO
9AV1BCK
8AV1LRCK
72CHDATA
6AC3/PCM
CN905
1
V+12D
2
V+5V
3
GNDD
4
DAC_CLK
5
GNDD
6
AODAI(AC3)
7
ADATA0
8
LRCK
9
BCK
10
LAT_DAC
11
XMUTE
12
HIBITSEL
13
DFSCK
25
6CHMD
14
DFSO
26
DTSDATA
15
44/X48
27
DTSLRCLK
16
AUDRST
28
DTSBCLK
17
XCSDF1
29
V+3V
18
XCSDF2
19
DTSMD
20
DFSI
21
ADATA3
22
ADATA2
23
ADATA1
24
LFEON
JP04
1
2
6DRIVE2
5DRIVE1
4D-CLOSE
3M-GND
2M-GND
1D-OPEN
J106 1
DRIVE2 2
DRIVE1 3
D-CLOSE 4
M-GND 5
M-GND 6
D-OPEN
JF05 1
STB+5 2
RC1 3
GND
JF12
1STB+5
2RC1
3GND JF09
1KEY_STBY
2S-LED
3P-LED
4STB+5
5GND
6RC2
JV06 1
VSEL2 2
V-GND 3
Y4
V-GND 5
V6
+5V 7
VSEL1 8
+8V 9
R/C 10
V-GND 11
G12
V-GND 13
SQUEEZE 14
+12V 15
B16
A-GND 17
AL 18
A-GND 19
AR
J801
19 VSEL2
18 V-GND
17 Y
16 V-GND
15 V
14 +5V
13 VSEL1
12 +8V
11 R/C
10 V-GND
9G
8V-GND
7SQUEEZE
6+12V
5B
4A-GND
3AL
2A-GND
1AR
JF08
1KEY_DOOR
2GND
JF07 1
KEY_DOOR 2
GND
JF10
3
GND 2 RC2 1
STB+5
JF11
1GND 2RC2 3STB+5
JF04
1P-MUTE 2SYS-MUT 3STB-MUT 4DVD/THR 5SYS-IN 6IR-SW 7GND 8SYS-SW 9SYS-OUT
J104
9
SYS-OUT
8
SYS-SW
7
GND
6
IR-SW
5
SYS-IN
4
DVD/THR
3
STB-MUT
2
SYS-MUT
1
P-MUTE
PC101 TLP910
12 43
JP11
1 2
J105
1M-GND 2DRIVE1 3DRIVE2 4-12V
JD01
1
-12V 2 DRIVE2 3 DRIVE1 4 M-GND
JF01
1
GND
2
STB+5
3
TMODE
4
TSUX3
5
/TRES
6
TCK
7
TEXD 8
TTXD
9
TAUX
10
GND
M
SPINDLE MOTOR
SMEB
VWG2048
(VNP1695)
FGSB
VWG2009
AC OUTLET
LIVE
NEUTRAL VKP2205
MSWB
LOMB
M
DOOR MOTOR
DVDM
SCRB
JCKB
FROB PF02
DOOR
PCB
PF05
RC
CENTER
PCB
SUPB
SPINDLE MOTOR
M
M
SLDR MOTOR
VWG1885
LOSB
DVD Mechanism Module
PF01
FRONT PCB
PJ01
JACK PCB
PS01
POWER SUPPLY PCB
PS02
MAIN
SWITCH PCB
PS03
AC OUTLET
PCB
PF03
LED PCB
PF04 RC LEFT PCB
PC01 SCART PCB
CN106
N1S ONLY
FOR DOWNLOAD SOFTWARE
TO FLASH ROM
PICK UP ASS’Y(OPU)
JF06
FOR DOWNLOAD SOFTWARE
TO uP
N1S ONLY
DVD MAIN PCB
(DIGITAL BOARD)
N1S ONLY

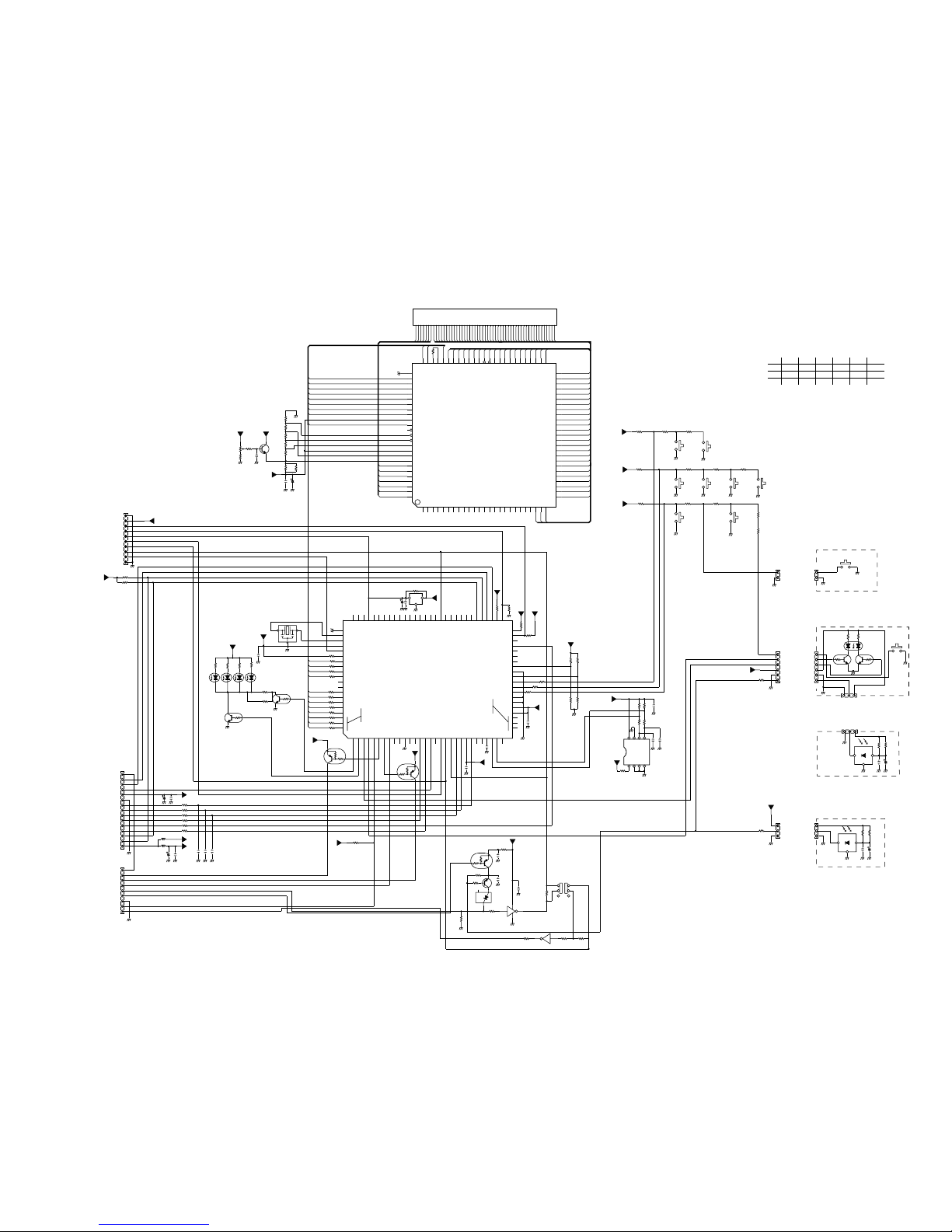

JF03
15
SW+5V
14
D-OPEN-SW
13
D-CLOSE-SW
12
XREADY
11
LT
10
XRESET
9
S-CLK
8
S-IN
7
S-OUT
6
GND
5
EV+5V
4
POWER_ON
3
D-MOTOR-REV
2
D-MOTOR-FWD
1
P-MUTE
AT24C04
QF05
1
ADRESS0
2
ADRESS1
3
ADRESS2
4
GND
5
SDA
6
SCL
7
WP
8
VCC
RF22 100 RF20 100
RF21 10k
RF19 10k CF13 0.1
CF11 N.C. CF12 N.C.
GND
GND
GND
GND GND
STB+5
RF01
470
RF02
1K
RF03
1K
RF04
1K
RF05
1K
RF06 1k
GND
LCD+5
CF02
0.1
CF03
47u/10V
GND GND
STB+5
GND
CF20 N.C.
GND
RF53 47K
STB+5
CF18
0.1
GND
GND
GND
CF14
0.1
CF15
0.1
GND
RF34
N.C.
RF35
N : N.C
C : 10K
RF33
N : 0Ω
C : 12K
RF32
0
GND
STB+5
STB+5
SF01 5KQNAE
SF02 5KQNAE
SF03 5KQNAE SF04 5KQNAE SF05 5KQNAE
SF07 5KQNAE SF08 5KQNAE
SF06 5KQNAE
STB+5
RF43
22k
RF50
22k
RF47
22k
STB+5
GND
GND
GND
STB+5
RF38
0
RF31
0
RF10 100
RF11 100
RF12 100
CF06 N.C. CF07 N.C. CF08 N.C.
GND GND GND
CF09
47u/10V
GND
CF10 0.1
GND
LED+5
STB+5
GND
GNDGND
CF04 47u/10V CF05 0.1
GND
RF58
100
DF02
NSCW100
DF03
NSCW100
RF57
100
DF04
NSCW100
RF56
100
LED+5
1SS301
DF01
GND
RF27
4.7K
RF28
N.C.
STB+5
QF02
MB90F553A 1
P20/A16
2
P21/A17
3
P22/A18
4
P23/A19
5
P24/A20
6
P25/A21
7
P26/A22
8
P27/A23
9
030/ALE
10
P31/-RD
11
Vss
12
P32/-WRL
13
P33/-WRH
14
P34/HRQ
15
P35/-HAK
16
P36/RDY
17
P37/CLK
18
P40/SCK
19
P41/SOT
20
P42/SIN
31
P53/SCL1
32
P54/SDA2
33
P55/SCL2
34
AVcc
100
P17/AD15
99
P16/AD14
98
P15/AD13
97 P14/AD12
96 P13/AD11
95 P12/AD10
94 P11/AD09
93 P10/AD08
92 P07/AD07
91 P06/AD06
90 P05/AD05
89 P04/AD04
88 P03/AD03
87 P02/AD02
86 P01/AD01
85 P00/AD00
80
PA4/CKOT
79
PA3
78
PA2
77
-RST
76
PA1/OUT3
75
PA0/OUT2
74
P97/PPG5
73
P96/PPG4
72
P95/PPG3
71
P94/PPG2
70
P93/PPG1
69
P92/PPG0
68
P91/OUT1
67
P90/OUT0
66
P87/IN3
65
P86/IN2
64
P85/IN1
63
P84/IN0
62
P83/TOT1
61
P82/TOT0
84 Vcc
83 X1
82 X0
81 Vss
35
AVRH
36
AVRL
37
AVss
38
P60/AN0
39
P61/AN1
40
P62/AN2
41
P63/AN3
42
Vss
43
P64/AN4
44
P65/AN5
45
P66/AN6
46
P67/AN7
47
P70/IRQ0
48
P71/IRQ1
49
MD0
50
MD1
21
P43/SCK1
22
P44/SOT1
23
Vcc
24
P45/SIN1
25
P46/ADTG
26
P47/SCK0
27
C
28
P50/SDA0/SOT0
29
P51/SCL0/SIN0
30
P52/SDA1
60
P81/TIN1
59
P80/TIN0
58
P77/IRQ7
57
P76/IRQ6
56
P75/IRQ5
55
P74/IRQ4
54
P73/IRQ3
53
P72/IRQ2
52
-HST
51
MD2
GND
STB+5
RF18
N.C.
JF04
9
SYS-OUT
8
SYS-SW
7
GND
6
IR-SW
5
SYS-IN
4
DVD/THR
3
STB-MUT
2
SYS-MUT
1
P-MUTE
STB+5
RF23 10K
QF07
2SA1586
GND
GND
CF16
0.1
JF05
1STB+5
2RC1
3GND
JF07
1KEY_DOOR
2GND
JF06
1KEY_STBY
2S-LED
3P-LED
4STB+5
5GND
6RC2
QF03
N.C.
RF07
N.C.
RF09
N.C.
GNDGND
LCD+5
RF08 N.C.
LCD+5
RF84
N.C.
RF40 18k
RF39 56k
RF52
10K STB+5
RF51
10K
GND
RF37
10K
STB+5
RF36
10K
STB+5
IN
OUT
GND
QF08
S-806D
2
13
CF19 0.047
GND
GND
STB+5
CF23
0.1
GND
RF65 0
JF01
1
GND 2
STB+5 3
TMODE 4
TAUX3 5
/TRES 6
TCK 7
TRXD 8
TTXD 9
TAUX 10
GND
GND
RF48
56k
RF42
5.6k RF41 10K
RF49
33k
RF45
10K
RF46
5.6k RF44 18k
STB+5 STB+5
GND
GND
GND
GND
GND
GND
GND GND
STB+5
QF04
TC7W14FU(2/3)
6
2
QF04
TC7W14FU(1/3)
17
8
4
FF02
BLM11P600SPT
FF01
BLM11P600SPT LCD+5
SF09
SSSS822101
654 321
RF30
N.C.
RF29
100
RF26
0
RF25
47K
GND
RF66 0
RF67 0
RF68 0
RF69 0
RF70 0
RF71 0
RF72 0
RF73 0
RF74 0
RF75 0
RF76 0
RF77 0
DF05
NSCW100
RF55
100
QF09
DTC323TU
QF10
DTC323TU
RF54
100
GND
RF17
330
RF13 100
RF14 100
RF15 100
CF01
N.C.
QF01
NJU6450A
1COM7 2COM8 3COM9 4COM10 5COM11 6COM12 7COM13 8COM14
9COM15 10 SEG60 11 SEG59 12 SEG58 13 SEG57 14 SEG56 15 SEG55 16 SEG54 17 SEG53 18 SEG52 19 SEG51 20 SEG50 21 SEG49 22 SEG48 23 24 25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71
A0
72
OSC1
73
OSC2
74 75
76
VSS
77
78
79
80
81
82
83
84
85
VDD
86
/RST
87
FR
88
V5
89
V3
90
V2
91
M/S
92
V4
93
V1
94
95
96
97
98
99
100
RF80
1M
GND
VF01
HLC7599-016600
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55
RF81
N.C.
RF82
10K
RF83
10K
STB+5
QF15
DTA114EUA
QF16
DTA114EUA
STB+5
STB+5
RF78
0
XF01
8MHz
3
12
GND
QF06
DTA114EUA
CF28
N.C.
GND
GND
CF17
0.1
RF85
1K
RF86
1K
RF87
1K
RF88 N.C.
JF12
3
GND
2
RC1
1
STB+5
QF12
DTC114TE
GND
GND
JF11
1STB+5 2RC2 3GND
RPM6936-V4
QF13
2
1 3
GND
GND
GND
RF59
220
CF27
10/16V
RF62 100
GND
GND
DF06
SML-020MVT
JF10
3
GND 2
RC2 1
STB+5
RF64 100
GND
GND
JF09
6
RC2
5
GND
4
STB+5
3
POWER_LED
2
STB_LED
1
KEY_STBY
RF63 100
GND
CF24
0.1
RF60
180
GND
SF11
5KQNAE
RPM6936
QF14
2
1 3
QF11
DTC114TE
SF10
5KQNAE12
GND
GND
JF08
2
GND
1
KEY_DOOR
RF61 100
CF26
0.1
CF25
10/16V
RST
LCD_/WR
LCD_/RD
A0
D[0]
D[1]
D[2]
D[3]
D[4]
D[5]
D[6]
D[7]
SEG[19] SEG[18] SEG[17] SEG[16] SEG[15] SEG[14] SEG[13] SEG[12] SEG[11] SEG[10]
SEG[9] SEG[8] SEG[7] SEG[6] SEG[5] SEG[4] SEG[3] SEG[2] SEG[1] SEG[0]
SEG[22]
SEG[23]
SEG[24]
SEG[25]
SEG[26]
SEG[27]
SEG[28]
SEG[29]
SEG[30]
SEG[31]
SEG[32]
SEG[33]
SEG[34]
SEG[35]
SEG[36]
SEG[37]
SEG[38]
SEG[21]
SEG[20]
A0
LCD_/RD
LCD_/WR
D[0]
D[1]
D[2]
D[3]
D[4]
D[5]
D[6]
D[7]
RST
COM[0]
COM[1]
COM[2]
COM[3]
COM[4]
COM[5]
COM[6]
SEG[39]
SEG[40]
SEG[41]
SEG[42]
SEG[43]
SEG[44]
SEG[45] SEG[46] SEG[47]
SEG[0] SEG[1] SEG[2] SEG[3] SEG[4] SEG[5] SEG[6] SEG[7] SEG[8] SEG[9] SEG[10] SEG[11] SEG[12] SEG[13] SEG[14] SEG[15] SEG[16] SEG[17] SEG[18] SEG[19] SEG[20] SEG[21] SEG[22] SEG[23] SEG[24] SEG[25] SEG[26] SEG[27] SEG[28] SEG[29] SEG[30] SEG[31] SEG[32] SEG[33] SEG[34] SEG[35] SEG[36] SEG[37] SEG[38] SEG[39] SEG[40] SEG[41] SEG[42] SEG[43] SEG[44] SEG[45] SEG[46] SEG[47] COM[0] COM[1] COM[2] COM[3] COM[4] COM[5] COM[6]
5.1CHPAUSE
PLAY
TRAY
OPEN/CLOSE
STOP
FWD
DOLBY V
REV
KEY0
KEY1
KEY2
01234
STBYTRAYDOORPLAY
REVFWDPAUSE STOP
DOLBY V5.1CH
RC CENTER
PF02
RC LEFT
WG404K1080
LED
PF04
DOOR
PF05
DOOR
OPEN/CLOSE
STBY
PF01
WG404K1060
WG4704K1070
PF03
WG404K1090
WG404K1100
Download Connector
4.9V
4.9V
4.9V
4.9V
4.9V
4.9V
-14.1V -13.5V
-14.4V
4.8V
FROM PJ01 J104 4(K-11)
FROM DVDM CN602
4.9V
4.9V
-13.5V
0V
0V
4.8V
4.9V
4.9V
4.9V
4.9V
4.9V
4.8V
-2.6V
0.3V
4.9V
4.9V
0V
4.9V
4.9V
4.9V
4.9V
4.9V
4.9V
4.9V
4.9V
4.9V
4.9V
4.9V
4.9V
4.9V
4.9V
4.9V
0.4V
1.3V
3.1V
2.2V
4.0V
4.9V
3.1V
4.9V

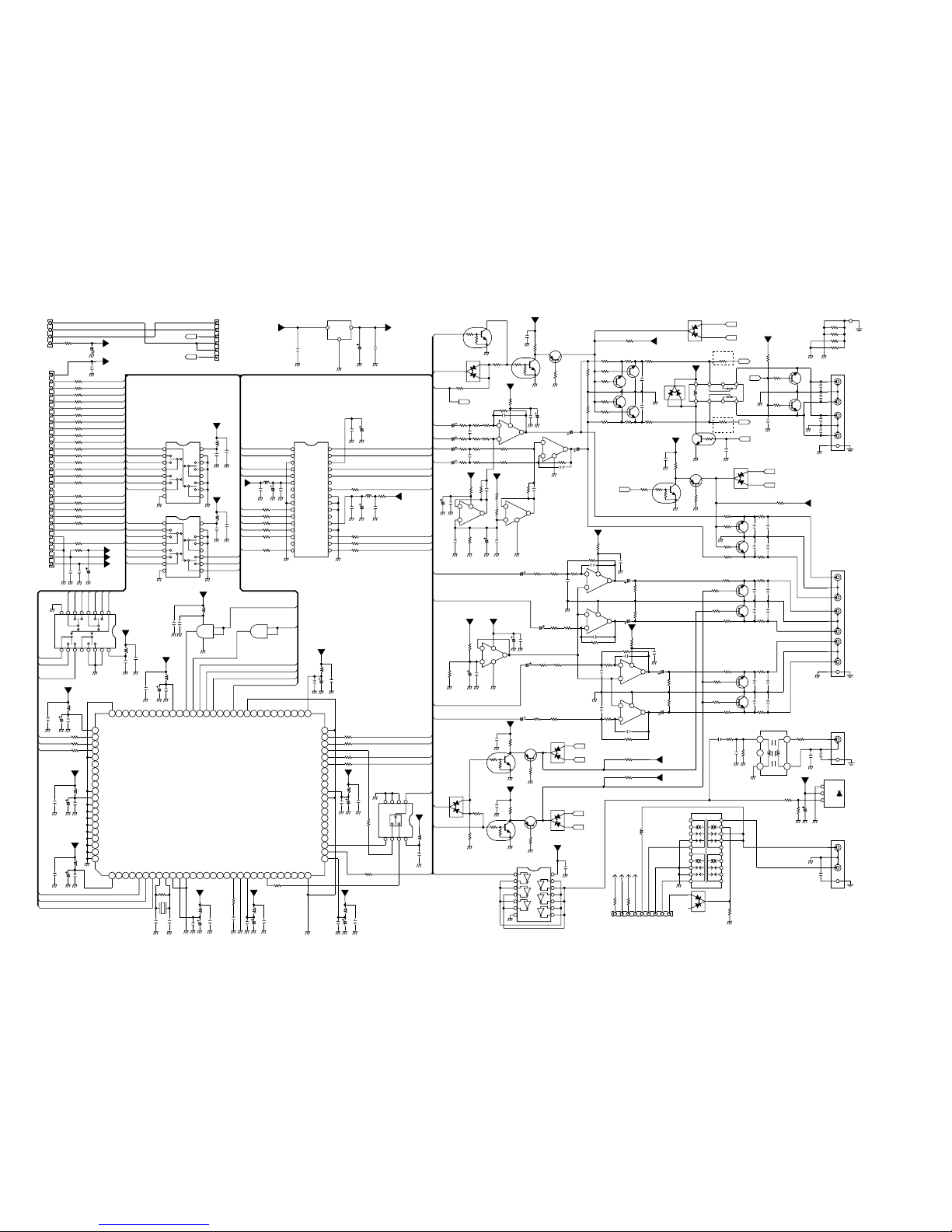

8. SCHEMATIC DIAGRAM AND PARTS LOCATION
1211

Q301
NJM2114M(1/2)
7
5+
6-8
Q301
NJM2114M(2/2)
1
3+
2-4
J601
29
+3.3V 28
DIRBCK 27
DIRLRCK 26
DIRDATA 25
6CH/2CH- 24
LFEON 23
LF,RF 22
C,LFE 21
LS,RS 20
DTSSDO 19
DTSMD 18
DTSXCSB 17
DTSXCS
5
D-GND
16
XAUDRESET
4
DACCLK
15
CD/DVD
3
D-GND
14
SDATA
2
+5V
13
SCLK
1
+12V
12
XRESET 11
XMUTE 10
DCXCD 9
AV1BCK 8
AV1LRCK 7
2CHDATA 6
AC3/PCM
Q501
YSS912C-F
1
VDD1
2
RAMCEN
3
RAMA16
4
RAMA5
5
SD180
6
SD181
7
SD182
8
XI
9
XO
10
VSS
11
AVDD
12
SD183
13
TEST
14
TEST
15
DVFB
16
DTSDATA
17
AC3DATA
18
SD083
19
CPO
20
AVSS
31
VDD1
32
DPORT0
33
DOPRT1
34
DOPRT2
100 VSS
99 IPORT0
98 IPORT1
97 IPORT2
96 IPORT3
95 IPORT4
94 IPORT5
93 IPORT6
92 IPORT7
91 VDD2
90 VSS
89 RAMDEN
88 RAMWEN
87 RAMA0
86 RAMA1
85 SDIA1
80
VSS
79
RAMD7
78
RAMD6
77
RAMD5
76
RAMD4
75
RAMD3
74
RAMD2
73
RAMD1
72
RAMD0
71
VDD1
70
RAMA2
69
SCK
68
SI
67
SO
66
/CS
65
/CSB
64
RAMA3
63
TEST
62
/IC
61
RAMA4
84 SDIA0
83 SDBCK0
82 SDWCK0
81 VDD2
35
DPORT3
36
DPORT4
37
DPORT5
38
DPORT6
39
DPORT7
40
VSS
41
VDD2
42
TAMA9
43
TAMA8
44
RAMA7
45
SDOB2
46
SDOB1
47
SDOB0
48
SDBCK1
49
SDWCK1
50
VSS
21
VDD2
22
SDOA2
23
SDOA1
24
SDOA0
25
RAMA14
26
RAMA13
27
RAMA12
28
RAMA11
29
RAMA10
30
VSS
60
VSS
59
RAMA5
58
RAMA6
57
/SDBCK0
56
SURENC
55
KARAOKE
54
MUTE
53
CRC
52
NONPCM
51
VDD2
C528
0.1
C530 0.1 C529
100/10V
D-GND
D-GND
D-GND
V+3A
F510 BLM11P600SPT
R519 0
R520 0
R521 0
C533 0.1
C532
100/10V
D-GND
F511 BLM11P600SPT
D-GNDD-GND
V+3A
C531
0.1
C503
0.1
D-GND
C501
0.1
V+3A
D-GND
F501 BLM11P600SPT
C502
100/10V
D-GND
D-GND
R504
1M
X501
12.288MHz
C504 22p
C505
22p
D-GND D-GND
C507
100/10V
F502 BLM11P600SPT
C506
0.1
C508
0.1
D-GND
D-GND
V+3A
D-GND
D-GND D-GND
C509 470p R505
10k
D-GND
D-GND
C511
100/10V
D-GND
D-GND
C510 0.1 F503
BLM11P600SPT
C512
0.1
V+3A
D-GND
V+5A
C514
100/10V
C513
0.1 F504
BLM11P600SPT
D-GND D-GND
C515
0.1
D-GND
R506
0
Q502
TC7W53FU
1
COMMON
2
INH
3
VEE
4
VSS
5
YSS6CH
6
CH1
7
CH0
8
VD1
V+5A
F505
BLM11P600SPT
D-GND
C516
0.1
D-GND
D-GNDD-GND
F506
BLM11P600SPT
C517 0.1
D-GND
C519
0.1
C518
100/10V
V+3A
R510
0
R508 0
R509 0
R511 0
R512
0
C526 100/10V
F509 BLM11P600SPT
C525
0.1 C527
0.1
D-GNDD-GND
V+5A
D-GND
Q503
TC7W08FU(2/2)
6
5
3
8
4
V+5A
F508
BLM11P600SPT
C523
0.1
D-GND
C524
0.1
D-GND
D-GND
F507
BLM11P600SPT
D-GND
V+3A
C521
100/10V
C522
0.1
D-GND
C520 0.1
D-GND
R507
0
C602 0.1
D-GND
D-GND
D-GND
C603 0.1
V+12D
V+5M
V+3A
D-GND
C601
0.1
Q441
TC74VHC157FT
12345678
GND
16
VCC
15
ST-
14131211109
Q451
TC74VHC157FT
12345678
GND
16
VCC
15
ST-
14131211109
Q401
UDA1328T/S1
1
OUT3
2
OUT4
3
VSSA
4
OUT5
5
OUT5
6
VDOA
7
N.C.
8
N.C.
9
STATIC/L3-
10
BCK
11
LRCK
12
DATA12
13
DATA34
14
DATA56
15
N.C.
16
SYSCLK
32
OUT2
31
OUT2-
30
VREF
29
OUT1-
28
OUT1
27
TEST1
26
DS
25
DEEM0
24
DEEM1
23
MUTE
22
TEST2
21
VDDD
20
VSSD
19
SDATA
18
SCLK
17
XCS
F441 BLM11P600SPT
V+3A
C441
0.1
D-GND
C442
0.1
D-GND
D-GNDD-GND V+3A
D-GND
D-GND
C451
0.1
D-GND
C452
0.1
F451
BLM11P600SPT
D-GND
V+3A
C401
0.1
A-GND
F401
BLM11P600SPT
C403
0.1
A-GND
C402
100/10V
A-GND
R401 0
R402 0
R403 0
R404 0
R405 0
R406
0
A-GND
Q551
TC74VHC157FT
12345678
GND
16
VCC
15
ST-
14131211109
D-GND
F551
BLM11P600SPT
V+3A
C551
0.1
D-GND
C552 0.1
D-GND
D-GND
V+3A
R410
0
F402
BLM11P600SPT
D-GND
C406
0.1
C405
100/10V
D-GND
C404
0.1
D-GND
D-GND
R411
0
R409 0
R408 0
R407 0
C408
0.1
C407
100/10V
A-GNDA-GND
V+12D
V+12A
C391
0.1
C395
0.1
C394
220/16V
A-GND
A-GND A-GND A-GND
D352
1SS301
D351
1SS301
R363
1k
R364
1k
Q355
DTC124EUA
R365
1.2K
V+5M
A-GND A-GND
R366 4.7k
Q356
2SA1576A
J301
YKC21-3215
1
2
4
5
7
6
3
C355 N.C
C356 N.C
C354 N.C
C353 N.C
Q357
2SC4213
Q358
2SC4213
R367
2.2K
R368
2.2K
+
-
MR62-12USR
L351
56
34
87
12
V+12A
D353
1SS301
31
2
A-GND
C359
0.1
A-GND
R357
0
R358
0
R369
0
R370
0
R355
150
R353
150
R361
2.2K
R359
2.2K
R360
2.2K
R362
2.2K
R354
150 R356 150
R351 100kR352 100k
C351 100p
C352 100p
Q353
2SC4213
Q351
2SC4213
Q354
2SC4213
Q352
2SC4213
A-GND
C323 100p
C324
100p
R321
150
R322
150
C322
NC C321
NC
Q304
2SC4213
Q303
2SC4213
R319
150
R320
150
R324
2.2K
R323
2.2K
R262
150
C261
NC
C263 100p
Q281
2SC4213
R259
150
Q282
2SC4213
R282
1K
C262
NC
R261
150
C264 100p
R260
150
R281
2.2K
R212
150
C211
NC
C213 100p
Q231
2SC4213
R209
150
Q232
2SC4213
R232
2.2K
C212
NC
R211
150
C214 100p
R210
150
R231
2.2K
A-GND
Q306
2SA1576A
R326
1K
A-GND
Q305
DTC124EUA
V+5M
R327 4.7k
R325
0
C307 33p
C309 0.1
C310
47/16V
R309 47k
R311
0
V+12A
A-GND A-GND
R303
22k R307 22k
R301
22k
R305
22k
C305
68p
C303
100/16V
100/16V
C301
C308
33p
R310
47k
C302
100/16V
C306
68p
R308
22k
R304
22k
100/16V
C304
R302
22k R306
22k
C319
100/16V
C320
100/16V
Q302
NJM2068(1/2)
7
5+
6-8
V+12A
R315
0
Q302
NJM2068(2/2)
1
2-
3+4
R314 47k
C312 33p
A-GND
C311 33p
R313
47k
A-GND
C315
0.1
C316 47/16V
C317 0.1
A-GNDA-GND A-GNDA-GND
V+12A
R316
0
R317
47k
A-GNDA-GND
C314 100/16V C313 0.1
D302
1SS301
R257
100k
R258 100k
C259
10/50V
C260
100/16V
Q251
NJM2068(1/2)
1
3+
2-8
Q251
NJM2068(2/2)
7
6-
5+4
V+12A
C255 33p
R255
33k
C257
0.1
A-GND
C253 220p
R253
10k
R251
15k
C251
100/16V
R254
2.2k
C252
100/16V
R252
820
C256 0.047
R256
6.8k
C207
0.1
R204
10K
C20533p
C210
10/50V
R205 33k
Q201
NJM2068(1/2)
1
3+
2-8
C206 33p
R201
15k
R206
33k
C209
10/50V
R202
15k
C201
100/16V
R207
100k
Q201
NJM2068(2/2)
7
6-
5+4
A-GND
C202
100/16V
V+12A
C203 220p
R203
10k
R208
100k
C204 220p
Q221
NJM2068
1
2-
3+4
8
C222
0.1
C221
47/16V R221
47K
V+12A V+12A
C224
0.1
C223 47/16V
A-GND
A-GND
A-GND A-GNDA-GND A-GND
J101
YKC21-3182
1
3
2
J103
YKC21-3046
1
2
4
3
GND
VCC
INPUT
J102
GP1F32T
321
D-GND
V+5A
C121
47/16V
D-GNDD-GND
R122 NC
R121
220
C115
0.022
L111
TPS247MN-0386AN
6
43
2
1
Q111
TC74HCU04
1234567 141312111098
R113
75
C114
4700p
D-GND
D-GND
R112
NC
D-GND
C113
47p
D-GND
R111
100
C112
0.1
D-GND
V+5A
C111 0.01
D-GND
DVD/THROUGH SYS_MUTE P_MUTE
C133
0.1
D-GND
Q233
DTC124EUA
R233
10k
R235
10k
D231
1SS301
R236
1K
V+5M
Q234
2SA1576A
D232
1SS301
R237
10k
A-GND
D282
1SS301
A-GND
Q284
2SA1576A
R286
2.2K
Q283
DTC124EUA
R287
10k
V+5M
A-GND
A-GNDA-GND
D-GND
AL
AR
A-GND
A-GND
A-GND
A-GND
Q360
DTC124EUA
A-GND
S131 SSSF141700
1112131415 12345
1617181920
109876
STB_MUTE
J201
YKC21-3324
1
2
7
8
10
9
3
4
5
6
Q503
TC7W08FU(1/2)
2
1
7
J302
GND TERMINAL
1
EARTH
A-GND
R392
470K
-12V
R393 100K
-12V
R394
470K
-12V
R395 47K
R288
47K
R289
470K
R290
470K
-12V-12V
C604
100/16V
D-GND
R114
0
R115
0
D110
1SS301
31
2
R601 0
R602 0
R603 0
R604 0
R605 0
R606 100
R607 100
R608 100
R609 0
R610 0
R611 0
R612 0
R613 0
R614 0
R615 0
R616 0
R617 0
R618 0
R619 100
R620 100
R621 100
R622 BLM11B601S
J105
1
M-GND
2
DRIVE1
3
DRIVE2
4
-12V -12V
J106
1D-OPEN
2M-GND
3M-GND
4D-CLOSE
5DRIVE1
6DRIVE2
D_CLOSE_SW
D_OPEN_SW
J104
1
P-MUTE
2
SYS-MUT
3
STB-MUT
4
DVD/THR
5
SYS-IN
6
IR-SW
7
GND
8
SYS-SW
9
SYS-OUT
R116 0
A-GND
A-GND
A-GND
R331
2.2K
R333
2.2K
R332 2.2K
R334 2.2K
R263 0
R265
2.2K
R266
2.2K
R267
2.2K
C325 N.C.
A-GND
R213 0
R623 0
D-GND
R117 47k
D-GND
V+5A
STB_MUTE
DVD/THROUGH
STB_MUTE
P_MUTE
STB_MUTE
P_MUTE
P_MUTE
XMUTE
STB_MUTE
P_MUTE
XMUTE
SYS_MUTE
A-GND
C357 0.1
C326
0.1
A-GND
C265 0.1
A-GND
C225 0.1
A-GND
C605 N.C.
D-GND
R399 0
R398 0
R397 0
R396 0
F111
BLM11B601S
Q391
uPC29M10HB
2
31
Q359
DTC323TU
DTSDATA
DTSBCK
DTSLRCK
DIRBCK
DIRLRCK
DIRDATA
6CH/2CH-
LFEON
FL/FR
C/LFE
LS/RS
DTSSD0
DTSMD
DTSXCSB
DTSXCS
AUDRST
CD/DVD-
SDATA
SCLK
DACXCS
AV1BCK
AV1LRCK
L/R_FL/FR
DACCLK
DTSMD
AV1LRCK
DIRLRCK
DACLRCK
AV1BCK
DIRBCK
DACBCK
XAVDM
DTS_L/R
DAC_L/R
C/LFE
DTS_C/LFE
DAC_C/LFE
AC3/PCM
XMUTE
L/R_FL/FR
SDATA
SCLK
DAC_LS/RS
DTS_LS/RS
LS/RS
CENTER
WOOFER
LSUR
RSUR
DACBCK
DACLRCK
DAC_L/R
DAC_C/LFE
DAC_LS/RS
DACCLK
DTSDATA
DIRDATA
L/R_FL/FR
DTSLRCK
AV1LRCK
DIRLRCK
DTSBCK
AV1BCK
DIRBCK
CD/DVD-
RIGHT
RIGHT-
LEFT-
LEFT
DS
SDATA
SCLK
DACXCS
AV1LRCK
AV1BCK
DTS_LS/RS
DTS_C/LFE
DTS_L/R
XAVDM
LEFT
LEFT-
RIGHT
RIGHT-
CENTER
RSUR
LSUR
LFEON
AC3/PCM
XMUTE
DTSSD0
DTSXCS
DTSXCSB
AUDRST
FL/FR
LS/RS
C/LFE
WOOFER
XMUTE
DS
6CH/2CH-
IN_L
OUT_L
IN_R
OUT_R
H L
LHLH
LHLH
L
HL
LH
HL
H
H
HHLL
LLH
FRONT
RIGHT
FRONT
LEFT
CENTER
SUB
WOOFER
LEFT
SURROUND
RIGHT
SURROUND
DIGITAL
OUT
GP1F32T
OPT OUT
D-BUS
IN
OUT
FROM DVDM
CN905
FROM PF01
JF04 2(G-1)
FROM PS01 JD01 1(C-15) TO DOOR MOTOR
N1S
N1S
PJ01
WG404K1010
-13.7V
3.4V
4.8V
4.8V
11.0V
3.4V
3.4V
3.4V
3.4V
3.4V 3.4V
3.4V
3.4V
3.4V
3.4V
3.4V
3.4V
4.8V
4.8V
4.8V
4.8V
4.8V
4.8V
4.8V
4.8V
4.8V
4.8V
11.0V 8.9V
8.9V
8.9V
8.9V
8.9V
8.9V 8.9V 8.9V
-13.7V
-13.7V
-13.7V
-13.7V
-13.7V
3.3V
2.0V
4.8V
0.07V
0V
-13.0V
-14.5V
-14.1V
-14.1V -14.5V -13.5V
4.8V
0V 0.3V
-13.0V
-14.1V
-14.5V
0V
0.2V
0V
3.4V
4.8V
3.9V
3.7V
0.1V
0V
-13.1V
-14.5V
-14.1V
-14.5V
-14.1V
4.8V
-13.5V
4.8V
8.9V
V:PLAY COLOR BAR (PAL),1kHz
0.1V -13.0V
0.05V
0.01V
14
13

QV04
LA7138M
1
MUTE
2
TYPE_SEL
3
V,Cb_IN
4
SQUEEZE
5
LETTER
6
C,Cr_IN
7
GND
8
REG_OUT
9
VCC
10
Y_IN
11
AMP_SEL
12
DAC_DCOUT
24
GND
23
V_OUT
22
YCMIX
21
Cb_OUT
20
VCC
19
C_OUT
18
GND
17
Cr_OUT
16
C_DCOUT
15
Y_OUT2
14
GND
13
Y_OUT1
JV01
15
VSEL1 14
SQUEEZE 13
LETTER 12
Y11
V-GND 10
VIDEO/Cb 9
V-GND 8
C/Cr 7
NTSC/PAL 6
SEL-IR 5
IR 4
+5V 3
+12V 2
XRESET 1
VIDEO-SEL
RV04 220
RV05 220
RV06
0
CV07 0.1
CV08 0.1
CV09
0.1
JV02
5
1
3
24
6
JV06
AR 19
A-GND 18
AL 17
A-GND 16
B15
+12V 14
SQUEEZE 13
V-GND 12
G11
V-GND 10
R/C 9
+8V 8
VSEL1 7
+5V 6
V5
V-GND 4
Y3
V-GND 2
VSEL2 1
CV16
470/10V
RV08
33 RV09 33
CV17
N.C.
FV01 NFM40R01C221
3
12
V-GND V-GND
CV19
N.C
V-GND
FV02 NFM41R01C221
3
12
RV11
33
V-GND
RV10
33
CV18 470/10V
CV21
N.C.
V-GND
FV03 NFM41R01C221
3
12
RV14
33
V-GND
RV13
33
CV22
470/10V
CV23
N.C.
V-GND
FV04 NFM41R01C221
3
12
RV16
33
V-GND
RV15
33
CV25
N.C
V-GND
FV05 NFM41R01C221
3
12
CV24
470/10V
V-GND
CV27
N.C
V-GND
FV06 NFM41R01C221
3
12
CV26
470/10V
V-GND
V-GND
CV20 0.1
RV12
10k
V-GND
RV18
33
RV17
33
RV19
N.C.
V-GND
RV21
33
V-GND
RV20
33
RV22
N.C.
V-GND
V-GND
V-GND
V+12V
CV15 0.1
0.1CV11
CV13
0.1
CV14
100/16V
CV10
100/16V
CV12 100/16V
V-GNDV-GND
V-GNDV-GND
V-GND V-GND
RV07
0
V-GND
SV02
SSSF12-S06N0
2
1
3
V+5V
V+5V
V+5V
RV32 8.2k
RV30
33k
RV31 10k CV30 100p
RV33
6.8k
RV34
10k
CV31
100p
V-GND
V-GNDV-GND
V-GND
V-GND
RV01
N.C
RV02
N.C
RV03
N.C
CV03
N.C
CV04 N.C
CV06
0.1
CV05 N.C
QV01
N.C
QV02
N.C
+12V
V+12V
V-GND V-GND V-GND V-GND V-GND
V+5V
+12V
V-GND V-GND V-GND
+12V
V+5V
A-GNDV-GND
AR
AL
RV24
0
RV25
0
V-GND
RV23
0
V-GND
CV01
10/50V
CV02
10/50V
JV04
EARTH
V-GND
JV05
R/C 7
V-GND 6
G5
V-GND 4
B3
V-GND 2
VSEL2 1
V-GND
LV01
15
CV32
0.1
V-GND
SV01
SSSF114800
54321
JV02
7
8
JV03
5
3
2
4
1
V-GND
D_CLOSE_SW
D_OPEN_SW
QV05
2SA1162
RV38 4.7
RV39 N.C
RV40 N.C RV41 0
V-GND
RV42 0
QV03
N.C
2
13
V-GND
RV37
0
RV51
47
V+12V
RV53 6.8K
RV57
47
V-GND
RV55
820
V-GND
CV43 0.1
V-GND
V-GND
CV41
0.1
QV06
HN1C01F(1/2)
QV06
HN1C01F(2/2)
CV42
0.1
RV52
47
V-GND V-GND
V-GND
CV44 0.1
V-GND
V+12V
RV54 6.8K
RV56
820
RV58
47
QV07
HN1C01F(1/2)
QV07
HN1C01F(2/2)
V-GND
JV07
GND TERMINAL (N.C.)
Cr(RED)
Cb(BLUE)
Y(GREEN)
ANALOG
COMPONENT
VIDEO
PUTOUT
S VIDEO
OUTPUT
COMPOSITE
VIDEO
OUTPUT
(YELLOW)
FROM DVDM CN901
TO PC01 J801 5(D-1)
Y,C,COMPOSITE
Y,Cb,Cr
FROM DVDM CN904
N1S ONLY
C1S ONLY
N1S ONLY C1S ONLY
C1S ONLY
N1S ONLY
PJ01
WG404K1010
11.0V
11.0V
11.0V
11.0V
11.0V
11.0V
11.0V
1.2V
1.2V
8.4V
4.9V
4.9V
4.9V
4.9V
11.0V
4.9V
10.2V
2.9V
15 16

1817
J8011
AR 2
A-GND 3
AL 4
A-GND 5
B6
+12V 7
SQUEEZE 8
V-GND 9
G10
V-GND 11
R/C 12
+8V 13
VSEL1 14
+5V 15
V16
V-GND 17
Y18
V-GND 19
VSEL2
C801
47/16V
Q803
2SC4116
1
2
3
Q804
DTC114EUA 1
2
3
R809 4.7k R808
4.7K
V-GND
V-GND
C812
0.1
J802
1R_OUT
2R_IN
3L_OUT
4A-GND
5V-GND
6L_IN
7B
8SQUEEZE
9V-GND
10 N.C.
11 G
12 N.C.
13 V-GND
14 V-GND
15 R/C
16 BLANK
17 V-GND
18 V-GND
19 V/Y_OUT
20 V_IN
21 V-GND
Q808
DTC114EUA
1
2
3
R828 10K
R827
1.2k Q809
2SA1586
1
23V-GND
C819 0.1
V-GND
V+5VA
Q812
MM1507XN
123
654
V-GND
C821 0.1
C822 0.1
R833
0
V+5V
C823 0.1
V-GND
V-GND
C817
100/10V R823
39 R824 33
F804 NFM41R01C221
3
12
R951
220
F951 NFM41R01C221
3
12
A-GND
C951 390 C950
390
A-GND
F950 NFM41R01C221
3
12
R950
220
A-GND
A-GND
A-GND
R832
33
R831
39
F805 NFM41R01C221
3
12
V-GND
C820 N.C.
V-GND
C825 N.C.
R834
39
21
V-GND
F806 NFM41R01C221
3
12
V-GND
R835
33
C824
470/10V
R801
100
Q801
2SC4116 1
2
3
Q802
2sc4116
1
2
3
V-GND
C808 0.1
R802 3.9K
R803 1.5k
V-GND
C807 0.1
V-GND R806
33
F801 NFM41R01C221
3
12
C809
100/10V R805 39
V-GND
C813 0.1
V+5VA
R818 3.9K
R821
39
F803 NFM41R01C221
3
12
R817
100
R819 1.5k
Q806
2SC4116 1
2
3
V-GND
V+5VA
Q807
2SC4116
1
2
3
V-GND
C815
100/10V R822 33
C814 0.1
V-GND
V-GND
V-GND
C818 N.C. C810
N.C
V-GND
C816 N.C.
V-GND V-GND
V-GND
V-GND
V-GND
A-GND
C-GNDA-GND V-GND
C952
0.1
C827
N.C.
C826
0.1
R836
0
C828
0.1
V+5VA
VV+12V
V+5V
V-GND
V-GND
C803 47/10V
V-GND
C805
47/10V
D802
5.6V
12
D803
5.6V
12
C-GND
C-GND
L801 15
L802 15
L803 15
R952
0
R804 47
F802 NFM41R01C221
3
12
V-GND
R820 47
VV+12V
R816
56k
V-GND
VV+12V
V+5VA V+5VA
V+5VA
R812
470
SCART CONNECTOR
PC01
WG404K1020
N1S only
11.0V
11.0V
11.0V
0V
4.8V
4.8V
4.8V 4.8V
4.8V 4.8V
4.8V
4.8V
4.8V
10.4V
3.3V
0.01V 4.8V
V:PLAY COLOR BAR (PAL),1kHz
FROM PJ01 JV06 3(E-1)

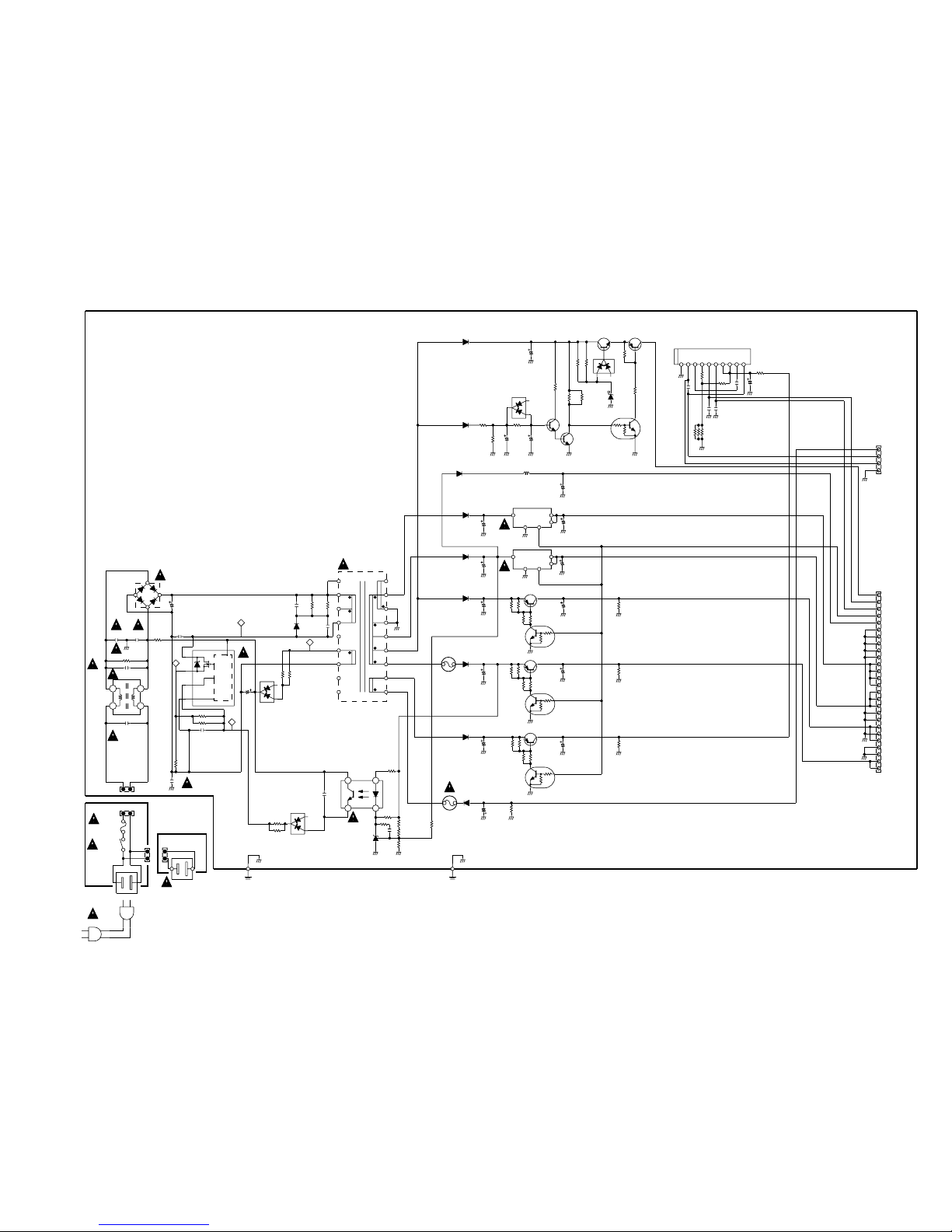

RP23
N.C.
CP23
1000/10v
M-GND
RP25 2.7k
CP17
1000/10v
GND
GND
DP09
RK46
DP11
EK19
DP12
RK46
DP02
ERA22-10
CP06
0.047
RP08
82K 2W
RP07
82K 2W
CP07
N.C
QP04
TL431
CP05
120/400V
DP01
S1WB(A)60
2
1
34
CP03
220p/250v
GND
CP02 0.1/250v ECQUN
RP01 1M 1W
LP02
1
23
4
CP01
0.1/250v
CP04
220p/250v
JP06
1 2
DP13
SFPL52
DP14
SFPL52 1k
RP37
22k
RP38 CP26
0.1/50V
3.3M
RP39
CP27
10/16v
QP13
2SC4116
QP14
2SC4116
47k
RP40
22k
RP41
CP25
2200/16v
QP15
2SC4116
10kRP44
GND
10k
RP43
GNDGND
GNDGND
QP09
2SB1185
GND
CP21
1000/16v
GND
CP18
220/10V
GND
22k
RP42
QP16
2SA1586
47k
RP45
10k
RP46
QP10
DTC114EU
GND
GND
TP01
12
13
15
16
18
17
14
10
11
4
3
2
7
6
1
5
8
9
EARTH
JP08
EARTH
JP09 GND
DP16
1SS301
JP04
1 2
SP01
ESB92S94B
21
FP01
T1.25AL 250V
W001
JP05
1
2
RP28
4.7k
RP29
4.7k
RP52 4.7K
GND
CP22
2200/16V
GND
RP31
10k
GND
RP33
4.7k
RP34 1.8K
QP12
DTC114EU
RP35 1.8K
QP11
2SB1185
M-GND
RP32 4.7k
CP24
220/16V
M-GND
CP16
470/10V
GND
GND
GND
CP20
220/10V
QP03
PC123F2
4 1
3 2
RP24
0
CP14 0.22
RP26 1.5k
RP27 2.2k
GND
RP21
820
CP13 N.C
RP18
6.8k
RP19
6.8k
RP14
0 RP15 N.C.
CP08
150p 2KV
GND
RP11 0.47 1W
CP10
220p/250V
RP02
82k 2W
CP09
470p
RP10
1.2K
RP09
1.2K
CP11
100/50V
OSC
QP01
STR-G6551
1D
2S
4
Vin
5O.C.P/F.B
3GND
DP04
1SS301
DP07
1SS301
DP15
1SS301
DP10
RK46
DP08
U1BC44
GND
CP19
1000/10v
RP36
10k
M-GND
QD01
LB1641
1
GND
2
DRIVE
3
0.7V
4
VREF
5
CONT+
6
CONT-
7
VCC
8
VCC
9
0.7V
10
DRIVE
RD01 220
RD02
2.7k
RD03
4.7 1/2W
CD01 0.1
CD02
0.01 CD03 0.01
CD04 0.01
CD05
220/16V
GND
GND
GND GND
GND
JP07
26 M+6V
25 M+6V
24 M-GND
23 M-GND
22 SW+12V
21 GND
20 SW+12V
19 GND
18 GND
17 SW+5V
16 SW+5V
15 SW+5V
14 SW+3.4V
2M-FWD
13 SW+3.4V
1P-MUTE
12 SW+3.4V
11 SW+3.4V
10 GND
9GND
8GND
7GND
6GND
5E+5V
4STB_CTL
3M-REW
GND
M-GND
JP10
2S-770T-210
1 2
GND
JD01
1-12V
2DRIVE2
3DRIVE1
4M_GND
M-GND
LP03 15uH
CP30
1000/16V
RP48
4.7k
RP54 4.7K
GND
RP47
4.7k
GND
QP19
DTC114EU
GND
QP18
2SB1185
CP29
1000/16v
DP20
EK19
RP51 4.7K
RP50
10k
DP18
SFPL52
GND
CP28
220/25V
DP17
MA8056L 5.6V
FP06
T800mA 250V
RP53 4.7K
QP08
SI-3050C
3
12
5
4
QP07 SI3033C
3
12
5
4
GND
RP30 15k
FP07
T250mA 250V GND
RP57 10K
JP01
YKE31-0129
JP11
1
2
QP17
DTC114EU
RD04
430
RD05
NC
RD06
NC
GND
JP03
BLUE
JP02
BROWN
TO DVDM CN110
AC OUTLET
TO PJ01
J105 4(A-1)
AC OUTLET
PS03
N1S ONLY
MAIN SWITCH
PS02
WG404K1030
WG404K1040
WG404K1050
PS01
11.4V
10.3V
9.7V 1.2V
0.6V
0.02V
5.5V
6.7V
7.5V
5.8V
-13.6V
6.2V
QD01
PIN NO.
1 0V
2 0.5V
3 0.7V
4 1.7V
5 0V
6 0V
7 12.4V
8 12.4V
9 0.7V
10 0.5V
4.9V
4.5V 3.3V
4.8V
4.9V
5.7V
11.1V 11.1V
10.4V
6.1V
5.4V
6.0V
12.5V 12.5V
11.8V
-13.8V
0.03V
0.03V
0.03V
1
2
3
4
5.2V
4.1V
4.1V
19 20

2221
PF01
PJ01
QF04 QF07 QF05 QF16 QF15 QF02 QF08 QF03 QF10 QF09
QF06
QV01QV02 Q284
QV05QV03 QV04 QV06 Q391 Q282 Q281
Q251
Q283 Q234
Q232 Q233 Q231 Q306 Q304
Q360
Q201
Q355 Q305
Q303Q352 Q358 Q354 Q357 Q353 Q359
Q356 Q302 Q441
Q451 Q501
Q551
Q351 Q401 Q111
Q301 Q503 Q502

2423

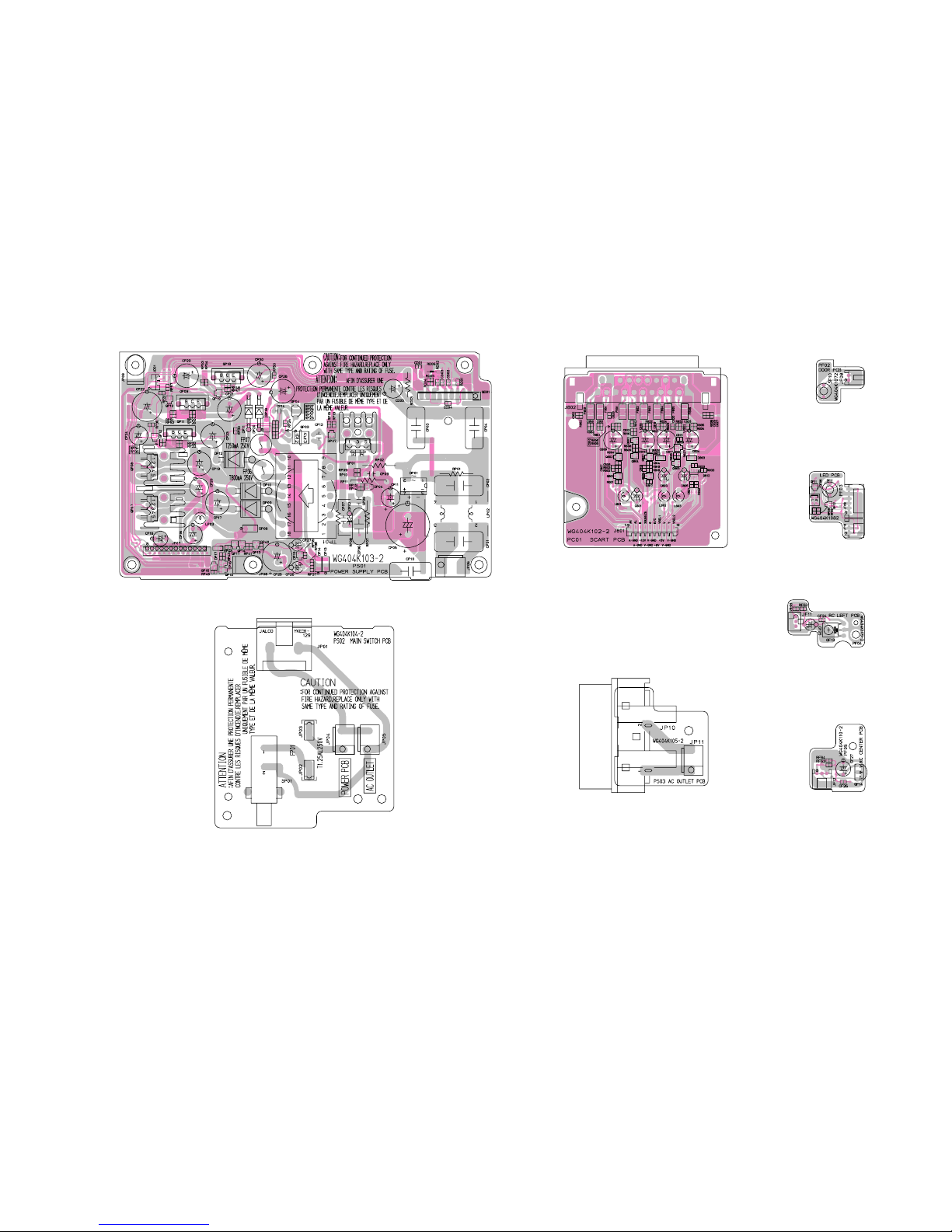

QP08
QP07 QP10 QP09
QP12 QP19 QP16 QP18 QP15 QP14 QP04 QP17 QP13 QP03 QP01 QD01 Q801
Q802 Q804 Q803 Q806 Q807 Q808 Q812
QF11 QF12
QF13
QF14
Q809
QP11
PS01 PC01
N1S ONLY
PS03 N1S ONLY
PF02
PF03
PF04
PF05
PS02

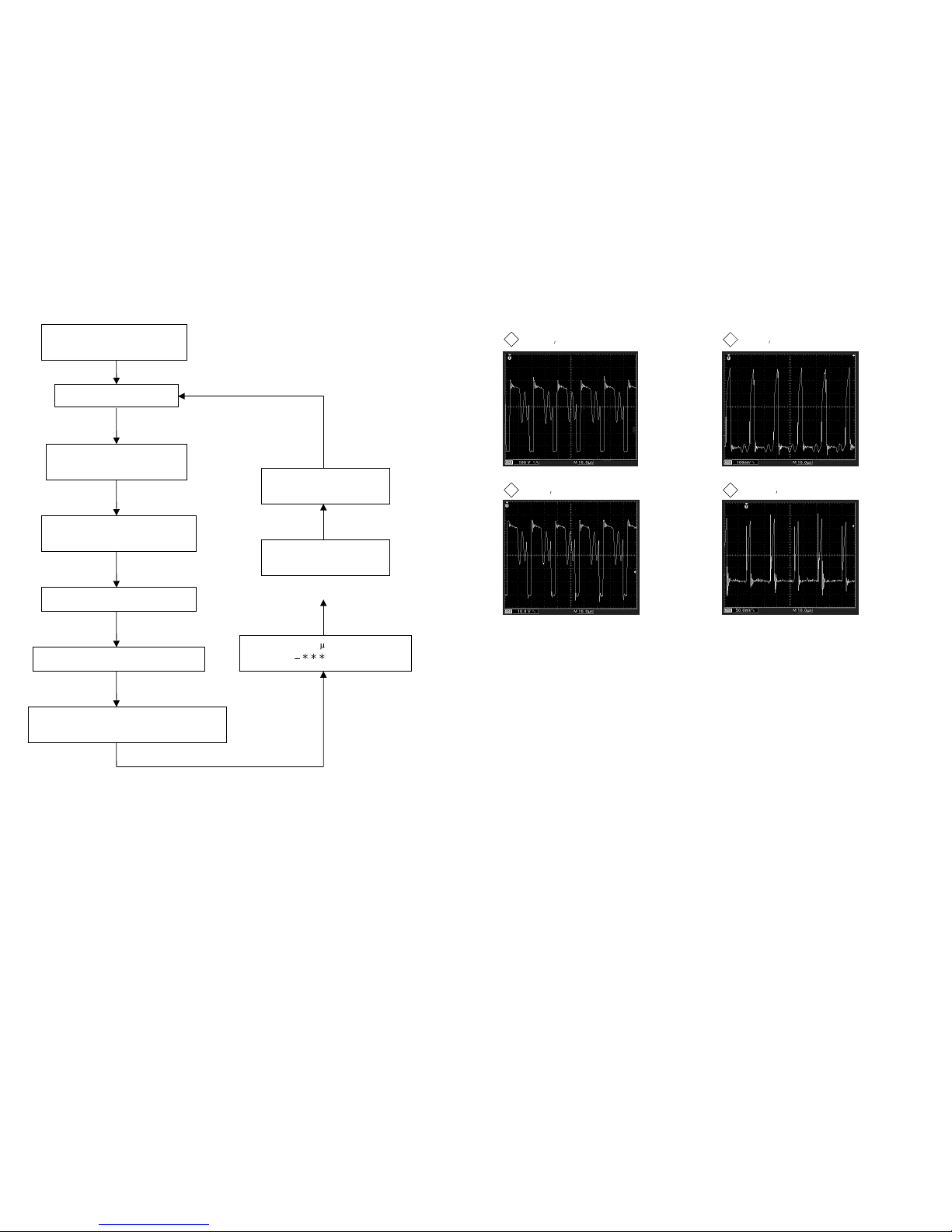

9. SERVICE MODE
26
25
10. WAVEFORM
Power requirements (Refer the circuitdiagram page 19 and 20)
1
2
3
4
100V 10usec
10V 10usec
0.1V 10usec
50mV 10usec
Press<FORWARD >
Press<FORWARD >
Press<FORWARD >
Press<FORWARD>
Press<FORWARD > DV2100/N1S-----EURO 2
DV2100/C1S ----- ASIA 3
Press<FORWARD >
Press<FORWARD >
Press<FORWARD >
Press<PLAY>and<PAUSE>
Canceling the Service Mode
The Service Mode is canceled by turning the power off.
Press<POWER>while pressing
<PLAY>and<PAUSE>
“SERVICE_1” isdisplayed
STANDBY LED Light on RED
“STB_LED” isdisplayed
STANDBY LED Light on GREEN
“POWER_LED” is displayed
All parts of LCD is turned on
Each Segment is displayed one by one
Check of key
When key is depressed,key name is displayed
Version of Front -COM is displayed
“VER ” is displayed
Product version is displayed
EURO 2
MS code isdisplayed
MSO 2

Gear pulley
Move the screwdriver this way.
Bottom of DV2100
Removed this leg.
Front panel
27
11. REMOVE THE DVD MECHANISM
Taking the disk out for EMERGENCY. (For example: when it is not possible
to turn on the product. The disc can not be taken out from the loader.)
1. Remove the front left leg. (See Fig. 1)
2. The hole is visible under the leg. (See Fig. 2)
3. Insert a screwdriver (minus) into the hole.
4. Move a screwdriver from rear to front, and turn the gear pulley in the hole. (See Fig. 3)
5. then the tray is moved a little. Pull the tray with your hand at this time.
Fig. 1
Fig. 2 Fig. 3

28
80
79
78
77
76
75
74
73
72
71
70
69
68
67
66
65
64
63
62
61
60
59
58
57
56
55
54
53
52
51
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
100
99 98 97 96 95 94 93 92 91 90 89 88 87 86 85 84 83 82 81
31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50
P20/A16
P21/A17
P22/A18
P23/A19
P24/A20
P25/A21
P26/A22
P27/A23
P30/ALE
P31/RD
V
SS
P32/WRL
P33/WRH
P34/HRQ
P35/HAK
P36/RDY
P37/CLK
P40/SCK
P41/SOT
P42/SIN
P43/SCK1
P44/SOT1
V
CC
P45/SIN1
P46/ADTG
P47/SCK0
C
P50/SDA0/SOT0
P51/SCL0/SIN0
P52/SDA1
PA4/CKOT
PA2
RST
PA1/OUT3
PA0/OUT2
P97/PPG5
P96/PPG4
P95/PPG3
P94/PPG2
P93/PPG1
P92/PPG0
P91/OUT1
P92/OUT0
P87/IN3
P86/IN2
P85/IN1
P84/IN0
P83/TOT1
P82/TOT0
P81/TIN1
P80/TIN0
P77/IRQ7
P76/IRQ6
P75/IRQ5
P74/IRQ4
P73/IRQ3
P72/IRQ2
HST
MD2
PA3
P17/AD15 P16/AD14 P15/AD13 P14/AD12 P13/AD11 P12/AD10 P11/AD09 P10/AD08 P07/AD07 P06/AD06 P05/AD05 P04/AD04 P03/AD03 P02/AD02 P01/AD01 P00/AD00 V
CC
X1 X0 V
SS
P53/SCL1
P54/SDA2
P55/SCL2
P60/AN0 P61/AN1 P62/AN2 P63/AN3
V
SS
P64/AN4 P65/AN5 P66/AN6 P67/AN7
P70/IRQ0 P71/IRQ1
MD0 MD1
AV
CC
AVRH
AVRL
AV
SS
51 TAUX3 I CPU mode select Pull down
52 HST I Standby signal input Pull up
53 D_MOTOR_REV O Door control signal output (OPEN) H: Active
54 D_MOTOR_FW
D
O Door control signal output (CLOSE) H: Active
55 D_OPEN_SW I Door position detect (OPEN) L: Active
56 D_CLOSE_SW I Door position detect (CLOSE) L: Active
57 N.C. I
58 N.C. I
59 N.C. I
60 N.C. I
61 N.C. I
62 N.C. I
63 TTXD I Remote signal input
64 N.C. I
65 N.C. I
66 N.C. I
67 N.C. I
68 N.C. I
69 N.C. I
70 N.C. I
71 N.C. I
72 N.C. I
73 N.C. I
74 N.C. I
75 N.C. I
76 N.C. I
77 /TRES I Reset signal input L: Reset
78 N.C. I
79 N.C. I
80 N.C. I
81 GND GND
82 8MHz X’tal 8MHz Oscillator connecting
83 8MHz X’tal 8MHz Oscillator connecting
84 STB+5 -- Power supply
85 TAUX I Connect to Flash ROM writer
86 --- I CPU mode select Pull up
87 RST LCD
LCD
LCD
O LCD driver reset signal L: Reset
88 _/WR O Read/Write control signal to LCD driver L: Write
89 _/RD O Chip enable to LCD driver L: Active
90 O LCD driver mode select
91 N.C.
AO I
92 N.C. I
93 D0 I/O Display data for LCD driver
94 D1 I/O Display data for LCD driver
95 D2 I/O Display data for LCD driver
96 D3 I/O Display data for LCD driver
97 D4 I/O Display data for LCD driver
98 D5 I/O Display data for LCD driver
99 D6 I/O Display data for LCD driver
100 D7 I/O Display data for LCD driver
Pin PORT NAME I/O FUNCTION Pin PORT NAME I/O FUNCTION
1 LCD_DIM O LCD backlight dimmer control
2 LCD_BL O LCD backlight ON/OFF control
3 POWER_LED O Power ON LED control H: ON
4 STB_LED O Standby LED control H: ON
5 SYS_SW I Bus select SW H: System bus
6 SYS_MUTE O System mute L: Mute
7 STB_MUTE O Standby mute L: Mute
8 DVD/THROUGH O Line out select
H: DVD, L: Through
9 N.C. I
10 N.C. I
11 GND GND
12 N.C. I
13 N.C. I
14 XRESET O Reset signal for Mecha unit L: Reset
15 XREADY O Communication handshake line for Mecha unit L: Reset
16 POWER_ON O Power control H: ON
17 N.C. I
18 TCK I/O Connect to Flash ROM writer
19 SYS_OUTTRXD O Connect to Flash ROM writer
20 SYS_INTTXD I Connect to Flash ROM writer
21 S_CLK O Serial clock output for Mecha unit
22 S_IN O Serial data output for Mecha unit
23 STB+5 -- Power supply
24 SOUT I Serial data input from Mecha unit
25 N.C. I
26 N.C. I
27 C
28 ROM_SDA I/O Serial data input/output for EEPROM (I2C)
29 ROM_SCL O Serial clock output for EEPROM (I2C)
30 N.C. I
31 N.C. I
32 N.C. I
33 N.C. I
34 STB+5 -- Power supply
35 STB+5 -- Power supply
36 GND GND
37 GND GND
38 KEY_IN_0 I Key scan input
39 KEY_IN_1 Key scan input
40 KEY_IN_2 Key scan input
41 VERSION I
I
I
Destination setting
42 GND GND
43 MODEL GND
44 N.C. I
I
45 N.C. I
46 N.C. I
47 LT
Communication response signal input from Mecha unit
48 N.C. O
49 TMODE I
I
CPU mode select Pull up
50 MD1 I CPU mode select Pull up
PIN CONFIGURATION
QF02 : MB9055A
PIN FUNCTION
12. IC DATA
