Marantz Nr1200 User manual

Network Audio Receiver

NR1200 Click here!

On-line service parts list

http://dmedia.soundunited.com/documents/details/26046

ONLINE PARTS LIST (P5)

WEB owner’s manual

NA: http://manuals.marantz.com/NR1200/NA/EN/index.php

EU: http://manuals.marantz.com/NR1200/EU/EN/index.php

JP: http://manuals.marantz.com/NR1200/JP/JA/index.php

Upload is planned for the time of a future press release.

BEFORE SERVICING THIS UNIT

ELECTRICAL

MECHANICAL

REPAIR INFORMATION

UPDATING

Condential

Service Manual Ver. 1

•Forpurposesofimprovement,specicationsanddesignaresubjecttochangewithoutnotice.

• Please use this service manual whenreferringtotheoperatinginstructionswithoutfail.

• Some illustrations usedinthisservicemanualareslightlydifferentfromtheactualproduct.

BEFORE SERVICING THIS UNIT

SAFETY PRECAUTIONS

NOTE FOR SCHEMATIC DIAGRAM

HANDLING THE SEMICONDUCTOR AND OPTICS

ONLINE PARTS LIST

Accessing the Parts List

Searching Part Numbers or Ref. Numbers

NOTE FOR PARTS LIST

SERIAL NUMBER

Serial Number Organization

SKU Code of this Unit

POST-SERVICE PRECAUTIONS

Initializing this Unit

JIG FOR SERVICING

Before Servicing

This Unit Electrical Mechanical Repair Information Updating

The following items should be checked for continued protection of the customer and the service technician.

Leakage current check

Before returning the set to the customer, be sure to carry out either (1) a leakage current check or (2) a line to chassis resistance check. If the leakage current exceeds 0.5 milliamps, or if the resistance from

chassis to either side of the power cord is less than 460 kohms, the set is defective.

Be sure to test for leakage current with the AC plug in both polarities, in addition, when the set's power is in each state (on, off and standby mode), if applicable.

CAUTION Please heed the following cautions and instructions during servic-

ing and inspection.

◎ Heed the cautions!

Cautions which are delicate in particular for servicing are labeled on the cabinets, the parts and the

chassis, etc. Be sure to heed these cautions and the cautions described in the handling instructions.

◎ Cautions concerning electric shock!

(1) An AC voltage is impressed on this set, so if you touch internal metal parts when the set is energized,

you may get an electric shock. Avoid getting an electric shock, by using an isolating transformer and

wearing gloves when servicing while the set is energized, or by unplugging the power cord when

replacing parts, for example.

(2) There are high voltage parts inside. Handle with extra care when the set is energized.

◎ Caution concerning disassembly and assembly!

Through great care is taken when parts were manufactured from sheet metal, there may be burrs on the

edges of parts. The burrs could cause injury if ngers are moved across them in some rare cases. Wear

gloves to protect your hands.

◎ Use only designated parts!

The set's parts have specic safety properties (re resistance, voltage resistance, etc.). Be sure to use

parts which have the same properties for replacement. The burrs have the same properties. In particular,

for the important safety parts that are indicated by the z mark on schematic diagrams and parts lists,

be sure to use the designated parts.

◎ Be sure to mount parts and arrange the wires as they were originally placed!

For safety seasons, some parts use tapes, tubes or other insulating materials, and some parts are

mounted away from the surface of printed circuit boards. Care should also be taken with the positions

of the wires by arranging them and using clamps to keep them away from heating and high voltage

parts, so be sure to set everything back as it was originally placed.

◎ Make a safety check after servicing!

Check that all screws, parts and wires removed or disconnected when servicing have been put back

in their original positions, check that no serviced parts have deteriorated the area around. Then make

an insulation check on the external metal connectors and between the blades of the power plug. And

otherwise check that safety is ensured.

(Insulation check procedure)

Unplug the power cord from the power outlet, disconnect the antenna, plugs, etc., and on the power.

Using a 500V insulation resistance tester, check that the insulation resistance value between the inplug

and the externally exposed metal parts (antenna terminal, headphones terminal, input terminal, etc.) is

1M Ω or greater. If it is less, the set must be inspected and repaired.

Many of the electric and the structural parts used in the set have special safety properties. In most

cases these properties are difcult to distinguish by sight, and the use of replacement parts with higher

ratings (rated power and withstand voltage) does not necessarily guarantee that safety performance

will be preserved. Parts with safety properties are indicated as shown below on the wiring diagrams and

the parts list in this service manual. Be sure to replace them with the parts which have the designated

part number.

(1) Schematic diagrams Indicated by the z mark.

(2) Parts lists Indicated by the z mark.

The use of parts other than the designated parts could cause electric shocks, res or other dangerous

situations.

CAUTION Concerning important safety parts

SAFETY PRECAUTIONS

Before Servicing

This Unit Electrical Mechanical Repair Information Updating

WARNING:

Parts indicated by the z mark have critical characteristics. Use ONLY replacement parts recommended

by the manufacturer.

CAUTION:

Before returning the set to the customer, be sure to carry out either (1) a leakage current check or (2)

a line to chassis resistance check. If the leakage current exceeds 0.5 milliamps, or if the resistance from

chassis to either side of the power cord is less than 460 kohms, the set is defective.

WARNING:

DO NOT return the set to the customer unless the problem is identied and remedied.

NOTICE:

(1) ALL RESISTANCE VALUES IN OHM. k=1,000 OHM / M=1,000,000 OHM

(2) ALL CAPACITANCE VALUES ARE EXPRESSED IN MICRO FARAD, UNLESS OTHERWISE INDICATED. P

INDICATES MICRO-MICRO FARAD. N INDICATES NANO FARAD.

(3) EACH VOLTAGE AND CURRENT ARE MEASURED AT NO SIGNAL INPUT CONDITION.

(4) CIRCUIT AND PARTS ARE SUBJECT TO CHANGE WITHOUT PRIOR NOTICE.

Electrostatic breakdown of the semi-conductors or optical pickup may occur due to a potential differ-

ence caused by electrostatic charge during unpacking or repair work.

1. Ground for Human Body

Be sure to wear a grounding band (1 M ohm) that is properly grounded to remove any static electricity

that may be charged on the body.

2. Ground for Workbench

Be sure to place a conductive sheet or copper plate with proper grounding (1 M ohm) on the workbench

or other surface, where the semi-conductors are to be placed. Because the static electricity charge

on clothing will not escape through the body grounding band, be careful to avoid contacting semi-

conductors with your clothing

CBA

Grounding Band

Conductive Sheet or

Copper Plate

1MΩ

CBA

NOTE FOR SCHEMATIC DIAGRAM

HANDLING THE SEMICONDUCTOR AND OPTICS

Before Servicing

This Unit Electrical Mechanical Repair Information Updating

ONLINE PARTS LIST

Accessing the Parts List

(1) Access from the Service Manual

・ Click the URL link on the cover of the service manual.

Examples of display

NOTE : If the web browser does not open automatically, copy the URL and paste it into the address bar

of the web browser and then press Enter.

(2) Accessing the Part List from the Model Asset Screen.

・ Display Model Asset from New SDI.

・ Click the section displayed as ▼ Link to Part Lists under the Additional Classication.

NOTE : If the ▼ Link to Parts List section is not displayed, download the parts table from the Asset list.

AV Surround Receiver

AAAAAA Click here!

On-line service parts list

http://dmedia.dmglobal.com/Document/DocumentDetails/XXXXX

ONLINE PARTS LIST (P5)

WEB owner’s manual

NA: http://manuals.marantz.com/AAAAA/NA/EN/index.php

EU: http://manuals.marantz.com/AAAAA/EU/EN/index.php

AP: http://manuals.marantz.com/AAAAA/AP/ZH/index.php

Upload is planned for the time of a future press release.

BEFORE SERVICING THIS UNIT

Service Manual Ver. 1

All Assets Tasks Drafts Notiﬁcations Deactivated Archived Advanced Search Search Content

7106 Kazuhiro Nakai 2.5 Published Yoshio Oomori 23-May-2019

sse

Bac

Additional Classiﬁcation

Brand Marantz

Region AP - JAPAN, NA, EU, A

P - CHINA

Asset Type SDI

Category Receiver

Description ▼Link to Parts List

Search Keyword SR6014,6014,SR6014

s,SR6014's

Version History

Version No. Type Created On

2.4 Major 21-May-2019 View

2.3 Major 09-May-2019 View

2.2 Major 18-Apr-2019 View

2.1 Major 29-Mar-2019 View

2.0 Major 11-Oct-2018 View

SR6014 (179.18 MB)



Download Pac kag

Edit Thi

Deactivat

Archi

Searching Part Numbers or Ref. Numbers

You can search a Parts List for part numbers or Ref. numbers.

(1) Enter the part number or Ref. number in the search window of the Parts List, and press the search

button.

(2) The search results are displayed.

The name of the sheet in which the search part is used and the part’s line are displayed.

(3) Next, click the "Sheet" section of the search results.

1. Parts indicated by "nsp" on this table cannot be supplied.

2. When ordering a part, make a clear distinction between "1" and "I" (i) to avoid mis-supplying.

3. A part ordered without specifying its part number can not be supplied.

4. Part indicated by "@" mark is not illustrated in the exploded and packaging view.

WARNING: Parts indicated by the z mark have critical characteristics. Use ONLY replacement parts

recommended by the manufacturer.

NOTE FOR PARTS LIST

Before Servicing

This Unit Electrical Mechanical Repair Information Updating

Product SKU SKU Code

NR1200/U1B BHY

NR1200/N1B BHZ

NR1200/N1SG BJA

NR1200/FN BJB

SERIAL NUMBER

Serial Number Organization

The 14-digit serial number that contains the code of the manufacturing plant and the manufacturing

date.

SKU

code

14 digits

Factory

code

Cumulative

serial number

Manufactured

Year, month

The last

2digit of year Month

(01 ～ 12)

SKU Code of this Unit

Before Servicing

This Unit Electrical Mechanical Repair Information Updating

Make sure to initialize this unit after replacing the microcomputer or any peripheral equipment, or the

digital PCB.

1. Press the power button to turn off the power.

2. While holding down buttons "ZONE2 SOURCE" and "TUNER PRESET CH -" simultaneously, press the

power button to turn on the power.

3. Release the buttons after conrming that the display ashes at 1-second intervals.

＊ The unit is initialized.

Use network initialization mode to initialize the network related settings.

NOTE： • If the unit fails to enter the service mode in step 3, repeat the procedure from step 1.

• Initializing the device restores the customized settings to the factory settings. Write down

your settings in advance and recongure the settings after initialization.

Use the following jigs (extension cable kit) when repairing the PCBs.

Order with your dealer for the jigs your dealer if necessary.

8U-110084S : EXTENSION UNIT KIT : 1 Set

(See JIG FOR SERVICING)

ZONE2

SOURCE

TUNER

PRESET -

JIG FOR SERVICING

Initializing this Unit

POST-SERVICE PRECAUTIONS

Before Servicing

This Unit Electrical Mechanical Repair Information Updating

ELECTRICAL

SCHEMATIC DIAGRAMS

SCH01 MN864787

SCH02 MN864788

SCH03 ADV7623

SCH04 NET PHY

SCH05 CPU

SCH06 CPU LEVEL CHG

SCH07 DSP

SCH08 DIR, A.PLD

SCH09 MAIN DAC

SCH10 D.SUPPLY

SCH11 DIGITAL CNT

SCH12 SPK

SCH13 FRONT CNT

SCH14 DAB (N only)

SCH15 Input, Volume, Preout, Zone2

SCH16 Double Differential, Tuner

SCH17 SIDE CONNECTOR

SCH18 FRONT

SCH19 2CH AMP

SCH20 SMPS

SCH21 REGULATOR, REG-CNT

PRINTED CIRCUIT BOARDS

DIGITAL

SIDE CNT, AV

SPK, FRONT CNT, GUIDE_TOP, GUIDE_L, DAB (N Only)

2CH AMP, FRONT, HP, USB

REG, REG CNT, SMPS

LEVEL DIAGRAM

FRONT ch

SUBWOOFER ch

ZONE2 ch (w/Source)

ZONE2 ch (w/o Source)

BLOCK DIAGRAM

ANALOG AUDIO DIAGRAM

DIGITAL AUDIO DIAGRAM

VIDEO DIAGRAM

POWER DIAGRAM

WIRING DIAGRAM

SEMICONDUCTORS

1. IC's

2. FL DISPLAY

3. Remote Code Table

Before Servicing

This Unit Electrical Mechanical Repair Information Updating

SCHEMATIC DIAGRAMS

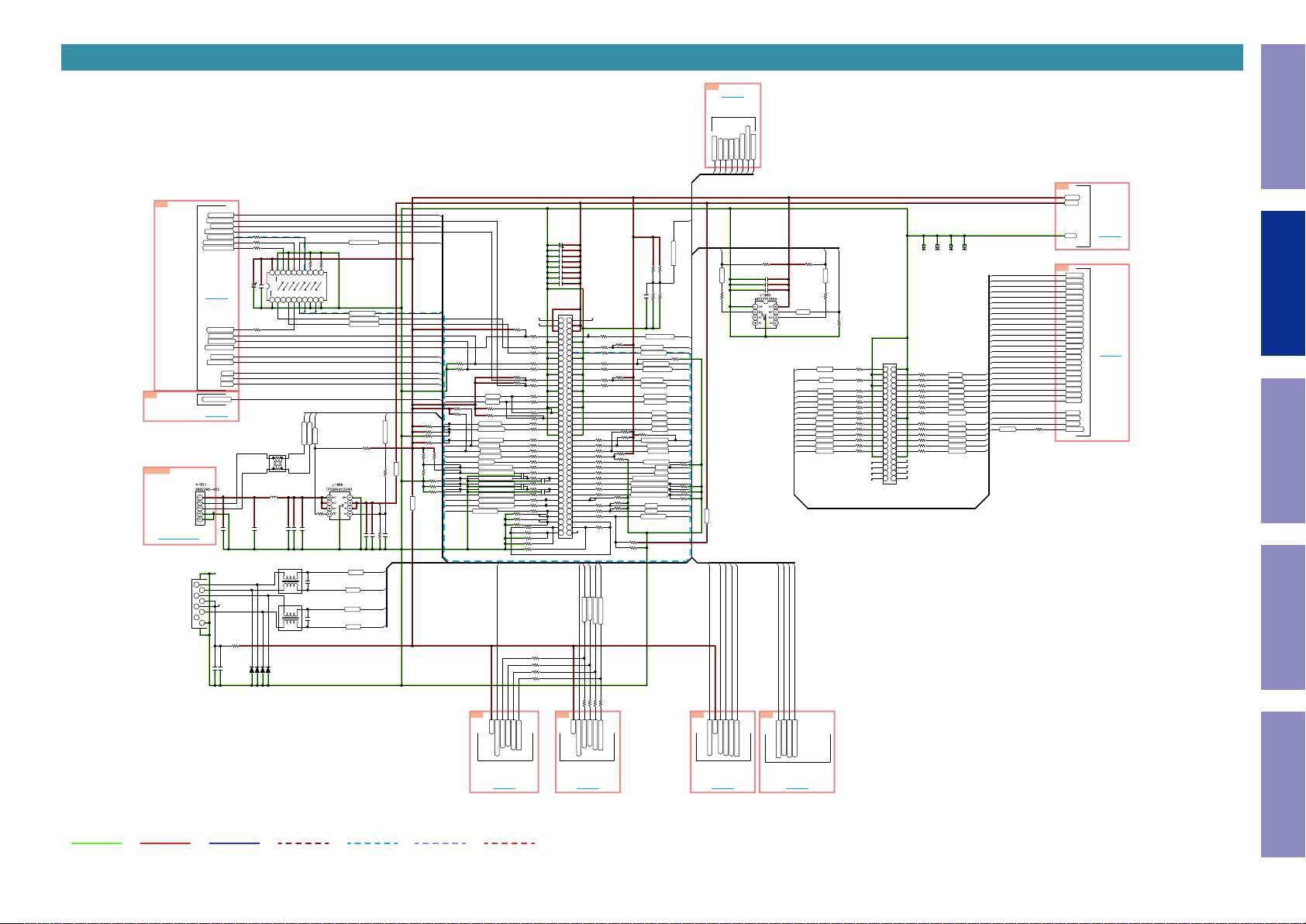

SCH01 MN864787

STBY POWER

ANALOG AUDIO DIGITAL AUDIO

TMDS SIGNAL

GND LINE

POWER- LINE

POWER+ LINE

AVDD33RX

VDD33IO

H5V_DET

HPD3

HPD1

HINSELC

HINSELB

HINSELA

RX2_5V

MN864787_RST R189047K

LEGOVD23

LEGOVD21

LEGOVD19

LEGOVD17

LEGOVD15

LEGOVD13

LEGOVD11

LEGOVD9

LEGOVD7

LEGOVD5

LEGOVD3

LEGOVD4

AVDD33TX

PVDD33_1

LEGOVD2 AVDD11TX

LEGOVD0

LEGOHS

LEGOPCK_

C1469 OPEN-1005

C1733 OPEN-3225

RX2_5V

AVDD11RX

VDD33_1

AVDD11RX

R199147K

MN864787_RST 1KR1976 R188910K

C2334100N-K-0603MN864787_HINT

C2336100N-K-0603

R1882 OPEN

RX1_2+

RX1_2-

RX1_1-

RX1_0+

C2337100N-K-0603 C2238100N-K-0603

RX1_C-

C2343100N-K-0603

C2186100N-K-0603

C2170100N-K-0603

C2338100N-K-0603 C2167100N-K-0603

LEGOPCK_ 0R1981

C1735 OPEN-3225

TX2_SHLD

TX1+

TX1-

TX0_SHLD

TXC+

TXC_SHLD

CE_REMOTE

DDC_SCK

GND

HP_DET

TX2_SHLD

TX1+

TX1-

TX0_SHLD

TXC+

TXC-

N.C

DDC_SDA

+5V

TX2+

TX2-

TX1_SHLD

TX0+

TX0-

TXC-

N.C

DDC_SDA

+5V

HPD

+5V

HPD

R1468 0

R1420 0

R1410 0

R1408

RX3_1+

RX3_1-

RX3_C+

RX3_0-

RX3_DDCCL

RX3_5V

RX2_2+

RX2_1+

RX2_1-

RX2_C+

RX2_C-

RX2_DDCDA

RX2_5V

RX1_2+

RX1_2-

RX1_0+

RX1_0-

RX1_C+

RX1_C-

RX1_DDCDA

HPD1

RX1_5V

CEC_COM

RX5_5V

R1478

2K2

HINSELB

R1897

R1910

10K

R2031

10KR2028

10KR2033

0R1861

LEGOVD17

LEGOVD19

LEGOVD20

LEGOVD21

LEGOVD22

LEGOVD8

LEGOVD10

LEGOVS

LEGODE

AVDD33TX

AVDD11RX

VDD33_1

VDD11

AVDD33RX

PSDA

H5V_DET

DGND

TX2+

TX2-

TX0-

TX0+

TX1_SHLD

HDMI_IN3

TXC-

N.C

+5V

DDC_SDA

TX2+

TX2-

TX0+

TX0-

TX1_SHLD

TXC_SHLD

HDMI_IN2

GND

HP_DET

CE_REMOTE

DDC_SCK

TX1+

TX2_SHLD

TX1-

TX0_SHLD

TXC+

TXC_SHLD

HDMI_IN1

GND

HP_DET

CE_REMOTE

DDC_SCK

D1033 OPEN

D1032 OPEN

D1020 OPEN

D1019 OPEN

+5V

HPD

+5V

10K

R1445

R1444

Q1044

RT1N141C

10K

R1413

R1412

Q1042

RT1N141C

R1404

10K

R1405

R1466 0

R1447

47K

R1451

R1421 0

47K

R1415

R1411 0

R1407

47K

RX3_2-

RX3_2+

RX3_0+

RX3_DDCDA

RX3_C-

HPD3

RX2_2-

RX2_0-

RX2_0+

RX2_DDCCL

HPD2

RX1_1+

RX1_1-

RX1_DDCCL

RX4_5V

R1479

HINSELC

HINSELA

RX3_5V

AVDD33RX

OPEN

R1908

R199610K

C2016

OPEN-2012(10UF)

C2014

OPEN-2012(10UF)

HPD2

R1928

10K

RX1_5V

LEGOVD20

LEGOVD22

LEGOVD12

LEGOVD14

LEGOVD16

LEGOVD18

LEGOVD6

LEGOVD8

LEGOVD10

LEGOVS

LEGODE

LEGOVD1

10KR2029

10KR2037

VDD11

R2196

0*4(AR)

0R1858

0R1864

LEGOVD16

LEGOVD18

LEGOVD9

LEGOVD23

LEGOVD11

LEGOHS

AVDD11TX

PVDD33_1

R1866

0-2012

4.7U-K-1608C1474 4.7U-K-1608C1483 4.7U-K-1608C1472

L1056

OPEN

C1535 OPEN-1005

C1477 OPEN-1005 C1520 OPEN-1005 C1484 OPEN-1005 C1478 4.7U-K-1608

PSCL

MN864787_HINT TO

CPU

D1008 OPEN

D1007 OPEN

Q1051

RT1N141C

100N-K-0603

C1528

R1418

100N-K-0603

C1543100N-K-0603

C1534

C1488100N-K-0603

RX1_5V

RX3_5V

R1480

8K2

C2345 1N-K-0603

R197347K

R1920

10K

C2017

OPEN-2012(10UF)

C2015

OPEN-2012(10UF)

PSDA

PSCL 47R1974

47R1975 R188410K

C2310100N-K-0603

C2339100N-K-0603

C2306100N-K-0603

C2342100N-K-0603

RX1_C+

RX1_0-

RX1_1+

C2239100N-K-0603

C2183100N-K-0603

C2233100N-K-0603

C2184100N-K-0603

C2182100N-K-0603

C2344100N-K-0603

C2335100N-K-0603

C2173100N-K-0603

R1989

10K

0*4(AR)

R2201

R2197

0*4(AR)

R2200

0*4(AR)

R2203

4.7U-K-1608C1475 4.7U-K-1608C14934.7U-K-1608C1505

C1494 OPEN-1005C1476 OPEN-1005 C1506 4.7U-K-1608

R2202

0*4(AR)

C1471 4.7U-K-1608

10K

R1950

10KR1972

RX3_DDCDA

RX2_DDCDA

RX3_2-

RX3_1+

C2329100N-K-0603

RX3_0-

RX3_C+

RX2_2+

RX2_2-

RX2_1+

C2317100N-K-0603

RX2_0-

RX2_C+

C2315100N-K-0603

C2314100N-K-0603

OPEN-1005R1930

RX1_DDCDA

C2139100N-K-0603

C2142100N-K-0603

C2148100N-K-0603

C2152100N-K-0603

C2158100N-K-0603

MN864787_1+

MN864787_1-

MN864787_C+

CB05YTYH221

L1052

MN864787_C-

LEGOVD13

LEGOVD14

CB05YTYH221L1053

LEGOVD0

LEGOVD2

LEGOVD5

LEGOVD7

OPENL1055

VDD33IO

RX4_5V

CEC_COM

MN864787_2+

MN864787_1+

MN864787_0+

MN864787_0-

MN864787_C+

CEC3.3V

CEC1.1V

D1035 OPEN

D1034 OPEN

D1022 OPEN

D1021 OPEN

RT1N441C

Q1048

R1455

47K

D1031

OPEN

47K

R1446

RT1N441C

Q1045

R1419

47K

R1414

RT1N441C

Q1043

R1409

47K

R1406

10KR1951

9P-D-1005

C2055

10P-J-1005

C2052

RX2_DDCCL

RX3_DDCCL

C2333100N-K-0603

C2331100N-K-0603

C2332100N-K-0603

RX3_0+

RX3_1-

RX3_2+

C2330100N-K-0603

RX3_C-

C2326100N-K-0603

C2328100N-K-0603

RX2_0+

RX2_1-

C2316100N-K-0603

C2324100N-K-0603

RX2_C-

10KR1898

RX1_DDCCL

100N-K-0603C2313

C2140100N-K-0603

C2141100N-K-0603

C2144100N-K-0603

C2145100N-K-0603

C2153100N-K-0603

C2155100N-K-0603

CB05YTYH221L1050

OPENL1054

CB05YTYH221

L1072

MN864787_2+

MN864787_2-

MN864787_0+

MN864787_0-

LEGOVD1

LEGOVD12

LEGOVD15

CB05YTYH221L1049

LEGOVD3

LEGOVD4

CB05YTYH221

L1051

LEGOVD6

L1071

CB05YTYH221

RX5_5V

MN864788

MN864787_1-

MN864787_2-

MN864787_C-

STBY5V

D1009 OPEN

D1010 OPEN

(MN864787)

FROM

CPU LEVEL CHG

R1893

27MHz(FA-238,7P)

X1007

C2270100N-K-0603

FROM

NET PHY

C2166100N-K-0603

FROM

D.SUPPLY

18161412108 96 74 531 1911 13 15 17218161412108 96 74 531 1911 13 15 17218161412108 96 74 531 1911 13 15 172

1112

1415

54321 6

U1025

SN74CBT3251PWR

GND

VCC

DIGITAL 1/11

216

215

214

212

210

208

206

204

202

200

198

197

196

195

194

193

191

189

187

185

183

181

179

177

176

175

174

173

172

170

168

166

164

1 3 5 76 98 1110 12 14 16 18 20 22 24 26 28 3029 31 33 35

209

211

213

203

201

207

205

199

192

186

188

190

182

180

178

184

171

163

169

165

167

162160158156154153152151149147145143141139137135133132130128

126

124

122

120

118

116

114

50 51

112113

52 53

111

109

2 4 13 15 17 19 21 23 25 3227 34 36

100

101

103

105

107

161157155159146148150138140142144131134136

38 40

123125127129

42 44 46 48

115117119121

102

104

106

108

110

217

U1024

MN864787

VSS

Q10

Q11

Q13

Q12

Q14

Q15

Q17

Q18

Q21

Q23

VSS

D22

D23

DEIN

VSS

Q16

VSS

Q22

Q20

Q19

VDD11

D0RX0SCL

D2RX1SCL

D4VSS

VSSCH1ASPDIF

VDD33

CH1ALRCLK

CH1ABCLK

D8NOSDIRQ

CH1ASD0

VDD11

D11P0RX2P

AVDD11RX0

P0RX1M

P0RX0P

AVDD11RX0

P0RXCM

VSS

AVDD33RX0

P1RX2M

P1RX2P

VSS

P1RX1P

AVDD11RX1

P1RX1M

P1RX0P

AVDD11RX1

P1RXCM

VSS

NCS

VSSMOSI

D12VDD33

D13

D14NIRQA1

NIRQA0

D15

D16RX2SDA

RX2SCL

D17

D18

D19

VSS

VDD11

AVDD11TX

P1TX1P

P1TX1M

AVDD33TX

P1TX0M

P1TXCP

AVDD11TX

P1TXCM

VDD11

P0TX2P

AVDD11TX

P0TX2M

AVDD11TX

P0TX0P

P0TX0M

AVDD11TX

TX1SCL

TX1SDA

VDD33

VDD33IO

PCLKOUT

VDD33IO

VDD11

DEOUT

NC/XO

SYSCLK/XI

HSDA0

215.TX1HPD

167.NRESET

164.TX0ARCIN

165.NTEST

163.TX1ARCIN

56.D21

VSYNCIN

CH0ASPDIF

CH0ABCLK

PVDD33

AVDD33RX3

P3RXCP

P3RX0M

P3RX0P

AVDD11RX3

P3RX1M

P3RX1P

AVDD11RX3

P3RX2M

P3RX2P

AVDD33RX2

P2RXCP

P2RX0M

AVDD11RX2

P2RX1P

P2RX2M

P2RX2P

NIRQ1

VDD11

CH0ASD2

CH0ASD3

CH0ASD0

CH0ASD1

CH0ALRCLK

HSCL1

VDD33

RX2P5V

VDD11

PCLKIN

VDD11

CEC0

VDD33

216.TX0SCL

RX1SDA

RX0SDA

166.HSCL0

D10

VSS

P0RX2M

P0RXCP

P0RX0M

AVDD11RX0

P0RX1P

VSS

AVDD33RX1

P1RXCP

P1RX0M

SCLK

MISO

VDD11

55.D20

HSYNCIN

VDD33

CH0AMCLK

VDD11

P3RXCM

AVDD11RX3

P2RXCM

AVDD11RX2

P2RX0P

P2RX1M

AVDD11RX2

NIRQ0

HSDA1

RX3P5V

RX1P5V

P1TX2P

P1TX2M

AVDD11TX

P1TX0P

P0TX1P

AVDD33TX

P0TXCP

P0TXCM

VDD11

VSYNCOUT

HSYNCOUT

109.RX0P5V

110.RX3SDA

111.RX3SCL

1.TX0SDA

2.TX0HPD

P0TX1M

TO 0A

TO 1A

TO 2A

TO 3A

TO 4A

TO 5A

TO 6A

Before Servicing

This Unit Electrical Mechanical Repair Information Updating

SCH02 MN864788

STBY POWER

ANALOG AUDIO DIGITAL AUDIO

TMDS SIGNAL

GND LINE

POWER- LINE

POWER+ LINE

103

102

107

HI-Z

100

108

106

105

VDD33IO_

C1604 OPEN-2012

MN864788_HINT

MN864788_HAINT

PSCL R148347K

R1484 47

C1565100N-K-0603

MN864787_2+

C1566100N-K-0603

MN864787_1-

R1666

10KMN864787_0+

33R1539C1549100N-K-0603

MN864787_C-

ADV7623_2-

ADV7623_2+

ADV7623_1-

ADV7623_0+

C1572100N-K-0603

ADV7623_C-

C1556100N-K-0603

R1635 10

HI-Z

R1522 5R1

42 ADV7623_C-

45 ADV7623_C+

48 ADV7623_0+

51 ADV7623_1+

ADV7623_2+

56 MN864787_C-

59 MN864787_0-

OPEND1061

62 MN864787_1-

OPEN-1005D1063

65 MN864787_2-

OPEN-1005D1065

OPEN-1005D1067

OPEN-1005D1069

OPEND1071

4.7U-K-1608C1600

C1555 4.7U-K-1608C1557 4.7U-K-1608

4.7U-K-1608C1622

1MR1541

1KR1542R153410K

ARCSPDIF.

R153610K

PSCL

PSDA R1538 47

OPENR1691

R1545 33

C1597100N-K-0603

R1567 47

R1570 47

C1598100N-K-0603

R158210K

R15314K7

R151351-D-1608

OPENR1707

CEC5V

TX2+

TX2-

TX1_SHLD

TX0+

TX0-

TXC_SHLD

CE_REMOTE

DDC_SDA

+5V

TX2+

TX2_SHLD

TX1+

TX1-

TX0_SHLD

TXC+

TXC-

N.C

DDC_SDA

+5V

R1526 0

R1498 0

CEC_COM

RX5_2+

RX5_2-

RX5_0+

RX5_0-

RX5_DDCCL

RX5_DDCDA

HPD5

RX4_2+

RX4_2-

RX4_1+

RX4_1-

RX4_C+

RX4_C-

RX4_DDCDA

RX4_5V

AVDD33

PVDD33

VDD33

AVDDH33

C1589100N-K-0603

C1585100N-K-0603

C1575100N-K-0603

C1573100N-K-0603

R149510K

10KR1642

C1607 OPEN-2012

R1667

OPEN

R1688

10K

RX_BCLK

RX_LRCK

RX_SD2

RX_SD1

R1673

OPEN

YES

NOHI-Z

P0TX0_DDCSCL

P0TX0_HPD

TXI2S0

TX64FS

P1TX1_2+

P1TX1_2-

P1TX1_0+

P1TX1_0-

P0TX0_0-

P0TX0_0+

P0TX0_2-

P0TX0_1+

P0TX0_C+

P0TX0_C-

Pana In

110

R1681

R1680

3.3V

CLK

R1678 33

R1687 33

1U-K-1005

C1612

R1504 0

R1509 0

R1679

RX_BCLK

RX_LRCK

RX_SD2

RX_SD1

TXFS

P1TX1_C- 112

115

P1TX1_0-

P1TX1_1-118

P1TX1_2-121

NET3.3V

HP_DET

GND

DDC_SCK

TX0-

TX1-

TX1+

TX2_SHLD

TX1-

TX1+

TX0_SHLD

TXC+

DDC_SCK

GND

TXC-

N.C

HP_DET

TX2-

TX1_SHLD

TX0+

TX0-

TXC_SHLD

CE_REMOTE

DDC_SCK

GND

HP_DET

D1073 OPEN

D1072 OPEN

HPD

+5V

HPD

R1515

10K

R1516

Q1053

RT1N141C

L1068

OPEN

C1620

OPEN-1005

R1529 0

R1518

47K

R1519

R1499 0

R1491

100N-K-0603

C1568

L1061

MI1206K260R-10

L1058

CB05YTYH221

L1057

CB05YTYH221

RX5_C+

RX5_1-

RX5_1+

RX5_C-

RX5_5V

RX4_DDCCL

RX4_0-

RX4_0+

HPD4

R1514

0-2012

AVDD11RX_2

VDD11_1

AVDD11

VDD33IO_

C161310P-J-1005

10P-J-1005C1606

C1587100N-K-0603

C1577100N-K-0603

C1580100N-K-0603

C1571100N-K-0603

C1570100N-K-0603

R149610K

10KR1641

C1623 OPEN-1608

C1615 OPEN-0603

C1605 OPEN-2012

CEC_COM

PSDA

R148247K

R1481

10K

MN864787_2-

MN864787_1+

R1540 33

10K

R1689

C1567100N-K-0603

C1548100N-K-0603

MN864787_0-

MN864787_C+

C1552100N-K-0603

C1569100N-K-0603

ADV7623_1+

R1672

10K

RX_MCLK

RX_SD0

RX_SD3_SPDIF

C1574100N-K-0603

C1554100N-K-0603

ADV7623_C+

ADV7623_0-

R1674

10K

R148510K

YESHI-Z

YES

O/OGEL /OE1

P0TX0_DDCSDA

TXFS

OPENR1706

P1TX1_1-

P1TX1_1+

P1TX1_C-

P1TX1_C+

P0TX0_1-

P0TX0_2+

LEGO In

142

143

141

R1682

1 4

R1502

OPEN(0*2)

1 4

R1497

0*2(AR)

1 4

R1500

0*2(AR)

GND

R1677 0

R1676 33

R1675 33

R1523 5R1

R1506 0

1U-K-1005

C1619

46 ADV7623_0-

ADV7623_1-

52 ADV7623_2-

MN864787_C+

C1602

OPEN-0603

C1603

OPEN-0603

OPEND1062

OPEN-1005D1064

OPEN-1005D1066

61 MN864787_0+

MN864787_1+

MN864787_2+

R1686

47K

RX_MCLK

RX_SD3_SPDIF

RX_SD0

TXI2S0

TX64FS

P1TX1_C+ 113

P1TX1_0+116

P1TX1_1+119

P1TX1_2+122

OPEN-1005D1070

OPEN-1005D1068

D1056

OPEN-1005

C1627100N-K-0603

+5V

DDC_SDA

HEAC+

TXC-

TXC+

TX2-

TX2+

FROM

NET PHY

D1045 OPEN

D1044 OPEN

C1734 OPEN-3225

C1560 4.7U-K-1608

C1545 OPEN-1005C1546 OPEN-1005C1547 OPEN-1005

Q1056

RT1N141C

R1487

10K

R1488

C1736 OPEN-3225

4.7U-K-1608C1561

C1578 4.7U-K-1608C1583 4.7U-K-1608C1588 4.7U-K-1608

100N-K-0603

C1592R1490

47K

CPU

47KR1535

C1594100N-K-0603

47R1537

OPENR1690

C1601 OPEN-0603

0R1544

C1596100N-K-0603

C1595100N-K-0603

R1532 47

R1563 47

R1566 47

R158310K

C1599100N-K-0603

R1486 OPEN

R1683

1 4

R1501

0*2(AR)

R152151-D-1608

FROM

ADV7623

LRB521S-30

D1078

D1079

LRB521S-30

TX0+

HDMI OUT 1

18 16 14 12 10 89 67 45 3 119 11131517 2

MN864788_RST

HPD4

CEC_COM

RX5_5V

RX4_5V

CEC1.1V

CEC5V

RX5_DDCCL

RX4_DDCCL

RX5_2-

RX5_2+

RX5_1-

RX5_0+

RX5_C-

RX4_2-

RX4_1+

RX4_0-

RX4_C+

RX4_C-

RX4_5V

R1668 0

R1670 0

MN864788_SPI_MISO

MN864788_SPI_MOSI

MN864788_SPI_CS

0R1533

C1618100N-K-0603

C1611100N-K-0603

C1624100N-K-0603

C1626100N-K-0603

MN864788_HAINT

CEC_COM

P0TX0_0-

P0TX0_0+

P0TX0_1-

P0TX0_1+

D1076 LRB521S-30

0R1505

CE_REMOTE

TXC SHIELD

TX0 SHIELD

TX2 SHIELD

FROM

MN864787

HPD5

FROM

LEVEL CHG

HDMI_IN4

(Blu-ray)

FROM

D.SUPPLYDGND

CEC3.3V

D1075 OPEN

D1074 OPEN

RT1N441C

Q1054

47K

R1517

R1493

47K

RT1N441C

Q1055

MI1206K260R-10

L1060

L1059

CB05YTYH221

L1062

CB05YTYH221

L1063

CB05YTYH221

OPEN-1005

C1576

R1543

C1614 1N-K-0603

RX5_DDCDA

RX4_DDCDA

RX5_1+

RX5_0-

RX5_C+

RX4_2+

RX4_1-

RX4_0+

RX5_5V

C1564100N-K-0603

R1669 0

R1671 33

C1703

100N-K-0603

MN864788_SPI_SCK

JIG INPUT Selected Output

C1609100N-K-0603

C1608100N-K-0603

C1610100N-K-0603

C1621100N-K-0603

C1625100N-K-0603

C1616100N-K-0603

C1617100N-K-0603

ARCSPDIF.

P0TX0_C-

P0TX0_C+

P0TX0_2-

P0TX0_2+

MP:OPEN

C1698100N-K-0603

0R1507

L1074

OPEN

AIOS4_SPI_MISO_2

AIOS4_SPI_SS_2

AIOS4_GPIO_SPI_EN_P

AIOS4_SPI_MOSI_2

AIOS4_SPI_CLK_2

DIR/A.PLD

ADV7623

TX1 SHIELD

HDMI_IN5

(Game)

18161412108 96 74 531 1911 13 15 172

D1047 OPEN

D1046 OPEN

R1520

47K

R1489

C1582 OPEN-1005C1586 OPEN-1005

X1004

27MHz(FA-238,7P)

100N-K-0603

C1593

1234

5 6 7 8

U1048

EN25QH32B-104HIP2C

L1073

OPEN-2012

R1571 47

R1572 47

246

357

N1038

1.0-16-7PB-2

LRB521S-30

D1077

R1685

10K

R15111K8

R15121K8FROM

MN864787

RT1P141C

Q1061

R1684

4K7

18161412108 96 74 531 1911 13 15 172

2345678910

19181711 12 13 14 15 16

U1054

SN74LVC244APWR

1OE

GND

2Y1

1A4

2Y2

1A3

2Y3

1A2

2Y4

1A1

VCC

2OE

1Y1

2A4

1Y2

2A3

1Y3

2A2

1Y4

2A1

P0TX0_HPD

P0TX0_DDCSCL

Q1060

RT1N141C

P0TX0_DDCSDA

1U-K-1005

C1704

L1067

EXC24CH900U

L1066

OPEN(EXC24CH900U)

L1065

OPEN(EXC24CH900U)

DIGITAL 2/11

L1064

OPEN(EXC24CH900U)

(MN864788)

144

143

142

140

138

136

134

132

130

128

127

126

125

124

123

122

121

119

117

115

113

111

109

1 2

107

3 4

105106

104

102

100

2120

8889

2322

8687

139

141

137

135

133

131

129

120

112

118

116

114

110

103108

148 10 12

10199 97

1816

9193

25 27 29

84 82 80

3531 33

7478 76

145

U1027

MN864788

AVDD11

RX2SCL

RX3SCL

RX2SDA

TX1SCL

TX1SDA

VDD33

71:RX2P5V

73:RX0P5V

VDD11

72:RX1P5V

VSS

TX0SDA

TX0HPD

CH1ASD0

CH1ALRCLK

CH1ABCLK

VSS

P1TX2P

AVDD11TX

P1TX2M

P1TX1P

AVDD11TX

P1TX1M

P1TX0P

AVDD33TX

P1TX0M

P1TXCP

AVDD11TX

P1TXCM

VSS

VDD11

P0TX2P

AVDD11TX

P0TX2M

P0TX1P

AVDD11TX

P0TX1M

P0TX0P

AVDD33TX

P0TX0M

P0TXCP

AVDD11TX

P0TXCM

VSS

VDD11

NIRQA1

37:NIRQA0

38:VDD33

39:PVDD33

40:VSS

AVDD33RX3

P3RXCM

P3RXCP

AVDD11RX3

P3RX0M

P3RX0P

AVDD11RX3

P3RX1M

P3RX1P

AVDD11RX3

P3RX2M

P3RX2P

VSS

AVDD33RX2

P2RXCM

P2RXCP

AVDD11RX2

P2RX0M

P2RX0P

AVDD11RX2

P2RX1M

P2RX1P

AVDD11RX2

P2RX2M

P2RX2P

VSS

VDD11

NIRQ1

VDD33

RX3P5V

VDD11

AVDD33RX1

P1RXCM

P1RXCP

AVDD11RX1

P1RX0M

P1RX0P

AVDD11RX1

P1RX1M

P1RX1P

AVDD11RX1

P1RX2M

P1RX2P

VSS

AVDD33RX0

P0RXCM

P0RXCP

AVDD11RX0

P0RX0M

P0RX0P

AVDD11RX0

P0RX1M

P0RX1P

AVDD11RX0

P0RX2M

P0RX2P

VSS

RX1SDA

RX1SCL

RX0SDA

RX0SCL

109:CEC

110:TX1ARCIN

111:TX0ARCIN

VDD11

NTEST

HSCL0

NRESET

HSDA0

VDD33

SYSCLK/XI

NC/XO

VSS

VDD11

VSS

VDD11

VSS

MISO

NCS

CH0AMCLK

VDD33IO

CH0ABCLK

CH0ALRCLK

CH0ASD3

CH0ASD2

CH0ASD1

CH0ASD0

VSS144:TX0SCL

RX3SDA

143:TX1HPD

SCLK/LPSA1

MOSI/LPSA0

1A TO A1

TO A2

TO 7A

TO 8A

TO 9A

B0 TO 0B

TO 1B

TO 2B

TO 3B

TO 4B

Before Servicing

This Unit Electrical Mechanical Repair Information Updating

SCH03 ADV7623

STBY POWER

ANALOG AUDIO DIGITAL AUDIO

TMDS SIGNAL

GND LINE

POWER- LINE

POWER+ LINE

R159010K

R164410K

C1684 OPEN-0603

C1685 OPEN-0603

ADV7623_SPI_CS.

OPEN-0603

C1676

OPEN-0603

C1678

6.0mA

ADV7623_C+

ADV7623_0-

ADV7623_0+

ADV7623_1-

ADV7623_2+

C1662100N-K-0603

C1661 OPEN-0603

C1660OPEN-0603

C1629100N-K-0603

C1628OPEN-0603

ADV7623_SPI_MO. C1656100N-K-0603

C1700 OPEN-0603

C1639100N-K-0603

C1686OPEN-0603

100N-K-0603C1649

100N-K-0603

C1652

100N-K-0603

C1664

100N-K-0603

C1665

10U-K-2012

C1650

ADV7623_SPI_MO.

NET3.3V

P1TX1_2-

P1TX1_1+

P1TX1_0-

P1TX1_C+

C1697100N-K-0603

C1682 4.7U-K-1608

R164610K

R164510K

R163810K

R2113 0

R2108 33

R2107 33

DGND

R2126 33

10K

R1632

10K

R1621

100

R1622

R1569 0

DV3.3V_1

ADV7623_SPI_CLK.

ADV7623_SPI_MO.

HSCL.

10UF/16V

DV1.8V_1

DV1.8V_2

2mA

ADV7623_ROMHOLD

ADV7623_SPI_CLK

ADV7623_SPI_MO

HSCL

ADV7623_2-

ADV7623_1-

ADV7623_0-

ADV7623_C-

DV5V

DV1.8V

DV3.3V

P1TX1_2+

P1TX1_1-

P1TX1_0+

P1TX1_C-

C1668 OPEN-0603

OPEN-2012C1693

OPEN-0603C1692

100N-K-0603C1699

C1670100/16(6.3*7.7)

R2127100

R1611 4K7

R2109 33

R2116

R2125

R2117

R158910K

R164310K

C1675 OPEN-2012

C1671100N-K-0603

C1673100N-K-0603

14.3mA

R1602

47K

R1618

OPEN

R1620

10K

R1613

ADV7623_SPI_MI.

10K

R1587

10K

R1604

100

R1606

R1575

OPEN-0603

C1677

R1624

OPEN

R1616

10K

ADV7623_SPI_MI.

ADV7623_SPI_CS.

DGND

HSDA.

R1627

4K7

DV3.3V_1

R1578

OPEN

545mA

40mA

CB05YTYH221

FB1000

10K

R1716

R1715

10K

ADV7623_SPI_MI

ADV7623_SPI_CS

HSDA

ADV7623_RST

ADV7623_2+

ADV7623_1+

ADV7623_0+

ADV7623_C+

DGND

CEC3.3V

2345678910

19181711 12 13 14 15 16

SN74LVC244APWR

1OE

GND

2Y1

1A4

2Y2

1A3

2Y3

1A2

2Y4

1A1

VCC

2OE

1Y1

2A4

1Y2

2A3

1Y3

2A2

1Y4

2A1

U1045

R2114

ADV7623_C-

ADV7623_1+

ADV7623_2-

R164010K

C1635100N-K-0603

C1633100N-K-0603

C1663 4.7U-K-1608

ADV7623_SPI_CS.

R163910K

C1631100N-K-0603

C1646 OPEN-0603

C1644OPEN-0603

C1643100N-K-0603

ADV7623_SPI_CLK. C1701 OPEN-0603

C1640 OPEN-0603

C1653OPEN-0603

C1691100N-K-0603

C1655OPEN-0603

C1694100N-K-0603

C1657OPEN-0603

C1695100N-K-0603

C1687 OPEN-0603

C1648 OPEN-0603OPEN-0603

C1654

100N-K-0603

C1672

100N-K-0603

C1669

100N-K-0603

C1642

OPEN-0603

C1630

OPEN-0603

C1632

R1623 1K-D-1608

1234

5 6 7 8

U1029

EN25QH32B-104HIP2C

C1683100N-K-0603

OPEN-0603C1634

OPEN-0603C1636

OPEN-0603

C1638

OPEN

C1651

2 5

Q1017

SSM6N15AFU-T

1N-K-0603C1690

C1680

10U-K-2012

C1666

OPEN-2012

CPU

ADV7623_SPI_CLK.

ADV7623_ROMHOLD

AIOS4_SPI_MISO_1

AIOS4_SPI_MOSI_1

AIOS4_SPI_SS_1

AIOS4_SPI_CLK_1

26.4mA

R1592 1K6-D-1608

ADV7623_SPI_MO

ADV7623_SPI_CS

ADV7623_SPI_CLK

R1599 OPEN

R1593 33

R158810K

R158510K

C1641

6P-C-1005

100N-K-0603C1681

OPEN-0603C1674

OPEN-2012C1702

312mA

R15800

R1579 0

R15810

FROM

MN864788

R2118 47

R2105 0

R2106 33

R2115 47

R2104 4K7Q2202

RT1N141C

C1822

100N-K-0603

FB1006

CB05YTYH221

R1594 2K-D-1608

ADV7623_SPI_MI

U/F : EN25QH32B-104HIP2C (32M)

N: MX25L6406EM2I (64M)

R159847K

R1600 OPEN

R1596 33

R1595 33

R1591 OPEN

R158610K

R158410K

R1576

4K7

X1005

28M63636(FA-238)

C1689

6P-C-1005

C1679

OPEN-0603

350mA

FB1004

CB05YTYH221

OPEN-0603C1647

100N-K-0603C1645

R157710K

FB1002

CB05YTYH221

L1069 OPEN(2012)

L1070 OPEN(2012)

0R1550

FROM

NET PHY

R1597 33

C1659OPEN-0603

C1696OPEN-0603C1688 OPEN-0603OPEN-2012

C1637

R1568 1K-D-1608

100N-K-0603

C1658

R1562 1K

OPEN-2012

C1667

MN864788

FROM

D.SUPPLY

AIOS4_GPIO_SPI_EN_A

DIGITAL 3/11

(ADV7623)

143

141

139

137

136

135

134

133

132

130

128

126

124

122

120

118

116

115

114

113

112

111

109

144

142

140

138

131

129

127

125

123

121

119

117

110

135791113151618202224262830323436

108106104102100

9896949391898785838179777573

6 4 212 10 81421 19 1729 27 25 23313335

105103107

999795 101

92908886848280787674

ADV7623

U1030

CGND

RXC_C-

RXC_C+

TVDD

RXC_0-

RXC_0+

CGND

RXC_1-

RXC_1+

TVDD

RXC_2-

RXC_2+

HP_CTRLD

5V_DETD

DGND

DVDD

DDCD_SDA

DDCD_SCL

CVDD

CGND

RXD_C-

RXD_C+

TVDD

RXD_0-

RXD_0+

CGND

RXD_1-

RXD_1+

TVDD

RXD_2-

RXD_2+

CVDD

DDCA_SCL

CVDD

CGND

RXA_C-

RXA_C+

TVDD

RXA_0-

RXA_0+

CGND

RXA_1-

RXA_1+

TVDD

RXA_2-

RXA_2+

HP_CTRLB

DGND

DVDD

DDCB_SDA

DDCB_SCL

CVDD

CGND

RXB_C-

RXB_C+

TVDD

RXB_0-

RXB_0+

CGND

RXB_1-

RXB_1+

TVDD

RXB_2-

RXB_2+

HP_CTRLC

5V_DETC

DDCC_SDA

5V_DETB

74:AP3_IN

73:DVDDIO

35:CGND

36:TXPVDD

1:DDCC_SCL

2:CVDD

108:DDCA_SDA

107:RTERM

5V_DETA

HP_CTRLA

PGND

PVDD

XTAL1

XTAL

PVDD

PGND

PWRDNB

RESETB

MSLK_OUT

SCLK_OUT

AP5_OUT

DVDD

DGND

AP4_OUT

AP3_OUT

AP2_OUT

AP1_OUT

AP0_OUT

INT_TX

INT2

INT

DVDD

DGNDIO

DVDDIO

DGND

SCL

SDATA

AP0_IN

AP1_IN

AP2_IN

TXPLVDD

TXPGND

TXPLGND

EXT_SWING

TXDDC_SDA

TXDDC_SCL

TXAVDD

TXGND

TXC-

TXC+

TXGND

TX0-

TX0+

TXGND

TX1-

TX1+

TXAVDD

TX2-

TX2+

TXGND

CEC

DGND

DVDD

ALSB

CSB

EP_SCK

EP_CS

EP_MOSI

EP_MISO

MCLK_IN

SCLK_IN

AP5_IN

AP4_IN

DGNDIO

ARC+

HPD_ARC-

TO B0

TO B1

TO 5B

TO 6B

TO 7B

Before Servicing

This Unit Electrical Mechanical Repair Information Updating

SCH04 NET PHY

STBY POWER

ANALOG AUDIO DIGITAL AUDIO

TMDS SIGNAL

GND LINE

POWER- LINE

POWER+ LINE

NET3.3V

R1306 0

R1307 0

C120322N-K-0603

OPEN-0603C1178

100N-K-0603C1181

OPEN-1005C1184

USB_OTG_DN

USB_NOC

R143710K-1005

AIOS4_SPI_CLK_2

AIOS4_SPI_MOSI_2

10R1695

AIOS4_SPI_CLK_1 AIOS4_SPI_CLK

10R1694

AIOS4_SPI_MOSI_1 AIOS4_SPI_MOSI

AIOS4_GPIO_SPI_EN_0

AIOS4_GPIO_SPI_CLK I2C_SDA E_RXD_MIEO

AIOS4_GPIO_SPI_MOSI E_TX0_MOEI

AIOS4_GPIO_JTAG_TDI

AIOS4_GPIO_JTAG_TCK

I2C_SCL

C1225 OPEN-1005

AIOS4_WAKEUP

NET_FACT_RST

GND

D+

NET_I2S_LRCKOUT

NET_I2S_BCLKOUT

NET_I2S0_DOUT

R17134K7

AIOS4_GPIO_SPI_CLK

AIOS4_STBY_STATUS

USB_PWR_EN

E_RXD_MIEO

AIOS4_SPI_SS

R149210K

I2C_SCL

I2C_SDA

R1393 10

R1329300-D-1608

2K7-D-1608R1328

R132710K-D-1608

R1607 OPEN

R1658

R1330

R1402 47

R1403 33

R1551 33

R1416 33

33R1422

R1425 33

R1427 0

R1426 33

GPIO_2

GPIO_1

GPIO_0

E_CTS_MIEO

ETH_RX-

ETH_TX-

USB_OTG_DP

USB_OTG_DN

NET_I2S2_DOUT

NET_TDM_DIN_1

NET_I2S0_DOUT

LEGOVD21

LEGOVD17

LEGOVD13

LEGOVD9

LEGOVD7

LEGOVD5

LEGOVD3

LEGOVD20

LEGOVD16

LEGOVD12

LEGOVD10

LEGOVD8

LEGOVD6

LEGOVD4

LEGOVD0

LEGOVS

LEGODE

LEGOVD1

LEGOVD3

LEGOVD5

LEGOVD7

LEGOVD9

LEGOVD11

LEGOVD13

LEGOVD14

LEGOVD15

LEGOVD16

LEGOVD18

LEGOVD20

LEGOVD22

DGND

NET3.3V

FRONT

(1/1 O9)

D-

GND R1626

R1400 0

R1401 0

NET_TDM_DOUT_1

R1605

OPEN

LEGO5V

OPEN

R1603

R1573

OPEN

R1574

4K7R1714

E_TX0_MOEI

USB_NOC

AIOS4_SPI_CLK

AIOS4_SPI_MISO

R147710K

R1394 10

R1692 10

R1392 10

R130910K-D-1608

5K1-D-1608R1308

R1657 33

R1310 33

R1456 0

R1457 0

R1311 33

R1315 0

C1027

OPEN

R1312 10

R1549 0

R1313 OPEN

R1417 OPEN

R1314 33

R1316

R1424

R1423 0

R1317 33

R1318

R1659

10K

R166010K

R1661

10K

OPEN

R1612

R1610 OPEN

R1565

OPEN

R1564

OPEN

R1649

10K

R1648

10K

CP_RST

E_RTS_MOEI

AIOS4_WAKEUP

ETH_RX+

ETH_TX+

AIOS4_SPI_MOSI

NET_I2S2_DIN

NET_TDM_DOUT_1

NET_I2S0_DIN

LEGO_SPDIF_OUT

TEMP_SENSOR

NET3.3V

LEGO5V

LEGOVD23

LEGOVD19

LEGOVD15

LEGOVD11

LEGOHS

LEGOVD1

LEGOPCK

LEGOVD22

LEGOVD18

LEGOVD14

LEGODE

LEGOVD2

BKT1002BKT1003

R1471 0

LEGOHS

LEGOPCK_

LEGOVD0

LEGOVD2

LEGOVD4

LEGOVD6

LEGOVD8

LEGOVD10

LEGOVD12

LEGOVD19

LEGOVD21

LEGOVD17

LEGOVD23

LEGO5V

C1204 OPEN-1608

1357

6 4 28

N1022

KRJ-015XXNL

OPEN-1005D1086

OPEN-1005D1085

R1436

OPEN

C1173100N-K-0603

C206847/6.3(4*5.4)_MVG

OPEN-1005D1088

10U-K-2012C1188

C1191 OPEN-1608

2 3

1 4

¡Ü

L1017

CM0805D900R-10

USB_OTG_DP

OPEN-1005C1186

C1189100N-K-0603

C1185 OPEN-1005

USB_PWR_EN

R1625

10K

AIOS4_GPIO_SPI_EN_P

AIOS4_SPI_SS_2

AIOS4_SPI_MISO_2

C1028

OPEN

AIOS4_GPIO_SPI_EN_A

AIOS4_SPI_SS_1

10R1696

AIOS4_SPI_SS

10R1693

AIOS4_SPI_MISO_1 AIOS4_SPI_MISO

OPEN-1608R1126

PTC1001

NCU18XH103J60RB

TEMP_SENSOR

AIOS4_GPIO_SPI_SS_0

AIOS4_GPIO_SPI_MISO

E_CTS_MIEO

E_RTS_MOEI

CPU

AIOS4_GPIO_JTAG_TDO

AIOS4_GPIO_JTAG_TMS

4K7R1438

1 2

OPEN

L1014

2 3

1 4

¡Ü

L1018

CM0805D900R-10

OPEN-1608R1127

10K-F-1608R1125

AIOS4_STBY_STATUS

GNDC

RD-

TCT

TD-

VBUS

GPIO_2

GPIO_0

NET_TDM_DIN_1

NET_TDM_BCK_1

NET_TDM_DOUT.

NET_I2S_LRCKOUT.

NET_I2S0_DOUT.

NET_I2S2_DIN

NET_I2S2_DOUT

ETH_TX-

ETH_TX+

L1015 0-2012

10KR1655

AIOS4_GPIO_SPI_EN_P

NET_FACT_RST

AIOS4_GPIO_SPI_EN_A

AIOS4_GPIO_SPI_MOSI

R165010K

R1615 OPEN

R143933K

NET_FACT_RST

R1548 0

R166210K

AIOS4_GPIO_JTAG_TCK

R1469 33 R166410K

R1470 33 AIOS4_GPIO_JTAG_TDI

R1530 33

R1697 33

R1556 33

R1560 33

0R1557

R1554 33

R1472 33

R1473 33

R1452 33

R1453 33

R1476 33

CP_RST

C1174 1N-K-0603

C1172 OPEN-1608

R1428 33

R1429 33

R1322 33

R1434 33

R1433 33

R1435 33

RCT

RD+

TD+

LEGO_SPDIF_OUT

GPIO_1

NET_I2S0_DIN

NET_I2S_MCKOUT

NET_TDM_FS_1

NET_I2S_BCLKOUT.

NET_I2S2_BCKIN

NET_I2S2_LRCKIN

ETH_RX-

C1195

OPEN-1005

ETH_RX+

R1305

1 4

R1326

0*2(AR)

AIOS4_GPIO_SPI_EN_0

10KR1654

10KR1656

C1026

OPEN

AIOS4_GPIO_SPI_MISO

AIOS4_GPIO_SPI_SS_0

R1651

10K

R1647

10K

C1025

OPEN

OPENR1617

R152810K

R163110K

R1494

10K

R146556K

R1440 33 AIOS4_GPIO_JTAG_TMS

R1467 33

R1547 0

R166310K

AIOS4_GPIO_JTAG_TDO

R1546 0

R1441 33

R1463 0

R1555 0

R166510K

R1614 33

OPEN

R1601

R1558 33

R1559 0

R1553 33

R1552 4K7

R1608 33

R1448 33

R1449 33

R1450 33

R1474 33

R1475 33

R1454 33

R1458 33

R1459 33

R1460 33

C1179100N-K-0603

R1461 2K2 R1462 2K2

R1319 33

R1320 33

R1321 33

R1431 33

R1432 33

LEGOPCK

R1323 33

R1324 33

R1325 33

BKT1001BKT1004

MN864787

FROM

D.SUPPLY

DIR/A.PLD

OPEN-1005D1087

C1198

OPEN-1005

MN864788

10K

R1652

10K

R1653

R1619 OPEN

DSP

10K-D-1608

R1464

DIR/A.PLD

2 3 4 5 6 7 8 9 10

19 18 17 111213141516

SN74LVC244APWR

U1050

1OE

GND

2Y1

1A4

2Y2

1A3

2Y3

1A2

2Y4

1A1

VCC

2OE

1Y1

2A4

1Y2

2A3

1Y3

2A2

1Y4

2A1

SM2532CV-2X21

U1007

10N-K-0603C1882

R1364 33 100N-K-0603C1190

R1331 33

R1367 33

R1360 33

1N-K-0603C1176

100N-K-0603C1187

4.7U-K-1608C1024

C206947/6.3(4*5.4)_MVG

DIGITAL 10/11

ADV7623

4.7U-K-1608C1022

C1023 4.7U-K-1608

(NET PHY)

SM2532CV-2X40

U1008

TO A6

TO B3

TO B5

B8 TO 8B

TO 9B

TO 0C

TO 1C

TO 2C

TO 3C

N1021

TO CN4401

Before Servicing

This Unit Electrical Mechanical Repair Information Updating

SCH05 CPU

STBY POWER

ANALOG AUDIO DIGITAL AUDIO

TMDS SIGNAL

GND LINE

POWER- LINE

POWER+ LINE

H5V_DET

PSDA

MN864787_RST

CEC_COM

MN864788_HAINT

PSDA

OPENR1198

ADV7623_SPI_CLK

ADV7623_SPI_MO

HSDA

ADV7623_RST

DSP_FLAG0

DSP_ICS

DSP_MISO

POWERKEY

RED_LED OPENR1212AP_CK

BAL_AAP_DA

TXD_MO232IDIR_CE

EMLE DIR_DIN

AP_CS

33R1192DAC_PLD_ERR

C124110P-J-1005MN864787_RST

R1209

0CEC_COM

CEC_OUT

TRST# VEXP_DATA

BDOWN VEXP_STB

TDI_RXD

TDO_TXD 33R1188THERMAL_A

MVOL_MUTE THERMAL_E

E_CTS_MIEO DC_DET_ASO

SWM3.3V

DGND

BAL_B

TRE_B

DAC_RST

AP_DA

BAS_B

CURRENT_DET

PRE_Z2_MUTE

SEL_DATA

SEL_CLK

TU_SCLK/DAB_TX

TU_LA

TU_INT

FLASHER_IN

RC_OUT

CPU_POWER

MVOL_DATA

POWERKEY

KEY2

ISEL_B

VSEL_B

ISEL_A

VSEL_A

FL_CLK

FL_CE

GRN_LED

TCK

AMPSIGDET

DC_DET_ASO

KEY3

FL_DA

H5V_DET

MVOL_CLK

ISEL_B

ISEL_A

BAS_B

C1239100N-K-0603PRE_MUTE

DAC_MS

AP_DA

SEL_CLK

PSDA

(E_SPI_CLK)

DGND

R1225 4K7

R123310K

R1232 4K7

ADV7623_ROMHOLD

C1240 4.7U-K-1608

DAB_EN(EU)/NC(NA/JP)

MO232I

DGND

R4637

NR1200/FN

NR1200/N1B

MODEL

10K22K

OPEN

R1202R1206FL_RST

TU_INT

33R1200

33R1196

0R1175

33R1179

33R1213

33R1181

100R1168

33R1171

33R1186

33R1187

DGND

VEXP_CLK

TU_LA

TRE_A

HSCL

DSP_MOSI

DSP_CLK

SEL_DATA

R1220 OPEN

TMS_

TCK_

TRST#

DGND

TDO_TXD

RESET

TEMP_SENSOR

E_RTS_MOEI

E_CTS_MIEO

E_TX0_MOEI

E_RXD_MIEO

DA_POWER

CPU_POWER

D5V_POWER

DV_POWER1

CEC_POWER

BDOWN

TMS

TRST#

DGND

TDO

RESET

MI232O

PSCL

MN864787_HINT

R463633

NR1200/U1B

OPENR1199

OPEN

MN864788_RST

MN864788_HINT

PSCL

ADV7623_SPI_CS

OPENR1197

HSCL

ADV7623_SPI_MI

DIR_CE

CEC_IN

C1236

OPEN-1005

C1248

100N-K-0603

R1205

OPEN

DSP_RST

DSP_CLK

OPTION_A

100N-K-0603

C1235

33R1195

33R1194

33R1204

DSP_MOSI

1KR1211

RXD_MI232O

VSEL_A

VSEL_B

GRN_LED

33R1177

R1193

4K7

1KR1207

1KR1210

DIR_RST

DIR_CLK

DIR_DOUT

DV_POWER1

RESET

C1251

100N-K-0603

R1176

10K

33R1190

33R1191

100N-K-0603

C1229

MN864788_RST

DA_POWER

DSP_FLAG0

TMS_

RC_IN_WAKE_UP

C124210P-J-1005

CEC_IN

VEXP_CLK

VEXP_OE

E_RTS_MOEI

E_RXD_MIEO

TCK_

33R1173

33R1178

33R1189

THERMAL_B

H_P_DET

R1203 33

33R1180

33R1182

R1183

33R1184

100

R1169

33R1170

M3.3V

AP_CK

DAC_MS

TRE_A

BAL_A

PRE_Z2_MUTE

VEXP_OE

VEXP_DATA

THERMAL_E

VEXP_STB

DSP_MISO

HSDA

R1172

OPEN

DSP_ICS

DSP_RST

DA_POWER

HI-B_RL

AMPSIGDET

BAS_A

TU_RST

TU_SDIO/DAB_RX

MVOL_CLK

KILL_IR

RC_IN_WAKE_UP

PRE_MUTE

KEY3

KEY1

MVOL_MUTE

RED_LED

FL_RST

FL_DA

EMLE

M3.3V

TDI_RXD

AIOS4_WAKEUP

NET_FACT_RST

RESET

EMLE

M3.3V

TDI

100N-K-0603

C1233

R1214 4K7

R1235 4K7

C1237

100N-K-0603

R1202

0-1608

R123410K

C1250100N-K-0603

HI-B_RL

KEY1

FLASHER_IN

FL_CE

FL_CLK

KEY2

RC_OUT

MVOL_DATA

BAS_A

R2183

33*4(AR)

AP_CS

AP_CK

DAC_RST

(E_SPI_CS)

(E_SPI_MIEO)

C1230100N-K-0603

DAC_PLD_ERR

PSCL

BAL_B

33R1185

100R1201

M3.3V

R1226 4K7

R1228 4K7

R1230 4K7

R122910K

R1231 4K7

ADV7623_RST

R4638

10K

CEC_OUT

MN864788_HAINT

MAIN_POWER

AIOS4_WAKEUP

DIR_CLK

TRE_B

KILL_IR

THERMAL_A

MN864788_HINT

MN864787_HINT

DIR_RST

DV_POWER1

D5V_POWER

THERMAL_B

SWM3.3V

E_TX0_MOEI

ADV7623_ROMHOLD

NET_FACT_RST

TU_SCLK/DAB_TX

TU_SDIO/DAB_RX

NET5V_POWER

ADV7623_SPI_MI

ADV7623_SPI_MO

C1232100N-K-0603

DAB_EN(EU)/NC(NA/JP)

CEC_POWER2

* OPTION TABLE

TO MN864787TO MN864788

AIOS4_STBY_STATUS

CPU_POWER

TEMP_SENSOR

DIR_DIN

TU_RST

H_P_DET

CEC_POWER

DIR_DOUT

NET3.3V_POWER

CURRENT_DET

TO ADV7623TO DSP

R1208

OPEN

C1238

100N-K-0603

C1249

TO DIR/A.PLD

(E_SPI_MOEI)

C1234100N-K-0603

ADV7623_SPI_CLK

ADV7623_SPI_CS

NET PHY

N4600

1.0-11S-4PW

R1206

OPEN-1608

X1000

12M(8P)

EMULATOR

D.SUPPLY

AIOS4_STBY_STATUS

NET5V_POWER

REMOTE3.3V

TO CPU LEVEL CHG

MP : OPEN

CEC_POWER2

MAIN_POWER

NET3.3V_POWER

TO DIGITAL CNTDIGITAL 4/11

(CPU)

3A TO A3 5A

TO A5 9A

TO A9

TO B4 7B TO B7

TO B8

C4 TO 4C C5 TO 5C C6 TO 6C

TO 7C

TO 8C

TO 9C

TO 0D

Before Servicing

This Unit Electrical Mechanical Repair Information Updating

SCH06 CPU LEVEL CHG

STBY POWER

ANALOG AUDIO DIGITAL AUDIO

TMDS SIGNAL

GND LINE

POWER- LINE

POWER+ LINE

STBY3.3V

VEXP_OE

R113633K

H/P_RL

C121910N-K-0603R1115 OPEN

DCDET3

C122410N-K-0603R1124100

HPD3

HPD2

HPD1

HINSELC

HINSELB

HINSELA

R1139 OPEN R111912K-1608

HPD4

C122210N-K-0603R1120100

R1141 OPEN R1123120K

VEXP_DATA

HPD1

HPD3

VEXP_STB

HINSELA MN864787_RST

HINSELC R1134 3K3

VEXP_STB

SPRL_FB

M_DAX_LED

SPRL_FA

MN864787_RST

CEC_OUT

CEC_COM

CEC_IN

VEXP_CLK

VEXP_OE

TEMP_SENSOR

THERMAL_B

H_P_DET

SWM3.3V

DGND

SPRL_FB

DCDET3 DIRECT_LED

THERMALDETA

THERMALDETE

H_P_DET

ASODET

DC_DET_ASO

OPENR1103

THERMAL_E

R110622K

THERMAL_A

THERMALDETB

R11112M2

CEC_OUT

VEXP_CLK

DGND

C1227100N-K-0603

CEC_IN

HPD5

R1130

4K7

C1228100N-K-0603

220K

R1133

R1094

10K

C1212

OPEN-1005

STBY5V

C1231100N-K-0603

10N-K-0603C1218

R1112

100K

R1113100

C1213

100N-K-0603

R1114

100K

C1214

100N-K-0603

R113718K

DCDET4

R1108

3K9

C122110N-K-0603R1118100

R1140 OPEN R1121120K

HPD5

C122310N-K-0603R1122100

VEXP_STB

VEXP_CLK

HPD4

HPD2 Q1058

2SC3052

R1135100K

R1098

100K

C1217

220P-K-0603

ADC_RST

MN864788_RST

HINSELB

R1097 1K2

100N-K-0603C1216

DIRECT_LED

VEXP_OE

H/P_RL

MN864788_RST

VEXP_DATA

THERMAL_E

THERMAL_A

VEXP_STB

DCDET4

2SC3052

Q1035

M3.3V

DC_DET_ASO

Q1038

ISA1530AC1

SPRL_FA

22K

R1099

Q1027

2SC3052

THERMALDETB

ASODET

M_DAX_LED

R1142

3K9

R1109

10K

Q1032

2SC3052

R110222K

R110422K

OPENR1105

THERMAL_B

Q1030

2SC3052

ADC_RST

OPEN

R1107

Q1031

2SC3052

THERMALDETE

THERMALDETA

M3.3V

SWM3.3V

STBY3.3V

CEC_COM

R1131

47K

R1132

27K

Q1057

2SD2114K

TO CPU

Q1036

2SC3052

DC_PROT

SWM3.3V

STBY5V

DGND

FROM

D.SUPPLY

D1004

LBAS16HT1G

Q1059

2SC3052

Q1026

2SC3052

Q1037

ISA1530AC1

TO DIGITAL CNT

Q1029

2SC3052

MN864788TO

MAIN DAC

DIGITAL 5/11

MN864787(CPU LEVEL CHG)

4A TO A4 8A TO A8

TO C6

D1 TO 1D D2TO 2D

TO 3D

Before Servicing

This Unit Electrical Mechanical Repair Information Updating

SCH07 DSP

STBY POWER

ANALOG AUDIO DIGITAL AUDIO

TMDS SIGNAL

GND LINE

POWER- LINE

POWER+ LINE

PLDAERR.

DA3.3V

DA1.1V

DSP1DQM

DSP1SDCKE DSP1INFS

DSP1A1

DATAC

DSP1A3

OPEN-0603C1436 DSP1A5

DSP1A6

DSP1A8

DSP1A11

DSP1A17

DSP1A18

R1332 0

R1525 33 R1334 33 DATAC

AIOS4_GPIO_SPI_MISO

AIOS4_GPIO_SPI_SS_0

AIOS4_GPIO_SPI_CLK

NET3.3V

AIOS4_GPIO_SPI_EN_0

R1341 OPEN-1608

DSP1IN__FR

DSP1INCSW_C

DSP1INS_SL

DSP1IN64FS

C1459 1N-K-0603

C1410 1N-K-0603DSP1OUT64FS

C1411 1N-K-0603

C1332 1N-K-0603

C1333 1N-K-0603

R133810K

C1338 1N-K-0603

C1413100N-K-0603 C1340 1N-K-0603

C1344100N-K-0603

C1416100N-K-0603

C1418 1N-K-0603C1345 1N-K-0603

C1347 1N-K-0603

DSP1INSB_SR DSP_FLAG0

C1419100N-K-0603

DSP1INF_FL

DSP1OUTFSDSP_ICS

DSP1OUT64FS

DSP_MISO

C1422100N-K-0603 R1340100K

DSP_ROM_MISO C1350100N-K-0603

100N-K-0603C1423DSP1INMCK

DSP_ROM_CS C1351 1N-K-0603

C1353 1N-K-0603

4.7U-K-1608C1439

C1440 OPEN-3216

C1441 4.7U-K-1608

DSP1_SPI_MOSI

DSP1_SPI_CLK

DM_DSPOUT_DATA

GND

EMU1

TRST

VCC

GND

10KR1337

OPENR1335

DTRST

R1379 1K

33R1348

33R1346

R1399 OPEN

R13774K7

DSP1INSB/SR

DSP1IN_/SW

DSP1IN_/FR

1MR1389

I2S3

----- -----

DSD

10KR1336

R1378 OPEN

C1426 1N-K-0603

R1372

C1402 1N-K-0603

OPENR1365

100N-K-0603C1403

C1404 1N-K-0603

C1432100N-K-0603

C1435 1N-K-0603

C1408100N-K-0603

R135410K

C1375100N-K-0603

C1366 1N-K-0603

33R1349

10KR1347

100KR1343

DSP1INS_SL

DSP1IN__FR

DATAF

DSP_ROM_MISO

DSP_ROM_SCLK

0R1355

10K

R1388

DSP1_SPI_CLK

DSP1_SPI_MOSI

DSP1A4

DSP1A6

DSP1A8

DSP1A11

DSP1SDCKE

DSP1A12

DSP1SDCLK

DSP1D8

DSP1D9

DSP1D12

DSP1D13

C1378 OPEN-0603

C1376 OPEN-0603

C1367 OPEN-0603

TDI

EMU0

TMS

TCK

TDO

DTDI

DEMU0

DTCK

DTDO

DTMS

OPEN

R1386

Q1041

OPEN

R1630

33*4(AR)

R1361 82

4K7

R1352

DGND

R1398 OPEN

DSP1CE0

R1390

R13804K7

4K7

R1374

R1375OPEN

DSP1A0

DSP1A2

DATAF

DATAS

OPEN-0603C1438

OPEN-0603C1437

DSP1A4

DSP1A7

DSP1INS/SL

DSP1INCSW/C

DSP1INF/FL

X1002

C1434

15P-G-1005

DSP1A9

C1414 1N-K-0603

I2S2

I2S1

I2S0

DGND

MP:OPEN

DSP1A12

DSP1SDA10

R1395 33

R1524 33

R1527 33

R1385 33

R1333 0

R13814K7

R1371

C1405100N-K-0603

C1430100N-K-0603

1N-K-0603C1428

C1363100N-K-0603

C1406 1N-K-0603

R1356 33

C1433 1N-K-0603

C1407100N-K-0603

R1353 OPEN

C1372 1N-K-0603

100N-K-0603

C1377

C1361100N-K-0603

C1364 1N-K-0603

33R1703

DATAS

DSP1IN__SW

DSP1IN64FS

DSP_ROM_CS

OPEN

R1442

10K

R1397

R1384

R1382

R1383

R1376

R2124

L1048

OPEN

DSP1_SPI_MISO

DSP1_SPI_SS

MP:OPEN

DSP1A7

DSP1A5

DSP1DQM

DSP1A9

DSP1D11

DSP1D10

DSP1D14

DSP1D15

R2122

R2121

AIOS4_GPIO_SPI_MOSI

FROM

NET PHY

C1365100N-K-0603

C1336100N-K-0603

C1355 OPEN-0603

4K7

R2119

R1561

10*4(AR)

R1629

10*4(AR)

R1628

DSP1INF_FL

DSP1IN__SW

DSP1INSB_SR

DSP1INMCK

C1412100N-K-0603

C1409100N-K-0603

1N-K-0603C1330

C1328100N-K-0603

C1329100N-K-0603

C1331100N-K-0603

DSP1OUTFS

C1335 1N-K-0603

C1334100N-K-0603

C1337100N-K-0603

R133910K

C1341 1N-K-0603

C1342100N-K-0603

C1339100N-K-0603

C1417100N-K-0603

C1415 1N-K-0603

33*4(AR)

R1637

C1348100N-K-0603

C1346100N-K-0603

C1343 1N-K-0603

DSP_RST

DSP_ROM_SCLK

DSP_ROM_MOSI

C1420 1N-K-0603

C1421 1N-K-0603

C1349 1N-K-0603

DSP1INCSW_C

DSP1INFS

DSP_CLK

DSP_MOSI

OPEN-3216C1427

10K*4(AR)

R1387

1N-K-0603C1424

4.7U-K-1608C1425

C1442100N-K-0603

C1429 4.7U-K-1608

R1366

DSP1_SPI_MISO

DSP1_SPI_SS

Q2203

RT1N141C

MP:OPEN

DSP_RST

DSP1CAS

DSP1WE

DSP1RAS

DSP1D15

DSP1D14

DTCK

DSP1D11

DSP1D9

DTDI

DSP1D7

DSP1D5

DSP1D3

DTDO

DSP1D2

DSP1D0

C1452 1N-K-0603

C1443 1N-K-0603

C1444 1N-K-0603

C1445 1N-K-0603

C1369100N-K-0603

C1448100N-K-0603

1N-K-0603C1356

SBL/SBR

I2S(PCM Multi)I2S(HD Audio)

DA3.3V

DSP1CLK

DSP1MISO

DSP_MOSI

DSP_CLK

DM_DSPOUT_DATA

C1450100N-K-0603

MISO

VCC

GND

10K

R1362

DSP1A3

DSP1A1

DSP1SDA10

DSP1A17

OPENR1359

DSP1RAS

DSP1CE0

DSP1CAS

DSP1DQM

DSP1D7

DSP1D6

DSP1D3

DSP1D2

R1342

33*4(AR)

DTMS

DSP1D13

DSP1D12

DSP1D10

DSP1SDCLK

DSP1D8

DSP1D6

DSP1D4

DSP1D1

DEMU0

DTRST

DSP_FLAG0

10K

R1351

1N-K-0603

C1431

C1449 1N-K-0603

C1374100N-K-0603

C1451100N-K-0603

C1370100N-K-0603

C1453100N-K-0603

C1368 1N-K-0603

C1358100N-K-0603

C1371 1N-K-0603

C1455 1N-K-0603

100N-K-0603C1457

DIR/A.PLD

C1454

15P-G-1005

1K2R1396

SL/SR

C/SW

FL/FR

DSP1CS

DSP1MOSI

FROM

CPU

R1430 33

DSP_ROM_MOSI

10K*4(AR)

R1369

DSP_MISO

DSP_ICS

C1327 OPEN-0603

GND

MOSI

SCK

OPENR1363

DSP1A2

DSP1A0

0R1357

DSP1WE

DSP1A18

DSP1D4

DSP1D5

DSP1D0

DSP1D1

R2123

(DSP)

R1634

33*4(AR)

R1633

33*4(AR)

OPEN

Q1040

R1636

33*4(AR)

C1352100N-K-0603

R1370

10K*4(AR)

R1373

10K*4(AR)

CS#

SO/SIO1

WP#

GND

VCC

SCLK

SI/SIO0

HOLD#

2345678910

19181711 12 13 14 15 16

SN74LVC244APWR

U1046

1OE

GND

2Y1

1A4

2Y2

1A3

2Y3

1A2

2Y4

1A1

VCC

2OE

1Y1

2A4

1Y2

2A3

1Y3

2A2

1Y4

2A1

100N-K-0603

C1825

123

545352

5 4678910111213141516

41 42 43 44 45 46 47 48 49 50 5139 4033 34 35 36 37 3829 30 31 32

1718192021222324252627

U1020

W9864G6KH-6

VDDQ

DQ0

VDD

VSSQ

DQ2

DQ1

DQ3

VSSQ

DQ4

VDDQ

DQ5

DQ6

VSSQ

DQ7

VDD

LDQM

VSS

DQ8

VDDQ

DQ9

DQ10

VSSQ

DQ11

DQ12

VDDQ

DQ13

DQ14

UDQM

A11

CKE

CLK

VSS

CAS

RAS

BA0

BA1

A10/AP

VDD

VSS

DQ15

A12

C13803P-C-1005

R1345 OPEN

R13444K7

OPEN-0603C1446

C1447 OPEN-0603

C1357100N-K-0603

C1460100N-K-0603

C1458100N-K-0603

4K7R1350

DSP input DATA

100N-K-0603C1379

OPEN-0603C1373

C1360100N-K-0603

C1359 OPEN-0603

C1362 OPEN-0603

C1354 OPEN-0603

C1456 OPEN-0603

R1358

10*4(AR)

176

174

172

170

168

166

165

164

163

162

161

160

159

157

155

153

151

149

147

145

144

143

142

141

140

138

136

134

1 3 5 7 9 11 13 15 16 17

177

18 19 20 22 24 26 28 30 32 34 3635 37 38 39 41 43

175

173

171

169

167

158

156

154

152

150

148

146

139

137

135

133

13213012812612412212011811611511411311110910710510310199 9798 96 95 94 92 90

2 4 6 8 10 12 14 21 23 25 3327 29 31 40 42 44

13112912712512311911712111211010810610410210093

91 89

ADSP-21487KSWZ-2B

U1021

AMI_RD

VDD_INT

FLAG0

FLAG1

FLAG2

MLBCLK

FLAG3

MLBDAT

MLBDO

VDD_EXT

MLBSIG

VDD_INT

TRST

MLBSO

EMU

DATA0

DATA1

DATA2

DATA3

TDO

DATA4

VDD_EXT

DATA5

DATA6

VDD_INT

DATA7

TDI

SDCLK

VDD_EXT

DATA8

DATA9

DATA10

TCK

DATA11

DATA12

DATA14

DATA13

VDD_INT

DATA15

SDWE

SDRAS

RESET

TMS

SDCAS

VDD_INT

SDDQM

MSO

SDCKE

VDD_INT

CLK_CFG1

ADDR0

BOOT_CFG0

VDD_EXT

ADDR1

ADDR2

ADDR3

ADDR4

ADDR5

BOOT_CFG1

GND

ADDR6

ADDR7

ADDR8

ADDR9

CLK_CFG0

VDD_INT

CLKIN

XTAL

ADDR10

SDA10

VDD_EXT

VDD_INT

ADDR11

ADDR12

ADDR17

ADDR13

VDD_INT

ADDR18

RESETOUT/R UNRST IN

VDD_INT

DP1_P01

DP1_P02

DP1_P03

VDD_INT

DPI_P05

DPI_P04

DPI_P06

VDD_EXT

DPI_P08

DPI_P07

VDD_INT

DPI_P09

DPI_P10

DPI_P11

DPI_P12

DPI_P13

DPI_P14

DAI_P03

VDD_EXT

VDD_INT

WDTRSTO

VDD_EXT

DAI_P07

DAI_P13

DAI_P19

DAI_P01

DAI_P02

VDD_INT

VDD_EXT

VDD_INT

DAI_P06

DAI_P05

DAI_P09

DAI_P10

VDD_INT

VDD_EXT

DAI_P20

VDD_INT

DAI_P08

DAI_P14

DAI_P04

DAI_P18

DAI_P17

DAI_P16

DAI_P12

DAI_P15

VDD_INT

DAI_P11

VDD_EXT

VDD_INT

BOOT_CFG2

VDD_INT

AMI_ACK

GND

THD_M

THD_P

VDD_THD

VDD_INT

MS1

VDD_INT

WDT_CLKO

WDT_CLKIN

VDD_EXT

ADDR23

ADDR22

ADDR21

VDD_INT

ADDR20

ADDR19

VDD_EXT

ADDR16

ADDR15

VDD_INT

ADDR14

AMI_WR

DIGITAL 9/11

2C TO C2

4C TO C4

TO 4D D5 TO 5D

Before Servicing

This Unit Electrical Mechanical Repair Information Updating

SCH08 DIR, A.PLD

STBY POWER

ANALOG AUDIO DIGITAL AUDIO

TMDS SIGNAL

GND LINE

POWER- LINE

POWER+ LINE

TEST5

A15

SBCK

C15

D15

E15

D16

4K7R1963

DIRADATAI.

OPENR2077

ADIN_LEGO_L

DAGND2

DA+5V

DAC256FS

DACFS

DACDATAF2

DACDATASW2

DSP1IN__FR

DSP1INF_FL

DSP1INCSW_C

DSP1INSB_SR

DSP1IN__SW

DSP1IN64FS

DSP1INMCK

DSP1INFS

DSP1OUTFSA2 RX_SD2

DATAC

C2 RX_SD0

DATAS

A4 RX_BCLK

RX_MCLK

DIRRXSPDIF. B6 DV_POWER1

PLDADCMCK

PLDADCDATA R7

ARCSPDIF_

Z2_DAC_LRCK

Z2_DAC_BCK T10

DACDATASW2. A8 0

R1921

Z2_DAC_MCLK C8 R2086 33

DACDATAF2. A9 DATAS

C9 DM_DAC_BCK.

DACFS. T8 A10 DSP1IN64FS. 100R1965

DAC256FS. T7

DZM

A11 DATAF.

R2001100

C11 33

R2129

R12

64FSDIR1 A12 DSP1INMCK.

C12

R13

DATADIR1

B13 DSP1INFS.

C13 DM_DAC_RST.

DSP1OUTFS

T15

DIRABCKI.

PLDAERR.

DA1.1V

R2120 4K7

JTAG_TDO

JTAG_TMS

DAGND2R1919 0-1608R1913 OPEN

150R1958

D1137 OPEN-1608

A_U_D_I_O_1_

SLRCK

PCM9211_INTO

DIRABCKI

DIRADATAI

100R1978DIR_RST

DIR_CLK DIR_CLK

DIR_DOUT

DIR_DIN

R195410KAP_CK

AP_CS

DIR_DIN DA_POWER

DIR_DOUT DAC_PLD_ERR

DM_DAC_MCLK

DM_DAC_LRCK

DM_DAC_RST

RX_SD3_SPDIF

RX_SD0

DIRRXSPDIF 100R1929RX_SD2

R1932

ARCSPDIF RX_BCLK

DACDATASW2 DAC_PLD_ERR. DAC_PLD_ERR

TX64FS

DM_DAC_MCLK. DM_DAC_MCLK TXI2S0

DACDATAF2

DM_DAC_BCK

R2128 33

NET_I2S2_DOUT

DACFS DSP1IN64FS

DAC256FS DATAF

DM_DAC_LRCK. DM_DAC_LRCK

DSP1INMCK

DM_DAC_DATA. DM_DAC_DATA

NET_I2S0_DIN

DSP1INFS

R1935100GPIO_0

DM_DAC_RST

GPIO_2

GPIO_1

DIRABCKI R1979100

C2098100N-K-0603

C2100100N-K-0603

C2150100N-K-0603

C2151100N-K-0603AIOS4_GPIO_JTAG_TDI

C2159100N-K-0603AIOS4_GPIO_JTAG_TMS

R1943 1K

R194410K

LEGO_SPDIF_OUT LEGO_SPDIF_OUT

ARCSPDIF

C205947/6.3(4*5.4)_MVG

NET_I2S2_BCKIN

NET_I2S2_LRCKIN

NET_I2S_BCLKOUT.

NET_TDM_BCK_1

NET_I2S_MCKOUT

C2169100N-K-0603

C2174100N-K-0603

OPT1

C2076

VALUE TYPE

≤5%

TOLERANCE

10KR2022

10KR1993

R1903 3K3

DATADIR1

64FSDIR1

DIRRXSPDIF

ARCSPDIF

DV_POWER1

JTAG_TDO

TXI2S0

TX64FS

R201233

33R2007

GPIO_0

GPIO_2

OSC

TXI2S0.

TEST6

DV3.3V

RX_SD1

DGND

NET_I2S2_BCKIN. TEST12

TEST10 TEST11

GPIO_1

TXFS.

TEST7

RX_SD0

DGND

DV3.3VRX_SD2

RX_LRCK RX_MCLK

RX_BCLK

JTAG_TDI

DGND

DV3.3V DV1.8V

DV3.3V DGND

DGND

DV_POWER1 DGND

AP_CS AP_DA

DV3.3V DV3.3V

DGND DGND

DGND DV1.8V

DV1.8V DGND

DGND DGND

DV3.3V DV3.3V

DM_DAC_MCLK.

AP_CK

DAC_PLD_ERR. DATAS

DGND

DGND DV3.3V

DV1.8V DV3.3V

DGND

TEST2

TEST1

DSP1IN__FR.

DSP1IN64FS. DATAF.

TEST4

TEST3

DATAC DSP1INFS.

DSP1INMCK.

DIR1PERR

Z2_DAC_BCK.

PLDADCBCK.

TEST8

DSP1INF_FL.

DGND

DV3.3V DSP1OUTFS

N16

N15

M16

M15

L16

K16

J16

H16

G16

G14

F16

PLDAERR.

F15

TEST9

DV3.3V

DGND

B16

E16

R1931100

33R2050

33R2041

100R1990

MCLK1

Z2_DAC_MCLK

Z2_DAC_DATA

Z2_DAC_MUTE

DA3.3V

DV3.3V

TEST11 TEST12

GND

TMS

TDO

TCK

R1907

C2065

BCR-802-M25

U1043

R1909

R1911

680 OHM

R1967 33

C2090100N-K-0603

100N-K-1608

C2070

10/16(4*5.4)_MVG

C2072

12P-G-1005

C2063C2064

15P-G-1005

100N-K-0603

C2061

R1956

470

C2071

100N-K-1608

10/16(4*5.4)_MVG

C2073

R1904

OPEN

680

R1907

≤5%

33*4(AR)

R1917

R1914

DIR

DIR_RST.

R1916 4K7

R1899

OPEN

R1443

R1969

47K

4K7R1901

R1900 4K7

DA3.3V

R2064

R2070

10KR1992

10KR1994

R1902 33

AD_VDCOM

DGND

ADIN_LEGO_R

DA3.3V

FSDIR1

256FSDIR1

DAC_PLD_ERR

DZM

DAC64FS

DACDATAF1

TXFS

DACDATASW1

R2020

R2019

R1368 33

R2011

R2004

R2009

DSP1INS_SL

DGND

DV3.3V

B1 RX_SD1

MAIN DAC

DSP1OUT64FS

DATAF

DGND

DV3.3VNET_TDM_DIN.

NET_TDM_DOUT.

NET_I2S2_LRCKIN.

NET_I2S0_DOUT.

JTAG_TMS

RX_LRCK

PLDADCLRCK

PLDADCBCK

DZM R11

DIRRXSPDIF.

Z2_DAC_MUTE

Z2_DAC_DATA

R10

DACDATASW1.

DACDATAF1.

DACFS.

DAC64FS.

B9 DSP1INS_SL. R1977100

T11

256FSDIR1

DAC64FS. R8

256FSDIR1DACDATASW2.

DACDATASW1.

B10

B11

DSP1IN__FR. R1925100

T12

FSDIR1

T13

DIRADATAI.

64FSDIR1 DATADIR1

FSDIR1 DIRADATAI.

B12 DATAC

A13

D12

R2008100

R2130 33

R2000100

DIRALRCKI. R14

DV3.3V

DGNDDIRALRCKI.

DIRABCKI.

MCLK1.

B14

DSP1INF_FL.

DA3.3V

DGND

DIRAMCKI.

R16

DV3.3V

SLRCK

P15

J15

K15

L15

H15

G15

33R1986

33R2048

33R1984

33R1985

C1177100N-K-0603

DIRAMCKI

Z2_DAC_LRCK

Z2_DAC_BCK

PLDADCBCK

R1938

R1941

R1946

DA1.1V

DGND

DV1.8V

TEST4 TEST5 TEST6

TEST7 TEST8 TEST9

TEST1 TEST2 TEST3

JTAG_TCK

JTAG_TDI

R1947

OPEN

TDI

DV3.3V

DGND

RCA-107C-BK

K1003

R1918 OPEN-1608R1912 OPEN

C2089 OPEN-1608

150R1959

C2062

47/6.3(4*5.4)_MVG

C2056

1N-K-0603

DIR1PERR

SBCK

MCLK1

DIRAMCKI

33R1915

DIR_RST

DIRALRCKI

DIR_CE

R195310K

DIR_CE

CPU

R1906

33*4(AR)

R195510K

DV_POWER1

AP_DA

R1391

DM_DAC_BCK

DM_DAC_DATA

DM_DSPOUT_DATA

RX_SD1

RX_SD3_SPDIF

RX_LRCK

RX_MCLK

R1988100

R1987100

R1983100

R1934100

DACDATASW1

DACDATAF1

TXFS

DSP1INS_SL

R1942100

DAC64FS

R1933100

R2005100 R1936 33

NET_I2S2_DIN

DSP1IN__SWDSP1IN__SW.

DSP1IN__FR

DM_DSPOUT_DATA

NET_TDM_DIN_1

NET_TDM_FS_1

DSP1INCSW_CDSP1INCSW_C.

R1927100

DIRALRCKI

DSP1OUT64FS

R2131 33

R1995100DSP1INF_FL

DSP

DSP1INSB_SR. DSP1INSB_SR

C2099100N-K-0603

C2101100N-K-0603

C2087100N-K-0603

AIOS4_GPIO_JTAG_TDO

C2143100N-K-0603

C2147100N-K-0603

C2160100N-K-0603

C210647/6.3(4*5.4)_MVG

AIOS4_GPIO_JTAG_TCK

NET PHY

R194510K

C2156100N-K-0603

C2161100N-K-0603

C2162100N-K-0603

C2057100N-K-0603

DIRRXSPDIF

NET_I2S0_DOUT.

NET_I2S_LRCKOUT.

NET_TDM_DOUT.

C2168100N-K-0603

C2172100N-K-0603

OPEN-0603C2075

ADIN_LEGO_R

0.0047UF

R1964 OPEN

R1960330K R1961 33

C2086100N-K-0603

C210547/6.3(4*5.4)_MVG

R1905

820

NET_TDM_DIN_1

NET_I2S0_DIN

NET_TDM_FS_1

NET_I2S2_DIN

NET_I2S2_DOUT

R2014 OPEN

NET_TDM_DIN.

NET_I2S0_DIN.

NET_TDM_FSIN.

JTAG_TCK

NET_TDM_DOUT.

NET_I2S2_DIN.

JTAG_TDO.

JTAG_TDO.NET_I2S2_DOUT.

NET_I2S2_DOUT.

JTAG_TDI

GPIO_1

OSC

TXI2S0.

TX64FS.

AP_CK

RX_SD3_SPDIF

AP_CS DA_POWER

DM_DSPOUT_DATA

DM_DAC_LRCK. DM_DAC_RST.

DSP1INS_SL. DSP1IN__SW.

DSP1INCSW_C.

MCLK1. R1980100

A_U_D_I_O_1_A_U_D_I_O_1_

SBCK

Z2_DAC_MCLK.

Z2_DAC_MCLK. 33R2043

Z2_DAC_DATA.

Z2_DAC_MUTE.

PLDADCMCK

PLDADCMCK. PLDADCMCK.

PLDADCDATA PLDADCDATA

PLDAERR.

DGND

DSP1INSB_SR.

DV1.8V

TEST10

COAX1

C2074100N-K-0603

ADIN_LEGO_L

AD_VDCOM

0.068UF

*FILTER COMPONENTS

R195747K

R1962 OPEN

C2088

10N-K-1608

C2085 4.7U-K-1608

X1008

24.576MHz(FA-238,10P)

0 ¥Ø

OPEN-1005

R1968

NET_I2S_MCKOUT

NET_I2S2_LRCKIN

NET_TDM_BCK_1

NET_I2S2_BCKIN

R200633

C2066100N-K-0603

NET_I2S_LRCKOUT.

NET_TDM_BCKIN. NET_TDM_FSIN.

NET_I2S0_DOUT. NET_I2S0_DIN.

NET_I2S_BCLKOUT.

JTAG_TCK

NET_I2S2_DIN.

NET_TDM_BCKIN.

JTAG_TMS

GPIO_0

NET_I2S2_BCKIN.

GPIO_2

DV3.3V

TXFS.

AP_DA

DA_POWER

ARCSPDIF_

DAC256FS. DACDATAF2.

DACDATAF1.

DM_DAC_BCK. DM_DAC_DATA.

DIRAMCKI.

SLRCK

PCM9211_INTO

DIR1PERR

Z2_DAC_BCK.

Z2_DAC_LRCK.

PLDADCLRCKPLDADCLRCK.

PLDADCBCK.

DV3.3V

R1926100

R1937

MP:OPEN

R1948

OPEN

R1949

OPEN

R2110

OPEN

R2112

Q2204

RT1N141C

170731

Changed CHIP SIZE

C2088, R1956, R1957, R1960, R1961, R1967

1005 -> 1608

OPEN

R1966

33343536

1 2 3 4

5 6 7 8 9 10 11 12

2526272829303132

PCM9211

U1040

MPIO_A0

MPIO_A1

MPIO_A2

MPIO_A3

MPIO_C0

MPIO_C1

MPIO_C2

MPIO_C3

MPIO_B0

MPIO_B1

MPO0

MPO1

DOUT

LRCK

BCK

SCKO

DGND

DVDD

MDO/ADR0

MDI/SDA

RXIN7/ADIN0

RXIN6/ALRCKIO

RXIN5/ABCKIO

RXIN4/ASCKIO

RXIN3

RXIN2

RST

RXIN1

VDDRX

XTI

XTO

AGND

VCC

FILT

VCOM

AGNDAD

VCCAD

VINL

VINR

1 : ERROR/INTO

2 : NPCM/INT1

13 : MPIO_B2

14 : MPIO_B3

37 : RXIN0

38 : GNDRX

25 : MC/SCL

26 : MS/ADR1

27 :MODE

FROM

NET PHY

MAIN DACTO DIGITAL CNT TO

DSP

MAIN DAC

FROM

NET PHY

C2149100N-K-0603

C2164100N-K-0603

2345678910

19181711 12 13 14 15 16

SN74LVC244APWR

U1047

1OE

GND

2Y1

1A4

2Y2

1A3

2Y3

1A2

2Y4

1A1

VCC

2OE

1Y1

2A4

1Y2

2A3

1Y3

2A2

1Y4

2A1

D.SUPPLY

OPEN

R2111

141312

321

111098

7 6 5 4

U1042

SN74AHCU04PWR

GND

VCC

100N-K-0603

C2060

NET_I2S_BCLKOUT.

NET_I2S_LRCKOUT.

R2003100

R1922 33

R1924 33

FILM OR CERAMIC (CH OR C0G)

Z2_DAC_LRCK.

PLDADCLRCK.

DSP1OUT64FS

NET_I2S_MCKOUT.

NET_I2S2_LRCKIN.

R1923 33

C206568N-J-3216

METAL FILM OR CARBON

FILM OR CERAMIC (CH OR C0G)

PCM9211_INTO

DIGITAL 7/11

C2076 4N7-J-2012

C2067 OPEN-1005

MN864788

(DIR/A.PLD)

T10

R10

P10

N10

M10

L10

K10

H10

F10

D10

B10

T12

R12

P12

N12

M12

L12

K12

H12

F12

D12

B12

T14 T15

R14

P14

R15

P15

N14

M14

N15

M15

L14

K14

L15

K15

H14H15

F14 F15

D14D15

B14 B15

T16

R16

P16

N16

M16

L16

K16

H16

F16

D16

B16

J10

G10

E10

C10

A10

J12

G12

E12

C12

A12

G14

E14

J14 J15

G15

E15

C14

A14

C15

A15

J16

G16

E16

C16

A16

T1 T3 T5

R1 R3 R5

P1 P3 P5

N1 N3 N5

M1 M3 M5

L1 L3 L5

K1 K3 K5

H1 H3 H5

F1 F3 F5

D1 D3 D5

B1 B3 B5

T7 T9 T11 T13

R7 R9 R11R13

P7 P9 P11 P13

N7 N9 N11N13

M7 M9 M11 M13

L7 L9 L11L13

K7 K9 K11 K13

H7 H9 H11H13

F7 F9 F11 F13

D7 D9 D11D13

B7 B9 B11 B13

J11

G11

E11

J13

G13

E13

C11

A11

C13

A13

1 2 3 4 5678 9 10 11 12 13 14

1615

U1041

5M570ZF256C5N

CH2:DACBCK

(DA64FS1)

CH4:DACMCK

(DA256FS1)

CH3:DACPCMF

(DADATAF1)

CH1:DACLRCK

(DAFS1)

(3) DAC input

CH1:DIRLRCK

(FSDIR1)

CH2:DIRBCK

(64FSDIR1)

CH3:DIRDATA

(DATADIR1)

(2) DIR output

CH1:COAX.1

(RXIN0)

(1) DIR input

2B TO B2 9B TO B9

TO C0 3C TO C3

5C TO C5

TO D4

TO D5

D6 TO 6D

TO 7D

TO 8D

TO 9D

TO 0E

Before Servicing

This Unit Electrical Mechanical Repair Information Updating

SCH09 MAIN DAC

STBY POWER

ANALOG AUDIO DIGITAL AUDIO

TMDS SIGNAL

GND LINE

POWER- LINE

POWER+ LINE

PLDADCBCK

PLDADCMCK

DM_DAC_RST

DM_DAC_MCLK

C2200 1U-K-1005

DA3.3V'

DGND

DAGND2

DA3.3V

DM_DAC_MCLK

ZONE2_R

ZONE2_L

Z2_DAC_MUTE

Z2_DAC_DATA

PLDADCLRCK

PLDADCDATA

DM_DAC_DATA

1N-K-0603C2110

1N-K-0603C2112

1N-K-0603C2114

ADIN_LEGO_L

ADIN_LEGO_R

A_DIN_L

BTTX_R

470R2066

470R2073

2N2-K-0603

C2212

470R2084

Z2_DAC_MCLK

Z2_DAC_BCK

Z2_DAC_LRCK

DM_DAC_DATA

DA+5V

C2177 1N-K-1005

C2181 1N-K-1005

C2187 1N-K-1005

C2193 1N-K-1005

DAGND2

10KR2067

ZONE2_R

ZONE2_L

BTTX_L

ADC_RST

Z2_DAC_BCK

FROM

DIR/A.PLD

R2404

R2403

DM_DAC_BCK

C2203 OPEN-1005

OUT

GND

TLV75733PDBVR

U1051

DA+5V

C2199

1U-K-1005

C2205

OPEN-1005

C2423 1N-K-0603

C2178 1N-K-1005

C2179 1N-K-1005

C2180 1N-K-1005

C2185 1N-K-1005

C2188 1N-K-1005

C2189 1N-K-1005

DA+5V

DIR/A.PLD

AD_VDCOM

100K

R2068R2074

100K

10KR2061

R2057 0

DM_DAC_BCK

C2171

100N-K-0603

R2053

OPEN

DAGND2

R2076

100K

OPEN-0603

C2211

10KR2079

C2215

100N-K-0603

R2055

OPEN

R2060

100N-K-1608

C2165

BTTX_R

Z2_DAC_LRCK

Z2_DAC_MCLK

DM_DAC_LRCK

1U-K-1005C2414

C2204

OPEN-0603

1N-K-0603C2111

1N-K-0603C2113

C2176 1N-K-1005

C2138 1N-K-1005

ADIN_VDCOM

A_DIN_R

BTTX_L

470R2078

2N2-K-0603

C2195

2N2-K-0603

C2196

LRB521S-30

D1096

C2206

2N2-K-0603

Z2_DAC_DATA

100N-K-0603

C2209

D1097LRB521S-30

C2411 4.7U-K-1608

C2420 OPEN(1608)

DM_DAC_LRCK

DM_DAC_RST

Z2_DAC_MUTE

C2175 OPEN

ADC_RST

PLDADCMCK

PLDADCLRCK

100N-K-0603C2190

2.2U-K-1005C2202

10KR2075

DA+5V

DAGND

DAGND2

ADIN_VDCOM

A_DIN_L

DA3.3V

DAGND2

AD_VDCOM

R2071

PLDADCBCK

PLDADCDATA

2.2U-K-1005

C2198

C2197100N-K-0603

C2201

100N-K-0603

R2049

100K

R2087

R2059 0

DACRTNGND

A_DIN_R

DGND

ADIN_LEGO_L

ADIN_LEGO_R

FROM

DIGITAL CNT

FROM

CPU LEVEL CHG

D1107

LRB521S-30

C219210/16(4*5.4)_MVG

1N-K-0603C2115

C2417 2.2U-K-1005

C2207100N-K-0603

C22082.2U-K-1005

OPEN-0603C2191

2.2U-K-1005C2213

100N-K-0603C2214

DIGITAL 8/11

10 11 12 13 14 15 16

54 3 2 16

8 7

U2403

AK5358BET

AGND

VCOM

CKS1

AINL

AINR

DGNDSDTO

LRCLK

MCLK

SCLK

PDN

DIF

CKS2

CKS0

C221010/16(4*5.4)_MVG

(MAIN DAC)

TO D2

TO D6 7D TO D7

9D TO D9

E1 TO 1E

TO 2E

Before Servicing

This Unit Electrical Mechanical Repair Information Updating

SCH10 D.SUPPLY

STBY POWER

ANALOG AUDIO DIGITAL AUDIO

TMDS SIGNAL

GND LINE

POWER- LINE

POWER+ LINE

47U-M-2012C1841

100N-K-0603C1778

47U-M-2012C1779

47U-M-2012C1782

100N-K-0603C1799

OPEN-2012C1813

R1874 OPEN-1608

M3.3V

C1741 OPEN-1005

C1828 1N-K-0603

47U-M-2012C174447U-M-2012C188547U-M-2012C1884

100N-K-0603C1730100N-K-0603C1810100N-K-0603C1762C1837 OPEN-0603

C1839 OPEN-0603

C1843 OPEN-0603

C1845 OPEN-0603

C1847 OPEN-0603

47U-M-2012C174747U-M-2012C178747U-M-2012C1770

22U-K-1608C174822U-K-1608C181122U-K-1608C1768

C1857 OPEN-0603

C1859 OPEN-0603

1N-K-0603C18011N-K-1005C1802C1861 OPEN-0603

C210947/6.3(4*5.4)_MVG

R18160-2012

C1904 OPEN-0603

C1866 OPEN-0603

C1945 OPEN-0603

C1947 OPEN-0603

C1948 OPEN-0603

C1950 OPEN-0603

100N-K-0603C1757C1952 OPEN-0603

OPEN-2012C1804C1954 OPEN-0603

C1812 1N-K-1608

C1958 OPEN-0603

OPEN-0603C1965

C1909 OPEN-0603

C1922 OPEN-0603

C1908 OPEN-0603

C1910 OPEN-0603

C1912 OPEN-0603

C1913 OPEN-0603

C174210N-K-0603

OPEN-0603C1915

OPEN-0603C1917

C1751100N-K-0603

47K

R1756

C1752100N-K-0603

C1743100N-K-0603470/6.3(8*10)-RVOC1753C1925 OPEN-0603

C1924 OPEN-0603

R1757 OPEN

R1749

OPEN

R1758 OPEN

DGND

0-1005

J1015

0-3216J1013

0-2012J1010

0-3216J1006

0-3216J1003

0-1608

J1016

3K9-F-1608

R2035

10K-D-1608

R2015

DA_POWER

DV_POWER1

CEC_POWER

DGND

L1087

CB05YTYH221

DA3.3V

DV1.8V

DA1.1V

DV3.3V

DGND

DV3.3V

DGND

STBY5V

CEC5V

CPU_POWER

R18250

FL5V

R1800 0

OPEN-1005

C1777

DGND

D5.2V

MAIN_PWR

DGND

D5.2V

RESETOUT

DGND

DAGND2

D5V

0-3216

J1011

0-3216J1007

0-3216J1012

0-3216J1008

0-1005J1014

0-3216

J1017

0-1608J1001

0-3216

J1004

0-3216J1005

0-3216J1002

0-3216J1009

R182747K R183147K

10K-F-1608

R2025

3K6-F-1608

R2026

10K-F-1608

R2030

6K2-D-1608

R2018

C1878

OPEN-1005

1K-F-1608

R1801

3K6-F-1608

R1798

OPEN-1005

C1821

CEC3.3V

1N-K-0603C1761100N-K-0603C1766

M3.3V

DV_POWER1

CEC_POWER

R2032

0-1005

1U-K-1005C1887

R2024

0-1005

R2023

0-1005

R1998

0-1005

1U-K-1005C1784

R1754

10K

R1997

0-1005

ISA1530AC1

Q1052

M3.3V

Q1063

RT1N141C

SWM3.3V

470P-K-0603C1888

100N-K-0603C1781

100N-K-0603C1783

100N-K-0603C1852

C1817 1U-K-1608

LEGO5V

DGND

DV1.8V

DV5V

DGND

eARC

DGND

CEC_POWER2

R1805

OPEN

2 1

2SA2166

Q1065

R1778

10K

2 1

2SA2166

Q1076

2 1

2SA2166

Q1072

D5V

R174110K

10K

R1742

100N-K-0603

C1806

R1743

100K

R1744

OPEN

DGND

D5.2V

FROM

CPU

DGND

D5.2V

R182647K R181347K

C1830 OPEN-0603

C1829 OPEN-0603

C1831 OPEN-0603

C1832 OPEN-0603

C1827 1N-K-0603

C1835 OPEN-0603

C1836 OPEN-0603

C1838 OPEN-0603

C1785

100N-K-0603

C1844 OPEN-0603

C1846 OPEN-0603

1K-F-1608

R2027

C1879

OPEN-1005

10K-F-1608

R2036

27K-D-1608

R2016

OPEN-1005

C1880

R1788

10K-F-1608

C1818100N-K-0603

C1851 OPEN-0603

C1853 OPEN-0603

C1854 OPEN-0603

C1855 OPEN-0603

C1858 OPEN-0603

C1856 OPEN-0603

100N-K-0603C1739

C219447/6.3(4*5.4)_MVG

470P-J-1608C1797

4.7U-K-1608C1796

1.5A

C210847/6.3(4*5.4)_MVG

100N-K-1005C1772

C1863 OPEN-0603

C1867 OPEN-0603

C1862 OPEN-0603

C1860 OPEN-0603

C1876 OPEN-0603

R1817 0-2012

R1820 0-2012

C1864 OPEN-0603

C1870 OPEN-0603

C1872 OPEN-0603

C1874 OPEN-0603

C1871 OPEN-0603

C1873 OPEN-0603

C1875 OPEN-0603

1U-K-1005C1807 1U-K-1005C1819

2 1

2SA2166

Q1066

R1777

10K

1U-K-1005C1792

C1946 OPEN-0603

C1944 OPEN-0603

C1949 OPEN-0603

470P-K-0603C1883

100N-K-0603C1820

L1083

OPEN-2012

470P-K-0603C1877

100N-K-0603C1776

C1816 1U-K-1608

470P-K-0603C1755

100N-K-0603C1754100N-K-0603C1803

C1953 OPEN-0603

C1959 OPEN-0603

OPEN-0603C1960

C1969 OPEN-0603

C1968 OPEN-0603

C1900 OPEN-0603

R1829

10K

R1822

10K

C1899 OPEN-0603

C1901 OPEN-0603

C1902 OPEN-0603

C1903 OPEN-0603

RT1N141C

Q1073

C1907 OPEN-0603

C1906 OPEN-0603

C1823100N-K-0603

OPEN-0603C1916

C1911 OPEN-0603

OPEN-0603C1914

C1905 OPEN-0603

C178010N-K-0603

C1808

1U-K-1005

470/16(8*11.5)_KR3C1809

OPEN-0603C1918

R1751

4K7

C1920 OPEN-0603

C1919 OPEN-0603

C1921 OPEN-0603

C1814 OPEN-0603

C178610N-K-0603

C1926 OPEN-1005

C1815 OPEN-0603

C1833 OPEN-1005

DA_POWER

D5V_POWER

CEC_POWER R1812 10

DGND

NET3.3V_POWER

DA1.1V

DV1.8V

CEC1.1V

NET3.3V

CEC3.3V

C1774

100N-K-0603

CEC3.3V

2R7-1608R1811

CEC1.1V

2R7-1608R1807

MUTE3.3V

SWM3.3V

DGND

FL5V

D5V

MUTE3.3V

M3.3V

DGND

SWM3.3V

M3.3V

STBY3.3V

DGND

BDOWN

L1094 CB03YTYN121

L1095 CB05YTYH221

R1767 10

DV_POWER1 R1815 10

R1835 10

DGND

DAGND2

L1142

MAKK2016T-2.2UH

3VIN

1GND

VFB

VBST

2SW 5

U1069

TPS563200

100N-K-1608C1889

L1143

TYS50403R3N-10-3.3UH

3VIN

1GND

VFB

VBST

2SW 5

U1067

TPS563200

L1141

MAKK2016T-3.3UH

C1759

100N-K-0603

NET5V_POWER

1.5A

M3.3V

Q1078

RT1N441C

NET PHY

R1755

3K3 CEC3.3V

ADV7623

CEC3.3V

MN864787

CEC1.1V

2R7-1608R1808

MN864788

DA1.1V

OPEN

D1106

R1779

3K3

STBY3.3V

DV1.8V NET3.3V DA3.3V

SWM3.3V

DGND

STBY5V

DA_POWER

RESET

Q1074

OPEN

2SC3052

Q1085

R1745

OPEN

D1104

LBAS16HT1G R1748

100

L1093 CB05YTYH221

L1092 CB05YTYH221

DV3.3V

CPU LEVEL CHG

SMPS B'D

3VIN

1GND

VFB

VBST

2SW 5

U1068

TPS563200

100N-K-0603

C1788

100N-K-0603C1886100N-K-0603C1891

C1791

100N-K-0603

3VIN

1GND

VFB

VBST

2SW 5

U1064

TPS563200

L1138

TYS50402R2N-10-2.2UH

100N-K-0603C1892

C1849 OPEN-0603

C1848 OPEN-0603

C1834 OPEN-0603

C1865 OPEN-0603

R1776

10K

C1869 OPEN-0603

C1868 OPEN-0603

VIN

VOUT

VIN

GND

VOUT

VBIAS

Q1081

TPS22975

VIN

VOUT

VIN

GND

VOUT

VBIAS

Q1080

TPS22975

DIR/A.PLD

VIN

VOUT

VIN

GND

VOUT

VBIAS

Q1077

TPS22975

VIN

VOUT

VIN

GND

VOUT

VBIAS

Q1079

TPS22975

3 4

2 5

1 6

Q1070

RQ6C050BCTCR

470P-K-0603C1756

RT1N141C

Q1071

R1828

3K3

Q1075

RT1N141C

STBY5V

R1823

3K3

D1105LBAS16HT1G

1 4

U1038

OPEN

GND

VDD

VOUT

C1923 OPEN-0603

C1927 OPEN-0603

DIGITAL CNT

1 2 3 4 5 6

N1033

A2505-WV06

VIN

VOUT

VIN

GND

VOUT

VBIAS

Q1083

TPS22975

L1086OPEN-2012

L1125 OPEN-2012

L1109 OPEN-2012

L1085 OPEN-2012

L1115 OPEN-2012

L1103 OPEN-2012

L1111 OPEN-2012R1830 OPEN

L1089 OPEN-2012

L1110 OPEN-2012

D5V_POWER

CEC_POWER2

CEC_POWER

NET3.3V_POWER

NET5V_POWER

L1082 OPEN-2012

L1127OPEN-2012

OPEN-2012L1081

L1147 OPEN-2012

L1126 OPEN-2012

L1124 OPEN-2012

L1104 OPEN-2012

OPEN-2012

L1112

CPU_POWER

DV_POWER1

MAIN_POWER

DIGITAL 11/11

(D.SUPPLY)

TO A0

TO A7

TO B6

TO C1

TO D0

TO D3

TO E0

TO 3E

N1033

TO CN4141

Before Servicing

This Unit Electrical Mechanical Repair Information Updating

SCH11 DIGITAL CNT

STBY POWER

ANALOG AUDIO DIGITAL AUDIO

TMDS SIGNAL

GND LINE

POWER- LINE

POWER+ LINE

DZM

R1000 1K

R100112K

C1002 OPEN-0603

FL5V

SWM3.3V

D5V

DGND

M_DAX_LED

H/P_RL

SPRL_FB

ASODET

DCDET4

THERMALDETB

BAS_B

BAS_A

AMPSIGDET

HI-B_RL

TRE_B

BAL_A

SEL_CLK

TU_SCLK/DAB_TX

TU_LA

TU_INT

FLASHER_IN

RC_OUT

CPU_POWER

MVOL_DATA

POWERKEY

MVOL_MUTE

KEY1

KEY3

ISEL_A

VSEL_A

FL_CLK

FL_CE

GRN_LED

M_DAX_LED

OPEN-0603C1012

OPEN-0603C1014

C1021100N-K-0603

THERMALDETE

DCDET4

THERMALDETA

DA+5V

DAC_RST

DAC256FS

AP_DA

DAC_MS

R2045 1K

R2051 33

R2082 0

R2080 0

R2085 0

DAC_RST1.

DZM.

DAC256FS__

AP_DA.

DAC_MS1.

SPRY_FA

RLY_HIB

D/MGND

DA3.3V

DGND

AP_DA

VSEL_B

VSEL_A

ISEL_A

KEY2

GRN_LED

M_DAX_LED

FL_DA

RED_LED

POWERKEY

FRONT_IR_IN

H_PL

BAS_A

TRE_A

BAL_A

RC_OUT

KILL_IR

DCDET3

ASODET

THERMALDETB

R1003 OPEN

DAGND

DA3.3V

DACRTNGND

AP_CK

DGND

DAC64FS

DACFS

100R1939

R2081 0

R2072 0

DA+5V

H/P_RL

C1007100P-J-0603

R2083 0

AP_CK.

DAC64FS__

DACFS__

DA+5V

SPRY_FB

RLY_H/P

DA3.3V

DAGND

DGND

DZM

AP_CK

DGND

DACFS

OPEN-0603C1010MUTE3.3V

C1011 OPEN-0603

M3.3V

KEY3

ISEL_B

KEY1

H_P_DET

FL_RST

CPU_POWER

FL_CE

DIRECT_LED

FL_CLK

H_PR

H_PGND

TRE_B

BAS_B

BAL_B

MAIN DAC

FLASHER_IN

MUTE3.3V

FRONT_IR_IN

DAGND2

M3.3V

D5V

DGND

DIRECT_LED

DCDET3

SPRL_FA

THERMALDETE

THERMALDETA

H_P_DET

N1006

04-6232-006

N1001

C125Z2-19

TRE_A

CURRENT_DET

TU_RST

SEL_DATA

TU_SDIO/DAB_RX

BAL_B

DAB_EN(EU)/NC(NA/JP)

PRE_MUTE

KILL_IR

MVOL_CLK

CPU

RC_IN_WAKE_UP

KEY2

ISEL_B

VSEL_B

RED_LED

FL_RST

FL_DA

DIRECT_LED

PRE_Z2_MUTE D1000 LRB521S-30

OPEN-0603

C1000

OPEN-0603C1013

C1008

100P-J-0603

C1020 1N-K-0603

N1003

C125Z2-25

N1002

C125Z2-11

SPRL_FA

HI-B_RL

AMPSIGDET

CURRENT_DET

TU_SDIO/DAB_RX

TU_LA

DAB_EN(EU)/NC(NA/JP)

PRE_Z2_MUTE

SEL_DATA

DA+5V

MVOL_CLK

MVOL_MUTE

MVOL_DATA

DACDATASW2 R2052 0

DACDATAF2 R2058 0

THERMALDETE

DC_DET4

THERMALDETA

CURRENT_DET

TU_SDIO/DAB_RX

TU_LA

DAB_EN(EU)/NC(NA/JP)

MUTE_Z2

SEL_DATA

RETGND

DA_+5V

MVOL_CLK

USB_R

USB_L

DAC_RST

DACDATAF2_ DACDATAF2

DAC256FS

DAC_MS

L1001 0-2012

RC_IN_WAKE_UP

ADIN_VDCOM

ADIN_LEGO_R

ADIN_LEGO_L

AD_VDCOM

A_DIN_R

A_DIN_L

BTTX_L

BTTX_R

ZONE2_L

ZONE2_R

H_PL

H_PGND

H_PR

D/MGND

VSELA

ISELA

KEY2

GRN_LED

M-DAX_LED

FL DATA

REDLED

POWERKEY

FRONT_IRIN

H/PL

H/PGND

BAS_A

TRE_A

BAL_A

D/MGND

RC_OUT

KILLIR

RC_IN

M3.3V

M/DGND

AGND

LEGO_FL

AD_VCOM

AD_IN_R

AD_IN_L

BT_TX_L

BT_TX_R

ZONE2_L

ZONE2_R

H/P_L

SPRL_FB

PRE_MUTE

TU_INT

TU_RST

TU_SCLK/DAB_TX

SEL_CLK

FROM

MAIN DAC

R2062 0

DACDATAF1

DACDATASW1 R2054 0

DC_DET3

ASO_DET

THERMALDETB

AMPSIG_DET

PRE_MUTE

TU_RST

TU_SCLK/DAB_TX

RETGND

DA_+5V

SEL_CLK

MVOL_MUTE

DAGND

MVOL_DATA

DISTRIBUTION_R

DISTRIBUTION_L

DAGND

DACDATAF1_ DACDATAF1

DACDATASW1

DACDATASW2

DAC64FS

L1002 0-2012

L1000 0-2012

VSELB

NET_FACT_RESET

ISELB

KEY3

KEY1

H/P_DET/MIC_DET

1N-K-1005C2146

DIRECT_LED

FLRST

CPU_POWER2

FLCE1

SWM5V

H/PR

FL CLK

H/PGND

VGND

TRE_B

BAS_B

M3.3V

SWM3.3V

BAL_B

FLASHER_IN

D5V(MX)

FRONT_IRIN

MUTE3.3V

M3.3V

AGND

M/DGND

LEGO_VCOM

LEGO_FR

AGND

H/P_GND

AGND

H/P_R

FROM

DIR/A.PLD

FROM CPU

FROM

CPU

R2069 0

CPU LEVEL CHG

TU_INT

D.SUPPLY

C1019 1N-K-0603

C1001

OPEN-0603C1009

100P-J-0603

DACDATASW2_

SPK_F-CNT

(F-CNT 2/3 F3)

AV_S-CNT

(S-CNT 3/3 I2)

DACDATASW1_

AV_S-CNT

(S-CNT 3/3 L2)

SPK_F-CNT

(F-CNT 2/3 I3)

DIGITAL 6/11

2CH-AMP

(1/1 N8)

AV_S-CNT

(S-CNT 3/3 F2)

FRONT

(1/1 B5)

(DIGITAL CNT)

TO C7

TO C8

TO C9

TO D1

TO D8

TO E1

TO E2

3E TO E3

N1001

TO CP4302

N1003

TO CP4303

N1005

TO CP5202

N1006

TO CN4800

N1007

TO CP5201

N1002

TO CP4301

N1023

TO CP4400

Before Servicing

This Unit Electrical Mechanical Repair Information Updating

SCH12 SPK

STBY POWER

ANALOG AUDIO DIGITAL AUDIO

TMDS SIGNAL

GND LINE

POWER- LINE

POWER+ LINE

F4000B

F4001B

HIB_RL

RL+B

LAO-63V682MS45P2E#B

F4000A

F4001A

LAO-63V682MS45P2E#B

T6. 3AL 250 V

AGND

M/DGND

MUTE+7V

RL+B

-HIGHB

+HIGHB

H/PR

-HIGHB

+HIGHB

FR_A

FL_A

0.018UF

U1B,FN

AC_L

AC_H

AC_L

A+8V

A-8V

AMPSIGDET

RLY_F-A

RLY_H/P

RLY_F-B

HIB_RLY

RLGND

-HIGHB

+HIGHB

1234

A2001-WV04

CP4002

HPV

FV-B

FV-A

H/PL

HIGHGND

FR_B

FL_B

N1B,N1SG

F4000

1000PF

BKT4000

C4057

100N-100V(PEF)

F4001

CEN

AV_S-CNT

(AV 1/3 K2)

AV_S-CNT

(AV 1/3 L2)

FRONT

(1/1 M6)

PREGND

2CH_AMP

(1/1 N4)

3P_550MM_2MM

CN4007

76542 31

HPRL

FRL-B

RT1N237C

Q4000

RT1N237C

Q4001

FRL-A

RLY4005

HF115F/012-2ZS4B

OPENJP4000

T6. 3AL 250 V

JP4001 OPEN

H/PGND

FRL-A

ZD4057 ZJ3B6

FL_1

FV-A

SPK A RLY

2200PF

C4016-C4019

N1B,N1SG

CURRENT_DET

H/P_L

H/P_R

HIGHGND

FRL-B

HPRL

HIB_RL

H/PL

H/PR

VOLTAGE DETECT

FR_1

U4010:A

UTC4580E

CURRENT DETECT

H/PL

HPV

H/PR

FV-B

U1B,FN

¡Ø CAPACITOR OPTION

D4006

GBJ2506

C4053

100N-100V(PEF)

100NF

SPK-B R CH

SPK-B L CH

SPK-A R CH

SPK-A L CH

2CH_AMP

(1/1 N6)

U4010:B

UTC4580E

RT1N237C

Q4002Q4011

RT1N237C

SPK B RLY

SPEAKERB'D

5 4 2 13

POWER TRANS

* CAPACITOR OPTION

C4033,C4036,

C4039,C4042

A2001-WV10_10P_2MM

CP4000

SPK_F-CNT 1/3

CN4000

TO CP4800

CN4006

TO CP4802

CN4007

TO CP4403

CP4000

TO CN5202

CP4002

TO CN5201

Before Servicing

This Unit Electrical Mechanical Repair Information Updating

Other manuals for NR1200

Table of contents

Popular Receiver manuals by other brands

LEXMAN

LEXMAN EMP601USB-F1 Use and maintenance manual

Salus

Salus RX10RF Installer's/user's manual

Rollei

Rollei Wireless Flash Unit Receiver instructions

JVC

JVC EXAD KW-AVX900 instructions

XtremeMac

XtremeMac BT home connect user guide

Garmin

Garmin GRT 10 Transceiver instructions

Realistic

Realistic PRO-2020 Service manual

DIGITAL YACHT

DIGITAL YACHT AIS200N2NET Installation & quick start guide

Sony

Sony MSAC-PC1 Notes on usage

Setik

Setik 8XACT-FIBER user manual

Quark-Elec

Quark-Elec QK-A022 manual

Kolida

Kolida S680 user guide

upcom

upcom UC-IRD+ MULTI-MODE RECEIVER / DECODER user manual

TechniSat

TechniSat TechniCorder ISIO STC quick start guide

Cobra

Cobra GPS 100 S quick start guide

Intek

Intek M-550 Power Service manual

Dared

Dared DR-100 manual

NAD

NAD VISO FIVE owner's manual

Marantz NR1200 User manual

Popular Receiver manuals by other brands
