Marantz SR6013 User manual

.
AV Surround Receiver
SR6013
Owner’s Manual
Contents Connections Playback Settings Tips Appendix
1
Front panel Display Rear panel Remote Index

Accessories 8
Inserting the batteries 9
Operating range of the remote control unit 9
Features 10
High quality sound 10
High performance 11
Easy operation 15
Part names and functions 16

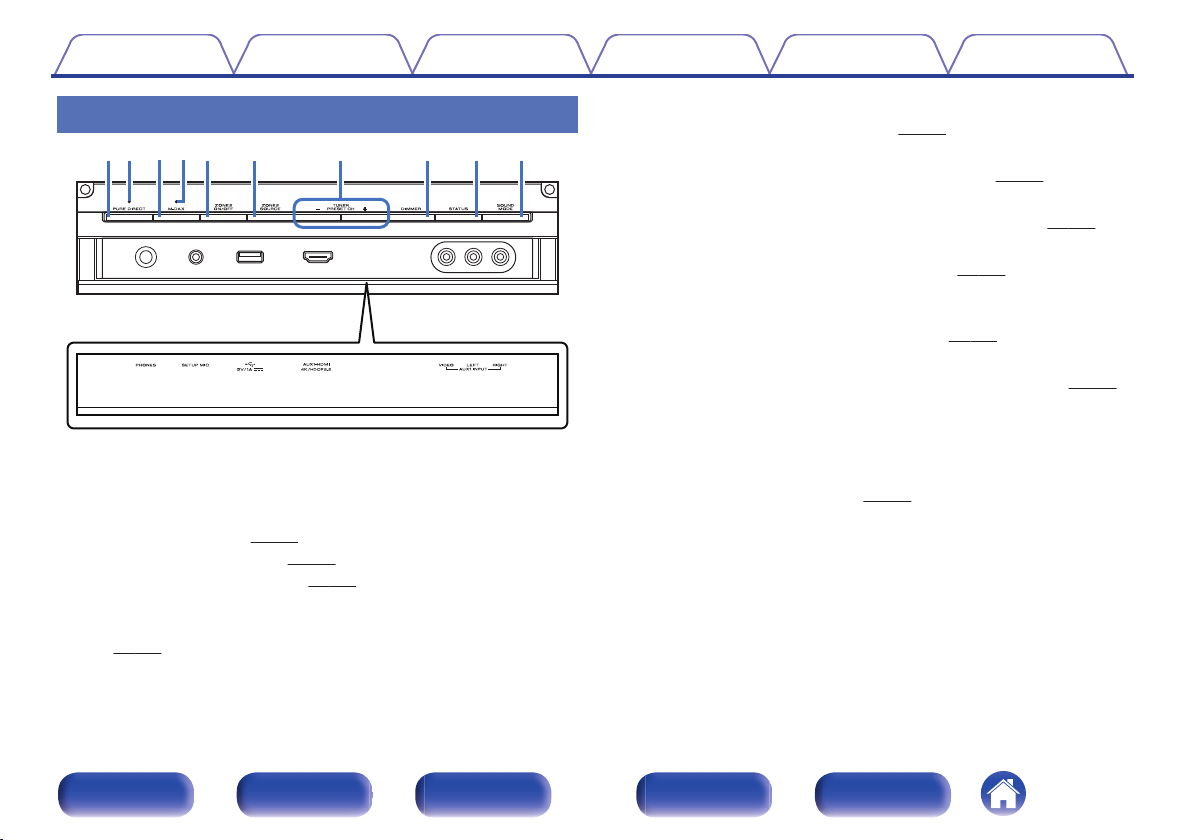

Front panel 16
Display 20
Rear panel 22
Remote control unit 26
Connections
Speaker installation 30
Connecting speakers 37
Before connecting speakers 37
Speaker configuration and “Amp Assign” settings 41
Connecting 5.1-channel speakers 43
Connecting 7.1-channel speakers 44
Connecting 9.1-channel speakers 48
Connecting 11.1-channel speakers 55
Connecting 7.1-channel speakers: Bi-amp connection of front
speakers 59
Connecting 7.1-channel speakers: Second pair of front speakers 60
Connecting multi-zone speakers 61
Connecting a TV 64
Connection 1 : TV equipped with an HDMI connector and
compatible with the ARC (Audio Return Channel) / eARC
(Enhanced Audio Return Channel) 65
Connection 2 : TV equipped with an HDMI connector and
incompatible with the ARC (Audio Return Channel) / eARC
(Enhanced Audio Return Channel) 67
Connection 3 : TV equipped without an HDMI connector 68
Contents Connections Playback Settings Tips Appendix
2
Front panel Display Rear panel Remote Index

Connecting a playback device 69
Connecting a set-top box (Satellite tuner/cable TV) 70
Connecting a DVD player or Blu-ray Disc player 71
Connecting a video camcorder or game console 72
Connecting a turntable 73
Connecting a device with a multi-channel output connector 74
Connecting a USB memory device to the USB port 75
Connecting an FM/AM antenna 76
Connecting to a home network (LAN) 78
Wired LAN 78
Wireless LAN 79
Connecting an external control device 80
REMOTE CONTROL jacks 80
DC OUT jack 81
Connecting the power cord 82
Playback
Basic operation 84
Turning the power on 84
Selecting the input source 84
Adjusting the volume 85
Turning off the sound temporarily (Muting) 85
Playback a DVD player/Blu-ray Disc player 85
Playing a USB memory device 86
Playing files stored on USB memory devices 87
Listening to music on a Bluetooth device 90
Playing music from Bluetooth device 91
Pairing with other Bluetooth devices 92
Reconnecting to this unit from a Bluetooth device 93
Listening to FM/AM broadcasts 94
Listening to FM/AM broadcasts 95
Tuning in by entering the frequency (Direct Tune) 97
RDS Search 97
PTY Search 98
TP Search 99
Radio text 99
Changing the tune mode (Tune Mode) 100
Tuning in to stations and presetting them automatically (Auto
Preset Memory) 100
Presetting the current broadcast station (Preset Memory) 101
Listening to preset stations 101
Specify a name for the preset broadcast station (Preset Name) 102
Skipping preset broadcast stations (Preset Skip) 103
Cancelling Preset Skip 104
Listening to Internet Radio 105
Listening to Internet Radio 106
Playing back files stored on a PC or NAS 107
Playing back files stored on a PC or NAS 108
Contents Connections Playback Settings Tips Appendix
3
Front panel Display Rear panel Remote Index

Getting the HEOS App 111
HEOS Account 112
Playing from streaming music services 113
Listening to the same music in multiple rooms 116
AirPlay function 120
Playing songs from your iPhone, iPod touch or iPad 121
Playing iTunes music with this unit 121
Perform iTunes playback operations with the remote control unit
of this unit 122
Play a song from your iPhone, iPod touch or iPad on multiple
synced devices (AirPlay 2) 123
Spotify Connect function 124
Playing Spotify music with this unit 124
Convenience functions 125
Adding to HEOS Favorites 126
Playing back HEOS Favorites 126
Deleting a HEOS Favorites 127
Adjusting the volume of each channel to match the input source
(Channel Level Adjust) 128
Adjusting the tone (Tone) 129
Displaying your desired video during audio playback (Video
Select) 130
Adjusting the picture quality for your viewing environment (Picture
Mode) 131
Playing the same music in all zones (All Zone Stereo) 132
Selecting a sound mode 133
Selecting a sound mode 134
Direct playback 135
Pure Direct playback 135
Auto surround playback 136
Description of sound mode types 137
Sound mode that can be selected for each input signal 141
HDMI Control function 145
Setting procedure 145
Smart Menu function 146
Sleep timer function 148
Using the sleep timer 149
Smart select function 150
Calling up the settings 151
Changing the settings 152
Panel lock function 153
Disabling all key button operations 153
Disabling all button operations except VOLUME 153
Canceling the Panel lock function 154
Remote lock function 155
Disabling the sensor function of the remote control unit 155
Enabling the remote sensor function 155
Web control function 156
Controlling the unit from a web control 156
Playback in ZONE2 (Another room) 158
Connecting ZONE2 158
Playback in ZONE2 160
Contents Connections Playback Settings Tips Appendix
4
Front panel Display Rear panel Remote Index

Settings
Menu map 162
Menu operations 166
Audio 167
Center Level Adjust 167
Subwoofer Level Adjust 167
Surround Parameter 168
M-DAX 171
Audio Delay 172
Volume 173
Audyssey®174
Graphic EQ 177
Video 179
Picture Adjust 179
HDMI Setup 181
Output Settings 186
On Screen Display 190
4K Signal Format 191
TV Format 192
Inputs 193
Input Assign 193
Source Rename 195
Hide Sources 195
Source Level 196
Input Select 196
Speakers 197
Audyssey® Setup 197
Procedure for speaker settings (Audyssey® Setup) 199
Error messages 205
Retrieving Audyssey® Setup settings 207
Manual Setup 208
Amp Assign 208
Speaker Config. 214
Distances 218
Levels 220
Crossovers 221
Bass 222
Front Speaker 223
Network 224
Information 224
Connection 224
Wi-Fi Setup 225
Settings 227
Network Control 228
Friendly Name 229
Diagnostics 229
Contents Connections Playback Settings Tips Appendix
5
Front panel Display Rear panel Remote Index

HEOS Account 231
You have not signed in 231
You have already signed in 231
General 232
Language 232
ECO 232
ZONE2 Setup 236
Zone Rename 238
Smart Select Names 238
Trigger Out 239
Front Display 239
Firmware 240
Information 243
Usage Data 244
Save & Load 245
Setup Lock 245
Reset 246
Limiting the operating zone with the remote control 247
Tips
Tips 249
Troubleshooting 251
Power does not turn on / Power is turned off 252
Operations cannot be performed through the remote control unit 253
Display on this unit shows nothing 253
No sound comes out 254
Desired sound does not come out 255
Sound is interrupted or noise occurs 258
No video is shown on the TV 259
The menu screen is not displayed on the TV 261
The color of the menu screen and operations content displayed
on the television is different from normal 261
AirPlay cannot be played back 262
USB memory devices cannot be played back 263
Bluetooth cannot be played back 264
The Internet radio cannot be played back 265
Music files on PC or NAS cannot be played back 266
Various online services cannot be played 267
The HDMI Control function does not work 267
Cannot connect to a wireless LAN network 268
When using HDMI ZONE2, the devices does not function properly 269
Update/upgrade error messages 270
Resetting factory settings 271
Resetting network settings 272
Contents Connections Playback Settings Tips Appendix
6
Front panel Display Rear panel Remote Index

Appendix
About HDMI 273
Video conversion function 276
Playing back a USB memory devices 278
Playing back a Bluetooth device 279
Playing back a file saved on a PC or NAS 280
Playing back Internet Radio 281
Personal memory plus function 281
Last function memory 281
Sound modes and channel output 282
Sound modes and surround parameters 284
Types of input signals, and corresponding sound modes 287
Explanation of terms 290
Trademark information 299
Specifications 301
Index 307
Contents Connections Playback Settings Tips Appendix
7
Front panel Display Rear panel Remote Index

Thank you for purchasing this Marantz product.
To ensure proper operation, please read this owner’s manual carefully before using the product.
After reading this manual, be sure to keep it for future reference.
Accessories
Check that the following parts are supplied with the product.
.
Quick Start Guide Safety Instructions Cautions on Using Batteries Notes on radio Cable labels
Sound calibration
microphone stand
Sound calibration
microphone
AM loop antenna
External antennas for
Bluetooth/wireless
connectivity
FM indoor antenna
R03/AAA batteries
Power cord
Remote control unit
(RC035SR)
Contents Connections Playback Settings Tips Appendix
8
Front panel Display Rear panel Remote Index

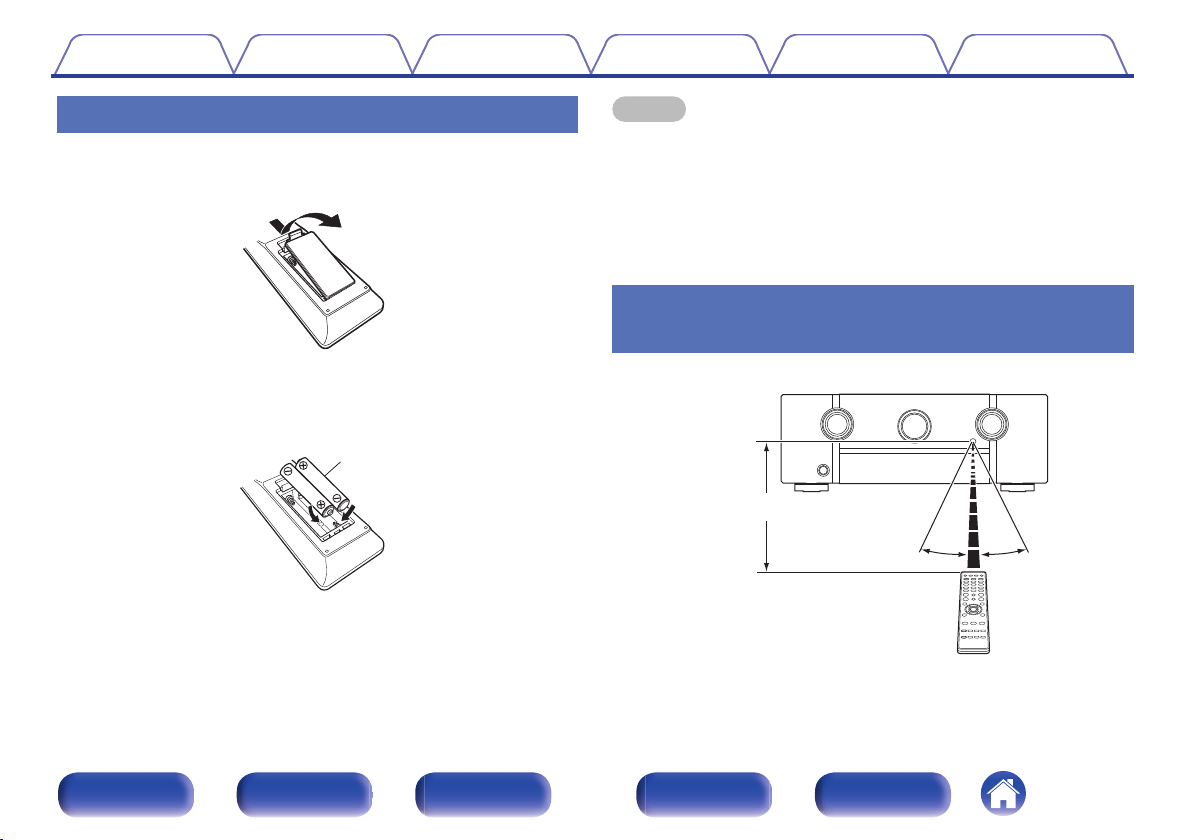

Inserting the batteries
1Remove the rear lid in the direction of the arrow and
remove it.
.
2Insert two batteries correctly into the battery
compartment as indicated.
.
Batteries
3Put the rear cover back on.
NOTE
0To prevent damage or leakage of battery fluid:
0Do not use a new battery together with an old one.
0Do not use two different types of batteries.
0Remove the batteries from the remote control unit if it will not be in use for long
periods.
0If the battery fluid should leak, carefully wipe the fluid off the inside of the battery
compartment and insert new batteries.
Operating range of the remote control
unit
Point the remote control unit at the remote sensor when operating it.
.
30°
30°
Approx. 7 m
Contents Connections Playback Settings Tips Appendix
9
Front panel Display Rear panel Remote Index

Features
High quality sound
0With discrete circuit technology, the power amplifier provides
identical quality for all 9-channels (150 Watts x 9-channels)
For optimum realism and stunning dynamic range, the power amplifier
section features discrete power devices (not integrated circuitry).
By using high current, high power discrete power devices, the amplifier
is able to easily drive high quality speakers.
0Current feedback amplifier
This unit uses a high-speed current feedback amplifier circuit for its
preamplifier so that signals from a Blu-ray Disc player and other
equipment that support high-definition audio formats can be amplified
with high fidelity. The high-speed current feedback amplifier also
reproduces a natural sound space.
0Dolby Atmos (v p. 291)
This unit is equipped with a decoder that supports Dolby Atmos audio
format. The placement or movement of sound is accurately reproduced
by the addition of overhead speakers, enabling you to experience an
incredibly natural and realistic surround sound field.
0DTS:X (v p. 293)
This unit is equipped with the DTS:X decoder technology. DTS:X brings
the home theater experience to new heights with its immersive object
based audio technology which removes the bounds of channels. The
flexibility of objects allows for sound to be scaled large or small and
moved around the room with greater accuracy than ever before leading
to a richer immersive audio experience.
0DTS Virtual:X (v p. 294)
DTS Virtual:X technology features DTS’s proprietary virtual height and
virtual surround processing to deliver an immersive sound experience
from any type of input source (stereo to 7.1.4 channel) and speaker
configuration.
zDTS Virtual:X is not for use when Height speakers are connected.
0Audyssey LFC™ (Low Frequency Containment) (v p. 176)
Audyssey LFC™ solves the problem of low frequency sounds
disturbing people in neighboring rooms or apartments. Audyssey LFC™
dynamically monitors the audio content and removes the low
frequencies that pass through walls, floors and ceilings. It then applies
psychoacoustic processing to restore the perception of low bass for
listeners in the room. The result is great sound that no longer disturbs
the neighbors.
0Discrete subwoofers and Audyssey Sub EQ HT™ (v p. 198)
The unit has two subwoofer output capability and can adjust the level
and delay for each subwoofer individually.
Audyssey Sub EQ HT™ makes the integration seamless by first
compensating for any level and delay differences between the two
subwoofers and then applying Audyssey MultEQ® XT32 to both
subwoofers together for improved deep bass response and detail.
Contents Connections Playback Settings Tips Appendix
10
Front panel Display Rear panel Remote Index

High performance
04K 60Hz input/output supported
.
When 4K Ultra HD (High Definition) is used, an input/output speed of 60
frames per second (60p) is achieved for video signals. When connected
to 4K Ultra HD and 60p video signal input compatible TV, you can enjoy
the sense of realism only available from high-definition images, even
when viewing fast-moving video.
This unit also supports image processing for 4K 60p, 4:4:4 and 24-bit
videos. By processing the video at the original resolution, this unit lets
you enjoy flawless, high-definition picture quality.
This unit also supports HDR (High Dynamic Range) and BT.2020 wide
color gamut.
0HDCP 2.2
This unit is compatible with HDCP 2.2 copyright protection standard.
0Digital video processor upscales analog video signals (SD
resolution) to HD (720p/1080p) and 4K (v p. 188)
.
4K
Up scaling
Up to 1080p
This unit is equipped with a 4K video upscaling function that allows
analog video or SD (Standard Definition) video to be output via HDMI at
4K (3840 × 2160 pixels) resolution. This function enables the device to
be connected to a TV using a single HDMI cable, and produces high
definition images for any video source.
0Equipped with HDMI ZONE2 output (v p. 158)
The ZONE2 multi-room output includes an HDMI output that lets you
enjoy a different A/V source in that room, with another program playing
in the main room.
Contents Connections Playback Settings Tips Appendix
11
Front panel Display Rear panel Remote Index

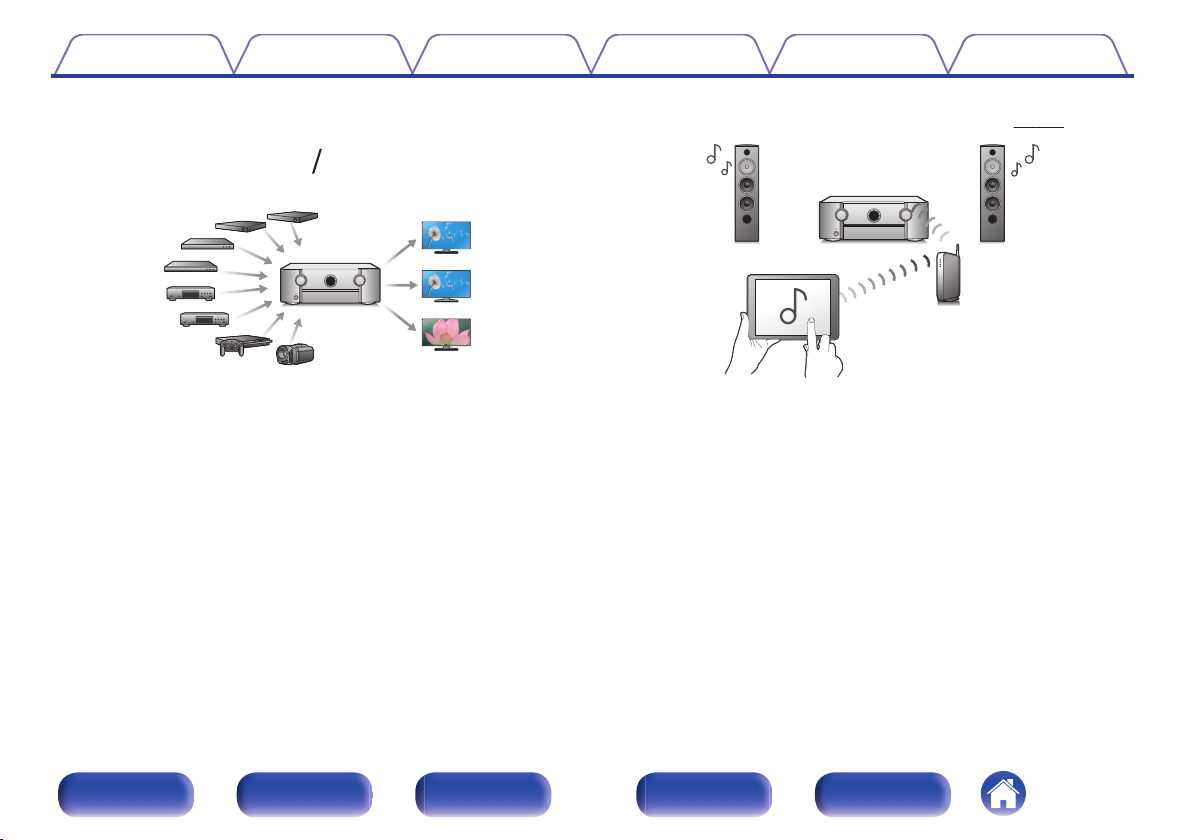

0HDMI connections enable connection to various digital AV
devices (8 inputs, 3 outputs)
.
83
OutIn
For connection to a broad range of digital sources, this unit features 8
HDMI inputs, including 1 on the front panel that lets you quickly and
conveniently connect a camcorder, game console or other HDMI-
equipped device. There are dual HDMI outputs for the main room, and a
third HDMI output for ZONE2.
0eARC (Enhanced Audio Return Channel) function compatibility
The eARC function is compatible with conventional ARC function-
compatible audio formats in addition to multichannel linear PCM, Dolby
TrueHD, Dolby Atmos, DTS-HD Master Audio, DTS:X and other audio
formats a conventional ARC function cannot transmit.
Additionally, connecting to an eARC function-compatible television
enables enjoyment of higher-quality surround playback of the audio
content played from your television.
0The device is equipped with a AirPlay® function in addition to
network functions such as Internet radio etc. (v p. 120)
.
You can enjoy a wide variety of content, including listening to Internet
Radio, playing audio files stored on your PC.
This unit also supports Apple AirPlay which lets you stream your music
library from an iPhone®, iPad®, iPod touch® or iTunes®.
0Supports AirPlay 2® wireless audio
Sync multiple AirPlay 2 compatible devices/speakers for simultaneous
playback.
This unit supports AirPlay 2 and requires iOS 11.4 or later.
Contents Connections Playback Settings Tips Appendix
12
Front panel Display Rear panel Remote Index

0Playback of DSD and FLAC files via USB and networks
This unit supports the playback of high resolution audio formats such as
DSD (5.6 MHz) and FLAC 192 kHz files. It provides high quality
playback of high resolution files.
0Wireless connection with Bluetooth devices can be carried out
easily (v p. 90)
.
You can enjoy music simply by connecting wirelessly with your
smartphone, tablet, PC, etc.
0Multi-Room audio (v p. 132)
.
GMAIN ZONEHGZONE2H
You can select and play back the respective inputs in MAIN ZONE and
ZONE2.
In addition, when the All Zone Stereo function is used, the music being
played back in MAIN ZONE can be enjoyed in all the zones at the same
time. This is useful when you want to let the BGM propagate throughout
the whole house.
0Energy-saving design
This unit is equipped with an ECO Mode function that allows you to
enjoy music and movies while reducing the power consumption during
use, and also an auto-standby function that automatically turns off the
power supply when the unit is not in use. This helps reduce
unnecessary power use.
Contents Connections Playback Settings Tips Appendix
13
Front panel Display Rear panel Remote Index

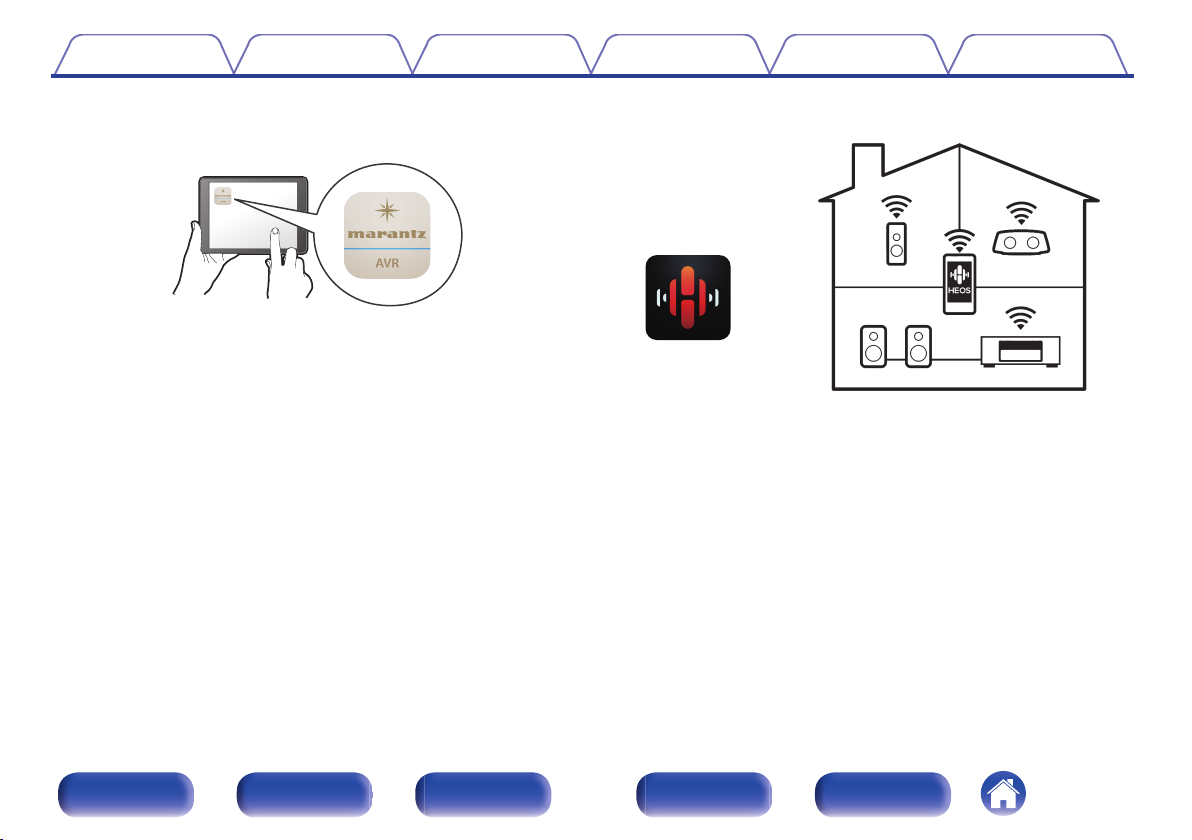

0Compatible with the “Marantz 2016 AVR Remote” Appz for
performing basic operations of the unit with an iPad, iPhone or
Android™ devices (Google, Amazon Kindle Fire)
.
Along with many new features, the graphics and user interface have
been completely overhauled. The new app gives you full control of the
AVR as well as access to its setup menu for detailed adjustments from
your phones or tablets. “Marantz 2016 AVR Remote” App also gives
you quick access to the receiver's status display, option menus,
Marantz Blu-ray Disc player control, and online owner's manual for your
convenience.
zDownload the appropriate “Marantz 2016 AVR Remote” App for your iOS or
Android devices. This unit needs to be connected to the same LAN or Wi-Fi
(wireless LAN) network that the iPhone or iPod touch is connected to.
0HEOS provides streaming music from your favorite online music
sources
.
HEOS wireless multi-room sound system that enables you to enjoy your
favorite music anywhere and everywhere around your home. By utilizing
your existing home network and the HEOS App (available for iOS,
Android and Amazon devices), you can explore, browse, and play
music from your own music library or from many online streaming music
services.
When multiple HEOS devices are connected to the same network,
HEOS devices can be grouped to play back the same music on all
devices simultaneously, or different music can be played on each
separate HEOS device.
Contents Connections Playback Settings Tips Appendix
14
Front panel Display Rear panel Remote Index

Easy operation
0“Setup Assistant” provides easy-to-follow setup instructions
First select the language when prompted. Then simply follow the
instructions displayed on the TV screen to set up the speakers, network,
etc.
0Easy to use Graphical User Interface
This unit is equipped with a Graphical User Interface for improved
operability.
Contents Connections Playback Settings Tips Appendix
15
Front panel Display Rear panel Remote Index

Part names and functions
Front panel
.
u
e ytrq w
For details, see the next page.
Contents Connections Playback Settings Tips Appendix
16
Front panel Display Rear panel Remote Index

.
eytrq w
u
APower operation button (X)
Used to turn the power of the MAIN ZONE (room where this unit is
located) on/off (standby). (v p. 84)
BPower indicator
This is lit as follows according to the power status:
0Off: Power on
0Red: Normal standby
0Orange:
0When “HDMI Pass Through” is set to “On” (v p. 181)
0When “HDMI Control” is set to “On” (v p. 183)
0When “Network Control” is set to “Always On” (v p. 228)
CINPUT SELECTOR knob
This selects the input source. (v p. 84)
DDisplay
This displays various pieces of information. (v p. 20)
ERemote control sensor
This receives signals from the remote control unit. (v p. 9)
FVOLUME knob
This adjusts the volume level. (v p. 85)
GDoor
When you are using buttons and/or connectors behind the door, press
the bottom of the door to open it. Be careful not to catch your fingers
when closing the door.
.
Contents Connections Playback Settings Tips Appendix
17
Front panel Display Rear panel Remote Index

With the door open
.
qwert y u i o Q0
APURE DIRECT button
This switches the sound mode between Direct, Pure Direct and Auto
surround.
0“Direct playback” (v p. 135)
0“Pure Direct playback” (v p. 135)
0“Auto surround playback” (v p. 136)
BPURE DIRECT indicator
This lights when the “Pure Direct” mode is selected as the sound mode.
(v p. 135)
CM-DAX button
This switches the M-DAX mode. (v p. 171)
DM-DAX indicator
This lights when the M-DAX mode is selected. (v p. 171)
EZONE2 ON/OFF button
This turns the power of ZONE2 (another room) on/off. (v p. 160)
FZONE2 SOURCE button
This selects the input source for ZONE2. (v p. 160)
GTuner preset channel buttons
(TUNER PRESET CH +, –)
These select preset broadcast stations. (v p. 101)
HDIMMER button
Each press of this switches the brightness of the display. (v p. 239)
ISTATUS button
Each press of this switches the status information that is shown on the
display.
JSOUND MODE button
Switching the sound mode. (v p. 133)
Contents Connections Playback Settings Tips Appendix
18
Front panel Display Rear panel Remote Index

.
Q11 Q2 Q3 Q4 Q5
KHeadphones jack (PHONES)
This is used to connect headphones.
When the headphones are plugged into this jack, audio will no longer
be output from the connected speakers or from the PRE OUT
connectors.
NOTE
0To prevent hearing loss, do not raise the volume level excessively when using
headphones.
LSETUP MIC jack
This is used to connect the supplied Sound calibration microphone.
(v p. 200)
MUSB port (T)
This is used to connect USB storages (such as USB memory devices).
(v p. 75)
NAUX1-HDMI connector
This is used to connect HDMI output compatible devices such as video
camcorders and game consoles. (v p. 72)
OAUX1 INPUT connectors
Used to connect analog output compatible devices such as video
camcorders and game consoles. (v p. 72)
Contents Connections Playback Settings Tips Appendix
19
Front panel Display Rear panel Remote Index

Display
The input source name, sound mode, setting values and other information are displayed here.
oStandard display
.
q w
AVolume indicator
BInput source indicator
The currently selected input source name is displayed.
If the input source name has been changed using “Source Rename” in
the menu, the input source name after the change is displayed.
(v p. 195)
oTuner display
These light up according to the reception conditions when the input
source is set to “Tuner”.
.
er
CLights up when the broadcast is properly tuned in.
DIn the FM mode, this lights up when receiving stereo broadcasts.
Contents Connections Playback Settings Tips Appendix
