3.0 Communication errros
User’s Manual GW-DLMS- CEWE-INST Page 7
2.4 Modbus Mapping Area
The data read from the meters are placed in the Holding Register area.
A copy of the values is also present in the 4x20000 holding register area.
Refresh time of the values is approximately 3 seconds.
Modbus addresses in the table are base 1; depending on used Modbus master, sometimes is required
to swap words to read data correctly.

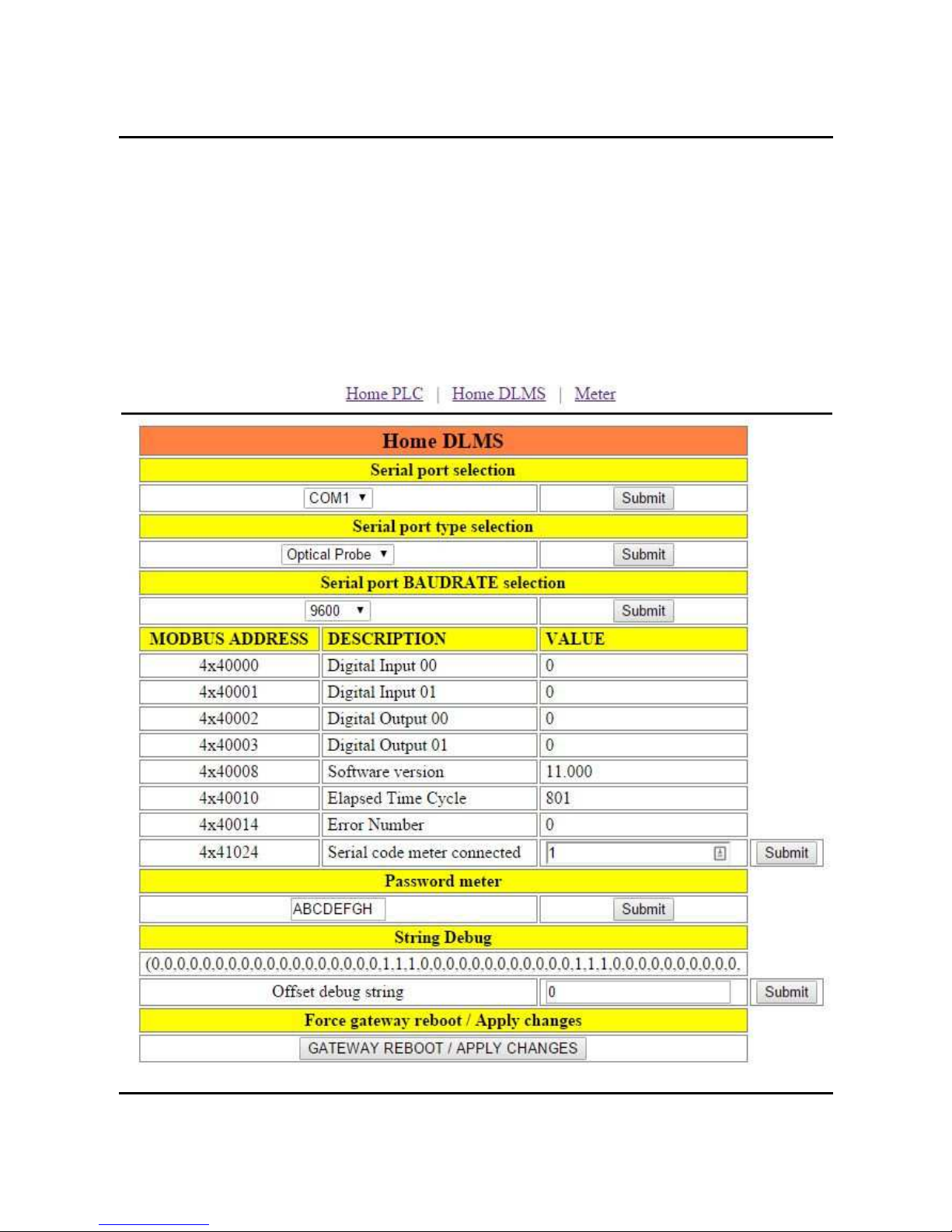

OBIS
INDEX
METER DATA TYPE NOTES
- 4x40000 UINT Digital Input 00
- 4x40001 UINT Digital Input 01
- 4x40002 UINT Digital Output 00
- 4x40003 UINT Digital Output 01
- 4x40008 FLOAT Software version
- 4x40010 UDINT Elapsed time
- 4x40014 DINT Error number
- 4x41024 DINT Serial number
0 4x40016 FLOAT phase voltage L1 (volts)
1 4x40018 FLOAT phase voltage L2
2 4x40020 FLOAT phase voltage L3
3 4x40022 FLOAT main voltage L1-L2 (volts)
4 4x40024 FLOAT main voltage L2-L3
5 4x40026 FLOAT main voltage L3-L1
6 4x40028 FLOAT current L1 (ampere)
7 4x40030 FLOAT current L2
8 4x40032 FLOAT current L3
9 4x40034 FLOAT phase symmetry voltage L1 (rad -Pi...Pi)
10 4x40036 FLOAT phase symmetry voltage L2
11 4x40038 FLOAT phase symmetry voltage L3
12 4x40040 FLOAT phase symmetry current L1 (rad -Pi...Pi)
13 4x40042 FLOAT phase symmetry current L2
14 4x40044 FLOAT phase symmetry current L3
15 4x40046 FLOAT phase angle L1 (rad -Pi...Pi)
16 4x40048 FLOAT phase angle L2
17 4x40050 FLOAT phase angle L3
18 4x40052 FLOAT power factor L1 (0.0...1.0)
19 4x40054 FLOAT power factor L2
20 4x40056 FLOAT power factor L3
21 4x40058 FLOAT active power L1 (W)
22 4x40060 FLOAT active power L2
23 4x40062 FLOAT active power L3
24 4x40064 FLOAT reactive power L1 (var)
25 4x40066 FLOAT reactive power L2
26 4x40068 FLOAT reactive power L3
27 4x40070 FLOAT apparent power L1 (VA)
28 4x40072 FLOAT apparent power L2
29 4x40074 FLOAT apparent power L3
