Marcy RE6000 User manual

RE6000
Turbo Rower
USER MANUAL
Distributed By:
Pure-Tec Limited
www.puretecfitness.com
www.puretecfitness.com
1

CONTENTS
3
4
5
6 - 9
10
11-12
13-14
15-17
18
www.puretecfitness.com
2
Important Safety Information Weight Limit Capacities
Hardware Parts List
Pre Assembly Check List
Assembly Instructions
Computer Instructions
Exercise Instructions
Exploded Diagram
Parts List & Additional Information
Warranty Information
BEFORE YOU BEGIN
Thank you for selecting the MARCY RE6000 Turbo Rower. For your safety
and benefit, read this manual carefully before using the equipment. As the
official distributor for Marcy, we are committed to providing complete
customer satisfaction. If you have any questions, or find there are missing or
damaged parts, we guarantee you complete satisfaction through direct
assistance. To avoid unnecessary delays, please contact our Customer
Solutions Department, Monday to Friday 8am – 5pm GMT.
Pure-Tec Limited
www.puretecfitness.com
Tel: [phone]
Email: [e-mail]
Monday - Friday 0800 - 1700GMT

IMPORTANT SAFETY INFORMATION
READ ALL INSTRUCTIONS BEFORE USING
1. This Rower is intended for class H (H=Domestic) use only. It is not designed for
commercial use.
2. This machine has been tested to BS EN 957.
3. Read the OWNER’S OPERATION MANUAL and all accompanying literature and follow it
carefully before using your Rower.
4. Keep children and pets away from the Rower at all times. Do not leave children
unattended in the same room with the Rower. The Rower is not a toy and therefore
parents and guardians should be aware of the natural tendency for children to play,
leading to situations and behaviour for which the Rower is not intended.
5. If children are allowed to use the Rower their physical/mental development and above all,
temperament should be taken into account. Constant supervision is therefore needed.
6. Position the Rower on a clear levelled surface which is clear of all obstacles as not to
restrict movement whilst exercising. DO NOT use the Rower near water or outdoors.
7. Exercise equipment has moving parts. In the interest of safety, keep others, especially
children, at a safe distance while exercising.
8. Never hold your breath while exercising. Breathing should remain at a normal rate in
conjunction with the level of exercise being performed.
9. Rest adequately between workouts. Muscle tone develops during these rest periods.
Beginners should work out twice a week and increase gradually to 4 to 5 times per
week.
10. Remove all jewellery, including rings, chains and pins before commencing exercise.
11. Always wear suitable clothing and footwear during exercise. Do not wear loose fitting
clothing that could become entangled with the moving parts of your exercise machine.
IMPORTANT!!! THE MAXIMUM RECOMMENDED WEIGHT CAPACITY FOR YOUR
ROWER IS 150KGS.
THIS OWNER’S MANUAL CONTAINS ASSEMBLY, OPERATION, MAINTENANCE AND
SAFETY INFORMATION. IN THE INTEREST OF SAFETY, PLEASE MAKE CERTAIN THAT
YOU READ AND UNDERSTAND ALL THE INFORMATION BELOW.
www.puretecfitness.com
3

HARDWARE PARTS LIST
PART NO. DESCRIPTION Q’TY DRAWINGS
19 Allen bolt 5
34 Allen bolt 4
37 Spring washer 2
38 Flat washer 2
40L End cap for side rail ( L ) 1
40R End cap for side rail ( R ) 1
41 Axle for slide rail 1
42 Allen bolt 2
43 Flat washer 3
Allen key ( 6MM ) 2
Open ended wrench ( 13MM ) 1
Above described parts are all the parts you need to assemble this machine. Before
you start to assemble, please check the hardware packing to make sure they are
included.
www.puretecfitness.com
4

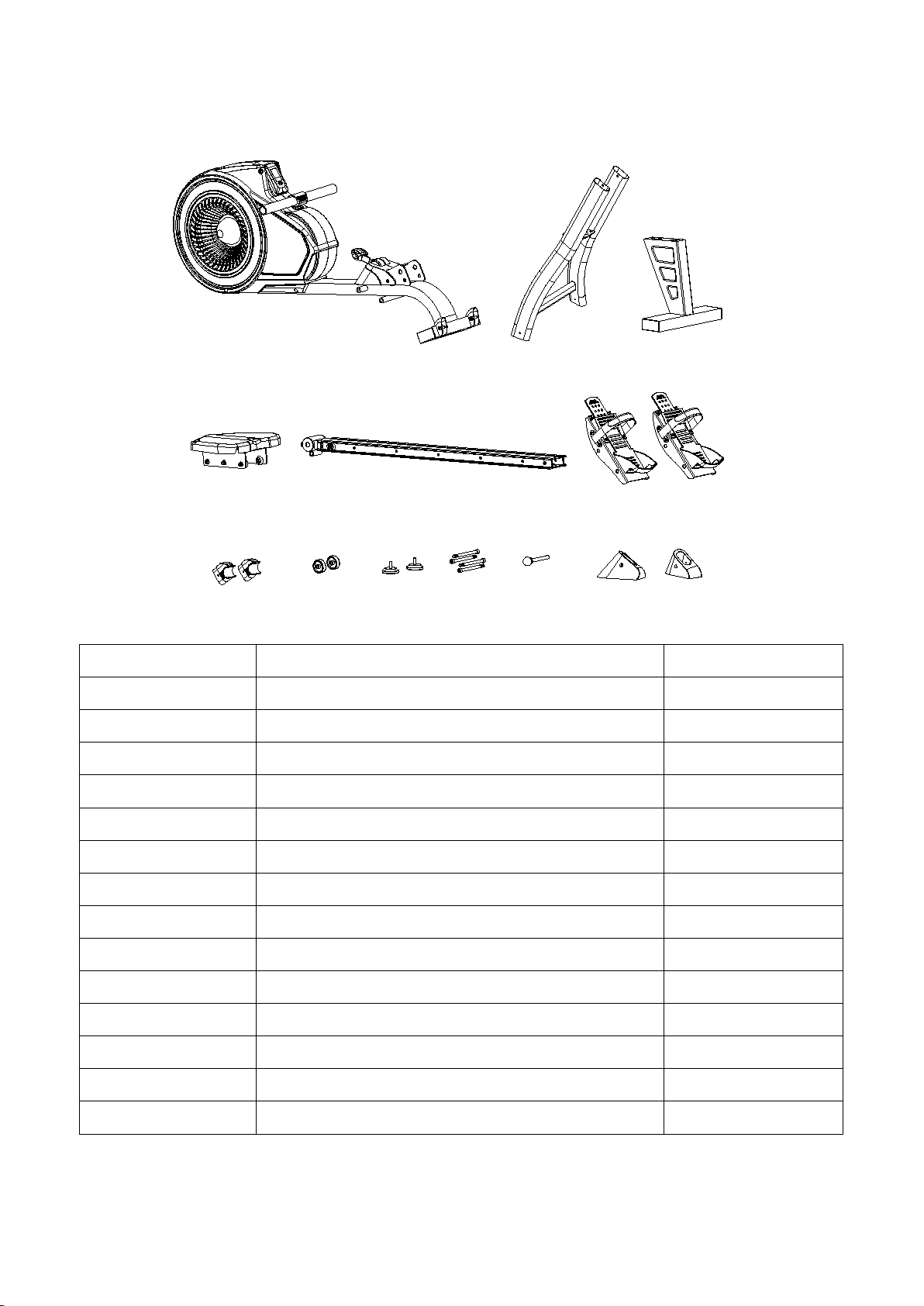

PRE-ASSEMBLY CHECK LIST
NO:1 NO:9 NO:54
NO:53 NO:45 NO:14L/R
NO:11L/R NO:55 NO:13 NO:35 NO:8L/R
NO:3
PART NO. DESCRIPTION Q’TY
1 Main frame 1
3 Roller Wheel 2
8L/R End cap for front stabilizer tube ( L/R ) 1/1
11L/R Fixed bracket for handlebar ( L/R ) 1/1
13 Allen bolt for pedal 4
14L/R Pedal ( L/R ) 1/1
35 Ball pin 1
45 Slide rail 1
53 Seat 1
54 Rear support tube 1
55 Foot mat 2
91 Middle support tube 1
User manual 1
Hardware parts 1
www.puretecfitness.com
5

ASSEMBLY INSTRUCTION

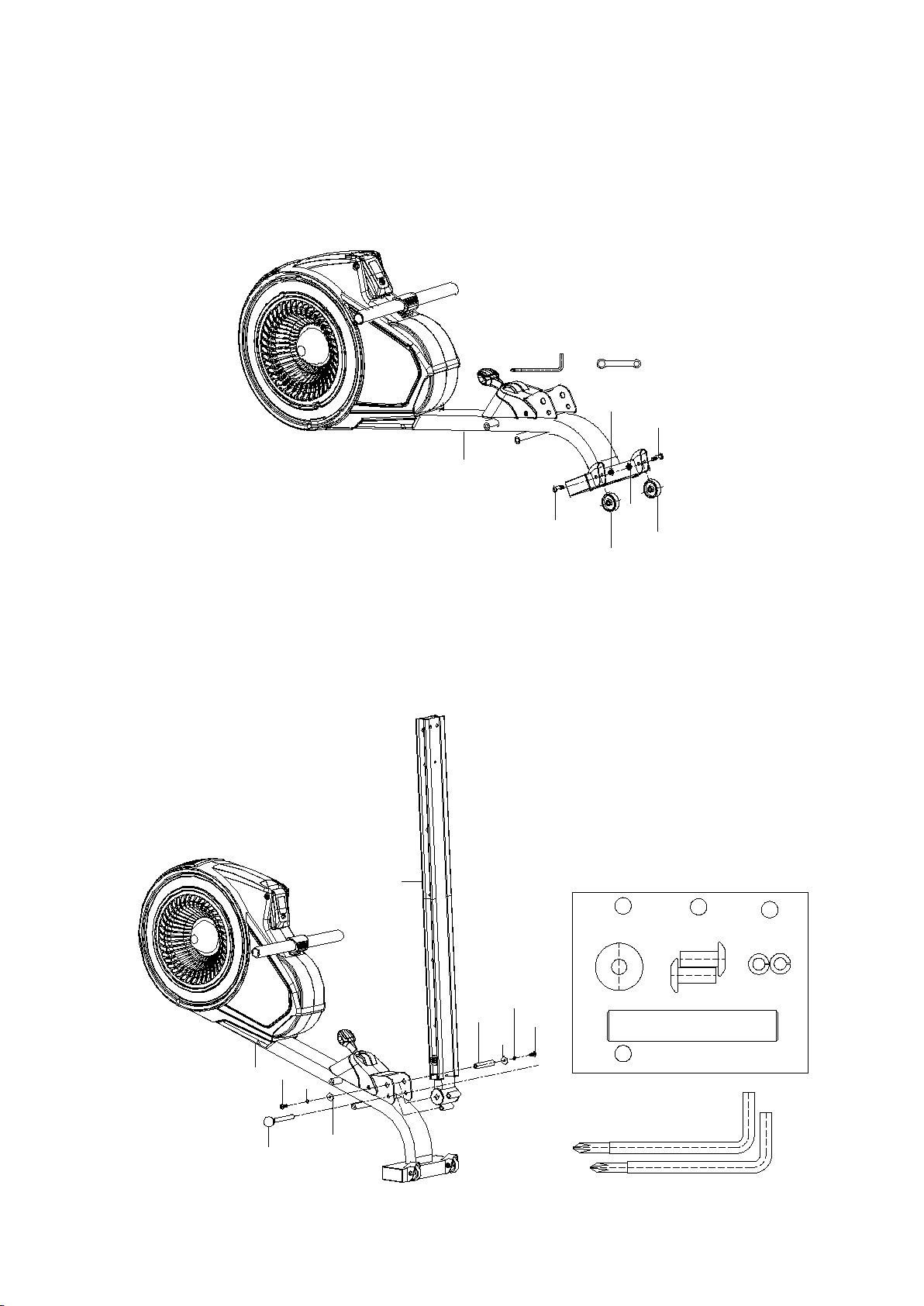

Step 1
Attach the two Roller Wheels (3) to the Main Frame (1). Secure each Roller Wheel (3) with
one Allen Bolt (4) and one Nylon Nut (2).
2
3
43
4
2
1
Step 2
Pull out the ball pin (35) from the main frame (1). Insert the slide rail (45) onto the U type
connect tube of main frame (1), fasten with one axle for slide rail (41), two sets of allen bolts
(34), spring washers (37) and flat washers (38).
Then insert the ball pin (35).
134
38
37
41 34
37
38
35
45
φ 8* φ
25mm
38
2X
M8*20mm
34
2X
37
φ 8mm
2X
41
φ 16*86mm 1X
6mm
www.puretecfitness.com
6

Step 3
Insert the seat (53) to the slide rail (45).
Insert two cushion rubbers (36) to the slide rail (45), slightly fasten with two allen bolts (34).
Fasten two foot mats (55) on the rear support tube (54).
Attach the rear support tube (54) to the slide rail (45), fasten with one allen bolt (19), three
flat washers (43) and two allen bolts (42).
Then insert two end caps for side rail (40L/R) to the end of slide rail (45).
1
53
54
40R
40L
34
36
36
34
42
42
43
43
19
45
55 55
M8*40mm
42
2X
φ 8* φ 17mm
43
3X
36
2X
40
2X
L/R
M8*20mm
34
2X
M8*16mm
19
1X
6mm

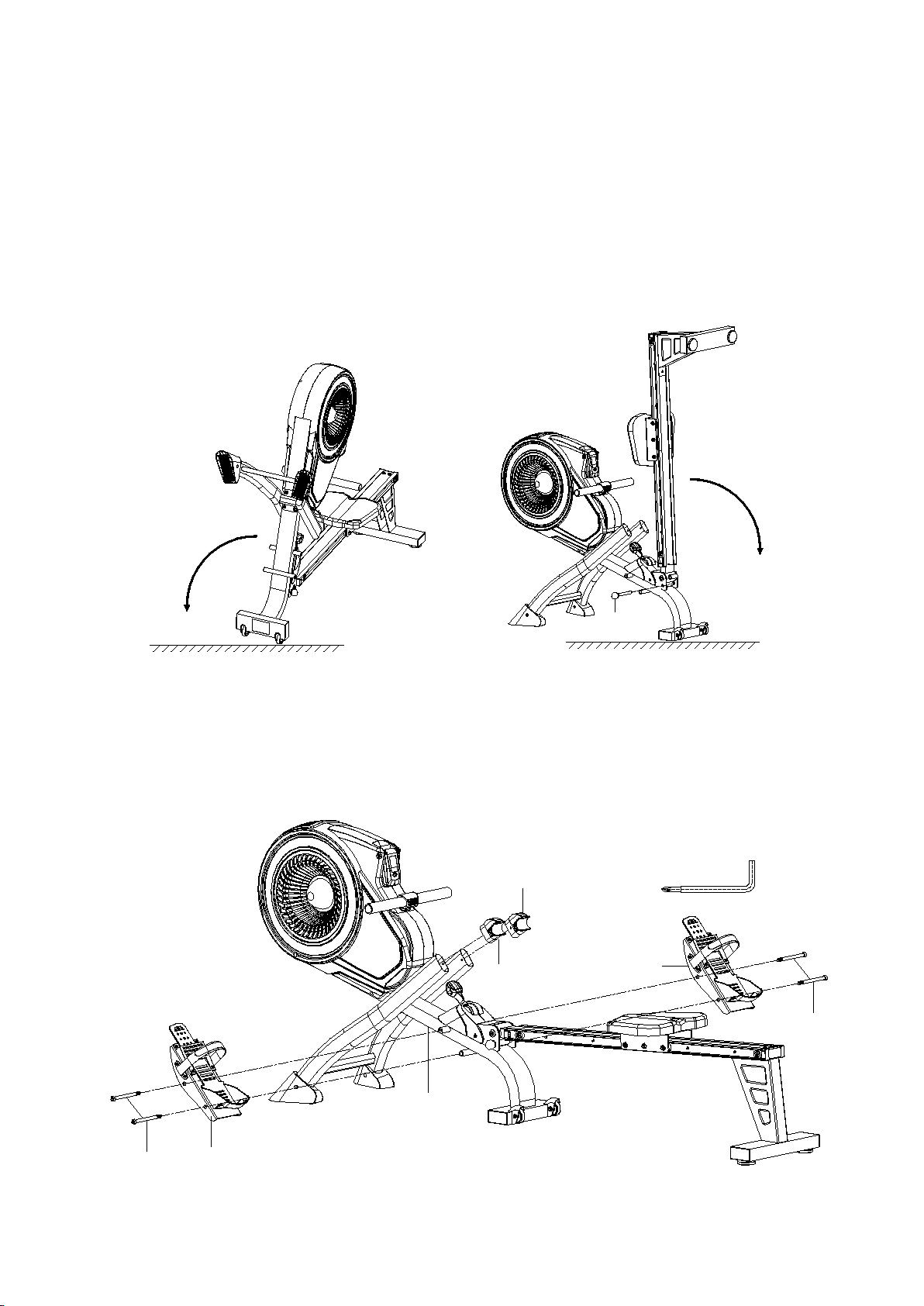

Step 4
Turn over the main frame and make the rear support tube to the floor.
Take off four self-tapping screws (10) from the end caps for front stabilizer tube (8L/R)
which are pre-assembled on the end caps, then attach the end caps to the front support
tube (9) by four self-tapping screws (10).
Attach the front support tube (9) to the main frame (1), fasten with four allen bolts (19).
8L
8R
10 10 10 10
91
19
M8*16mm
19
4X
6mm
www.puretecfitness.com
7

Step 5
Turn over the main frame and make the front support tube to the floor.
Pull out the ball pin (35) from the main frame and unfold the main frame. Then insert the
ball pin (35) to the main frame again for fixation.
Note: Before insert ball pin (35).
1. Slightly lift up the main frame.
2. Assure the fixation holes are on equal position.
3. Insert ball pin (35) into fixation holes.
35
Step 6
Insert two fixed brackets for handlebar (11L/R) into the holes on the front support tube of
main frame (1).
Attach the left pedal (14L) to the left side of main frame (1), fasten with two allen bolts (13).
Repeat for the right pedal (14R) to the right side of main frame (1).
1
14L
14R
13
13
11L
11R
6mm
www.puretecfitness.com
8

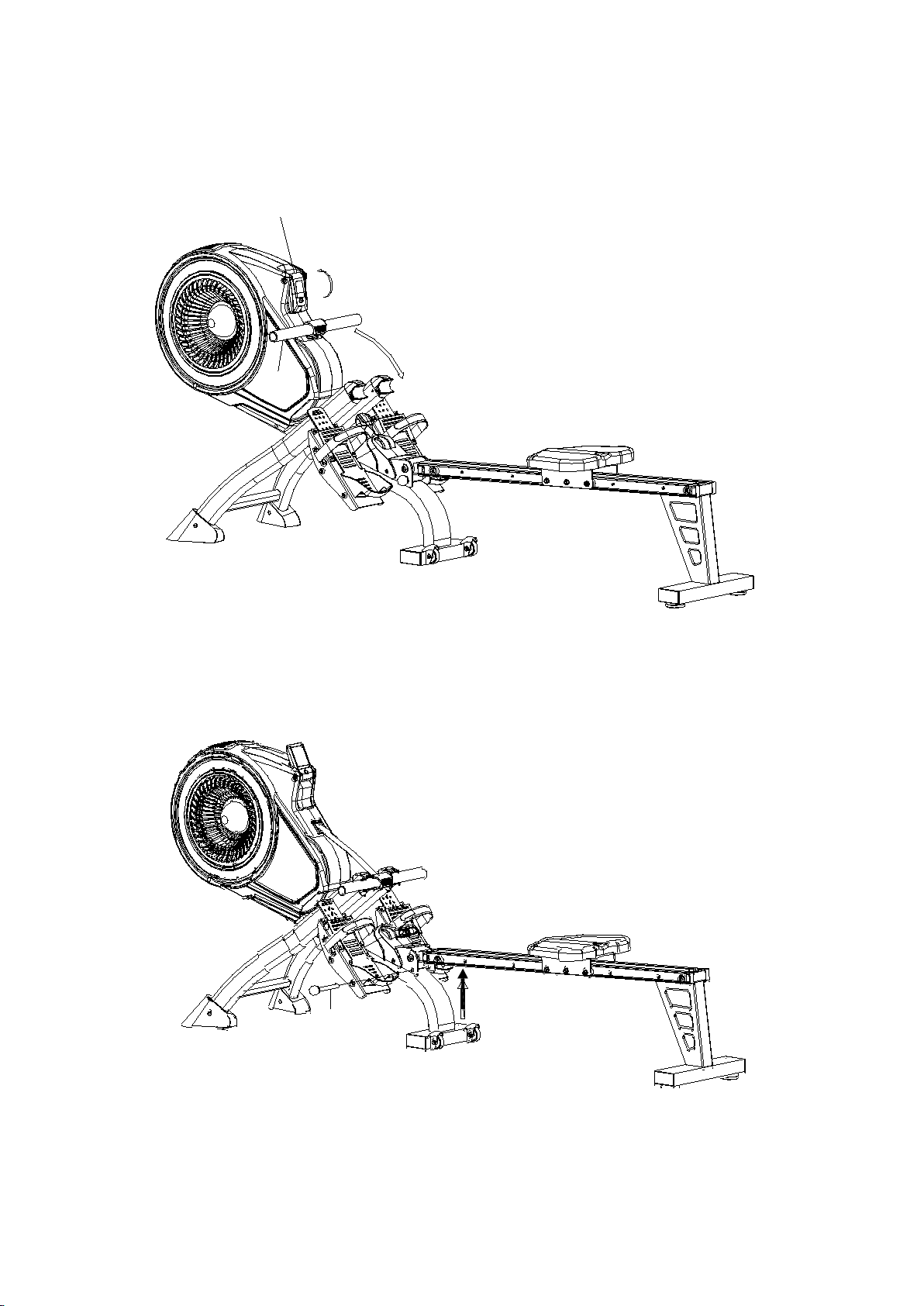

Step 7
Open the meter (24) upward to show your exercise status.
The handlebar (29) also can be put on the fixed bracket.
29
24
Step 8
You can pull out the ball pin (35) and lift up the slide rail to fold the machine if you don’t want
to use it.
35
CHECK ALL BOLTS AND NUTS ARE TIGHTENED
BEFORE USING THE MACHINE
www.puretecfitness.com
9

COMPUTER INSTRUCTIONS
FUNCTIONAL BUTTON:
MODE/RESET – Push down to select functions.
–Push down to reset time、distance、calories and count for 2 seconds.
–After install batteries, electronic watch default into clock setting mode,
press the “MODE” key setting electronic clock, set the finished wait 5
seconds, the electronic watch into motion window mode automatically.
FUNCTIONS AND OPERATIONS:
1. SCAN: Press MODE button until SCAN appears, monitor will rotate through the
following functions: time、speed、distance、calorie、count、rpm and pulse, each
display will be hold 5 seconds.
2. TIME:Count the total time from exercise start to end.
3. SPEED: Display current speed.
4. DISTANCE: Count the distance from exercise start to end.
5. CALORIE: Count the total calories from exercise start to end.
6. COUNT: Count the count from exercise start to end.
7. RPM: Automatically accumulates the workout counts per minute
8. PULSE: Your paddling cadence. Your meter displays your pulse rate in beats per
minute during your workout. If no pulse signal input then the computer will
display “NO pulse” on the window.
Pls wear properly the chest belt transmitter to detect the heartbeat (pulse)
while workout.
NOTE：1. If the display is faint or shows no figures ,please replace the batteries.
2. The monitor will automatically into clock mode if there is no signal received after
4 minutes.
3. The monitor will be auto-powered on when starting to exercise push button
w/signal in.
4.The monitor will automatically start calculating when you start to exercise and will
stop calculating when you stop exercising for 4 seconds.
SPECIFICATIONS:
FUNCTION
AUTO SCAN Every 5 seconds
TIME
0:00’~99:59’
CURRENT
SPEED
The maximum signal can be
pickup is 99.99KM/H
TRIP
DISTANCE
0.0~999M
CALORIES
0.0~999.9CAL
COUNT
0~9999TIMES
RPM
0~999 TIMES/MIN
BATTERY TYPE
2pcs of SIZE –AA A or UM –4
OPERATING
TEMPERATURE
0°C ~ +40°C
STORAGE
TEMPERATURE
-10°C ~ +60°C
www.puretecfitness.com
10

EXERCISE INSTRUCTIONS
Using your TURBOROWER will provide you with several benefits, it will improve your
physical fitness, tone muscle and in conjunction with a calorie controlled diet help you
lose weight.
1. The Warm Up Phase
This stage helps get the blood flowing around the body and the muscles working properly. It
will also reduce the risk of cramp and muscle injury. It is advisable to do a few stretching
exercises as shown below. Each stretch should be held for approximately 30 seconds, do
not force or jerk your muscles into a stretch - if it hurts, STOP.

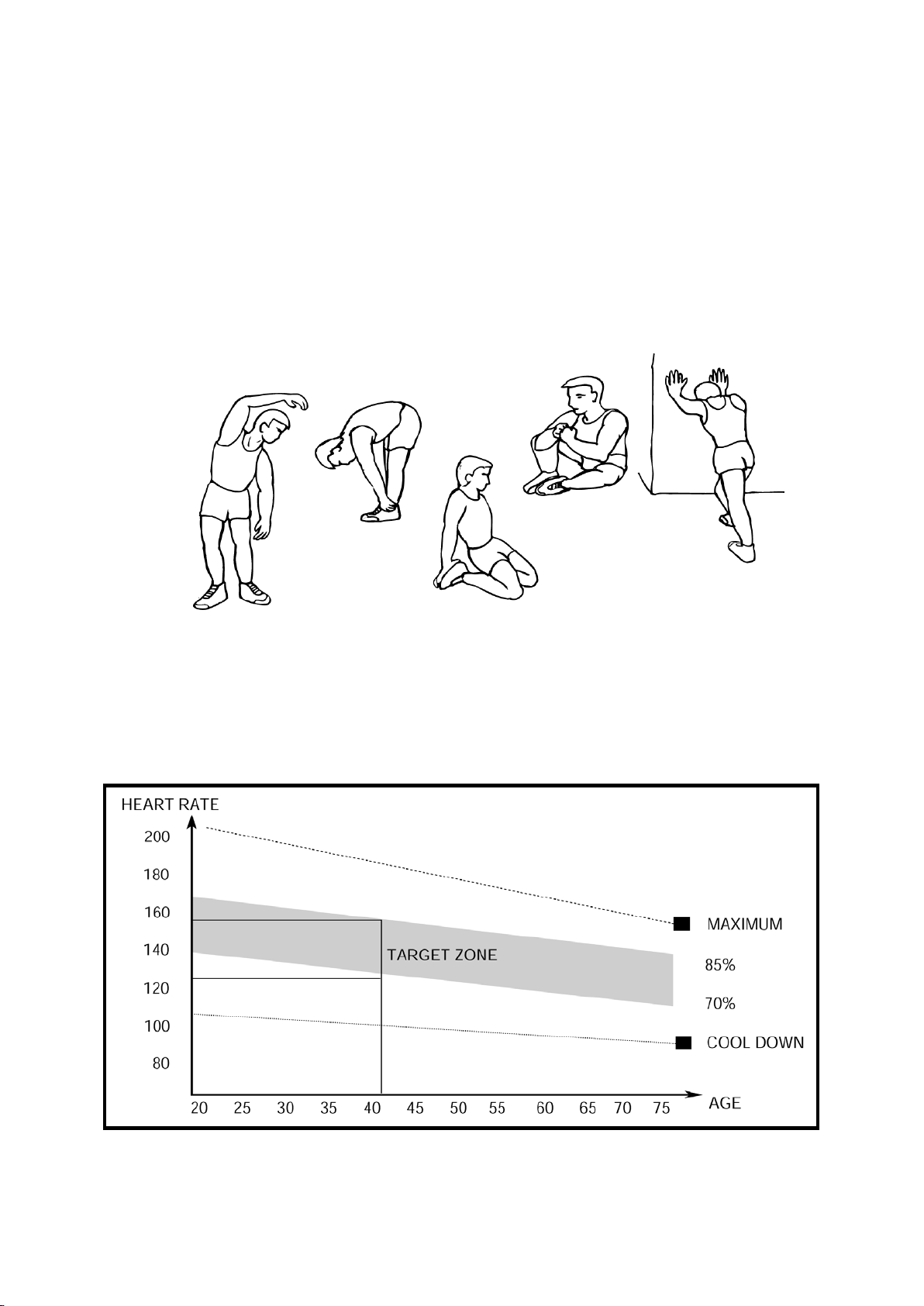

2. The Exercise Phase
This is the stage where you put the effort in. After regular use, the muscles in your legs will
become more flexible. Work to your but it is very important to maintain a steady tempo
throughout. The rate of work should be sufficient to raise your heart beat into the target
zone shown on the graph below.
This stage should last for a minimum of 12 minutes though most people start at about 15-20
minutes
SIDE BENDS OUTER THIGH
INNER THIGH
FORWARD
BENDS CALF / ACHILLES
www.puretecfitness.com
11

3. The Cool Down Phase
This stage is to let your Cardio-vascular System and muscles wind down. This is a repeat of
the warm up exercise e.g. reduce your tempo, continue for approximately 5 minutes. The
stretching exercises should now be repeated, again remembering not to force or jerk your
muscles into the stretch.
As you get fitter you may need totrain longer and harder.Itis advisable to train at least
three times a week, and if possible space your workouts evenly throughout the week.
MUSCLE TONING
To tone muscle while on your TURBOROWER you will need to have the resistance set
quite high. This will put more strain on our leg muscles and may mean you cannot train
for as long as you would like. If you are also trying to improve your fitness you need to
alter your training program. You should train as normal during the warm up and cool
down phases, but towards the end of the exercise phase you should increase resistance
making your legs work harder. You will have to reduce your speed to keep your heart
rate in the target zone.
WEIGHT LOSS
The important factor here is the amount of effort you put in. The harder and longer
you work the more calories you will burn. Effectively this is the same as if you were
training to improve your fitness, the difference is the goal.
www.puretecfitness.com
12

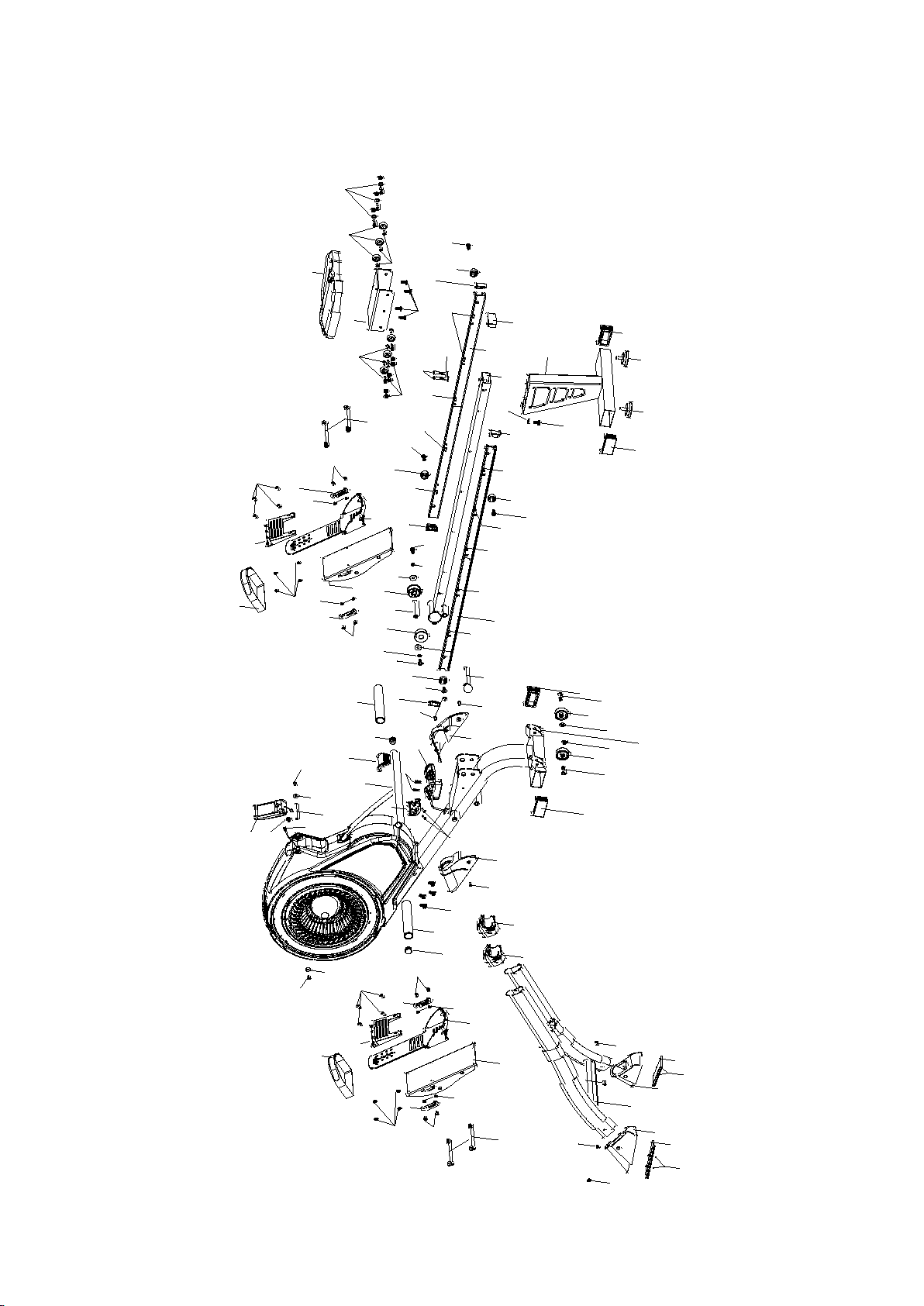

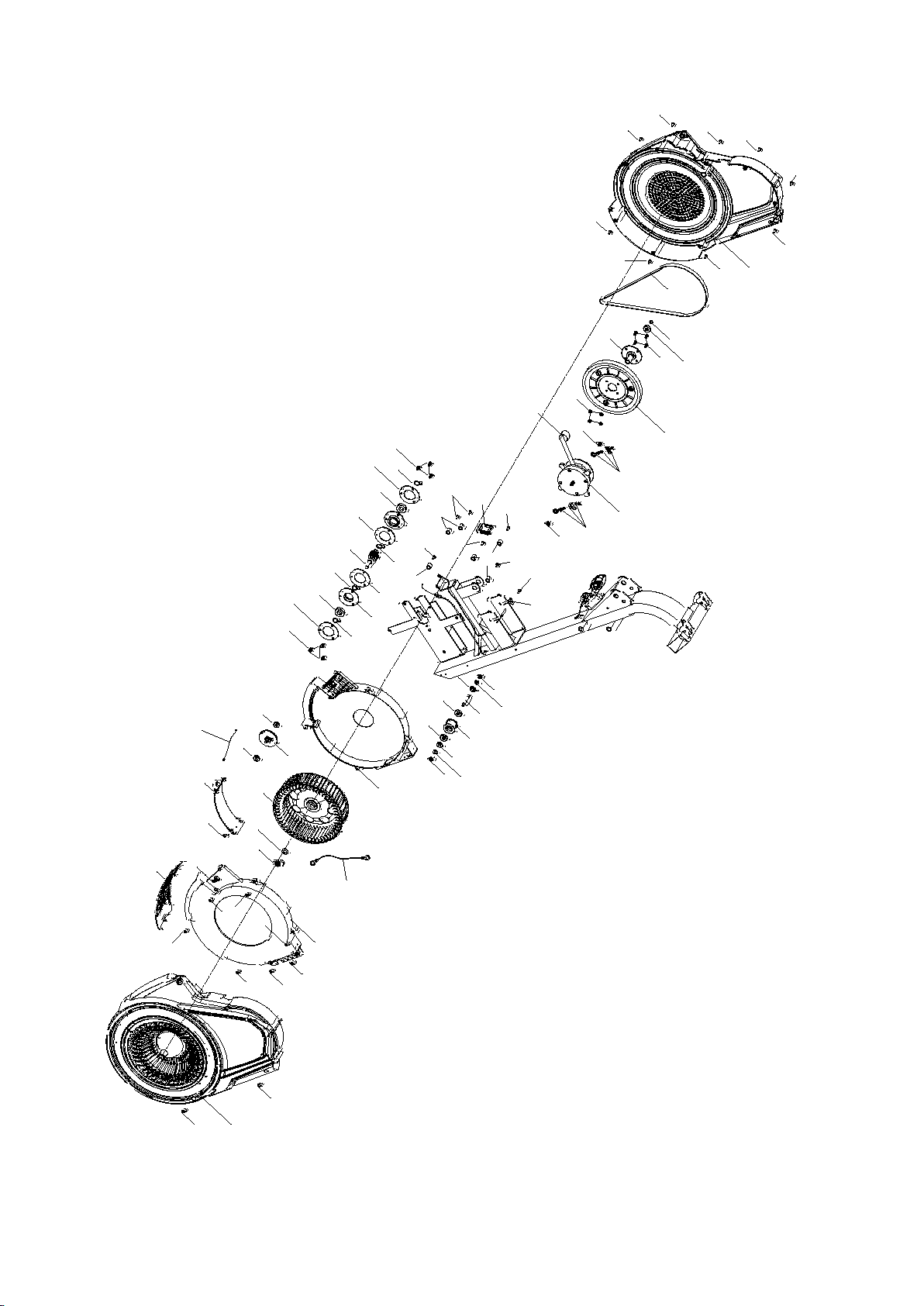

EXPLODED DIAGRAM
1
2
3
4234
555
5
66
7
7
8L 8R
9
10
10 10
10
11L 11R
12
13
12 13
14L
15
14R
15
16
16
16
16
16
16
16 16
17
17 17
17
17 17
18 18
18
18
19
19
20L
16
16
10
21
21
22
22
23
23
24
25
26
27 28
29
30 31
32
33
20R
34
34 34
34
34
35
36
36 34 36
36
37
38
39 41 40R
40L
3938
37
42 43
43
43
44
45
46L
46R
47 47 47 47 47
47 47 47 47
2
48
49
50
51
52
53
54
55
55
56
56
40L 40R
www.puretecfitness.com
13

10
10
10 10
10
10
10
10
10
10
10
10
10
65
64 22
43 43
89L
89R
57L
57R
88
88 88
88
88
87 58
5960 61
62 62
63
2
231
31
31
66
66
67
68
69
67
70
71
67
70
69
68 67
72
72
72
73
74 75 75
76 77
78 79
80
81
82
83
83
83 83
83
83
83
84
80
85
80
86
84
90
www.puretecfitness.com
14

PARTS LIST
PART NO.
DESCRIPTION
QTY
1 Main Frame 1
2 Nylon Nut M8 12
3 Roller Wheel 2
4 Allen Bolt M8*35 2
5 End Cap 4
6 Anti-slip Pad 2
7 Self Tapping Screw ST4*15 4
8L Front Post Floor Cap( L ) 1
8R Front Post Floor Cap( R ) 1
9 Front Post 1
10 Self Tapping Screw ST5*20 20
11L Rowing Bar Holder( L ) 1
11R Rowing Bar Holder( R ) 1
12 Pedal Support 2
13 Socket Head Allen Bolt M12*140 4
14L Pedal( L ) 1
14R Pedal( R ) 1
15 Pedal Adjustment Assembly 2
16 Phillips Screw M5*12 20
17 Nylon Nut M5 16
18 Pedal Strap Bracket 4
19 Allen Bolt M8*16 5
20L Tension Control Knob Cover( L ) 1
20R Tension Control Knob Cover( R) 1
21 Rowing Bar Grip 2
22 Rowing Bar End Cap 2
23 Washer φ5xφ18 2
24 Computer 1
25 Wire Grommet 1
26 Computer Axle 1
27 Pulse Sensor Wire 1
28 Rowing Bar Upper Cap 1
29 Rowing Bar 1
30 Rowing Bar Lower Cap 1
31 Allen Bolt M6*15 12
32 Self Tapping Screw ST4*20 2
33 Tension Control Knob 1
34 Allen Bolt M8*20 6
35 Lock Pin 1
36 Bumper Stopper 4
www.puretecfitness.com
15

PART NO.
DESCRIPTION
QTY
37 Spring Washer φ5 2
38 Washer φ8xφ25 2
39 Rowing Rail Busing 2
40L Rail Track End Cap( L ) 2
40R Rail Track End Cap( R ) 2
41 Rowing Rail Axle 1
42 Allen Bolt M8*40 2
43 Washer φ8xφ17 11
44 End Cap 1
45 Rowing Rail 1
46L Rail Track( L ) 1
46R Rail Track( R ) 1
47 Self Tapping Screw 10
48 Seat Roller Wheel Axle 6
49 Seat Roller Wheel 6
50 Phillips Screw M5*15 6
51 Allen Bolt M8*20 4
52 Seat Bracket 1
53 Seat 1
54 Rear Support 1
55 Rear Leverage Knob 2
56 Foot Strap 2
57L Air Duct ( L ) 1
57R Air Duct ( R ) 1
58 Air Damper 1
59 Nylon Nut M12 1
60 Flat Washer φ12.5xφ25 1
61 Wind turbine 1
62 Bearing 2
63 Pulley 1
64 Tension rope 1
65 Guy cable 1
66 Bearing bracket 2
67 Clamp spring φ17 4
68 Bearing 2
69 Bearing bracket 2
70 Fixed plate for bearing 2
71 Axle for wind turbine 1
72 Bushing 6
73 Rubber ring 1
www.puretecfitness.com
16

PART NO.
DESCRIPTION
QTY
74 Sensor bracket 1
75 Adjusted screw sets 2
76 Spring clutch 1
77 Belt pulley 1
78 Nylon nut M6 4
79 Belt pulley bracket 1
80 Bearing 3
81 Clamp spring φ10 1
82 Belt 1
83 Self-tapping screw ST5*16 7
84 Powder metal 2
85 Pulley 1
86 Axle for pulley 1
87 Air outlet 1
88 Self-tapping screw ST5*25 6
89L Chain cover ( L ) 1
89R Chain cover ( R ) 1
90 Woven tape 1
www.puretecfitness.com
17
ADDITIONAL INFORMATION
Packaging Disposal
Government guidelines ask that we reduce the amount of waste material disposed of in land fill sites.
We therefore ask that you dispose of all packaging waste responsibly at public recycling centres.
Weat Pure-Tec Limited hope you enjoy many years of enjoyable use from your Rower. However, a
time will come when your Rower will come to the end of its useful life. Under ‘European WEEE
Legislation‘you are responsible for the appropriate disposal of your Rower to a recognised public
collection facility.
1. Inspect and tighten all parts before using the Rower.
2. The Rower can be cleaned using a damp cloth and mild non-abrasive detergent. DO NOT use solvents.
3. Examine the Rower regularly for signs of damage or wear.
4. Failure to examine the Rower regularly may affect the safety level ofthe equipment.
5. Replace any defective components immediately and/or keep the Rower out of use until repair.
Specifications
Dimensions: 217 x 52 x 92 cms Maximum user weight: 150kg
Batteries
Net weight 2 xSize AAA 1.5v
34.5Kg
Care & Maintenance

www.puretecfitness.com
18
LIMITED WARRANTY
Pure-Tec warrants this product to be free from defects in workmanship and material, under normal
use and service conditions. Please refer to www.puretecfitness.com for warranty terms. This
warranty extends only to the original purchaser and is valid for home use only. Pure-Tec’s
obligation under this Warranty is limited to replacing damaged or faulty parts at Pure-Tec’s
option.
All returns must be pre-authorised by Pure-Tec. This warranty does not extend to any product
or damage to a product caused by or attributable to freight damage, abuse, misuse, improper
or abnormal usage, purchasers own repairs or for products used for commercial or rental
purposes. No other warranty beyond that specifically set forth above is authorised by Pure-Tec .
Pure-Tec is not responsible or liable for indirect, special or consequential damages arising out of or
in connection with the use or performance of the product or other damages with respect to any
economic loss, loss of property, loss of revenues or profits, loss of enjoyments or use, costs of
removal, installation or other consequential damages or whatsoever natures.
The warranty extended hereunder is in lieu of any and all other warranties and any implied
warranties of merchantability or fitness for a particular purpose is limited in its scope and duration
to the terms set forth herein.
Your statutory rights are not affected.
ORDERING REPLACEMENT PARTS
Replacement parts can be ordered by contacting our Customer Solutions Department,
Monday to Friday, 8am – 5pm GMT :
Pure-Tec Limited
www.puretecfitness.com
Tel:[phone]
Email: [email protected]
Monday - Friday 0800 - 1700GMT
When ordering replacement parts, please give the following information,
1. Model
2. Description of Parts
3. Part Number
4. Date of Purchase
