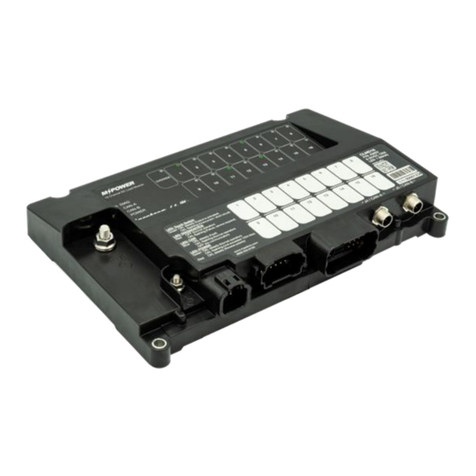

Maretron MPOWER CLMD16 User manual

CLMD16
16 Channel DC Load Controller Module
Quick Start Guide
P/N: M003137
Rev. 1.4 (2/2021)
Copyright ©2021 Carling Technologies, Inc.
60 Johnson Ave.
Plainville, CT
06062 USA
All Rights Reserved
http://www.maretron.com

Thank you for purchasing MPower CLMD16
The CLMD16 features 125A total current switching capacity using 16 PWM
capable Electronic Circuit Breakers (ECBs) housed inside an IP67, Ignition
Protected casing.
CLMD16 Features at a Glance:
·2- NMEA 2000® Interfaces
·12-12A ECBs
·4- 25A ECBs
·8- Analog (VDC) / Digital Inputs (DC (-), DC (+) or “Float” sensing inputs)
·2- Resistive inputs (0 - 250Ω) & (0 - 1000Ω)
·1- Current loop input (4 - 20mA)
·3- Groups of 2 ECB load outputs rated at 12A can be paralleled to switch a
maximum current of 21.6A
·1- Pair of 2 ECB load outputs can be paralleled to switch a maximum current of 45A
·4 -12A ECBs are capable of half bridge operation
By pairing half bridge ECBs the CLMD16 allows for 2 reversing polarity outputs
suitable for use with loads such as hatch rams or trim tabs.
·Capacitive Touch Manual Override keypad to toggle the ECB's On / Off
·The CLMD16 unit is controlled, and can control devices via NMEA 2000® network
technology.
To learn more about the MPower CLMD16's features please refer to the User's Manual
CLMD16 Hardware Description:
PWR
GND
J 1 J 2 J 3
8.50
[250.90]
10.97
[278.63]
10.40
[264.16]
6.84
[173.73]
7.48
[189.99]
11.00
[279.40]
1 2 3 4 5 6 7 8
161514131211109
OVERRIDE
MPOWER
16 Channel DC Load Module
DIAG
CAN-A
CAN-B
POWER
1 2 3 4 5 6 7 8
161514131211109
LED: Touch Switch
Green ON, steady (Output is activated)
ON, flashing (Overcurrent / short circuit)
Red OFF, (Normal operation)
ON, flashing (Failure, service required)
LED: CAN
Blue ON, steady (Fault)
ON, flashing (Normal operation)
OFF, (No communication)
LED: POWER
LED: DIAGNOSTICS
Green ON, steady (Normal operation)
ON, flashing (Unit exceeded 125A Max)
Red ON, steady (Reverse polarity)
www.maretron.com
[phone]
CLMD16
8-32VDC 125A
LEN: 1 (50mA)
- J4 / CAN-A - -J5 / CAN-B -
MORE INFO
S/N: 0000000
BARCODE
QR
MAIN DC (+)
MAIN DC (-)
OUTPUT (LOAD)
LABEL PAD
CAPACITIVE TOUCH
MANUAL OVERRIDE
KEYPAD
DIAGNOSTIC
LEDs
"J1" CONNECTOR "J2" CONNECTOR "J3" CONNECTOR "J4" & "J5"
NMEA 2000
[CAN-A] & [CAN-B]
P/N: M003137 Rev. 1.4 Page 1

CLMD16 Application:
Apply the CLMD16 unit with any Maretron device running N2K view®,
Maretron's CKM12 (12 Button Keypad) or VMM6 (Contura® Digital Switch
Module, 6 Rocker) and third party MFDs supporting NMEA2000® standard
switching PGNs. The CLMD16 comes pre-configured with an Out of Box
Configuration that allows all 16 ECB outputs to be switched by network devices
supporting NMEA2000® standard switching PGNs. The CLMD16's Out of Box
Configuration also allows for Maretron's CKM12 (12 Button Keypad) and VMM6
(Contura® Digital Switch Module, 6 Rocker) to control CLMD16 without the need
for any user configuration adjustments. Please see the Out of Box Configuration
details in this Quick Start Guide for information on the CLMD16's default
configuration and how this configuration will behave when a CLMD16 is paired
with a Maretron CKM12 or Maretron VMM6.
Note: Depending on desired switch control, default configuration may not work
for your application and custom configuration will be needed using Maretron
N2KAnalyzer®.
P/N: M003137 Rev. 1.4 Page 2

PWR
GND
J 1 J 2 J 3
1 2 3 4 5 6 7 8
161514131211109
OVERRIDE
MPOWER
16 Channel DC Load Module
DIAG
CAN-A
CAN-B
POWER
1 2 3 4 5 6 7 8
161514131211109
LED: Touch Switch
Green ON, steady (Output is activated)
ON, flashing (Overcurrent / short circuit)
Red OFF, (Normal operation)
ON, flashing (Failure, service required)
LED: CAN
Blue ON, steady (Fault)
ON, flashing (Normal operation)
OFF, (No communication)
LED: POWER
LED: DIAGNOSTICS
Green ON, steady (Normal operation)
ON, flashing (Unit exceeded 125A Max)
Red ON, steady (Reverse polarity)
www.maretron.com
[phone]
CLMD16
8-32VDC 125A
LEN: 1 (50mA)
- J4 / CAN-A - -J5 / CAN-B -
MORE INFO
S/N: 0000000
BARCODE
QR
Installation Principal:
DC (+)
MARETRON CLMD16
DC (+)
J2
Connect to CLMD16 Using
Maretron's CLMD16
Accessory Harnesses
(Terminal Strip not Included)
Or
Connect to CLMD16 Using
Deutsch Brand Plugs in Your
Own Vessel Harnessing
Connect CLMD16 to One
NMEA 2000® Network or
Connect CLMD16 to Two
NMEA 2000 Networks for
Redundant Network
Implementation
Manual Override Loads
on the CLMD16 Using
the CLMD16's
Integrated Capacitive
Touch Keypad
Integrate CLMD16 Utilizing
NMEA 2000® Network
Components Available from
Maretron
P/N: M003137 Rev. 1.4 Page 3

MARETRON CKM12
TOUCH SCREEN CONTROL
AND MONITOR
J1 J2 J3
IEC
MORE INFO
BARCODE
QR

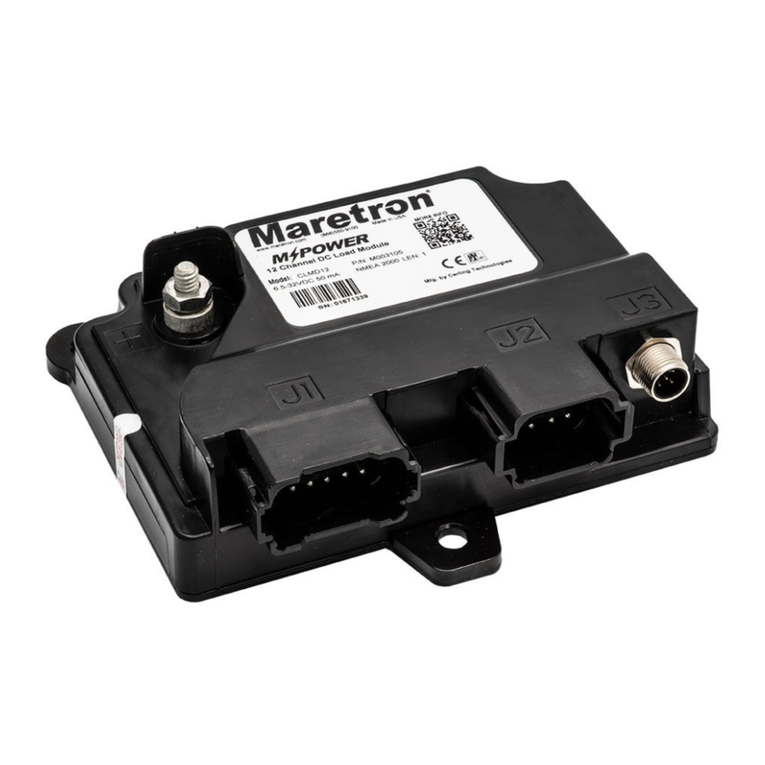

Model: CLMD12 P/N: M000000
12 Channel DC Load Module
6.5-32VDC 50mA NMEA 2000 LEN: 1
S/N: 0000000
MARETRON CLMD12
MARETRON VMM6
Other
NMEA 2000®
Devices:
·Stereo
·VHF
·Depth
Choose From a
Variety of Control
Devices for the
CLMD16
MARETRON TSM810C
TOUCH SCREEN CONTROL
AND MONITOR
THIRD PARTY MFD
Easily Expand Your
MPower System with
Other Maretron
MPower Devices
1357911
12
10
8
6
4
2
P/N: M003137 Rev. 1.4 Page 4

CLMD16 Out of Box Configuration Module Details:
J1-1
J1-2
J1-3
J1-4
J2-1
J2-2
J2-11
J2-12
J2-3
J2-4
J2-5
J2-6
J2-7
J2-8
J2-10
J3-2
J3-8
J3-14
J3-20
J3-3
J3-9
J3-15
J3-21
J3-5
J2-9
J3-11
J3-10
25A Outputs:
12A Or H-Bridge:
12A Outputs:
4-20 mA Sense
Current Loop Neg:
0-250Ω Input:
0-1000Ω Input:
Analog / Digital
Inputs:
Relay /
Alarm
(+) J3-16
(-) J3-22
PWR
GND
J 1 J 2 J 3
1 2 3 4 5 6 7 8
161514131211109
OVERRIDE
MPOWER
16 Channel DC Load Module
DIAG
CAN-A
CAN-B
POWER
1 2 3 4 5 6 7 8
161514131211109
LED: Touch Switch
Green ON, steady (Output is activated)
ON, flashing (Overcurrent / short circuit)
Red OFF, (Normal operation)
ON, flashing (Failure, service required)
LED: CAN
Blue ON, steady (Fault)
ON, flashing (Normal operation)
OFF, (No communication)
LED: POWER
LED: DIAGNOSTICS
Green ON, steady (Normal operation)
ON, flashing (Unit exceeded 125A Max)
Red ON, steady (Reverse polarity)
www.maretron.com
[phone]
CLMD16
8-32VDC 125A
LEN: 1 (50mA)
- J4 / CAN-A - -J5 / CAN-B -
MORE INFO
S/N: 0000000
BARCODE
QR
Breaker 13 / (10A)
Breaker 14 / (10A)
Breaker 15 / (15A)
Breaker 16 / (15A)
Breaker 3 / (5A)
Breaker 4 / (5A)
Breaker 5 / (5A)
Breaker 6 / (5A)
Breaker 7 / (5A)
Breaker 8 / (5A)
Breaker 9 / (5A)
Breaker 10 / (5A)
Relay / Alarm
Activate (DC+)
Not Active
Not Active
Not Active
Output Mode:
Pin: Pin:
Pins:
Toggle On / Off
Toggle On / Off
Toggle On / Off
Toggle On / Off
Toggle On / Off
Toggle On / Off
Toggle On / Off
Toggle On / Off
Toggle On / Off
Toggle On / Off
Not Active
Not Active
Not Active
Not Active
Not Active
Toggle On / Off
Toggle On / Off
Toggle On / Off
Toggle On / Off
Toggle On / Off
Toggle On / Off
Breaker 1 / (5A)
Breaker 2 / (5A)
Breaker 11 / (5A)
Breaker 12 / (5A)
Not Active
Not Active
P/N: M003137 Rev. 1.4 Page 5

CLMD16 Out of Box Configuration Switch Bank Details:
1
MARETRON CKM12
MARETRON VMM6 (6 Switch)
35
7
911
12
10
8
6
4
2
Switch 1 Switch 2 Switch 3 Switch 4 Switch 5 Switch 6
Brkr. 3 Toggle On / Off Brkr. 4 Toggle On / Off
Brkr. 5 Toggle On / Off
Brkr. 3 Toggle On / Off
Brkr. 4 Toggle On / Off
Brkr. 5 Toggle On / Off
Brkr. 6 Toggle On / Off
Brkr. 7 Toggle On / Off
Brkr. 8 Toggle On / Off
Not Configured
Brkr. 6 Toggle On / Off
Brkr. 1 Toggle On / Off
Brkr. 2 Toggle On / Off
Not Configured
Brkr. 2 Toggle On / Off
Brkr. 1 Toggle On / Off
Not Configured
Not Configured
P/N: M003137 Rev. 1.4 Page 6

Technical Support:
If you require technical support for Maretron products,
you can reach us in any of the following ways:
Telephone: [phone]
Fax: [phone]
E-mail: [email protected]
World Wide Web: http://www.maretron.com
Mail: Carling Technologies, Inc.
Attn: Maretron Technical Support
120 Intracoastal Pointe Dr.
Jupiter, FL 33477 USA
For Additional Information About Your
CLMD16 Scan this QR Code:
CLMD16
