INTRODUCTION
This Software User Guide provides detailed instructions on
operating Ultra View, a customized software application with a
user-friendly interface allowing you to access and control your
Marmitek IP Eye Anywhere camera(s). You can connect up to 16
cameras to monitor different places and record events for each
camera. With Ultra View, you can also change some basic
settings of the camera, such as schedule profiles and motion
detecting. In addition, if your camera supports advanced features,
such as audio or pan/tilt function, you can use these functions
through the control panels of Ultra View.
To use Ultra View, you have to install it in your computer. It is
recommended to use a high performance computer if you want to
connect multiple cameras simultaneously. The following provides
the system requirements:
Platform: Microsoft® Windows® 2000/XP/Vista/7.
Hardware Requirement:
1 camera connected: Intel Pentium III 800MHz; 512MB RAM
2 ~ 4 cameras connected: Intel Pentium 4 1.3GHz; 512MB
RAM
5 ~ 8 cameras connected: Intel Pentium 4 2.4GHz; 1GB RAM
9 ~ 16 cameras connected: Intel Pentium 4 3.4GHz; 2GB
RAM
Resolution: 1024x768 or above
NOTE When you use Ultra View to record video clips, store the
recorded files to an exclusive hard disk drive in your
computer to ensure that there will be enough storage
space.

INSTALLATION
Firstly, insert the Installation CD-ROM into the CD drive of your
computer to initiate the Auto-Run program. The Auto-Run screen
provides the following buttons:
zQuick Guide
zAdvanced Guide
zSoftware Manual
zIP Finder
zInstall Software
zBrowse
zExit
To start installing:
1. Click Install Software and then select Ultra View. The setup
wizard appears to help you complete the installation step-by-
step.
NOTE To use Ultra View, you must have Microsoft .NET
Framework 2.0 installed in the computer. The setup wizard
will detect it and, if the program is not installed yet, ask you
to install it during the process of installing Ultra View.
SOFTWARE USER GUIDE - 3 -

2. On the welcome screen, click Next.
3. Click Browse to select the destination location to install the
software; otherwise, leave the default setting and click Next.
MARMITEK
- 4 -

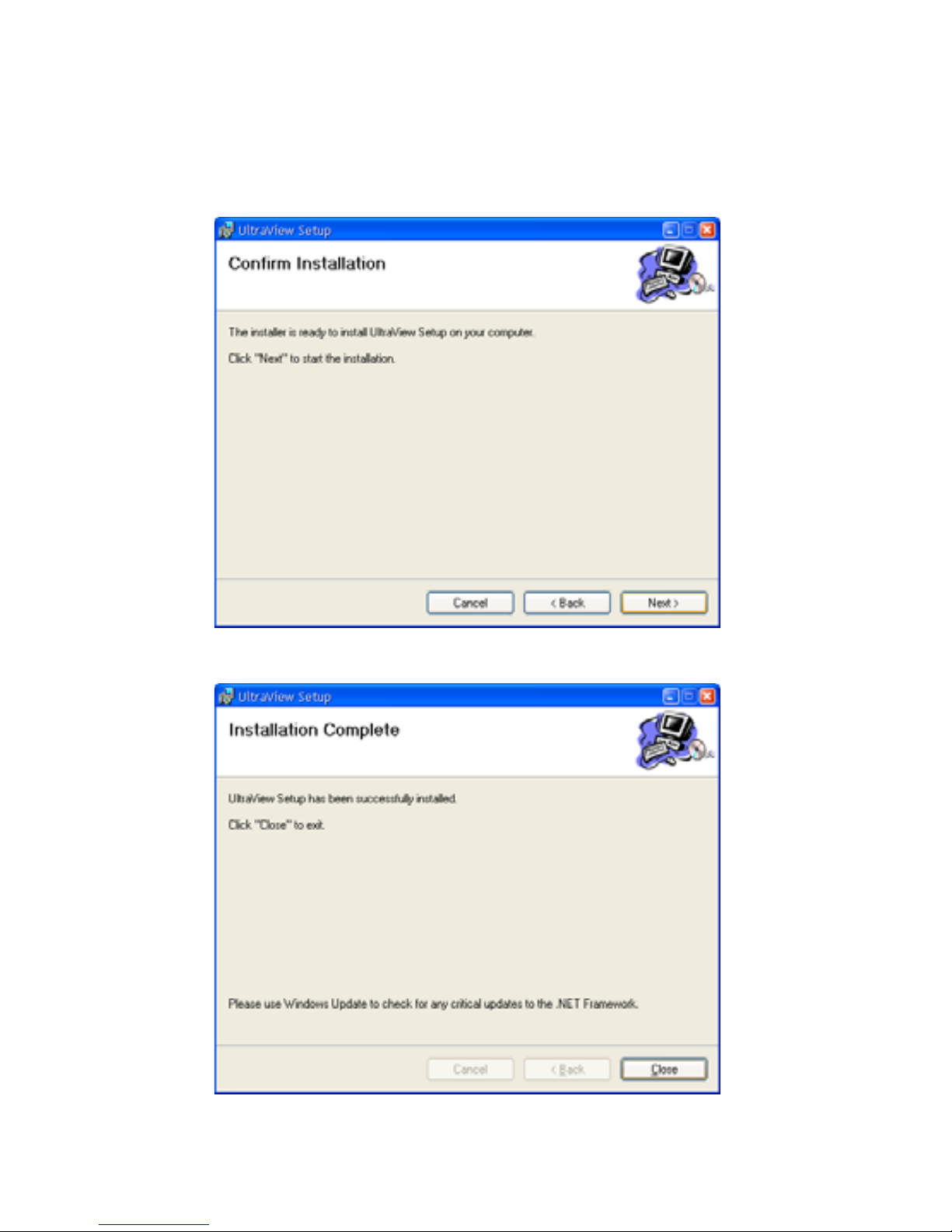

4. Click Next again to confirm installation. The setup wizard
starts to install the software and the progress bar indicates
the installation is proceeding.
5. Installation is completed. Click Close.
SOFTWARE USER GUIDE - 5 -

USING ULTRA VIEW
To launch the program
This section describes the user interface and operating
instructions of Ultra View. To launch the program, click Start >
Programs > UltraView > UltraView, and the main screen will
appear as below:
NOTE Please set the resolution to 1024x768 or above on your
computer while using Ultra View; otherwise, the displayed
main screen may be distorted.
MARMITEK
- 6 -

Item features
The following describes the function of each item on the main
screen:
CONTROLS Panel
-SETTING: Click to enter the Setting screen of Ultra View.
Click again to return to the main screen of Ultra View.
-PLAY: Click to play the recorded video file using the media
player on the computer (for example, Windows Media
Player by default).
-LOCK: Click to lock the camera controls. Click again to
resume controls for the camera. If you have set ID and
Password in SETTING > Account, you will be asked to
enter the required information to unlock.
-ALL RECORD: Click to start recording video clips using all
connected cameras. Click again to stop recording and save
the files in the computer. When you connect only one
camera, this button’s function is the same as the RECORD
button.
TIP By default, the ID and Password boxes are “blank.” Click
SETTING > Account to change the ID and password of
lock/unlock function.
SOFTWARE USER GUIDE - 7 -

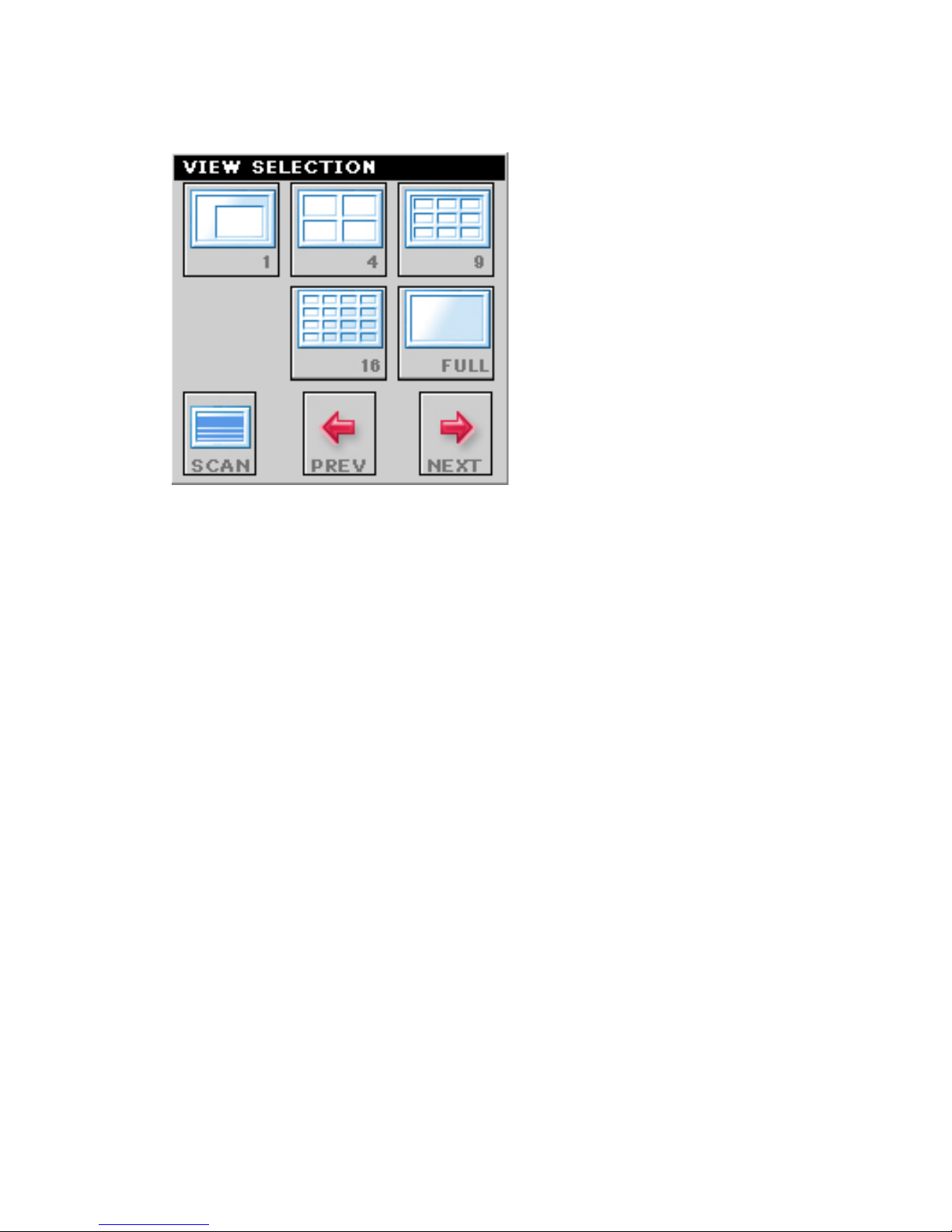

VIEW SELECTION Panel
-View mode buttons: Ultra View provides multiple view
modes, including 1/4/9/16 windows and Full screen mode.
-SCAN: When you connect multiple Marmitek IP Eye
Anywhere cameras, click this button to display the video
views as the main window in turn.
-PREV: When you connect multiple Marmitek IP Eye
Anywhere cameras, click this button to switch the video
view to the previous camera.
-NEXT: When you connect multiple Marmitek IP Eye
Anywhere cameras, click this button to switch the video
view to the next camera.
TIP To set the time interval of scanning, click SETTING >
Other and then adjust the time from 1 to 10 seconds in the
Time interval of scan option.
MARMITEK
- 8 -

CAMERA Panel
-TRIGGER OUT: Click to turn on the trigger out connector of
the Marmitek IP Eye Anywhere camera. This button is
available only when the connected camera supports the
trigger out connector, which is used to control the external
device connected to the camera, such as a light.
-SNAPSHOT: Click to capture a still image using the
selected Marmitek IP Eye Anywhere camera and save the
file in the computer.
-RECORD: Click to start recording a video clip using the
selected Marmitek IP Eye Anywhere camera. Click again to
stop recording and save the file in the computer.
-TALK: Click to speak out through the Marmitek IP Eye
Anywhere camera. This button is available only when the
connected camera supports 2-way audio function.
-LISTEN: Click to receive the on-site sound and voice from
the Marmitek IP Eye Anywhere camera.
SOFTWARE USER GUIDE - 9 -

SYSTEM Panel
This panel displays the current date and time.
PAN-TILT CONTROL Panel (optional)
When you connect a pan/tilt Marmitek IP Eye Anywhere
camera, the system will detect the camera’s function
automatically and the PAN-TILT CONTROL buttons will
become functional. Otherwise, these buttons are displayed as
gray out buttons.
-Direction/Home buttons: Click these buttons to adjust the
camera’s viewing angle to Up ( ) / Down ( ) / Left
() / Right ( ) / Left-Up ( ) / Left-Down ( ) /
Right-Up ( ) / Right-Down ( ).
Click the Home button ( ) to return the camera to the
default position.
-SWING: If you have saved two or more positions for the
selected camera, click this button to control the camera
swinging from one position to another position.
MARMITEK
- 10 -

Video View Window and Camera List
Video View Window
Camera List
-Video View Window: This window displays the video view
of the selected Marmitek IP Eye Anywhere camera, which
can be divided into 4/9/16 windows according to your
selection in VIEW SELECTION panel.
-Camera List: This list displays the information of the
connected Marmitek IP Eye Anywhere camera(s).
SOFTWARE USER GUIDE - 11 -

To add a Marmitek IP Eye Anywhere camera
1. Click SETTING in the CONTROLS panel to display the
Setting screen.
2. Click Add New Camera.
MARMITEK
- 12 -

3. In the pop-up Add New Camera dialog window, you can:
zSelect the Search tab if you are not sure of the camera’s
IP address. Click Search camera to search the available
camera within the network. Once the camera is found and
is shown in the list, select it and click Add Camera.
zSelect the Input tab to add a camera by entering its IP
address directly. Enter the camera’s IP address (default:
192.168.0.30) and Port (default: 80), and then click Add
Camera.
SOFTWARE USER GUIDE - 13 -

4. Enter the User name and Password for the camera, and then
click OK. The connected camera will be displayed in the
Camera List.
5. Click SETTING to return to the Video View Window. The
video view of the selected camera will be displayed now.
MARMITEK
- 14 -

To remove a Marmitek IP Eye Anywhere camera
1. Click SETTING in the CONTROLS panel to display the
Setting screen.
2. Select a camera from the list and click Delete Camera.
Select a camera
To link to the Web page of the camera
Click SETTING > Camera List > Camera Configuration and
then Link web page to launch the Web browser that displays live
view image and Web Configuration of the selected camera.
SOFTWARE USER GUIDE - 15 -

To record video
Ultra View provides three methods to record video clips: one is to
click the RECORD/ALL RECORD button to record manually; the
second is to record by motion detection; the third is to set the
recording schedule in Setting > Recording Configuration >
Schedule Recording Configuration.
zManually recording
Click RECORD/ALL RECORD and it starts recording. Click
the button again to stop.
zTrigger recording by motion detection
When the motion detection function of the selected camera
is enabled, you can configure the camera to start recording

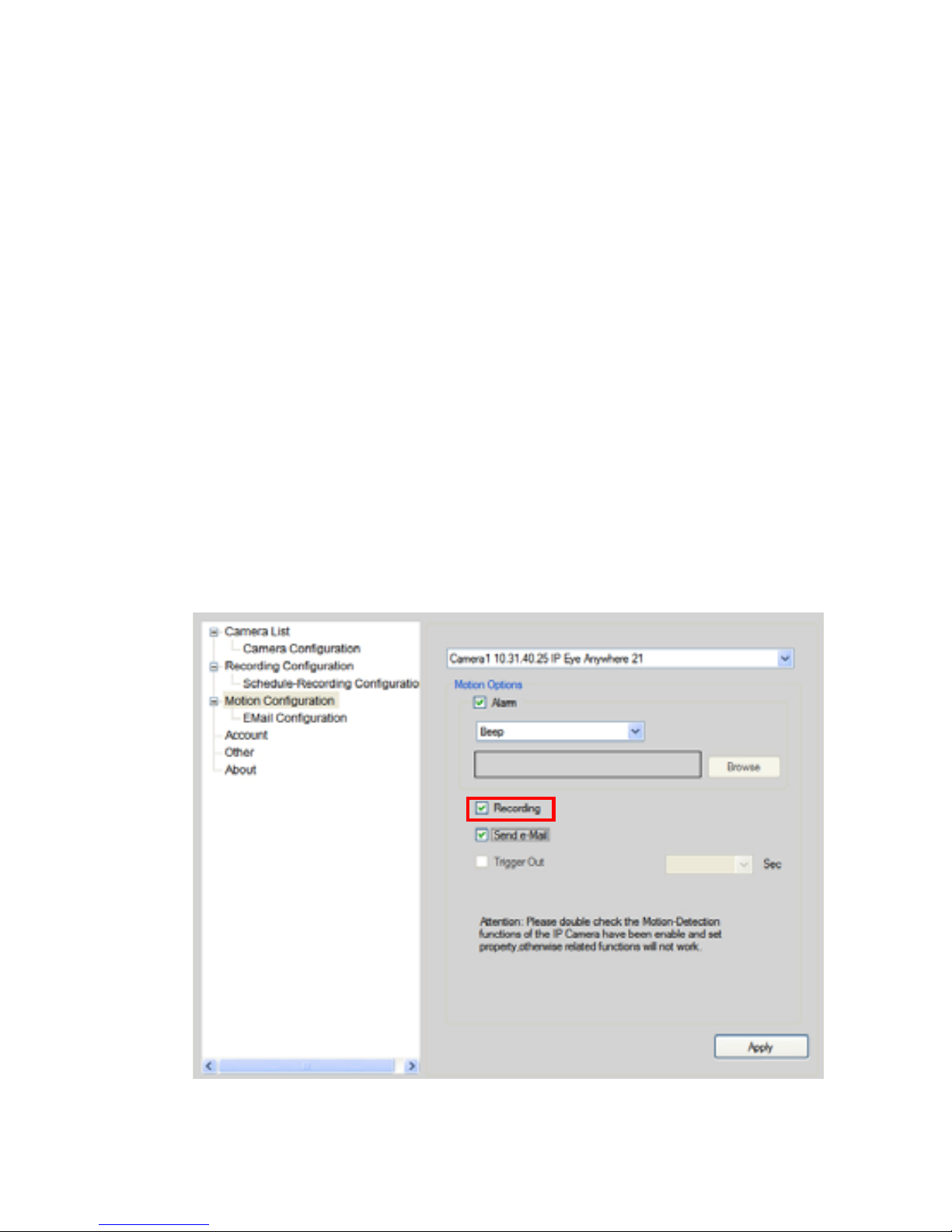

triggered by the motion detected. Click SETTING > Motion
Configuration, and then select the Recording option to
enable the selected camera to record by motion detection.
MARMITEK
- 16 -
zSchedule recording

This recording method will work after you have completed
the required settings in Schedule Recording
Configuration. The recording schedule can be defined by
Dates or Days.
-Dates: First, select the camera from the pull-down list.
Then, click Add to set the Start/Stop date and time and
then click OK to add the recording schedule to the list.
Click Apply to save the settings.
Select a camera
SOFTWARE USER GUIDE - 17 -

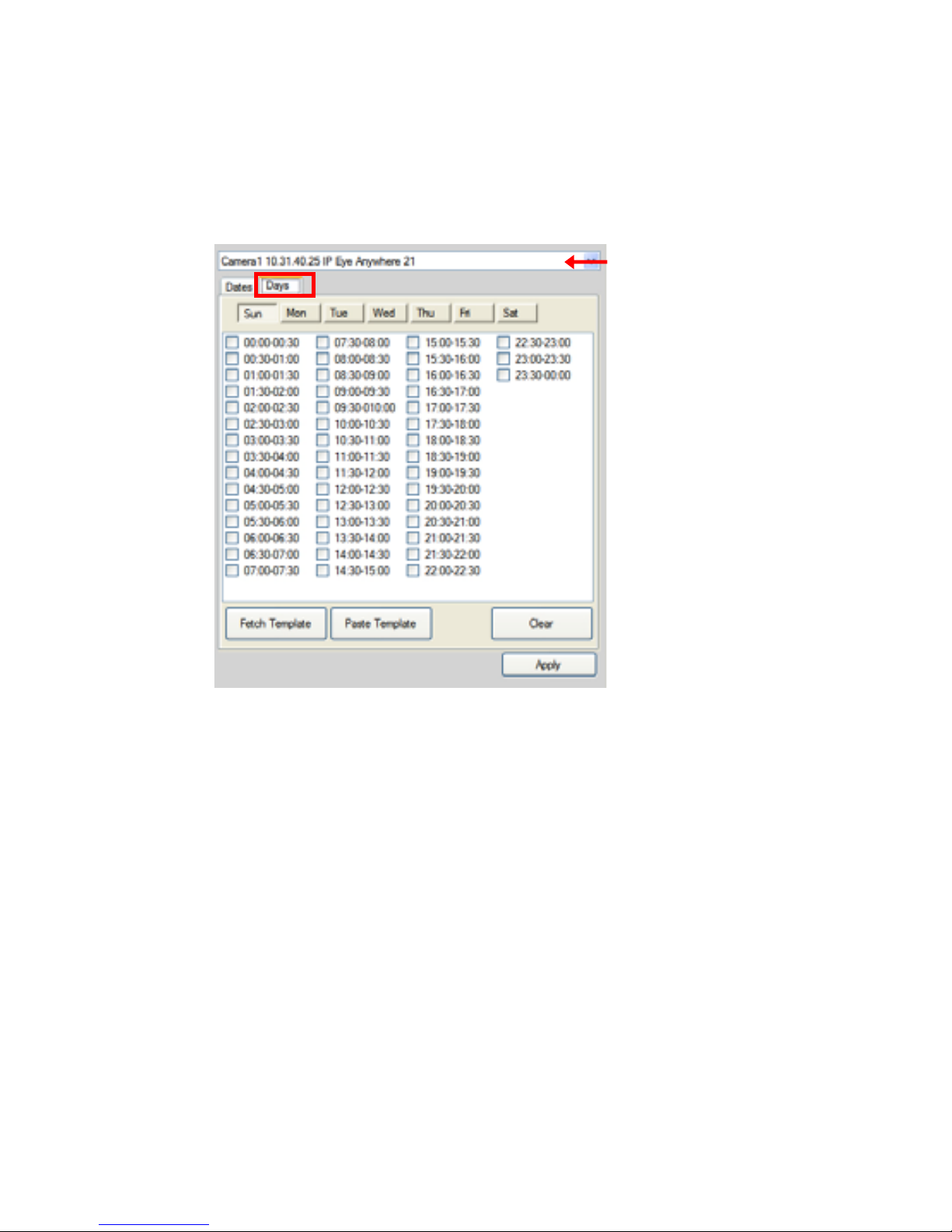

-Days: First, select the camera from the pull-down list and
select Days tab. Then, select the weekday from the day
buttons and then set the time period. Click Apply to save
the settings.
Select a camera
To configure the recording settings

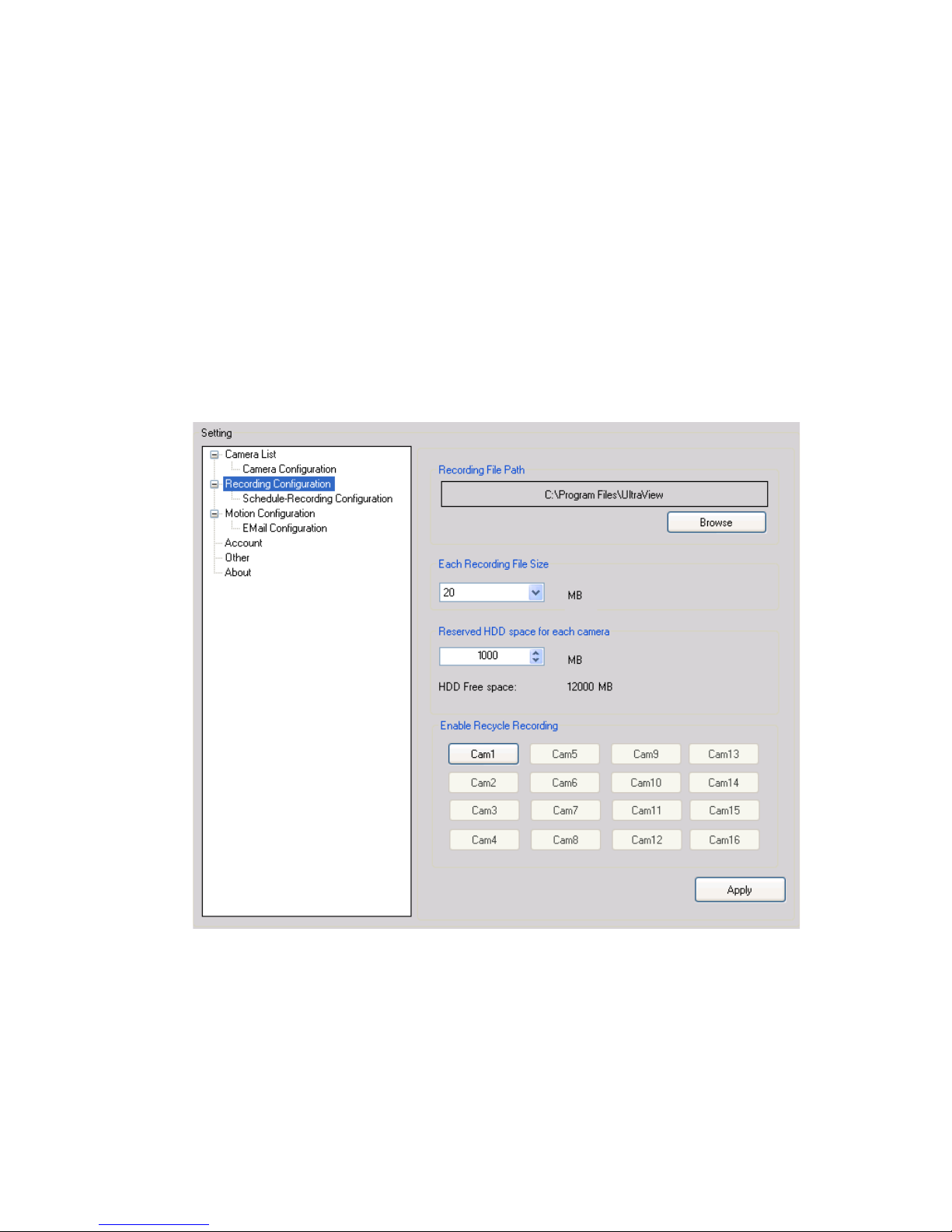

To configure the recording settings, including the storage folder
and storage options, click SETTING > Recording Configuration.
zRecording File Path: To change the destination folder to
save the recorded video file, click Browse under the
Recording File Path box to assign a new folder.
zEach Recording File Size: This option allows you to select
from 20 to 200 MB so that the video will be recorded as
another file automatically when the recording file reaches
the specified size limit.
MARMITEK
- 18 -

zReserved HDD space for each camera: This option
allows you to set to reserve the storage space on the hard
disk drive for the recording of each camera. Before setting
the reserve space on the hard disk drive, you can check the
available storage space that is displayed in the HDD Free
space field.
zEnable Recycle Recording: Click on the camera number
to clear the files when the unreserved space of the hard
disk drive is full.
SOFTWARE USER GUIDE - 19 -
