Mars MA-WOLTE-3X User manual

ANTENNAS BOTTOM VIEW
n 35 mm min.
n 156.8
n 4.0
4 holes
BELOW CEILING MOUNTING ABOVE CEILING PLACEMENT
(BOLTING NOT REQUIRED)
INSTALLATION LAYOUT

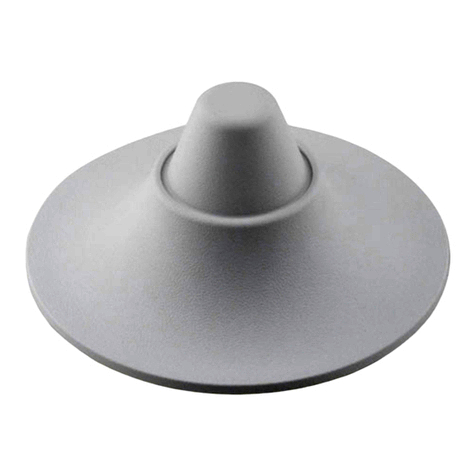

Multi Band OMNI Antenna
MA-WOLTE-3X
CONNECTOR TYPE N-PANEL, FEMALE
PROTECTIVE COVER
PROTECTIVE COVER
1. Open a hole Ø35mm in the ceilng plate.
2. Remove the protective cover by slightly rotating it.
3. Mount the antenna in place with 4 screws (not supplied).
4. Replace the protective cover.
1. Remove the protective cover by slightly rotating it.
2. Place the protactive cover on top of the ceiling
panel (on the inside) - as shown.
3. Place the antenna on the protective cover,
connect the cable and secure it.

English
Mounting instructions - Azimuth and Elevation Adjustable Mount MNT-22
Fig .2 Fig .3
Fig .4
Fig .5
Wall Mounting
Fig .1
Parts List
ITEM QTY. DESCRIPTION
1 1 POLE 1"-4" (NOT SUPPLIED)
2 1 MNT-22-1
3 1 MNT-22-2
4 1 MNT-22-4
5 1 MNT-22-3
6 4 Helical Spring Lock Washer St. St.
#5/16
7 4 Plain Washer St. St. #5/16
8 2 Hex Cap Screw St. St. NC 5/16-18 x
1.25"
9 2 Hex Cap Screw St. St. NC 5/16-18 x 5"
10 4 Plain Washer St. St. #1/4
11 4 Helical Spring Lock Washer St. St.#1/4
12 4 Hex Nut St. St. NC 1/4-20
13 2 Hex Nut St. St. NC 5/16-18
1. Place item No.2 on the antenna,
as illustrated in the drawing.
Align with the screw holes.
2. Connect item No. 2 to the antenna
with spring washers (11),
flat washer (10) and nuts (12).
3. Tighten the nuts at a torque of 30 In*Lbs.
4. Connect item No. 3 to item No. 2 ONLY
as illustrated in Fig.2, with items 6,7,8,13.
Leave screw slightly loose.
5. Connect item No. 3 to item No. 5 as illustrated,
with items 6,7,8,13. Leave screw slightly loose.
NOTE :
MOUNT MNT-22 SUITABLE FOR POLES n1"-4".
6. Attach items No. 4 and 5 to the pole as illustrated
(Fig 4), and connect them using items No. 6, 7, 9.
Close screws (9) one and another in turn up to tightening
torque of each screw is 30...35 Lbs·In.
7. Distance between ends of items 4, 5 on one and another
side must be equal. NO SKEWNESS ALLOWED.
8. Adjust the desired angle, and fully tighten the loose
screws (paragraphs 4, 5) at a torque of 30 Lbs·In.
