Marshalltown 900CM User manual

1 of 18
CM
Includes Model Number 900CMB & 900CMP
104 S. 8th Ave. | Marshalltown, IA
Phone [phone] | Fax [phone]
www.MARSHALLTOWN.com
WS2173

2 of 18 104 S. 8th Ave. Marshalltown, IA Phone [phone] • Fax [phone] www.MARSHALLTOWN.com WS2173

3 of 18
104 S. 8th Ave. Marshalltown, IA Phone [phone] • Fax [phone] www.MARSHALLTOWN.comWS2173
INTRODUCTION
TABLE OF CONTENTS
Safety Precautions ..............................................................................................................………………………………….3-4
Safety Decals ............................................................................................................................................................... 4
Warranty ................................................................................................................................ ……………………………………. 5
Product Operation ........................................................................................................................... ………………………6-7
Parts Breakdown ...................................................................................................................................................8-16
This owner’s manual provides the information needed to operate and maintain MARSHALLTOWN’s 900CM
Mixers. Carefully read and follow all safety and operating instructions in this manual. Also, be sure every operator
of this mixer reads this manual before operating the mixer. The replacement of any part on this mixer by parts
other than the manufacturer’s authorized replacement parts may adversely affect the performance, durability,
warranty or safety of the product.
Be sure safety precautions are observed. Read and follow all safety and operating instructions in this operator’s
manual.
The manufacturer reserves the right to make changes on, or add improvements to its product at any time without
prior notice or obligation. The manufacturer reserves the right to decide, upon its sole discretion and at any time,
to discontinue a product.
Information regarding operation and maintenance of the engine can be found in a separate engine manual
supplied with this mixer if the mixer is supplied with an engine. The engine manual provides all the information
required regarding engine adjustments, operation and maintenance. Should any questions arise concerning
engine operation or service, contact the nearest engine repair facility or the engine manufacturer.
SAFETY PRECAUTIONS
This is the industry’s safety alert symbol. This symbol calls attention to items or operations that could be
dangerous. This symbol can be found throughout this manual and on safety decals on the mixer. Read these
messages carefully.
THE FOLLOWING PRECAUTIONS ARE SUGGESTED TO HELP PREVENT ACCIDENTS. A CAREFUL
OPERATOR IS THE BEST OPERATOR. MOST ACCIDENTS CAN BE AVOIDED BY OBSERVING
CERTAIN PRECAUTIONS. READ AND TAKE THE FOLLOWING PRECAUTIONS BEFORE
OPERATING THIS EQUIPMENT TO HELP PREVENT ACCIDENTS. EQUIPMENT SHOULD BE
OPERATED ONLY BY THOSE WHO ARE RESPONSIBLE AND INSTRUCTED TO DO SO.
1. Read all operating and maintenance instructions before operating or servicing mixer. Test run empty prior to
actual use.
2. A mixer is only as safe as its operator. Give complete and undivided attention to the operation of the mixer.
3. Know how to stop the mixer and the engine instantly.
4. Always have all guards and safety devices attached and in place before operating mixer. Close engine housing
during operation.
5. Keep inexperienced and unauthorized people away from the mixer at all times.
6. Never leave the mixer unattended while it is running.
7. Shut off engine before making any adjustments or putting hands or tools in the drum.

4 of 18 104 S. 8th Ave. Marshalltown, IA Phone [phone] • Fax [phone] www.MARSHALLTOWN.com WS2173
SAFETY PRECAUTIONS CONTINUED
Never reach into the drum or place tools into the drum while the mixer is running
8. Do not overfill the drum. Do not exceed the mixer’s rated capacity.
9. Do not smoke while refueling the engine. Shut off the engine and allow it to cool before refueling. Do not spill
fuel.
10. Block/chock mixer wheels when mixing.
11. Use safety chains while towing mixer.
12. Keep the mixer in good operating condition. Loose or damaged parts are dangerous.
13. Avoid loose clothing that could get caught in moving parts or on control levers.
Keep hands and feet away from moving parts
14. Do not add material to the drum while stopped. Start the drum before adding material.
15. Keep all warning, caution and safety instruction labels in good condition. Replace missing, damaged or
illegible labels.
TOWING & SAFETY CHAINS
For transporting the mixer, slide the tow pole out as far as possible and insert the locking pin. Make sure drum
is locked in position and engine housing is closed and secured; cross the safety chains under the tow pole and
fasten them to the tow vehicle. (fig.1) When operating the mixer, slide the tow pole in and lock it in place.
NOTE! Safety chain length may need to be altered for proper connection to tow vehicle. Reposition the hooks,
DO NOT cut chain.
Allow enough slack to permit proper vehicle turning while keeping chains
snug enough to prevent tow pole from contacting the ground in case the
hitch uncouples.
WS1066

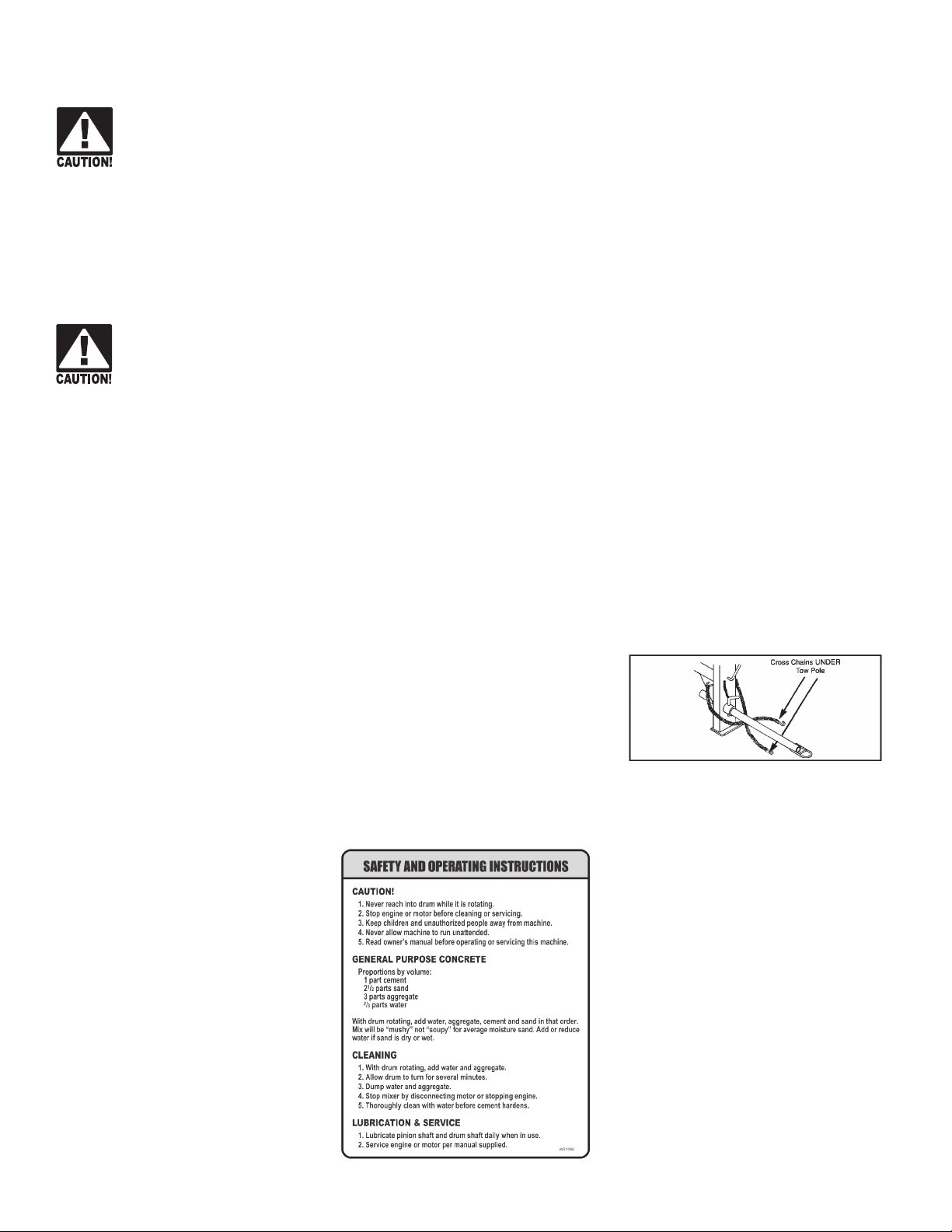

SAFETY DECALS (if applicable)
If your safety and operating decals are damaged, they can be replaced by contacting Customer Service
FIGURE 1

5 of 18
104 S. 8th Ave. Marshalltown, IA Phone [phone] • Fax [phone] www.MARSHALLTOWN.comWS2173
MIXERS ONE-YEAR WARRANTY
This product is warranted to the original purchaser only, to be free of defects in material and workmanship under
normal use, for one year from purchase date. Marshalltown Company shall without charge for parts and labor,
repair or replace such parts which are found to be defective. All transportation charges for replacement parts
must be borne by the purchaser.
For warranty service, the product must be delivered, with proof of purchase date, to the dealer of original
purchase, or any factory authorized service dealer.
If difficulty is encountered in having warranty work performed, contact the factory Service Department.
All implied warranties, including those of merchantability and fitness for a particular purpose, are limited to one
year from date of purchase by the original retail customer and to the extent permitted by law any and all implied
warranties are excluded and disclaimed after the expiration of such period.
Some states do not allow limitations on how long an implied warranty lasts, or the exclusion or limitations of
incidental or consequential damages, so the above limitations or exclusions may not apply to you. This warranty
gives you specific legal rights, and you may also have other rights, which vary from state to state.
Exclusion from this warranty:
1. The following items are not covered under the Marshalltown Company one
year warranty and are warranted by their respective manufacturer.
a) Engines, including starters, generators, alternators and gear reducers
b) Hydraulic components, including pumps, motors and valves
2. All consequential damages, including pickup and delivery of the unit, communication, mileage charges
and/or rental of a replacement unit during repairs are not covered under this warranty, nor are any loss of
income and/or other loss resulting from the failure of the product to function due to a warranty defect.
3. This warranty will not apply when the product becomes inoperative due to misuse, normal wear, neglect,
improper maintenance, accident or freight damage, has not been operated and maintained in accordance
with the instructions furnished in the Operator’s Manual, or has been altered or modified without approval
from the factory Service Department.
4. No parts or products are to be returned to the factory without prior written approval from the factory.
NOTICE: Record the model and serial numbers in the spaces provided.
Product Model Number: ______________________________________________
Product Serial Number: _______________________________________________
Engine/Motor Model Number: _________________________________________
Engine/Motor Code Number: __________________________________________
Purchase Date: ______________________________________________________
Dealer Purchased From: ______________________________________________
Dealer Address: ______________________________________________________
____________________________________________________________________
Dealer Phone Number: ________________________________________________

6 of 18 104 S. 8th Ave. Marshalltown, IA Phone [phone] • Fax [phone] www.MARSHALLTOWN.com WS2173
PRIOR TO START UP
1. Examine the mixer carefully to make sure there was no damage during shipment or since the last use.
Report any damage immediately to the transportation company. Repair any damage before using the mixer.
2. Check the engine oil. Fill as required. Refer to the engine manual for oil specifications.
3. Fill the fuel tank with fresh, clean fuel. Refer to the engine manual for fuel specifications.
4. Grease all fittings as called out in the lubrication specifications.
5. Check hydraulic oil level in tank. The tank must be 75% full at minimum.
6. Replace hydraulic oil and filter every year or 300 hours of use. Refill with Lubsoil super hydraulic AW 32
or equivalent.
7. Check for free rotation of the mixer drum yoke by rotating the drum through one complete dump-charge-
dump cycle. Make sure no foreign objects or tools are in the drum before starting the motor.
8. Start the motor and check for smooth operation of the drum, ring gear, and pinion.
LUBRICATION
Use lithium based grade 2 multi-purpose grease.
Yoke Bearing Hangers:
Yoke bearing hangers are located on the yoke ends and are equipped with grease fittings. These bearings
should be greased weekly.
Wheel Bearings:
Grease wheel bearings once per year. Thoroughly remove old grease from bearings and spindle before
repacking. Pack bearings 1/2 to 2/3 full to prevent overheating.
Drum Tilt Brake Bearing:
The brake bearing casting is located near the front of the mixer and should be greased weekly.
Handwheel Bearing:
The handwheel hub bearing is located on the front of the mixer, behind the handwheel. This bearing should
be greased weekly.
WARNING: DO NOT GREASE BRAKE BAND OR OUTER BRAKING SURFACE OF TILT GEAR.
Engine/Motor:
Refer to the manufacturer’s engine or motor operating instructions for all maintenance and
lubrication requirements and instructions.
ITEM FREQUENCY LUBRICANT PLACES
Yoke Bearing Casting weekly grease 2
Wheel Bearings yearly grease 2
Drum Tilt Brake Bearing Casting weekly grease 1
Handwheel Hub weekly grease 1
Drive Shaft weekly grease 1
LUBRICATION FREQUENCY CHART

7 of 18
104 S. 8th Ave. Marshalltown, IA Phone [phone] • Fax [phone] www.MARSHALLTOWN.comWS2173
STORAGE
For short term storage, clean the mixer and store in a dry place. If the mixer is not to be used for an extended
period of time, service mixer completely and store it in a dry place.
1. Refer to motor/engine instructions for storage instructions.
2. Cover exposed metal surfaces with a thin coat of SAE 30 engine oil.
3. Lubricate per instructions under LUBRICATION section.
GETTING READY FOR MIXING
Lay out forms for your concrete floor, patio, driveway, sidewalk, etc. The quality of concrete is directly related to
the quality of the cement paste. Calculate the proportions of your mix components (cement, sand and coarse
aggregate) according to the job specifications.
LOADING THE MIXER
Start the mixer. Refer to motor/engine instructions. Start drum rotating clockwise by activating hydraulic valve
lever. Pour about half of the water in the drum.
NOTE: The drum may leak slightly when first used. This will stop after a few batches. Add aggregate (gravel) first
then cement second and sand last. Then add remaining water as needed.
MIXING INSTRUCTIONS
1. Start the drum rotating clockwise by activating hydraulic valve lever.
2. Add
1/2water.
3. Add cement and two shovelful of coarse aggregate. The coarse aggregate will break up any lumps in the
cement.
4. Add remaining aggregate: crushed stone, pit-run gravel or sand.
5. Add remaining water as needed.
6. Mix batch for approximately one minute. Drum speed should be about 25 r.p.m. (NOTE: Mixing times may
change.)
UNLOADING THE MIXER
Allow the entire mixture to mix for one full minute. Do not stop mixer from rotating.
Hold the tilt handle and unlock the stop lever. Dump concrete to either side by rotating handwheel in the direction
required. (NOTE: Mixing times may change.)
CARE OF MIXER
It is important to keep the inside of the mixing drum free of hardened concrete. After discharging the last batch
of concrete each day, add a pailful of water and two shovelfuls of gravel to the drum. This will scour the inside of
the drum. Mix for about two minutes, discharge and rinse the drum with water. Never permit concrete to harden
on either the inside or outside of drum.

8 of 18 104 S. 8th Ave. Marshalltown, IA Phone [phone] • Fax [phone] www.MARSHALLTOWN.com WS2173
TILT / LOCK MECHANISM
QTY.DESCRIPTION
FILE NAMEDET.
1
FRAME ASSM, 600CM-PC-BLACK
WU591.iam1
6
HCS 3/8"-16NC X 1.5 ZINC
WR150.ipt2
10
FLAT WASHER, 3/8"
WR103.ipt3
20
LOCK WASHER, 3/8 ZINC PLATED
WR211.ipt4
20
HEX NUT, 3/8-16- 00123
WR108.ipt5
2
YOKE BEARING, 600CM-PC-BLACK
WU733.iam6
8
CB 3/8-16- 00122
WR107.ipt7
1
HANDWHEEL ASSM, 600CM-PC-BLACK
WU657.iam8
1
SHAFT ASSM, DRIVE, 600CM
R5362.iam9
2
SEAL, GREASE DRUM RING
WX1100.ipt10
2
CONE BEARING-TIMKEN LM67048-400CM 400CM-PL 400UT-PL
WX1102.ipt11
1
DRIVE PINION - 600CM
R5360.ipt12
1
HUB, SPROCKET, 600CM
WX1280.iam13
1
TILT PINION SHAFT, 600CM
R5676.ipt14
1
TILT PINION-600CM
R5359.ipt15
1
LEVER, BRAKE ASSM, 600CM-PC-BLACK
WU708.iam16
2
SOCKET SET SCREW 5/16-18 X 5/16
WR1042.ipt17
1
SPROCKET
WX1261.ipt18
6
Regular Helical Spring Lock Washers(Inch Series)
WR364.ipt19
4
SCREW HEX HD 5_16-18X1
WR1007.ipt20
6
GREASE FITTING
WR1028.ipt21
23
HEX NUT 1/2-13NC
WR541.ipt22
2
KEY STOCK 5/16 X 1/4 X 1-1/4
WR1062.ipt23
1
TILT GEAR COVER-600CM
WX1860.iam24
2
LOCKWASHER 1/4 MED SP. REG HELICAL
WR633.ipt25
2
HEX HEAD BOLT 1/4-20 UNC 3/4 ZINC PLATED
WR973.ipt26
1
YOKE ASSM, 600CM-POWDERCOATED
WU592.iam27
1
1-1/4-12 UNF JAM LOCK NUT
WR1089.ipt28
1
Hex Bolt - UNC (Regular Thread - Inch)
WR1094.ipt29
1
SHAFT ASSM, DRUM, 600CM
R5358.iam30
2
CONE, BRG TIMKEN #13686 DRUM SH
WX1270.ipt31
1GASKET, DRUM HUB COVER 600CMWX1238.ipt32
1DRUM HUB COVER - 600CMWU660.iam33
4
WASHER FLAT 5/16WR236.ipt34
2NUT HEX 5_16 - 18WR149.ipt35
2SCREW HEX HD 5_16-18X2 1_4WR1053.ipt36
3SEGMENT, RING GEAR CLASS 30 - POWDERCOATEDWU589.iam37
21LOCKWASHER, 1/2" ZINC PLATED SPLITWR256.ipt38
3WASHER, 2.25 OD X 1-17/32 IDWR1103.ipt39
1SEAL, 20952 CRWX1262.ipt40
1Hex Nuts (Inch Series) Heavy Hex Slotted NutWR1038.ipt41
1TORSION AXLE ASSEMBLY, 2200#WX2079.iam42
4
HCS 1/2-13 X 1-1/2 Z5WR1018.ipt43
1DRUM ASSM, 600CM-PC-BLUEWU711.iam
44
2BLADE ASSM, 600CM TOP-PC-BLUEWU707.iam
45
2BLADE ASSM, 600CM BOTTOM-PC-BLUEWU706.iam46
1GEAR, INTERNAL TILT, 600CM-PC-BLACKWU713.iam
47
1BASE, MOTOR, 600CM, 600CM-PL, 1200-PC-BLACK
WU747.iam
48
2MOUNT, PIVOT-POWDERCOATEDWU717.iam49
23/8-16 FULLY THREADED TAP BOLT GRADE 8WR1233.ipt50
1CSTG, BRAKE BEARING-600CM 600CM-PL-PC-BLACKWU656.iam51
1BRAKE BAND ASSY-PC-BLACKWU709.iam52
1GRIPWL251.ipt53
2WHEEL & TIRE, 1300# CAP, ST175/80-13 ON 545WX2080.ipt54
1COTTER PIN 1_8 X 1 1_2WR1029.ipt
55
2Clevis Pins and Cotter Pins - Extended Prong Square Cut Type (Inch) - Cotter PinWR1074.ipt56
1Hexagon Socket Set Screw - Flat PointWR1041.ipt
57
17FENDER WASHER, 1-3/4 OD X 17/32 ID, ZN PLWR1070.ipt58
2KEY STOCK 3/8 SQ X 1" LONGWR1217.ipt59
1CSTG, HANDWHEEL BRG 600CM-PC-BLACKWU655.iam60
6WASHER-1/2" ZINC PLATEDWR411.ipt61
8HEX HD CP SCR 1/2-13 X 1 1/4WR1017.ipt62
9SCRW7-.500-13NC1.75 HHCS-PLNWR330.ipt63
4HEX CAP SCREW, 3/8"-16 2" GRADE 5 ZINC PLATEDWR264.ipt64
THIS PRINT DISCLOSES SUBJECT MATTER IN WHICH MARSHALLTOWN COMPANY HAS PROPRIETARY RIGHTS. THE RECEIPT OR
POSSESSION OF THIS PRINT DOES NOT CONFER, TRANSFER OR LICENSE THE USE OF THE DESIGN OR TECHNICAL INFORMATION SHOWN
HEREIN. REPRODUCTION OF THIS PRINT OR ANY INFORMATION CONTAINED HEREIN OR MANUFACTURE OF ANY ARTICLE HEREFROM,
FOR DISCLOSURE TO OTHERS, IS FORBIDDEN, EXCEPT BY SPECIAL WRITTEN PERMISSION FROM MARSHALLTOWN COMPANY.
HEAT-TREAT
MATERIAL
APVD.
BY
DATE
CK.
BY
DWN.
BY
DATE DATE
REV.DRAWING NO.
OF
NO.
PART
MACH. NO.
FIXT. NO.NO.
E.D.I. SCALE
DIE NO.
GA. NO.
SHEET
TITLE:
REV. REVISION DESCRIPTION DATE APVD
#
C
UNLESS OTHERWISE SPECIFIED:
ALL DIMENSIONS ARE IN INCHES [MILLIMETERS]
GENERAL UNSPECIFIED TOLERANCES
SUPPLIER VERIFICATION IS
REQUIRED PRIOR TO APPROVAL
CRITICAL DIMENSION / NOTE
FRACTION:
.5
ANGLE: 1/32
°
XXXX
XX
XXX
.020
DECIMAL: in. [mm]
.010
.005
.0005
- [.5]
X
-
[.013]
[.12]
[.25]
X
21487
MANUAL
ILLUSTRATIONS
-
1 3
-
rstone
9/16/2016
C:\Vault Local\Public\Product\21487 MANUAL ILLUSTRATIONS.idw
V49
16
56
55
8
59
26
25 54
3
14
24
21
6
21
47
52
2
51
5
4
3
2
15
60
53
TILT/LOCK MECHANISM
9
23
12
21
11 10
13
17
18
28 21
19
10 11
7
5
4
DRIVE SPROCKET ASSEMBLY
7
21
20
6
61
22
15
1
11
11
5
9
1
2
3
4
6
2
3
4
14
13
8
7
10
21
19
20
18
16
11
23
24
22
12
17

9 of 18
104 S. 8th Ave. Marshalltown, IA Phone [phone] • Fax [phone] www.MARSHALLTOWN.comWS2173
REF # NAME PART # QTY
1 HEX CAP SCREW 3/8"-16 X 1.5" * 6
2 FLAT WASHER, 3/8" * 6
3 LOCK WASHER, 3/8" * 10
4 HEX NUT, 3/8"-16 * 10
5 YOKE BEARING, 600CM MIX19027 1
6 CARRIAGE BOLT 3/8"-16 X 1 1/4" * 6
7 HANDWHEEL ASSM, 900CM R0667 1
8 TILT PINION SHAFT, 600CM MIX19061 1
9 TILT PINION-600CM MIX19098 1
10 LEVER, BRAKE ASSM, 600CM MIX19087 1
11 GREASE FITTING, 1/8" * 4
12 TILT GEAR COVER-600CM MIX29357 1
13 LOCK WASHER, 1/4" * 2
14 HEX CAP SCREW 1/4"-20 X 3/4" * 2
15 GEAR, INTERNAL TILT, 600CM MIX19102 1
16 BRAKE BEARING-600CM MIX19030 1
17 BRAKE BAND ASSY MIX19119 1
18 GRIP * 1
19 COTTER PIN 1/8" X 1 1/2" * 1
20 COTTER PIN * 1
21 KEY STOCK 3/8 SQ X 1" * 2
22 HANDWHEEL BRG 600CM MIX19029 1
23 FLAT WASHER, 1/2" * 2
24 HEX NUT, 1/2" - 13 * 2
TILT / LOCK MECHANISM PARTS BREAKDOWN
TILT / LOCK MECHANISM REPLACEMENT KITS ON NEXT PAGE...
* Common hardware, can be purchased locally.

10 of 18 104 S. 8th Ave. Marshalltown, IA Phone [phone] • Fax [phone] www.MARSHALLTOWN.com WS2173
REF # NAME QTY
12 TILT GEAR COVER - 600CM 1
13 LOCK WASHER, 1/4" 2
14 HEX CAP SCREW, 1/4"-20 X 3/4" 2
REF # NAME QTY
18 GRIP 1
10 LEVER, BRAKE ASSM, 600CM 1
19 COTTER PIN 1/8" X 1 1/2" 1
20 COTTER PIN 1
11 GREASE FITTING, 1/8" 1
16 BRAKE BEARING-600CM 1
1 HEX CAP SCREW 3/8"-16 X 1 1/2" 1
2 FLAT WASHER, 3/8" 1
3 LOCK WASHER, 3/8" 1
4 HEX NUT, 3/8"-16 1
17 BRAKE BAND ASSY 1
23 FLAT WASHER-1/2" 2
24 HEX NUT, 1/2"-13 2
REF # NAME QTY
15 GEAR, INTERNAL TILT, 600CM 1
9 TILT PINION - 600CM 1
1 HEX CAP SCREW 3/8"-16 X 1 1/2" 4
21 KEY STOCK, 3/8" SQ X 1" 2
8 TILT PINION SHAFT, 600CM 1
6 CARRIAGE BOLT 3/8"-16 X 1 1/4" 6
2 FLAT WASHER, 3/8" 6
3 LOCK WASHER, 3/8" 4
4 HEX NUT, 3/8"-16 6
11 GREASE FITTING, 1/8" 2
5 YOKE BEARING, 600CM 1
7 HANDWHEEL BRG 600CM 1
900CM TILT/LOCK GEAR COVER EDI# 27789 INCLUDES:
900CM TILT/LOCK LOCK MECHANISM EDI# 27790 INCLUDES:
900CM TILT/LOCK GEARS SHAFT PILLOW BLOCK EDI# 27791 INCLUDES:
TILT / LOCK MECHANISM REPLACEMENT KITS

11 of 18
104 S. 8th Ave. Marshalltown, IA Phone [phone] • Fax [phone] www.MARSHALLTOWN.comWS2173

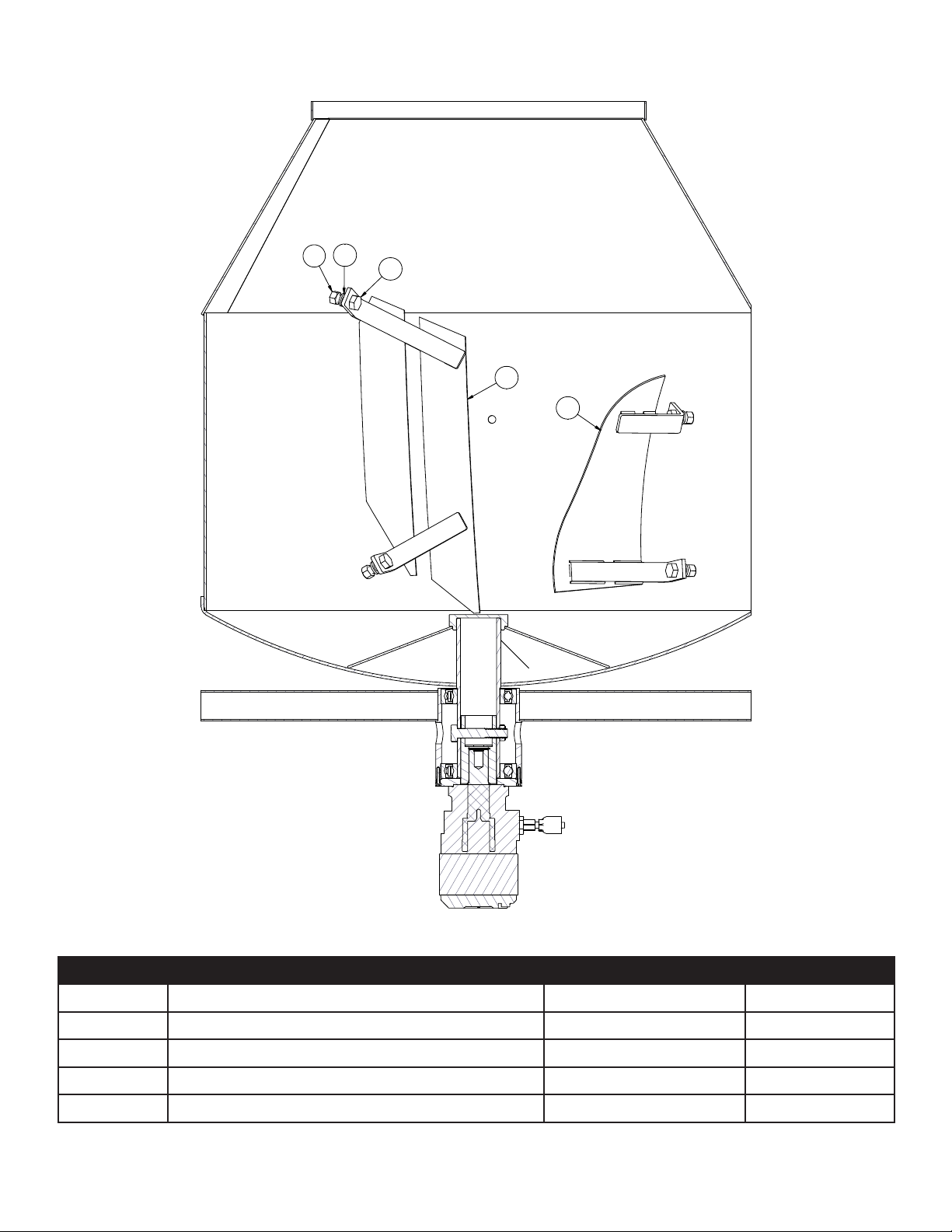

DRUM PADDLE PARTS BREAKDOWN:
REF # NAME PART # QTY
25 NUT - * 8
169 LOCK WASHER, ” * 8
153 HCS - X .” LONG * 8
155 BLADE ASSM, CM TOP -PC-BLUE R0484 2
156 BLADE ASSM, CM BOTTOM-PC-BLUE RO483 2
* Common hardware, can be purchased locally.
155
156
153
169
28
DRUM PADDLE INSTALLATION
25

12 of 18 104 S. 8th Ave. Marshalltown, IA Phone [phone] • Fax [phone] www.MARSHALLTOWN.com WS2173
STEEL DRUM, YOKE, AND DRUM SHAFT ASSEMBLY
27
45
41
38
74
48
39
40
38
43
59
42
44

13 of 18
104 S. 8th Ave. Marshalltown, IA Phone [phone] • Fax [phone] www.MARSHALLTOWN.comWS2173
900CM DRUM SHAFT PARTS BREAKDOWN:
YOKE ASSEMBLY EDI  INCLUDES:
STEEL DRUM ONLY EDI  INCLUDES:
REF # NAME PART # QTY
40 MOTOR, HYD PARKER TFASAAAA WX2662 1
48 - SHCS X ” LONG * 6
39 COLLAR END PLATE WX2670 1
38 BEARING, RADIAL, MM ID, MM OD WX2664 2
44 WASHER, .” OD .” ID, . THICK WR1435 1
42 SNAP RING, .” SHAFT, . THICK * 1
41 DRUM DRIVE SHAFT COUPLER WX2665 1
74 NUT, - THIN NYLOCK * 1
45 HCS - X . LONG GRADE  * 1
27 YOKE WELDMENT R0395 1
43 WASHER, . OD . ID . THICK WR1434 1
59 DRUM WELDMENT R0394 1
* Common hardware, can be purchased locally.
REF # NAME QTY
3 YOKE ASSEMBLY 1
REF # NAME QTY
15 STEEL DRUM ASSEMBLY 1

14 of 18 104 S. 8th Ave. Marshalltown, IA Phone [phone] • Fax [phone] www.MARSHALLTOWN.com WS2173
117
121
120
124
139
167
150
149
146
3
6
4
AXLE AND ENGINE ASSEMBLY
37
8

15 of 18
104 S. 8th Ave. Marshalltown, IA Phone [phone] • Fax [phone] www.MARSHALLTOWN.comWS2173
AXLE AND ENGINE TABLE PARTS BREAKDOWN
REF # NAME PART# QTY
146 SOLID AXLE ASSEMBLY WX2271 1
139 FILTER,  MIC RETURN MPS-R WX1793 1
124 HYD TANK, POLYMER, . GALLON WL700 1
121 PUMP, HYD PARKER
PGPACAHNDDBB WX2661 1
120 HAYES COUPLING G--L-- WX2663 1
117 ENGINE, HONDA GX200 WX2697 1
150 HYDRAULIC VALVE SET WX2162 1
149 WHEEL AND TIRE ASSM WX2080 1
3 HCS 3/8”-16NC X 1.5 LONG * 6
4 WASHER, 3/8” * 10
6 NUT, 3/8-16 * 4
7 SHCS M8 x 25MM LONG * 4
8 FLAT WASHER, 5/16'' * 4
167 ENGINE HOUSE RO396 1
NS HYDRAULIC HOSE KIT WX2696 1
* Common hardware, can be purchased locally.
LUG NUT KIT EDI  INCLUDES:
WHEEL & TIRE EDI  INCLUDES:
REF # NAME QTY
7 OPEN WHEEL NUT 10
REF # NAME QTY
8 WHEEL & TIRE 1

16 of 18 104 S. 8th Ave. Marshalltown, IA Phone [phone] • Fax [phone] www.MARSHALLTOWN.com WS2173
ENGINE
900CM GAS ENGINE INSTALL HDW EDI  INCLUDES:
ENGINE, GX HONDA FOR 900CM
REF # NAME QTY
5 HEX NUT, "- 4
6 LOCK WASHER, " 4
7 FLAT WASHER, " 4
8 CARRIAGE BOLT, "- X  " 4
REF # NAME QTY
1 ENGINE, GXUT - QX 1
DETAIL A
SCALE 1 / 2
SHEETDESCRIPTIONQTY.DET.
MIXER, 600CM W/O POWER11
SPROCKET, 50B18, 1" BORE, W/1/4"12
TOW POLE FOR BALL HITCH,
600-1620-POWDERCOATED
13
BALL COUPLER RAM22-30014
CHAIN,1/4" X 58"L W/7/16" HOOK25
HCS 1/2-13 X 4"36
LOCKING NYLON NUT, 1/2-1327
WASHER-1/2" ZINC PLATED18
LOCKWASHER, 1/2" ZINC PLATED
SPLIT
19
HEX NUT 1/2-13NC110
CHAIN, #50-1 ROLLER RVTD TYP111
LINK, CONNECTING, #50112
CARRIAGE BOLT 3/8-16 X 1-3/4413
FLAT WASHER, 3/8"414
LOCK WASHER, 3/8 ZINC PLATED415
HEX NUT, 3/8-16- 00123416
DECAL - MARSHALLTOWN LOGO
BANNER
118
STOP BUTTON,MUSHROOM HEAD,
TURN
119
DECAL - SAFETY AND OPERATING120
MODEL/SERIAL PLATE121
RIVET, ABL42 ALUM/STEEL MARSON
BLIND
422
LABEL - BLANK LABEL, 2.5" X 1"123
REFLECTOR,RED P/N 60-0015-11225
DECAL, DRUM ROTATION126
ENGINE, 8HP #GX240K1HA W/6:1 R127
ENGINE HOUSE, TUBE FRAME,
600CM-PC-BLUE
128
ENGINE HOUSE LATCH, 1685A26229
PPH MACHINE SCREW, 10-24 X 1/2" Z830
KEPS NUT, 10-24831
DECAL-GEAR WARNING132
NUT, RIVET ATLAS ENG
AELS8-420-260
633
HCS 1/4-20 X 3/4" Z5634
SPRING CLIP FOR LOCKING PIN135
A
THIS PRINT DISCLOSES SUBJECT MATTER IN WHICH MARSHALLTOWN COMPANY HAS PROPRIETARY RIGHTS. THE RECEIPT OR
POSSESSION OF THIS PRINT DOES NOT CONFER, TRANSFER OR LICENSE THE USE OF THE DESIGN OR TECHNICAL INFORMATION SHOWN
HEREIN. REPRODUCTION OF THIS PRINT OR ANY INFORMATION CONTAINED HEREIN OR MANUFACTURE OF ANY ARTICLE HEREFROM,
FOR DISCLOSURE TO OTHERS, IS FORBIDDEN, EXCEPT BY SPECIAL WRITTEN PERMISSION FROM MARSHALLTOWN COMPANY.
HEAT-TREAT
MATERIAL
APVD.
BY
DATE
CK.
BY
DWN.
BY
DATE DATE
REV.DRAWING NO.
OF
NO.
PART
MACH. NO.
FIXT. NO.NO.
E.D.I. SCALE
DIE NO.
GA. NO.
SHEET
TITLE:
REV. REVISION DESCRIPTION DATE APVD
#
C
UNLESS OTHERWISE SPECIFIED:
ALL DIMENSIONS ARE IN INCHES [MILLIMETERS]
GENERAL UNSPECIFIED TOLERANCES
SUPPLIER VERIFICATION IS
REQUIRED PRIOR TO APPROVAL
CRITICAL DIMENSION / NOTE
FRACTION:
 .5
ANGLE:
 1/32
°
 XXXX
 XX
 XXX
 .020
DECIMAL: in. [mm]
 .010
 .005
 .0005
 - [.5]
 X
-
[.013]
[.12]
[.25]
X
27256
CR2
MANUAL
PG 26
GAS
-
1 1
-
rstone
11/20/2018
C:\Vault Local\Public\Product\27256 CR2 MANUAL PG 26 GAS.idw
V1
11
12
2
13
14
15
16
8
7
8
6
5

17 of 18
104 S. 8th Ave. Marshalltown, IA Phone [phone] • Fax [phone] www.MARSHALLTOWN.comWS2173

18 of 18 104 S. 8th Ave. Marshalltown, IA Phone [phone] • Fax [phone] www.MARSHALLTOWN.com WS2173
104 S. 8th Ave., Marshalltown, IA
Phone [phone]
Fax [phone]
www.MARSHALLTOWN.com
WS2173
