Martin Hurricane Technical specifications

Martin®Air Cannon
Maintenance Instructions
Operator’s Manual
M3747
Martin®Hurricane
Air Cannon
Martin®Tornado
Air Cannon
Go to Martin®Air Cannon Maintenance Instructions web page

Important
MARTIN ENGINEERING HEREBY DISCLAIMS ANY LIABILITY FOR: DAMAGE DUE TO
CONTAMINATION OF THE MATERIAL; USER’S FAILURE TO INSPECT, MAINTAIN AND TAKE
REASONABLE CARE OF THE EQUIPMENT; INJURIES OR DAMAGE RESULTING FROM USE OR
APPLICATION OF THIS PRODUCT CONTRARY TO INSTRUCTIONS AND SPECIFICATIONS
CONTAINED HEREIN. MARTIN ENGINEERING’S LIABILITY SHALL BE LIMITED TO REPAIR
OR REPLACEMENT OF EQUIPMENT SHOWN TO BE DEFECTIVE.
Observe all safety rules given herein along with owner and Government standards and regulations. Know
and understand lockout/tagout procedures as defined by American National Standards Institute (ANSI)
z244.1-1982, American National Standard for Personnel Protection - Lockout/Tagout of Energy Sources -
Minimum Safety Requirements and Occupational Safety and Health Administration (OSHA) Federal
Register, Part IV, 29 CFR Part 1910, Control of Hazardous Energy Source (Lockout/Tagout); Final Rule.
The following symbols may be used in this manual:
DANGER
!
Danger: Immediate hazards that will result in severe personal injury or death.
WARNING
!
Warning: Hazards or unsafe practices that could result in personal injury.
CAUTION
!
Caution: Hazards or unsafe practices that could result in product or property damages.
IMPORTANT
Important: Instructions that must be followed to ensure proper installation/operation of equipment.
NOTE
Note: General statements to assist the reader.

Martin Engineering M3747-05/12 iMartin®Air Cannon Maintenance Instructions
Table of Contents
Section Page
Martin®Hurricane Air Cannon Main Piston Rebuild Instructions . . . . . . . . . . . . . . . . . . . . . . 1
Martin®Hurricane Air Cannon Exhaust Valve Rebuild Instructions . . . . . . . . . . . . . . . . . . . . 6
Martin®Tornado Air Cannon Exhaust Valve Rebuild Instruction . . . . . . . . . . . . . . . . . . . . . . 14

Martin Engineering M3747-05/12 1 Martin®Air Cannon Maintenance Instructions
HMartin®Hurricane Air Cannon Main Piston Rebuild Instructions
IMPORTANT
Read entire section before beginning work. All safety
rules defined in your air cannon’s documentation, and
all owner/employer safety rules, must be strictly
followed when installing and servicing this equipment.
DANGER
!
Turn off and lock out/tag out air supply and energy
source before blasting air cannon to prevent air
cannon from refilling.
Do not open door/port or enter structure before
turning off compressed air source, locking out
controls, purging line pressure, and venting air from
tank. Opening structure door while cannon is
operational can kill you.
1. Turn off and lock out/tag out energy source according to American National Standards Institute (ANSI)
z244.1-1982 and Federal Register, Volume 54, Number 169, Part IV, 29 CFR Part 1910.
2. Blast air cannon to remove air from tank. If tank has a relief valve, pull ring to make sure air stored in
cannon has been released.
3. Close safety slide gate if equipped with one. If air cannon has an open discharge port, make sure you
are safely isolated from free flowing material or hazards inside the discharge area.
4. Disconnect air lines.
5. Remove bolts from valve assembly.
1
1
23
45

Martin Engineering M3747-05/12 2 Martin®Air Cannon Maintenance Instructions
6. Remove the valve from tank.
7. Remove 1/4-in. bolts that hold basket to exhaust valve.
8. Remove old piston and spring assembly.
9. Inspect bearing surface for excessive wear or stress fractures in the aluminum casting.
10. Remove o-rings and clean all mating surfaces.
IMPORTANT
All o-ring mating surfaces need to be clean and smooth
for an air tight seal. Apply a small amount of grease to
o-rings to ensure o-rings stay secure in the o-ring
groove during assembly. Make sure o-rings are not
pinched during reassembly.
11. Install new piston and spring into bearing basket.
12. Install o-ring on exhaust valve.
678
Bearing Surface
910
#166 O-Ring
11 12

Martin Engineering M3747-05/12 3 Martin®Air Cannon Maintenance Instructions

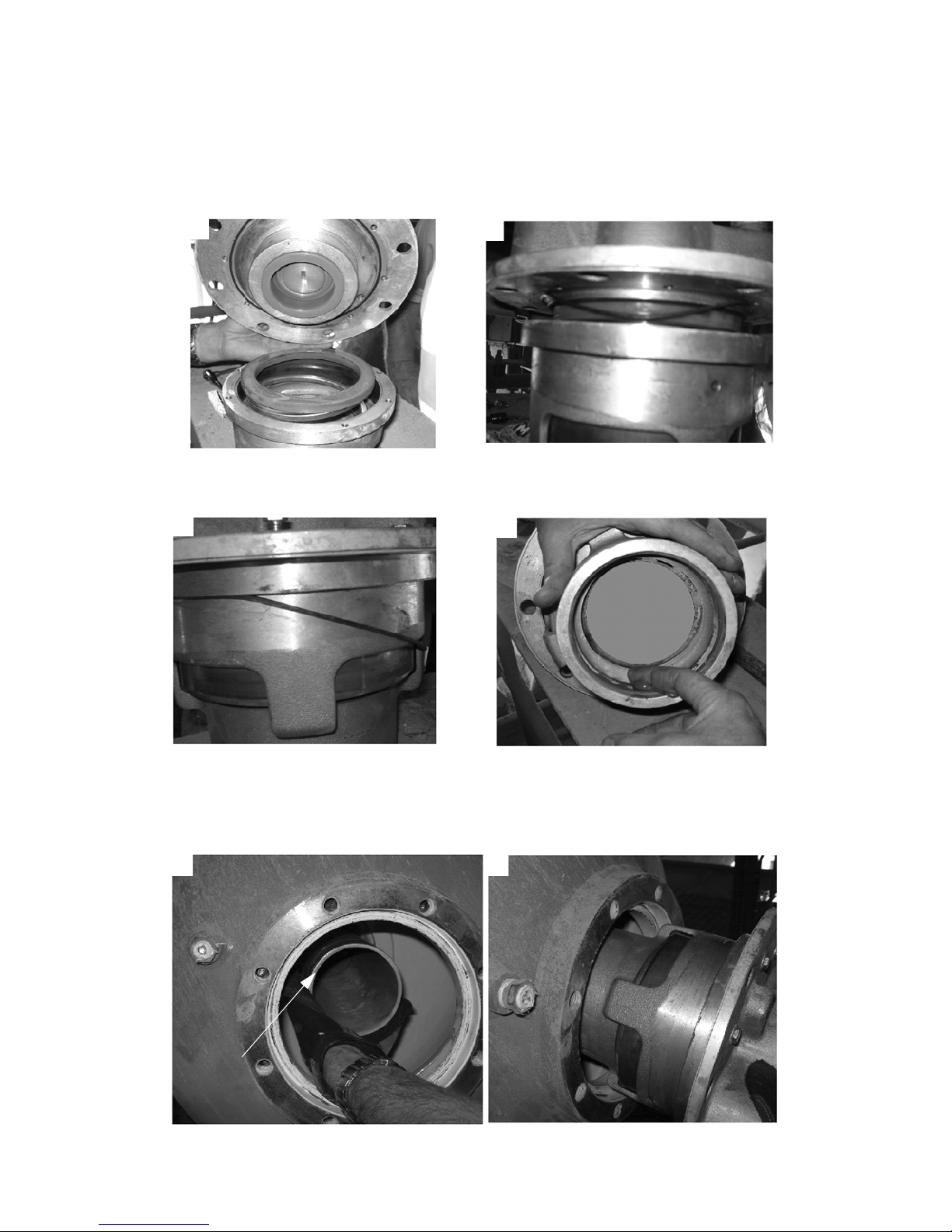

13. Align bolt holes and install 1/4-in. bolts.
14. Install bearing basket o-rings.
15. Apply high-temperature grease to discharge tube o-rings.
16. Inspect the interior of the air cannon.
17. Install valve assembly onto discharge tube.
#169 O-Ring #425 O-Ring
13 13
14 15
Discharge
Tu b e
16 17

Martin Engineering M3747-05/12 4 Martin®Air Cannon Maintenance Instructions
18. Install compression washers and bolts.
19. Connect air lines and check for leaks.
20. Move the safety slide gate to the open position and install pin.
21. Slowly pressurize the air cannon and check for leaks.
22. Pressurize the air cannon and test fire to make sure all connections are correct.
23. The Martin®Hurricane Air Cannon is now ready for operation. Watch air gauge when cannon is fired.
The needle should drop to “zero” instantly. The exhaust port elbows should be pointing down, so dirt
does not fall into the exhaust valve.
Fill Line
Control Line
18 19

Martin Engineering M3747-05/12 5 Martin®Air Cannon Maintenance Instructions

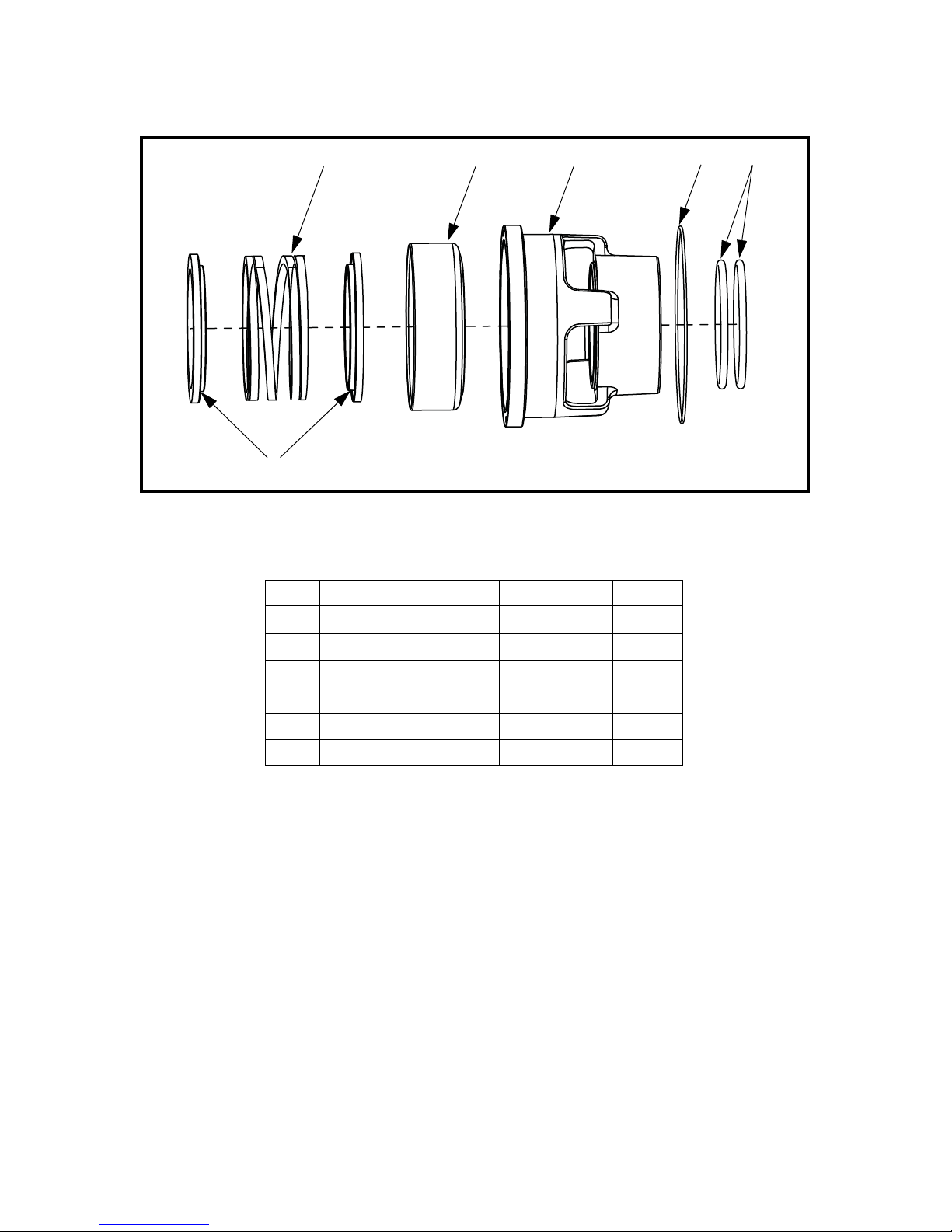

Martin®Hurricane Air Cannon Main Piston Rebuild Kit, P/N 38426
Item Description Part No. Qty
1 Spring Bumper Pad 38064 2
2 Compression Spring 35077 1
3 Piston 38022 1
4 Basket 37897 1
5 O-Ring #169 38066 1
6 O-Ring #425 20771-5 2
1
23456

Martin Engineering M3747-05/12 6 Martin®Air Cannon Maintenance Instructions
Martin®Hurricane Air Cannon Exhaust Valve Rebuild Instructions
1. Remove lever cap and pipe elbows.
2. Hold woodruff key, supplied in the kit, in the valve stem slot using locking pliers. Remove the flat head
screw from the valve stem. Usually a quick hit with a dead blow hammer will break the threadlocker
adhesive free.
3. Disassemble the rest of the exhaust valve, and check for wear on the piston pocket and valve stem seat.
4. Clean all areas of the exhaust valve.
Pocket
Valve
Stem Seat

Martin Engineering M3747-05/12 7 Martin®Air Cannon Maintenance Instructions

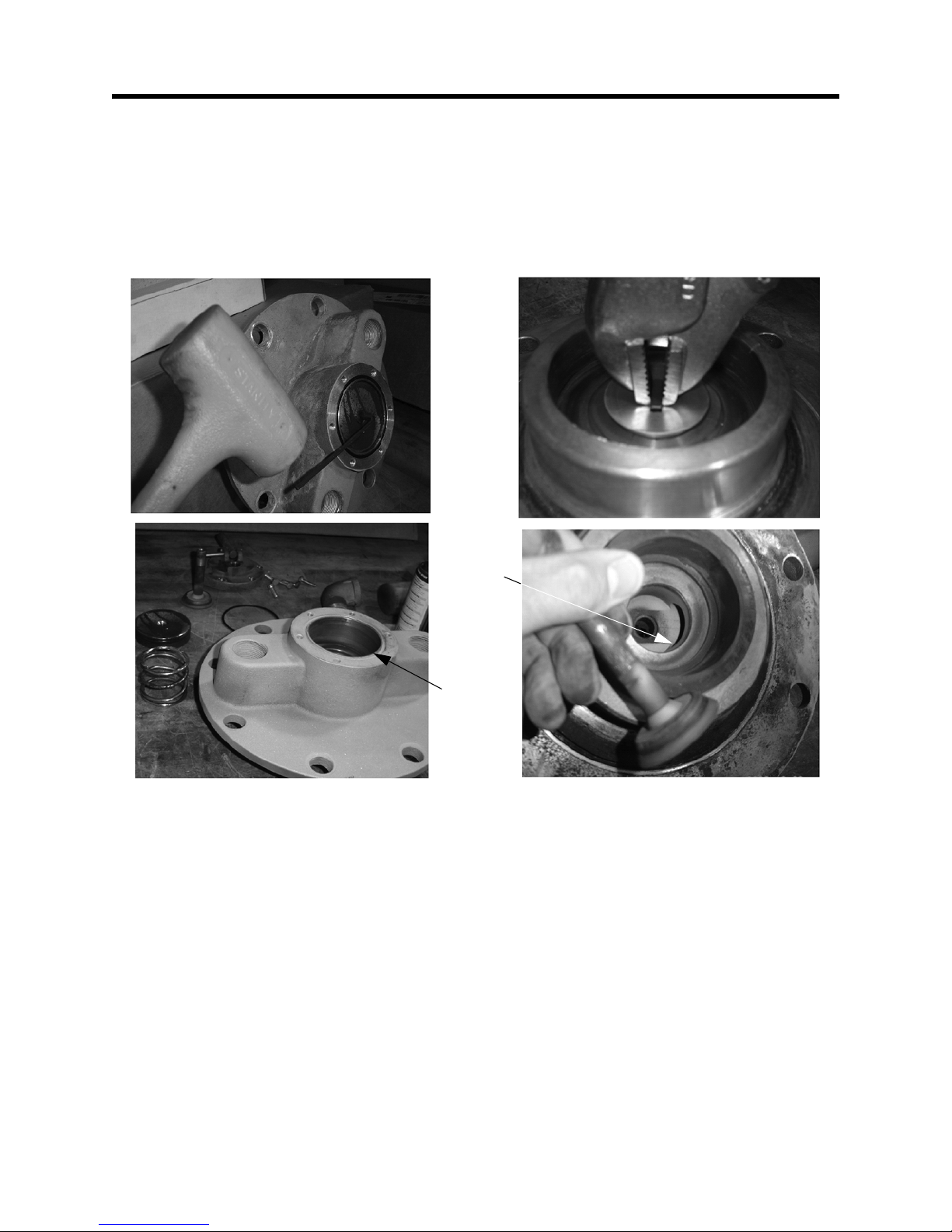

5. Drive out bearing sleeve using a standard (7/16”) deep well socket.
6. Press in new bearing sleeve using the next size socket (1/2”) on the bearing and lightly tapping with
the dead blow hammer.

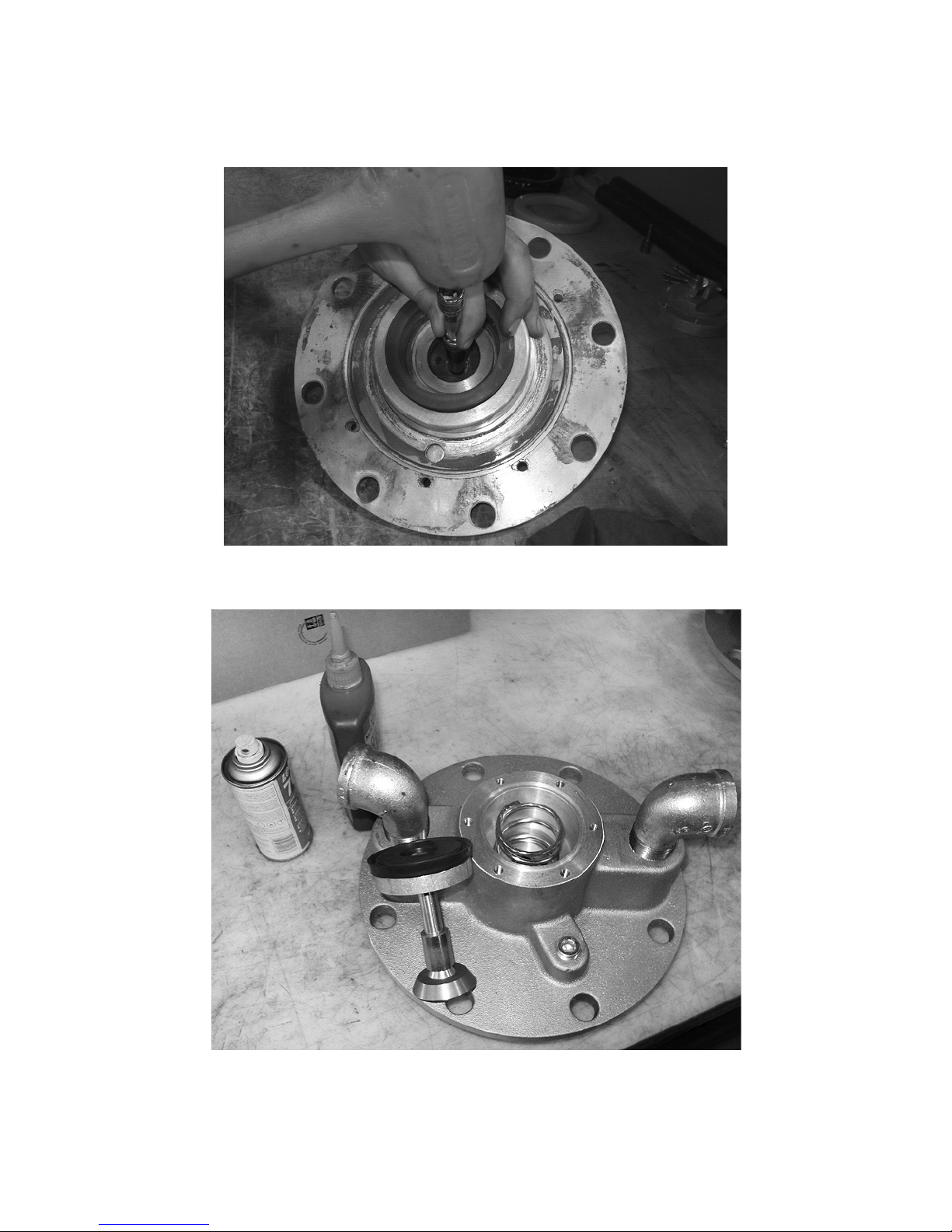

7. To reassemble the valve, threadlocker and primer will be needed for the screw and blind hole.

Martin Engineering M3747-05/12 8 Martin®Air Cannon Maintenance Instructions
8. Insert woodruff key into key way in valve stem. Tap the key with a hammer to press it into key way.
9. Insert air inlet valve into valve body cap.
10. Insert compression spring and piston into valve body cap.
11. Apply primer to blind hole and screw, and let dry 3–5 minutes. Apply three drops of medium-duty
threadlocker in the blind hole and two drops on the screw. Hold the key using locking pliers while
tightening the screw. Tighten the screw to 12 ft-lbs.
IMPORTANT
Allow 24 hours for the threadlocker to cure.
12. Insert lip seal into valve body cap. Make sure orientation of lip seal is correct.

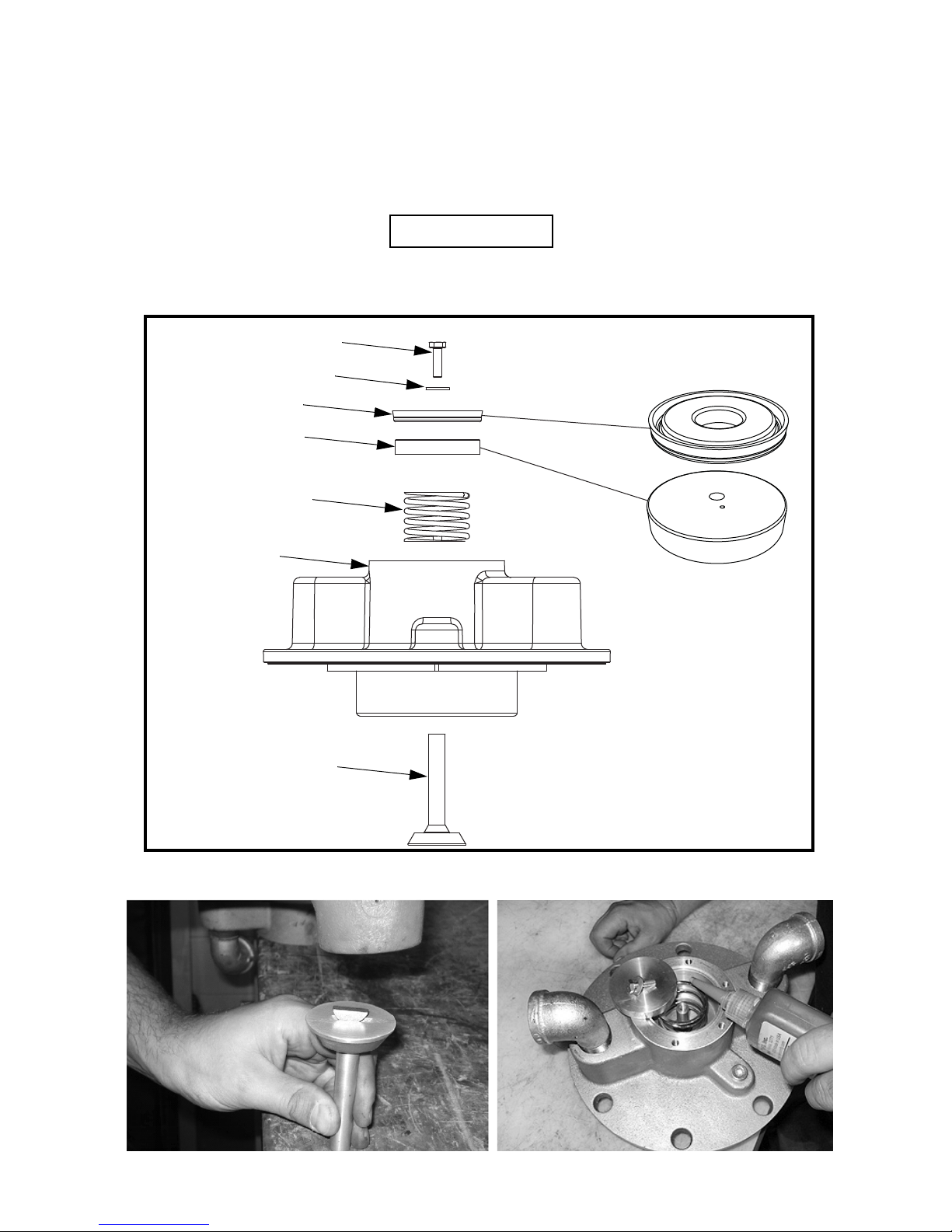

Cap Screw
Washer
Lip Seal
Piston
Compression Spring
Valve Body Cap
Air Inlet Valve

Martin Engineering M3747-05/12 9 Martin®Air Cannon Maintenance Instructions
13. Insert the urethane bumper into the hub using a dead blow hammer.
14. Remove the woodruff key. It is only to be used for assembly purposes.
15. Install elbows pointing down during service, so material will not collect in the exhaust valve. The
elbow connections should be snug, but still adjustable. Install manual lever cap and tighten the cap
screws to12 ft-lbs.
Remove Key
After Assembly

Martin Engineering M3747-05/12 10 Martin®Air Cannon Maintenance Instructions
16. Operate the manual lever to ensure the valve stem has a full range of movement. There should be a tight
fit around the valve stem and seat. Apply a small amount of grease on the plunger for operating the
manual lever.
17. The Martin®Hurricane Air Cannon Exhaust Valve is now ready for service.

Martin Engineering M3747-05/12 12 Martin®Air Cannon Maintenance Instructions

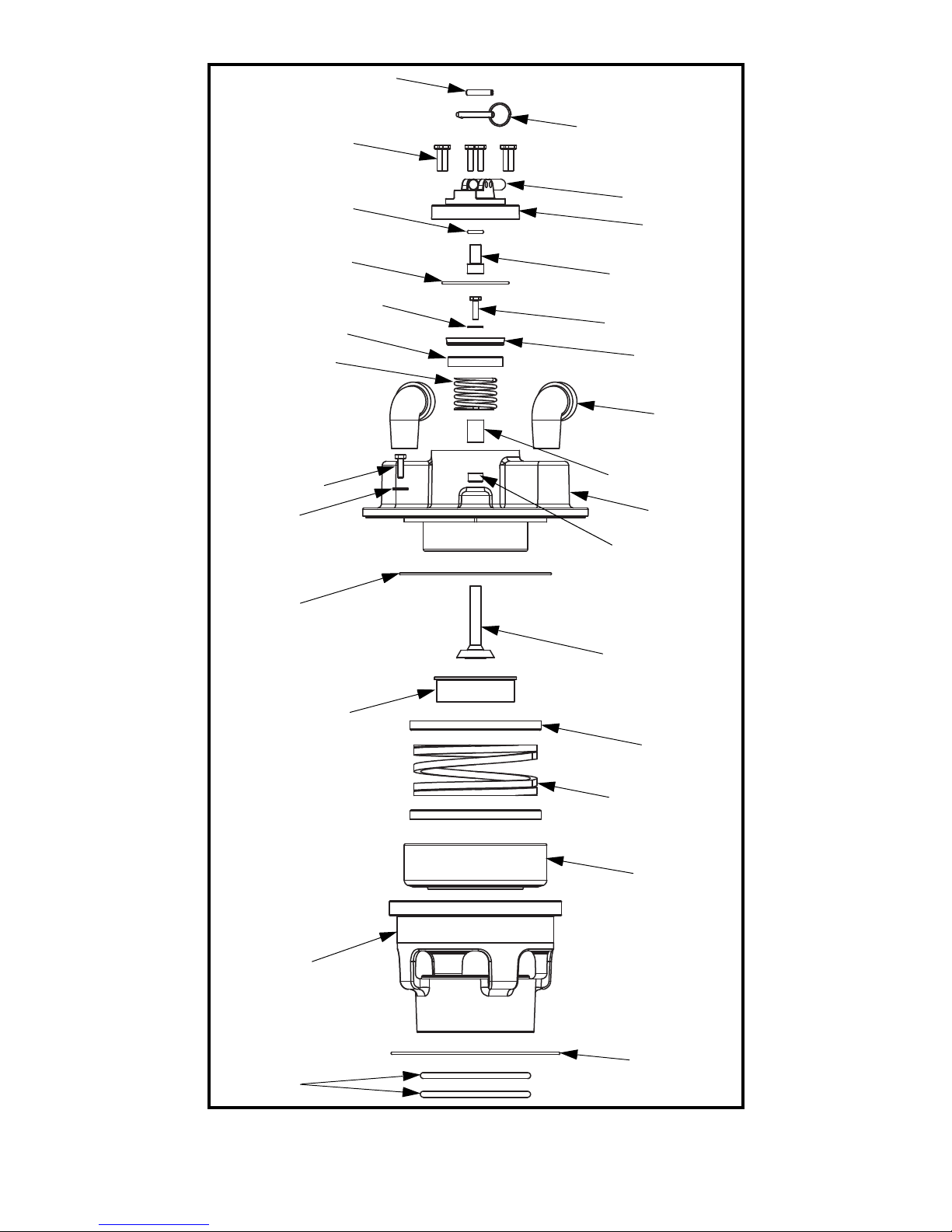

Martin®Hurricane Air Cannon Exhaust Valve, P/N 38071
15
14
13
16
11
12
9
8
5
7
23
3
2
24
1
8
7
21
6
17
18
19
20
22
26
25
4
10

Martin Engineering M3747-05/12 13 Martin®Air Cannon Maintenance Instructions
Item Description Part Number Qty
1 Valve Body Cap 37775-H 1
2 Bearing Sleeve 37287-1 1
3 Compression Spring 1.937 OD 34671 1
4 Piston 38635 1
5 Lip Seal Puck 38634 1
6 Air Inlet Valve with Brass Seat 37790-B 1
7 Washer Compression 1/4 11521 7
8 Screw HHC 1/4-20NC x 7/8 ZP 11891 7
9 Plunger 37791 1
10 O-Ring #150 2.862 ID x 1.03 CS 37794 1
11 Top Cap 37776 1
12 O-Ring #206 .484 ID x .139 CS 37795 1
13 Handle 37792 1
14 Slotted Spring Pin 1/4 x 1-1/4 SS 32403 1
15 Quick Release Pin 1/4 x 1.63 ZP 37796 1
16 Screw HHC 1/4-20NC x 1 ZP 12699 6
17 Urethane Bumper 37793 1
18 Spring Bumper Pad 38064 2
19 Compression Spring 35077 1
20 4.00” Piston Assembly 38022 1
21 O-Ring #166 6.737 ID x .094 CS 35078 1
22 Basket 37897 1
23 Street Elbow 1.00” 90 degree 36124 2
24 Hex Socket Plug 3/8 37987 1
25 O-Ring #425 4.500 ID x .275 CS 20771-S 2
26 O-Ring #169 7.487 ID x .103 CS 38066 1

Martin Engineering M3747-05/12 14 Martin®Air Cannon Maintenance Instructions
Martin® Tornado Air Cannon Exhaust Valve Rebuild Instructions
1. Remove lever cap and pipe elbows.
2. Hold woodruff key, supplied in the kit, in the valve stem slot using locking pliers. Remove the flat head
screw from the valve stem. Usually a quick hit with a dead blow hammer will break the threadlocker
adhesive free.
3. Disassemble the rest of the exhaust valve, and check for wear on the piston pocket and valve stem seat.
4. Clean all areas of the exhaust valve. The pocket must be smooth for the piston and o-ring to slide on.
Pocket
Valve
Stem Seat

Martin Engineering M3747-05/12 15 Martin®Air Cannon Maintenance Instructions

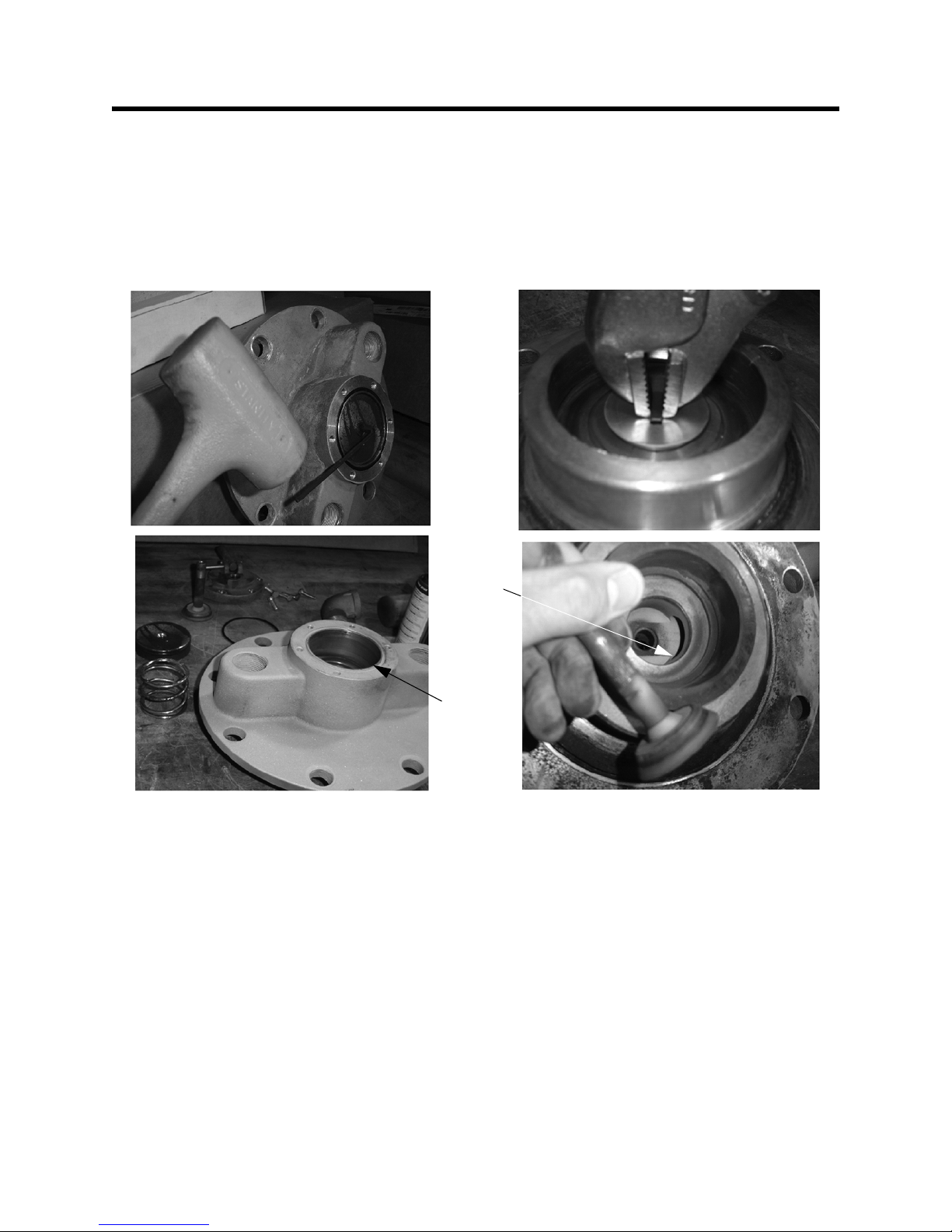

5. Drive out bearing sleeve using a standard (7/16”) deep well socket.
6. Press in new bearing sleeve using the next size socket (1/2”) on the bearing and lightly tap with the
dead blow hammer.

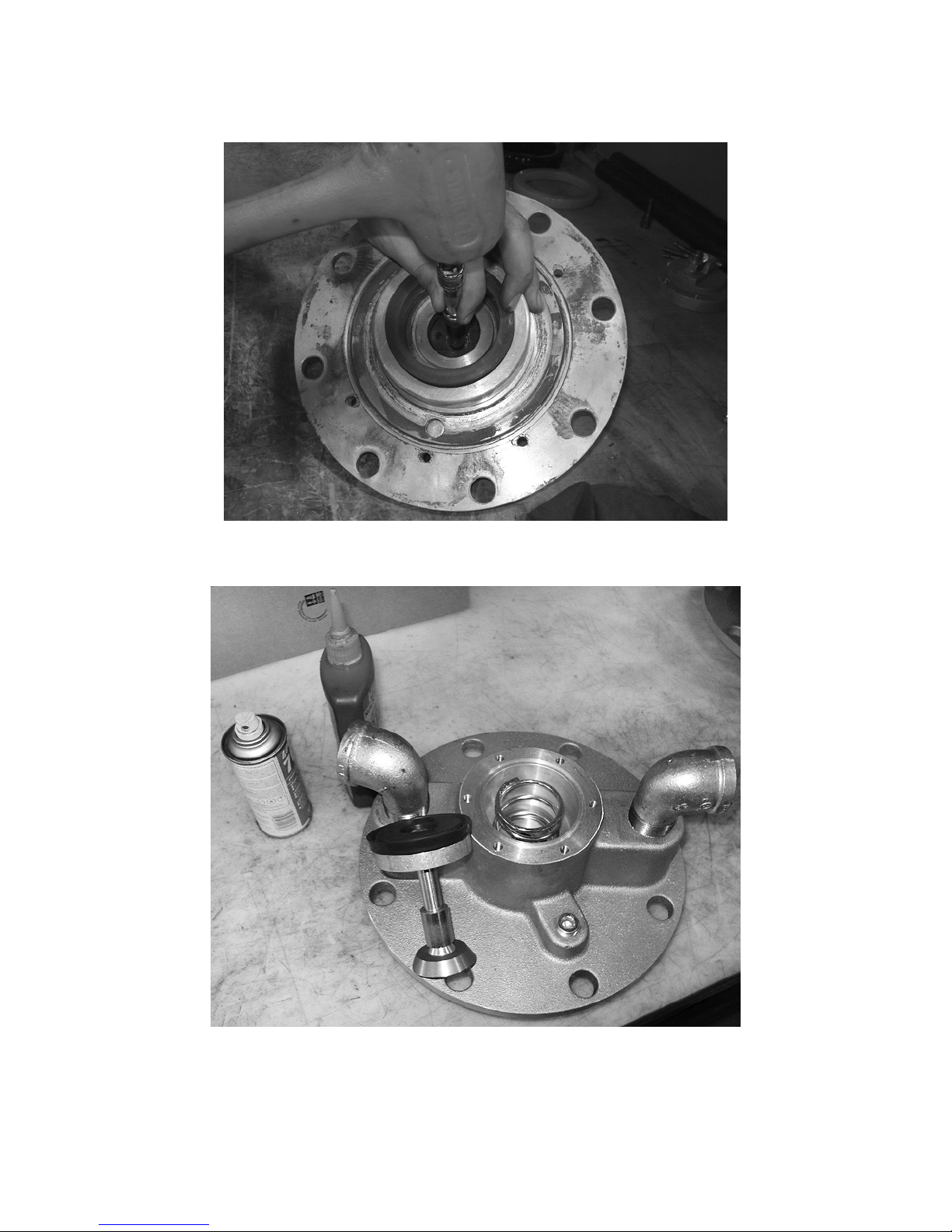

7. To reassemble the valve, threadlocker and primer will be needed for the screw and blind hole.

Martin Engineering M3747-05/12 16 Martin®Air Cannon Maintenance Instructions
8. Insert woodruff key into key way in valve stem. Tap the key with a hammer to press it into key way.
9. Insert air inlet valve into valve body cap.
10. Insert compression spring and piston into valve body cap.
11. Apply primer to blind hole and screw, and let dry 3–5 minutes. Apply three drops of medium-duty
threadlocker in the blind hole and two drops on the screw. Hold the key using locking pliers while
tightening the screw. Tighten the screw to 12 ft-lbs.
IMPORTANT
Allow 24 hours for the threadlocker to cure.
12. Insert lip seal into valve body cap. Make sure orientation of lip seal is correct.
Cap Screw
Washer
Lip Seal
Piston
Compression Spring
Valve Body Cap
Air Inlet Valve
