HPAT500/2 HANDYPAT
InstructIon
Manual

GENERAL SAFETY INFORMATION: Always read before proceeding.
Warning
These instructions contain both information and warnings that are
necessary for the safe operation and maintenance of this product. It
is recommended that you read the instructions carefully and ensure
that the contents are fully understood. Failure to understand and
to comply with the warnings and instructions can result in serious
injury, damage or even death.
In order to avoid the danger of electrical shock, it is important that
proper safety measures are taken when working with voltages
exceeding 30V AC RMS, 42V AC peak or 60V DC.
This product must only be used by a competent person capable of
interpreting the results under the conditions and for the purposes for
which it has been constructed. Particular attention should be paid
to the Warnings, Precautions and Technical Specifications. Always
check the unit is in good working order before use and that there are
no signs of damage to it. Do not use if damaged.
Where applicable other safety measures such as use of protective
gloves, goggles etc. should be employed.
Please keep these instructions for future reference. Updated
instructions and product information are available at: www.
martindale-electric.co.uk/instruct
REMEMBER: SAFETY IS NO ACCIDENT
MEANING OF SYMBOLS:
Equipment complies with relevant EU Directives
AC (Alternating Current)
Caution - refer to accompanying documents
Caution - risk of electric shock
End of life disposal of this equipment should be
in accordance with relevant Local Directives

Thank you for buying one of our products. For safety
and full understanding of its benefits please read this
manual before use.
CONTENTS
1 INTRODUCTION
1.1 Unpacking and Inspection 1
1.2 Description & Overview 1
2 GENERAL OPERATION & FUNCTIONS
2.1 Precautions 3
2.2 Power On/Off 4
2.3 Display Indicators 4
2.4 Connector Descriptions 5
2.5 Press Button Description 6
2.6 Contrast Adjustment 7
2.7 Fixed Test Settings 7
2.8 Battery Low Message 8
2.9 Auto Power Down 8
2.10 Null of Test Probe Lead Resistance 8
2.12 Charging Batteries 9
2.13 Inadvertent Connection of Mains 9
Supply Voltage
3 PERFORMING APPLIANCE & LEAD TESTS
3.1 Preliminary Checks and Set Up 10
3.2 IEC Lead Test 11
3.3 Class I Test 12
3.4 Class II Test 14
3.5 Extension Lead Testing 15
3.6 Fuse Check Failure 17
3.7 Earth Continuity/Insulation Failure 18
3.8 Earth Continuity displays ‘NOTE’ 18

4 MAINTENANCE
4.1 Fitting Batteries 19
4.2 Calibration 19
4.3 Cleaning 20
4.4 Repair & Service 20
4.5 Storage Conditions 20
5 WARRANTY 21
TECHNICAL SPECIFICATION

1. INTRODUCTION
1.1 Inspection
Examine the shipping carton for any sign of damage.
Inspect the unit and any accessories for damage. If
there is any damage then consult your distributor.
Unpack the HPAT500 and check that you have the
following accessories:
Instructions
Mains Charger Unit
Test Probe with crocodile clip (TL67)
6 x AA NiMH rechargeable batteries
IEC Adaptor Lead (Ex332)
Zip carry case
Inspect the unit and its accessories for any damage.
If any item is missing or there is damage to any item,
consult your distributor immediately.
Refer to section 4.1 for installation of batteries.
1.2 Description
The battery powered HPAT500 HANDYPAT is a
Portable Appliance Tester with the following features:
Insulation Test
Insulation Test at 500V/250V.
Automatic Test Sequence for Fixed Pass Levels

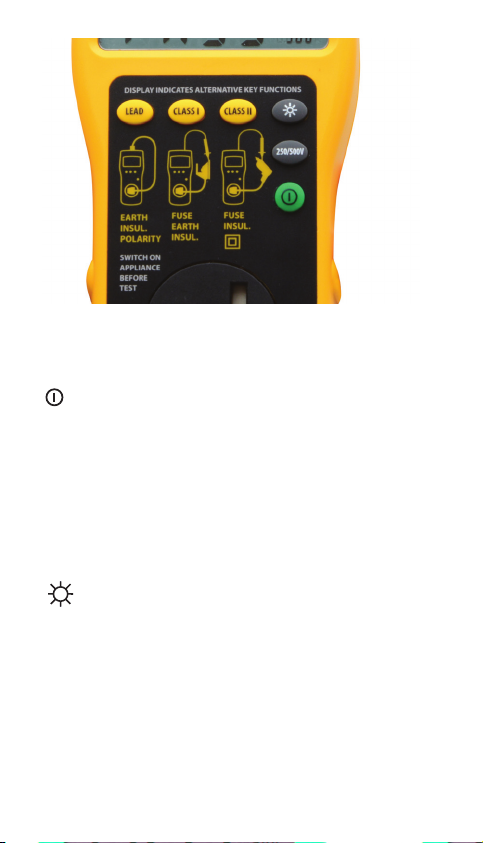

A connection diagram is shown in this handbook and
on the label on the unit. When the test type is selected,
the HPAT500 will run automatically through the test
sequence without any further user interaction unless
a failure is encountered. Pass or Fail outcome is
displayed alongside measured value.
1
