Martindale Electric PD230SRD User manual

PROVING UNITS
Instruction
Manual
PD230SRD
PD440S
PD440SRD
PD440SRDX
PD690S
PD690SRD

ALWAYS READ THESE INSTRUCTIONS BEFORE PROCEEDING
Thank you using one of our products. For safety and full
understanding of its benets please read this manual before use.
Technical support is available from [phone] and
[email protected]
CONTENTS
1 Safety Information 1
1.1 Precautions 1
1.2 Meaning of Symbols and Markings 2
2 Introduction 3
2.1 Inspection 3
2.2 Description 3
2.3 Accessories 5
2.4 Battery Installation 5
3 Operation 5
3.1 AC / DC Output Voltage Mode Selection 5
3.2 Proving Unit LED Indications 6
3.3 Proving a Test Lamp, Voltage Tester/Indicator, DMM, etc. 8
3.4 Test Lamp, Voltage Tester/Indicator Cables 8
3.5 CALCHECK (PD440SRDX model only) 9
4 Maintenance 10
4.1 Battery Replacement 10
4.2 Cleaning 10
4.3 Repair and Service 10
4.4 Storage Conditions 10
5 Warranty 11
6 CALCHECKVericationMeasurementTable 12
7 Specications

1.SAFETYINFORMATION:Alwaysreadbeforeproceeding.
REMEMBER: SAFETY IS NO ACCIDENT
Before using this equipment readallinstructionsandcautionary
markings in this manual and and on the equipment.
These instructions contain both information and warnings that
are necessary for the safe operation and maintenance of this
product. Failure to understand and to comply with the warnings and
instructions can result in serious injury, damage or even death.
Particular attention should be paid to the Warnings, Precautions
and Technical Specications.
Readandsavetheseinstructionsforfuturereference.
Updated instructions and product information are available at:
www.martindale-electric.co.uk
1.1Precautions
Warnings
These warnings apply to the proving units.
Toreducetheriskofelectricshock,reorinjury:
It is important that proper safety measures are taken when working
with voltages exceeding the extra low voltage (ELV) threshold of
50V AC RMS or 120V DC.
Before use check the unit for cracks or any other damage. Make
sure the unit is free from dust, grease and moisture. Also check any
associated accessories for damage. Donotuse if damaged.
Donotuseif the battery cover is not tted.
1

2
Cautions
Avoid severe mechanical shock or vibration and extreme
temperature.
To avoid corrosion from leaking batteries, remove the batteries
when the unit is not in use for an extended period.
Do not short the output terminals.
The equipment mustonly be used by a suitably trained and
qualied person.
Do not use in wet conditions or with wet hands.
If this equipment is used in a manner not specied by the
manufacturer, the protection provided by the equipment may be
impaired.
1.2MeaningofSymbolsandMarkings
 Caution-riskofdanger&refertoinstructions
 Caution-riskofelectricshock
 Equipmentprotectedbydoubleorreinforced
insulation(ClassII)
 EquipmentcomplieswithrelevantEUDirectives
EquipmentcomplieswithrelevantUKConformity
 Assessedmarking
 Endoflifedisposalofthisequipmentshouldbein
 accordancewithrelevantEUDirectives

3
2. INTRODUCTION
2.1Inspection
Examine the shipping carton for any sign of damage. Inspect the
unit and any accessories for damage. If there is any damage then
consult your distributor immediately.
2.2Description
The PD230SRD / PD440S / PD440SRD / PD440SRDX / PD690S /
PD690SRD are portable battery powered proving units for testing of
contact type voltage detectors or other units with voltage detection
capability, e.g. multimeters or multifunction testers. The table below
shows the differences in the output voltage for each model.
After the voltage detector probes are pushed down onto the
Proving Device (PD) unit output voltage terminals, the PD unit
outputs voltage level(s) for period(s) indicated in the table before
the voltage drops to 0V and the terminal’s output goes into low
impedance mode.
7

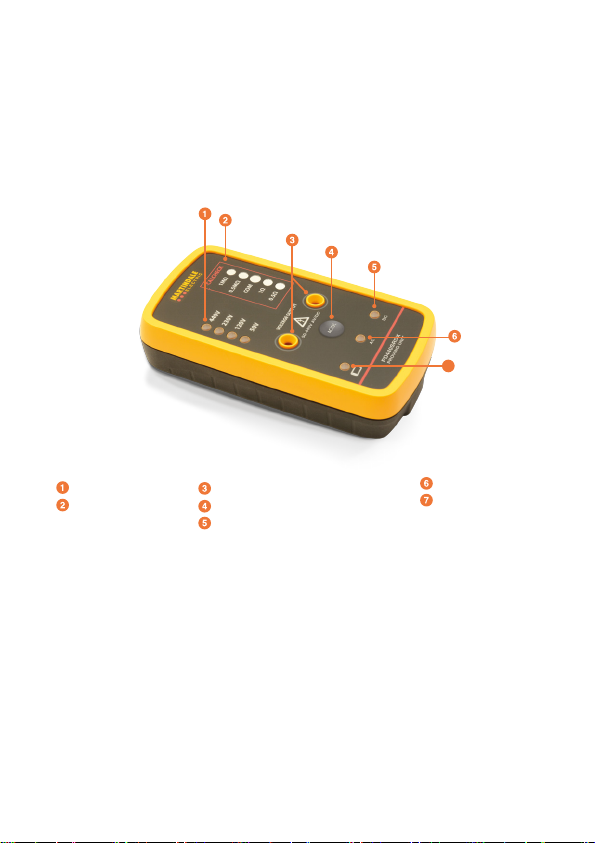

Voltage Indicating LEDs
Calibration card
(PD440SRDX only)
Output voltage terminals AC output indicate LED
Battery low LED
AC/DC selection and output indication switch
DC output indicate LED

4
PD440S / PD690S
The PD440S and PD690S output a xed AC voltage for 5s before
the output voltage is reduced to 0V and the terminal output goes
into low impedance mode.
The PD440S xed output voltage is 440V AC 50Hz nominal.
The PD690S xed output voltage is 690V AC 50Hz nominal.
PD230SRD / PD440SRD / PD440SRDX / PD690SRD
The output voltage can be set to be to AC or DC mode using the
AC/DC output selection push button. The output voltage reduces in
steps over a period of 10s.
For example, the PD230SRD outputs voltage in the following steps:
230V for 4s, 120V for 2s, and 50V for 4s before the output voltage
is reduced to 0V and the terminal output goes into low impedance
mode.
Product
Output
voltagestep
down
NOLOADoutputvoltagestep
(50HznominalACV/DCV)
PD690SRD 690 440 230 120 50
PD440SRD /
PD440SRDX 440 230 120 50
PD230SRD 230 120 50
PD690S 690
PD440S 440

5
2.3Accessories
All units come with the following accessories:
• 6 x 1.5V AA alkaline batteries
• Instructions
• MG3 magnetic hanger *
* excluding kits where a PD carry case is included
2.4BatteryInstallation
Refer to Section 4.1 (Battery Replacement) for the battery
installation instructions for all units.
3. OPERATION
Caution
Always make sure the precautions and limitations of the unit being
tested are observed. If necessary refer to the specication of the
unit being tested.
Also refer to the graph of typical output voltage under various load
conditions at the rear of these instructions.
3.1AC/DCoutputvoltagemodeselectionandmodeindication
AC / DC output voltage mode selection and mode indication can be
carried out using the AC / DC output selection push button.
The push button functions are described below.

6
Function Operationstep/s Description
Output mode
indication
1. Momentarily press
the push button while
the proving device is not
being used
Output mode indications are as follow,
AC output mode - “AC” LED ON,
“DC” LED OFF
DC output mode - “DC” LED ON, “AC”
LED OFF
The LED will time out after approximately
10s. It is not necessary to wait for the
LED to time out before proving a voltage
indicator. If the LED is left to time out,
then a minimum of 3s is required before
pressing the button again or proving a
voltage indicator.
Changeoutput
mode
1. Carry out “Output
mode indication” function.
2. Momentarily press
push button again
1. Each time the push button is
momentarily pressed the Output Mode
changes to the opposite mode
2. The default startup output mode does
not change
Changedefault
startupoutput
mode
1. Carry out “Output
mode indication” function.
2. Press push button
(and keep it pressed).
The LEDs will change to
indicate the new output
mode
3. Release push button
when the LED stops
ashing (after about 3
seconds)
If the LED fails to ash then this indicates
that default output mode is already set
to the mode indicated by the “AC” or
“DC” LED
3.2ProvingUnitLEDindications
LEDindicators
Output mode Outputterminalsvoltagesindicators
Product Battery
low
AC
(50Hz) DC 690V 400V 230V 120V 50V High
voltage
PD690SRD        
PD440SRD       
PD440SRDX       
PD230SRD      
PD690S  
PD440S  

7
The previous table shows the LED indicators for each PD
product type.
For example, the PD690SRD includes the following LED indicators-
690V, 440V, 230V, 120V, 50V.
Batterylowindication
All PD products support the battery low LED, which is illuminated
when the battery voltage is low.
PD440S / PD690S
On these PD products the “High voltage” LED is ON when the live
voltage is present at the voltage output terminals. If the loading
impedance of the voltage indicator (at the output terminals) is less
than 1kΩ then the “High voltage” LED will start ashing.
PD230SRD / PD440SRD / PD440SRDX / PD690SRD
On these PD products there are multiple LED to indicate the voltage
at the PD output terminals when a voltage indicator is under test
at the terminals. Refer to the graph of typical output voltage under
various voltage indicator load conditions on the specication page.
Also refer to the “PD Output voltages table” under section 2.2. The
LED indication will depend on the loading impedance of the voltage
indicator under test as well as the PD output voltage steps in the
“PD Output voltage table”. If the loading impedance of the voltage
indicator (at the output terminals) is less than 1kΩ then the “50V”
LED will start ashing.
VoltageOutputMode(AC/DC)
AC LED and DC LED indicate the PD output voltage mode.

8
3.3ProvingaTestLamp,VoltageTester/ Indicator,DMMetc.
Place one probe of the unit under test into the right hand socket
of the proving unit until it makes contact with the terminal. Place
the other probe into the left hand terminal of the proving unit and
gently press down. It is important to follow this procedure in order
to ensure PD output voltage is applied to the equipment under test
from the start of the PD output voltage test cycle.
The PD output voltage test cycle starts from when the voltage
indicator is applied to the left hand terminal of the PD.
On the PD440S and PD690S, the output voltage test cycle is
5s long.
On the PD230SRD / PD440SRD / PD440SRDX / PD690SRD, the
output voltage test cycle is up to 10s long.
At the end of these PD units’ test cycles, the output voltage drops
to 0V and the output goes into low impedance. For SRD and SRDX
versions, a minimum of 3s is required between tests.
Observe that the required indicators on the unit under test
illuminate, then withdraw the probe from the right hand terminal rst,
and then the left.
If none of the proving unit LED’s illuminate when performing the
above tests, check the condition of the proving unit batteries and
replace them if required (see section 4.1).
3.4TestLamp,VoltageTester/IndicatorCables
During the above tests, emphasis should also be placed upon the
exing of the UUT cable along its length, and particularly at the

9
entry points to the hand held elements, to conrm that the cable has
not fractured.
It may be necessary to perform this test a number of times as the
proving unit times out after 5s on the PD440S /PD690S and after
10s on the PD230SRD / PD440SRD / PD440SRDX / PD690SRD.
3.5 CALCHECK (PD440SRDXonly)
The CALCHECK feature may be used to check that a multifunction
tester, insulation tester or continuity tester is maintaining ongoing
accuracy between calibrations. There are two insulation test
resistance values, 0.5M Ω and 1M Ω. There are also two continuity
test resistance values, 0.5Ω and 1Ω.
One probe of the tester being checked should be placed on the
desired resistance value and the other probe should be placed on
the COM terminal, following the instruction manual for the tester
being used.
The CALCHECK feature is not designed to be used to check loop
testers, where the high test current will damage the proving device.
The CALCHECK (X models only) feature can be used as a regular
check that instruments are not drifting between calibrations.
Records can be kept using the CALCHECK Verication
Measurement sheet at the back of this manual. An initial
measurement can be taken soon after calibration and the results
recorded. Further checks can be made periodically, e.g. every
month, and the results also recorded on the sheet.
Further copies of the sheet can be downloaded from
www.martindale-electric.co.uk/manuals/.

10
4. MAINTENANCE
4.1BatteryReplacement
Remove the rear battery cover by turning the quarter turn screw 90°
anti-clockwise and then lifting the cover. Observing correct polarity
t 6 new 1.5V, AA alkaline batteries (IEC LR6, NEDA 15A). Replace
the battery cover by positioning the top onto the rear casing slots,
lowering the cover and then locking by turning the quarter turn
screw 90° clockwise. Note: Do not mix old and new batteries.
4.2Cleaning
If contamination is found, clean with a damp soft cloth and, if
necessary, a mild detergent or alcohol. Do not use abrasives,
abrasive solvents, or detergents which can cause damage to the
unit. If a mild detergent is used, the unit should subsequently
be thoroughly cleaned with a water dampened soft cloth. After
cleaning, dry and allow to remain in a dry environment for 2 hours
before use.
4.3RepairandService
There are no user serviceable parts in this unit other than those that
may be described in section 4. Return to Martindale Electric if faulty.
Our service department will quote promptly to repair any fault that
occurs outside the guarantee period.
Before the unit is returned, please ensure that you have checked
the unit and batteries.
4.4StorageConditions
The instrument should be kept in cool, dry conditions and not
subjected to shock, scratching or other damage, prolonged direct
harsh sunlight, extremes of temperature and in such a manner as
to preserve the working life of the unit. It is strongly advised that the
unit is not kept in a tool box where other tools may damage it.

11
5. WARRANTY AND LIMITATION OF LIABILITY
This Martindale product is warranted to be free from defects in
material and workmanship under normal use and service. The
warranty period is 2 years and begins on the date of receipt by the
end user. This warranty extends only to the original buyer or end-
user customer, and does not apply to fuses, disposable batteries,
test leads or to any product which, in Martindale’s opinion, has been
misused, altered, neglected, contaminated, or damaged by accident
or abnormal conditions of operation, handling or storage.
Martindale authorised resellers shall extend this warranty on new and
unused products to end-user customers only but have no authority to
extend a greater or different warranty on behalf of Martindale.
Martindale’s warranty obligation is limited, at Martindale’s option, to
refund of the purchase price, free of charge repair, or replacement
of a defective product which is returned to Martindale within the
warranty period.
This warranty is the buyer’s sole and exclusive remedy and is in
lieu of all other warranties, expressed or implied, including but not
limited to any implied warranty of merchantability or tness for a
particular purpose. Martindale shall not be liable for any special,
indirect, incidental or consequential damages or losses, including
loss of data, arising from any cause or theory.
Since some jurisdictions do not allow limitation of the term of an implied
warranty, or exclusion or limitation of incidental or consequential
damages, the limitations and exclusions of this warranty may not
apply to every buyer. If any part of any provision of this warranty is
held invalid or unenforceable by a court or other decision-maker
of competent jurisdiction, such holding will not affect the validity or
enforceability of any other provision or other part of that provision.
Nothing in this statement reduces your statutory rights.

6.CALCHECKvericationmeasurements(PD440SRDXonly)
PD model
PD serial no.
Test instrument model
Test instrument serial no.
Test instrument date of calibration
Initialmeasurement
Date Insulation Continuity Initials
0.5M
Ω 1M Ω 0.5 Ω 1 Ω
Periodicvericationmeasurements
Date Insulation Continuity Initials
0.5M
Ω 1M Ω 0.5 Ω 1 Ω
12

13
Periodicvericationmeasurements(PD440SRDXonly)
Date Insulation Continuity Initials
0.5M
Ω 1M Ω 0.5 Ω 1 Ω

14
Electrical
Product
Output
voltagestep
down
NOLOADoutputvoltagestep
(50HznominalACV/DCV)
PD690SRD 690 440 230 120 50
PD440SRD /
PD440SRDX 440 230 120 50
PD230SRD 230 120 50
PD690S 690
PD440S 440
Specication
PDS / PDSRD / PDSRDX
Proving Units

15
AllUnits
Output loading: See typical output
voltage vs. loading graph
CALCHECK-PD440SRDXonly
Insulation test resistance
nominal values:
0.5M
Ω (max test voltage 1kV)
1.0M
Ω (max test voltage 1kV)
Continuity test resistance
nominal values:
0.5
Ω (max test current 200mA)
1.0
Ω (max test current 200mA)
General
Power: Internal batteries
Internal batteries: 6 x 1.5V, AA
alkaline batteries (IEC LR6, NEDA
15A)
Dimensions: 150 x 80 x 35mm.
Weight packed: 435g approx.
(with batteries)
Includes: 6 x 1.5V AA alkaline
batteries, instructions
Environmental
Location: Suitable for indoor use,
and outdor use in dry weather
conditions only.
Operating temperature: -10°C to
40°C at max. 70% R.H.
Altitude: up to 2000m
Pollution degree: 2
Specication
PDS / PDSRD / PDSRDX
Proving Units

800
Typical output voltage AC rms vs loading (kΩ)
Logarithmic
Output voltage
Load resistance (kΩ)
High voltage
700 600 500 400 300 200 100
1000k 250k 100k 10k
VI15000 VI13800 MTL20**
MTL20*, MTL10
1k
0
80k
70k
40k 20k 2k
PD440S / PD440SRD / PD440SRDX PD690S / PD690SRD PD230SRD
*Buttons pressed **Buttons not pressed

CheckoutwhatelseyoucangetfromMartindale:
Due to policy of continuous development, Martindale Electric reserves the right to alter
equipment specification and description outlined in this document without prior notice.
No part of this document shall be deemed to be part of any contract for the equipment
unless specifically referred to as an inclusion within such contract. © 2023 Martindale
Electric Co. Ltd. Registered in England No. 3387451. LITPD
•18th Edition Testers
•Accessories
•Calibration Equipment
•Continuity Testers
•Electricians’ Kits
•Environmental Products
•Full Calibration & Repair Service
•Fuse Finders
•Digital Clamp Meters
•Digital Multimeters
•Labels
•Microwave Leakage Detectors
•Safe Isolation Kits
•Multifunction Testers
•Non-trip Loop Testers
•Pat Testers & Accessories
•Phase Rotation Testers
•Proving Units
•Socket Testers
•Thermometers & Probes
•Test Leads
•Voltage Indicators
•Specialist Drummond Testers
Ver. D1.0
Martindale Electric Co. Ltd. Metrohm House, 12 Imperial Park, Imperial Way,
Watford WD24 4PP. T: [phone] F: [phone]
www.martindale-electric.co.uk [e-mail]
