Dear customer,
Thank you for purchasing our product. Please read the
following instructions carefully before first use and keep this
user manual for future reference. Pay particular attention to
the safety instructions. If you have any questions or
comments about the device, please contact the customer
line.
✉www.alza.co.uk/kontakt
✆[phone]
Importer Alza.cz a.s., Jankovcova 1522/53, Holešovice, 170 00
Prague 7, www.alza.cz
Product Presentation
Features
Head Features:
•Closed, over-ear design for powerful bass sounds
•Soft-cushioned leather ear cups
•Built-in volume controller
Mouse Features:
•Ultra-lightweight, as low as 76 grams, thanks to
special perforated- honeycomb chassis design.
•RGB backlight with multiple selectable lighting
schemes
•Advanced customization software

4
Technical Specifications
Headset
Sound
Stereo
Frequency response
20 Hz –20 KHz
Speaker size
50 mm
Speaker impedance
32Ω ± 15 %
Speaker sensitivity
120 dB ± 3 Db
Microphone type
Omnidirectional
Microphone sensitivity
-38 Db ± 3 dB
Microphone size
4 x 1.5 mm
Backlight
Rainbow
Connectors
2 x 3.5 mm jack
USB (for LED light)
Cable length
2.0 m
Mouse
Sensor
Optical
DPI
800-1600-2400-3200-4800-
6400 (default)
Buttons
6 (programmable)
Switch Rating
3 million clicks
Backlight
RGB
Interface
USB 2.0
Cable length
1.5 m
Weight
76 grams
Size
125 x 64 x 40 mm

5
System Requirements
PC system or compatible with the installed sound card, two
USB ports available; Windows 7 or newer operating system.

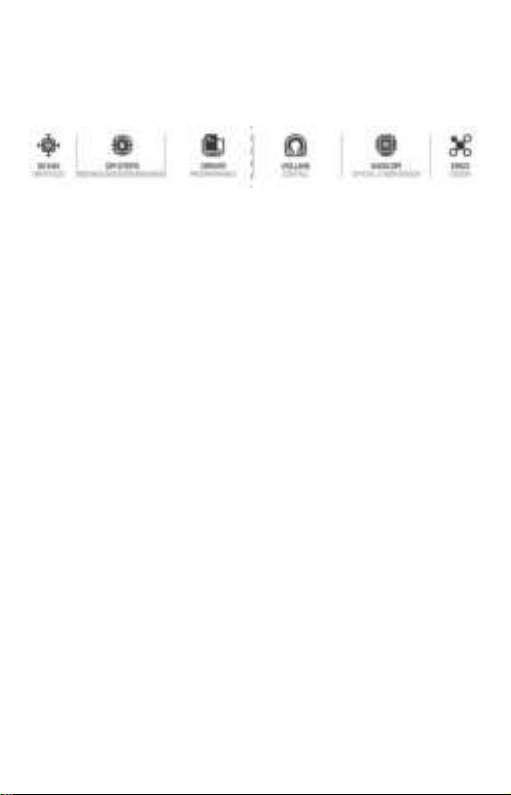

•50 mm Driver Size
•DPI Steps 800/1600/2400/3200/4800/6400
•Driver Programmable
•Volume Control
•6400 DPI Optical/ Laser Sensor
•Ergo Design
Safety Notes
•To prevent possible hearing problems, do not use the
headphones at high volume for long periods of time.
•Keep the equipment dry. Keep away from precipitation,
humidity, all types of liquids and condensation.
•Do not use the product with wet hands.
•Do not use or store the equipment in dusty or dirty
areas.
•Do not store the equipment under high-temperature or
low-temperature conditions (this may damage it).
•Do not drop, knock, or shake the equipment (use may
result in breakage).

6
Installation
Each headphone audio jack is colored different (green for
headphones, pink for microphone) or has an icon on it.
Connect each jack to the matching input on the sound card.
Insert the USB connector into a USB port on your computer.
Connect the mouse to the available USB port on your
computer and wait approx. 15 seconds until the generic
driver is installed.
NOTE
The headset does not have a specialized driver and does not
require one for proper operation and functionality.
For advanced mouse configuration, please download and
install the specialized driver at www.marvo-tech.hk (an
Internet connection is required):
•download the driver and double-click the executable file
•follow the on-screen instructions and install the
application
•after installing the application successfully, an icon will
be displayed in the taskbar
•double-click this icon to launch the application

7
Use
Headset
Use the knob on the headset to control the volume.
Mouse
Press the buttons below the scroll wheel to change the
sensitivity according to predefined DPI steps.
Mouse Driver Use

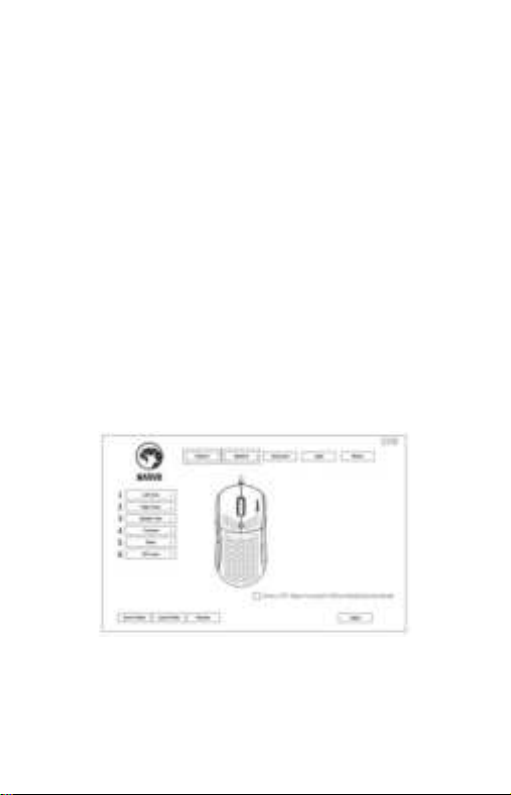

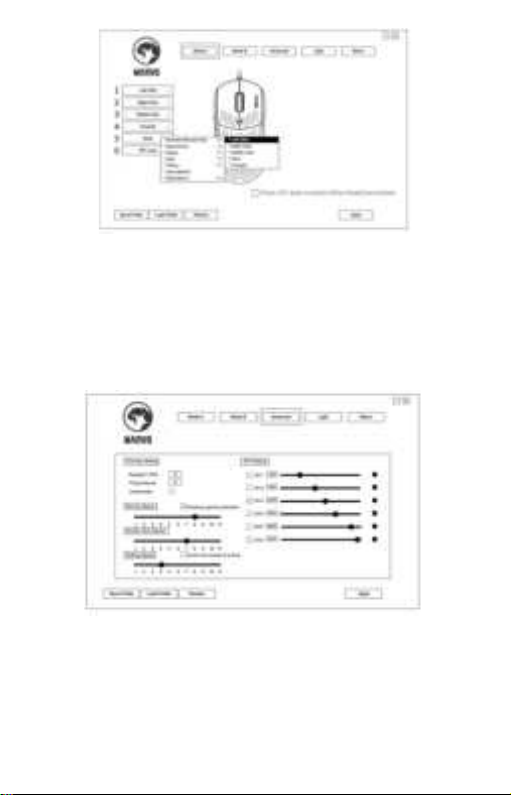

Key Setting
Select “Mode A” or “Mode B” tab and set user-defined
function of each key as following graph. 1 for Left Click, 2 for
Right Click, 3 for Mid click, 4 for forward, 5 for backward, 6
for DPI Loop is kept as default.
One click the key you want to set then chose a new
functions. Click “Apply” to save the setting.

8

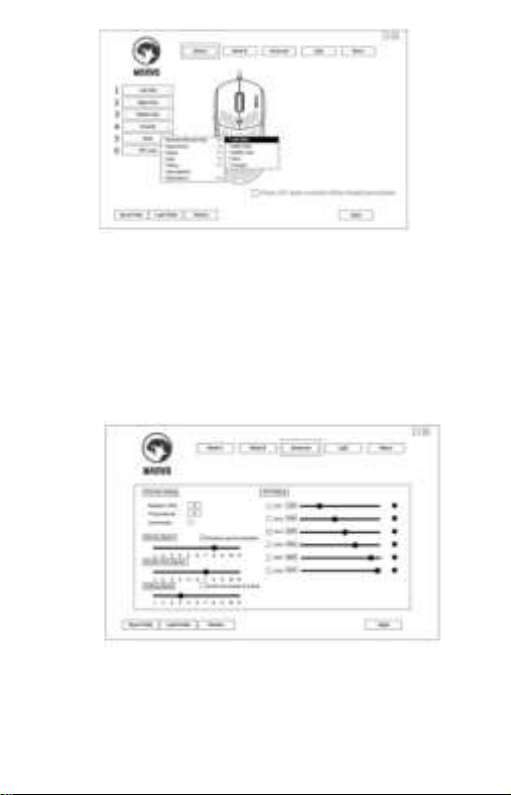

Advanced Setting
Select “Advanced” tab and set Fire key Setting/Moving
Speed/Double click second/Rolling speed/DPI setting
functions as following graph.
Click “Apply” to save the setting.

9

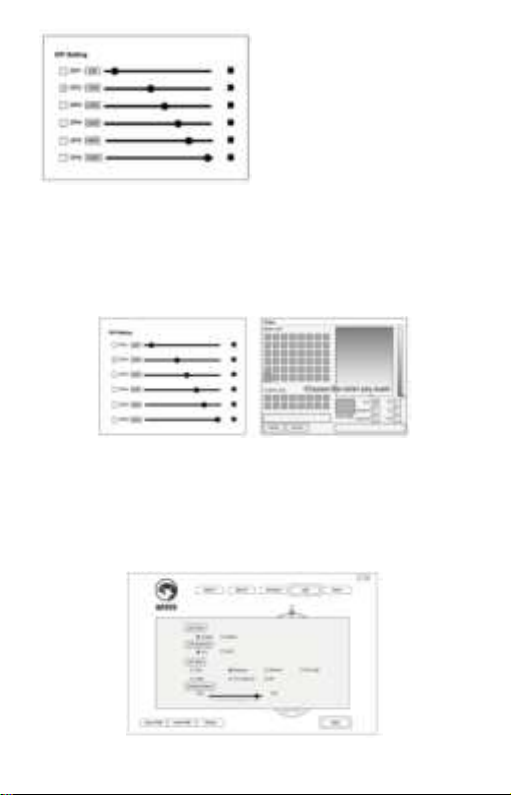

DPI Setting
The default DPI: 800-1600-
2400-3200-4800-6400,
you can set the DPI from
800-6400. Click “Apply” to
save setting.
User define color
Double click the color label, choose the color you want.
Click “Apply” to save the setting.
Light Setting
Select “LED” tab and set LED status/LED brightness/LED
mode/Breathing speed functions as following graph.
Click “Apply” to save the setting.

10
Macro Setting
Macro management can record any keys of keyboard, the
time of keys reaction and the number of keys cycles.
Click “New macro” to create a new file such as a, b, c
Select whether to increase the delay and the times of cycle.
Click “start recording” and start recording any keys of
keyboard. The keys you recorded will display in the macro
edit box.
After the recording, click “start recording.
To revise the recording content, please make the following
changes in the macro options: Choose to insert the event:
insert relevant content in the selected location.
