Mas-Hamilton XX-07 User manual

1
OPERAOPERA
OPERAOPERA
OPERATINGTING
TINGTING
TING
INSTRUCTIONSINSTRUCTIONS
INSTRUCTIONSINSTRUCTIONS
INSTRUCTIONS
FOR THEFOR THE
FOR THEFOR THE
FOR THE
XX
XX
X-07/CEX-07/CEX
-07/CEX-07/CEX
-07/CEX-07-07
-07-07
-07
HIGH SECURITYHIGH SECURITY
HIGH SECURITYHIGH SECURITY
HIGH SECURITY
ELECTRONIC LOCKELECTRONIC LOCK
ELECTRONIC LOCKELECTRONIC LOCK
ELECTRONIC LOCK
(TYPE 1F)(TYPE 1F)
(TYPE 1F)(TYPE 1F)
(TYPE 1F)
Please read all instructions carefully before putting your X-07/CEX-07 into operation.

2
TABLE OF CONTENTS
OPENINGTHE X-07 USINGTHE PRE-SET COMBINATION ............... 3
If You PassYour TargetNumberWhenDialing...............................5
RedialEntire CombinationIf............................................................6
SETTING OPERATING MODE AND NEW COMBINATIONS................7
Settingthe OperatingMode ............................................................7
AlternateMethod toSet Operating Mode ........................................9
Setting Combinations ................................................................... 10
Change aNew Combination Duringthe EntryProcess.................. 13
LockoutPrevention ....................................................................... 14
USINGTHE X-07 ................................................................................ 15
SingleCombinationMode ............................................................. 15
DualCombinationMode................................................................ 16
Supervisory/SubordinateMode...................................................... 17
UnlockinSupervisory/SubordinateMode ...................................... 17
LockUp inSupervisory/Subordinate Mode .................................... 18
If You Pass Your Target Number WhenDialing.............................. 20
USINGTHE AUDIT FEATURES OFYOUR X-07 ................................. 21
Check the Numberof Successful Openings .................................. 21
Check Unsuccessful Attempts Count ........................................... 22
GUIDETO SYMBOLS ........................................................................ 23
CEFUNCTION.................................................................................... 24
NormalOperation.......................................................................... 24
CombinationChange..................................................................... 24
CovertEntry.................................................................................. 24
ResettingCovert EntryandCovert EntryCombination Change ...... 25
RecoveringIf theCovertEntry CombinationIsForgotten ............... 25
GUIDETO SYMBOLS - CE FUNCTION.............................................. 26
For 24-hourTechnical Support Call:
1-800-950-4744 or [phone]

3
OPENINGTHEX-07OPENINGTHEX-07
OPENINGTHEX-07OPENINGTHEX-07
OPENINGTHEX-07
USING THE PREUSING THE PRE
USING THE PREUSING THE PRE
USING THE PRE--
--
-SET COMBINASET COMBINA
SET COMBINASET COMBINA
SET COMBINATIONTION
TIONTION
TION
Your X-07 lock has been shipped pre-set in the Single Combination Mode with the
combination set to 50-25-50.
Practice opening the lock several times before you set a new combination.
Your X-07 uses sophisticated computer security and makes dialing much easier than
that of traditional combination locks.
The X-07’s computer recognizes a number as being part of a combination when you
stop dialing on that number and then reverse dialing directions. This enters the num-
ber into the computer memory.
If at any time the dial remains stationary for more than 40 seconds, the computer will
reset (LCD will go blank) requiring the operator to redial the entire combination.
Important: The X-07 has protective software that detects robotic dialing. If robotic
dialing is detected, the X-07 will not open even if the correct combination has been
dialed.
Theusershould dial withcompletefull wrist turns.Stopping to regripproducespauses
in dialing activity. This helps the X-07 distinguish between human and robotic dialers.
The X-07 may mistake a human for a robot if the user:
1. Dials more than 1.3 revolutions in either direction with no pauses in dialing
activity;
2. Dials with very short, quick repetitive turns, producing very short pauses in
dialing activity;
3. Dials a combination in less than 15 seconds.
TO OPEN THE X-07:TO OPEN THE X-07:
TO OPEN THE X-07:TO OPEN THE X-07:
TO OPEN THE X-07:
1. Dialleft (counterclockwise) 4-6turns to “powerup” the lock.Numbers will appear
on the LCD display screen.
OPENING THE XOPENING THE X OPENING THE XOPENING THE X
OPENING THE X-07-07
-07-07
-07

4
OPENING THE XOPENING THE X OPENING THE XOPENING THE X
OPENING THE X-07-07
-07-07
-07
2. Continuedialing leftto thefirstnumberinthe combination(50). Stop.The number
50 will be displayed on the screen.
3. Now dial in the opposite direction (right, clockwise) to 25. Stop.
4. Now dial left to 50. Stop.
5. Now dial right. After OP (OPen right) appears on the display screen, continue
dialing to the right to pull the lock bolt.

5
IF YIF Y
IF YIF Y
IF YOU POU P
OU POU P
OU PASS YASS Y
ASS YASS Y
ASS YOUR TOUR T
OUR TOUR T
OUR TARGET NUMBER WHEN DIALINGARGET NUMBER WHEN DIALING
ARGET NUMBER WHEN DIALINGARGET NUMBER WHEN DIALING
ARGET NUMBER WHEN DIALING
A. Example: target number-25.
If you pass your target number by 4 or more (photo 1), continue dialing in the
same direction (photo 2), until you reach the target number again (photo 3).
B. Example: target number-25.
If you pass the target number by no more than 3 numbers (photo 1), you may
reverse directions slowly (photo 2) and the display will “jump back” 4 numbers
(photo 3).
Now you may dial slowly in the original direction to the target number (photo 4).

6
REDIAL ENTIRE COMBINAREDIAL ENTIRE COMBINA
REDIAL ENTIRE COMBINAREDIAL ENTIRE COMBINA
REDIAL ENTIRE COMBINATION IF ...TION IF ...
TION IF ...TION IF ...
TION IF ...
A. The Lightning Bolt symbol is displayed.
B. The screen goes blank before the lock bolt is withdrawn.
When you feel comfortable opening the X-07 using the pre-set combination, you are
ready to put the lock into operation.

7
SETTING OPERASETTING OPERA SETTING OPERASETTING OPERA
SETTING OPERATING MODE AND NEW COMBINATING MODE AND NEW COMBINA
TING MODE AND NEW COMBINATING MODE AND NEW COMBINA
TING MODE AND NEW COMBINATIONSTIONS
TIONSTIONS
TIONS
SETTING OPERASETTING OPERA
SETTING OPERASETTING OPERA
SETTING OPERATING MODE ANDTING MODE AND
TING MODE ANDTING MODE AND
TING MODE AND
NEWCOMBINANEWCOMBINA
NEWCOMBINANEWCOMBINA
NEWCOMBINATIONSTIONS
TIONSTIONS
TIONS
Before you can set a new combination, you must select and set a mode of operation.
The X-07 has three modes of operation.
Single Combination Mode: TheX-07will open when onethree-numbercombination
is successfully dialed.
Dual Combination Mode: Two separate combinations are required to open the X-
07. Either combination may be dialed first, however the operator must begin entering
the second combination within 40 seconds of entering the first combination.
Supervisory/Subordinate Mode or Super/Sub Mode: Two separate combinations
are required to open the lock, with the Supervisory Combination controlling access of
the Subordinate Combination. The Supervisory Combination must be entered first.
There can be unlimited delay between entering the Supervisory Combination and
entering the Subordinate Combination. There can also be unlimited openings by the
holder(s) of the Subordinate Combination until the Supervisory Combination is redi-
aled.
SETTING THE OPERASETTING THE OPERA
SETTING THE OPERASETTING THE OPERA
SETTING THE OPERATING MODETING MODE
TING MODETING MODE
TING MODE
Use the Change Key (photo 1) provided with your X-07 to set the desired operating
mode and combinations. If at any time during the process you see the Key and
Lightning Bolt symbols displayed (photo 2), stop the sequence and return to Step 3. If
at any time you see a Lightning Bolt symbol displayed (photo 3), stop and return to
Step 2.
1. Retract the bolt by entering the correct combination(s). In dual Combination or
Supervisory/Subordinate modes, you must enter both combinations.

8

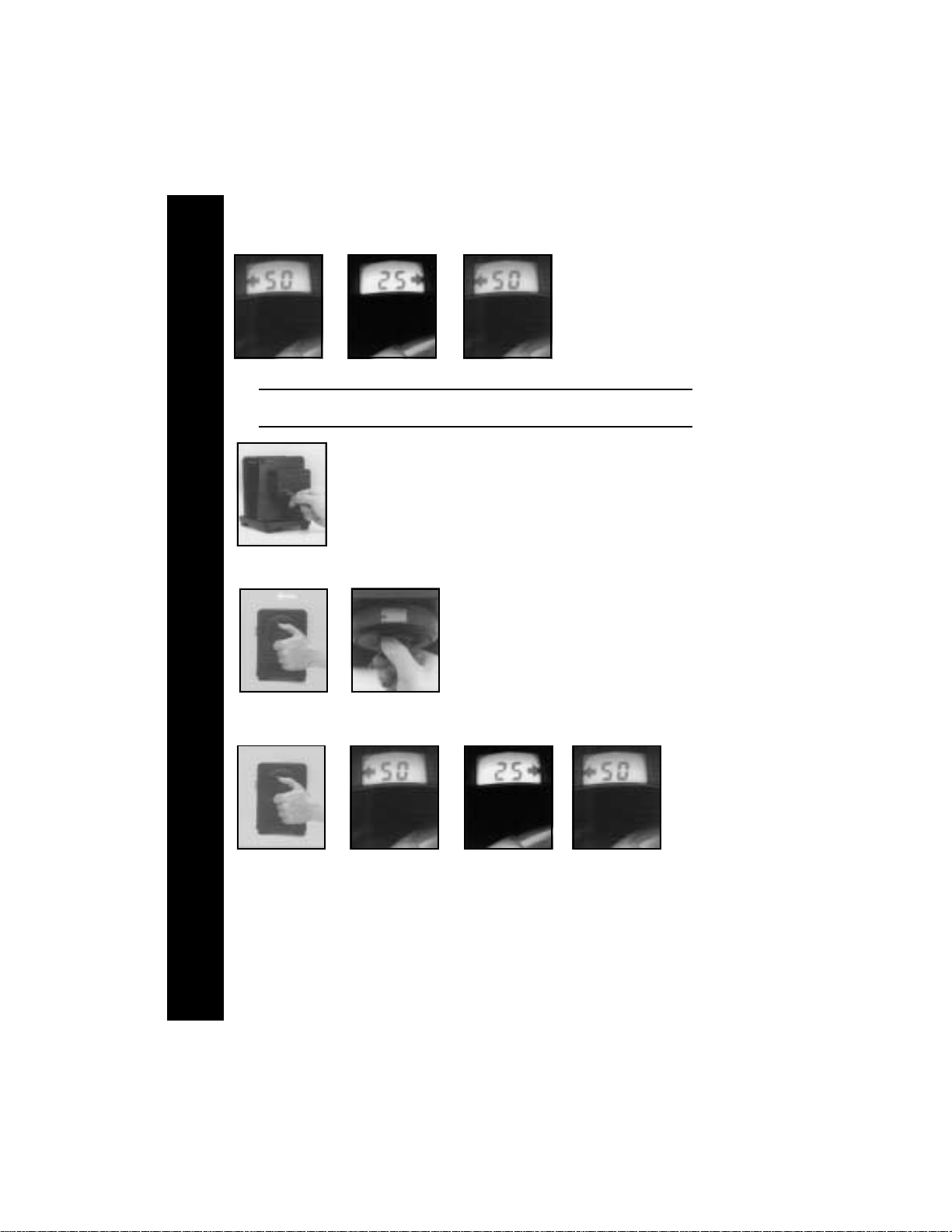

(The first time use the pre-set combination: 50 left-25 right-50 left).
NOTE: Release the bolt mechanism on the container so the dial will turn
freely. Different containers have different release mechanisms.
2. Insert the Change Key into the slot on the back of the lock.
3. Dial to the left (counterclockwise). The Change Key symbol will appear in the
display. The lock will never open when the Change Key symbol is displayed.
4. Enter the current combination or combinations again, example 50-25-50.
SETTING OPERASETTING OPERA SETTING OPERASETTING OPERA
SETTING OPERATING MODE AND NEW COMBINATING MODE AND NEW COMBINA
TING MODE AND NEW COMBINATING MODE AND NEW COMBINA
TING MODE AND NEW COMBINATIONSTIONS
TIONSTIONS
TIONS

9
ALAL
ALAL
ALTERNATERNA
TERNATERNA
TERNATE METHOD TO SET OPERATE METHOD TO SET OPERA
TE METHOD TO SET OPERATE METHOD TO SET OPERA
TE METHOD TO SET OPERATING MODETING MODE
TING MODETING MODE
TING MODE
This alternate method replaces steps 1-4. If you have lost or
forgottenthe currentcombinationandhaveaccess tothe back
of the lock, you can select a mode of operation to set new
combinations using the serial number found on the inside
cover of the lock. This serial number will not open the lock; it
will only allow you to set new combination.

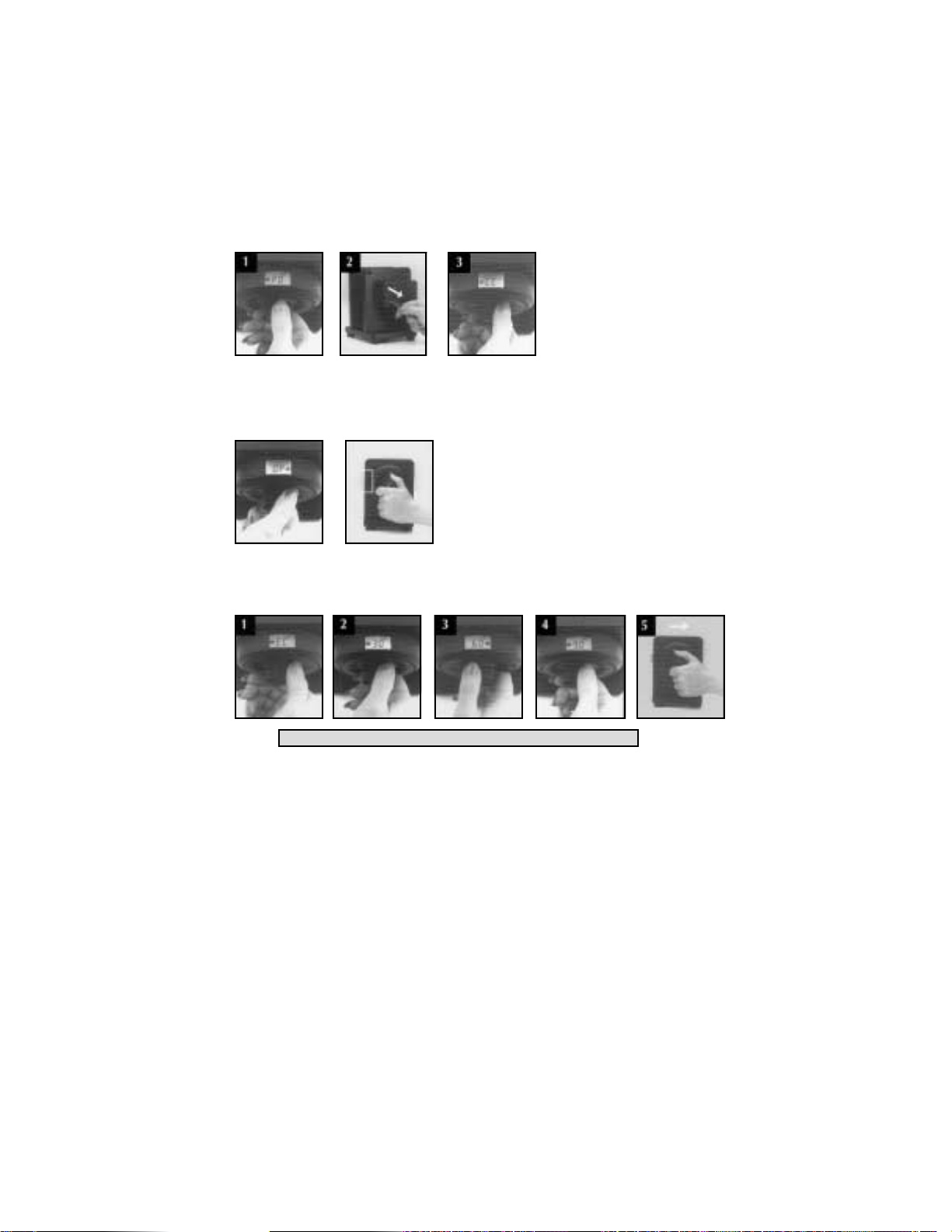

A. Dial an incorrect combination to obtain the Lightning Bolt error symbol.
B. Insert the Change Key into the back of the lock.
C. Enter the serial number as the current combination: (Example 000054)
Dial:
Left to the first 2 digits of the serial number. Stop 00. (photo 1)
Right to the second 2 digits of the serial number. Stop 00. (photo 2)
Left to the third 2 digits of the serial number. Stop 54. (photo 3)
Right SL (select mode will be displayed) continue with Step 5. (photo 4)

10

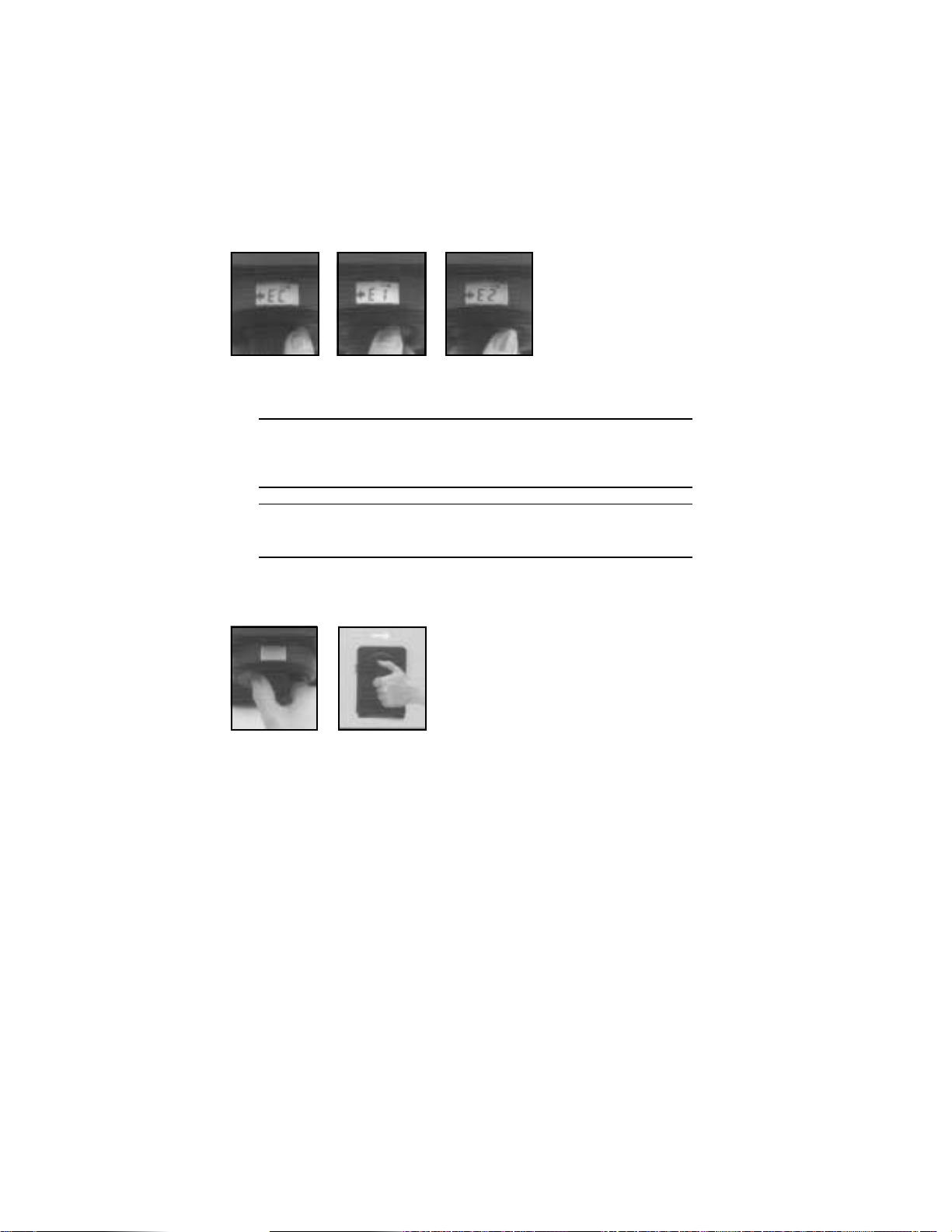

5. Dialing right, the symbol SL (for Select Mode) will be displayed (photo 1). Now
dial left to select the mode of operation:
1 —for Single Combination Mode (photo 2)
2 —for Dual Combination Mode (photo 3)
3 —for Supervisory/Subordinate Mode (photo 4)
6. Stop on the number of your selection. Now dial right to set the mode. The
symbol EC or El will be displayed depending upon the mode selected.
SETTING COMBINASETTING COMBINA
SETTING COMBINASETTING COMBINA
SETTING COMBINATIONSTIONS
TIONSTIONS
TIONS

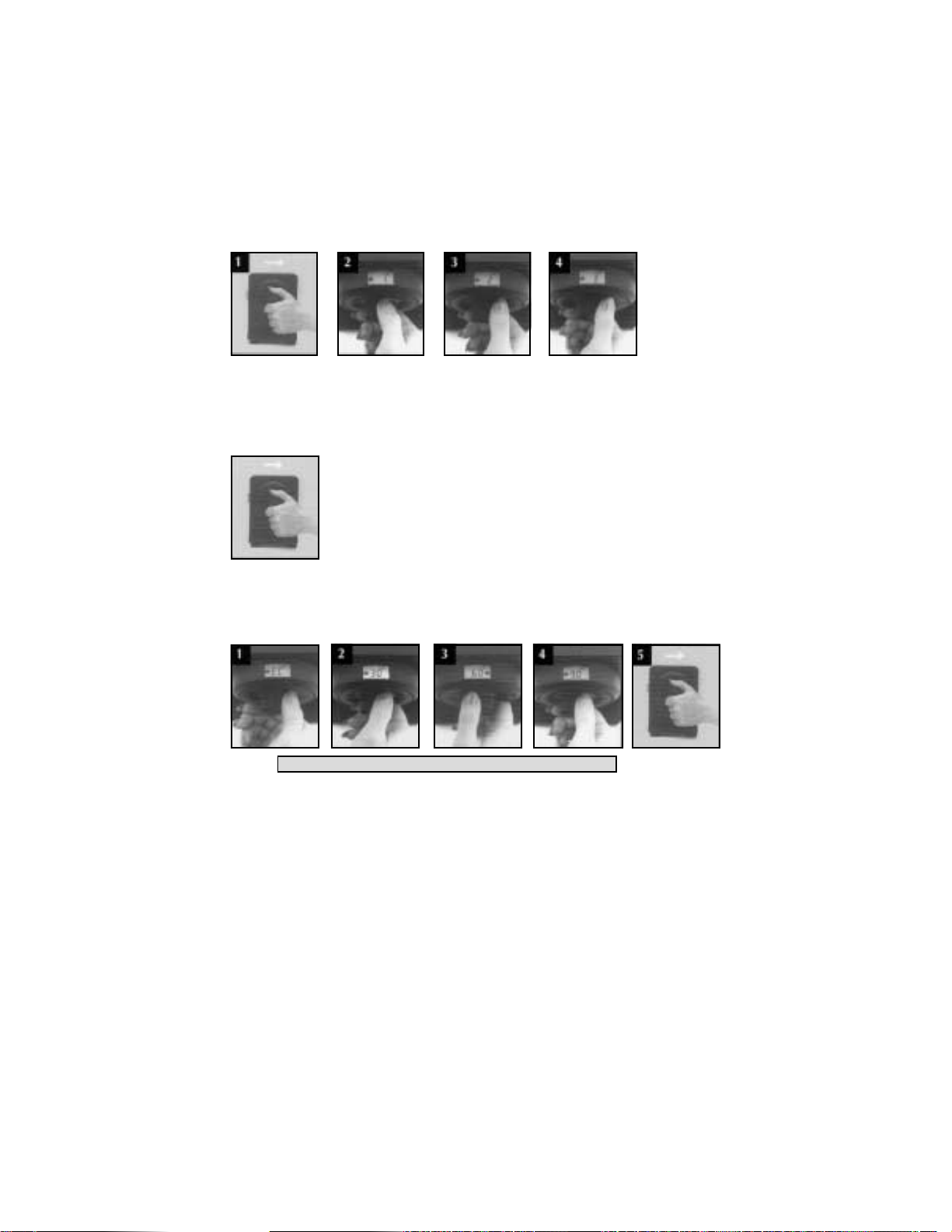

7a. If selection 1; Single Combination Mode was chosen:
(1) The symbol EC (for Enter Combination) will appear on the display (photo 1).
Enter the desired combination by dialing the numbers in correct sequence:
(Example 30-60-90)
Dial:
Left (counterclockwise) to the first number. Stop. (photo 2)
Right (clockwise) to the second number. Stop. (photo 3)
Left (counterclockwise) to the third number. Stop. (photo 4)
Right (clockwise) until display flashes the new combination. (photo 5)

11
(2) The display will flash the new combination three times and then display the
symbol PO (for Pull Out Change Key) (photo 1). Remove the Change Key
(photo 2). This will cause the Change Key symbol to disappear. The display will
show the symbol CC (Confirm Combination(s)) (photo 3).
(3) To confirm the combination(s), redial the new combinations. When the symbol
OP (OPen right) appears on the display, continue dialing to the right to retract
the bolt. The combination is now set.

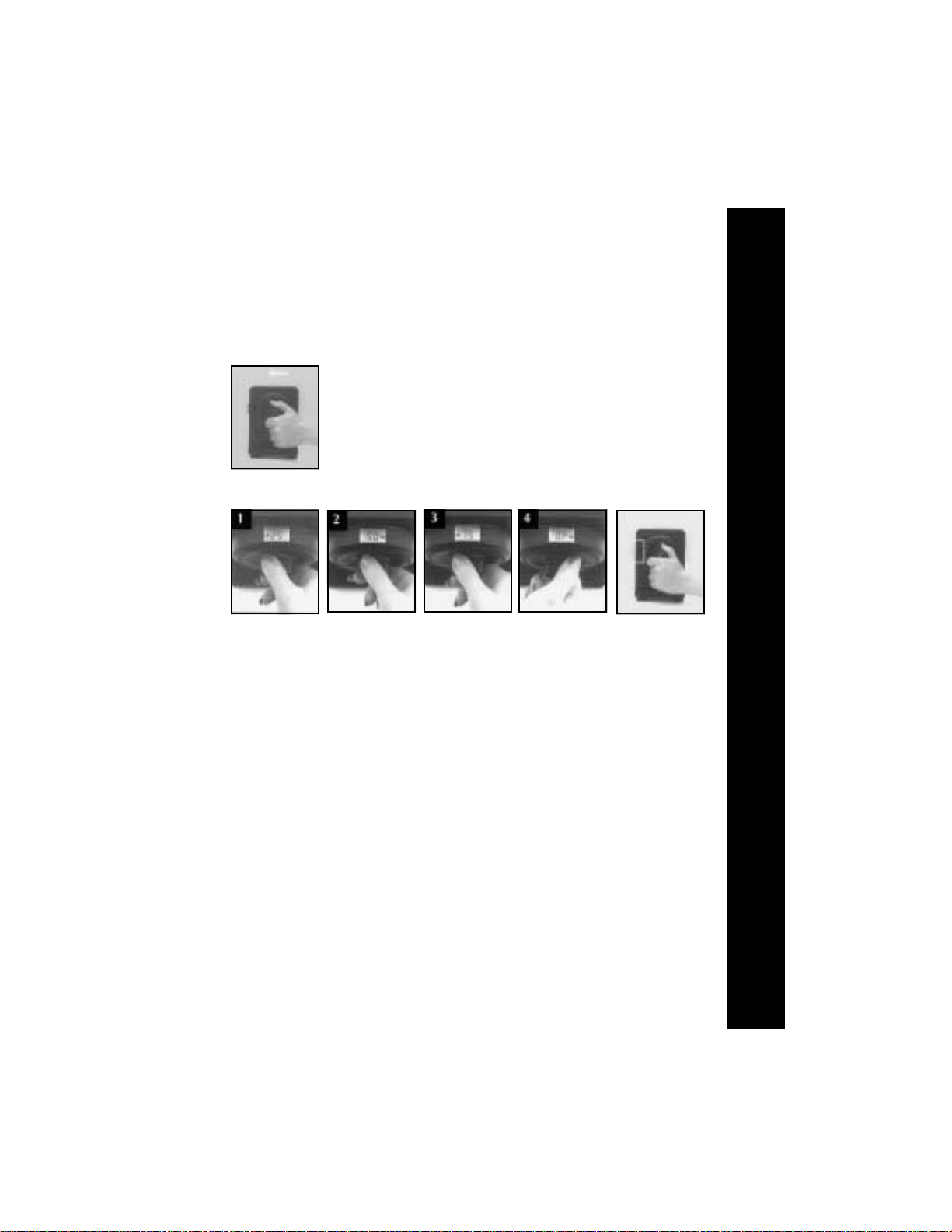

7b. If selection 2 or 3; Dual or Super/Sub Mode was chosen:
In Dual Combination Mode: Either of the two combinations can be entered
first.
In Supervisory/Subordinate Mode: Supervisory combination must be en-
tered first.
(1) The E1 symbol (enter first combination) will be displayed (photo 1). Enter
the new first combination: (Example 30-60-90)
Dial:
Left to the first number. Stop. (photo 2)
Right to the second number. Stop. (photo 3)
Left to the third number. Stop. (photo 4)
Right until display flashes new combination. (photo 5)

12
The display will flash the new combination three times then show the symbol E2
(Enter second combination).
(2) Dial the new second combination in the correct sequence: (Example 25-50-75)
Dial:
Left to the first number. Stop. (photo 1)
Right to the second number, Stop. (photo 2)
Left to the third number. Stop. (photo 3)
Right until display flashes the new combination. (photo 4)
The display will flash the new combination three times, then display the symbol PO
(Pull Out Change Key).

13

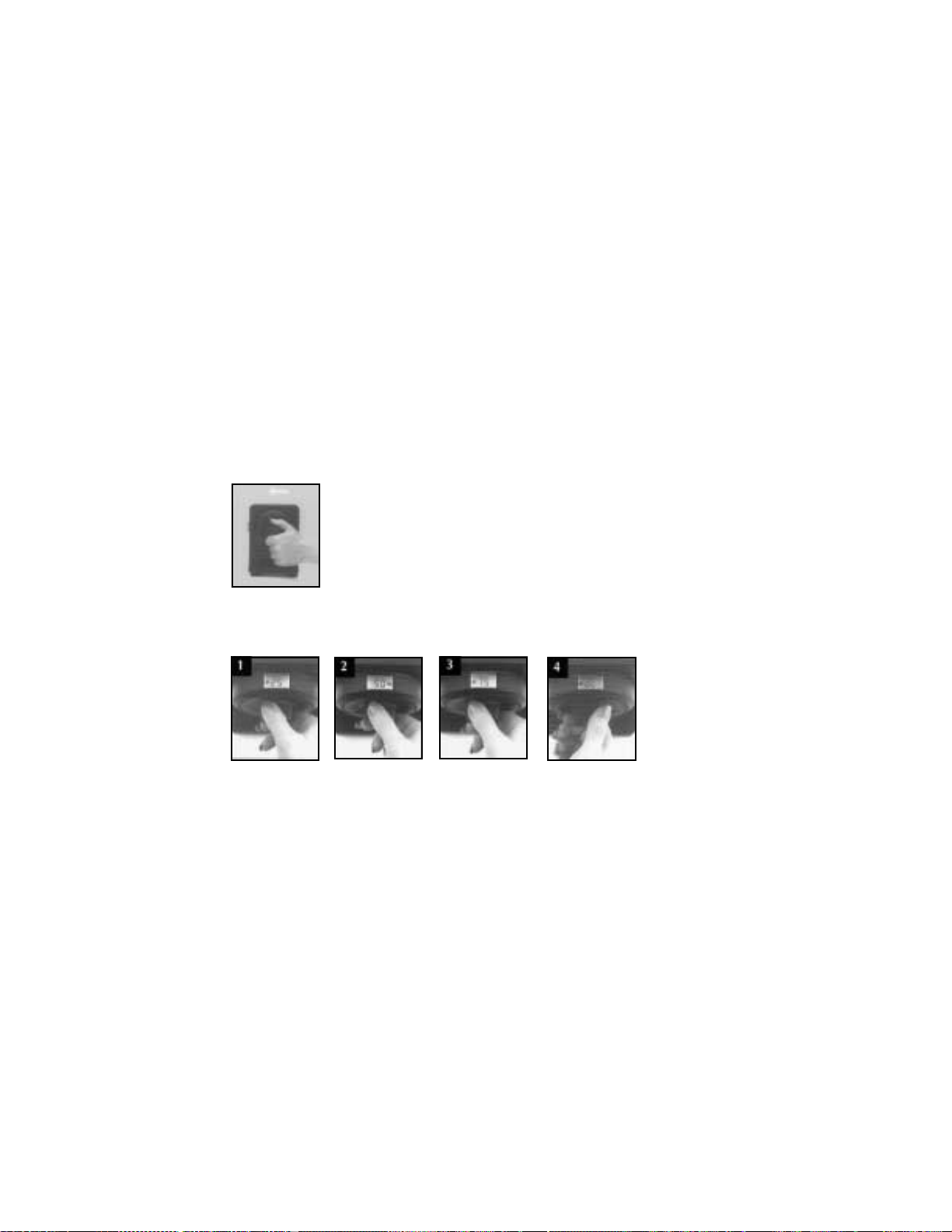

(3) Remove the Change Key. This will cause the Change Key symbol to disappear.
The display will show the symbol CC (Confirm Combination(s)).
(4) To confirm the combinations, redial the new combinations:
In Dual Combination Mode: Dial either of the new combinations (photo 1).
The symbol E2 (Enter second combination) will be displayed (photo 2). Enter
the remaining combination (photo 3).
In Super/Sub Mode: Dial Supervisory combination first (photo 1). The E2
(Enter second combination) will be displayed (photo 2). Dial in the Subordinate
combination (photo 3).
When OP (OPen right) appears (photo 4), continue dialing right to retract the
bolt.
The new combinations have now been set.
CHANGE A NEW COMBINACHANGE A NEW COMBINA
CHANGE A NEW COMBINACHANGE A NEW COMBINA
CHANGE A NEW COMBINATION DURING THETION DURING THE
TION DURING THETION DURING THE
TION DURING THE
ENTRY PROCESSENTRY PROCESS
ENTRY PROCESSENTRY PROCESS
ENTRY PROCESS
Ifyouchange your mindabout the newcombination,you may cancelitwhen it isbeing
flashed on the display screen. To do this, pull out the Change Key while the new
combinationis beingflashed.

14
When the display stops flashing, it will re-display EC, E1 or E2 depending upon which
combination you were entering. Now reinsert the Change Key and dial in the new
combination of your choice.
NOTE: If you misdial or do not properly finish the Change Key sequence in
any way, the X-07 automatically reverts to the previous combination(s). The
old combination remains valid until a new combination is confirmed.
Let the lock completely power down and then try the combination again.
CAUTION: Afteryouhave confirmed yournewcombinations,make a record
ofthenewnumbers and test dial the combinations before closing the door
or container.
LOCKOUT PREVENTIONLOCKOUT PREVENTION
LOCKOUT PREVENTIONLOCKOUT PREVENTION
LOCKOUT PREVENTION
If the door of your container is shut and the X-07 accidentally locked with the Change
Keystill insertedin theChangeKeyslot,allowthelock topower down.(After 40seconds
the display will go blank. Wait an additional minute for full power down.) You can then
openthelock by turning the dial totheRight until power up occurs (numbersappear).
Thendial thecurrentcombinationinthe correctsequence.

15
USING THE XUSING THE X USING THE XUSING THE X
USING THE X-07-07
-07-07
-07
USING THE XUSING THE X
USING THE XUSING THE X
USING THE X-07-07
-07-07
-07
SINGLE COMBINASINGLE COMBINA
SINGLE COMBINASINGLE COMBINA
SINGLE COMBINATION MODETION MODE
TION MODETION MODE
TION MODE
InthismodetheX-07functionsmuchlikeastandardcombinationlock. Itwillopenanytime
thethree-number combinationis correctlydialed.
Dialleftto “power up”thelock.
Whennumbers appearonthedisplay,continue dialing: (Example25-50-75)
Dial:
Lefttothe first number. Stop. (photo1)
Rightto thesecond number. Stop. (photo2)
Leftto the thirdnumber. Stop.(photo3)
Rightto OPen(photo 4),continue righttopullthebolt. (photo5)
Ifthe dialremains stationaryformore than40 seconds,the computerwill reset(LCDwill
goblank) requiringthe operatorto redialthe entirecombination.
If you pass your number when dialing, please refer to page 3 or 18 for assis-
tance.

16
USING THE XUSING THE X USING THE XUSING THE X
USING THE X-07-07
-07-07
-07
DUDU
DUDU
DUAL COMBINAAL COMBINA
AL COMBINAAL COMBINA
AL COMBINATION MODETION MODE
TION MODETION MODE
TION MODE
Inthis mode,twocombinationsmustbe correctlyand consecutivelyenteredtoopenthe
lock.Eithercombinationmaybeenteredfirst. However,theoperatormustbeginentering
thesecond combination within40 seconds ofthe firstcombination.
First Operator:
Dial left to “power up”the lock.
Whennumbers appearonthedisplay,continue dialing: (Example25-50-75)
Dial:
Lefttothe firstnumberin the firstcombination. Stop. (photo 1)
Rightto thesecondnumber inthe firstcombination. Stop. (photo2)
Leftto the thirdnumber inthefirst combination. Stop.(photo3)
Rightto E2displayed.(photo4)
Nowwithin40 seconds; thesecond operator mustbegin.
Second Operator:
Dial: (Example30-60-90)
Leftto the firstnumber in thesecond combination. Stop. (photo1)
Right to the second number in the second combination. Stop. (photo 2)
Left to the third number in the second combination. Stop. (photo 3)
Right to OP (photo 4); continue right to pull the bolt. (photo 5)

17
Ifthe dial remainsstationary formorethan 40seconds the computerwill reset(LCDwill
goblank) requiringthe operatorto redialboth combinations.
If you pass your number when dialing, please refer to page 3 or 18 for assis-
tance.
SUPERVISORY/SUBORDINASUPERVISORY/SUBORDINA
SUPERVISORY/SUBORDINASUPERVISORY/SUBORDINA
SUPERVISORY/SUBORDINATE MODETE MODE
TE MODETE MODE
TE MODE
In this mode, two combinations must be correctly dialed to open the lock. However,
the Supervisory Combination must be dialed first to display UL (Unlocked). This
allows the Subordinate combination holder(s) to gain access as often as desired by
dialing the Subordinate Combination. Whenever the Super is redialed to display LU
(Locked Up), the Subordinate holder(s) are again denied access.
UNLOCK IN SUPERVISORY/SUBORDINAUNLOCK IN SUPERVISORY/SUBORDINA
UNLOCK IN SUPERVISORY/SUBORDINAUNLOCK IN SUPERVISORY/SUBORDINA
UNLOCK IN SUPERVISORY/SUBORDINATE MODETE MODE
TE MODETE MODE
TE MODE
Supervisory Operator:
Dialleftto “power up”thelock.
Whennumbers appearonthedisplay,continue dialing: (Example25-50-75)
Dial:
Leftto the firstnumber in theSupervisory combination. Stop. (photo1)
Rightto thesecond numberintheSupervisorycombination. Stop. (photo2)
Leftto thethirdnumber inthe Supervisorycombination. Stop.(photo 3)
Rightto UL(Unlocked) isdisplayed. (photo4)
TheX-07willnowoperate asifit wereinasinglecombination mode-onlytheSubordinate
combinationis requiredto openthe lock.

18
Subordinate Operator:
Dial: (Example30-60-90)
Leftto thefirstnumber inthe Subordinatecombination. Stop.(photo 1)
Rightto thesecond numberin theSubordinate combination. Stop.(photo2)
Leftto thethird numberin theSubordinatecombination. Stop.(photo3)
Rightto OP(photo 4);continuerighttopull thebolt. (photo5)
TheX-07will continuetoopenasoftenastheSubordinatecombinationis redialed;thatis,
untiltheSuperCombinationis redialeddisplayingLU (LockedUp).
LOCK UP IN SUPERVISORY/SUBORDINALOCK UP IN SUPERVISORY/SUBORDINA
LOCK UP IN SUPERVISORY/SUBORDINALOCK UP IN SUPERVISORY/SUBORDINA
LOCK UP IN SUPERVISORY/SUBORDINATETE
TETE
TE
MODEMODE
MODEMODE
MODE
Supervisory Operator:
Dial: (Example25-50-75)
Leftto the firstnumber intheSupervisory combination.Stop.(photo 1)
Rightto thesecond numberintheSupervisorycombination. Stop. (photo2)

19
Leftto thethirdnumber inthe Supervisorycombination. Stop.(photo 3)
Rightto LU(Locked Up)symbol isdisplayed.(photo4)
Thisblocks entryof theSubordinate Combinationholder(s) untilthe SupervisoryCombi-
nationisredialedredisplayingUL (Unlocked).
TheremaybeunlimiteddelaybetweendialingoftheSupervisorycombinationanddialing
of the Subordinate combination. However, when dialing either combination if the dial
remainsstationary formore than40 seconds,the computerwill reset(LCDwillgoblank)

20
requiringthe operator(s)to redialthat combination.
If you pass your number when dialing, please refer to page 18 for assistance.
IF YIF Y
IF YIF Y
IF YOU POU P
OU POU P
OU PASS YASS Y
ASS YASS Y
ASS YOUR TOUR T
OUR TOUR T
OUR TARGET NUMBER WHENARGET NUMBER WHEN
ARGET NUMBER WHENARGET NUMBER WHEN
ARGET NUMBER WHEN
DIALINGDIALING
DIALINGDIALING
DIALING
A. Example:targetnumber-25.
Ifyou passyourtargetnumberby 4or more(photo 1),continuedialinginthe same
direction(photo 2),untilyou reachthe target numberagain (photo3).
B. Example:targetnumber-25.
If you pass the target number by no more than 3 numbers (photo 1), you may
