Mason Di2 User manual

SET-UP AND CARE GUIDE

Introduction 03
Getting started 04
Complete bike contents
Definition frameset contents
Resolution frameset contents
Assembly 05
Assembling your bike
Headset information
Cable routing information
Caring for your bicycle 06
02 – CONTENTS

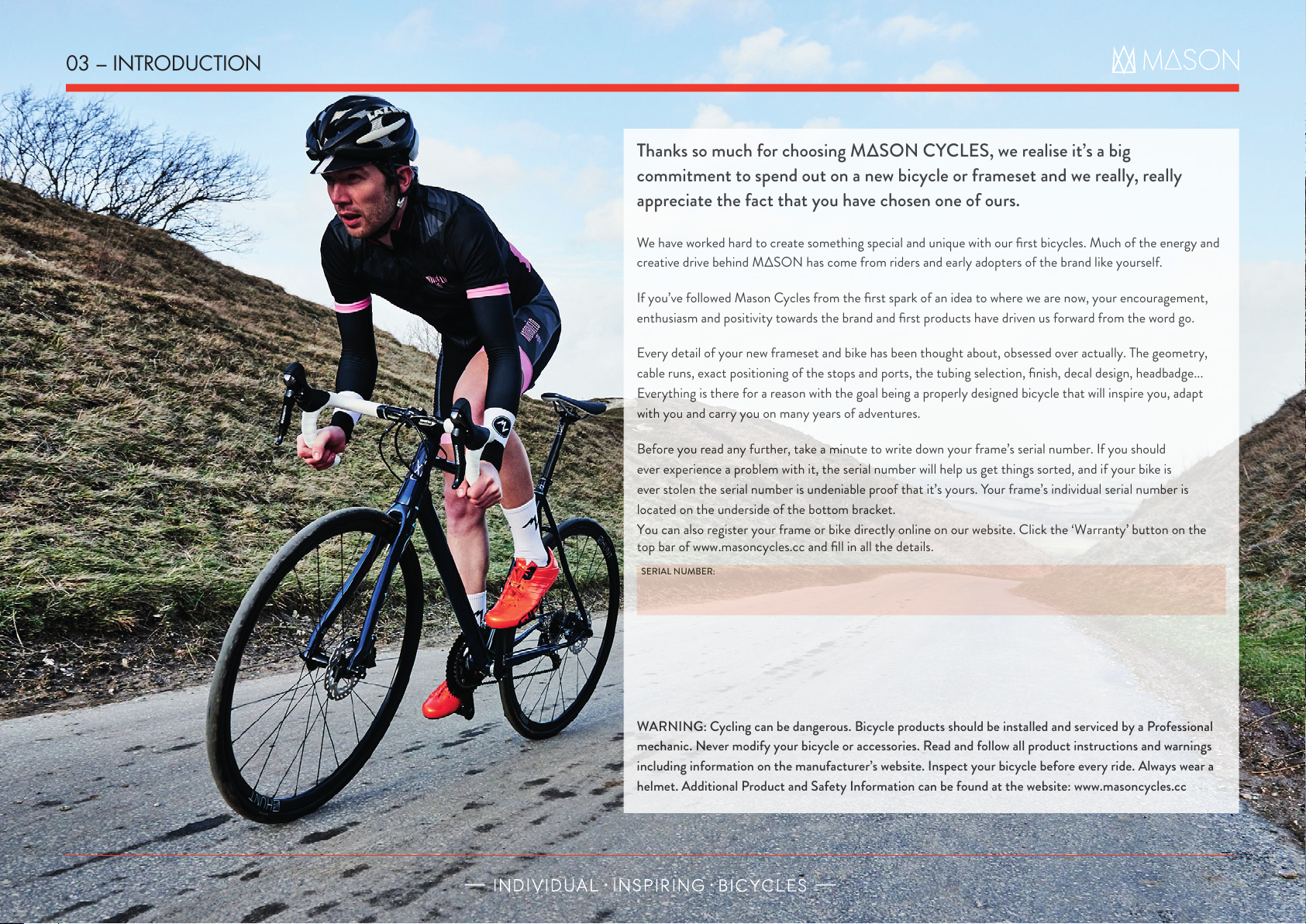

Thanks so much for choosing MΔSON CYCLES, we realise it’s a big
commitment to spend out on a new bicycle or frameset and we really, really
appreciate the fact that you have chosen one of ours.
We have worked hard to create something special and unique with our first bicycles. Much of the energy and
creative drive behind MΔSON has come from riders and early adopters of the brand like yourself.
If you’ve followed Mason Cycles from the first spark of an idea to where we are now, your encouragement,
enthusiasm and positivity towards the brand and first products have driven us forward from the word go.
Every detail of your new frameset and bike has been thought about, obsessed over actually. The geometry,
cable runs, exact positioning of the stops and ports, the tubing selection, finish, decal design, headbadge...
Everything is there for a reason with the goal being a properly designed bicycle that will inspire you, adapt
with you and carry you on many years of adventures.
Before you read any further, take a minute to write down your frame’s serial number. If you should
ever experience a problem with it, the serial number will help us get things sorted, and if your bike is
ever stolen the serial number is undeniable proof that it’s yours. Your frame’s individual serial number is
located on the underside of the bottom bracket.
You can also register your frame or bike directly online on our website. Click the ‘Warranty’ button on the
top bar of www.masoncycles.cc and fill in all the details.
SERIAL NUMBER:
WARNING: Cycling can be dangerous. Bicycle products should be installed and serviced by a Professional
mechanic. Never modify your bicycle or accessories. Read and follow all product instructions and warnings
including information on the manufacturer’s website. Inspect your bicycle before every ride. Always wear a
helmet. Additional Product and Safety Information can be found at the website: www.masoncycles.cc
03 – INTRODUCTION

COMPLETE BIKE CONTENTS:
If you purchased a complete bike all you need to do
is some basic assembly and then you’re ready to ride.
Please refer to section 05 for assembly guidance.
The MultiPort parts supplied with your MΔSON
bicycle are dependent on the on the build specification
that you have chosen. Please contact us directly if
you require any additional parts, for example, when
changing from mechanical shifting to Di2. You will find
the complete range of MultiPort parts on the
next page.
04 – GETTING STARTED

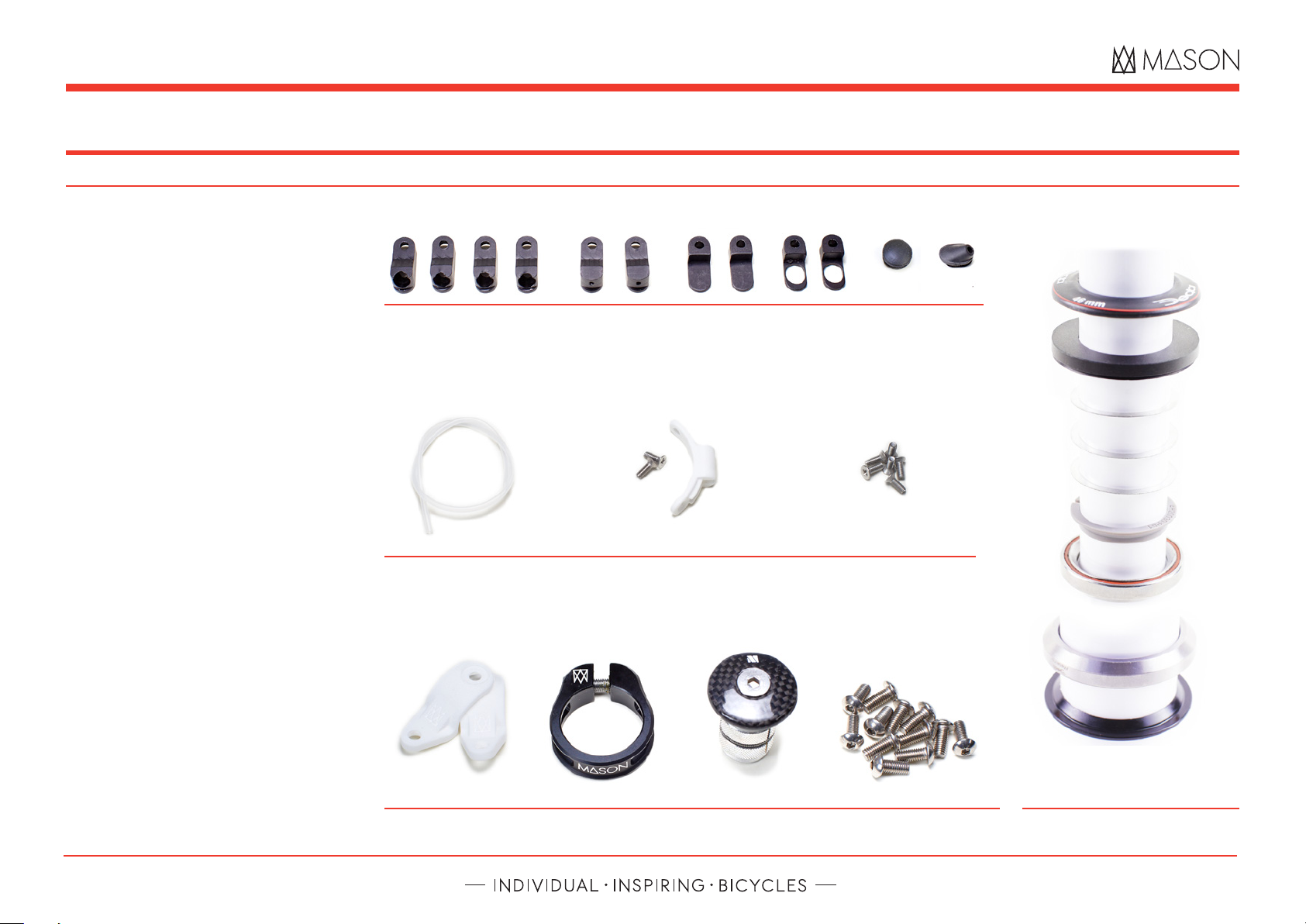

DEFINITION FRAME SET CONTENTS:
• Frame
• Fork
• Headset and small parts (pictured)
04 – GETTING STARTED
(1) Front-fender inserts (2) Seat collar (3) Headtube bung (4) Marine-grade stainless cap screws x12. Headset
(1) Front mech cable outer (2) BB Cable guide & M3 csk screw x2 (3) M3 csk screws x6 for MultiPort
(1) MultiPort Parts: Hose Outer x4; Split Outer x2; Blank Plate x2; Di2 Port x2
(2) Blanking Grommet (3) 450Di2 Grommet x3

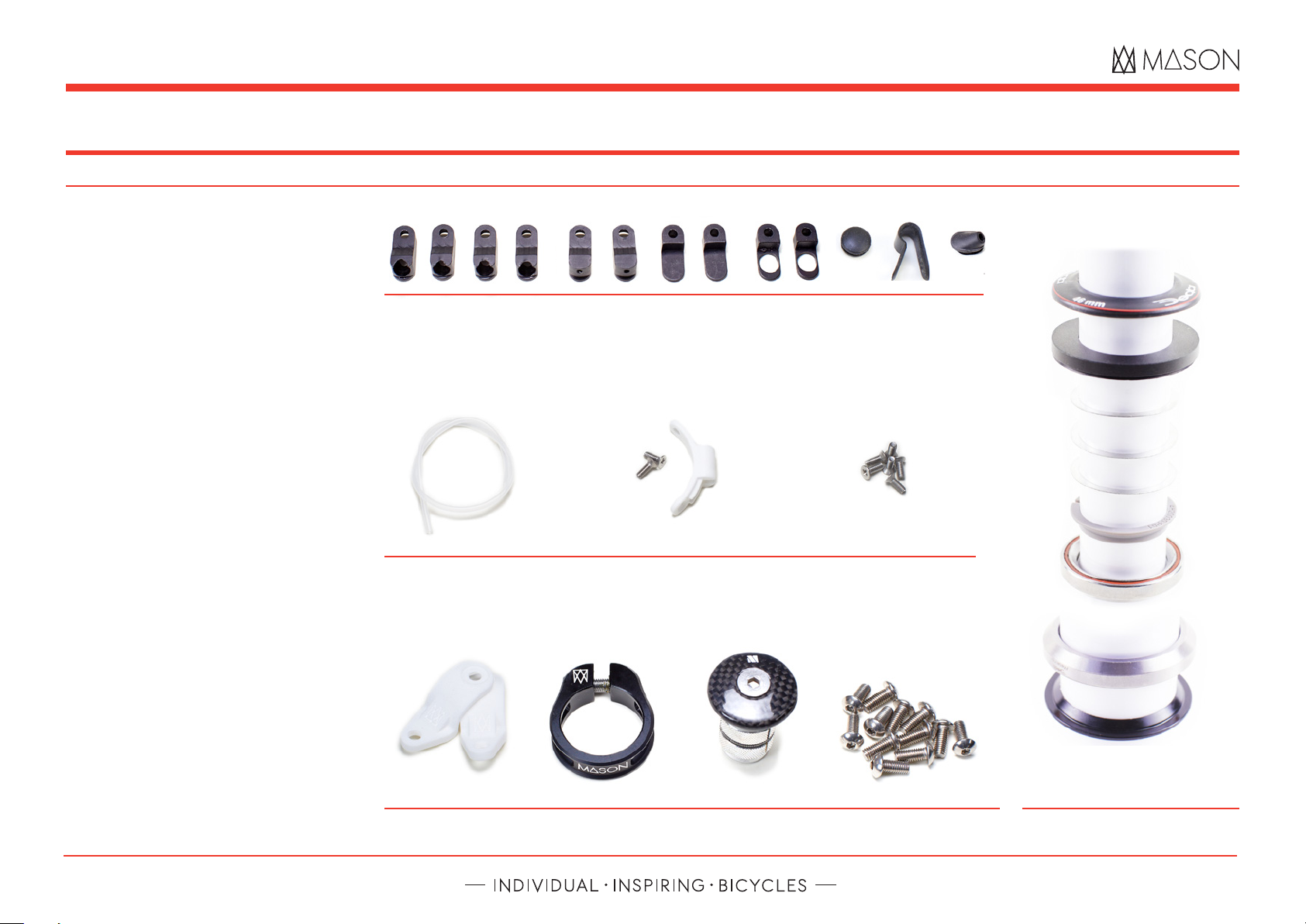

RESOLUTION FRAME SET CONTENTS:
• Frame
• Fork
• Headset and small parts (pictured)
04 – GETTING STARTED
(1) Front-fender inserts (2) Seat collar (3) Headtube bung (4) Marine-grade stainless screws x12. Headset
(1) Front mech cable outer (2) BB Cable guide & M3 csk screw x2 (3) M3 csk screws x6 for MultiPort
(1) MultiPort Parts: Hose Outer x4; Split Outer x2; Blank Plate x2; Di2 Port x2
(2) Blanking Grommet (3) P-clip x2 (4) 450Di2 Grommet x3

ASSEMBLING YOUR BIKE
Please take the time to quickly give your bike and
frameset a once over before you assemble them, just
to check they haven’t been damaged in transit. To
ensure you don’t encounter any problems in the future
please read some of the following information in
this guide.

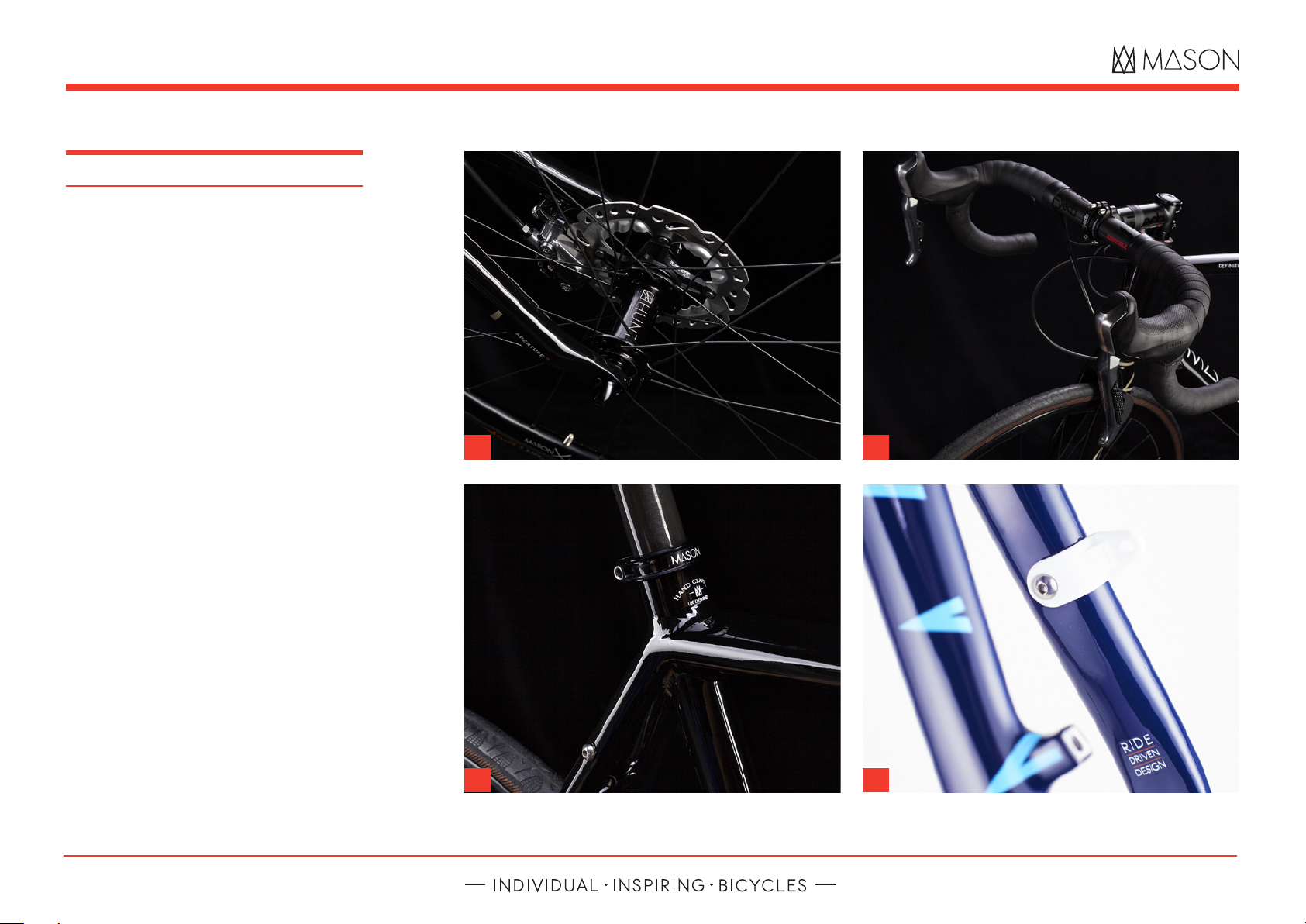

Fitting wheels (A) Ensure the quick releases are tight
on both wheels before riding. Inflate tyres to desired
pressure, 6.2 bar is a good starting point.
Bars and stem (B) Rotate the handlebars upwards into
a comfortable position and secure the 4 stem cap bolts
to 4Nm, working from top left to bottom right, top
right to bottom left. Next, align the stem in parallel
with the front wheel and top tube. Tighten stem
bolts to 4Nm.
Seat post (C) Insert seat post. We recommend
applying a light coating of a carbon-fibre grip paste to
the seat post. Set saddle to desired height, or a good
starting point is to have the saddle at hip level when
standing alongside your bike. Torque the seat clamp
to 5Nm.
MΔSON 3D printed brackets (D) To be used when
attaching mudguards to the forks. Ensure all screws are
tightened securely.
05 – ASSEMBLY
A B
CD

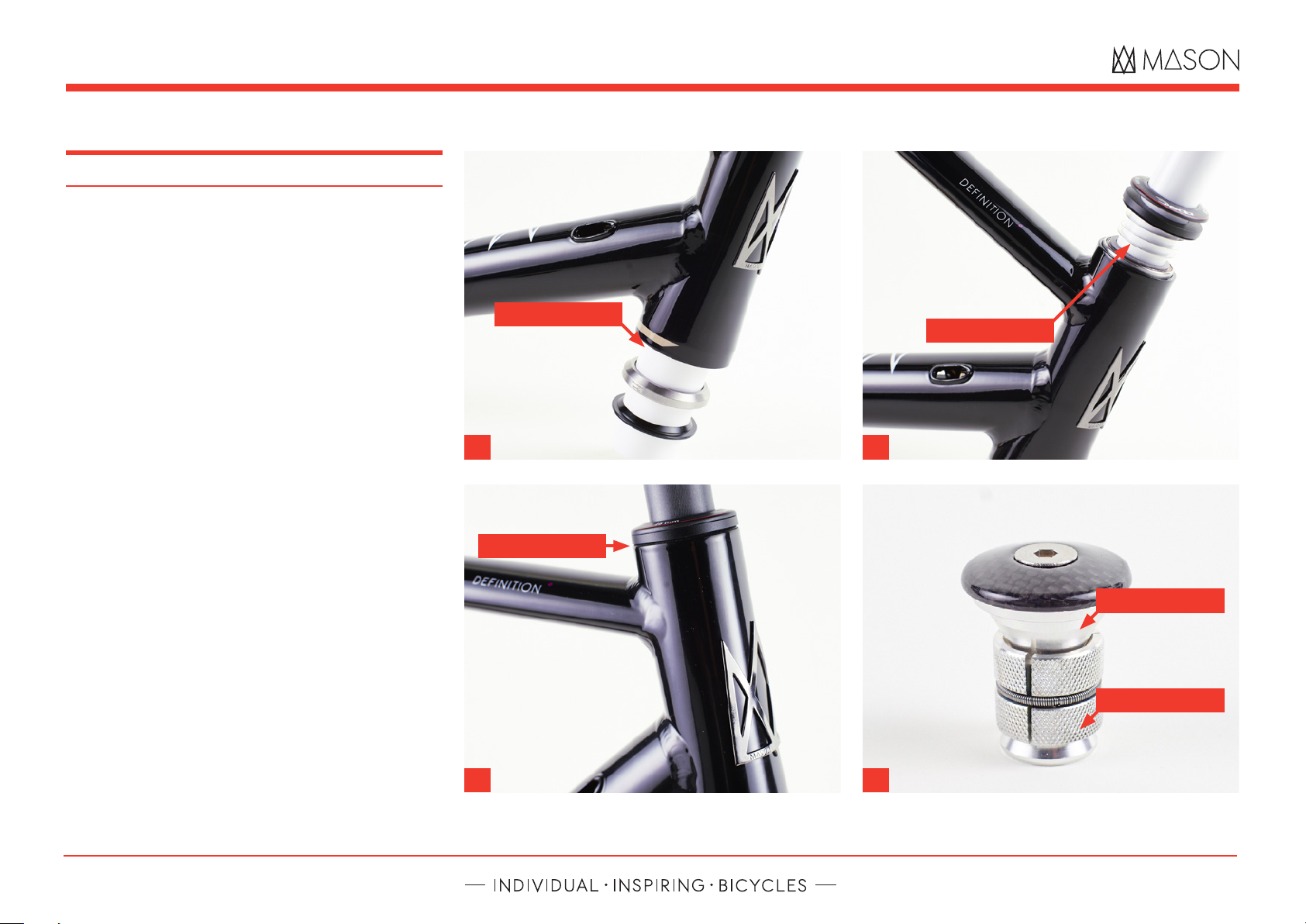

FRAME ASSEMBLY GUIDANCE
Fitting headset (A & B) Grease headset cups. Fit crown race and
lower (larger) bearing to fork steerer. Insert fork into head tube and
fit remaining headset parts in order as shown on 04 Resolution/
Definition Frame Contents. Ensure that you fit the thin metal
headset shims to achieve (C) correct gap. The headset top cap
should not contact the head tube.
Fitting steerer expander bung (D) After cutting steerer to desired
length, ensure steerer is clean and free of swarf. Lightly grease the
internal wedge of the expander, and insert into fork steerer. Torque to
no more than 3Nm.
Tighten the top-cap to adjust headset bearing play.
• Grease all MultiPort insert parts and screws before assembly.
Make sure screws are threaded in carefully and not overtightened.
• Grease headset seats and BB threads before assembly.
• Use the supplied MΔSON structural nylon BB cable stop
when running a mechanical front-mech, remove when using
electronic shifting.
• Use the supplied cable liner to run the front mech cable from
BB cable-stop to mech.
• If you are fitting mudguards, use the MΔSON 3D printed
brackets. These will be supplied with every frameset and are in
production now. Please contact us and we’ll post a set out.
05 – ASSEMBLY
Correct gap
Shims
Grease
Grease
Grease
A B
CD

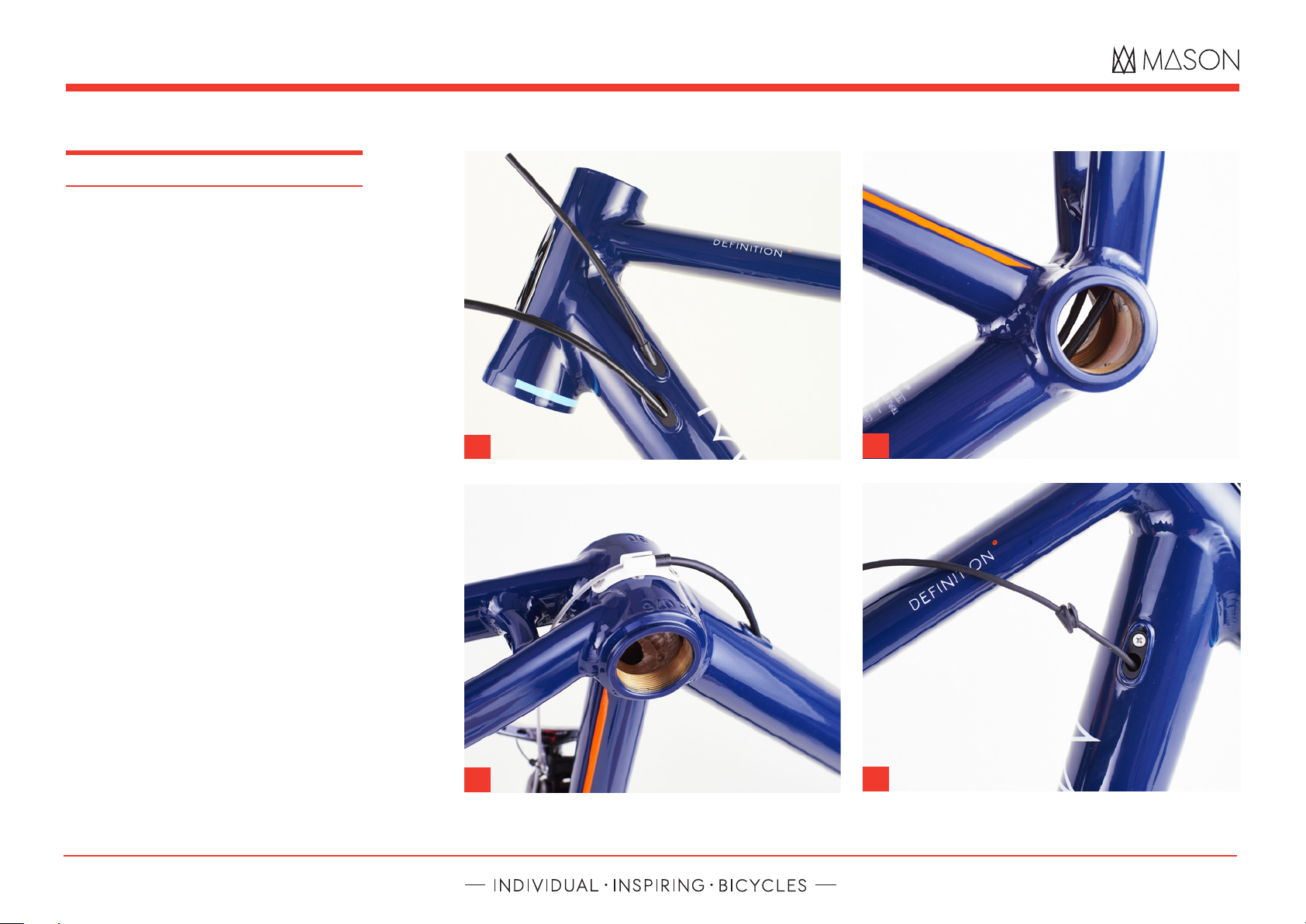

DEFINITION CABLE ROUTING
(A) Choose full or interrupted outer for the front
mech and pick appropriate MultiPort parts. Run the
front-mech outer through the higher MultiPort boss
on the down tube, and the rear-brake through the
lower MultiPort boss.
(B, E) Run full-outer to rear mech and brake. You’ll
have to run the cable & hose through the ThruBB
before fitting the bottom-bracket.
(C) Run the front-mech cable through the 3D BB
cable guide and sleeve with 23mm cable outer.
(D, F, G) If using a Di2 shifting setup, fit the 450Di2
Grommet to the Di2 MultiPort. Run the cable through
the right hand side of the down tube.
05 – ASSEMBLY
AB
CD

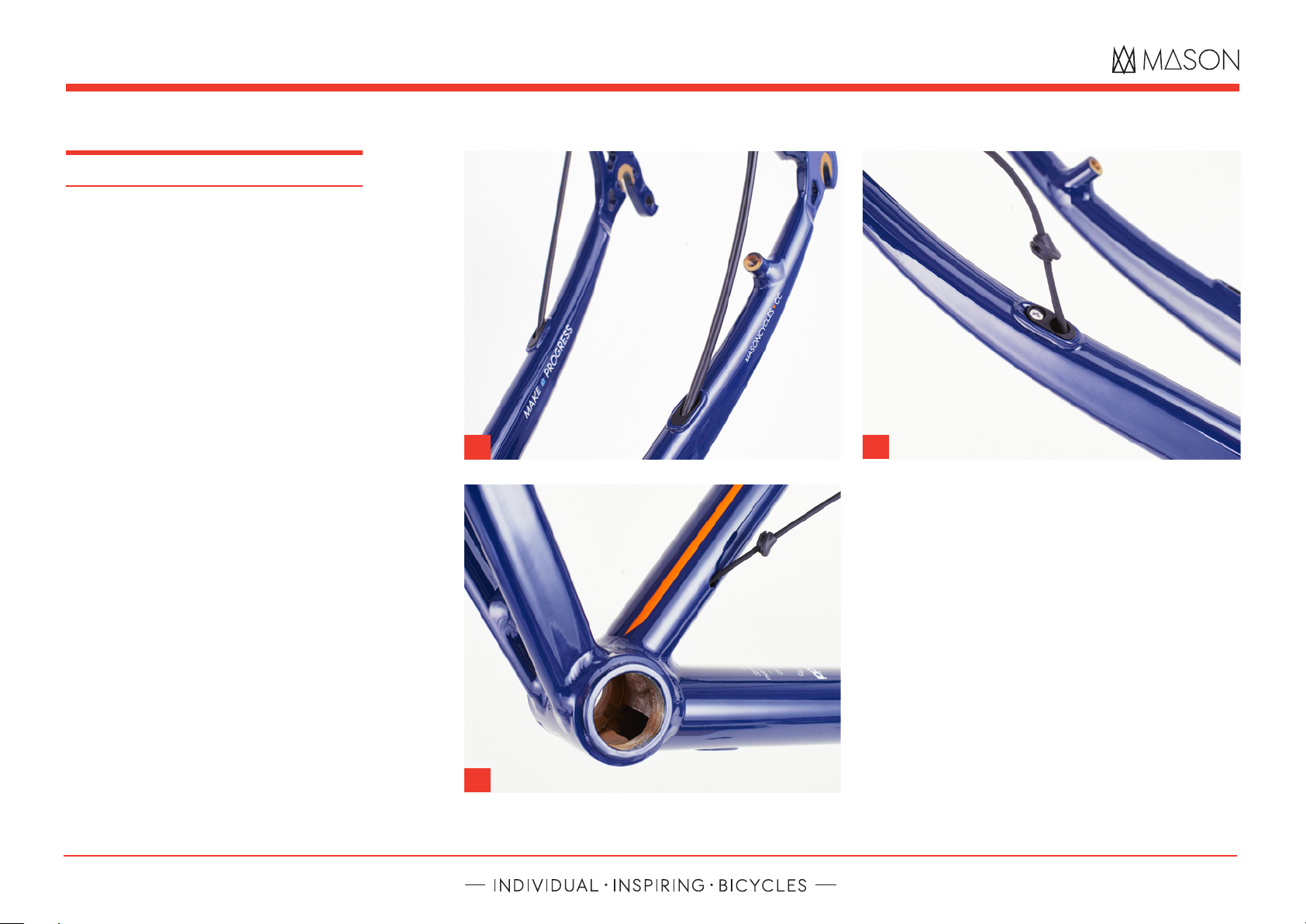

DEFINITION CABLE ROUTING
These images show cable exit points, continuing from
previous page:
(E) Rear mech & rear brake cable exits.
(F) Rear mech wire exit if using Di2.
(G) Front mech wire exit if using Di2.
05 – ASSEMBLY
EF
G

RESOLUTION CABLE ROUTING

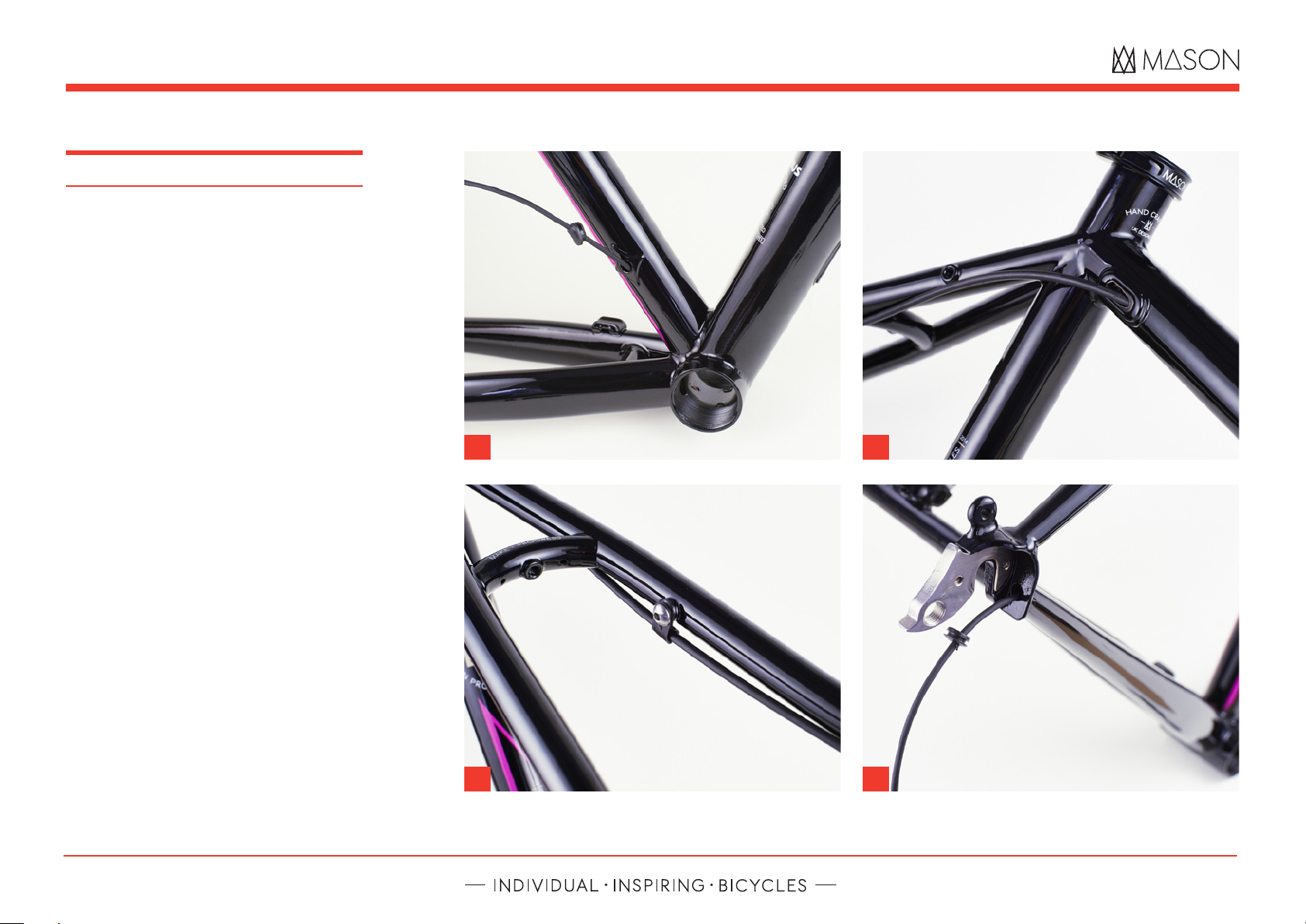

(A) Run full-outer or hose to rear brake. Secure rear
brake hose to chainstay (B) using cable-outer clips or
cable ties.
(C) Choose full or interrupted outer for the front
mech. Run cable through BB cable guide as in
Definition. If using Di2, the wire stays internally
routed and enters as in (D)
05 – ASSEMBLY
AB
C D

RESOLUTION CABLE ROUTING
If using Di2, the front mech wire exits as shown in (E).
Run full-outer to rear mech (F) and secure to seat stay
using 2 P-clips (G).
If using Di2, fit the MultiPort blanking plate to the
top tube, and run the rear mech wire through the
chainstay, exiting as in (H).
05 – ASSEMBLY
G H
E F

BASIC CARE & MAINTENANCE
Please use an appropriate cleaning product to give
your bike a good clean regularly. This is to ensure that
your bike maintains its proper function and exceptional
looks for as long as possible.
Also if you really love your bike, use a bit of glossy
polish and then wax on your frame every now and
again, this will keep the paint well protected from nasty
road salt and grime.
06 – CARING FOR YOUR BICYCLE

We would love to see your finished bike
and hear about your travels and riding
experiences, that’s what its all about for
us. Please keep in touch through the
MΔSON website and all social media
channels. Join us on Strava. We’ll share
the best stories, and post some bike-
builds and adventure pics up on the site.
