Master Bilt DMS-48 User manual

ITEM NO. ______________________________________________________
PROJECT ______________________________________________________
LOCATION _____________________________________________________
DATE _________________________ QTY. ___________________________
908 Highway 15 North • New Albany, MS 38652
PHONE: [phone] or 662-534-9061 • FAX: [phone] or 662-534-6049 • www.master-bilt.com
FEATURES
CONSTRUCTION
• 24 gauge painted textured steel
exterior
• Stainless steel top and oor
• Triple pane front display glass
• Two tiers of heavy-duty, epoxy-
coated, welded wire shelving on
high prole models, one tier on
low prole models
• Standard 1" oor drain
• Automatic condensate evaporator
• Coated gravity evaporator coil
• Upper interior features full
length front and rear T-8 uo-
rescent lights with electronic
ballast
• Adjustable, timer-controlled
defrost cycle
• 13/4" foamed-in-place “zero
ODP” urethane insulation
DOORS
• Self-closing, sliding dual pane
rear service doors
REFRIGERATION
• Self-contained, hermetic
condensing unit
• Front condenser air intake and
rear discharge
• Temperature range:
34° to 41°F (1° to 5°C)
• R-factor (insulation efciency
rating): 15.08
WARRANTY
• Standard limited three year
extended compressor and two
year limited parts and labor
FEATURES
DMS-48
DMS/DMS-L SERIES
Deli/Display Merchandisers
OPTIONS
❑ Add sufx “F” for front
sliding doors
❑ Custom colors
❑ Casters
❑ Leg kit
❑ Ice pans for sh and seafood
HIGH PROFILE LOW PROFILE
MODELS MODELS
❑ DMS-48 ❑ DMS-48L
❑ DMS-72 ❑ DMS-72L
❑ DMS-96 ❑ DMS-96L
CLASSIFIED TO NSF
STANDARDS FOR FOOD
ZONE REQUIREMENTS
Benets of this classication:
• Allows the storing of food in
open containers, pans and
platters
• Reduced packaging costs
• Quicker, more convenient ser-
vice to customers
DMS-48L
Standard
white
Black also
available
NEW
STANDARD TEXTURED FINISH

NOTE: Cabinet designed for optimum performance in air-conditioned area at 75°F ambient and 55% relative humidity.
All specications subject to change without notice.
908 Highway 15 North • New Albany, MS 38652
PHONE: [phone] or 662-534-9061 • FAX: [phone] or 662-534-6049 • www.master-bilt.com
DMS MODELS
DMS-L MODELS
DMS/DMS-L SERIES
DELI/DISPLAY MERCHANDISERS
TECHNICAL SPECIFICATIONS
LISTINGS
HOOKUP
BID SPECIFICATIONS
Item no. DMS______ and/or DMS-______L
Provide________( ) High Prole Deli/
Display Merchandiser(s), Master-Bilt model
no. DMS-_______ and/or ( ) Low Pro-
le Deli/Display Merchandiser(s), Master-
Bilt model no. DMS-_______L.
Merchandiser to feature textured nish
on interior and exterior. All models to be
provided with triple pane front display
1205-5/12-web
©Master-Bilt Products division of Standex International, Inc. All rights reserved. Printed in U.S.A.
Via plug in, 10 foot long, exible 3 wire 16/3
cord with molded plug.

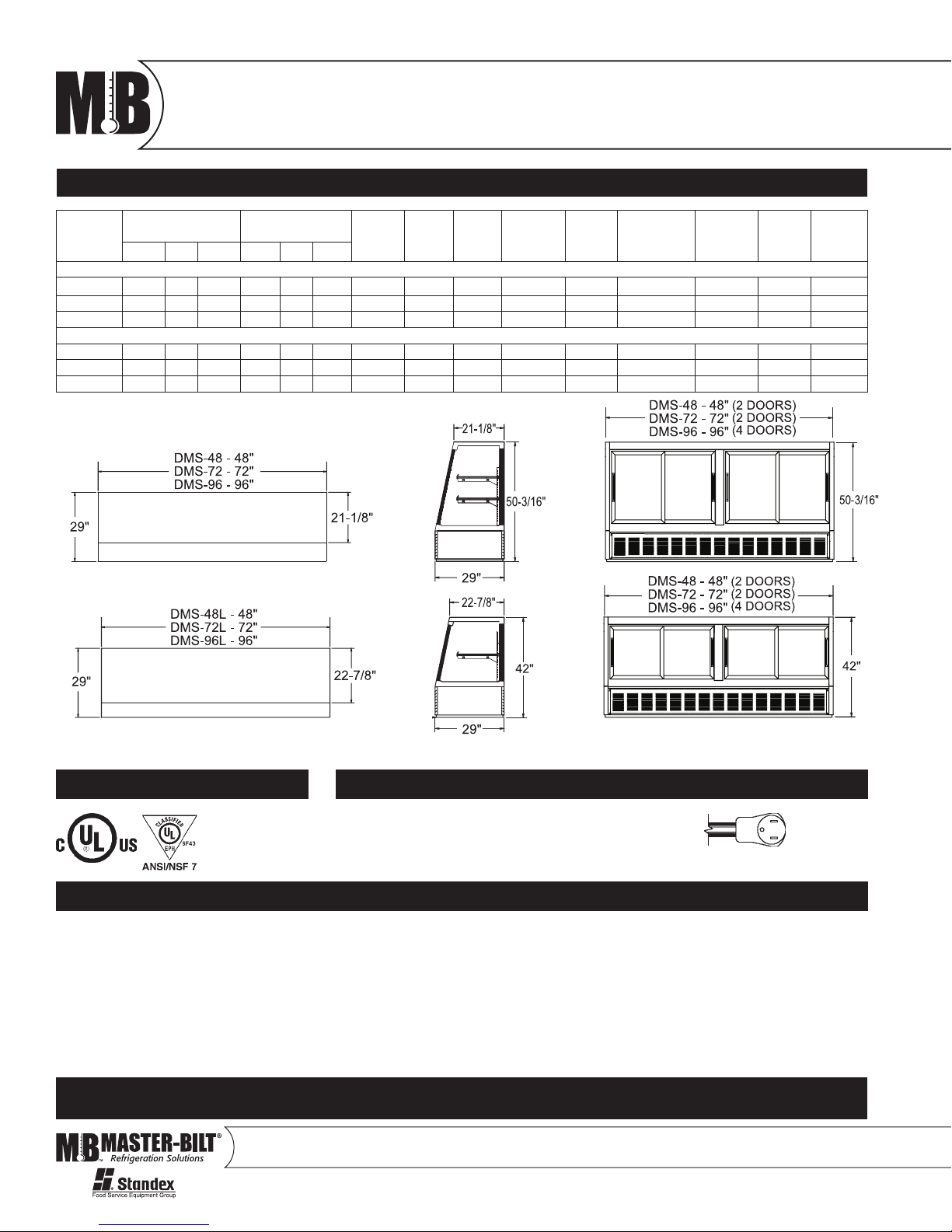

PLAN VIEW SIDE VIEW ELEVATION VIEW
glass, a stainless steel top and interior oor
and self-closing sliding rear doors. Interior
shelving is to be heavy-duty, welded wire
epoxy-coated. The nish is to be white
polyester enamel interior and exterior.
Merchandiser also to have coated gravity
evaporator coil and automatic condensate
evaporator. The refrigeration system is to
be self-contained, have a front condenser
air intake with rear discharge and have a
temperature range of 34° to 41°F (1° to 5°C).
Merchandiser to have standard limited
three year extended compressor warranty and
two year limited parts and labor warranty.
Merchandiser to be UL and C-UL listed
and UL-EPH classied. Merchandiser also
classied to NSF standards for food zone
requirements.
NEMA 5-15P
MODEL
DIMENSIONS
(in.)
DIMENSIONS
(mm)
VOLTS AMPS
UNIT
H.P.
NO. OF
SHELVES
NO. OF
DOORS
STANDARD
SHELF SIZE
(in inches)
DISPLAY
AREA
SQ. FT.
SHIP
CU. FT.
SHIP
WT.
LB/KG
L D H L D H
HIGH PROFILE
DMS-48 48 29 503/16 1219 737 1275 115 6.0 1/3 2 2 19 x 431/219.0 58.0 405/184
DMS-72 72 29 503/16 1829 737 1275 115 6.0 1/3 2 2 19 x 671/229.0 85.0 535/243
DMS-96 96 29 503/16 2438 737 1275 115 9.1 1/2 4 4 19 x 431/239.5 108.0 760/345
LOW PROFILE
DMS-48L 48 29 42 1219 737 1067 115 6.0 1/3 1 2 19 x 431/214.9 58.0 365/166
DMS-72L 72 29 42 1829 737 1067 115 6.0 1/3 1 2 19 x 671/222.9 85.0 485/220
DMS-96L 96 29 42 2438 737 1067 115 9.1 1/2 2 4 19 x 431/230.9 108.0 680/309
