Master Bilt FIP 50 Series User manual

ITEM NO. _______________________________________________________
PROJECT _______________________________________________________
LOCATION ______________________________________________________
DATE _________________________ QTY. ____________________________
908 Highway 15 North • New Albany, MS 38652
PHONE: [phone] or 662-534-9061 • FAX: [phone] or 662-534-6049 • www.master-bilt.com
FEATURES
CONSTRUCTION
• Standard electronic controller with
these features:
– Ability to monitor defrost functions
from the front panel interface
– Audible alarm
– Eliminates room thermostat,
defrost termination/fan delay
control, defrost timer and digital
thermometer or other temperature
indicator
• 24 gauge painted textured steel inte-
rior and exterior
• 60" x 19" top stainless steel serving
deck
• Extra large, non-fogging front dis-
play window
• Four panes of tempered glass with a
viewing area of 11.7 sq. ft.
• Removable backlit merchandising
sign in stainless steel frame
• Anodized aluminum trim with black
vinyl inlay
• Four adjustable heavy-duty, white
epoxy-coated, welded wire shelves
• Protective front bumper
• Full length uorescent lamp
• Automatic condensate evaporator
• Independent on/off light switch
• 2" foamed-in-place “zero ODP” ure-
thane insulation
DOORS
• Replaceable magnetic door gasket
• Foamed-in-place rear doors
• Self-closing
REFRIGERATION
• Self-contained, semi-hermetic con-
densing unit
OPTIONS
❑ Custom colors
❑ Casters
• Rear air intake and discharge
• Automatic defrost
• Refrigerant: R-404A
• No minimum clearance required on
cabinet sides but front, back and top
must be left open for customer and
operator access
• Temperature range:
0° to -20°F (-18° to -29°C)
• R-factor (insulation efciency rat-
ing): 17.24
WARRANTY
• Standard limited three year extend-
ed compressor and two year limited
parts and labor
FEATURES
MODEL
❑ FIP-50
FIP-50
FIP-50 SERIES
Ice Cream And Novelty
Display Merchandiser
Refrigeration
system features
low maintenance
bare tube
condenser coil.
Standard
white
Black also
available
NEW
STANDARD TEXTURED FINISH

NOTE: Cabinet designed for optimum performance in air-conditioned area at 75°F ambient and 55% relative humidity.
All specications subject to change without notice.
908 Highway 15 North • New Albany, MS 38652
PHONE: [phone] or 662-534-9061 • FAX: [phone] or 662-534-6049 • www.master-bilt.com
FIP-50 SERIES
ICE CREAM AND NOVELTY DISPLAY MERCHANDISER
TECHNICAL SPECIFICATIONS
LISTINGS
HOOKUP
BID SPECIFICATIONS
Item no. FIP-50
Provide_______________( )
Low Temp Ice Cream and Novelty Display
Merchandiser(s), Master-Bilt model no. FIP-50.
Merchandiser to be provided with an elec-
tronically controlled monitoring system.
Merchandiser to feature textured nish on
interior and exterior, 60" x 19" top stainless
steel serving deck, extra large non-fogging
front display window, four panes of tem-
pered front glass, backlit merchandising sign
296-9/11-web
©Master-Bilt Products division of Standex International, Inc. All rights reserved. Printed in U.S.A.
Via plug in, 9 foot long, exible 3
wire 14/3 cord with molded plug.
Twenty amp service is required.

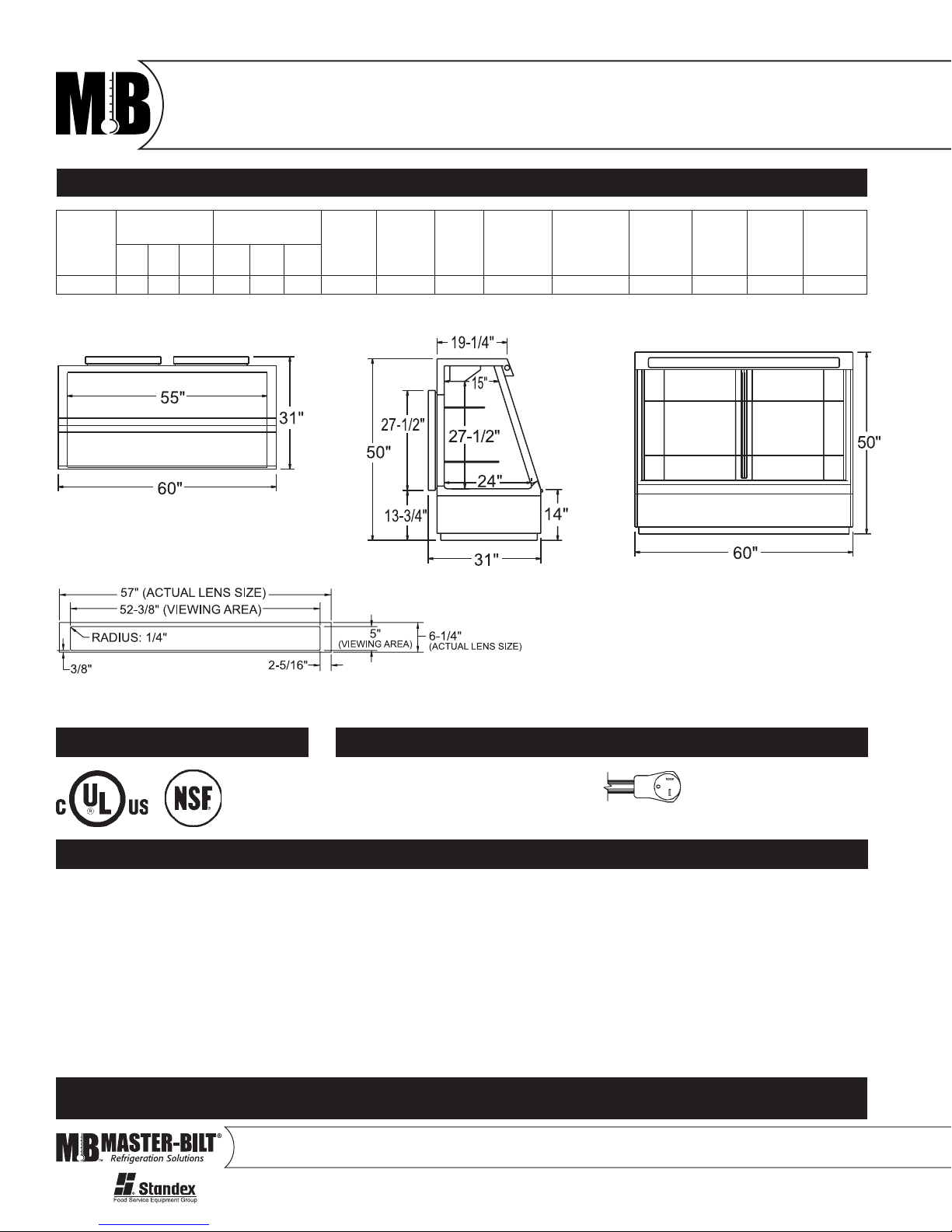

PLAN VIEW
SIDE VIEW ELEVATION VIEW
in stainless steel frame, anodized aluminum
trim with black vinyl inlay, protective front
bumper, four adjustable heavy-duty, white
epoxy-coated welded wire shelves, and a full
length uorescent lamp.
Merchandiser to also have automatic con-
densate evaporator and independent on/off
light switch. Cabinet to be foamed-in-place
with “zero ODP” urethane insulation and
to have a sparkling white polyester enamel
interior and exterior. The doors are to be
self-closing and have magnetic door gaskets.
Rear doors are to be foamed-in-place.
The refrigeration system is to have a self-
contained, semi-hermetic condensing unit
using R-404A refrigerant. Refrigeration sys-
tem will also contain a low maintenance bare
tube condenser coil. The temperature range is
to be 0° to -20°F (-18° to -29°C).
Merchandiser to have standard limited
three year extended compressor warranty and
two year limited parts and labor warranty.
Merchandiser to be UL, C-UL & NSF listed.
NEMA 5-20P
MODEL
DIMENSIONS
(in.)
DIMENSIONS
(mm)
VOLTS AMPS
UNIT
H.P.
NO. OF
SHELVES
STANDARD
SHELF
SIZE
(in inches)
DISPLAY
AREA
SQ. FT.
CAP.
CU. FT.
SHIP
CU.
FT.
SHIP
WT.
(LB/KG)L D H L D H
FIP-50 60 31 50 1524 787 1270 115 13.4 3/4 4 * 18.0 18.1 87.0 640/291
*Upper right hand and upper left hand shelves measure 12" x 27". Lower right hand and lower left hand shelves measure 15" x 27".
REMOVABLE LENS DIMENSIONS
