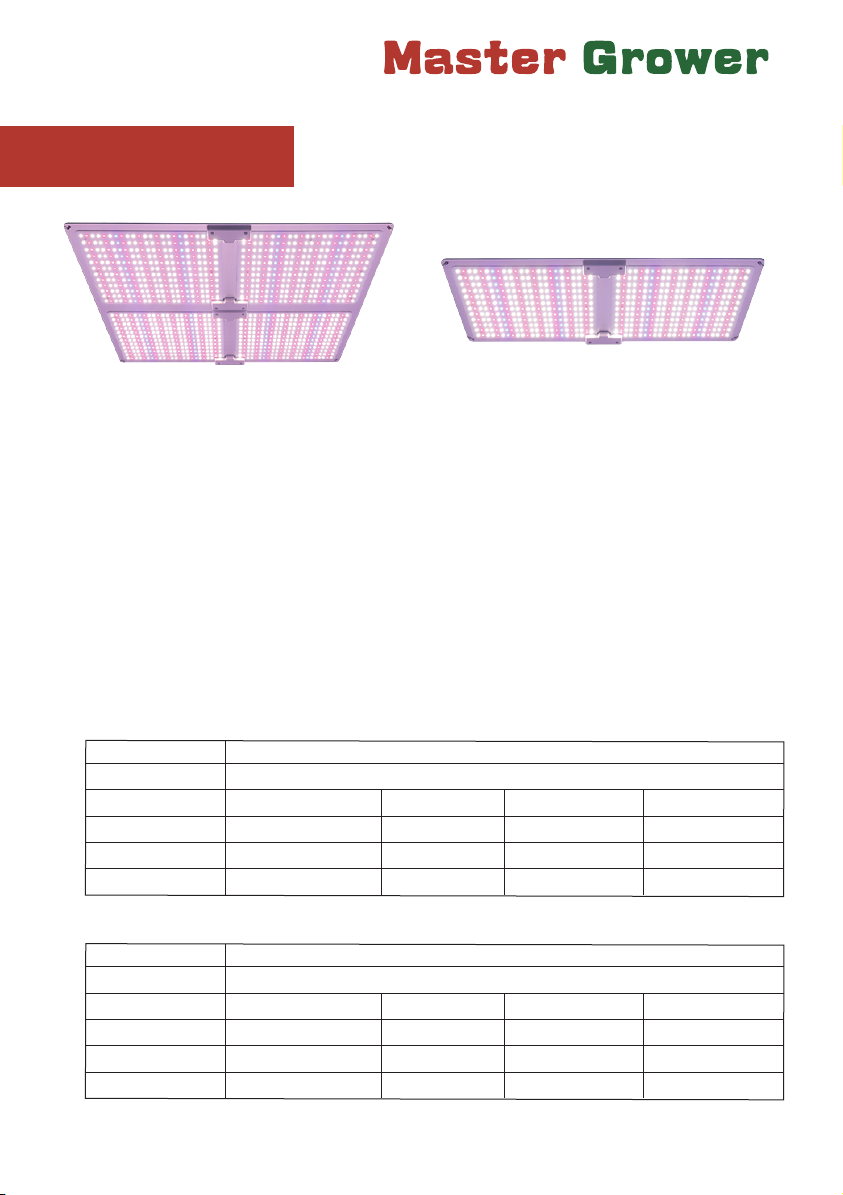

Master Grower Matrix Series User manual

Matrix Series Matrix 400/200 400W/200W LED Grow Light
1Introduction
2Product Information & Specifications
Thank you for purchasing the Matrix Series LED grow lights. The Matrix Series LEDs are intended
to be used in indoor grow rooms and indoor grow tents.
This manual describes the installation and connection of the product and also describes how to
use the product. Mounting and installing of the Matrix Series LEDs may only be executed by
certified service personnel. Please read and understand this manual completely before using the
product. Only use the product as specified in this manual.
2.1 General Information
Matrix 400
Matrix 200
Product Name Matrix 400 400W LED Grow Light
Manufacturer
Version US EU UK AUS
Part Number Matrix 400 -US Matrix 400 -EU Matrix 400 -UK Matrix 400 -AUS
Plug Type US plug 120-277V EU plug 230V UK plug 240V AUS/NZS plug 240V
Input Voltage 120-277VAC 100-230VAC 100-240VAC 100-240VAC
Shenzhen VANQ Technology Co., Ltd.
Product Name Matrix 200 200W LED Grow Light
Manufacturer
Version US EU UK AUS
Part Number Matrix 200-US Matrix 200-EU Matrix 200-UK Matrix 200-AUS
Plug Type US plug 120-277V EU plug 230V UK plug 240V AUS/NZS plug 240V
Input Voltage 120-277VAC 100-230VAC 100-240VAC 100-240VAC
Shenzhen VANQ Technology Co., Ltd.
Matrix 400 Matrix 200
TM

Note: Other types of plug are also available, please check with our sales engineers directly.
2.2 Technical specifications
NOMINAL ELECTRICAL AC INPUT
Matrix 400
AC Input Power
Product Model
AC Input Voltage
Spectrum
Light Output PPF
Efficacy
Product weight
Working temperature
Light Distribution
Dimming
IP Rating
AC Voltage 120V 208V 230V 277V
3.37A 1.94A 1.74A 1.44A
404W 403W 401W 400W
0.98 0.98 0.98 0.98
AC Current
AC Power
Power Factor
Certification standards
Dimensions
400W @ 240VAC 200W @ 240VAC
Matrix 400 Matrix 200
120-277V AC, 50/60Hz
FSC, Full Spectrum
1080 µmol/s 540 µmol/s
4.15 kg
2.7 µmol/J
8.25 kg
-20°C ~ 40°C | -4°F ~ 104°F
120°
0-10V
IP65
CE
600mm L x 480mm W x 56mm D
23.62in L x 19.8in W x 2.2in D
600mm L x 240mm W x 56mm D
23.62in L x 9.45in W x 2.2in D
AUS/NZS
plug 240V

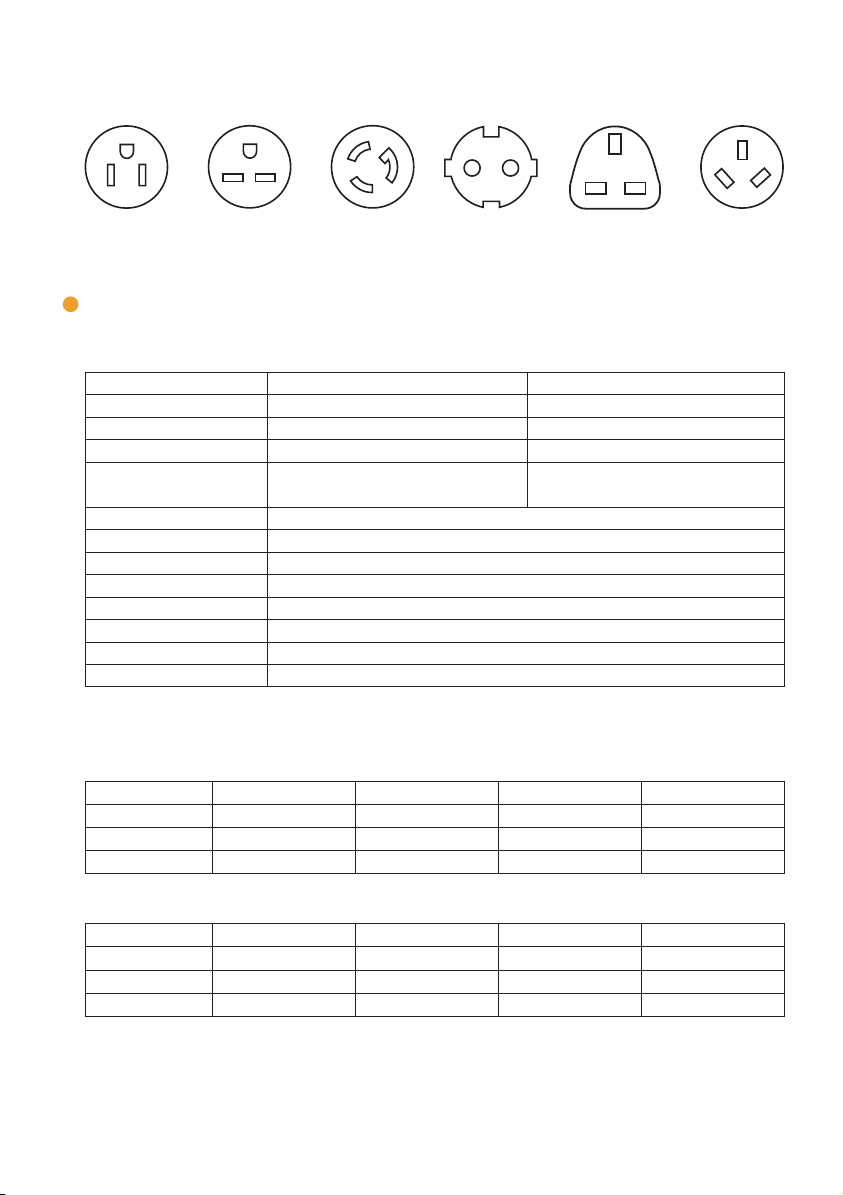

US 5-15P US 6-15P US L7-15P EU plug 230V UK plug 240V
!
Matrix 200
AC Voltage 120V 208V 230V 277V
1.71A 0.97A 0.87A 0.72A
205W 202W 201W 199W
0.98 0.98 0.98 0.98
AC Current
AC Power
Power Factor

The product is intended to be used in indoor growing environments. The product can be used in
wet environments.
The product may not be used outdoors. The Matrix Series LEDs light functions optimal when the
max ambient temperature is between 20~40°C.
2.4 Environment
2.5 Legal
2.3 Compatible products and accessories
Dimming cables
Light Hanger
Power cord
Controller
Product
T-shape daisy chain connection dimming cable, 2m/6.5ft
Product Name Part Number
MG-VD100
MG-PC-US515
MG-PC-US615
MG-PC-USL715
MG-PC-EU230
MG-PC-UK240
MG-PC-AU240
MG-DCC-T01
MG-RH-01
MG-WR-01
0-10V dimming controller
Power cord with US plug 5-15P, 1.5m/5ft
Power cord with US plug 6-15P, 1.5m/5ft
Power cord with US plug L7-15P, 1.5m/5ft
Power cord with EU plug 230V, 1.5m/5ft
Power cord with UK plug 240V, 1.5m/5ft
Power cord with AUS/NZS plug 240V, 1.5m/5ft
1/8" Adjustable Ratchet Hangers 1.8m/6ft (Set of 2 - Holds
150 lbs/100Kg)
Steel Wire Rope Hanger 30cm/1ft (Set of 4 - Holds
150 lbs/100Kg)
CE LVD approval according to: EN 60598-2-1&EN 62471&EN 62493&EN 62778
CE EMC approval according to: EN 55015&EN 61547&EN 61000-3-2/-3

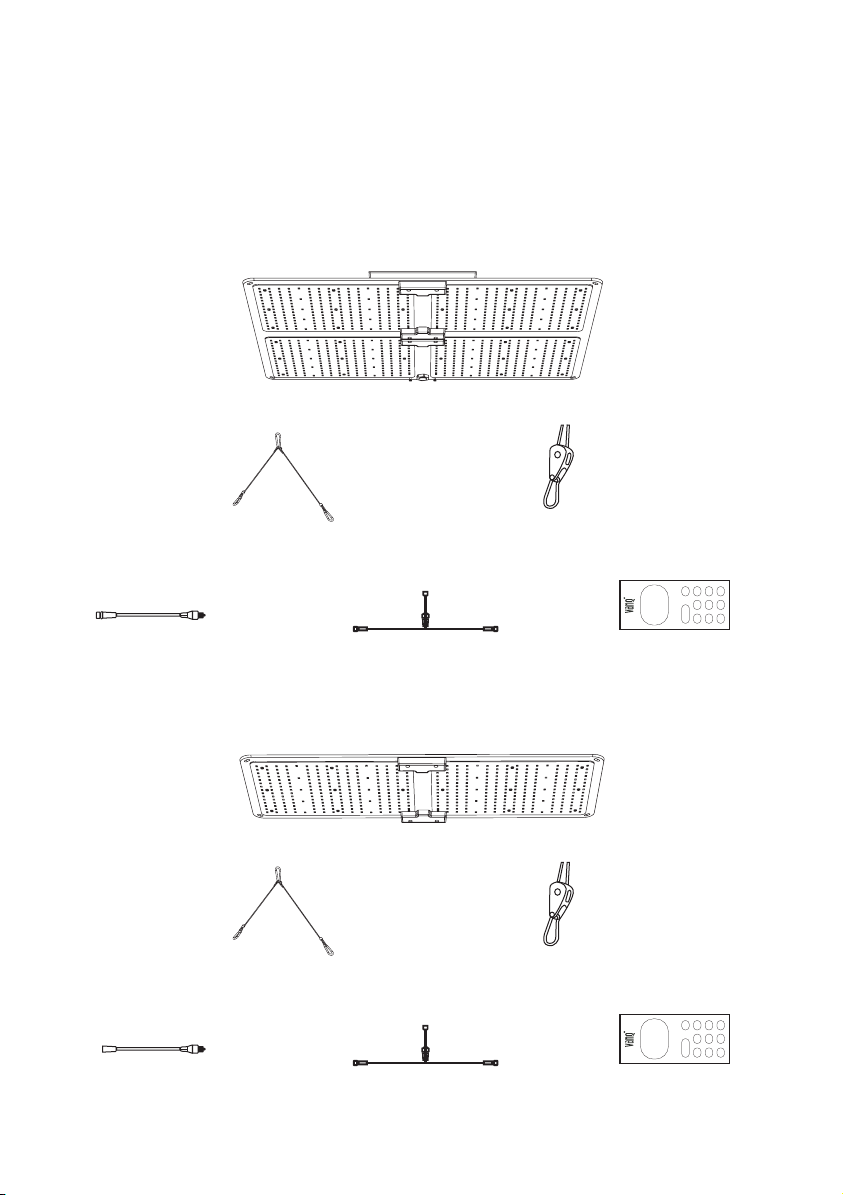

3Packing List
Please follow the content of the list and carefully check whether the purchased equipment and
accessories are complete. If you find that the actual product does not match the list, or the product
is damaged, please contact us immediately and provide photos or videos!
1.Matrix 400 X 1
1.Matrix 200 X 1
2.Steel Wire
Rope Hanger X 2
3.1/8" Adjustable
Ratchet Hangers X 2
4.Power Cord X 1 5.Dimming Cabie
(optional) X 1
6.VD-100 Controller
(optional, buy
separately) X 1
OFF
Just for
0-10V 100%
30% 60% 90%
20% 50% 80%
10% 40% 70%
VQ-VD100
Power Output Controller
888 %
2.Steel Wire
Rope Hanger X 2
3.1/8" Adjustable
Ratchet Hangers X 2
4.Power Cord X 1 5.Dimming Cabie
(optional) X 1
6.VD-100 Controller
(optional, buy
separately) X 1
OFF
Just for
0-10V 100%
30% 60% 90%
20% 50% 80%
10% 40% 70%
VQ-VD100
Power Output Controller
888 %

4Safety Precautions & Warnings
Warning!
Carefully read the warnings below before using or working with the product!
Always adhere to the local rules and regulations when installing or using the LED light.
No.
1
2
3
4
5
6
2
1
2
1
1
1
Product Name Model Quantity
1.5m
400W/200W
30cm/1ft
1.8m/6ft
T-Shape
0-10V Dimming
Power Cord
Steel Wire Rope Hanger
Matrix 400/200
1/8" Adjustable Ratchet Hangers
Dimming Cable(optional)
VD-100 Controller(optional, buy separately)
!
DO NOT connect to live power until installation is complete.
!
Do not open or disassemble the LED light. Opening or modifying the LED light can be dangerous
and will void the warranty.
Do not use the LED light when either the LED light or its power cord are damaged. Replace the
power cord only with original certified cords.
!
!
Modifications to the cords can lead to unwanted electromagnetic effects, which makes the product
not comply with legal requirements.
!
Do not expose the LED light to:
- (ambient) temperatures outside the specified range;
- dust and contamination;
- direct sunlight during use or HID light that could heat up the ballast.
!
Always disconnect the LED light from mains before performing any maintenance.
!
Always allow for a cool down period of at least 30 minutes before touching the LED bars. Touching
the LED bars when the light is lit or immediately afterwards can result in severe burns!
!
Do not use the LED light near flammable, explosive or reactive substances. Do not use sulfur
vaporizers or water misters.
!
The installation and use of the LED light is the responsibility of the end user. Incorrect use or
installation can lead to failure and damage to the LED light. Damage to the LED light and
electronic circuitry as a result of incorrect installation and use revokes the warranty.
!

5Installation
Warning!
The suggested height from the plant canopy to the LED light is:
During vegetative stage, 1ft - 1.5ft/30cm - 45cm
During flowering stage, 0.6ft - 1ft/15cm - 30cm

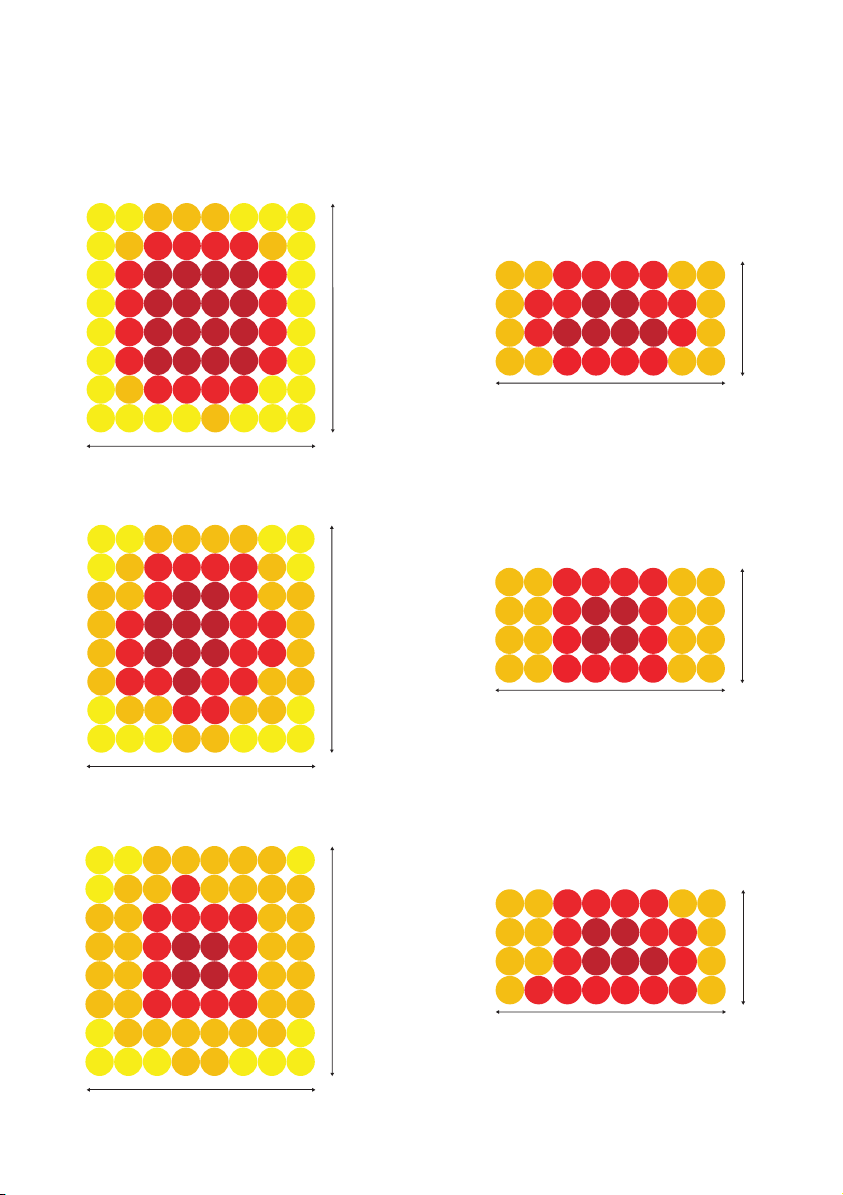

Below is the PPFD map of Matrix 400/200 at 3 different hanging heights.

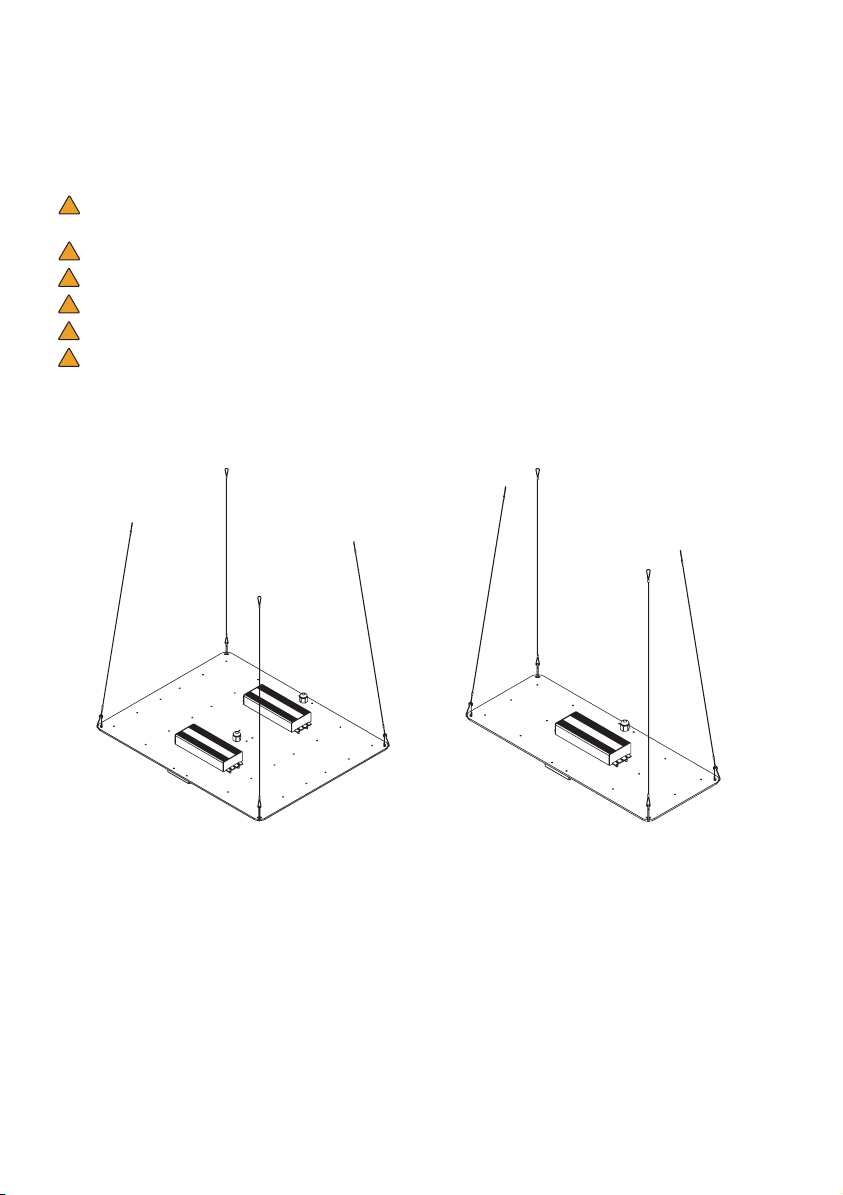

5.1 Hanging the LED light to mounting system
!Mounting and installing of the LED light may only be executed by certified service personnel, in
accordance with the applicable local laws and regulations.
!The installer is responsible for correct and safe installation.
!Ensure the local cabling can support the voltage and current requirements of the LED light.
!Avoid coiled cords and keep mains leads separated. This prevents electromagnetic interference.
!Do not connect or disconnect the LED light under load.
!Mount the system to something that can hold the weight of the LED light.

Matrix 400 Matrix 200
Hanging Height: 12" (30cm)
4ft/1.2m
4ft/1.2m
Average PPFD of 4ft x 4ft footprint: 738 µmol/m²/s
201 285 431 513 490 391 176
266 443 778 977 942 735 417 250
364 648 1274 1617 1572 1220 617 356
385 770 1499 1919 1885 716 370
391 770 1542 1923 1863 1396 699 371
324 645 1265 1599 1522 590 340
230 405 711 873 660 384 270
152 219 324 388 401 341 261 253
249
1428
1161
837
Hanging Height: 18" (45cm)
4ft/1.2m
4ft/1.2m
Average PPFD of 4ft x 4ft footprint: 620 µmol/m²/s
275 358 484 549 554 472 274
340 468 641 748 740 635 468 351
426 590 891 1053 1020 848 594 457
473 693 1029 1215 1197 662 495
477 702 1027 1211 1177 972 670 458
436 615 883 1022 978 581 428
327 433 594 703 581 444 365
237 307 396 443 428 383 326 254
364
981
829
681
Hanging Height: 24" (60cm)
4ft/1.2m
4ft/1.2m
Average PPFD of 4ft x 4ft footprint: 531 µmol/m²/s
321 390 456 509 509 464 368
362 455 546 605 599 536 473 421
423 536 667 749 734 666 538 480
455 579 741 834 826 581 527
458 572 732 824 816 720 585 501
435 542 664 736 720 529 471
367 424 509 558 491 433 394
269 317 381 405 400 366 358 356
409
729
635
551
Hanging Height: 12" (30cm)
4ft/1.2m
2ft/0.6m
Average PPFD of 4ft x 2ft footprint: 648 µmol/m²/s
230 343 566 664 686 588 390 260
236 528 922 1128 1133 625 342
264 580 1041 1258 1266 1108 679 359
243 417 693 839 869 421 338
981
748
Hanging Height: 18" (45cm)
4ft/1.2m
2ft/0.6m
Average PPFD of 4ft x 2ft footprint: 522 µmol/m²/s
336 426 529 606 631 567 440 340
335 486 645 742 743 483 367
382 495 644 750 743 637 484 384
352 456 518 591 588 462 392
635
533
Hanging Height: 24" (60cm)
4ft/1.2m
2ft/0.6m
Average PPFD of 4ft x 2ft footprint: 429 µmol/m²/s
342 395 437 488 497 450 392 333
321 384 462 518 519 407 384
353 395 472 511 510 560 406 393
340 404 435 470 461 413 367
468
437

6Connecting Matrix 400/200 lights To A Controller
5.2 Connecting the LED light to the mains
Warning!
!Make sure mains power is switched off.
Warning!
!Do not connect or disconnect the controller with LED light under load.
!Ensure the power cord and the controller cables do not touch any of the LED bars.

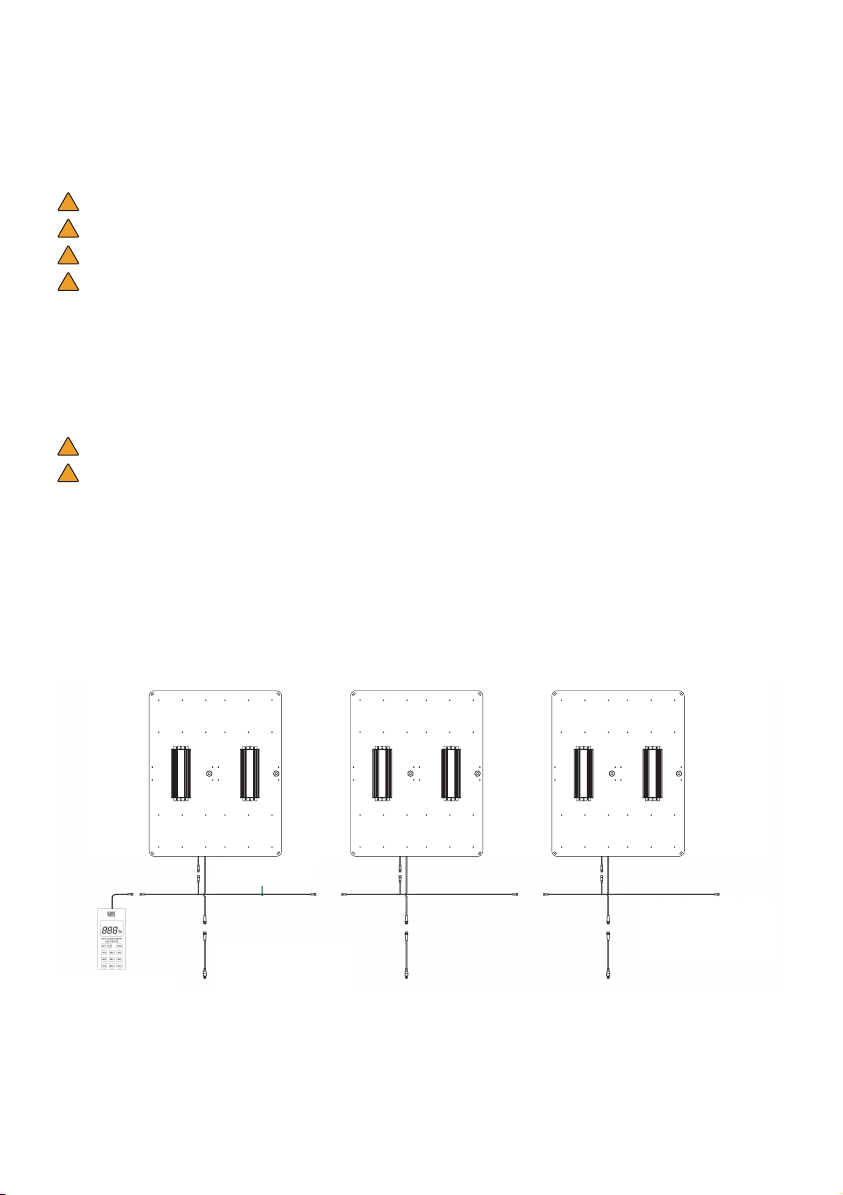

Using a daisy chain setup, a maximum of 50pcs Matrix 400/200 LED lights can be connected to
one controller. The controller can dim the Matrix 400/200 LED light from 0 to 100%.
• Connect the dimming cable to the dimming port on the first Matrix 400/200 light.
• Use dimming cable (T-shape) to connect the dimming port of the following Matrix 400/200 light
• Repeat these steps to connect up to 50pcs Matrix 400/200 LED lights.
!Ensure the cord is not coiled and does not touch any hot surfaces.
!Connect the cables according to local rules, safety regulations and electrical code.
!Ensure external switching gear can cope with the inrush current of the LED fixture. Always use a
double pole contactor suitable for switching a capacitive load. Never use household timers to
switch the LED fixture!
LED LED LED
VD-100 0-10V
Dimming Controller
AC Power input
T-shape Dimming
Connection Cable
Up to 50pcs LED
in one daisy chain
connection

8Storage and disposal
7Inspection, maintenance and repair
!PLEASE NOTE: greater than 15% of the diodes must be non-functional before
the unit can be considered defective.
!Caution! Do not clean the LED fixture with detergents, abrasives or other aggressive substances.
9Warranty service
• Store the LED fixture in a dry and clean environment, with an ambient temperature of-20~85° C.
VANQ technology warrants the mechanical and electronic components of their product to be free
of defects in material and workmanship if used under normal operating conditions for a period of
three(3) years from the original date of purchase. If the product shows any defects within this
period and that defect is not due to user error or improper use, VANQ technology shall, at its
discretion, either replace or repair the product using suitable new or reconditioned products or
parts. In case VANQ technology decides to replace the entire product, this limited warranty shall
apply to the replacement product for the remaining initial warranty period, i.e. three(3) years from
the date of purchase of the original product. For service, return the Matrix 400/200 light to your
shop with the original sales receipt.
• The product must not be discarded as unsorted municipal waste, but must be collected
separately for the purpose of treatment, recovery and environmentally sound disposal.
• Regularly check the LED fixture for dust or dirt buildup. Clean if necessary. Contamination may
cause overheating and decreased performance. Clean the outside of the LED fixture using a dry
or damp cloth.
• Regularly check the cables of the LED fixture to ensure it is undamaged.
Manual: Matrix 400/200 LED Grow
Light Manual
Changes reserved - Version 01/21
T. + 86 755 2904 2099
F. + 86 755 2904 2092
E. [email protected]
W. www.MasterGrowerLED.com
Shenzhen VANQ Technology Co., Ltd.
3#, BLDG B, Debaoli lndustrial park, NO.312, Jihua Road
Bantian, Longgang, Shenzhen, Guangdong China
Manufacturer
