Master Water Conditioning MP-NS-30T User manual

Installation and Operation Manual
MP-NS-30T/40T
with the
268/762 Logix Control Valve
MASTER
Water Conditioning Corp.
www.masterwater.com
April 2006

Table of Contents
Page
No.
Topic Description
1
Model # and Packaging
Packaging Information
Component Packaging
Description
Packaging Description
MP-MBA Logix Control Valve
Valve Description
2
Combination Unit
System Positioning
Combination Unit Tank Loading
Filling with Media
3
Logix 268/762 Control Valve
Attaching Valve to Tank
Figure 1 & Figure 2
4
Service & Drain Piping,
General Installation Layout
Drain Piping
Figure 3
5
System Schematic
Piping Layout
6
Electrical Supply
Electrical Requirements
Brine Tank / Brine Tubing
Brine tank w/shut off
7
Logix 268/762 Control Valve
Electrical Connection
Instructions on Logix 762
Electrical Connection
8
Filling Combination Unit with
Water
Details for Filling Combination Unit
Tank with Water
9
Filling Combination Unit with
Water Continued
Details for Filling Combination Unit
Tank with Water Continued
Logix 762 Control Valve Timer
Settings
Setting the Timer
10
Logix 762 Control Valve Timer
Settings Continued
Setting the Timer
Continued
Final Check
Final Installation Check
11
Troubleshooting
Symptom / Cause / Solution
12
Troubleshooting
Symptom / Cause / Solution
13
Troubleshooting
Symptom / Cause / Solution
14
ERR Troubleshooting
Error Troubleshooting
15

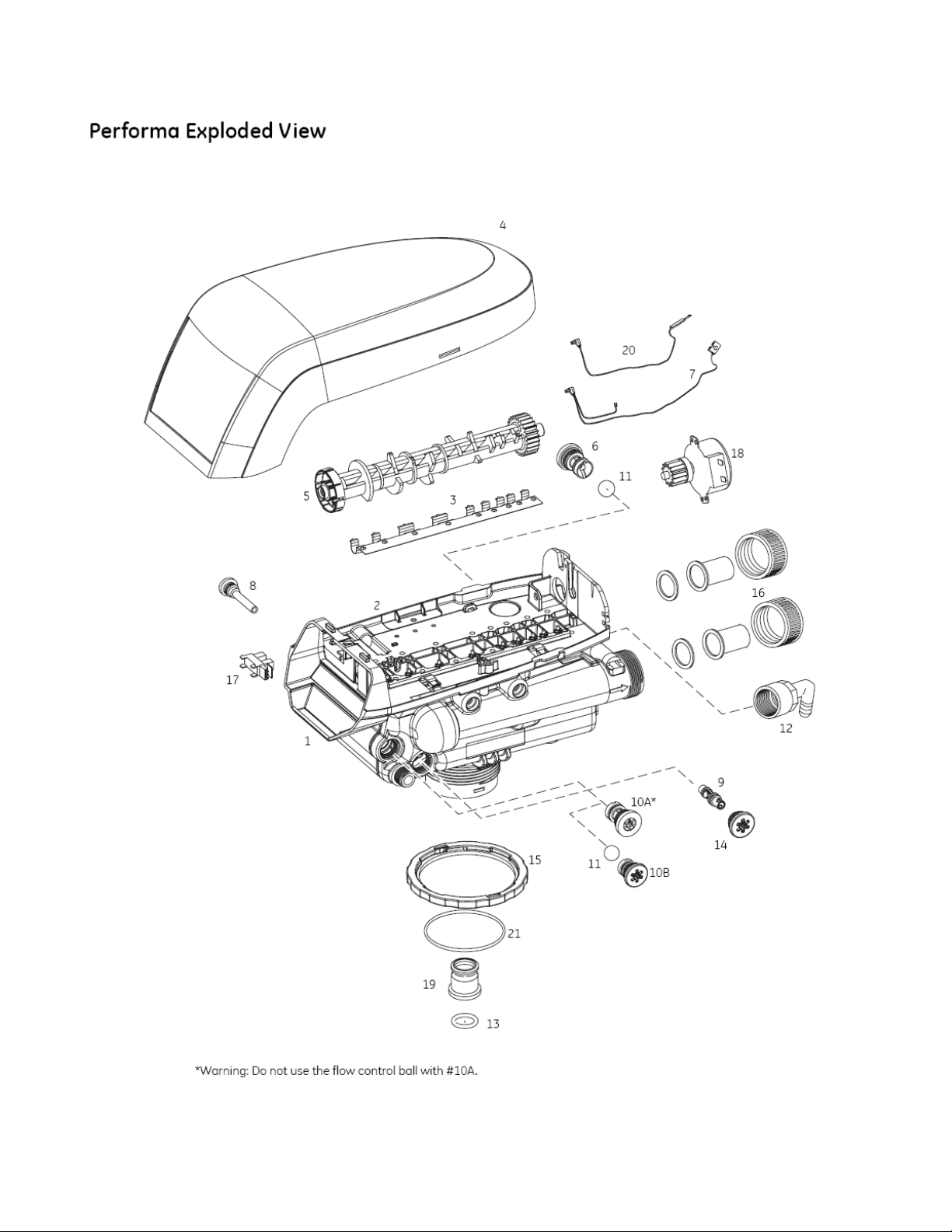

268/762 Valve Body Schematic
Parts View
16

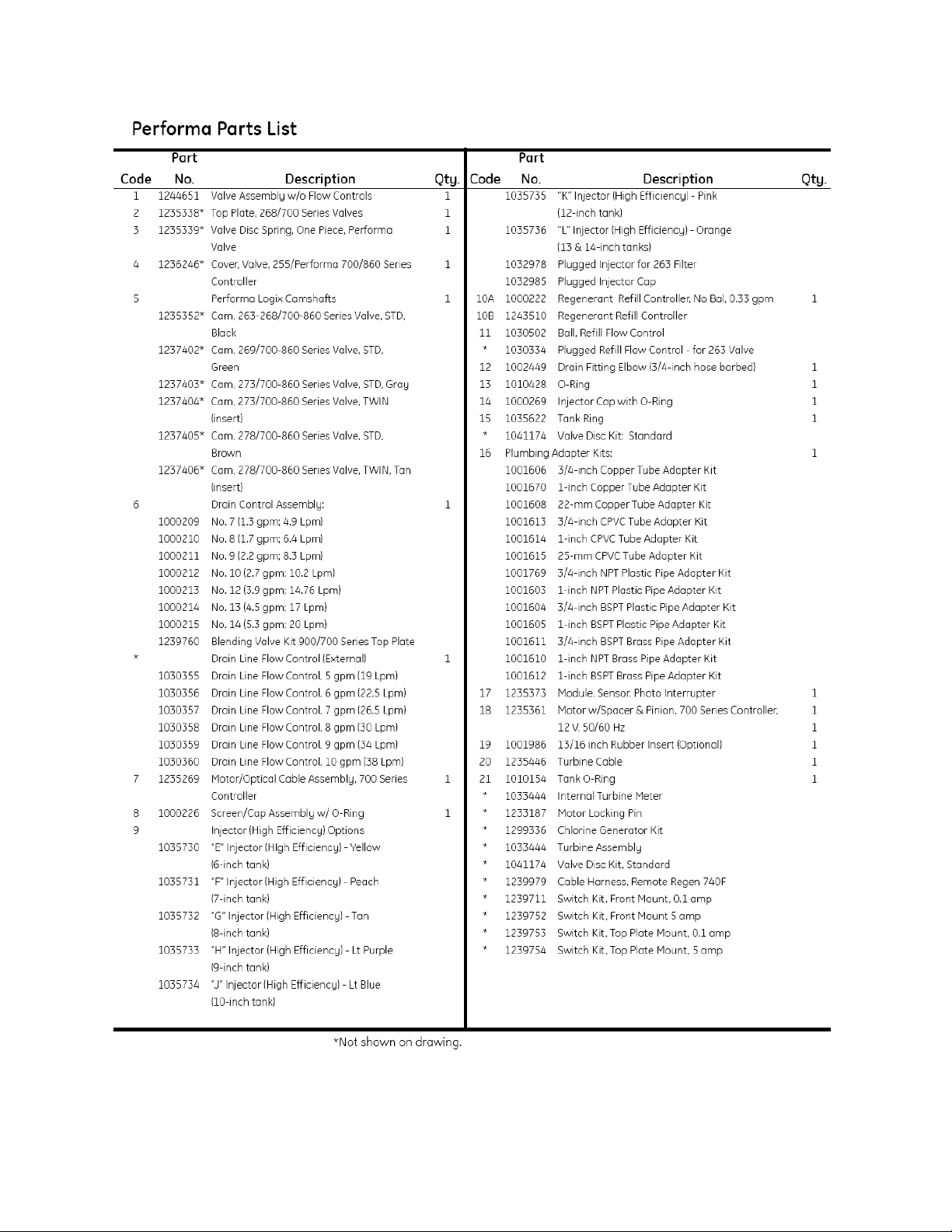

Valve Body Parts List
Part Numbers List
17

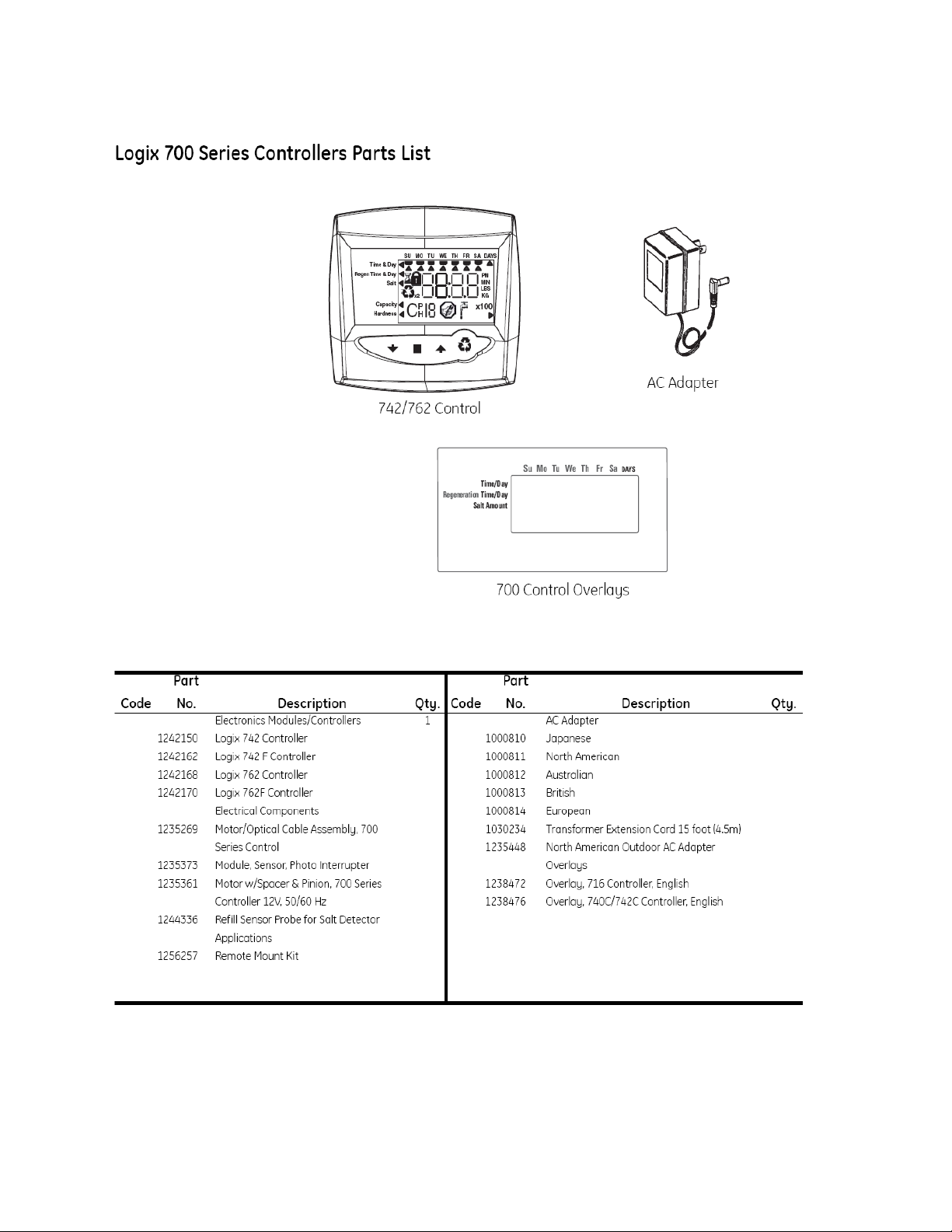

Valve Parts List
Part Numbers List
18
Warranty
Warranty

1
Installation and Operating Instructions for
268/762 Logix
Top Mount Combination Unit
Model #:
____ MP-NS-30T Acid Neutralizer and Softener
____ MP-NS-40T Acid Neutralizer and Softener
Shipping Carton Description / unit:
# of
cartons
Contents Description
1
Mineral tank
Distributor pipe installed
1
Brine tank
464 shutoff valve assembly. *NOTE:
268/762 Logix valved is shipped in
brine tank.
1
268/762
Logix control
valve
268/762 timer and backwash flow
control and bypass with 1” copper or
pvc connection
Calcite
½ CF Boxes
NS Mix
½ CF Boxes
System Description:
The combination unit has a Logix top mounted automatic control
valve with an impulse meter to initiate regeneration. The Logix
Valve is constructed of non-corrosive Norylmaterial and is rated at
a maximum working water pressure of 100 psi. It uses a 762
microprocessor based timer in conjunction with an internal impulse
meter to actuate regeneration in the following ways:
a.Microprocessor based water meter to initiate regeneration
b.Manual regeneration button to start an emergency
regeneration
c. Calendar day override

2
Combination Unit Positioning:
1. Place combination unit in desired position, far enough from walls
and other obstructions to allow for servicing the unit.
2. Place the combination unit within reasonable access to a
grounded 115V/60 HZ circuit and a legal drain line connection.
Combination Unit Tank Loading:
1. Remove yellow caplug from top of tank.DO NOT CUT white
riser tube. Tube was prefitted at the factory.
2. Center the distributor and make sure it is resting on the bottom of
the tank. The top of the distributor pipe will extend above the top
of the tank (this was prefitted at the factory).
3. Cover the top opening of the distributor pipe before filling the
tank with media.
Model
Calcite
NS Mix
NS-30 & 40T
½-cubic foot
1/2-cubic foot
4. Pour all filter media provided with the unit into the top of the tank.
See page one for your specific model number of unit to
determine the amount of media to load into the mineral tank.
5. Remove the material used to cover the top opening of the
distributor pipe.

3
Logix Control Valve:

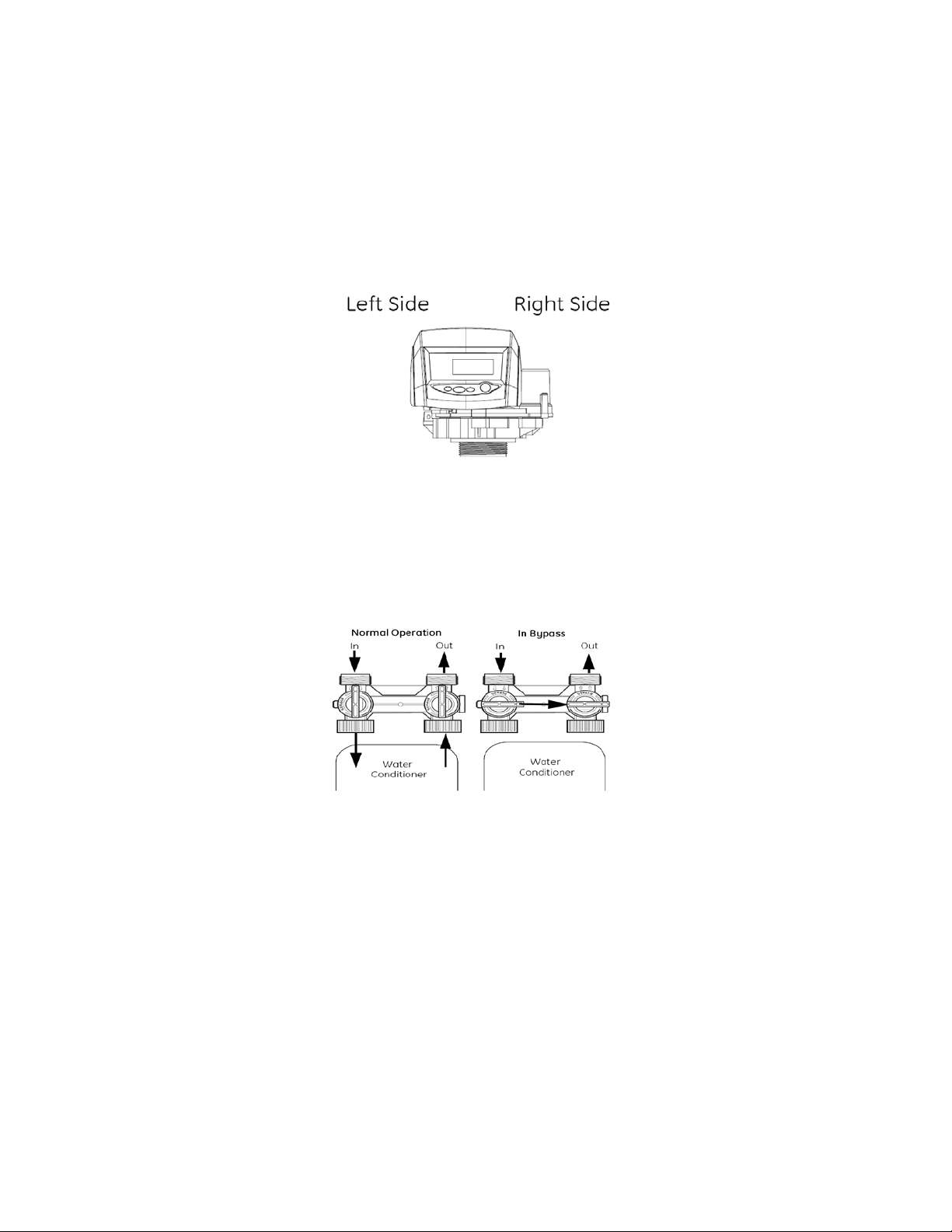

1. When facing the front of the Logix timer, the inlet connection
(Figure 1) is located on the left and the outlet connection is on the
right. The control valve's inlet and outlet connections are either
1” copper or pvc equipped with gasket and nut.
Figure 1
Install the 268 bypass valve (See Figure 2) with inlet and outlet
handles facing upward. Place gasket into nut and secure 1” copper
or pvc tail piece with a nut. Repeat the procedure for the outlet
connection.
DO NOT OVERTIGHTEN THE NUT.
Figure 2
2. The control valve's drain connection is 3/4" npt and is located on
the back of the control valve.
3. Turn the control valve upside down and ensure that the control
valve distributor o'rings are in place. Use silicone lubricant on
the o'rings.
4. Place the control valve onto the distributor pipe.
5. Thread the control valve hand tight to 20 foot pounds!
DO NOT OVERTIGHTEN!
**DO NOT USE PETROLEUM!**
**USE ONLY SILICONE **

4
Service and Drain Piping:
1. Pipe combination unit into the service lines .The inlet and outlet
connections of the control valve are 1” copper or pvc and are
located on the back of the valve body. As you face the timer the
inlet is on the left and and the outlet is on the right. Always
follow local plumbing codes when installing our water treatment
equipment.
2. If sweat fittings are used, be sure soldering is done in such a
manner as not to allow heat to reach the control valve or bypass.
(If Schedule 80 PVC is used make sure to follow the proper
primer and solvent instructions.)
3. The drain line connection is located on the back of the valve as
you face the timer. It is recommended you install a ¾” union on
the drain line for servicing. The drain line must be of adequate
size to allow for full regeneration flow.

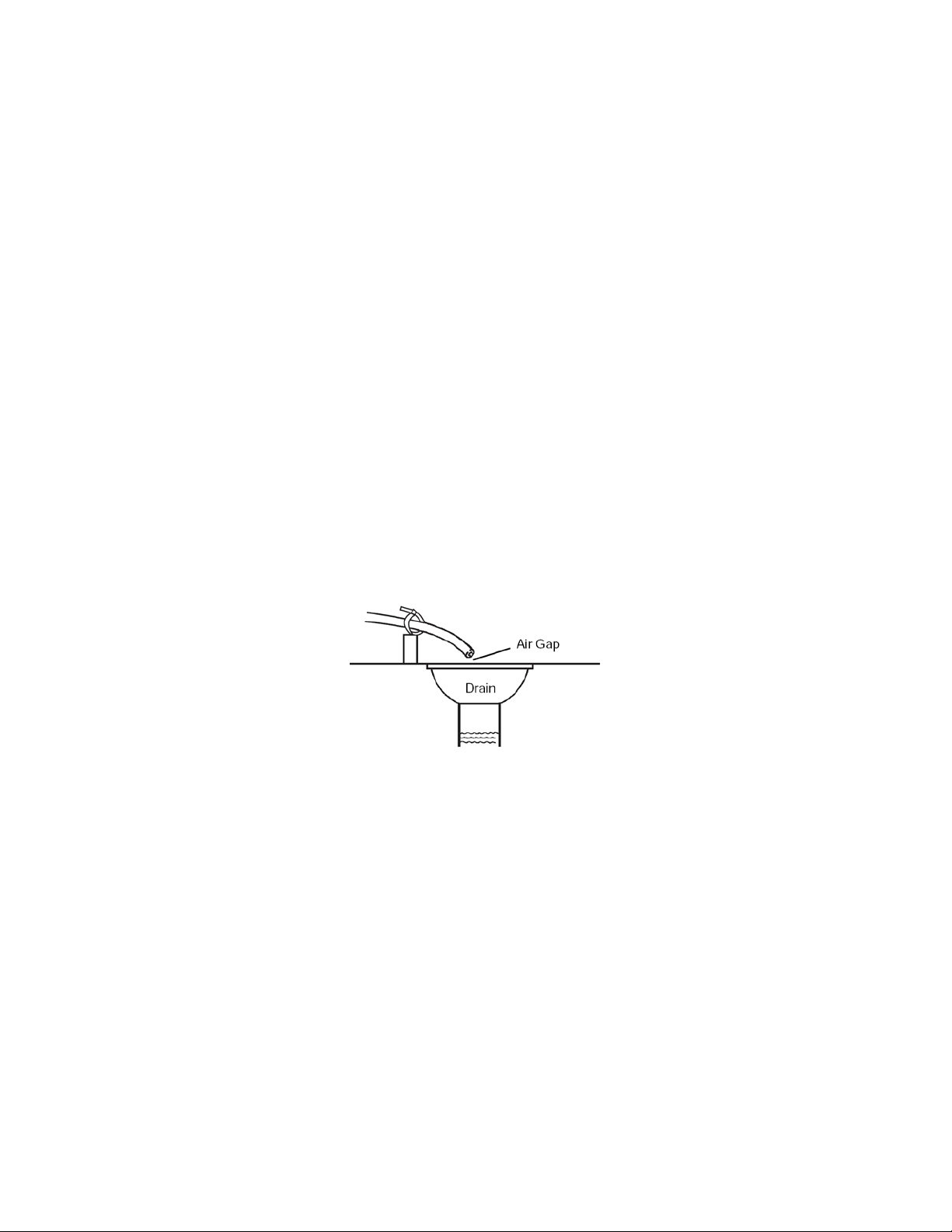

Figure 3
•The control valve drain connection is 3/4" npt.
•Never decrease the drain piping size to below ¾”
•Maximum drain line length is 30 feet.
•Maximum drain line height is 6 feet above the
control valve.
•The drain line must be piped to an open airgap
(See Figure 3)
•Always follow local plumbing codes.
UNDER NO CIRCUMSTANCES SHOULD THERE BE A DIRECT
CONNECTION WITH SANITARY SEWAGE FACILITIES.

5

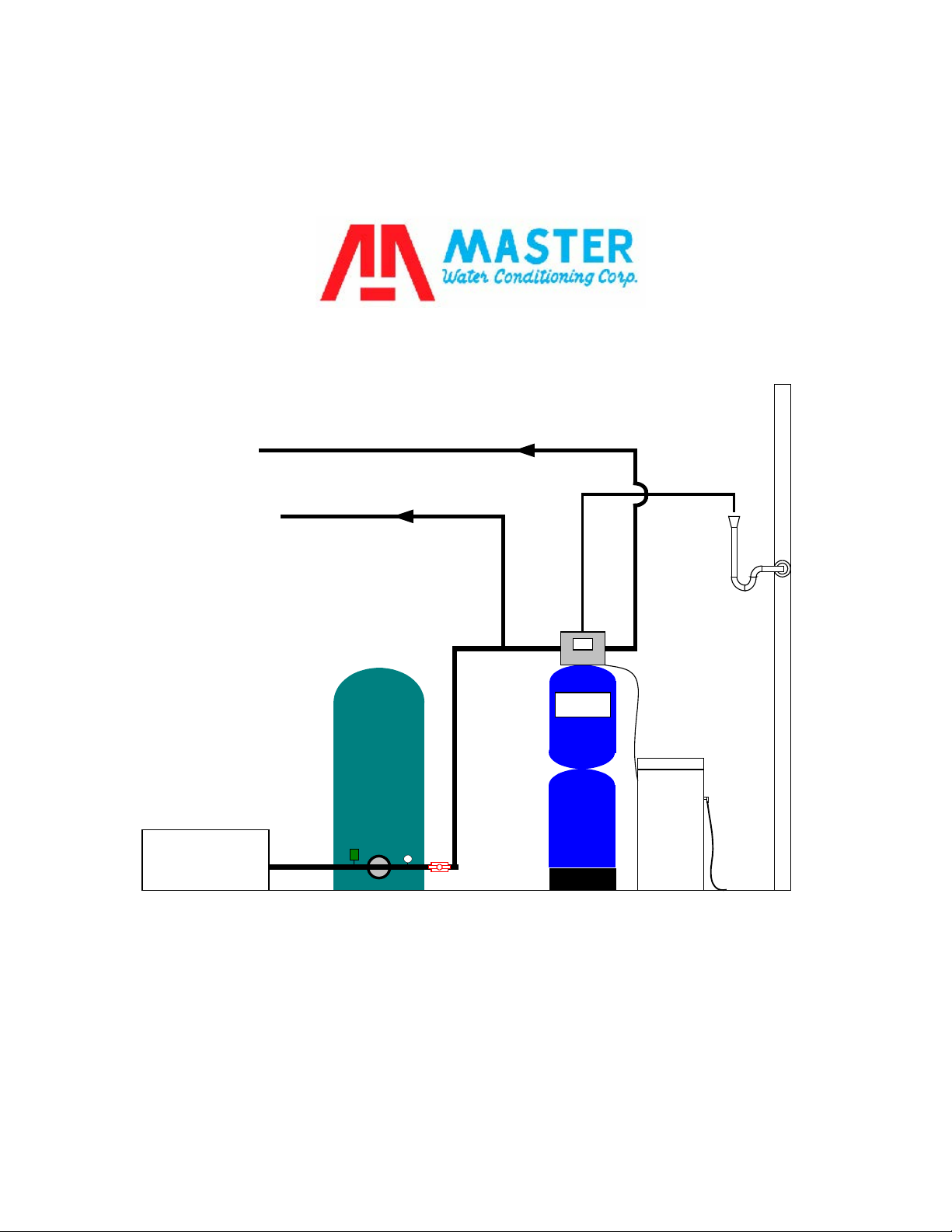

Well Tank
Untreated
water from well
NOTE: All Master Water Conditioners must be
installed after the well tank or water meter if its
public water supply.
Master Water
Conditioner
Brine tank
Air Gap Drain
Overflow
fitting to
floor drain
gravity
Treated water
Untreated to outside
224 Shoemaker Rd.
Pottstown, PA 19464
Typical Piping Layout

6
Electrical Requirements:
Always follow all local electrical codes when installing our water
treatment equipment.
1. Provide an 115v/60Hz properly grounded dedicated electrical
outlet. (It’s very important that the polarity be correct)
Avoid using outlets that are switch controlled.
2. Maximum amperage required is 5 amps.
3. Make sure the electrical service provides power 24 hours per day.
We recommend installing a surge protector to protect unit from
power surges, which are not covered by warranty.
Brine Tank:
1. The brine tank should be located directly beside the Combination
Unit mineral tank.
2. Connect the 3/8" poly tubing to the 3/8” white elbow compression
fitting located on the right side of the Logix control valve.
See Figure Below.
The 464 brine shutoff valve contains a float that controls the water
level in the brine tank. The float height was preset at the factory.

7
Logix Control Valve Electrical Connection:
Note: Do not touch the wiring harness between the Logix
timer and the motor, it’s positioning is critical and therefore
already installed at the factory.
1. Remove plastic control valve cover by spreading sides while
lifting.
2. Plug transformer into back of timer following existing wires.
3. Plug transformer into a properly grounded 120V/60 HZ electrical
outlet.
4. The screen will now change between the “Gallons Remaining to
Regeneration” and the current “Gallons per Minute” (gpm) flow
rate.

8
Filling Combination Unit with Water:
Figure 4
1. Push the FOR REGENERATION button (Figure 4) on the
controller down for 5 seconds. This will initiate a manual
regeneration. You will notice a flashing hour glass during
regeneration.
The controller will indicate that the motor is turning the camshaft
to cycle C1 (BACKWASH). The controller will indicate the total
regeneration time remaining. Filling tank in this position allows air
to escape from drain.
Open the bypass inlet valve ¼ turn and allow water to flow into the
mineral tank at a slow rate.
Warning: IF WATER ENTERS THE TANK TOO FAST, ALL THE
RESIN WILL BE FLUSHED TO DRAIN DURING START UP.
2. When water is running steadily at the drain, open the bypass
valve’s inlet and outlet to their maximum position.
3. Simultaneously press the SET and UP buttons on the controller
for 1 second then release, the motor will advance the cam to C2.
Once C2 is displayed simultaneously press the SET and UP
buttons on the controller for 1 second then release, the motor will
advance the cam to C3. Repeat this procedure until the timer
enters the C7 (FAST RINSE) position. The softener will go
through the rinsing cycle and then automatically advance to
(BRINE REFILL) C8 and fill the brine tank with the proper amount
of water.
4. The control valve will advance to C0 (REGENERATION
COMPLETE) and Time of Day will be displayed. This is
treated water.

9
Logix Control Valve Timer Settings:
(See Figure 5)
Note: The control valve is set at the factory. You only need to set
the hardness, time of day and regeneration time if required, which
is preset at 2 am.
Figure 5
Time of Day Setting
1) Press the SET button. The screen will show the Time of Day
in blinking numbers.
2) To change the Time of Day, use the UP or DOWN arrows.
3) Press the SET button.
Day of Week Setting
1) Press the SET button. The screen will show the Day of Week
in blinking triangle.
2) To change the Day of Week, use the UP or DOWN arrows.
3) Press the SET button.
Time of Regeneration Setting (the factory default is 2 AM)
1) Press the SET button. The screen will show the Time of
Regeneration in blinking numbers.
2) To change the Time of Regeneration, use the UP or DOWN
arrows.
3) Press the SET button.

10
Regeneration Day Override Setting (the factory default is 0)
1) Press the SET button. The screen will show the Regeneration
Day Override in blinking numbers.
2) To change the number, use the UP or DOWN arrows.
3) Press the SET button.
Salt Amount Setting
1) Press the SET button. The screen will show the Salt Amount
as pounds in blinking numbers.
2) DO NOT CHANGE THE NUMBER.
3) Press the SET button.
Softening Capacity Setting
1) Press the SET button. The screen will show the Capacity as
grains in blinking numbers.
2) DO NOT CHANGE THE NUMBER.
3) Press the SET button.
Hardness Setting (the factory default is 10)
1) Press the SET button. The screen will show the Hardness as
grains per gallon in blinking numbers.
2) To change the number, use the UP or DOWN arrows.
3) Press the SET button.
If water was tested by Master Water Conditioning, follow
recommendations on water analysis, for hardness setting.
NOTE: If water was not tested by Master Water, multiply the
hardness in (gpg) reading you have by two ( 2 ). This is done
because when raising the pH, hardness will increase.
Final Check:
1. Fill the brine tank with Solar Salt and the Res-Up Feeders with
Res-Up (one quart is provided).
2. Make sure the drain line connection meets all plumbing codes
and that the drain line size can handle the backwash flow rate of
the softener.
3. Make sure the Inlet and Outlet on bypass valve are open.
4. Make sure the control valve timer is plugged into an electrical
outlet with power 24 hours per day.
5. Check all piping for leaks.

11
Troubleshooting
Symptom: Water conditioner fails to regenerate. No soft water.
Possible Cause
Solution
Power supply to 762 control has
been interrupted.
Determine reason for power
interruption and correct. Reset time of
day.
Water pressure lost.
Restore water pressure.
For 762 series turbine failure.
Clean or replace turbine.
Corrupted programming of 762
Logix timer.
Reprogram timer assembly.
Defective 762 Logix timer.
Replace timer assembly.
No salt in brine tank.
Add salt and regenerate.
Manual bypass valve is open.
Close manual bypass valve.
Leak at riser pipe seal.
Insure that riser pipe is properly
sealed at o’ring seal. InMPect pipe for
cracks.
Insufficient brine.
Check brine float height and clean
assembly if necessary. Check flow
rate capabilities of safety float and air
check assembly.
Plugged injector or injector screen.
Inspect and clean injector and/or
injector screen.
Symptom: No Brine Draw
Possible Cause
Solution
Plugged injector or injector screen.
Inspect and clean injector and/or
injector screen.
Insufficient water pressure.
Increase water pressure above 25
psig (172kPa) minimum.
Corrupted programming of 762
Logix timer.
Reprogram timer assembly.
Defective 762Logix timer.
Replace timer assembly.
Obstructed drain line.
Remove obstruction.

12
Symptom: Insufficient brine draw
Possible Cause
Solution
Partially clogged injector or injector
screen.
Inspect and clean injector and/or
injector screen assembly.
Restricted flow rate in brine line.
Check flow rate capabilities of the
safety float/aircheck assembly.
Insufficient water pressure.
Increase water pressure above 25
psig (172kPa) minimum.
Excessive back pressure on
injector due to elevated drain line.
Reduce drain line elevation to height
of valve.
Damaged valve disk.
Replace all valve disks.
Partially restricted drain line.
Remove restriction.
Symptom: Insufficient Refill to Brine Tank
Possible Cause
Solution
Brine refill control
Remove and clean
Restricted flow rate in brine line.
Check flow rate capabilities of the
safety float/aircheck assembly.
Symptom: Excessive Water in Brine Tank
Possible Cause
Solution
Plugged drain line flow control.
Clean flow control.
Plugged injector and/or injector
screen
Inspect and clean injector and/or
screen.
Symptom: Loss of Media to Drain
Possible Cause
Solution
No flow control installed in drain
line.
Install drain line flow control.

13
Symptom: Leak to Drain
Possible Cause
Solution
No flow control installed in drain
line.
Install drain line flow control.
Insufficient water pressure.
Increase water pressure above 25
psig (172kPa) minimum.
Damaged valve disk or obstruction
in valve disk.
InMPect and if damaged, replace all
valve disks or remove obstruction.
Symptom: Loss of Water Pressure
Possible Cause
Solution
Fouled resin bed due to iron
accumulation.
Clean control valve and mineral bed
with cleaner.
Slots in riser pipe or laterals are
filled with resin fines.
Inspect and clean distributor pipe slots
as needed.
Symptom: Salt in Water to Service After Regeneration
Possible Cause
Solution
Injector is too small for system size.
Install correct injector
Brine draw time excessively long
due to low water pressure.
Increase water pressure above 25
psig (172 kPa) minimum.
Restricted drain line.
Remove drain line restriction.
Insufficient rinse volume.
Increase slow rinse time, fast rinse
time, or both.
Damaged valve disk.
Replace all valve disks.
Plugged injector and/or injector
screen.
Inspect and clean injector and/or
injector screen.
Symptom: Soft Water but No Filtration or pH Control
Possible Cause
Solution
NS unit Calcite and NS Mix is
exhausted and needs replacement
Check P.2 for Media Loading., Use
dome hole to replace media.

14

15

16

17

12 YEAR LIMITED WARRANTY
As of November 2022
This Residential Water Conditioner is warranted for a period of one year from date of
purchase by first user against defects in materials and workmanship. In addition, the complete
control valve is warranted for five years. The control valve body (excluding internals and electrical
parts) is warranted for six years. The mineral tank, plastic brine tank or cabinet tank (excluding
mineral) is warranted against rust, corrosion or bursting for a period of twelve years from date of
manufacture. Except, as specifically set forth in this paragraph, Master Water Conditioning
Corporation makes no other warranties, express or implied.
This warranty shall be void if the conditioner is moved from the place of original installation,
or if damage is caused by misuse, misapplication, accident, freezing, flood, fire or if not installed in
accordance with instructions furnished by Master Water Conditioning Corporation.
This warranty shall be void in the event of damages from external sources or where the
conditioner has been operated at pressure in excess of 100 pounds per square inch or at a temperature
greater than 100 degrees F. or less than 32 degrees F. Incidental costs or consequential damages are
not covered by this warranty.
All defective parts shall be returned prepaid to Master Water Conditioning Corporation for
inspection. Master shall not be liable for labor charges other than Master factory repairs.
This warranty gives you specific legal rights, and you may have other rights which vary from
state to state. Some states do not allow limitations on duration of implied warranties or exclusion of
incidental or consequential damages, so the above limitations may not apply to you.
All claims must be submitted in writing to Master Water Conditioning Corporation at 224
Shoemaker Road, Pottstown, Pennsylvania 19464 within thirty (30) days from the discovery of the
defect. Master Water Conditioning Corporation thereafter will correct defective parts and
workmanship or rusting, corrosion or bursting within sixty (60) days.
224 Shoemaker Rd. Pottstown, Pa. 19464
MASTER
Water Conditioning Corp.
