Mastergrip 790213E User manual

THIS MANUAL CONTAINS IMPORTANT INFORMATION REGARDING SAFETY, OPERATION, MAINTENANCE AND
STORAGE OF THIS PRODUCT. BEFORE USE, READ CAREFULLY AND UNDERSTAND ALL CAUTIONS, WARNINGS,
INSTRUCTIONS AND PRODUCT LABELS. FAILURE TO DO SO COULD RESULT IN SERIOUS PERSONAL INJURY
AND/OR PROPERTY DAMAGE.
IF YOU SHOULD HAVE ANY QUESTIONS OR EXPERIENCE A PROBLEM WITH YOUR MASTERGRIP™ PRODUCT,
DO NOT RETURN THIS PRODUCT TO THE STORE. PLEASE CALL OUR CUSTOMER SERVICE DEPARTMENT AT
1-800-423-3598. BEFORE YOU CALL, HAVE THE FOLLOWING INFORMATION AVAILABLE: MODEL No., DATE
PURCHASED AND STORE LOCATION. AN ALLTRADE REPRESENTATIVE CAN RESOLVE YOUR PROBLEM OVER
THE PHONE.
MODEL NO. 790213E
LED WORKLIGHT
WITH TWO 1500 LUMEN LIGHTS
AND DIRECTIONAL SHADE PANEL
INSTRUCTION MANUAL

1
TABLE OF CONTENTS
CONGRATULATIONS! ................................................. 1
INTENDED USE ...................................................... 1
GENERAL SAFETY RULES .............................................. 1-2
RECOGNIZE SAFETY SYMBOLS, WORDS AND LABELS .................. 2
IMPORTANT SAFEGUARDS........................................ 2
SERVICE ...................................................... 2
IMPORTANT SAFETY INSTRUCTIONS..................................... 2
SAFETY RULES FOR WORKLIGHT........................................ 3
SYMBOLS ........................................................ 4
FUNCTIONAL DESCRIPTION ............................................ 5-6
ASSEMBLY ........................................................ 6
OPERATING THE WORKLIGHT .......................................... 7
OPERATING THE ON/OFF SWITCH .................................. 7
ADJUSTING THE WORKLIGHT BEAM ................................ 7
STORAGE ........................................................ 7
TROUBLESHOOTING .................................................. 7
MAINTENANCE AND CLEANING ......................................... 8
ACCESSORIES....................................................... 8
SPECIFICATIONS ..................................................... 9
1 YEAR LIMITED WARRANTY ........................................... 9-11
FCC INFORMATION ................................................... BACK
CONGRATULATIONS!
Thanks for choosing this product. At Alltrade, our aim is to provide you with quality products at an
affordable price, and we want you to be totally satisfied with your product and our Customer Service.
If any help and advice is needed, please contact us at 1-800-423-3598. Properly cared for, this tool will
give you many years of satisfaction.
INTENDED USE
This tool is intended for consumer use only. For light-duty use in normally dry locations.
GENERAL SAFTEY RULES
READ AND UNDERSTAND ALL INSTRUCTIONS. Failure to follow all
instructions in this manual may result in severe personal injury or death. Keep this manual and
refer to it for Safety Instructions and Operating Procedures.
SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE.
1

2
RECOGNIZE SAFETY SYMBOLS, WORDS AND LABELS
DANGER indicates an imminently hazardous situation
which, if not avoided, will result in death or serious injury.
WARNING indicates a potentially hazardous situation
which, if not avoided, could result in death or serious
injury.
CAUTION indicates a potentially hazardous situation which,
if not avoided, may result in minor or moderate injury.
IMPORTANT SAFEGUARDS
People with electronic devices, such as pacemakers, should consult
their physician(s) before using this product. Operation of electrical equipment in close
proximity to a heart pacemaker could cause interference or failure of the pacemaker.
WARNING: This product contains chemicals known to the State of California to cause cancer
and birth defects or other reproductive harm. Wash hands after handling.
SERVICE
Have your worklight serviced by a qualified repair person using only
identical replacement parts. This will ensure that the safety of the worklight is maintained.
IMPORTANT SAFETY INSTRUCTIONS
THIS PORTABLE LUMINAIRE HAS A POLARIZED PLUG (ONE BLADE IS WIDER THAN THE
OTHER) AS A FEATURE TO REDUCE THE RISK OF ELECTRIC SHOCK. THIS PLUG WILL FIT IN
A POLARIZED OUTLET ONLY ONE WAY. IF THE PLUG DOES NOT FIT FULLY IN THE OUTLET,
REVERSE THE PLUG. IF IT STILL DOES NOT FIT, CONTACT A QUALIFIED ELECTRICIAN.
NEVER USE WITH AN EXTENSION CORD UNLESS PLUG CAN BE FULLY INSERTED. DO NOT
ALTER THE PLUG.

3
SAFETY RULES FOR WORKLIGHTS
DO NOT MODIFY WORKLIGHT IN ANY WAY. This worklight was designed
for specific applications and may not be safe to use if modified for a different purpose.
Contact the manufacturer if you have any questions about whether or not this worklight is
suitable for the application you have in mind.
Use only in dry locations. Unsafe use could lead to risk of electric shock, fire or personal injury.
USE OF THIS WORKLIGHT AROUND WATER IS NOT RECOMMENDED. Never use around hot
tubs, saunas or swimming pools.
If an extension cord is used, it must be a 16 gauge three wire cord with a three prong plug
rated for outdoor use (types SW, SOW, STW, STOW, SJW, SJOW, SJTW, SJTOW, SJEOW,
SEOW.) Extension cord must be plugged into a grounded outlet. Do not use an extension cord
over 15 m (50 ft.) long.
Do not look directly at lighted worklight. Always wear safety glasses.
Do not operate the portable worklight with a missing or damaged glass lens.
Worklight is not intended for use in hazardous locations. Do not use in locations with flam-
mable or explosive atmospheres. Keep away from gasoline and other volatile liquids. Heat
from fixture could ignite fumes.
Do not submerge. Never handle this worklight while immersed in water or standing on damp
surfaces.
Keep the handle of the worklight dry, clean, and free from oil and grease.
Do not run the worklight while carrying it at your side. The worklight heats up immediately
when in use and could result in burns.
Do not use the worklight if it has been damaged, left outdoors in the rain, snow, wet or damp
environments, or immersed in liquid.
Maintain labels and nameplates on the worklight. These carry important information. If un-
readable or missing, contact Alltrade for a replacement.
Store out of reach of children and other untrained persons.
This is an electric light – not a toy! To avoid risk of fire, burns, personal injury and electric
shock it should not be played with or placed where small children can reach it.
Risk of tip-over when installed on the tripod.

4
SYMBOLS
IMPORTANT: Some of the following symbols may be used on your tool. Please study them and learn
their meaning. Proper interpretation of these symbols will allow you to operate the tool better and safer.
SYMBOL NAME EXPLANATION
V Volts Voltage (Potential)
A Amperes Current
Hz Hertz Frequency (Cycles per Second)
W Watt Power
Kg Kilograms Weight
Alternating Current Type of Current
Direct Current Type of Current
Alternating or Direct Current Type of Current
Earthing Terminal Grounding Terminal
Class II Construction Denotes Double Insulation
min Minutes Time
s Seconds Time
ø Diameter Size of Drill Bits,
Grinding Wheels, etc.
No load speed No-load Rotational Speed
.../min Revolutions per Minute Revolutions, Surface Speed,
Strokes, etc. per Minute
1,2,3, … Ring Selector Settings Speed, Torque or Position
Settings

5
FUNCTIONAL DESCRIPTION
CONTROLS AND COMPONENTS:
1. LED (36 pcs.)
2. Handle
3. Worklight Housing
4. Ratcheting Hinge
5. Worklight Base
6. Dual Light Mounting Tray
7. Twist Knob
8. Flat Washer
9. Glass Lens
10. Y Splitter Power Cord
11. Tripod Leg (3)
12. On/Off Switch
13. Power Cord
BACK VIEW
12
13
3
14. Height Adjust Locking Collar
15. Power Cord Wrap
16. Legs Locking Arrow Markings
17. Strut Hub
18. Tray Mounting Foot
19. Upper Post
20. Leg Hub
21. Lower Post
22. Tray Mount
23. Directional Shade
Panel (2 pcs.)
5
2
7
6
10
4
1
18
9
7
8
2 PCS.
15
17
14
21
19
11
16
20
22
TRIPOD
3
23 (2)

6
ASSEMBLY
Deviation from the assembly instructions may result in a risk of fire
or electric shock
WORKLIGHT ASSEMBLY:
1. Attach the worklight to its stand using the pro-
vided flat washer and twist knob. (Fig. 1.1)
2. Attach directional shade panel to the worklight
housing. (Fig. 1.2)
TRIPOD/TRAY ASSEMBLY:
1. Loosen the tripod’s leg adjustment thumb screw, spread the 3 legs
apart and place the tripod on the flat surface. Place the leg hub
between the arrow markings on the bottom of the lower post
and tighten the thumb screw. (Fig. 2)
2. Attach the worklight tray to the top of tripod using the provided
twist knob. (Fig. 3)
3. Turn the height adjust locking collar counter-clockwise to loosen
and then raise or lower the upper post. Turn the lock collar
clockwise to lock the upper post at desired height. (Fig. 2)
WORKLIGHT/TRAY ASSEMBLY:
1. Place the worklight over the tray and secure using the 2 orange
thumb screws located on the top of tray. (Fig. 4)
2. Attach both lights to the provided Y splitter power cord. (Fig. 5)
COMPONENTS COMPONENT NO.
Worklight with Base 692483
Tripod 692484
Dual Light Mounting Tray 692494
Y Splitter Power Cord 692492
Directional Shade Panel 692531
FIGURE 3 FIGURE 4 FIGURE 5
ORANGE THUMB SCREW
FIGURE 2
HEIGHT ADJUST
LOCKING
COLLAR
THUMB SCREW
LEG HUB
FIGURE 1.1
WASHER
FIGURE 1.2

7

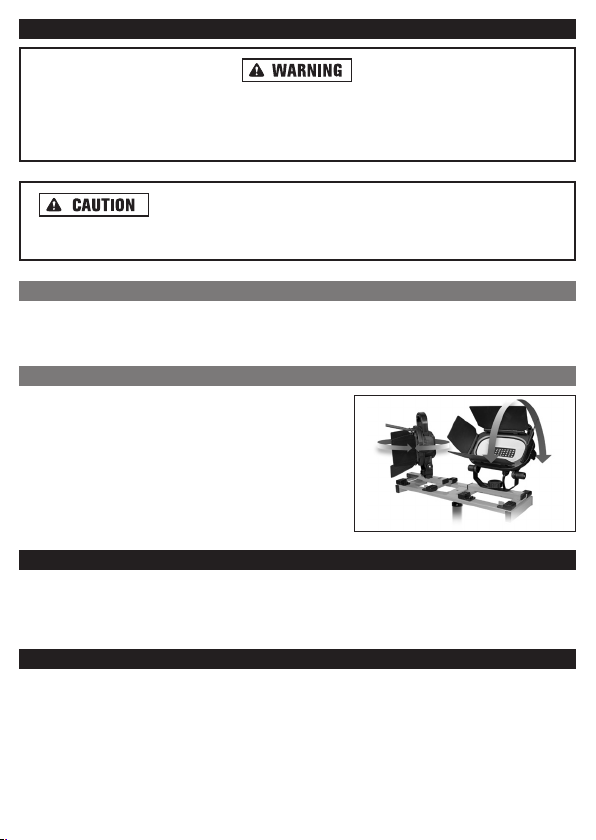

OPERATING THE WORKLIGHT
Do not attempt to modify the worklight.
Check the worklight before each use. Do not use a worklight with worn or broken parts.
Always switch the worklight off before unplugging cord. AC only.
To reduce the risk of electric shock, do not connect or disconnect
when wet. When connecting multiple sets protect connection(s) from direct exposure to
rain and water. Do not allow connection(s) to become wet.
OPERATING THE ON/OFF SWITCH
Attach the light Y splitter plug to 120V power. The ON/OFF switch is located on the back of the work-
light. Press the switch to turn the worklight “ON” or “OFF.”
ADJUSTING THE WORKLIGHT BEAM
1. Use the handle to turn the worklight to the desired position.
(Fig. 6)
2. Use the directional shade panel to redirect the light or
change the shape of the light or the amount of the light
emitted from the worklight.
STORAGE
Worklights and tripod should be stored out of the reach of children in a safe dry location.
Close the directional shade panels to protect the worklight glass lens during storage.
NOTE: Lightly coat all screws with anti-corrosion oil to prevent rusting every six months.
TROUBLESHOOTING
If the worklight does not work:
Check that the worklight is plugged into a working outlet.
If using a worklight with a GFCI, press RESET button in case GFCI has been tripped.
Make sure that worklight has been switched ON.
FIGURE 6

8
MAINTENANCE AND CLEANING
Do not clean worklight while it is hot! Unplug the worklight and allow
it to cool down before cleaning.
Use only mild soap and a damp cloth to clean the worklight. Never let any liquid get inside the
casing. Never immerse any part of the worklight in a liquid. Always keep the ventilation openings clear.
Never open the worklight case. Do not attempt to repair the worklight yourself.
Use only authorized replacement parts for your tool.
Equipment service must be performed only by qualified repair personnel using authorized replacement
parts. Service or maintenance by unqualified personnel could result in considerable risk of personal
injury. Use of unauthorized parts or failure to follow maintenance instructions may create a risk of
electric shock or injury.
ACCESSORIES
Use only accessories that are recommended by the manufacturer for your model. Accessories that may
be suitable for one tool may become hazardous when used on another tool.
If you must use an extension cord, be sure that the gauge is large enough to carry the amount of
current necessary for your power tool. If not, your tool may experience a loss of power, excessive
voltage drop or overheating. The smaller the gauge number, the heavier the cord (see table below).
RECOMMENDED SIZES OF EXTENSION CORDS 120 VOLT AC 60 HZ TOOLS
CURRENT RATING IN AMPS CONDUCTOR SIZE IN A.W.G.
MORE THAN NOT MORE THAN 7.62 m15.24 m30.48 m45.72 m
(25 ft.) (50 ft.) (100 ft.) (150 ft.)
0 6 18 16 16 14
6 10 18 16 14 12
10 12 16 16 14 12
12 16 14 12 NOT RECOMMENDED

9
SPECIFICATIONS
SPECIFICATIONS (ONE WORKLIGHT)
Light Output 1500 Lumen
Wattage 19 W
Voltage 120V ~ 60 Hz
No. of LEDs 36
Colour Temperature 5000 K
Working Temperature 0 ºC ~ 50 ºC
(32 ºF ~ 122 ºF)
Usage Dry Locations
Cord Length 1.52 m (5 ft.)
Plug Type Polarized 2 Prong
1 YEAR LIMITED WARRANTY
Express and Exclusive Limited Warranty to Original Retail Buyer
Alltrade Tools LLC (hereinafter “Alltrade”) expressly warrants to the original retail purchaser of the accompanying
MASTERGRIP™ Worklight and no one else all parts of the product (except those parts referred to below which are specifi
cally excluded from such warranty (see Exclusions) to be free from defects in materials and workmanship for a period
of one year from the original date of purchase.
SPECIAL WARRANTY NOTE FOR COMMERCIAL OR RENTAL USE: The above warranty for this MASTERGRIP™
Worklight shall be effective for only 90 days from the original date of purchase if this tool is used for any COMMERCIAL
OR RENTAL PURPOSE.
The date of purchase shall be the date of shipment to the original purchaser, or the date the original purchaser took
possession, custody, or control of the product, whichever occurred fi rst. This warranty shall be null and void if the
product or any component thereof is modified or altered. This warranty does not apply to any other product and/or
component thereof manufactured or distributed by Alltrade, and does not apply to products and/or components thereof
designed, manufactured and/or assembled by others, for which Alltrade makes no warranties whatsoever. THERE ARE
NO WARRANTIES, WHICH EXTEND BEYOND THE DESCRIPTION ON THE FACE HEREOF.
Warranty Performance
By purchasing the product, purchaser expressly acknowledges and agrees that their sole and exclusive remedy under
this warranty shall be strictly limited to the repair or replacement of any covered nonconforming items or parts thereof
provided that any such nonconforming item and/or part is promptly returned to Alltrade’s facility postage pre-paid and
insured (address: ALLTRADE Warranty Claims & Repair, 1431 Via Plata, Long Beach, CA 90810-1462, Attn: Customer
Service #1-800-423-3598) within the applicable warranty period, with a written request by purchaser that Alltrade repair
and/or replace the nonconforming item and/or part. We recommend that you keep the original product packaging in the
event you need to ship the unit. We suggest the package be insured against loss or in transit damage. When sending
your product include your name, address, phone number, dated proof of purchase (or copy), and a statement about the
nature of problem. Warranty coverage is conditioned upon purchaser furnishing Alltrade with adequate written proof
that they are the original purchaser and of the original purchase date. Parts returned, freight prepaid and insured, to
Alltrade’s facility (see above address) will be inspected and, at Alltrade’s option, repaired and/or replaced free of charge
if found to be defective and subject to warranty. Alltrade retains the sole discretion to determine whether any item or part
is nonconforming and, if so, whether the item and/or part will be repaired and/or replaced. If the unit is repaired, new or
reconditioned replacement parts may be used. If Alltrade chooses to replace the product, it may replace it with a new or
reconditioned one of the same or comparable design. The repaired or replaced unit will be warranted under the terms

10
of the remainder of the warranty period. Typically, a defective product that is returned within the first 30 days after the
purchase date will be replaced; for items returned after the first 30 days and within the warranty period, covered defective
parts not subject to normal wear and tear or other exclusions will be repaired or replaced, at Alltrade’s option. During
the warranty period, Alltrade will be responsible for the return shipping charges. Alltrade’s repair and/or replacement of
any nonconforming item and/or part thereof shall constitute fulfi llment of all obligations to the purchaser. Alltrade shall
not be responsible or liable for any expense, including freight charges, or repairs made outside Alltrade’s facility, unless
expressly agreed to by Alltrade in writing. Under no circumstances shall Alltrade bear any responsibility for loss of the
unit, loss of time or rental, inconvenience, commercial loss or consequential damages.
Exclusions
This warranty does not cover parts damaged due to normal wear, abnormal conditions, misapplication, misuse, abuse,
accidents, operation at other than recommended pressures or temperatures, improper storage or freight damage. Parts
damaged or worn by operation in dusty environments are not waranted. Failure to follow recommended operating and
maintenance procedures also voids warranty. This limited warranty does not apply to accessory items such as drill
bits, screwdriving bits, circular saw blades, jigsaw blades, grinding wheels, sanding sheets and other related items.
DAMAGE TO THE PRODUCT RESULTING FROM TAMPERING, ACCIDENT, ABUSE, NEGLIGENCE, FAILURE TO FOLLOW
INSTRUCTIONS, UNAUTHORIZED REPAIRS OR ALTERATIONS, DAMAGE WHILE IN TRANSIT TO OUR SERVICE
FACILITY, USE OF UNAPPROVED OR IMPROPER ATTACHMENTS OR ACCESSORIES, COMMERCIAL AND RENTAL
APPLICATIONS OR OTHER CAUSES UNRELATED TO PROBLEMS WITH MATERIAL OR WORKMANSHIP ARE NOT
COVERED BY THIS WARRANTY.
Alltrade will not be liable for the following: labour charges, loss or damage resulting from improper operation,
maintenance or repairs made by other persons; pre-delivery services such as assembly, oil or lubricants, and
adjustment; maintenance services that are normally required to maintain the product.
The use of other than genuine Alltrade Repair Parts will void warranty
WARRANTY DISCLAIMERS
EXCLUSION AND DISCLAIMER OF ALL OTHER EXPRESS WARRANTIES, GUARANTIES AND/OR REPRESENTATIONS,
EXCEPT FOR THE LIMITED WARRANTY PROVIDED HEREIN, ALL OTHER EXPRESS WARRANTIES, GUARANTIES, AND/
OR REPRESENTATIONS BY ALLTRADE AND OR ITS REPRESENTATIVE(S) REGARDING THE DESIGN, MANUFACTURE,
PURCHASE, USE AND/OR OPERATION OF THE PRODUCT OR ANY COMPONENT THEREOF SOLD HEREUNDER,
REGARDLESS OF WHETHER ANY SUCH WARRANTY, GUARANTY AND/OR REPRESENTATION, WRITTEN OR ORAL,
ARISES BY OPERATION OF LAW AND/OR EQUITY AND/OR BY ANY ACT OR OMISSION OF ALLTRADE AND/OR ITS
REPRESENTATIVE(S), OR THE BUYER, ARE HEREBY EXPRESSLY EXCLUDED AND DISCLAIMED BY ALLTRADE AND/
OR ITS REPRESENTATIVES. PURCHASER KNOWINGLY AND WILLINGLY WAIVES ANY AND ALL SUCH WARRANTIES
AND RIGHTS, CLAIMS AND/OR CAUSE OF ACTION ARISING THEREFROM OR BASED THEREON. PURCHASER’S SOLE
AND EXCLUSIVE REMEDY IS AS STATED ABOVE.
EXCLUSION AND DISCLAIMER OF ALL IMPLIED WARRANTIES, INCLUDING THE IMPLIED WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. NO WARRANTY, ORAL OR WRITTEN, OTHER
THAN THE WARRANTY LISTED HEREIN IS MADE WITH REGARD TO THIS PRODUCT. ALL WARRANTIES AND/OR
IMPLIED WARRANTIES, GUARANTIES AND/OR REPRESENTATIONS BY ALLTRADE AND/OR ITS REPRESENTATIVE(S)
REGARDING THE DESIGN, MANUFACTURE, PURCHASE, USE AND/OR OPERATION OF THE PRODUCT OR ANY
COMPONENT THEREOF SOLD HEREUNDER, REGARDLESS OF WHETHER ANY SUCH WARRANTY, GUARANTY AND/
OR REPRESENTATION, WRITTEN OR ORAL, ARISES BY OPERATION OF LAW AND/OR EQUITY AND/OR BY ANY ACT
OR OMISSION OF ALLTRADE AND/OR ITS REPRESENTATIVES. PURCHASER KNOWINGLY AND WILLINGLY WAIVES
ANY AND ALL SUCH WARRANTIES AND RIGHTS, CLAIMS AND/OR CAUSES OF ACTION ARISING THEREFROM OR
BASED THEREON.
PURCHASER’S SOLE AND EXCLUSIVE REMEDY IS AS STATED ON PRECEDING PAGES.
LIMITATIONS OF LIABILITY
IN NO EVENT SHALL ALLTRADE AND/OR ITS REPRESENTATIVE(S) BE LIABLE FOR INDIRECT, INCIDENTAL, SPECIAL
AND/OR CONSEQUENTIAL DAMAGES OF ANY KIND ARISING OUT OF OR RELATED TO, DIRECTLY OR INDIRECTLY,
ANY BREACH OR PROVISION OF ANY AGREEMENT BETWEEN ALLTRADE AND/OR ITS REPRESENTATIVE(S) AND
PURCHASER, AND WARRANTY HEREUNDER, AND/OR THE EXISTENCE, DESIGN, MANUFACTURE, PURCHASE, USE
AND/OR OPERATION OF ANY ITEM(S) SOLD HEREUNDER EVEN IF ALLTRADE AND/OR ITS REPRESENTATIVE(S) HAS

11
BEEN ADVISED OF THE POSSIBILITY OF ANY SUCH DAMAGES. IN NO EVENT, WHETHER BECAUSE OF A BREACH
OF CONTRACT, WARRANTY, TORT (INCLUDING NEGLIGENCE) OR OTHERWISE, SHALL ALLTRADE’S AND/OR ITS
REPRESENTATIVE (S) LIABILITY EXCEED THE PRICE OF THE PRODUCT. All LIABILITY CONNECTED WITH THE USE
OF THIS PRODUCT SHALL TERMINATE UPON THE EXPIRATION OF THE WARRANTY PERIODS SPECIFIED ABOVE.
LIMITATIONS ON WARRANTY DISCLAIMERS
Some provinces do not allow limitations on how long an implied warranty lasts and some provinces
do not allow the exclusion or limitation of the incidental or consequential damages, so part or all of the
above limitations or exclusions may not apply to you. This warranty gives you specifi c legal rights, and
you may also have other rights which vary from province to province.
If your product is not covered by this warranty, please call our Customer Service Department at
1-800-423-3598 for general repair information, and charges and the location of your nearest authorized
service facility.
FCC INFORMATION
Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could
void the user’s authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for Class B digital device, pursuant to
part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio or television reception, which can
be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or
more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and the receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may cause undesired operation.
FOR CUSTOMER SERVICE
1-800-423-3598
Printed in China
1431 VIA PLATA
LONG BEACH, CA 90810-1462 USA
790213C – LED Worklight_Rev 4/21/16
©COPYRIGHT 2016 ALLTRADE TOOLS, LLC.
