Matco Mustang T3 ECO User manual

Matco International
Mustang T3 ECO Manual
English

Manual Mustang T3 ECO
Table of Contents
1FUNCTIONS
1.1 ESSENTIAL COMPONENTS.............................................................................................................................1-1
1.2 EXPLANATION ESSENTIAL COMPONENTS .........................................................................................................1-2
1.3 DESCRIPTION.............................................................................................................................................1-2
2TECHNICAL DETAILS
2.1 MACHINE .................................................................................................................................................2-3
2.2 ELECTRICAL ...............................................................................................................................................2-3
2.3 SIZE AND WEIGHT ......................................................................................................................................2-3
3OPERATION
3.1 INSERTING FILM ROLL ..................................................................................................................................3-4
3.2 SETTINGS ON THE MACHINE..........................................................................................................................3-4
3.2.1 Load height...................................................................................................................................3-4
3.3 OPERATOR PANEL ......................................................................................................................................3-5
3.4 EXPLANATION OPERATOR PANEL....................................................................................................................3-6
3.5 OPERATING SCREENS ..................................................................................................................................3-7
4TREE STRUCTURE........................................................................... FOUT! BLADWIJZER NIET GEDEFINIEERD.
5COMPONENTS............................................................................... FOUT! BLADWIJZER NIET GEDEFINIEERD.
5.1 TURNTABLE ..............................................................................................FOUT!BLADWIJZER NIET GEDEFINIEERD.
5.2 COLUMN.................................................................................................................................................5-13
5.3 FILM CARRIAGE ........................................................................................................................................5-15

Manual Mustang T3 ECO
Matco International
1Operation
1.1 Essential Components
3
2
4
1
5
Attention:
The machine may not be used if protective covers are not present
Essential Components
1
Turntable
4
Operation
2
Film carriage
5
Ramp
3
Mast

Manual Mustang T3 ECO
Matco International
1.2 Explanation Essential Components
1. Turntable
The pallet to be wrapped is placed on this turntable. When installation is started, it will start
turning. And it automatically stops at its '0 position' at the end of the cycle.
2. Film carriage
The film carriage controls the supply of the film to the pallet. The entire pallet becomes
complicated due to the up and down movement of the film carriage.
3. Mast
The mast contains chains and a motor that makes the foil carriage move. It also contains the
control box that contains all electrical components.
4. Operation
The controls are located on the side of the mast. There is also a light that indicates whether
the installation is switched on.
5. Ramp
The machine can be supplied with a ramp of various dimensions.
1.3 Description
This semi-automatic pallet wrapper makes it possible to wrap pallets with just 1 push of a button. The
pallet turns automatically on the turntable, while the film carriage moves vertically along the pallet. The
pallet will be wrapped from head to toe on all sides.

Manual Mustang T3 ECO
Matco International
2Technical Details
2.1 Machine
Speed
3-12 revolutions per minute
Clear height
min 3000 mm
Environment
clean, dry, not aggressive
Operating temperature
0 to +45oC
2.2 Electrical
Connection
1x230 VAC - 50 Hz, with protective earth
Installed power
0.9 kW
Insulation class
IP 54
2.3 Size and Weight
Weight
approx. 625 kg Depending on model and version
Dimensions in mm (length x width x height)
Depending on model and version
Product dimensions
1000x800 mm
Loaded height
Min. 500mm / max. 2200mm
Weight loaded pallet turntable
min. 200 kg / Max. 2000 kg
Width of film to be processed
500mm
Thickness of Film
17 - 35 μ

Manual Mustang T3 ECO
Matco International
3Operation
3.1 Inserting film roll

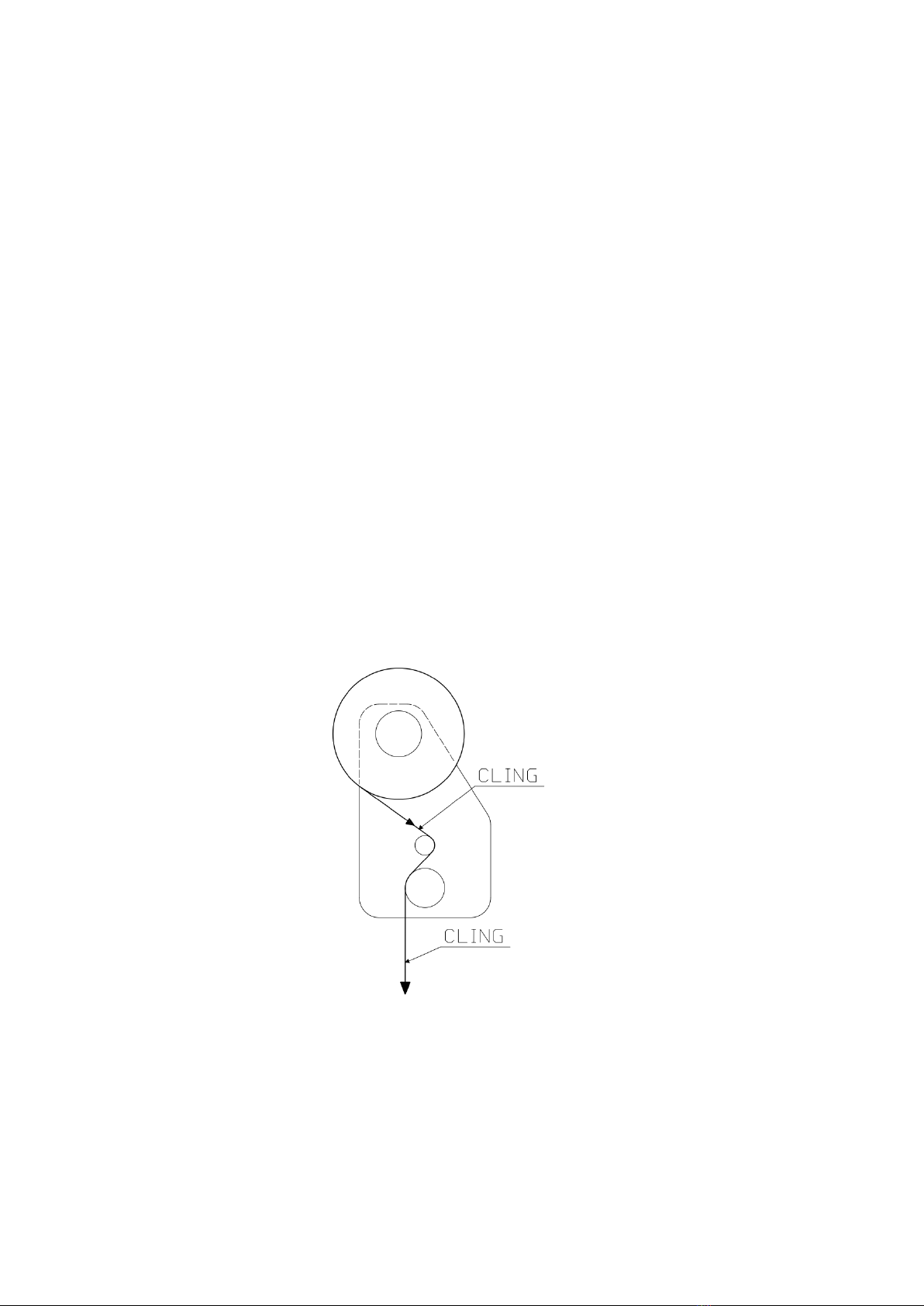

1 - Insert new film roll (unwinding direction depends on which side the cling is).
2 - Apply film according to the drawing below.
CI = CLING INSIDE (Adhesive side on the inside)
The film must be loaded into the braking system like this when using a "differential cling" film, the
adhesive side being on the inside of the film as it is unwound from the film roll.
CO = CLING OUTSIDE (Adhesive side on the outside)
The film must be loaded into the braking system this way when using a "differential cling" film, the
adhesive side being on the outside of the film as it is unwound from the film roll.
When using a "double side cling" film, it does not matter in principle how the film is inserted. This
machine is only used with Cling Inside film.
Properties of the Film:
Diameter film roll : Max. 300 mm
Sleeve diameter: 76.2 mm (3")
Width : 500 mm
Thickness : 17 - 35 μ
3.2 Machine Settings
3.2.1 Load height
This is an adjustable photocell (probe) mounted on the film carriage. By adjusting the photocell higher
or lower, the film overlap on the top of the pallet will respectively be smaller or larger.

Manual Mustang T3 ECO
Matco International

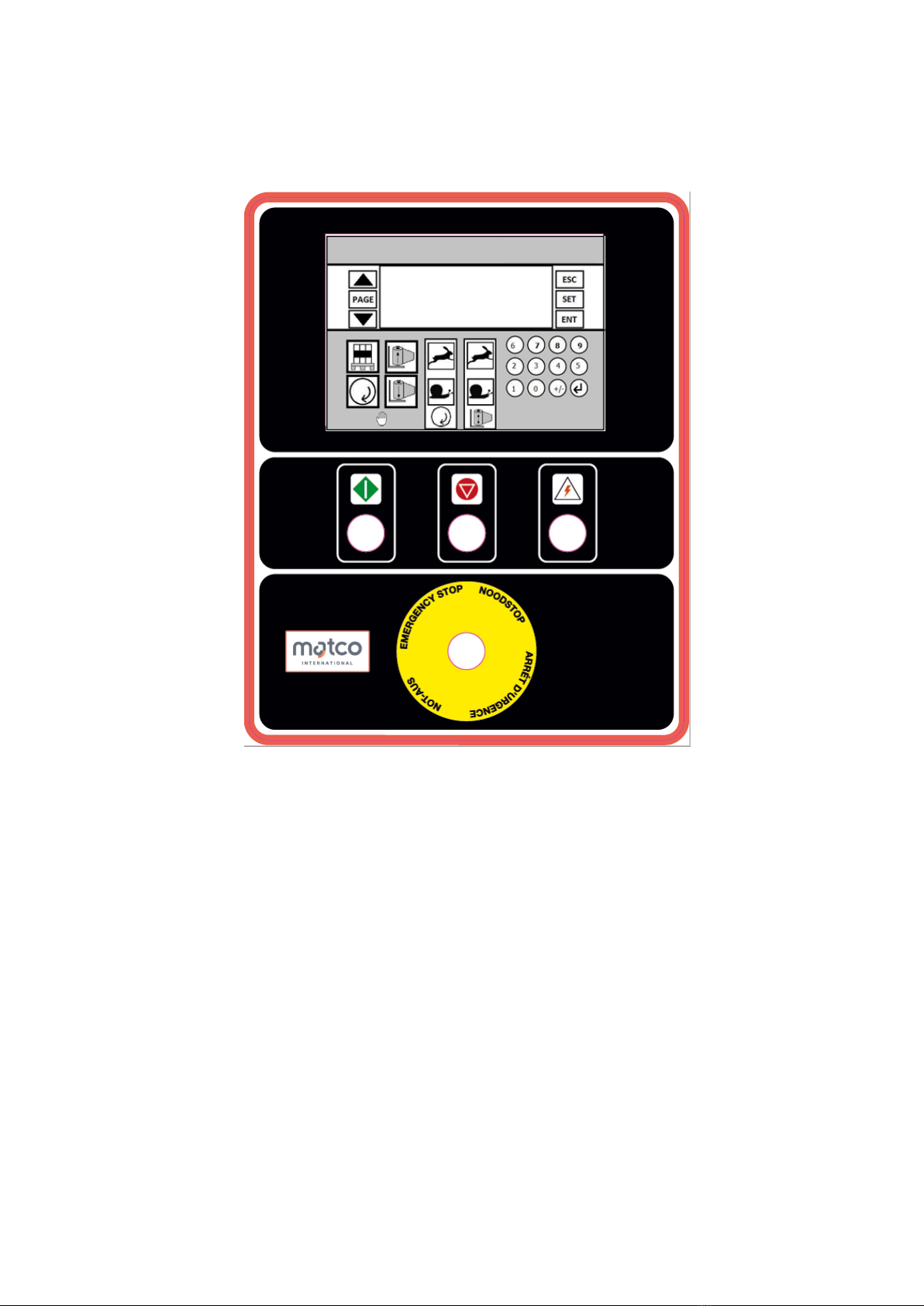

3.3 Operator Panel

Manual Mustang T3 ECO
Matco International
3.4 Explanation Operator Panel
From the operator panel you can directly apply manual operation to the wrapper.
Menu keys
Selection up/change screen
Exit selection
Select page
select
Select down
confirm
Manual operation
Turn turntable
Film carriage up
Film carriage up
Automatic operation
Faster while turning
Faster during ascent or descent
Slower
slower
Turntable (this refers to the top 2
icons
Film carriage
Reinforce wrapping
Push buttons or indicators
Voltage on machine.
Start or reset wrapper.
Stop during wrapping cycle.
Emergency stop stops everything
immediately on impact.
Pull out before resetting.

Manual Mustang T3 ECO
Matco International
3.5 Operating Screens
From the panel you can change the parameters of your wrapping program.
Changing values Set-> Ent
Change field Set-> Set
Exit input field Esc
Switch screen selection up/down

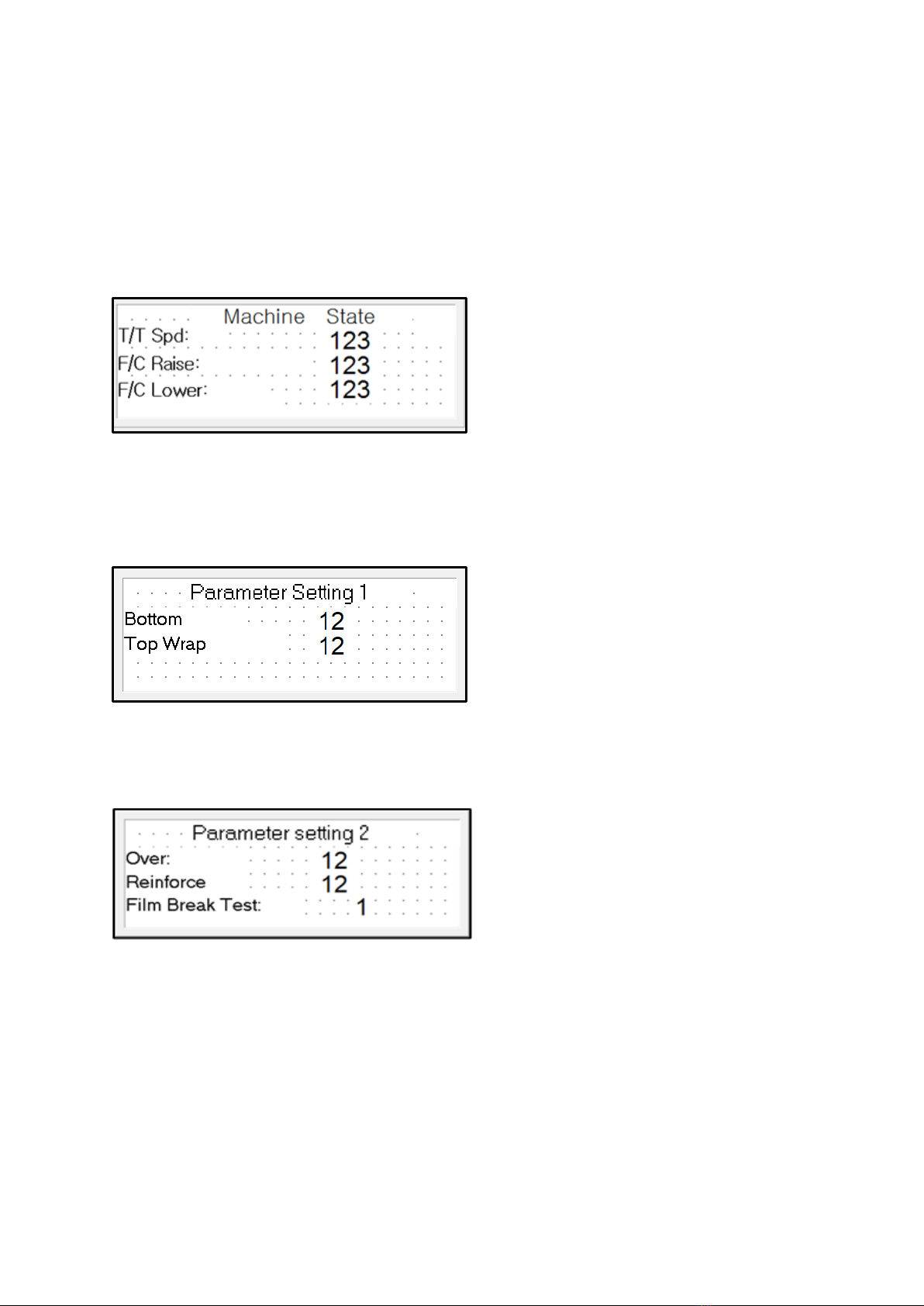

Set speed for the turntable/film carriage.
T/T Spd: Turntable speed.
F/C Raise: Increase speed film carriage.
F/C Lower: Decrease speed film carriage.
Number of windings.
Bottom: Bottom wraps: number of windings on the bottom of the pallet.
Top-Wrap Top wraps: number of windings on top of load.
Other options
Over: Runtime film carriage above pallet.
Reinforce: Number of windings after pressing the reinforce button.
Film break test: 1=film break on 0=film break off.
5

Manual Mustang T3 ECO
Matco International
Top sheet settings.
Time: The time the film carriage is lowered before the machine stops for placing top sheet.
After placing the top sheet, press start again for the continuation of the wrapping
program
Top sheet: Top sheet on=1 off=0
Single/spiral: single wrap (only up) =0 spiral=1
Inputs This screen displays incoming signals in the operator panel.
Home: Turntable in home position.Height: height sensor
Door: Door film carriage closed. Up limit: Top limit switch
Start: machine on automatic . Down limit: Bottom limit switch
E/S: Emergency stop.
F/F Dispensing film.
Outputs the outgoing signals from the operating screen.
T/T Start: Turn turntable.
Carriage up: Film carriage up.
Carriage down: Film carriage down.

Manual Mustang T3 ECO
Matco International

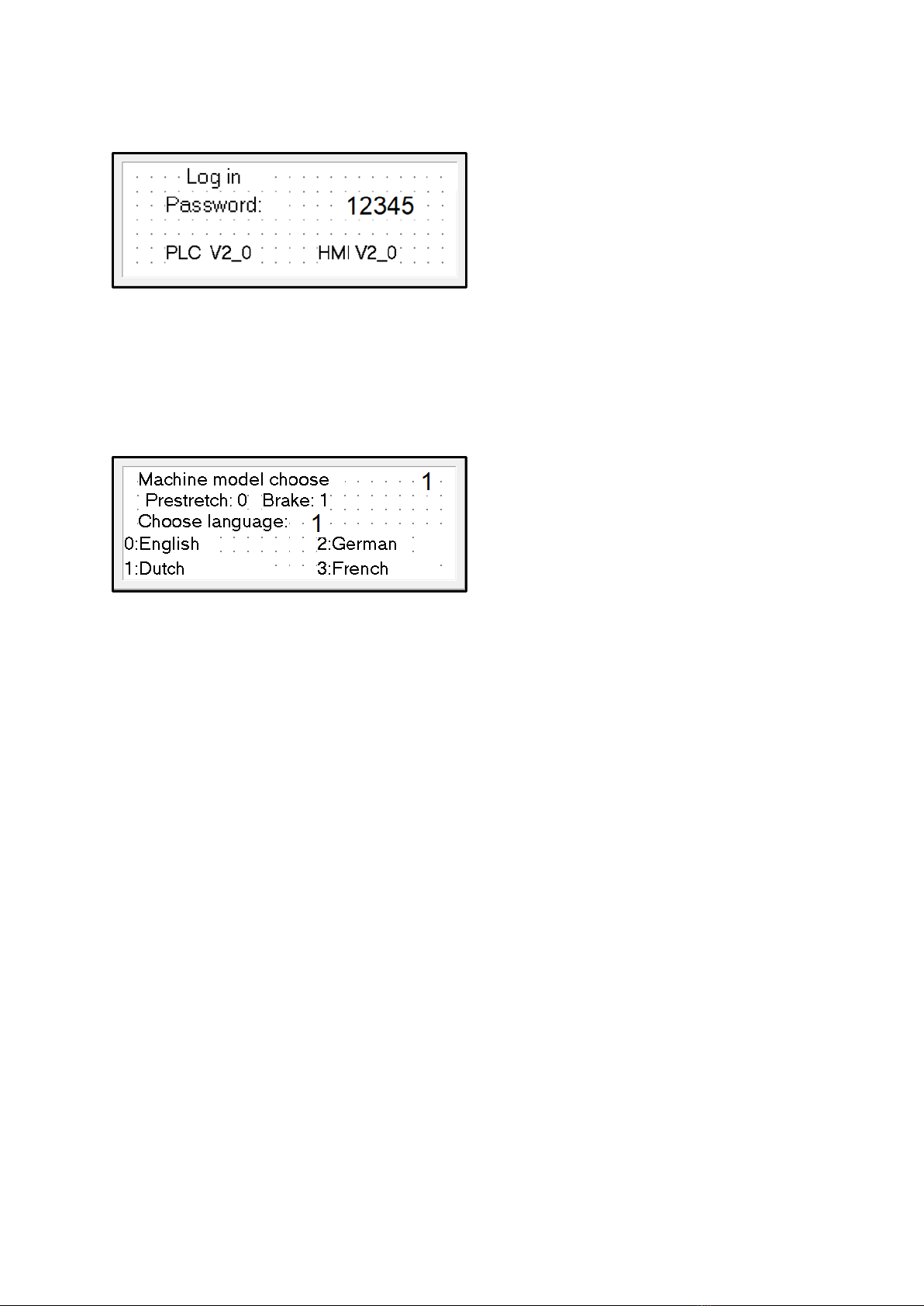

The login screen for changing the language.
Via machine state-> page button
Some screens are protected against modifications.
Password 111 for language adjustment
Language choice after logging in.
Choose language set 1 to 4

Manual Mustang T3 ECO
Matco International

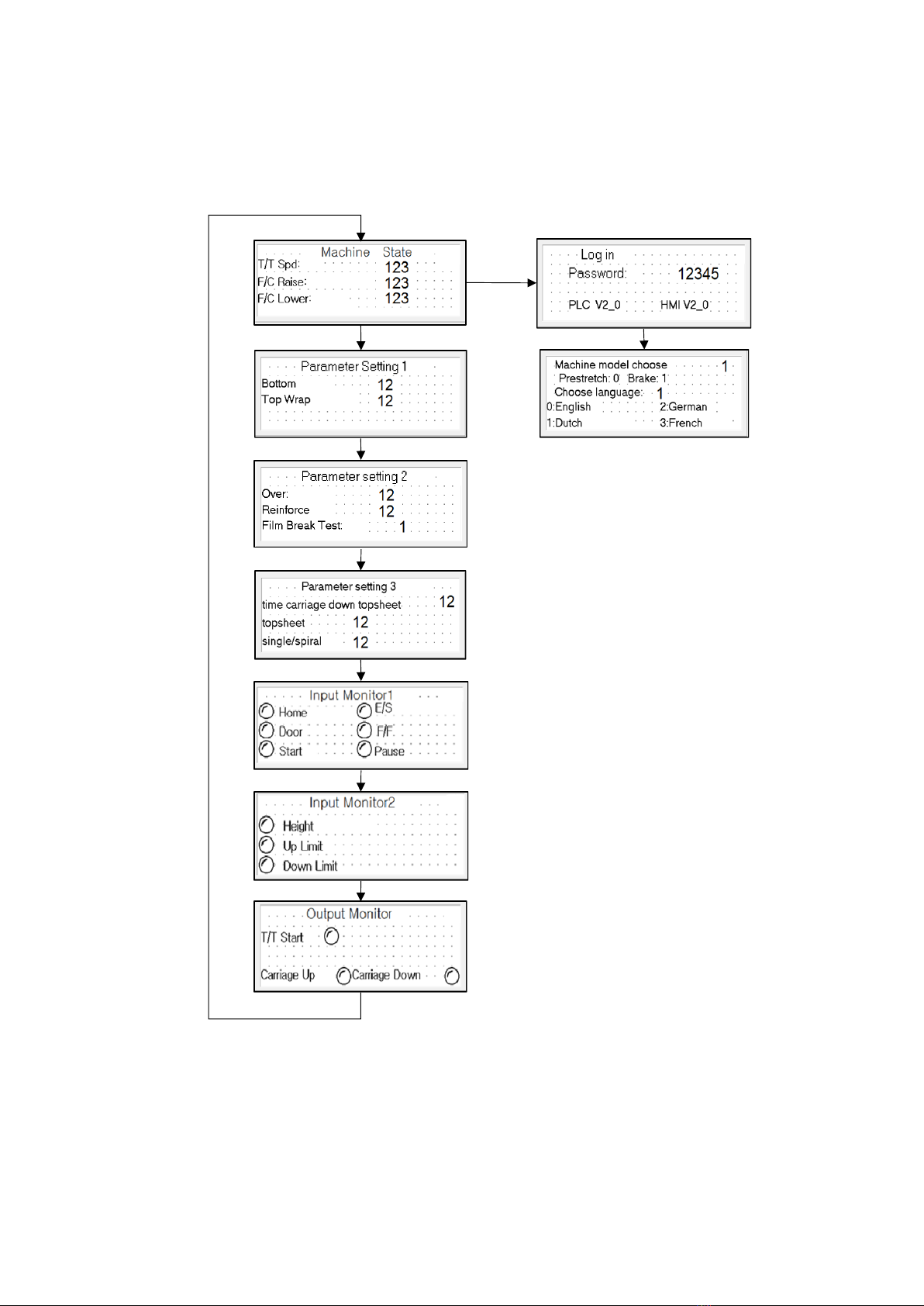

Tree structure
page

Manual Mustang T3 ECO
Matco International
5. Components
Machine parts with quantity and part number

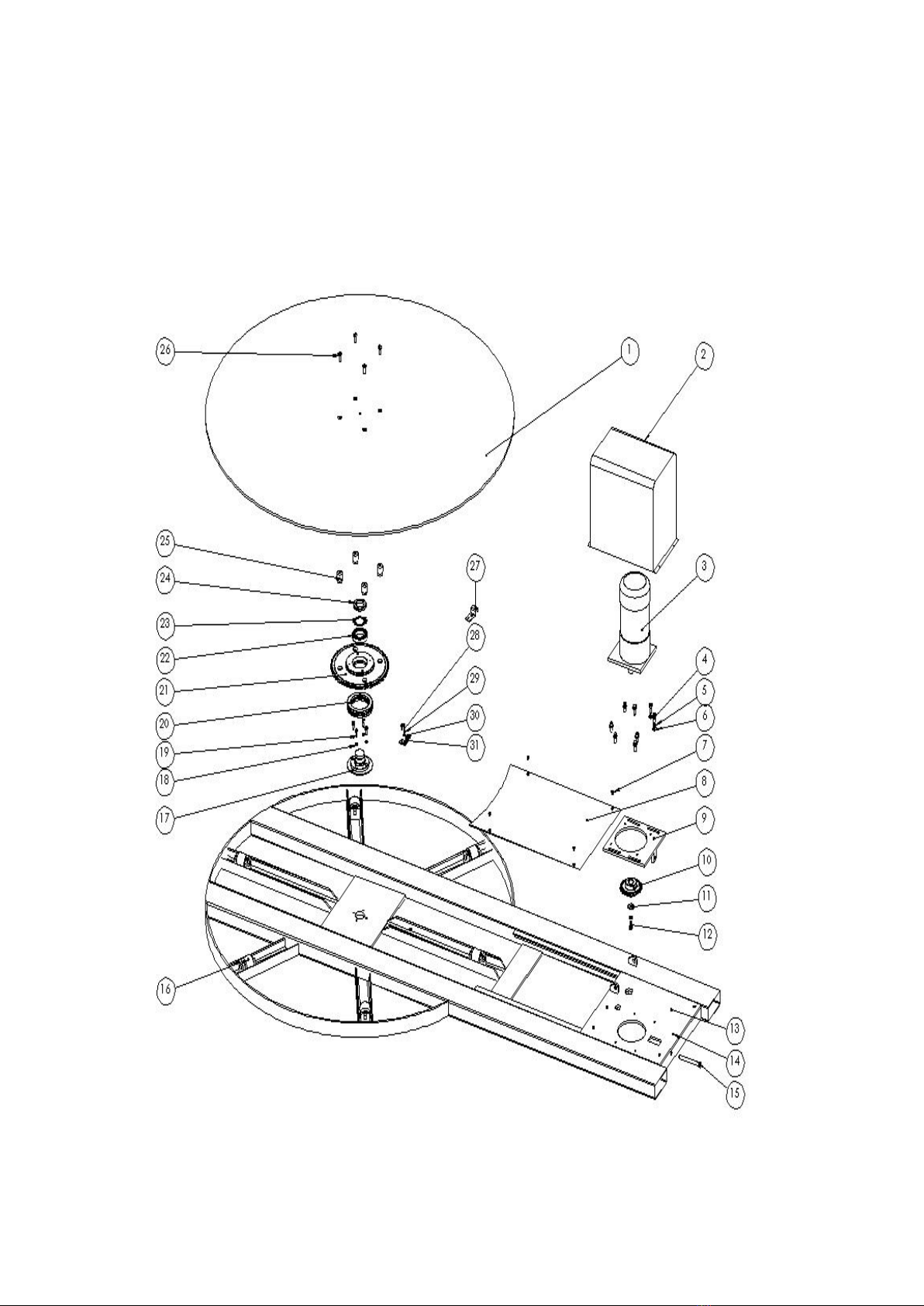

5.1 Turntable

Manual Mustang T3 ECO
Matco International
Drawing
Turntable Type III
NO
QTY
Part number
Discription
1
1
3010185
Turntable
2
1
3010619
motor mast
3
1
3010620
Motor reductor
4
8
9000
M10X30 Hexacon bolt
5
8
9000
spring washer 10
6
8
9000
flat washer 10
7
4
9000
M6x10 Sunk bolt
8
1
3010621
cover plate
9
1
3010622
reducer bottom plate
10
1
3010623
small sprocket
11
1
9000
large washer10
12
1
9000
M10X20 Hexacon bolt
13
1
3010624
turntable base assemble
14
4
9000
M5X10 Hexacon socket bolt
15
1
9000
M12x80 Hexacon bolt
16
6
3010098
turntable wheel assemble
17
1
3010088
main shaft
18
4
9000
spring washer 8
19
4
9000
M8X20 Hexagon socket head cap screws
20
1
3010084
Thrust ball bearing 51120
21
1
3010089
big sprocket
22
1
3010085
Double sealed deep groove ball bearings6010-2z
23
1
3010087
stop washer 48
24
1
3010086
small round nut M48 × 1.5
25
4
3010089
connect post
26
4
9000
M10x30 hex socket sunk bolt
27
1
3010625
Reflector plate
28
2
9000
M5X20 Hexagon socket bolt
29
2
9000
spring washer 5
30
6
9000
flat washer 5
31
1
3010626
photocell frame

Manual Mustang T3 ECO
Matco International
5.2 Column

Manual Mustang T3 ECO
Matco International
Drawing
Lifting frame Type III
NO
QTY
Part number
TLS
Discription
1
1
3010627
reducer bottom board
2
4
9000
M10x30 Hex bolt
3
8
9000
Flat washer 10
4
8
9000
Spring washer 10
5
2
9000
Nut M8 x12
6
1
3010628
Motor with reduction
7
2
3010629
Chain wheel A
8
4
3010630
slider plates
9
4
3010631
slider
10
8
9000
M8x50 Hex bolt
11
16
9000
Flat washer 8
12
8
9000
Spring washer 8
13
8
9000
Nut M8
14
1
3010632
film holder install board
15
1
3010633
carriage unit
16
4
3010634
adjustable screw
17
8
9000
Nut M12
18
4
9000
Nut M12
19
6
9000
Flat washer 12
20
6
9000
Spring washer 12
21
2
9000
M12x45 Hex bolt
22
2
3010635
Chain wheel B
23
2
3010636
Ball bearing 6203-2Z
24
2
3010637
Circlip Hole 40
25
2
3010638
Circlip axle 17
26
1
3010639
axle
27
2
3010640
limit switch install board
28
1
9000
M16x30 Hex bolt
29
1
9000
Flat washer 16
30
1
9000
Spring washer 16
31
1
3010641
column seaming
32
1
3010642
electrics install board
33
1
3010643
inner protect board A
34
1
3010644
lower door
35
1
3010645
middle door
36
1
3010646
upper door
37
18
9000
M6x12 Hexacon socket bolt
38
18
9000
Flat washer 6
39
1
3010647
inner protect board B
40
4
9000
M10x25 Hex bolt

Manual Mustang T3 ECO
Matco International

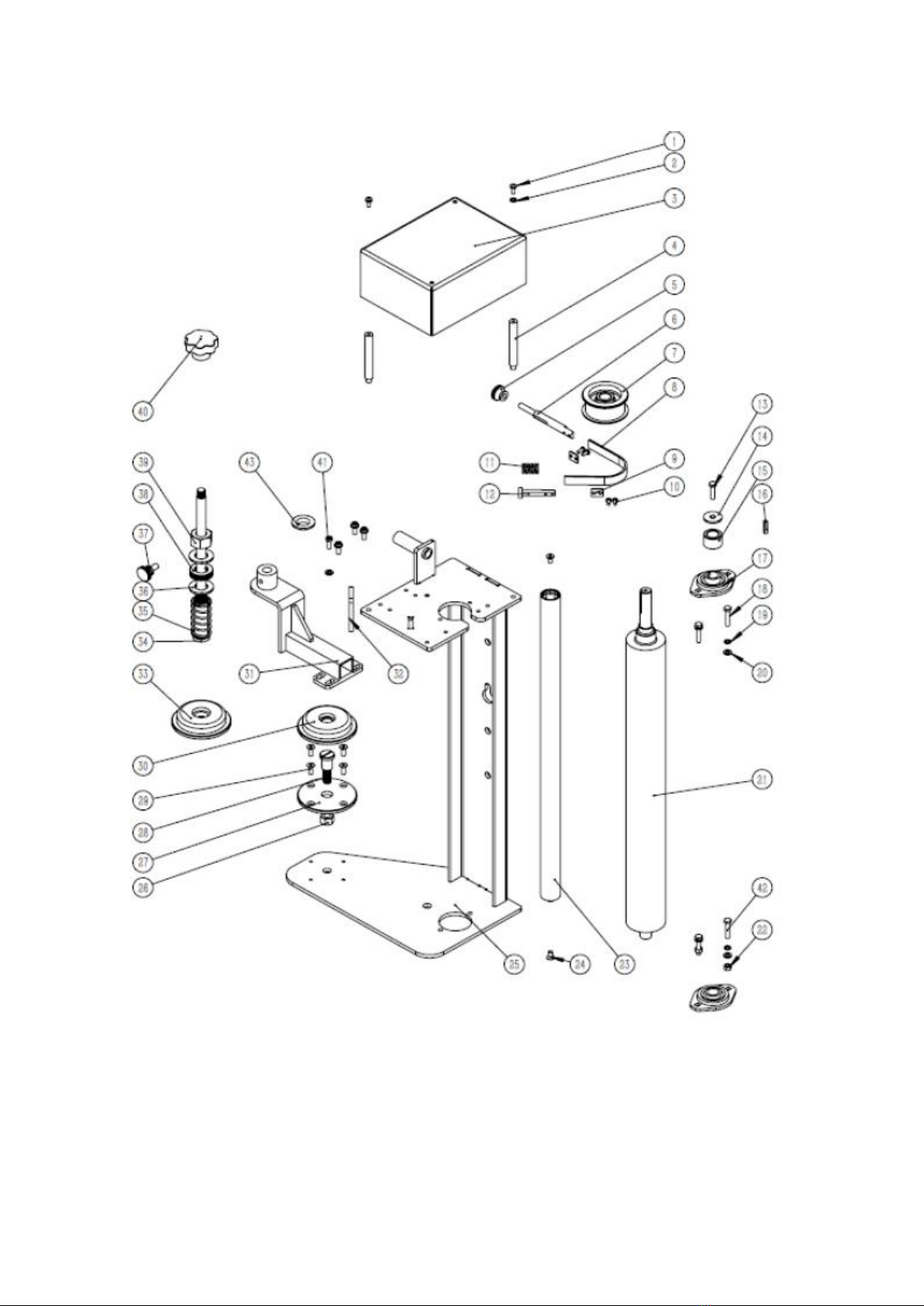

5.3 Film Carriage

Manual Mustang T3 ECO
Matco International
Drawing
Film head brake Type III
NO.
Qty
Part number
Discription
1
2
9000
M5x20 Hexacon socket bolt
2
2
9000
Flat washer 5
3
1
3010648
Sprocket cover
4
2
3010649
Supporting rod
5
1
3010037
Star grip button M8
6
1
3010024
Adjusting shaft
7
1
3010036
Adjusting belt wheel
8
1
3010019
Flat belt
9
2
3010650
Pressing plate for flat belt
10
4
9000
M4x10 Hexacon socket bolt
11
1
3010651
Tensioning spring
12
1
3010652
Tensioning shaft
13
1
9000
M6 x20 Hex bolt full thread
14
1
9000
Washer 6 x
15
1
3010017
Locating sleeve
16
1
9000
Pin 5x22
17
2
3010013
Thrust ball bearing 51104
18
2
9000
M6 x20 Hex bolt full thread
19
10
9000
Flat washer 6
20
4
9000
Spring washer 6
21
1
3010065
Brake roller
22
2
9000
M6 Nut
23
1
3010653
Guiding roller
24
2
9000
m6x20 Hex sunk screw
25
1
3010654
Mounting frame
26
1
9000
M12 Nut
27
1
3010035
Friction washer
28
1
3010034
Supporting seat fixed screw
29
4
9000
m5x12 Hex sunk screw
30
1
3010031
Film roll bottom supporting seat
31
1
3010655
Film roll top supporting frame
32
1
3010656
Tensioning wheel seat
33
1
3010033
Film roll top supporting
34
1
3010026
Adjusting bolt
35
1
3010030
Pressing spring
36
1
9000
Flat washer
37
1
3010023
Star grip button M8x32
38
1
3010028
Thrust ball bearing 51104
39
1
9000
M18 Nut
40
1
3010024
Star grip button M12
41
4
9000
M6x16 Hexacon socket bolt
42
2
9000
M6 x20 Hex bolt full thread
43
1
3010657
Spring locating sleeve

Manual Mustang T3 ECO
Matco International
