INTRODUCTION
This manual guide contains a description of the work and the necessary instructions for performing
basic operations and regular maintenance of the device.
This guide is for convenience divided into easily-defined chapters.
These instructions are intended for professional users only, who are to possess specific knowledge
about how to use the device, special admittance and training.
It is recommended to use original spare parts and accessories. Non-original parts in addition to
forfeiture of the guarantee can be dangerous and may affect the durability and specifications of the
machine.
This symbol indicates that it is necessary to pay maximum attention to the discussed issue.
This symbol indicates that it is necessary to pay maximum attention to the
discussed issue.
It is possible that some devices, described in the manual, will not be present in your device,
depending on the selected equipment and the intended market .
UPDATING THE MANUAL
Information, descriptions and illustrations contained herein shall reflect the state of the equipment at
the time of its sale.
The manufacturer reserves the right to perform from time to time possible changes in the equipment
for technical or commercial reasons. Such changes do not require the Producer to intervene in sold
up devices and do not render this publication inappropriate.
Possible additions the manufacturer finds necessary to provide in the future should be kept together
with this manual guide and shall be an integral part thereof.
COPYRIGHT
Copyright on this manual is owned by the manufacturer of the equipment. This guide contains texts,
drawings and technical schedule, which can not be released or transferred to a third party in whole or
in part without the written permission of the manufacturer of the device.
!!

IRRIGAMATIC B1 - B2
WARRANTY
Verify on delivery that the equipment has not been damaged during the transport and that the
accessories are integral and complete.
Any claims must be made in writing within 8 days from reception.
The warranty against any defect of the materials is valid one year from the delivery date of the
equipment.
The warranty does not include shipment expenses (the material travels at risk and danger of the
addressee).
Any damage caused to people or things are excluded from the warranty.
The warranty is limited to the repair or free replacement of the faulty piece.
The retailers and the users are not entitled to any indemnification from the manufacturer for any
damages (costs for work, transport, defective job, direct or indirect incidents, no profit on harvests,
etc). .
WARRANTY DECLINE
Besides what is reported in the supply contract the warranty declines:
In case the limits referred to in the technical data table or in other tables in the handbook are
exceeded.
In case the instructions described in this handbook have not been followed carefully.
In case of wrong use, faulty maintenance or mistakes made by the client.
In case of non original spare parts.
The contractual guarantee is not applied if the cited conditions are not respected even only partially.
The use of spare parts not approved by the Manufacturer invalidates every guarantee and releases
the Manufacturer of Retailer from every liability due to malfunctioning or incidents.
The removal or modification of the shelters and protections releases the Manufacturer from every
liability due to damages to things and/or people.
However, the Manufacturing Company is available to assure an immediate and accurate technical
attendance and all that can be necessary for the better functioning maximum production of the
equipment.

IRRIGAMATIC B1 - B2
NOTES ON SAFETY
For the safe operation of the device first read
carefully these notes.
Power supply
The device is designed for the specified type of
current.
Maintenance
Maintenance procedures performed by the
operator are described in the documentation
supplied to the customer with the product.
Do not perform maintenance operations, which
are not specified in the client documentation.
Cleaning
Before proceeding to cleaning, disconnect the
power cord from the device.
Use specific multifunctional cleaning spray,
since the use of other cleansers may result in
breakage and possible incidents.
Electrical safety
Use only the power cord supplied with the
equipment.
Do not place the unit where there is a chance of
stepping on the power cord.
Do not put any objects on the device.
In the case of one of the below mentioned
situations, immediately turn off the device and
disconnect the power cord.
·The device produces noise or an unusual
smell.
·Power cable is damaged or worn.
·Some liquid spilled into device.
·Any part of the device is damaged.
To resolve this issue, contact an authorized
service center.
Operational safety
Do not perform maintenance procedures, if
they are not described in the documentation,
or no training was provided to the operator by
the authorized regional dealer.
Always follow all warnings and instructions
marked on the device or supplied with it.
Always pay utmost care when moving or
transferring the device.
Always install the device in a spacious room,
so you can perform the maintenance.
Do not place the device near a source of heat .
Recycling and processing
In accordance with European standards
electrical and electronic devices should not be
recycled together with domestic waste.
In the member states of the European Union
you are to take electrical appliances to special
places free of charge . For further information
please contact the local agency responsible
for recycling.
For further information, contact the local
agency responsible for recycling, or ask for
special instructions.

IRRIGAMATIC B1 - B2

IRRIGAMATIC B1 - B2
1. GENERAL FEATURES..............................................................................................Page 1
2. GENERAL TECHNICAL DATA..................................................................................Page 1
4.1 DESCRIPTION OF THE EQUIPMENT....................................................Page 1
3. MODALITY OF USE..................................................................................................Page 2
5.1 EXECUTION OF THE IRRIGATION CYCLE..............................................Page 2
5.1.1 DESCRIPTION OF THE IRRIGATION CYCLE .............................................Page 4
5.2 Menu “2.CALIBRATION....................................................................................Page 5
5.3 Menu “3.CONFIGURATION..............................................................................Page 6
5.4 Menu “4.CALENDAR.......................................................................................Page 6
5.5 Menu “5.COUNTERS.......................................................................................Page 6
4. IRRIGAMATIC OPERATION......................................................................................Page 7
6.1 LENGTH OF THE SECTORS........................................................................Page 7
6.2 USER'S PARAMETERS................................................................................Page 7
6.2.1 USER'S CONTROL PARAMETERS.......................................................Page 7
5. BASIC CONFIGURATION OF THE MACHINE......................................................Page 8
7.1 FUNCTION AND OPERATION OF THE BY-PASS VALVE............................Page 9
7.2 PRESSURE SWITCH FUNCTION..................................................................Page 9
6. ERROR MESSAGES..................................................................................................Pag.10
INTRODUCTION
WARRANTY
WARRANTY DECLINE
NOTES ON SAFETY
INDEX

IRRIGAMATIC B1 - B2

IRRIGAMATIC B1 - B2
1 GENERAL FEATURES
FUNCTIONS
•Current date and time
•Measurement of unwound and woundup
tube.
•Working speed adjustment (from 5 up to
250 m/h).
•Irrigation time and work end time
•Operations of " winding up over" (By-
pass open).
•Automatic switching off to save energy
OPTIONS
•Connection to pressure switch
•Speed measurement by feeler roller
2.1 DESCRIPTION OF THE EQUIPMENT
ONON
OFFOFF Switching
electronic console on or off
Increases the value of the
functionbeing displayed
ENTERENTER
Decreases the value of the
function being displayed
Confirmation of the value
Pag.01
Connections: set up for serial connection
Power supply 12V dc to battery
Op range: -20 70° C free air
Temp and humidity Room temp -5...25° C; T.
Storage t. 30...70°C; RH % 10...60
condensation free.
2 GENERAL TECHNICAL DATA
Microchip UProcessor PIC18f4682
Display LCD with back light
Inputs:
Digital type:
Speed sensor (on roller or on pinion)
Sensor of end of unwinding
Sensor of end of winding up.
Pressure switch
Analog type:
Battery monitor
Outputs
Digitaltype: 3Arelay for aux functions
Controls: by means of 4 buttons
Modulated: 1 H-bridge max 3Ato pilot
Bypass valve

Pag.02
IRRIGAMATIC B1 - B2
3 MODALITY OF USE
3.1 EXECUTION OF THE
IRRIGATION CYCLE

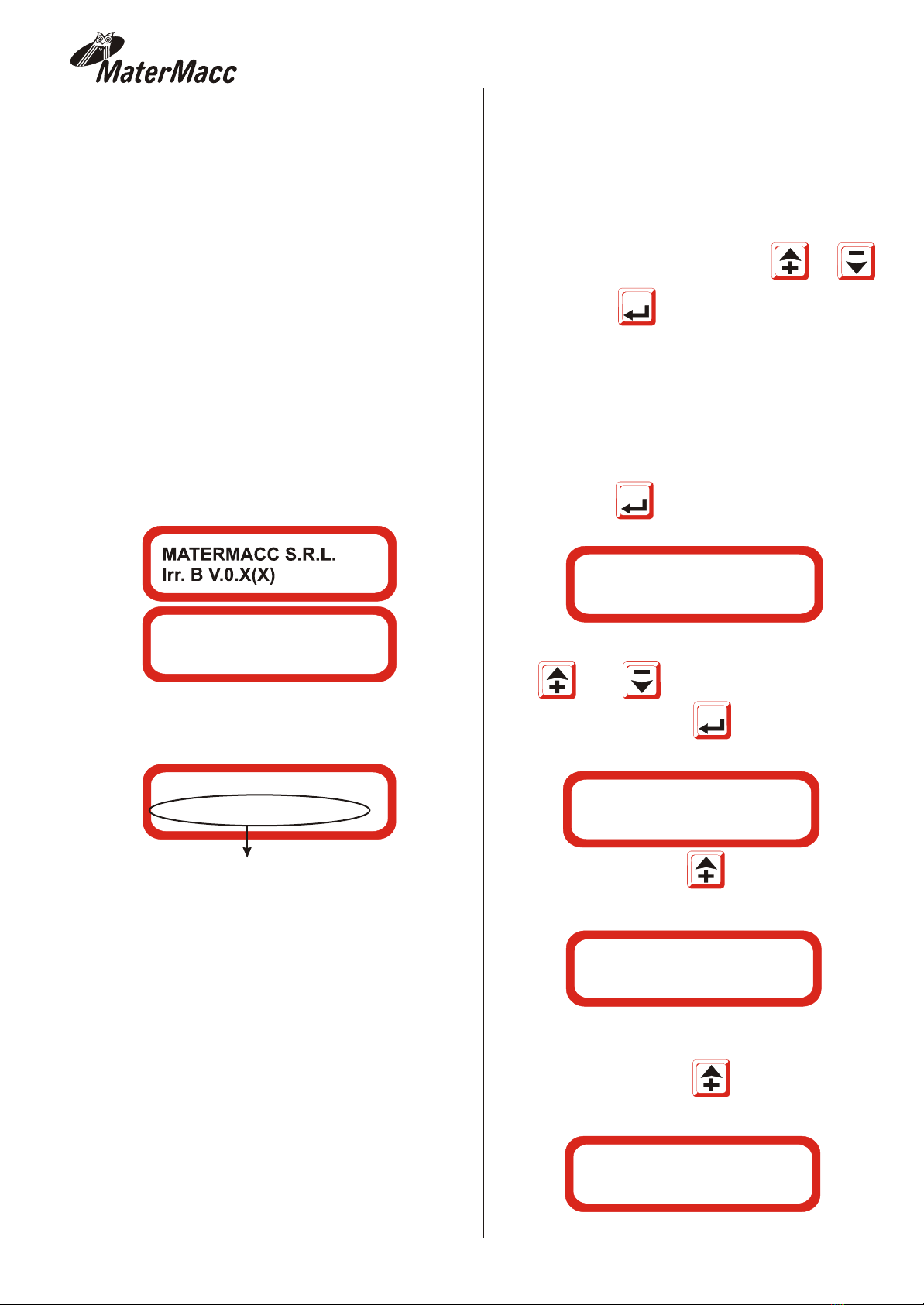

1 SWITCHINGTHE electronic console ON
1.2 When switching electronic console on
the LCD will display name and version of its
Firmware.
Below please find a full description of the process by
assuming that the hose reel irrigator has already been
positioned on the field and the IRRIGAMATIC 2K7-
B1 or B2 electronic console has been duly calibrated.
1.1 Connect power supply cables of electronic
console to a 12V d.c. voltage source
The electronic console then goes to standby waiting
for new commands by the user who can access the
menus listed below:
2. SETTING AN
IRRIGATION CYCLE
3. Before starting to unwind the hose, select
the menu (1. OPERATION).
The OPERATION menu permits to set the
irrigation cycle values.
- Tube unwinding
- Irrigation start pause
- Windup speed
INIT
COMPLETED
1. OPERATION
2. CALIBRATION
3. CONFIGURATION
4. CALENDAR
5. COUNTER
10:00:00 12V
1. OPERATION
Once unwinding is complete, the electronic
console displays the number of tube meters
unwound.
4 In order to modify this value, if necessary,
proceed as follows:
4.1 Press key , the following will
4.2 Modify the value if needed by acting on keys
or .
3.1 To scroll the menus press keys or
3.2. Press key to access the
chosen menu.
ENTERENTER
4.3 Confirm by pressing , the following will
be displayed for example:
5 . Proceed by pressing , the following will
be displayed for instance:
ENTERENTER
ENTERENTER
6 . The START TIME field cannot be modified.
7 . Proceed by pressing , the following will
be displayed for instance:
ROLL TUBE
->258<-m
ROLL TUBE
->260<-m
START TIME
0 min
START PAUSE
0 min

IRRIGAMATIC B1 - B2
Pag.03
9. Proceed by pressing , the following will
be displayed:
1) current time
2) time expected for work over based
on the tube meters to be wound up and to
the set windup speed
1 2
10. Start the irrigation cycle by holding
key pressed for 5 seconds.
The following will be displayed:
1) the current time on the top line left,
2) the current work stage further to the right
(for example “STANDBY” if it is waiting
for the starting pause to elapse);
3) if it is in standby, the bottom line will
display alternately the tube meters
already unwound and the current windup
speed:
ENTERENTER
1 2
3
8. Proceed by pressing , the following will be
displayed as a default:
8.1 Modify if necessary the windup speed value
by proceeding as follows:
8.2 Press , the value becomes editable
to indicate the time can be modified:
8.3 Modify the value by acting on keys or
8.4 Confirm by key .
7.1 Modify the starting pause value if necessary
by acting as below:
7.2 Press , the value becomes editable
to indicate the time can be modified:
7.3 Modify the value by acting on keys or .
7.4 Confirm by key .
ENTERENTER
ENTERENTER
ENTERENTER
ENTERENTER
WRAP SPEED
5 m/h
WRAP SPEED
->5<- min
STOP TIME
14:32:20 20:50
14:32:20 ATTESA
7m **(0.0 m/h)**
11.
12.
13.
ENTERENTER
ENTERENTER
To block the display at speed, meters remaining
or time until end of work,
press the or keys.
The display continuously shows the selected
size between the symbols > <.
To change the rewinding speed during the
irrigation cycle, press the key .
The display shows the speed currently set next
to an asterisk.
Change the value with keys or and
confirm with the key .
The display goes back to the original screen.
To temporarily accelerate or decelerate hose
rewinding, press the keys
(Accelerate) or (decelerate) for at least 2
seconds.

IRRIGAMATIC B1 - B2
5.1.1 DESCRIPTION OF THE IRRIGATION CYCLE
Below please find the description of the evolution of a
typical irrigation cycle from pressing key .
1. BYPvalve initialized to
guarantee the starting speed is
zero (BYPopen)
2. Waiting for the irrigation start time
3. Initial pause: Irrigation starts
with BYPvalve open.
4. After the pause time has elapsed
the trolley is recovered and the system begins
Adjustment.
5. The recovery process ends with the signal of
end of winding up for model B2: the
BYPvalve is opened completely to
guarantee ZERO speed and the electronic console
displays “OVER”; for model B1
The cycle substantially ends with an error
of trolley lost.
6. The IRRIGAMATIC 2K7-B1 or B2 electronic
console goes to standby after a programmable
lapse of time.
Pag.04
ENTERENTER

IRRIGAMATIC B1 - B2
3.2 Menu “2.CALIBRAZ.”
Pag.05
The calibration menu is password protected.
It is accessible only to the hose reel irrigator manufacturer.
!!! ATTENTION !!!

IRRIGAMATIC B1 - B2
3. In order to modify them, push or .
4. Confirm the set value by acting on key .
5. Repeat the same operations for the other
fields you wish to modify.
6. Once the editing is over hold
key . pressed for 3 seconds
The electronic console returns to menu
(1.OPERATION) .
ENTERENTER
ESCESC
3.5 Menu “5.COUNTERS”
1. To access it act as specified in par.
Page 03 (common to all menus), the electronic
console will display for instance:
This menu permits to display the total and partial
counters of the hours of work and to set the partial
counter to zero.
2. To begin set the counter value
hold key pressed for at least 3 seconds
until the value is set to zero:
3. To quit keep pressed for about 5s , the
will return to menu (1. OPERATION).
3.4 Menu “4.CALENDAR”
Choose calendar menu
The date format is Day / Month /Year
The time format is Hour / Minutes / Seconds
1. As you enter the calendar menu, you will see:
the pre-set time and date.
2. All data may be modified by pushing enter,
the double harrows will move up to every
Shown data.
Pag.06
3.3 Menu “3.CONFIG”
The calibration menu is
password protected.
It is accessible only to the
irrigator manufacturer.
!!! ATTENTION !!!
DATE 06/02/08
TIME 06:03:>07<-
TOTAL 15:20
PARTIAL 01:05
TOTAL 15:20
PARTIAL 00:00
10:00:00 12V
1. OPERATION
ENTERENTER
ENTERENTER
ENTERENTER
ENTERENTER
3.6 Menu “6.TEST & MAN”
This menu allows you to perform the test of the
control unit inputs and to activate the bypass valve
motor manually.
The top line of the display shows the symbols of the
terminals: M2 = speed sensor, M3 = work end
sensor (only B2), M4 = bypass, M6 = unwinding
end sensor, M7 = pressure switch.
To activate/deactivate the digital inputs of the
control unit, open and close the contacts.
The bottom line shows the state of the relative
input: 0 = NOT ACTIVE, 1 = ACTIVE. To activate
the bypass valve motor,
press the keys and .
The absorption percentage appears on the bottom
line.

IRRIGAMATIC B1 - B2
4. IRRIGAMATIC OPERATION
4.1 LENGTH OF THE SECTORS
4.2 USER'S PARAMETERS
4.2.1 USER'S CONTROL PARAMETERS
The control parameters the user can set at the beginning and/or during an irrigation cycle are the ones
summarized in Tab.1
The device operation is connected with several factors characterizing the irrigation process.
The IRRIGAMATIC 2K7-B1 and B2 electronic consoles permit to irrigate a single sector.
The length of the sector can be set by the user bearing in mind that:
LTot = total length of the unwound tube.
Generally speaking we shall consider that:
The irrigation cycle is over when the sensor of end of winding up receives the right signal, in the negative it ends
when the end of winding up has been reached.
USER'S PASSWORD PROTECTED PARAMETERS (1 1 1 1) SETTING UP
Pag.07
# Parameter Description Default UMRange
47 Measure_units Measure units in use
This parameter is also visually from the end
user if endowed with password.
0
0 = meters
1 = feet
Nr.
of
Parameter Description M.U. RANGE DEFAULT
1 UNW. TUBE M of tube unwound before starting to work M 0&800
2 BEGIN TIME Time when the irrigation cycle should begin hh:mm 0...23:59
3 BEGIN PAUSE Starting interval for irrigation on field edges
(v = 0 => BYP open)
mm 0...99
4 SPEED BACK Speed for trolley return for a single sector
available
m/h 5...250
5 END TIME Time calculated based on 1).2) 3) 4) hh:mm *calculated
CANNOT be
modified
0...1500
Current time
0...120
0...250
5
30

IRRIGAMATIC B1 - B2
5 BASIC CONFIGURATION
OF THE MACHINE
The adjustment is made by keeping the instantaneous and average speed into account .
At startup the adjustment is made only based on the instantaneous speed until this speed exceeds the setup speed
The initial sequence includes valve opening in order to make sure the trolley is still:
from “BYP -” to “BYP open”
While the adjustment is made “ADJUSTMENT” or “BYP +/-” will be displayed
If during adjustment the end of stroke is reached an error warning shall be provided.
The pressure switch is NOT always provided.
This shall be kept into account when initially configuring the IRRIGAMATIC 2K7-B1 and B2 electronic
consoles upon their installation on board the machine.
This will stop the irrigation cycle if the pressure in the tube falls down to 2 atm.
If pressure decreases for more than 2s the electronic consoles position the BYP valve at cycle start in order to
prevent any dangerous situations should the pressure go back to normal.
5.1 FUNCTION AND OPERATION OF THE
BY-PASS VALVE
5.2 PRESSURE SWITCH FUNCTION
Pag.08

IRRIGAMATIC B1 - B2
 ERROR MESSAGES
The electronic console keeps a list of the last 6 error conditions which might arise.
The error messages are displayed in a sequence on the first line of the LCD alternatively to the other messages
being displayed such as for ex:
These blinking messages indicate for instance that there has been a short circuit in the BYP control circuit and
then a trolley has been lost.
The table below indicates the exceptions that might take place during an operating cycle and the relevant
messages being displayed.
The list of the events aims at indicating a sequence of the errors which have taken place to help the servicing
staff to understand the events that took place should the machine be out of order.
Pag.09
# Type Description Action Lock SuspensionConditions
4SC on BYP
valve
A short circuit has been
detected on the control
circuit of the BYP valve
NO NO
5Timeout on
BYP valve
opening
YES NO
6Speed
adjustment
limit
The BYP valve end of
stroke has been reached
without reaching the preset
speed
NO NO
7Trolley lost No pulses for some
time(par. C#8 and par.
C#9)
If no pulses are
received for a time
of c°8 an average
speed will be set
that will be
measured at the
min. threshold (set
by par #M12) in
order to force long
pulse transmission
for BYP valve
control.
If there are no
pulses for a C#9
time despite long
pulses being sent,
the cycle will be
locked.
NO
NO
YES
9Zero
pressure
Detection of zero pressure
in the tube
Time isteresis of
the relevant digital
input is 30s
NO Yes(waiting for
pressure to
return)
Only if the pressure
sensor exists (par C#13)

IRRIGAMATIC B1 - B2
Pag.10

Note:

Via Gemona, 18
33078 San Vito al Tagliamento (PN) ITALIA
telefono 0434/85267 telefax 0434/85517
www.matermacc.it e-mail [email protected]
Matermacc S.p.A.
