matev FPS-JD 3036 Installation instructions

matev GmbH
Nürnberger Str. 50
90579 Langenzenn
T [phone]
F [phone]
[e-mail]
www.matev.eu
Version 03/2010
Original Operating Manual
Front power lift
FPS-JD 3036
Front power lift 131 7161
Joystick set triple 131 7136
Joystick set single 131 7160
Conversion kit orig. JD frontloader 131 7224

Contents
Table of contents
1About this operating manual ......................................................................................3
2Safety.............................................................................................................................4
2.1 Intended use...................................................................................................................4
2.2 Qualification of personnel...............................................................................................5
2.3 General safety instructions.............................................................................................5
2.4 Special safety instructions..............................................................................................6
3Installation.....................................................................................................................7
3.1 Mounting the front power lift...........................................................................................7
3.1.1 Delivery status................................................................................................................7
3.1.2 Preparation.....................................................................................................................8
3.1.3 Mounting the front power lift...........................................................................................8
3.2 Use with frontloader......................................................................................................11
3.2.1 Mounting the upper link holder.....................................................................................11
3.2.2 Dismounting the lift arms..............................................................................................11
3.3 Mounting an original JD hood guard............................................................................12
3.4 Mounting the joystick set..............................................................................................14
3.4.1 Mounting the joystick element......................................................................................14
3.4.2 Attaching the control device.........................................................................................15
3.4.3 Connection in assignments on the single control valve...............................................16
3.4.4 Connection assignments on the triple control valve....................................................16
3.4.5 Connecting the control device to the tractor hydraulic system....................................17
3.4.6 Mounting the rear hydraulic extension kit....................................................................18
3.4.7 Mounting the front hydraulic kit (only for joystick set triple, art. no.: 131_7136).........18
4Operation.....................................................................................................................19
4.1 Attachment variants of the coupling triangle................................................................19
4.2 Coupling and uncoupling implements..........................................................................20
4.3 Lowering safeguard for the front power lift ..................................................................20
5Maintenance................................................................................................................21
5.1 General.........................................................................................................................21
5.2 Service..........................................................................................................................21
5.2.1 Maintaining the hydraulic system.................................................................................22
6Repair...........................................................................................................................22
7Disposal.......................................................................................................................23
8Warranty ......................................................................................................................23
9Technical data and accessories...............................................................................23
9.1 Technical data..............................................................................................................23
9.2 Accessories..................................................................................................................23
10 List of illustrations .....................................................................................................24
11 EC Declaration of Conformity...................................................................................25

About this operating manual
Page 3
1 About this operating manual
Dear customer!
Thank you for purchasing this device, we appreciate your trust.
In order to optimally use your new front power lift it is necessary to read this operating
manual completely and conscientiously and to understand it before first use of the device.
To obtain the long service life that matev products are known for, careful and conscien-
tious maintenance is a strict requirement. To properly maintain your front power lift it is
strictly necessary that you have carefully read this operating manual. Moreover it is not
possible for matev to assume liability for damage that is attributed to improper use or
non-intended use of the front power lift.
Keep this operating manual where it is easily accessible. This will enable you to refer to
important information and handling instructions as needed.
Listings with bullet points are marked as follows:
•Text
•Text
•Text . . .
Handling instructions are marked in the sequence in which they should be executed, as
follows:
2. Text
3. Text
3. Text . . .

This device is subject to change in the interest of technical progress. All
information, illustrations, and technical specifications represent the latest
status at the time this manual was published. The manufacturer reserves the
right to make changes at any time in the interest of technical progress.
However there is no obligation to extend any changes made to previously
delivered front power lifts or associated accessories.

Safety
Page 4
2 Safety
Guidelines and instructions with which you must comply are summarized in this section.
Personnel who install, operate and maintain the device, must have read and understood
this operating manual.
2.1 Intended use
The front power lift should only be mounted on type JD 3036 tractors, it is used for ac-
commodating small to medium-sized implements, such as snow blades, sweepers, etc.
and should only be connected and operated with such implements. Please note that you
must avoid overloading the front axle even in heavy-duty implementation (e.g. snow re-
moval). The permissible axle load is specified in the appropriate documentation provided
by the tractor manufacturer.
Attention!
The front power lift should not be charged with downward pressure via the
tractor's hydraulic system! For implements that contact the ground or roll
on the ground in operation the tractor hydraulic system must be switched to
the float setting! Strictly comply with the manufacturer's recommendation!
The front power lift is not suitable for lifting people or for use as a work plat-
form!
In addition compliance with the service and maintenance guidelines is a component of in-
tended use. Moreover intended use includes exclusive use of original spare parts and
supplemental equipment, or use of such parts and equipment that meet the technical re-
quirements specified by the manufacturer.
All other uses are excluded.
Non-intended use causes:
•Health hazards for the operator or for third parties
•Damage to the tractor and the attachments
•Immediate invalidation of the guarantee
•Environmental damage
To avoid accidents and reduce the risk of accidents the relevant accident prevention
regulations and the other generally acknowledged occupational health and safety and
road traffic regulations apply without limitation.
Changes to the front power lift and/or the associated accessories invalidate the guaran-
tee and exclude any liability on the part of the manufacturer for damage due to the
changes.

Safety
Page 5
2.2 Qualification of personnel
Only persons 18 years of age or older, or instructed persons should install, operate, and
maintain the implements. The operator must have read and understood this operating
manual.
2.3 General safety instructions
General safety instructions are explained in this section. These safety instructions are
used in the subsequent sections. In addition to the safety aspect, you will save money
and work time if you follow these safety instructions.
Danger!
Severe injury to the operator or third parties occurs.
Follow the safety instruction.
Attention!
Minor injury to the operator or third parties can
occur. The tractor, the implements, or the environment can be damaged.
Comply with the safety instruction.

Note!
Important, helpful tips or information for the operator.
Read this note. It facilitates your work.
Attention!
Injuries can occur.
Wear protective work clothing.

Safety
Page 6
2.4 Special safety instructions
Safety instructions are specified in this chapter that are also affixed as stickers on the im-
plements
Attention!
Danger of injury due to moving parts.
Remove the ignition key before performing maintenance tasks on the im-
plement.
Attention!
Injuries can occur due to improper operation. The implement can be dam-
aged.
Read the operating manual all the way through.
Comply with the safety instructions.
Attention!
Injuries due to fluid escaping under high pressure.
Comply with the instructions in the operating manual.
Attention!
Danger of crushing due to moving parts.
Ne
ver reach into the crushing hazard danger area, if parts are still moving or
can move.
Comply with the instruction in the operating manual.
Attention!
There is an increased risk of accident due to the rotating PTO shaft.
Do not enter the work area of the PTO shaft when it is rotating.
For your own safety do not wear any loose clothing, belts, or any other
loose items. Switch off the implement. Wait until all machine parts have
come to a standstill before converting or servicing the implement.
Attention!
Check all threaded unions prior to using the implement and after using the
implement. Loosened connections must be retightened.
Damage can occur due to loose connections.

Installation
Page 7
3 Installation
Danger!
Severe injury to the operator or third parties occurs.
Switch off the tractor and remove the ignition key before mounting or dis-
mounting the implements.

Note!
Enter the chassis number of the front power lift in section 6, page 23 of this
operating manual.
3.1 Mounting the front power lift
3.1.1 Delivery status
Fig 1: Lift unit with hydraulic cylinders
Fig 2: Hydraulic unit
Cylinder connections

Installation
Page 8
3.1.2 Preparation
Before you mount the front power lift on the frame of the tractor it is necessary to drill 3
tapped holes on each side of the frame. The precise position of the individual bores is
shown in Fig 3.

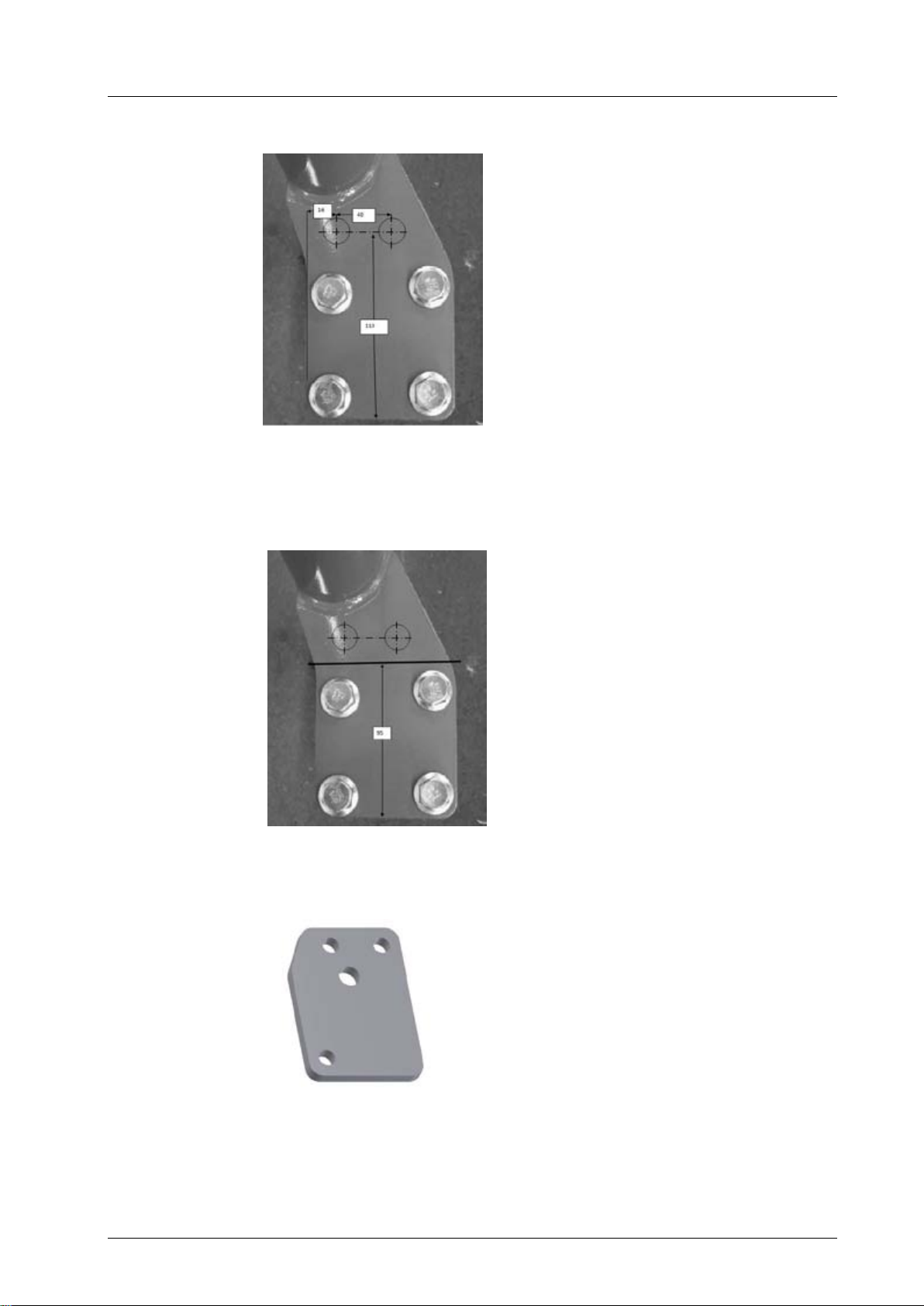

Fig 3: Mounting bores in the tractor frame
The bore diameter for the A-marked bores is 16 mm, and the bore diameter for the B-
marked bore is 12 mm.
3.1.3 Mounting the front power lift
1. Position the front power lift correctly relative to the tractor.
2. Bolt the front power lift to the tractor frame on both sides with the 2 rear screws
(see Fig 4).
Fig 4: Fastening on the tractor frame
Threaded union

Installation
Page 9
Fig 5: Side plates & upper link holder
3. Fit the cylinders on the side plates.
4. Bring both parts together in the correct position and bolt the side plates to the trac-
tor frame and basic implements with 4 bolts on each side (see Fig 6).
Fig 6: Bolting the side plates
5. Bolt the upper link holder to the tractor frame inside on the front. For use with a
frontloader the upper link must be mounted on the outside.
Fig 7: Installation of the upper link holder
6. Use bolts to fasten the free end of the cylinder to the lift shackle of the basic im-
plement (Fig 8).
Side plates
Upper link holder

Installation
Page 10
7. Secure the bolt with the lock screw.
Fig 8: Cylinder installation with lift shackle
8. Connect the hydraulic hoses to both cylinders and connect the hydraulic hoses to
the tractor's hydraulic lift.
Attention!
Connect the hydraulic hoses in such a manner that the hoses coming from
the stop valve are connected to the bottom of the cylinders.
Fig 9: Installing and connecting the hydraulic hoses
9. Route the hydraulic hoses for the left cylinder directly through and behind the en-
gine (see Fig 10 and 11).
Fig 10: Install the hydraulic hoses, right side
Bolt with lock screw
Stop valve
Hydraulic hose

Installation
Page 11
Fig 11: Install the hydraulic hoses, left side
3.2 Use with frontloader
3.2.1 Mounting the upper link holder
Bolt the upper link holder to the tractor frame outside on the front. The upper link holder
does not need to be removed for operation with frontloader.
Fig 12: Installation of the upper link holder
3.2.2 Dismounting the lift arms
The lift arms, the coupling support and the upper link must always be removed for opera-
tion with frontloader. To dismount the lift arms you must remove the fastening screw and
the bolt.
Hydraulic hose
Upper link holder, outside

Installation
Page 12
Fig 13: Lift arm
3.3 Mounting an original JD hood guard
To mount a John Deere hood guard as shown in Fig 14 it is necessary the align the fas-
tening points on the front power lift. To do this we recommend the use of our conversion
kit for JD frontloaders (see Fig. 17, article no. 131 7224)
Fig 14: Hood guard
1. Mark and drill two tapped bores as shown in the Fig below. The bore diameter is
13 mm.
Lift arm
Fastening screw with nut
Bolt with linch pin

Installation
Page 13
Fig 15: Bores in the hood guard
2. Cut off the original fastening lugs. See the line in Fig 16 for the precise position of a
separating cut.
Fig 16: Separating cut line on the hood guard
3. To connect the hood guard with the tractor frame, bolt the lugs on the hood guard
to our adapter plates as shown.
Fig 17: Conversion kit, adapter plate
4. Now bolt the front power lift to the tractor frame as usual.

Installation
Page 14
3.4 Mounting the joystick set
(Optionally available, article no. 131 7136 and 131 7160)
3.4.1 Mounting the joystick element
(For 131_7160 joystick set 3x)
10. Mount the joystick unit on the right fender as shown in Fig 18. After aligning it is
necessary to drill two 8.5 mm bores for this.
Fig 1: Joystick element
11. Now route the cable pulls through the existing opening shown in Fig 19 and down.
Fig 2: Cable pull passage
Cable pulls

Installation
Page 15
3.4.2 Attaching the control device
1. Fasten the control device below the right fender as shown in Fig 20. To do this it is
necessary to drill an 8.5 mm bore. The position of the bore is shown in Fig 21. For
marking, we recommend using the holder as a drilling template. The other two
mounting bores are already present in the tractor fender and you do not need to
drill these bores yourself.
Fig 20: Control device, attachment position
Fig 21: Fastening the control device
2. Connect the joystick element and the control device to the cable pulls in accor-
dance with the connection descriptions for your control device in Fig 22 or Fig 23.
Mounting bore / screw
Holder
Control device

Installation
Page 16
3.4.3 Connection in assignments on the single control valve
Fig 22: Connection assignments of the control device, single
A: Feed connection (hydraulic pump)
B, C: Front power unit (lift / lower)
D: Pressureless return (tank)
E: Pressure continuation
F: Cable pull / joystick (swing)
3.4.4 Connection assignments on the triple control valve
Fig 23: Connection assignments of the control device, triple

Installation
Page 17
A: Feed connection (hydraulic pump)
B, L: Swing
C, K: Connection for external devices (oil motor, leaf vacuum, etc.)
D, G: Front power unit (lift / lower)
E: Pressureless return (tank)
F: Pressure continuation
H: Cable pull / joystick (lift / lower)
I: Cable pull / hand lever connection with locking receptacle (for external devices)
J: Cable pull / joystick (swing)
3.4.5 Connecting the control device to the tractor hydraulic system
When mounting the control device it is connected with the connection points of the tractor
hydraulic system as shown in Fig 24.
Fig 24: Tractor hydraulic system connections

Attention!
The hydraulic pump connection is connected to the connection of the pres-
sure continuation via a passage bore. Consequently it is necessary to seal
this passage bore with a screw (spare part no. 01 000 380) before mounting
a hose to the hydraulic pump connection.
Tank
Hydraulic pump
Pressure
continuation

Installation
Page 18
3.4.6 Mounting the rear hydraulic extension kit
12. Align the holder on the frame, mark the bore positions and drill tapping bores for
M8. Cut the M8 thread and screw on the holder.
Fig 25: Hydraulic extension attached on the rear
4. Lay out the hydraulic hoses to the connection of the control device and connect the
hoses in accordance with the connection assignment of your control device.
Control device, single: B / C
Control device, triple: G / D
5. Fix the hose in place at a suitable point with cable ties.
3.4.7 Mounting the front hydraulic kit (only for joystick set triple, art. no.: 131_7136)
1. Align the holder on the frame, mark the bore positions and drill tapping bores for
M8. Cut the M8 thread and screw on the holder
Fig 26: Hydraulic extension attached on the front
6. Lay out the hydraulic hoses to the connections of the control device in accordance
with Fig 23 (B, C, K, L) and fix the hoses in place at a suitable point via cable ties.

Operation
Page 19
4 Operation
Attention!
Before starting up the implement read the instructions on safety and han-
dling for operation of the entire implement and connection to the tractor. In
addition, prior to start-up you must ensure that the vehicle meets the re-
quirements specified in the German Road Traffic Vehicle Licensing Act.
The front power lift should only be placed in service if all safety devices are
attached and fully functional. Prior to starting work the operator must famil-
iarize himself with the device and ensure for himself that the entire device is
operationally reliable.
Moving objects and fixtures, (ropes, chains, linkage, etc.) must be ade-
quately secured before transport or driving on public roads to exclude the
danger of accident or hazards to third persons.
4.1 Attachment variants of the coupling triangle
Fig 27: Coupling triangle
You can make four different settings on the coupling triangle (see Fig 27 in this regard).
Position the bolts in the appropriate bores to achieve the desired setting.
Standard
Couple the triangle in points A and C.
Standard with stronger take-up
Couple the triangle in points B and C.
Lift increased by 45 mm
Couple the triangle in points B and D.
Lift increased by 45 mm
Couple the triangle in points B and D.
D
C
B
A

Operation
Page 20
4.2 Coupling and uncoupling implements

Note!
Comply with the axle loads specified by the tractor manufacturer
1. Drive the tractor forward in front of the implement.
2. Lower the front power lift hydraulically.
3. Drive slowly toward the implement until the coupling triangle of the tractor is under
the coupling triangle of the implement.
4. Slowly lift the front power lift until the implement is slightly lifted.
5. Secure the implement with the appropriate triangle locking mechanism. The trian-
gle locking mechanism depends on the type of implement.
4.3 Lowering safeguard for the front power lift

Note!
Use the lowering safeguard when:
- Driving on roads
- Driving between work locations
- Cleaning and maintenance tasks
Fig 28: Lowering safeguard, shown in unlocked position
1. Lift the front power lift.
2. Activate the stop valve by pulling it out and swinging it 90 degrees relative to the
hydraulic hoses. The lowering safeguard is now locked.
Fig 29: Lowering safeguard, shown in unlocked position
Lowering safeguard
