Matrix Orbital MOP-TFT480272-43A-BLM-TPC User manual

MOP-TFT480272-43A-BLM-TPC
Hardware Manual
Revision 1.0

1MOP-TFT480272-43A-BLM-TPC
Revision History
Revision
Date
Description
Author
1.0
May 26, 2017
Initial Release
Divino

MOP-TFT480272-43A-BLM-TPC 2
Contents
Revision History..............................................................................................................................................................................1
Contents .........................................................................................................................................................................................2
1 General Information ....................................................................................................................................................................3
2 Absolute Maximum Ratings.........................................................................................................................................................3
3 Electrical Characteristics..............................................................................................................................................................3
4 Backlight Characteristics..............................................................................................................................................................3
5 Touch Panel Characteristics .........................................................................................................................................................4
6 External Dimensions....................................................................................................................................................................5
7 Electro-Optical Characteristics ....................................................................................................................................................6
8 Interface Description ...................................................................................................................................................................7
8.1 LCM Interface Description ................................................................................................................................................7
8.2 CTP Interface Description .................................................................................................................................................7
9 AC Characteristics ........................................................................................................................................................................8
9.1 Pixel Timing.......................................................................................................................................................................8
9.2 Data Timing.......................................................................................................................................................................9
10 Power Sequence......................................................................................................................................................................10
10.1 Power Up Sequence .....................................................................................................................................................10
10.2 Power Down Sequence.................................................................................................................................................10
11 Inspection Criterion .................................................................................................................................................................11
11.1 Description ...................................................................................................................................................................11
11.2 Sample plan ..................................................................................................................................................................11
11.3 Inspection condition.....................................................................................................................................................11
11.4 Definition of inspection zone in LCD.............................................................................................................................11
11.5 Function Defect ............................................................................................................................................................11
11.6 LCD pixel defect ............................................................................................................................................................12
11.7 Dot and line defect .......................................................................................................................................................12
12 Handling Precautions...............................................................................................................................................................13
12.1 Mounting method .....................................................................................................................................................13
12.2 LCD Handling and Cleaning Precaution ..................................................................................................................13
12.3 Static Charge Precaution ..............................................................................................................................................13
12.4 Packing ........................................................................................................................................................................13
12.5 Precautions during Operation .................................................................................................................................13
12.6 Storage Recommendations .....................................................................................................................................14
12.7 Safety Precautions ....................................................................................................................................................14
13 Ordering ..................................................................................................................................................................................15
13.1 Part Numbering Scheme...............................................................................................................................................15
13.2 Options .........................................................................................................................................................................15
14 Contact ....................................................................................................................................................................................15

3MOP-TFT480272-43A-BLM-TPC
1General Information
No.
Item
Contents
Unit
1
LCD size
4.3 inch (Diagonal)
/
2
LCD type
TN/Normally white/Transmissive
/
3
Viewing direction
12 O’clock
/
4
Gray scale inversion direction
6 O’clock
/
5
Resolution
480 *272 Pixels
/
6
Module size (W* H*T)
105.5*67.2*4.85
mm
7
Active area (W*H)
95.04*53.856
mm
8
Pixel pitch (W*H)
0.198*0.198
mm
9
Interface Type
RGB interface
/
10
Module power consumption
0.0792(Without backlight)
W
11
Back light Type
LED
/
12
Driver IC
ILI6480BQ or compatible
/
13
Weight
69
g
2Absolute Maximum Ratings
Item
Symbol
Min
Max
Unit
Power supply voltage(LCD Module)
VDD
-0.5
5
V
Back-light current (normal temp.)
ILED
-
50
mA
Operation temperature
Top
-20
70
°C
Storage temperature
Tst
-30
80
°C
Humidity
RH
-
90%(Max60 °C)
RH
3Electrical Characteristics
DC Characteristics (at Ta=25°C)
Item
Symbol
Min
Typ
Max
Unit
Power Supply Input Voltage
VDD
3.0
3.3
3.6
V
I/O logic voltage
VDDIO
1.8
-
3.3
V
Input voltage 'H' level
VIH
0.7VDD
-
VDD
V
Input voltage 'L' level
VIL
VSS
-
0.3VDD
V
Power Supply Current
IVDD
-
24
-
mA
TFT gate on voltage
VGH
-
N/A
-
V
TFT gate off voltage
VGL
-
N/A
-
V
Analog power supply voltage
AVDD
-
N/A
-
V
Differential input common mode voltage
Vcom
-
N/A
-
V
4Backlight Characteristics
(at Ta=25°C,RH=60%)
Item
Symbol
Min.
Typ.
Max.
Unit
Note
LED Forward Voltage
VF
-
15
-
V
IF=40mA
LED Forward Current
IF
-
40
-
mA
LED power consumption
PLED
-
0.6
-
W
*Note
Number of LED
-
10
PCS
Connection mode
-
5 in series, 2 in parallel
/
LED Life-Time
-
20000
-
-
Hrs
**Note
*Note: Calculate Value for reference ILED×VLED×LED Quantity = PLED
**Note: The LED Life-time is defined as the estimated time to 50% degradation of initial brightness at Ta=25°C and IF =40mA.
The LED lifetime could be decreased if operating IF is larger than 40mA, and increased if IF is less than 40mA.

MOP-TFT480272-43A-BLM-TPC 4
5Touch Panel Characteristics
(at Ta=25°C)
Item
Description
IC solution on TP Model
GT911
Touch Count Max
5 point
Display Resolution*
480*272
Interface Type *
I2C
I2C Slave Address*
0x5D
Origin of Coordinate*
Top left corner
Parameter
Min
Typ
Max
Unit
Interface Signal Voltage*
1.8
3.3
3.6
V
Power Voltage*
2.6
3.3
3.6
V
Power ripple*
---
---
50
mV

5MOP-TFT480272-43A-BLM-TPC
6External Dimensions
Figure 1: MOP-TFT480272-43A-BLM-TPC Drawing

MOP-TFT480272-43A-BLM-TPC 6
7Electro-Optical Characteristics
*Note 1: Definition of contrast ratio
Contrast Ratio (CR) is defined mathematically by the following formula.
CONTRAST RATIO = Luminance measured when LCD on the "White" State
Luminance measured when LCD on the "Black" State
*Note 2: Definition of surface luminance
Surface luminance is the LCD luminance from the surface with all pixels displaying white.
Lv = Average Surface Luminance with all white pixels (P1,P2,P3 …Pn)
*Note 3: Definition of luminance uniformity
The luminance uniformity in surface luminance (Yu) is determined by measuring luminance at each test position 1 through n,
and then dividing the maximum luminance of n point’s luminance by minimum luminance of n points luminance.
Yu = Minimum Surface Luminance with all white pixels (P1,P2,P3 …Pn)
Maximum Surface Luminance with all white pixels (P1,P2,P3 …Pn)
*Note 4: Definition of Response time
The response time is defined as the LCD optical switching time interval between “White” state and “Black” state. Rise time
(TON) is the time between photo detector output intensity changed from 90% to 10%. And fall time (TOFF) is the time
between photo detector output intensity changed from 10% to 90%.
*Note 5: Definition of color chromaticity (CIE1931)
CIE (x, y) chromaticity, the x, y value is determined by screen active area center position P5.
*Note 6: Definition of Viewing angle.
Viewing angle is the angle at which the contrast ratio is greater than 10. The angles are determined for the horizontal or x
axis and the vertical or y axis with respect to the z axis which is normal to the LCD surface.
For Viewing angle and response time testing, the testing data is based on Autronic-Melchers’s ConoScope or DMS series
Instruments or compatible. For contrast ratio, Surface Luminance, Luminance uniformity and CIE, the testing data is based on
TOPCON’s BM-7 or BM-5 photo detector or compatible.
*Note 7:For TFT module, Gray scale reverse occurs in the direction of panel viewing angle.
Item
Symbol
Condition
Min
Typ
Max
Unit
Remark
Note
Response time
Tr + Tf
-
-
15
24
ms
FIG.1
Note4
Contrast ratio
Cr
380
500
-
---
FIG 2.
Note1
Surface
luminance
Lv
θ=0°
384
472
-
cd/m2
FIG 2.
Note2
Luminance
uniformity
-
θ=0°
75
80
-
%
FIG 2.
Note3
NTSC
-
θ=0°
-
50
-
%
FIG 2.
Note5
Viewing angle

= 90°
60
70
-
deg
FIG 3.
Note6
= 270°
40
50
-
deg
FIG 3.
= 0°
60
70
-
deg
FIG 3.
= 180
60
70
-
deg
FIG 3.
CIE (x, y)
chromaticity
Red x
θ=0°
=0°
Ta=25°C
0.5344
0.5744
0.6144
-
FIG 2.
CIE1931
Note5
Red y
0.2963
0.3363
0.3763
-
Green x
0.3098
0.3498
0.3898
-
Green y
0.5595
0.5995
0.6395
-
Blue x
0.1032
0.1432
0.1832
-
Blue y
0.0607
0.1007
0.1407
-
White x
0.2792
0.3192
0.3592
-
White y
0.3145
0.3545
0.3945
-

7MOP-TFT480272-43A-BLM-TPC
Down
Φ=270
(6:00)
θ=0
Up
Φ=90
(12:00)
Left
Φ=180
(9:00)
θ
ΦRight
Φ=0
(3:00)
x
z
y

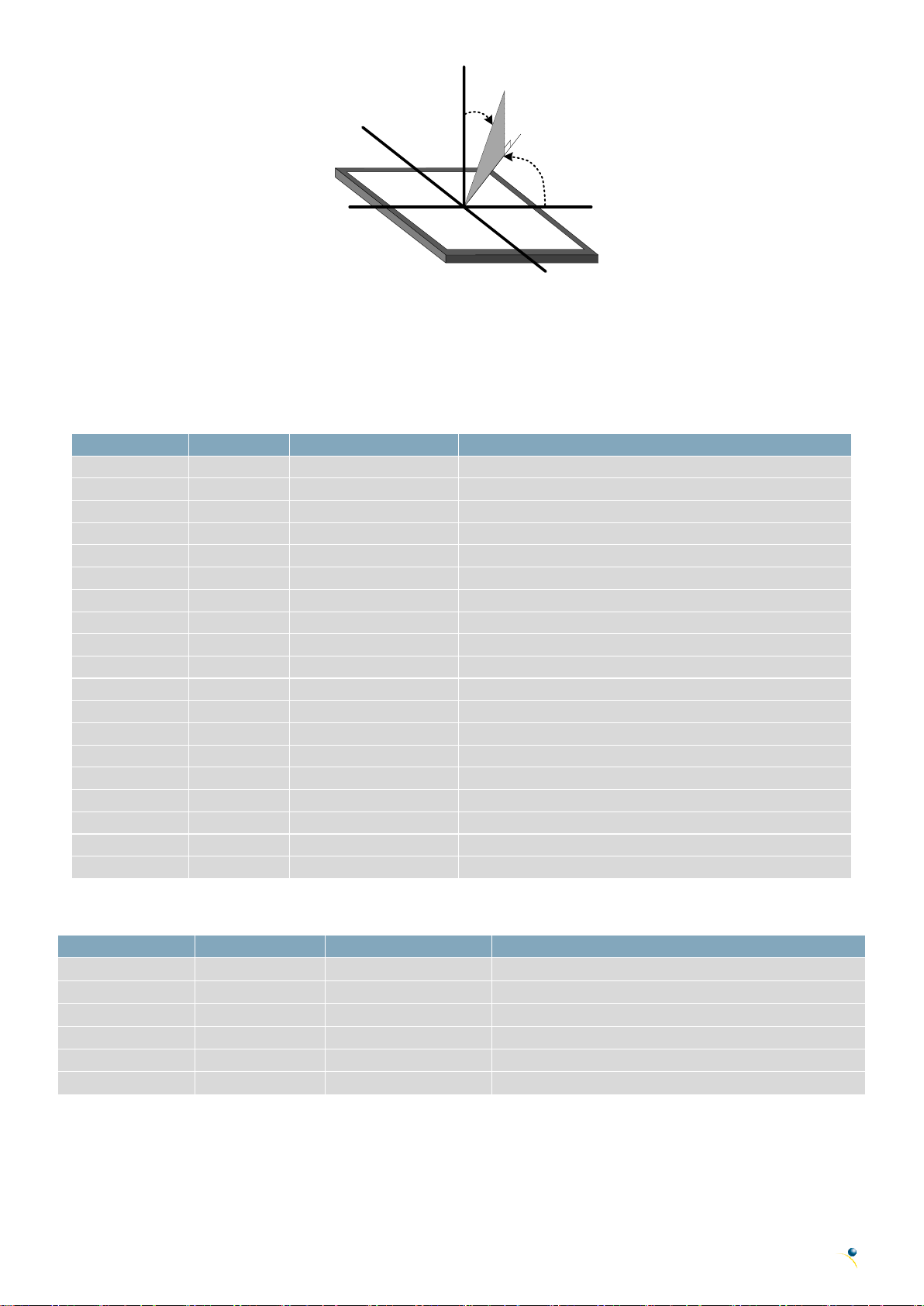

Figure 2: The definition of viewing angle
8 Interface Description
8.1 LCM Interface Description
8.2 CTP Interface Description
Interface No.
Name
I/O Pin Connections
Description
1
LEDK
P
Power for LED backlight(Cathode)
2
LEDA
P
Power for LED backlight(Anode)
3
CS
I
Chip select pin
4
VDD
P
Power for LCD
5-12
Red(0-7)
I
Red data
13-20
Green(0-7)
I
Green data
21-28
Blue(0-7)
I
Blue data
29
GND
I
Ground
30
PCLK
I
Dot-clock signal
31
DISP
I
Display on/off
32
HSYNC
I
Horizontal sync input.
33
VSYNC
I
Vertical sync input
34
DEN
I
Data enable
35
SCL
I
Clock pin of serial interface
36
SDA
I/O
Data input pin in serial mode
37
XR(NC)
-
No connection
38
YD(NC)
-
No connection
39
XL(NC)
-
No connection
40
YU(NC)
-
No connection
Interface No.
Name
I/O Pin Connections
Description
1
RESET
I
Reset low
2
VDD/VCC
P
Power Supply of CTP
3
GND
P
Ground
4
INT
O
State change interrupt
5
SCL
I
Serial interface clock
6
SDA
I/O
Serial interface date

MOP-TFT480272-43A-BLM-TPC 8
9AC Characteristics
9.1 Pixel Timing
Figure 3:Pixel Timing
Input Output Timing
DLCK clock time
Tclk
33.3
-
-
ns
DCLK = 30MHZ
DCLK clock low period
Tcwl
40
-
60
%
DLCK clock high period
Tcwh
40
-
60
%
Clock rising time
Trck
9
-
-
ns
Clock falling time
Tfck
9
-
-
ns
HSD width
Thwh
1
-
-
DCLK
HSD period time
Th
55
60
65
μs
HSD setup time
Thsu
12
-
-
ns
HSD hold time
Thhd
12
-
-
ns
VSD width
Tvwh
1
-
-
Th
VSD setup time
Tvsu
12
-
-
ns
VSD hold time
Tvhd
12
-
-
ns
Data setup time
Tdasu
12
-
-
ns
Data hold time
Tdahd
12
-
-
ns
DE setup time
Tdesu
12
-
ns
DE hold time
Tdehd
12
-
-
ns
Time from VSD to 1st line
data input
Tvs
3
8
31
TH
HV mode By HDL[4:0]
setting

9MOP-TFT480272-43A-BLM-TPC
9.2 Data Timing

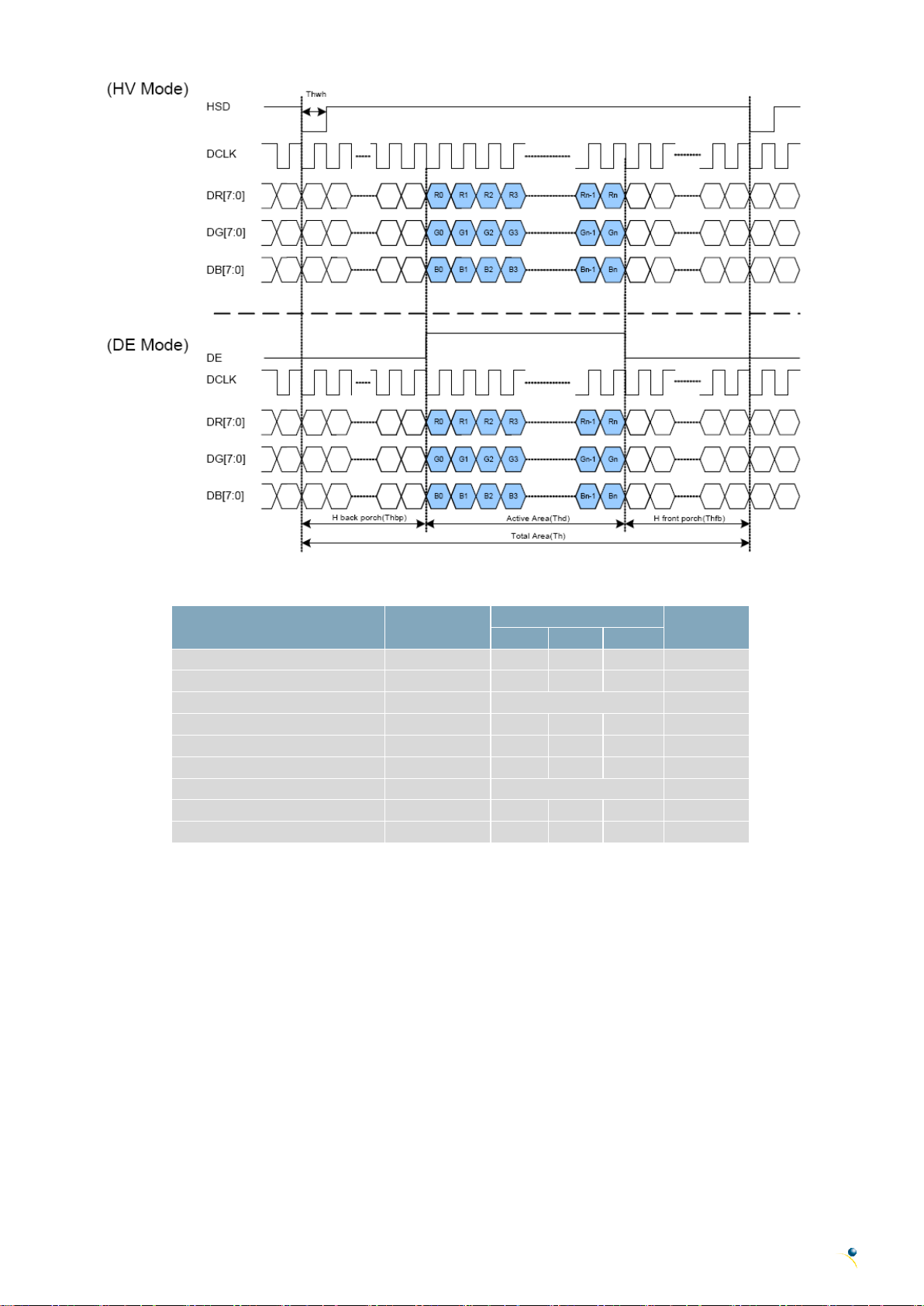

Figure 4: Data Transaction Timing in Parallel RGB (24Bit) interface (SYNC Mode)
Parameter
Symbol
Value
Unit
Min.
Typ.
Max.
DCLK frequency
fclk
5
9
12
MHz
VSD period time
Tv
277
288
400
H
VSD display area
Tvd
272
H
VSD back porch
Tvb
3
8
31
H
VSD front porch
Tvfp
2
8
97
H
HSD period time
Th
520
525
800
DCLK
HSD display area
Thd
480
DCLK
HSD back porch
Thbp
36
40
255
DCLK
HSD front porch
Thfp
4
5
65
DCLK
