Matsui mf654ewn User manual

ChapterⅠ Installation-------------------------------------------------------------1
1.1 Safety Instruction------------------------------------------------------- 1
1.2 Installation Instruction--------------------------------------------------- 2
1.3 Trial running----------------------------------------------------------- 4
ChapterⅡ Maintenance----------------------------------------------------------- 5
2.1 Foreword--------------------------------------------------------------5
2.2 Troubleshooting-------------------------------------------------------- 5
2.3 Note------------------------------------------------------------------8
2.4 Attached drawings-------------------------------------------------------8
Electric diagram-------------------------------------------------------- 9
Connection diagram-----------------------------------------------------10
After unpacking, the appliance should be checked to see if there is any damage to it.
The dishwasher is intended to wash dishes and plates by adults.
When using the dishwasher , some basic principals should be followed:
1) Extended power cord and adaptor should not be used.
2) The power cord should not be too long or knotted.
3) Switch off the power before making any repair of the dishwasher.
Children should be kept away from the detergent and the opened dishwasher.
Then dishwasher should not be installed in an unsheltered place or exposed to the rain or other
natural environment.
Never touch the heating element during or immediately after use.
The dishwasher should not be lean on or sit on when it is open, otherwise it will be overturned.
If the dishwasher malfunctions, turn off the water inlet and cut off the power before you read the
instruction of ChapterⅡ. If the problems cannot be solved by yourself, please contact the
professional technicians.
The dishwasher could not be repaired by unprofessional personnel with non-original spare parts.
It is recommended that if the dishwasher will not be used for a long time, it should be cut off the
water inlet, remove the plug and keep the door of dishwasher ajar.
1.1 Safety Instruction
1

2
1.2 Installation Instruction
Unpacking
1) Removing the packing accessories, please pay attention that the plastic bag should be out of the
reach of children.
2) Open the door of the dishwasher to check the baskets are placed in the proper place
(manufactures may fix the baskets by some simple ways for the sake of safety).
Locate the dishwasher
1) The dishwasher should be kept away from heating resources and not be exposed to the sun to
prevent its coating from fading or falling off.
2) The back of the dishwasher should rest against the wall behind it and the sides, along the
adjacent cabinets or wall. The water supply and drain hose of the dishwasher could be positioned to
the right of the left to facilitate proper installation.
3) The dishwasher could not only be built in the cabinet and also be placed freely.

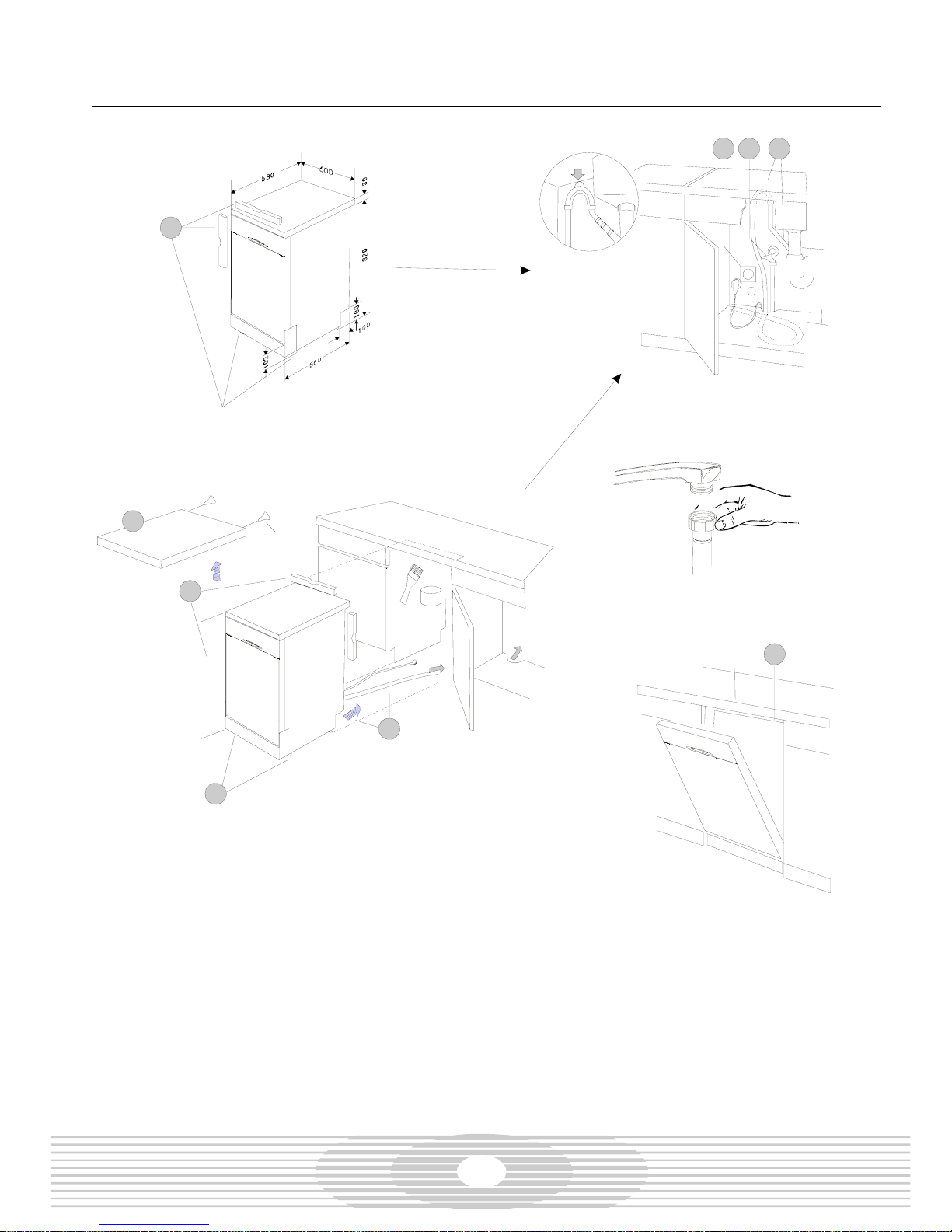

Installation sketch map of free-stand type
MAX100cm
MIN40cm

3
Installation steps:
1. leveling the appliance 2. connecting drain hose
3. connecting charging hose 4. electrical connection
5. disassemble the top board 6. Leveling the appliance
7. positioning in the cabinet 8. Fix the top with the board of cabinet
Installation sketch map of Built-in type
Note
: When making built-in installation of free-stand dishwasher, after dissemble the top
board, the hook of it situated on the upper front corsspiece willbe extrudedandneedstobe
disposed
B8
1
4 3 2
A
A
B
6
5
6
7

4

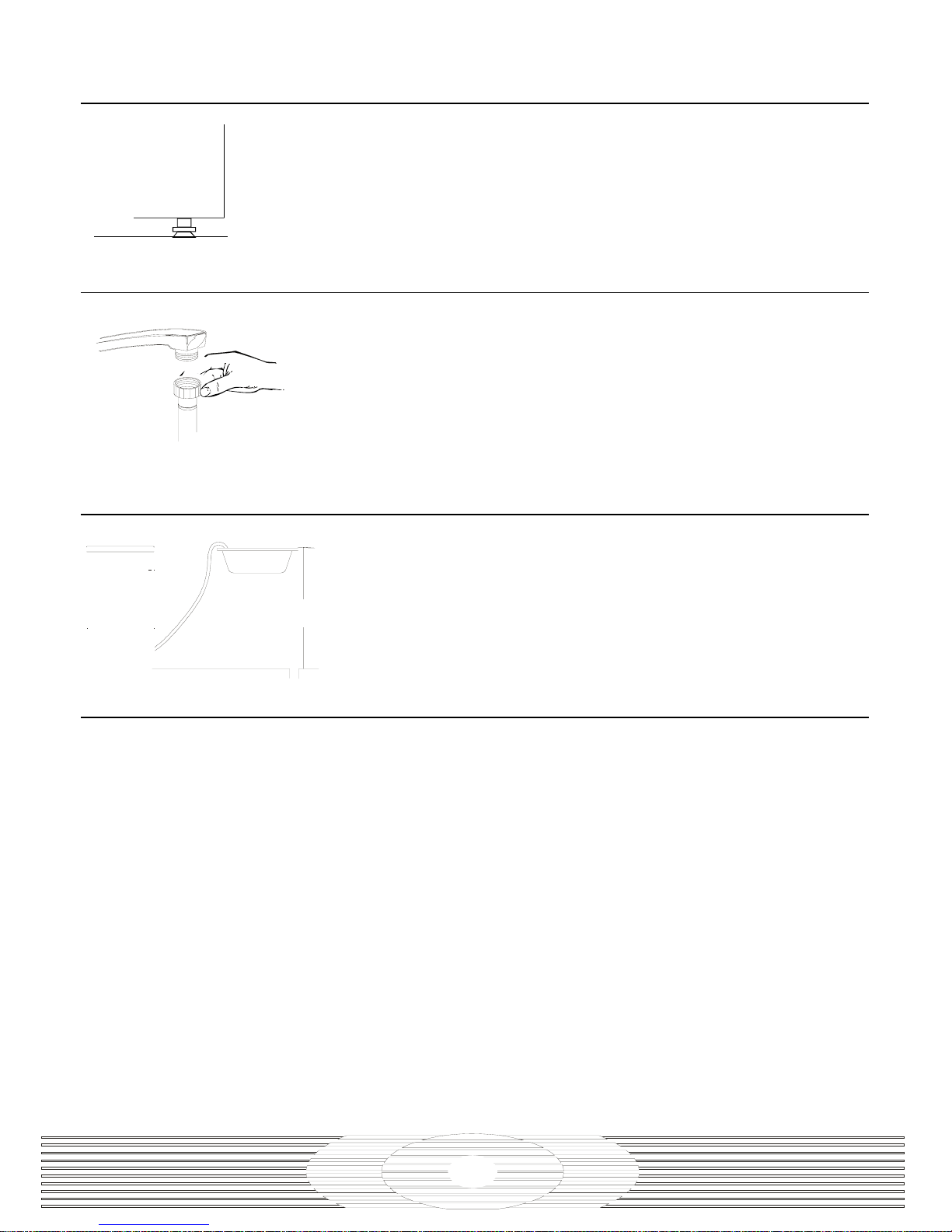

Leveling the appliance
Once the appliance is positioned, adjust the feet(screw them in o rout) to adjust
the height of the dishwasher, making it level to ensure the proper performance.
Charging hose connection
1.Connect the charging hose to a water faucet(with a unicouple).See
figure 4.
2.If the water pipe is new or has not been used for an extended period
of time, let the water run to make sure that the water is clear and free of
impurities, then connect it with the charging hose of the dishwasher.
3.The water pressure is 0.04-1.00Mpa.
Drain hose connection
Insert the drain hose into a drain pipe, or let it run into a sink, but the
free end of the hose must be at a height of less than or equal to 80cm
and must not be immersed in water.
Electrical connection
1. After making sure that the voltage and the frequency values for the
current in the home correspond to those on the rating plate, insert the
plug into an electrical socket which is earthed properly. See figure 6.
2. If the electrical socket to which the appliance must be connected is
not appropriate for the plug, replace the socket rather than using a
adaptor or the like as they could cause overheating and burns.
1.3 Trial Running
After installation, choose any one of the programs to run to check the dishwasher functions
well.
MAX 100cm
MIN 40cm

2.1 Foreword
Before any repair service, you should check:
a) Whether the dishwasher is properly installed according to the installation manual.
b) Whether the damaged components have been repaired or not.
c) Whether the charging hose and the drain hose are properly installed.
d) Whether the dishwasher is level or not.
e) Whether there is salt in the water softener.
f) Whether there is rinse agent in the dispenser.
The circuit board is the centrum of the whole control system of the dishwasher. When dishwasher
is washing bowels, All information come to the circuit, then the circuit delivery various dictate
to every department of dishwasher to keep the dishwasher moving. the dishwasher move with a
arranged program. If you know the program and structure of the dishwasher, you will easy find
out all kind of trouble of dishwasher.
2.2 Troubleshooting
Questions put forward by users
By misusage of users
Theproblemsofthedishwasheritself
The dishwasher does not start
* Something wrong with the socket
* No water (the water valve is closed)
* Improper electrical connection
* The door is not properly closed
* Incorrect position of charging hose
*Powercord
*"ON/OFF"switch
*Doorswitch
*Waterinletvalve
*Pressureswitch
* Aqua-stop switch
Water floods in the dishwasher
* Air leakage of the chamber
* The hose of pressure switch
*Pressureswitch
* Water inlet valve
The dishwasher does not heat
* Malfunction of heating element
* The circuit is not properly contacted
* Malfunction of the thermocouple
No water comes into the dishwasher
* Water supply is cut off
* The filter of the water inlet valve is
clogged.
* Connection to the inlet valve is
broken or damaged.
* Electrical connection is cut off.
* Pressure switch
* Aqua-stop switch
* The softener is blocked.
5
Lower power pump :
Water leak from the axes
Washing pump is out of work
(just for some model) *Sealisinfirm
* he terminal of the capacitance is
infirm.
* The circuitry is open.
T
*Replace the washing pump
* Make sure the connection is firm
Protecting device with double
Pressure switch :
The pressure switch is out of work
The work of the washing pump is
un-normally
The washing pump does not work
after switch on the appliance
(just for some model)
*
*
*
The hose connected the pressure
switch is bended.
There are something wrong with the
parameter of the pressure switch.
Terminal break off the pressure
switch power cord is infirm.
*Refix the PVC hose
* Replace the pressure switch
* Check the wire, make sure the
Connection is firm.
* Replace the pressure switch

The dishes are not clean enough after
washing
* The filter is clogged.
* Unqualified detergent or the dosage
in the container is not correct.
* No salt in the softener
*Norinseagent
* Incorrect loading of dishes *
Something wrong with the drain pipe
in the home
* Flow and pressure of washing pump
* Detergent is not released from
dispenser
* Heating element is not working
* The nozzle is blocked by food
particles
*Nowatercomingintothe
dishwasher
*Thedispensermalfunctions
*Sthwrongwiththepressureswitch
and the charging water is not enough
The dishwasher couldn't
wash properly
* Wrong loading position of the dishes.
* Short circuit of startup capacitance
* Washing motor is blocked or burnt
*Pressureswitch
* Malfunction of the circuit board
The dishes are wet
* The customer chose the program
without drying performance
*Thermocouple doesn't work
properly
* Heating element is malfunctions
* Something is wrong with the
circuit board
The dishes are not completely dried
* Incorrect loading of the dishes
* Earlier opening of the door
* No rinse agent or the dosage is not
enough
* Incorrect selecting the program
* The passage of the breather is
blocked
* The drain pump does not drain out
water
* Detergent is not released from the
dispenser
* Noise from washing pump
* Noise from drain pump
* Noise from water inlet valve
*Noise from breather
Too much noise * Incorrect loading of dishes
Feeling like to be electrically
shocked by the dishwasher * The electrical wire in the house is
not earthed.
* Connection of the terminal box
* Grounding of the heating element
* Circuit and its components
Water leakage and flood of the
dishwasher
* Too much detergent
* Using the detergent with foam,
which is not the one intended for
using with dishwasher
6
*Pressureswitch
*Doorgasket
* Water leakage of pipes, gaskets
and bolts
*Drainhose
*Washingpump
* Softener valve
* Softener
*Breather
Dry-protection proof switch，
just for hide heating element:
E3:heating error
E4:flooding error
Dry-protection proof switch is out
of work
*
*
*
* The work of the washing pump
is un-normal
* The filter is blocked
* Filling is not enough
* The micro switch connected with
the heating element is damaged.
*The pressure switch does not act
* Heating element or thermostat is
damaged or the wire is infirm.
* Press switch is damage or the hose
connected pressure switch is break
* The switch doesn't work
* The pressure switch is locked
* Please check the washing pump,
make sure it is ok.
* Clean the filter
*Replacethepressureswitch
assembly
* Please check the wire, make sure all
connection is firm
*Replacethethermostat
* Replace the hose and pressure switch
* Please replace the Dry protection
switch

Odd smell in the dishwasher
* Food particles on the tub bottom
* Food particles on the heating
element
* Plastic dishes used in the
dishwasher
*Thewatertemperatureistoo
high when drying (overheating)
* Thermocouple doesn't
work properly
Long time for a washing cycle
* Inlet pressure is too low
* Incorrect location of charging
and drain hoses or they are bent
* The filter of inlet valve is blocked
* The drain hose is crimped or bent
* Malfunction of the drain pump
* Infill of the inlet valve is blocked
* Clog of the softener
* Malfunction of the thermocouple
The detergent could not be released
from the dispenser
* Bad quality of the detergent
* The detergent is damped into
blocks
* Wrong location of the dishes
* The plug of detergent container
could not be opened.
* No action of the solenoid valve of
electric feeding dispenser.
* Malfunction of the electric circuit
* Malfunction of the thermocouple
Dishwasher stops when cycling
* The door is not completely shut
*Thefilterisblocked
*Toomuchdetergent
*Electriccircuit
*Doorswitch
* Pressure switch
* The circuit board
* Power switch
Dishes are damaged or glassware is
broken
* The dishes are not suitable for
washing in the dishwasher
* The dishes are overturned
* The washing temperature is not
suitable for glassware
* Basket is damaged
* Malfunction of the thermocouple
The dishwasher does not drain * Block of drain hose
* Malfunction of drain pump
* Improper connection of electric
circuit
* Malfunction of the thermocouple
Lime deposits form on the dishes
*Toomuchdetergent *Reducethedosage
* Too much rinse agent *Reducethedosage
Dirty spots on the surface of the
dishwasher
* The detergent sticks to the damp
surface
* Use the detergent according to the
user's manual
* The detergent should not be spilled
on the surface of the dishwasher
* The salt is not intended to use in
the dishwasher.
* The influence of salt on the resin
7
Take-down filter assembly :
E4:flooding error
The micro-filter is locked
(just for some model)
*
*
*
The filter system is jammed by scran
Installation is infirm
The Scran collection is damaged
*
*
*
You should clean the filter system ever
week
Please install the filter system again
Please replace the Scran collection
The dishes look greasy and a blue film
forms on them sometimes
Strange color of the surface of the
washed dishes
High efficiency draining
pump :
E4:flooding error
The draining pump can't draining
(just for some model)
*
*
* Connection hose is locked by the scran.
* Draining pump is damaged during
the transport.
* Please fix the hose with the water
inlet. Make sure the end of the hose
is upper than the water level in the
tank.
*Clean or replace all connection hose
connected with the draining pump.

2.3 Notes
1. Accordi ng to the program requiring, when the dishwasher is heated to a certain
temperature, the circuit board will shut off the electric suppl y to the electrothermal
element.
2. Aqua-stop device: start up the drain pump and make the dishwasher stop its running.
3. The 90℃thermostat is closed under normal condition. When the dishwash er is heated to a certain
temperature, the thermostat will open to shut off the electric supply to the eletrothermal elements.
4. If the inlet valve has worked for 4 minutes, the pressure s witch has not acted, the dishwasher will
shut off all the loads and drain for 60 seconds, the al arm buzzer will ring for 30 seconds, at the same
time, the DRYING LIGHT coruscate then show on after drain ing.
5. If the drain pump ha s worked for 4 minutes, the pressure switch has not been reset, t he dishwasher
will shut off all the load s and drain for another 120 seconds after pressure swi tch reset, t he alarm buzzer
will ring for 30 seconds , at the same time, the RINSE LIGHT coruscate then show on afte r draining.
6. If the heating element have heated for 60 minutes, the thermocouple has not acted, the dishwasher
will shut off all the loads and drain for another 60 seconds af ter pressure switch reset, the alarm buzzer
will ring for 30 seconds, at the same time, the RINSE LIGHT and the DRYING LIGHT coruscate together
then show on after draining
7. If the micro switch for overflow protection has acted more than 2 seconds, the dishwasher will shut
off all the loads and drain for another 60 seconds after pressure switch reset, the alarm buzzer will ri ng
for 30 seconds, at the same time, the WASH LIGHT coruscate then show on after draini ng.
8. If the thermocouple have been checked for open circuit, the dishwash er will shut off al l the loads and
drain for another 60 seconds after pressure switch reset, the alarm buzzer will ring for 30 seconds, at the
same time, the WASH LIGHT and RINSE LIGHT coruscate together then show on after draining.
9 short . If the thermocouple have been checked for circuit, the dishwasher will shut off all the loads and
drain for another 60 seconds after pressure switch r eset, the alarm buz zer will ring for 30 seconds, at the
same time, the WASH LIGHT and DRYING LIGHT coruscate together then show on after draining.
2.4 Attached drawings
Electrical Drawi ng
8
12
34

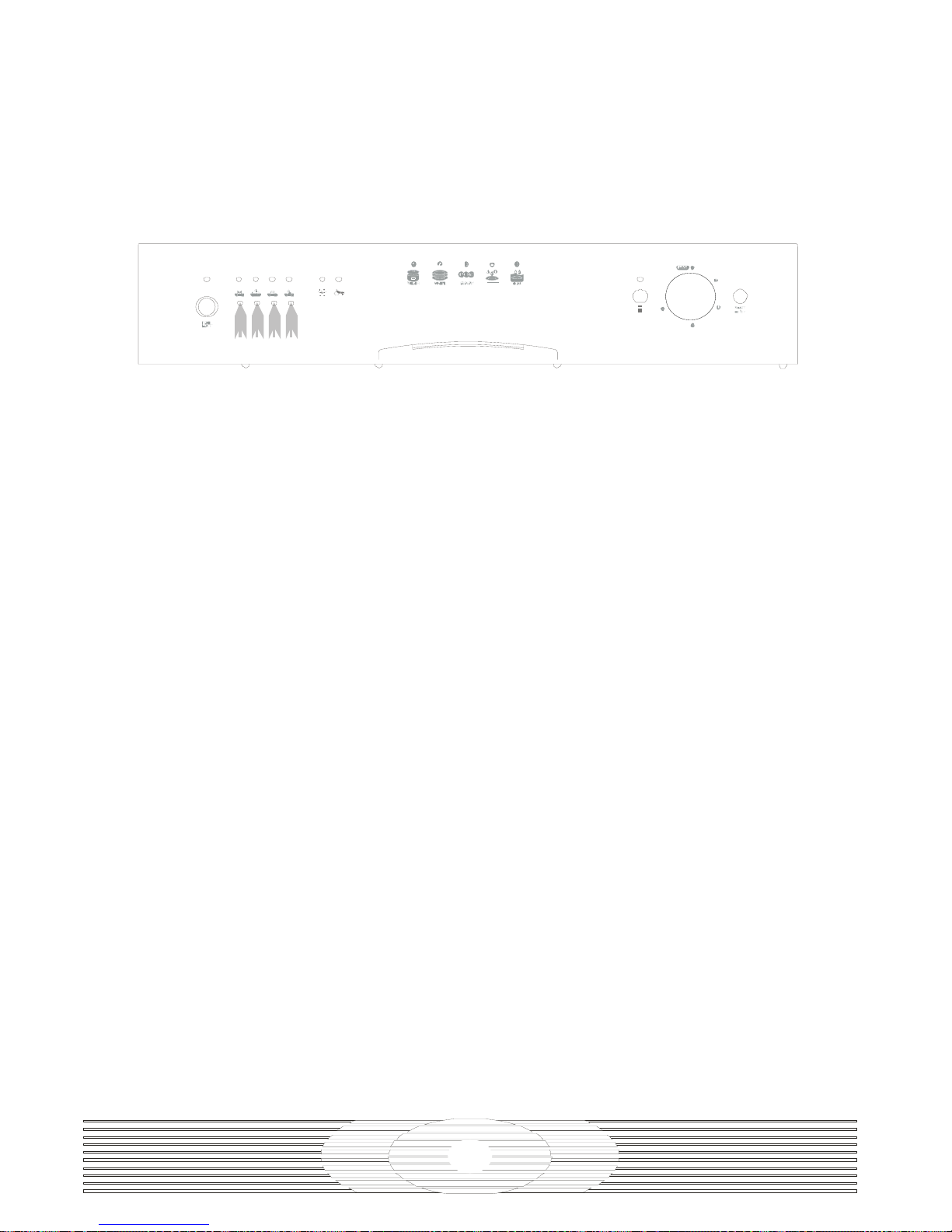

Pre -ri nse l ight: To c om e on whe n pr e-r inse . Was h l ight: To c ome on whe n was h.
Ri nse l ight: To c ome on whe n r ins e. Dr ying l ight : To com e on whe n dr yi ng.
4321

WQP12-9240A/923 9A
