ServiceManual
TOPNEXT
ORDERNO.HPD0309A02C3
MASSAGELOUNGER
EP1260A3
SPECIFICATIONS
©2003MatsushitaElectricWorks,Ltd.Allrightsreserved.Unauthorizedcopyinganddistributionisaviolation
oflaw.

9/29/2016 ep1260a3.html
file:///C:/Users/sh.dehghani/Desktop/1111111111111111111111111111111/viewing/SGML_VIEW_DATA/OT/EP1260A3/SVC/index.html 2/2
TOPNEXT

9/29/2016 ep1260a3.html
file:///C:/Users/sh.dehghani/Desktop/1111111111111111111111111111111/viewing/SGML_VIEW_DATA/OT/EP1260A3/SVC/index.html 1/1
1.1Massagelounger
TOPPREVIOUSNEXT
TOPPREVIOUSNEXT

9/29/2016 ep1260a3.html
file:///C:/Users/sh.dehghani/Desktop/1111111111111111111111111111111/viewing/SGML_VIEW_DATA/OT/EP1260A3/SVC/index.html 1/1
1.2Controller
TOPPREVIOUSNEXT
TOPPREVIOUSNEXT

9/29/2016 ep1260a3.html
file:///C:/Users/sh.dehghani/Desktop/1111111111111111111111111111111/viewing/SGML_VIEW_DATA/OT/EP1260A3/SVC/index.html 1/1
2MASSAGERANGE(MOVEMENTRANGEOF
MASSAGEWHEELS)SHIATSUMASSAGE,
SWEDISHMASSAGE,KNEADING,VIBRATING,
TAPPINGA,TAPPINGB,WHOLEBACK
ROLLING,REGIONALROLLING
TOPPREVIOUSNEXT
Widthadjustment
Approx.60to150mm
Intensityadjustment
Shiatsu,Swedish,Knead,vibration,TapA,TapB,wholebackroll,andRegionalroll(fromgentletostrong)
:55mmwideadjustabilitywheremassageheadspushouttowardbodyasintensityincreases.
TOPPREVIOUSNEXT

9/29/2016 ep1260a3.html
file:///C:/Users/sh.dehghani/Desktop/1111111111111111111111111111111/viewing/SGML_VIEW_DATA/OT/EP1260A3/SVC/index.html 1/1
3.1Turningonthepower
TOPPREVIOUSNEXT
1.Plugthepowerplugintothepowersocket.
2.Turnthelockswitchtotheopenposition.
3.Turnonthepowerswitchonthebackoftheunit.
Whentheoperatinglockswitchispointingtoward´lock´,thepowerswitchcannotbemovedtothe
´on´position.
Aftereachuse.
Besuretoturnthepowerswitchto´off´.
Topreventchildrenfromusingthisunit,lockthepowerswitchbymovingtheoperatinglockswitchtothe´lock´position.
Asafurthercaution,unplugthepowercordfromthepowersocketaftereachuse.
Alwayskeepthekeyinasafeplace.
Timer
Whentheon/offbuttonispushed,atimerbeginstopreventoveruse.Afterapproximately15minutes,time
expiresandthemassagewheelgoesintostorageposition.
TOPPREVIOUSNEXT

9/29/2016 ep1260a3.html
file:///C:/Users/sh.dehghani/Desktop/1111111111111111111111111111111/viewing/SGML_VIEW_DATA/OT/EP1260A3/SVC/index.html 1/1
4REQUIREDTOOLS
TOPPREVIOUSNEXT
TOPPREVIOUSNEXT

9/29/2016 ep1260a3.html
file:///C:/Users/sh.dehghani/Desktop/1111111111111111111111111111111/viewing/SGML_VIEW_DATA/OT/EP1260A3/SVC/index.html 1/1
5.1Massagemechanism
TOPPREVIOUSNEXT
TOPPREVIOUSNEXT

9/29/2016 ep1260a3.html
file:///C:/Users/sh.dehghani/Desktop/1111111111111111111111111111111/viewing/SGML_VIEW_DATA/OT/EP1260A3/SVC/index.html 1/1
5.2Airottoman
TOPPREVIOUSNEXT
TOPPREVIOUSNEXT

9/29/2016 ep1260a3.html
file:///C:/Users/sh.dehghani/Desktop/1111111111111111111111111111111/viewing/SGML_VIEW_DATA/OT/EP1260A3/SVC/index.html 1/2
6DISPLAYMETHODOFMASSAGEBLOCK
TOTALUSETIMEANDOPERATIONTIME
TOPPREVIOUSNEXT
Totalusetime
Whilepushingthe+andtheintensityadjustmentbuttonssimultaneously,turnonthepowerswitchand
continuetoholdthebuttonsforapproximately5seconds.Releaseaftertheon/offLEDlightsup.
*WhenreplacingtheMainCircuitPCB,theusetimeiscountedtozerobecausetheusetimeismemorizedin
MainCircuitPCB.
*Whenpushingon/offbutton,theoperationreturnstonormalmode.
Displaymethod
DisplayitbyutilizingLEDsofcontroller.
e.g.Intheabovecase,(20+22+24+26)×5=(1+4+16+64)×5=425hours.
Itispossibletoindicateupto5,115hours.
Toreadtheeachoperationfunction,pushthefollowingbuttonsafterreadingthetotalusetime.
Youcanreadtheeachoperationfunctionusetimeasthesamedisplaymethodoftotalusetime.
Chartforreadingeachfunctionusetime
Buttonoperation Functionforreadingusetime LEDdisplayforconfirmingfunction
Shiatsu Shiatsu ShiatsuLEDlightsup
Swedish Swedish SwedishLEDlightsup

9/29/2016 ep1260a3.html
file:///C:/Users/sh.dehghani/Desktop/1111111111111111111111111111111/viewing/SGML_VIEW_DATA/OT/EP1260A3/SVC/index.html 2/2
Kneading Kneading KneadingLEDlightsup
Vibration Vibration VibrationLEDlightsup
TappingA TappingA TappingALEDlightsup
TappingB TappingB TappingBLEDlightsup
Wholebackrolling Wholebackrolling WholebackrollingLEDlightsup
Regionalrolling Regionalrolling RegionalrollingLEDlightsup
TOPPREVIOUSNEXT

9/29/2016 ep1260a3.html
file:///C:/Users/sh.dehghani/Desktop/1111111111111111111111111111111/viewing/SGML_VIEW_DATA/OT/EP1260A3/SVC/index.html 1/1
7MOTIONOFTHECLUTCHANDBELTBASED
ONVARIOUSMASSAGEROPERATIONS.
TOPPREVIOUSNEXT
Massageroperationandbeltmotion
Massageroperationandclutchmotion
TOPPREVIOUSNEXT

9/29/2016 ep1260a3.html
file:///C:/Users/sh.dehghani/Desktop/1111111111111111111111111111111/viewing/SGML_VIEW_DATA/OT/EP1260A3/SVC/index.html 1/2
8CONTROLOFTHEAIRMASSAGE
OPERATION
TOPPREVIOUSNEXT
Airmassagefunctionswiththeoperationsofthepumpunitx1pc,3wayelectromagneticvalvex1pc,and2
wayelectromagneticvalvex2pcs.
1.Airmassagefunctionswiththepumpunitandtheelectromagneticvalves.
2.Everytimeyoupressthelegmassagebutton,themodeschangefromstopweakstrongstop.
3.16minutetimeroperatesandthemassageoperationstops.
4.Theairpumpandthealltheelectromagneticvalvesareoffwheninthestopmode.
5.Theaircontrolfunctionstopswhentherecliningliftmotoroperates.
(Theoutputsoftheairpumpandtheelectromagneticvalvesareoff:ventilation)
Whentheoperationresumesafterbeinginoffpositions,thefoursecondoffperiodismaintained.
However,theLEDlightsonwhenthelegmassagebuttonison.
Airpattern
Operationstep:7steps
Interval:Approx.30seconds

9/29/2016 ep1260a3.html
file:///C:/Users/sh.dehghani/Desktop/1111111111111111111111111111111/viewing/SGML_VIEW_DATA/OT/EP1260A3/SVC/index.html 2/2
a1)Airispumpedintotheankles.(approx.5seconds)
a2)a3)Theelectromagneticvalvesareswitched.(approx.2seconds)
a4)Airispumpedintothecalves.(approx.7seconds)
a5)a6)Theelectromagneticvalvesareswitchedandtheairpressureismaintained.
a7)Itventilates.(approx.11seconds)
TOPPREVIOUSNEXT

9/29/2016 ep1260a3.html
file:///C:/Users/sh.dehghani/Desktop/1111111111111111111111111111111/viewing/SGML_VIEW_DATA/OT/EP1260A3/SVC/index.html 1/2
10.1RemovingtheHeadrest,Backrestcushion,
Armrest
TOPPREVIOUSNEXT
1.UnzipthezippersandremovetheBackcushionwithpillow.
2.Removeninebrushclipsoneachsides,whichfixtheArmrestleftandtheright,withaslotted
screwdriver.
ThisprocedureisunnecessarysoastoremovetheSeat.
3.Removethreescrewsoneachsides,whichfixtheSidecovers,andremovetheSidecovers.
ThisprocedureisunnecessarysoastoremovetheSeat.

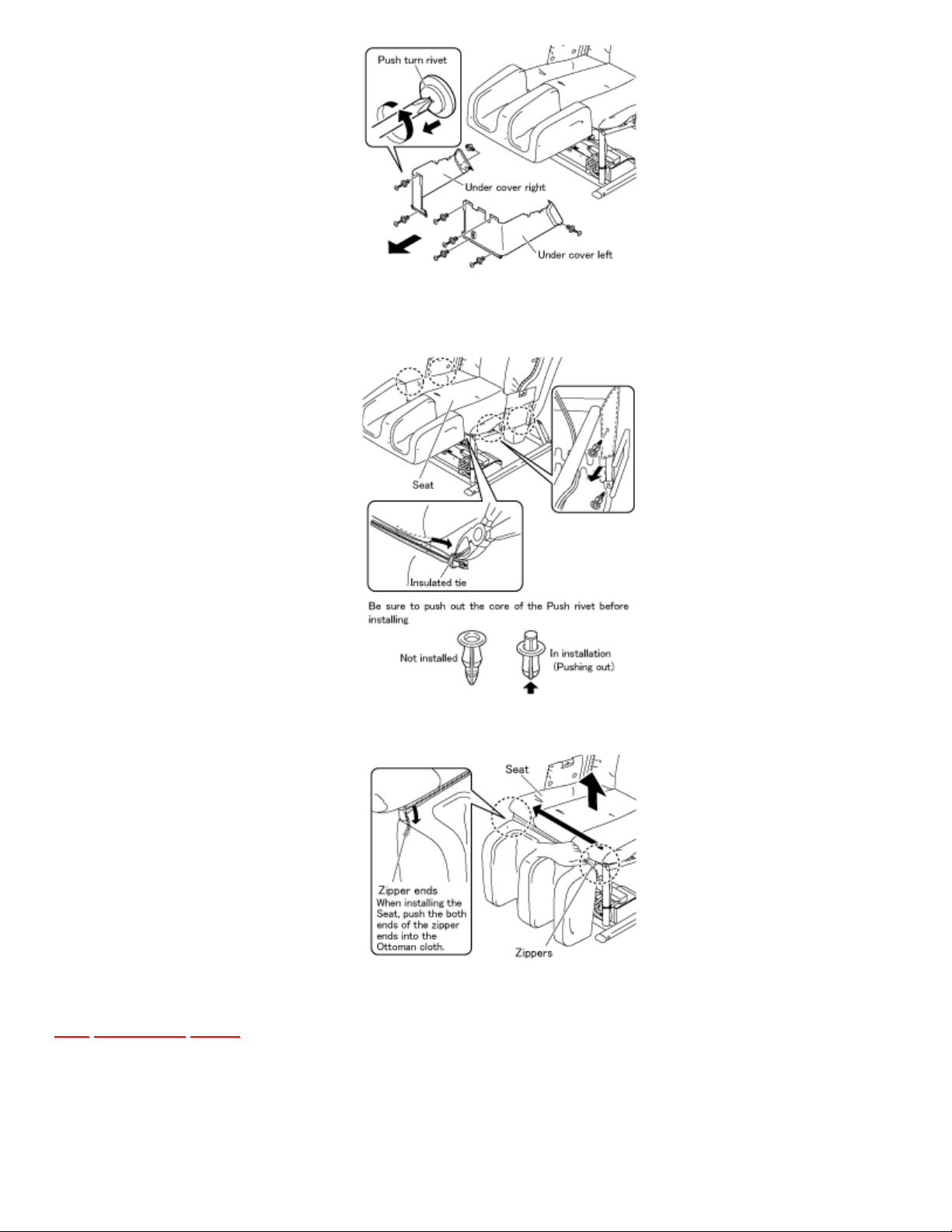

4.RemoveeightPushreturnrivets,whichfixtheUndercoverleftandtheright,withacrossedscrewdriver
andremovetheUndercoverleftandtheright.

9/29/2016 ep1260a3.html
file:///C:/Users/sh.dehghani/Desktop/1111111111111111111111111111111/viewing/SGML_VIEW_DATA/OT/EP1260A3/SVC/index.html 2/2
5.Pulloutthezipperends,whichconnecttheSeatandtheOttoman,andcuttheinsulatedtieandremove
fourPushrivetspushingitscenterwithascrewdriver,etc.
6.UnzipthezippersandtheSeatcanbetakenoff.
TOPPREVIOUSNEXT

9/29/2016 ep1260a3.html
file:///C:/Users/sh.dehghani/Desktop/1111111111111111111111111111111/viewing/SGML_VIEW_DATA/OT/EP1260A3/SVC/index.html 1/3
10.2RemovingtheMassagemechanismblock
TOPPREVIOUSNEXT
1.LifttheOttomanalittlebitandpushuptheInterlocklinkandremoveit.
2.LifttheOttomanalittlebitandpushuptheInterlocklinkandremoveit.
3.RemovethreeRailpieceinstallationscrews,andremovetheRailpiece.
4.RemovefourCoverforP.C.B.installationscrews,andremovetheCoverforP.C.B.

9/29/2016 ep1260a3.html
file:///C:/Users/sh.dehghani/Desktop/1111111111111111111111111111111/viewing/SGML_VIEW_DATA/OT/EP1260A3/SVC/index.html 2/3
5.RemovetheConnectingcordforpowersupply,onescrew,andtwoconnectors.
6.RemovetwoplasticrivetsontheMassagemechanismcoverandtakeofftheMessagemechanismcover
andremovetheCoverclip.
7.LiftupthebottomoftheMassagemechanismblockasthefigureandtakeitoff.
Besuretocheckifthereismoreapprox.9cmbetweeneachkneadingballsbecauseifthedistanceis
shortyoumaynotbeabletotakeawaytheblockobstructedbythebottommetalpieceoftheRear
frame.

9/29/2016 ep1260a3.html
file:///C:/Users/sh.dehghani/Desktop/1111111111111111111111111111111/viewing/SGML_VIEW_DATA/OT/EP1260A3/SVC/index.html 3/3
Ifthedistanceislessthan9cm,adjustthedistancemovingtheWidthbeltontherightsideofthe
Massagemechanismblockusingfingers.
TOPPREVIOUSNEXT

9/29/2016 ep1260a3.html
file:///C:/Users/sh.dehghani/Desktop/1111111111111111111111111111111/viewing/SGML_VIEW_DATA/OT/EP1260A3/SVC/index.html 1/5
10.3RemovingthepartsoftheMassagemechanism
block
TOPPREVIOUSNEXT
Youcanworkfrom1.to12.withouttakingawaytheMassagemechanismblock.
1.RemoveconnectorsontheMaincircuitboard.
2.Removethegroundwireandtwoscrews.
3.RemovetwoInsulatedties.
4.RemovetwoscrewsandthreeCircuitboardspacers.
