TRANSMITTER
Left Stick
Controls
Left
Wheels
NOTE: Your transmitter is
equipped with a special
automatic “ON” battery-
saving feature. Just turn
your vehicle “ON.” Then
push either transmitter stick
and you will be able to run
and control your vehicle.
Right
Stick
Controls
Right
Wheels
Automatic “ON”
Power Indicator Light
Whip
Antenna
FEATURES CONTENTS
(1) TMH™Power
SUPER REBOUND®Vehicle (1) Transmitter
TRANSMITTER
BOTTOM VIEW
BOTTOM VIEW
TOP VIEW
TOP VIEW
Refer to label on transmitter and vehicle for frequency. Do not race vehicles with the same frequency.
FEATURES
■Full function
■Available in 2 frequencies
(27 MHz and 49 MHz) (US)
(27 MHz and 40 MHz) (UK)
■Range up to 65'/20m
CONTENTS
35234-0920
ON/OFF
Switch
StuntLock
Switch
Battery
Compartment
Tabs
2 Powerful
Mabuchi
Motors
(4) Terrain-
Trackin’
Tires

If you have questions or difficulty operating this vehicle,
DO NOT RETURN IT TO THE STORE!
Call Toll-Free 1-888-557-TYCO (1-888-557-8926) (US only)
HELPLINE 0118 974200 (UK only) 
for EXPERT technical help and RAPID parts 
and service assistance.
®
RC

WE CARE!
CONSUMER AFFAIRS
Battery
Compartment
Cover
Windmill
Stunt
Arm
Keep these instructions for future reference: they contain important information.
™
Warning
Light
■“SMART CIRCUITRY” -There are 2 high-tech pro-
tection systems built into your vehicle!
1. If your vehicle gets stuck or stalls, a special sensor will
cut power to protect it.To reset the sensor, just release
the control sticks, reposition your vehicle (if necessary)
and take off again!
2. If your vehicle “overheats” due to excessive hard driving,
a special circuit will cut power - AND turn on the Warn-
ing Light. When the light goes out, you’re good to go!

BATTERY CHARGING/CARE
BATTERY CHARGING/CARE
(BATTERIES AND CHARGER NOT INCLUDED)
Your vehicle will not operate without the TYCO®R/C TMH™ FlexPak™ Battery Pack and Charger. The
TMH™FlexPak™battery pack is designed for use exclusively in TYCO®R/C TMH™ Power vehicles. It
will not work in any 6.0V or 9.6V NiCd battery-powered vehicles.
Your TMH FlexPak battery pack features a unique design (Patent Pending) which allows it to be con-
figured in different ways for use in different Tyco®R/C TMH power vehicles. This feature allows maxi-
mum performance for each vehicle. To configure your FlexPak battery pack for use in this vehicle,
please refer to Step 2, Battery Installation.
1. Plug the battery charger into standard wall outlet.
2. Hold the battery pack fully open, with the metal contacts at the top, as shown.
The labels marked 1and 2in the upper left-hand corner should be facing you. Now slide
the battery pack securely into the charger.
3. To disconnect, push the red button on the side of the charger. Hold the red button down while you
slide out the battery pack.
4. New battery packs must be charged for 5 1/2 hours the first two times charged. After that,
subsequent charges will require only 4 hours.
5. After charging, the battery pack will feel warm. This is normal for fully charged batteries.
6. Unlike alkaline batteries, which lose power gradually, your TMH FlexPak battery will run for its
normal running time, depending on your particular vehicle, and then lose most of its power at
once. It is now time to recharge the battery pack.
7. Unlike NiCd (Nickel-Cadmium) rechargeable batteries, your TMH FlexPak battery pack may be
recharged at any time, irrespective of the level of charge remaining in the battery: you do not have to
wait until the battery pack is fully discharged to recharge it.
8. After use, the battery pack will be hot! Wait at least 20 minutes until the battery pack cools down before recharg-
ing. Recharging a hot battery will greatly reduce the number of times your battery pack can be recharged.
BATTERY PACK CARE
Because of its unique design, other battery chargers will be unable to charge your TMH FlexPak battery pack.
To charge your battery pack, use only the Tyco R/C TMH FlexPak battery charger.
CAUTIONS
~DO NOT RECHARGE BATTERY PACK IF IT’S HOT. ALLOW IT TO COOL BEFORE RECHARGING.
~DO NOT RECHARGE A BATTERY PACK THAT SHOWS LEAKAGE OR CORROSION.
~DO NOT DISASSEMBLE THE BATTERY PACK. THE BATTERY PACK IS A SEALED RECHARGEABLE NICKEL-
METAL HYDRIDE (NiMH) BATTERY.
~DO NOT DISPOSE OF THE BATTERY PACK IN FIRE.
~EXERCISE CAUTION IN HANDLING A HOT BATTERY PACK.
~IF BATTERY PACK AND/OR CHARGER ARE WET, THOROUGHLY DRY BEFORE CHARGING.
~DO NOT RECHARGE NON-RECHARGEABLE BATTERIES.
TMH™FlexPak™Battery Pack and
Charger Additional TMH™ FlexPak™
Battery Pack
Have additional Battery Packs
charged ahead of time for longer
non-stop action. Uses the TMH
FlexPak Charger.
Unlike NiCd (Nickel-Cadmium) rechargeable
batteries, your TMH FlexPak battery pack
requires no special procedures or precau-
tions for disposal. However, as with all prod-
ucts, you should dispose of
your battery pack in an envi-
ronmentally responsible and
considerate manner.
SPECIAL NOTE TO ADULTS:
• Remove rechargeable batteries before recharging. Recharge batteries only under adult supervision.
• Regularly examine for damage to the plug, enclosure and other parts. In the event of any damage, the toy must not be used with the
transformer until the damage has been repaired.
• This toy is not intended for children under 3 years old. The transformer is not a toy.
IMPORTANT BATTERY INFORMATION:
• Insure that battery polarity is correct.
• Use only batteries of the type recommended (or equivalent).
• Do not mix old and new batteries.
• Do not mix alkaline, standard (carbon-zinc), or rechargeable (nickel-cadmium) batteries.
• Remove used-up batteries immediately. Remove batteries if vehicle will not be used for a long period.
• For best performance use alkaline batteries. Battery life may vary depending on battery brand. Toy
performance may decrease as batteries weaken.
• Do not recharge non-rechargeable batteries.
• Do not short-circuit terminals.
• Remove rechargeable batteries before recharging. Recharge batteries only under adult supervision.
• Dispose of batteries safely.
ALSO AVAILABLE
1
2

BATTERY INSTALLATION (AND REMOVAL)
TRANSMITTER
1. Install one 9-volt battery with polarity (+/-) as shown inside battery compartment.
2. The 9-volt transmitter battery will last much longer than the run time of the TMH Flex-
Pak rechargeable battery pack.
BATTERY INSTALLATION (AND REMOVAL)
TRANSMITTER
VEHICLE
VEHICLE
FORWARD REVERSE LEFT TURN
180°/360° RIGHTRIGHT TURN
SUPER REBOUND CONTROLS & DRIVING MODES
SUPER REBOUND CONTROLS & DRIVING MODES
1. To remove the battery compartment cover, press the tabs as shown and lift up.
Hold the FlexPak battery pack with the labels marked 1and 2in the upper left-
hand corner facing up, and the metal battery contacts as shown.
2. Holding the battery pack by its bottom half (label # 2), press the top half of
the battery pack (label # 1) flat. Now start sliding the top of the battery pack
into the battery compartment.
3. As soon as the battery pack clears the battery latch, press the bottom half of the bat-
tery pack flat. Push the battery pack forward fully into the battery compartment.
4. Turn the battery latch to lock the battery pack into place. Replace the battery
compartment cover.
5. To remove: remove the battery compartment cover. Turn the battery latch to
unlock and pull the battery pack backward. Lift up the bottom half of the bat-
tery (label # 2). Slide the battery pack down and lift out.
Estimated run time for this vehicle: 20-30 minutes
Battery must be charged for 4 hours
180°/360° LEFT
Tabs
Battery
Compartment
Cover
Battery
Latch
®

OPERATING YOUR VEHICLE
OPERATING YOUR VEHICLE
© 1999 Mattel, Inc., Mt. Laurel, NJ 08054 U.S.A. PRINTED IN CHINA.
All Rights Reserved. ® and ™ designate U.S. trademarks of Mattel, Inc.
Retain this address for future reference: Mattel U.K., Ltd., Meridian West, Leicester LE3 2WT.
Mattel Australia Pty., Ltd., Richmond, Victoria 3121 - Consumer Advisory Service: 1800 800 812 (valid only in Australia).Mattel East Asia Limited,
930 Ocean Centre, Harbour City, HK, China.
In Britain 49 MHz is not available. 27 MHz can be raced against 40 MHz vehicles.
TROUBLESHOOTING PROBLEM? – SOLUTIONS
TROUBLESHOOTING PROBLEM? – SOLUTIONS
Symptom
Vehicle runs slowly or will not run.
Power indicator light on transmitter does not
light when either joystick is activated.
Erratic operation or only short range possible.
Short battery life.
Vehicle doesn’t work after going through water
or snow.
Probable Cause
• Loose battery connection or vehicle switch
not ON.
• Weak or uncharged rechargeable battery.
• Weak 9-volt transmitter battery.
• Transmitter battery weak or not connected.
• Radio interference likely.
• Battery not fully charged..
• Water in the electronics area.
Correction
• Check battery connector and vehicle
switch.
• Charge battery or replace.
• Replace with fresh 9-volt alkaline battery.
• Check connections and replace battery
if required.
• Change location (see point 2 - Quick Tips).
• Recharge TMH FlexPak battery pack. For
maximum running time, make sure you
give your battery pack a full charge.
• Vehicle will take several hours to dry.
Allow to dry overnight before trying again.
• Avoid driving in water and snow.
Quick Start
1. Start with fresh batteries (or a full charge).
2. Turn vehicle switch ON. Press transmitter
controls to run and control your vehicle.
3. When you’re done driving, turn vehicle
switch OFF. Remove all batteries for storage.
Adults, this toy is recommended for children
5 years of age and older. To ensure that the
child’s play is both safe and fun, please
review the operating instructions and these
general safety rules with the child.

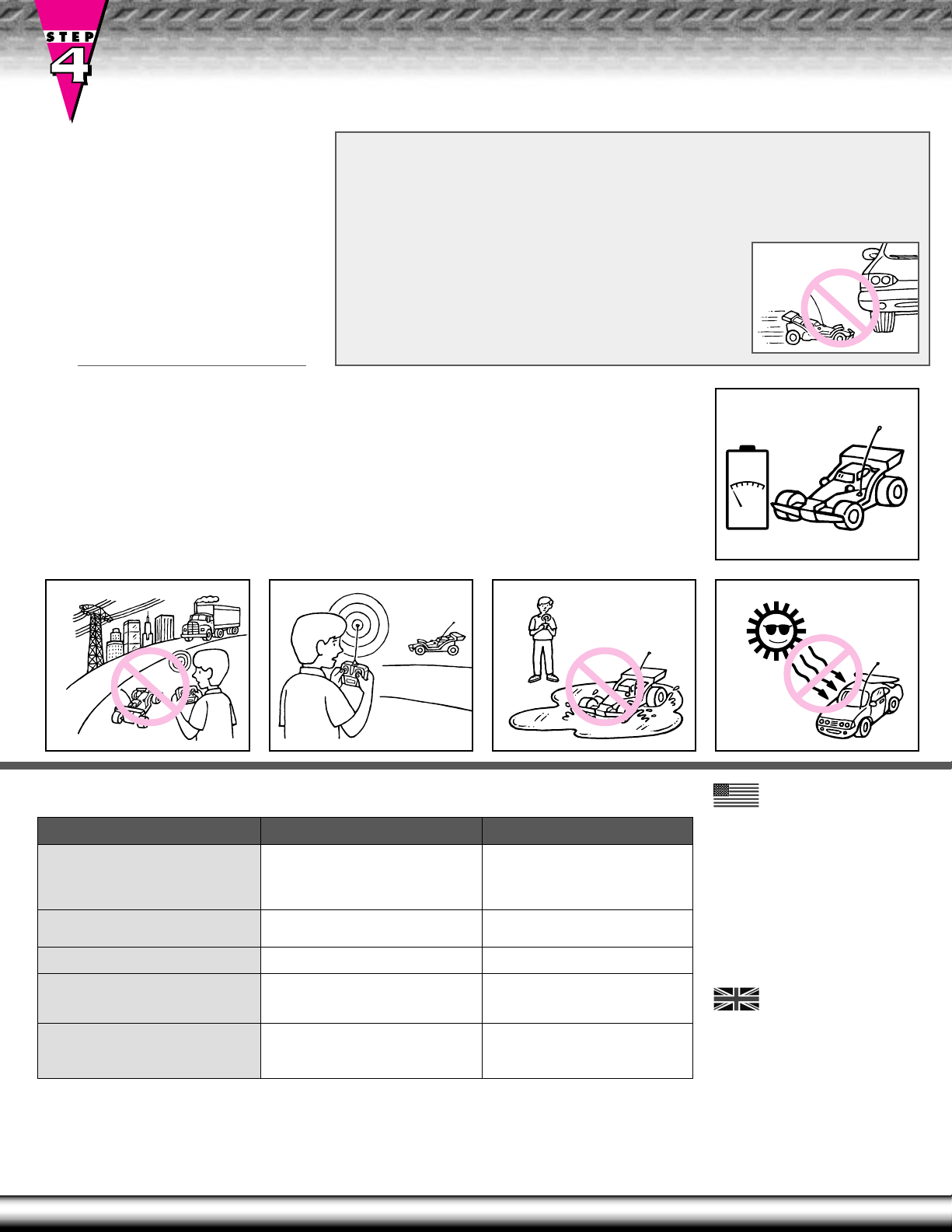

Quick Tips
1. When your vehicle starts to lose power, it may lose functions or performance. It’s time for fresh batteries (or a
recharge). Your vehicle’s running time may change depending on your driving style.
2. Radio interference can make your vehicle run badly. Interference can be caused by other R/C vehicles running on
the same frequency; electrical wires; large buildings; or CB radios.Try to stay away from these!
3. Point your transmitter antenna up - not down toward your vehicle. If your vehicle gets too far away, it won’t
work properly.
4. Don’t drive your vehicle in sand or through water or snow.
5. Don’t store your vehicle near heat or in direct sunlight. Always turn switches OFF and remove all batteries for
storage.
Safety Precautions
Adults, this toy is recommended for children 5 years of age and older. To ensure that the child’s play is
both safe and fun, please review the operating instructions and these general safety rules with the child.
Caution
■NEVER drive your vehicle on streets! They’re for real cars!
■DO NOT pick up vehicle while in motion.
■Keep fingers, hair and loose clothing away from the tires and the
wheel hubs while the vehicle is switched ON.
■If this toy is being operated in the presence of children under 5 years
of age, adult supervision is recommended.
■To avoid accidental operation, remove all batteries when not in use.
1.
2. 3. 4. 5.
THIS INFORMATION FOR
US CONSUMERS ONLY
COMPLIANCE WITH FCC REGULATIONS (US ONLY)
THIS DEVICE COMPLIES WITH PART 15 OF FCC RULES.
OPERATION OF THIS DEVICE IS SUBJECT TO THE FOLLOW-
ING TWO CONDITIONS:
1THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE.
2THIS DEVICE MUST ACCEPT ANY HARMFUL INTERFERENCE
THAT MAY CAUSE UNDESIRED OPERATION.
This device generates and uses radio frequency energy
and if not used properly may cause interference to radio
and television reception. It has been tested and found to
comply with the limits set by the FCC, which are designed
to provide reasonable protection against such interference.
CAUTION: FCC Regulations state that changes or modifica-
tions to this product not expressly approved by the party
responsible for compliance could void the user's authority
to operate the equipment.
THIS INFORMATION FOR
UK CONSUMERS ONLY
TYCO®R/C 90 DAY LIMITED WARRANTY
This product is thoroughly tested and inspected before
shipment and is guaranteed to be free from factory defects
in material and workmanship for a period of 90 days from
the date of purchase. Mattel will repair or replace any
defective part or unit free of charge during this period. This
warranty is valid provided the product has been operated
in accordance with the instructions and proof of purchase
is furnished. This warranty does not apply to worn or
defective batteries, or to items which have been damaged
or abused by the consumer. This warranty gives you specif-
ic legal rights and is in addition to and does not diminish
your statutory or other legal rights.
IMPORTANT: Please return your product in its original
package and keep a record of what you return.
HELPLINE 0118 974200
