Maverix USA california User manual

1
USER MANUAL
ELECTRIC SKATEBOARDS MAVERIX
ORIGINAL NOTICE :
WWW.MAVERIX-SKATES.COM
Electric Skateboards are not allowed on public highways, streets or roads.
An appropriate protective gear (helmet, elbow and kneepads…) must be worn at all times.
All MAVERIX Electric Skateboards incorporate the EC Certificates
And respect the product’s directive no. 2006/42/EC.
MAVERIX ELECTRIC SKATEBOARDS
USER MANUAL
EN
R

2
INTRODUCING MAVERIX ELECTRICAL SKATEBOARDS
Dear Customers,
May we take the opportunity to thank you for purchasing one of our MAVERIX
Electric Skateboards.
To get the best ride and maximum use out of your electric skateboard, please read
this manual thoroughly before your first ride. With proper use, your MAVERIX Electric
Skateboard will provide years of fun, trouble-free riding. Thorough understanding of
the information in this manual is the first step in safety enjoying your board.
THE MAVERIX RANGE
!
CALIFORNIA 150W, 24 volts
PHANTOM 250W, 24 volts
URBAN SPIRIT 400W, 24 volts
CRUISER 600W, 36 volts
BORDER CROSS 800W, 36 volts

3
TABLE OF CONTENTS
!
I!INTRODUCTION............................................................................................................4!
II!SAFETY!WARNINGS ......................................................................................................4!
II.1!Lifting and Battery Loading!Techniques of MAVERIX skateboard………………... 6!
II.2!INTERDICTIONS…………………………......................................................................... 6!
III!TECHNICAL PRODUCT DATA .......................................................................................7!
III.1!PRODUCT DATA SHEET…............................................................................................. 7!
III.2!Mandatory….. ............................................................................................................. 8!
III.3!Description of the products delivered by the LLC MAVERIX ................................. 8!
III.4!Use of the Wireless Remote Control…. ..................................................................... 8!
III.5!Powering on your MAVERIX Electric Skateboard .................................................. 10!
III.6!USE OF THE MAVERIX SAFETY LEASH ........................................................................ 11!
IV!FIRST USE OF YOUR MAVERIX SKATEBOARD ............................................................11!
IV.1!BEFORE OPERATING .................................................................................................. 12!
IV.2!STARTUP ...................................................................................................................... 13!
IV.3!UPHILL AND DOWNHILL RUNS................................................................................... 13!
IV.4!SPEED .......................................................................................................................... 14!
IV.5!BENDS AND CURVES ................................................................................................. 14!
IV.6!Charging the battery of your MAVERIX electric skateboard .............................. 14!
IV.7!Charging cycle ......................................................................................................... 14!
IV.8!SETTINGS AND CONSUMABLES REPLACEMENT....................................................... 15!
V!MAINTENANCE OF YOUR MAVERIX ELECTRIC SKATEBOARD .................................15!
V.1!Maintenance............................................................................................................. 15!
V.2!Replacement and maintenance of the timing belt............................................. 16!
V.3!Replacement and maintenance of the wheels ................................................... 16!
V.4!Maintenance of the batteries ................................................................................. 17!
VI!RESPONSIBILITIES........................................................................................................18!
VII!CHARTER CONCERNING THE SALE, THE HIRING AND THE TERMS OF USE
AGREEMENTS OF MOTORIZED ENGINES SUBJECT TO THE ARTICLE L. 321-1-1 OF THE
HIGHWAY CODE ..................................................................................................................18!
VIII DECLARATION OF CONFORMITY………………………………………………………..20
! !

4
IINTRODUCTION
Your MAVERIX Electric Skateboard was developed and manufactured using the best
technologies available.
Before each shipment, quality checks are performed on each model. However,
please be sure by observing the following points:
1. Inspect outer carton for damages. Report any damage to your freight carrier
or dealer.
2. Open carton and inspect for internal damage. Report any damage to your
freight carrier or dealer.
3. Remove your new MAVERIX board, remote control and charger from its
carton.
II SAFETY WARNINGS
•The combination of power and weight make your MAVERIX board a
potentially hazardous device.
•Improper use can result in property damage, serious injury or even death.
•Understanding all of its features and control is necessary for safe riding.
•Avoid uneven surfaces, potholes, surface cracks and obstacles.
•Pay attention to radio waves that can cause interference in some places.
•Pay attention to the use of electric skateboards in explosion risk sites such as
petrol stations...
•Always ride at a safe speed, maintaining full control over the board at all
times. Know your limits and ride within them.
•The board should not be used without adult supervision.
IMPORTANT :
READ ALL INSTRUCTIONS CAREFULLY BEFORE RIDING YOUR MAVERIX ELECTRIC BOARD.

5
•THE MAVERIX ELECTRIC SKATEBOARDS ARE DESIGNED FOR USE BY PERSONS
AGED 14 AND ABOVE.
•Any person who participates in or assists in skateboarding assumes the known
and unknown inherent risks in skateboarding activities and is legally
responsible for all damages, injury or death to himself or herself or other
persons or property which result from these activities. Wear a helmet and
protective skateboard riding gear at all times. This includes elbow and
kneepads, protective eyewear, long pants and long shirts/outerwear
protection. The user of this product and the adult supervisor assumes all risks
associated with its use.
•Skateboarding is regulated by state and local laws, which vary by location.
Local laws should be consulted for specific requirements in your area.
•Our MAVERIX skateboards are designed to be used by one person at a time.
•The maximum load supported by MAVERIX Skateboards varies by model from
65 to 110 kg as follows:
oCalifornia 150W max load = 65 Kg
oPhantom 250W max load = 75 Kg
oUrban Spirit 400W max load = 85 Kg
oCruiser 600W max load = 90 Kg
oBorder X 800W max load = 110 Kg
•Your MAVERIX Skateboard is not intended for operation on public streets,
roads or highways. Do not operate in crowded areas.
•Do not operate the MAVERIX Electric Skateboard at night if you are not
equipped for dark or low light conditions (such as bicycle lamps: red in the
back, white in front).
•MAVERIX disclaims all responsibility in case of misuse :
- Of the requirements mentioned in this manual
- Of the laws in force in each country
•The user or the parent of a minor user of the merchandise agrees to release
MAVERIX electric skateboards, its owners, agents and employees, from any
and all liability for damage, injury, paralysis and death to himself or his child,
any other person, or property, resulting from the use or misuse of the
merchandise sold by MAVERIX. They also acknowledge having read the
general sales agreement.
•If the user does not agree with all the points mentioned in this manual, he shall
immediately return his product to his dealer prior to its first use. He will be fully
refunded for his purchase (provided that the product is given back intact and
in its unopened original packaging).
Comment: if you do not understand any and all parts of this safety operation
information, please contact your dealer to clarify all points in this User Manual.

6
Reminder:
IMPORTANT :
Our boards are not intended for operation on public highways, streets or
roads.
Serious injuries or even death can be the result of an improper use of this
product.
PROTECTIVE OUTERWEAR, PROTECTIVE EYEWEAR, APPROPRIATE SHOES,
KNEEPADS, ELBOWPADS AND HELMET MUST BE WORN AT ALL TIMES.
DO NOT OPERATE THE ELECTRIC SKATEBOARD IN TRAFFIC OR ON WET, FROZEN,
UNEVEN OR OILY SURFACES OR NEAR PEOPLE OR OTHER VEHICLES.
!
II.1 Lifting and Battery Loading Techniques of MAVERIX
skateboard
•Use secure and appropriate lifting and battery loading techniques.
•Make sure MAVERIX Skateboard is stopped before lifting it.
•It is recommended lifting the skateboard by two people, each one placing
their two hands below the board. Lift the skateboard using leg strength, not
your back.
(The heaviest Skateboard of our range, the 800 Watts BORDER X, weights
around 30 kilograms).
Caution: While lifting or charging the skateboard after using it, do not touch the
engine or controller, you could get burnt.
II.2 INTERDICTIONS
It is FORBIDDEN to use your MAVERIX Electric Skateboard in the following
circumstances:
- On public highways, streets or roads:
oCaution: In case of accident, your responsibility could be involved
accordingly to the articles 1382 and 1383 of the Civil Code.
- For teenagers below the age of 14;
- In the rain or in a damp weather;

7
- On snow, ice or any other slippery surface;
- In a sitting position;
- Near people or other vehicles;
- Two people or more on the board.
IMPORTANT:
Serious injuries or even death can be the result of an improper use of our products.
Local laws should be consulted for specific requirements in your area.
III TECHNICAL PRODUCT DATA
III.1 PRODUCT DATA SHEET
1 – Engine 6 – Front Truck
2 – Electric Panel box 7 – Rear Truck
3 – Battery 8 – Receiving Antenna Box
4 – Timing Belt 9 – Wooden Board
5 – Dampers / Gum 10 – Battery loading Plug

8
III.2 Mandatory
LLC MAVERIX
32, Rue Alain Colas
66420 Le Barcares - FRANCE
([phone]
III.3 Description of the products delivered by the LLC
MAVERIX
BORDER X 800W (FD36V)
CRUISER 600W (FD36V)
URBAN SPIRIT 400W (FD24V)
PHANTOM 250W (FD24V)
CALIFORNIA 150W (FD24V)
III.4 Use of the Wireless Remote Control
1. The wireless remote control regulates the speed of your MAVERIX skateboard.
Pulling the trigger toward you will accelerate the board. Releasing the lever will
return it to the near-neutral position, and allow you to coast downhill. Pushing the
trigger away from you will engage braking.
Your Wireless Remote Control has a range of approximately 1,50 m beyond which
the skateboard will automatically free wheel.
Three speed positions are available under the 9
Volts battery as follows:
oPosition 1 : maximum speed
oPosition 2 : medium speed
oPosition 3 : low speed
If the Wireless Remote Control beeps 8 times in a row, it means the batteries are
running down and should be replaced. Do not ride the board with low batteries, at
the risk of leading to unreliable communication between the skateboard and the
wireless remote control.
1
3
2

9
The wireless remote control turns itself
on by using the black switch located on
top of the gun box. Press « I », the
remote control will beep once; it means
it is powered on. On the « O » position,
the remote control is turned off. On the
« II » position, you will be simultaneously
using the remote control lights (LEDs
located in front of your remote control)
and be in control of your electric
skateboard.
2. After stepping on your board, slowly pull the trigger
towards you. Your MAVERIX skateboard will then
progressively accelerate accordingly to the pressure
you will be applying on the trigger.
3. To return your MAVERIX skateboard
to freewheel position, simply release the
trigger.
4. To decelerate, slowly release the trigger. To slow
to a stop, push the trigger away from you, thereby
activating the engine braking. Your braking
distance will depend on your weight and the
surface on which you operate.
Beware: Know your limits and accelerate and brake
accordingly. Get started slowly and keep a
reasonable speed until full control of your MAVERIX
skateboard.
ON + Lights
OFF
ON

10
The Wireless Remote Control Batteries
The Wireless Remote Control requires a 9 Volt Alkaline battery. Put the « Power »
button of the remote control on « O » when not in use in order to maximize the
battery life.
If the remote does not react with your skateboard, please replace the battery.
IMPORTANT :
The supplied wireless remote control uses a unique radio frequency that minimizes
the risk of interference. However, interference may possibly occur with other
MAVERIX skateboards if you use the same frequency, or when you are close to high
voltage power lines, or with mobile phones or any equipment that emits radio waves.
Carefully check areas where you use your MAVERIX skateboard.
III.5 Powering on your MAVERIX Electric Skateboard

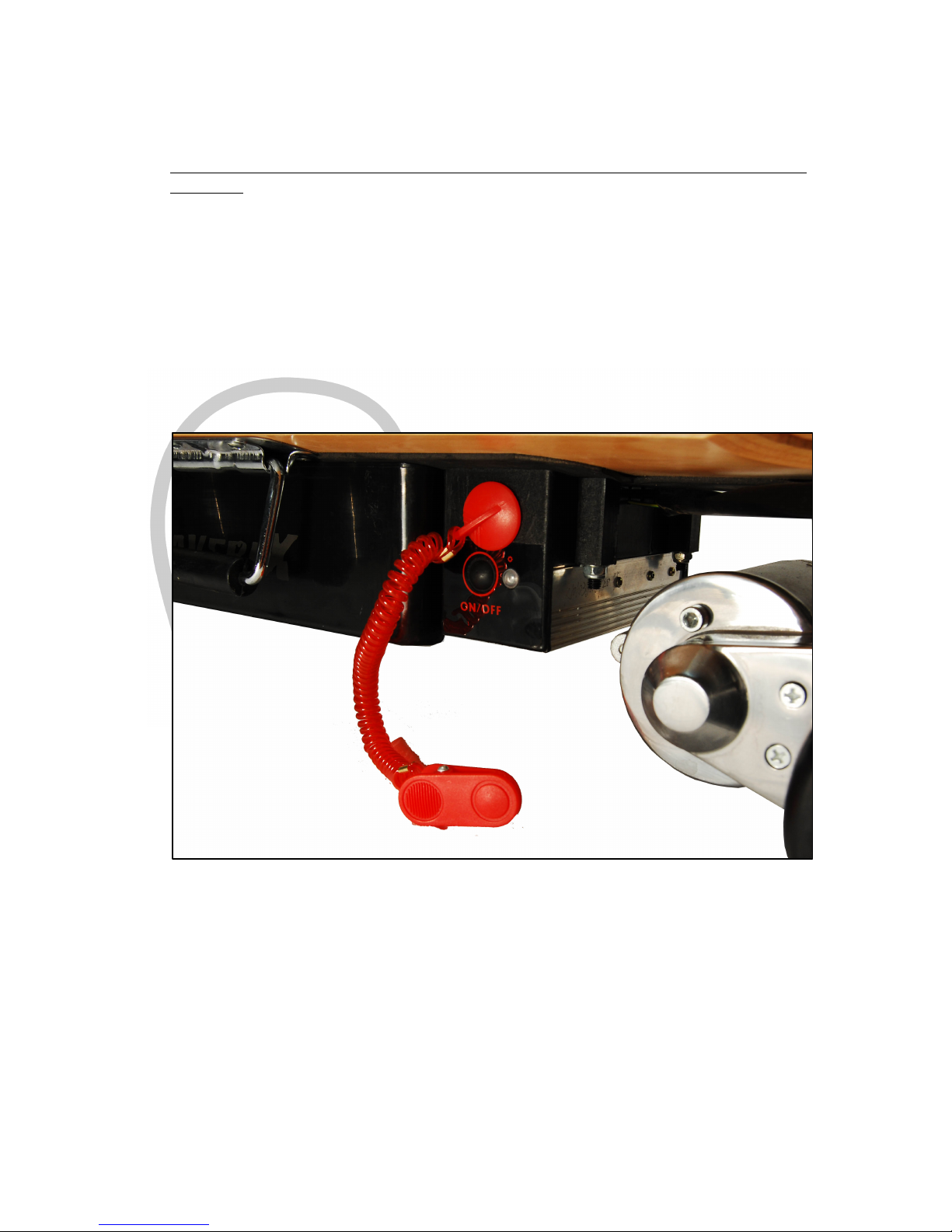

Your MAVERIX skateboard is equipped with a power button "ON / OFF" on the
side of the battery pack of your board.
To turn on your skateboard, please press the power button "ON".
Remember to reposition the button to "OFF" when not in use.
Leaving your MAVERIX electric skateboard permanently on the "ON" position
when not in use, can damage the electronics and batteries of your board.
