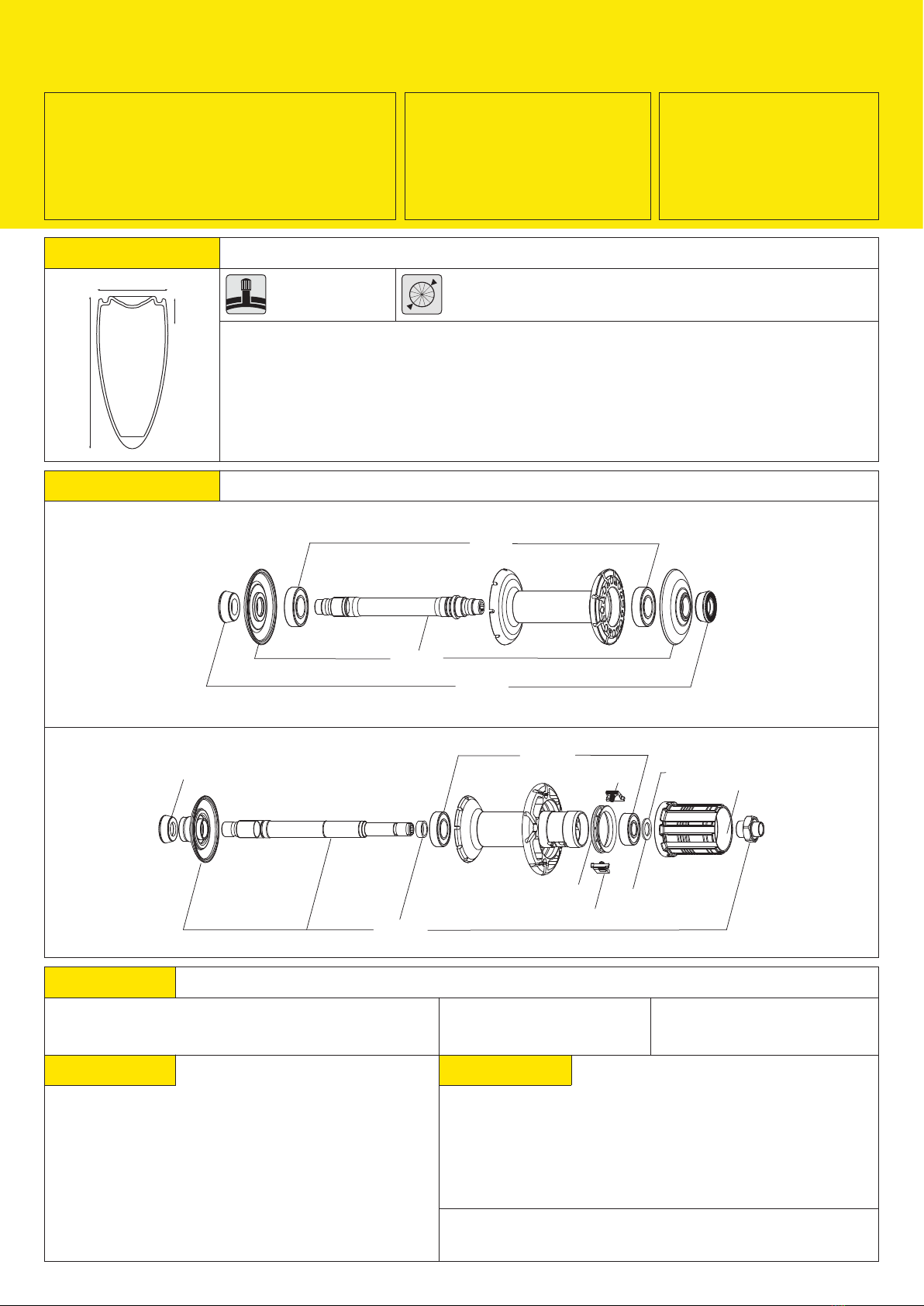

COSMIC CXR 60 (tubular version)
Use: for road bike use only. Any other use (such as on a tandem, cyclo-cross bike, or
off-road use...) is highly inadvisable, is the sole responsibility of the user and voids
the Mavic warranty.
Recommended maximum weight of the cyclist and equipment: 100 kg.
WHEEL REFERENCES
SALES REFERENCES
RIMS
WHEEL BUILDING Front and rear non-drive side:
Drive side:
REFERENCES AND LENGTHS:
FEATURES:
Black, swaged, bladed, straight pull steel spokes with steel ABS type spoke nipples
LACING PATTERN:
Front: radial
Rear: 2-crossed drive side, radial non-drive side
Front
Rear M11
Rear ED 11
Pair M11
Pair ED11
352 081 10
352 082 11
352 083 12
352 084 14
352 085 14
Ø VALVE HOLE
MAINTENANCE: Clean with a dry cloth or soapy water if necessary.
Do not use a high-pressure washer.
RECOMMENDED TYRE WIDTH
Ø: 6.5 mm Dimensions: Ø 700 Tubular
Tubular width: 23 mm
When replacing the rear rim:
1. With the valve hole near you, turn the rim so that the “infobloc” label can be seen.
2. The second spoke to the right of the valve hole is a non-traction spoke and should be inserted in the drive side hub.
HUBS
329 796 01, length 255 mm (per 10, nipples included)
329 795 01, length 252 mm (per 10, nipples included)
TENSION:
Front: 60 to 70 kg
Rear drive side: 100 to 110 kg
ACCESSORIES WHEELS SUPPLIED WITH: MAINTENANCE
• BR 601 front quick-release skewer M40149
• BR 601 rear quick-release skewer M40150
• Wheel bags M40135
• Mavic CXR specific brake pads for braking on a carbon brake track: HG/Sram/Mavic
128 443 01 or ED 128 444 01
• Valve extender 118 952 01
• Multifunction adjustment wrench 325 423 01
• Yksion CXR GripLink 23 mm front tubular (127 785 23)
• Yksion CXR PowerLink 23 mm rear tubular (127 786 23)
• CX01 blades 128 994 01
• ED11 12D locking ring (with rear wheel ED11) 108 317 01
• User manual
• Sheet of Mavic stickers
Specific tool:
• Front bearing:
• Rear bearing:
• Spoke wrench:
M40120
M40120 & 351 266 01
M40001
Refer to the website for quick and convenient access to maintenance information (replacement of an axle,
bearings, free wheel, spokes, and rims) www.tech-mavic.com
Front: 329 793 10
Rear: 329 793 13
WHEEL WEIGHT WITHOUT QUICK-RELEASE SKEWER
AND WITHOUT TUBULAR
Front
Rear M11
Rear ED11
730 g
895 g
880 g
4

308 700 01
M40078
351 173 01
330 000 01
308 701 01
308 711 01 (M10)
308 712 01(ED11)
308 728 01
M40 578
351 173 01
995 000 01
M40 578
25,1
60
10,2

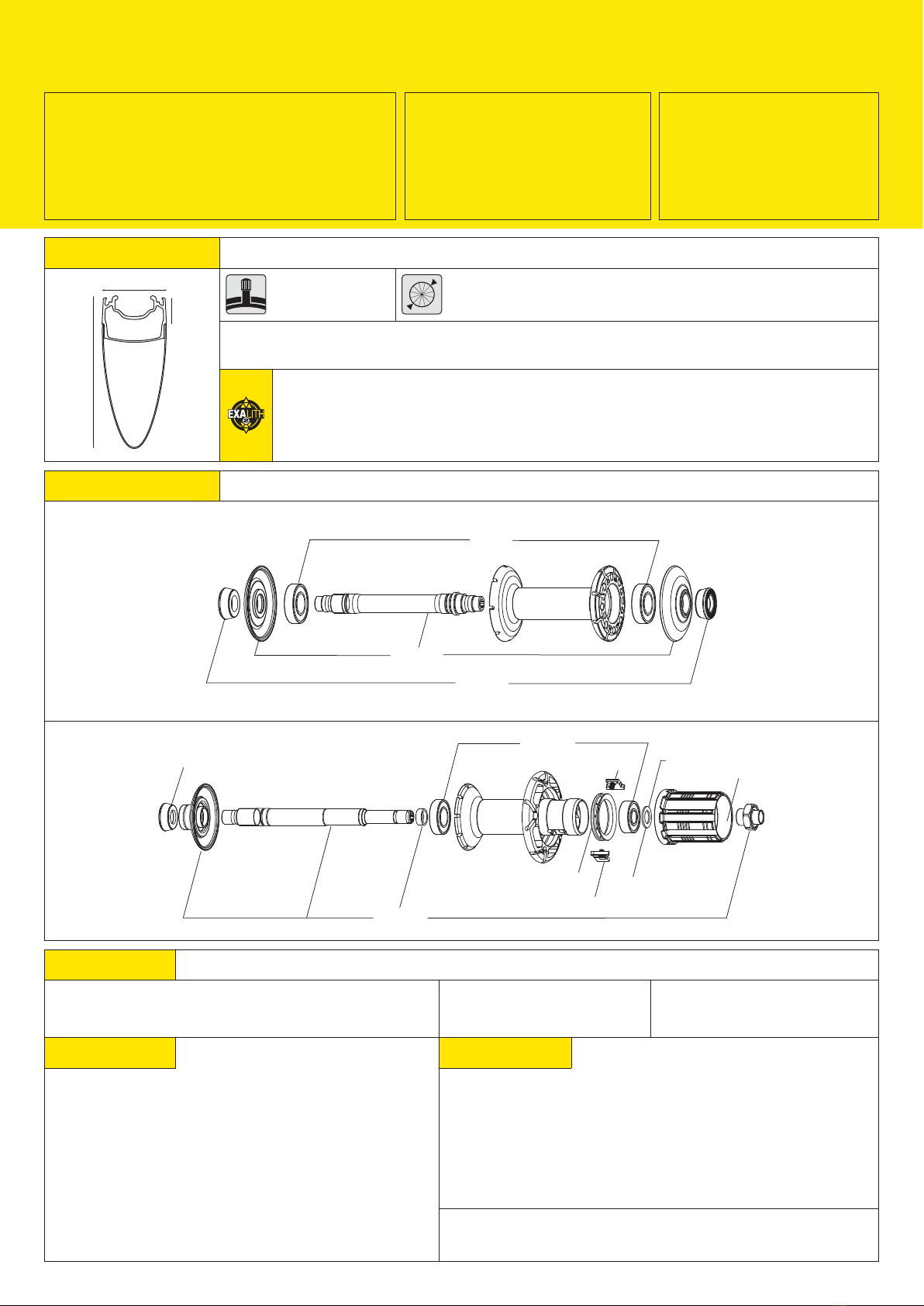

COSMIC CXR 60 (clincher version)
Use: for road bike use only. Any other use (such as on a tandem, cyclo-cross bike, or
off-road use...) is highly inadvisable, is the sole responsibility of the user and voids
the Mavic warranty.
Recommended maximum weight of the cyclist and equipment: 100 kg.
EXALITH 2: for efficient and long-lasting braking performance, use only the special Mavic®Exalith 2®brake pads supplied with your wheels.
The use of other brake pads may be dangerous for the user and may void the warranty.
Please carefully read the “Exalith 2 Warning” provided with your wheels.
Clean with a dry cloth or soapy water if necessary.
Do not use a high-pressure washer.
The brake pads can be ordered separately using the following references 129 888 01 (HG, Sram, Mavic) and 129 889 01 (ED)
MAINTENANCE: Clean with a dry cloth or soapy water if necessary.
Do not use a high-pressure washer.
Ø VALVE HOLE
SALES REFERENCES
RIMS
WHEEL BUILDING
FEATURES:
Black, swaged, bladed, straight pull steel spokes with steel ABS type spoke nipples
REFERENCES AND LENGTHS:
• BR 601 front quick-release skewer M40149
• BR 601 rear quick-release skewer M40150
• Rim strip 18x622 (1 per wheel)
• Wheel bags M40135
• Mavic CXR specific brake pads for braking on Exalith 2 brake track HG/Sram/Mavic
129 888 01 or ED 129 889 01
• Valve extender 118 952 01
• Multifunction adjustment wrench 325 423 01
• Yksion CXR GripLink 23 mm front clincher (326 733 23)
• Yksion CXR PowerLink 23 mm rear clincher (326 734 23)
• Mavic butyl inner tubes (127 385 01)
• CX01 blades 128 994 01
• ED11 12D locking ring (with rear wheel ED11) 108 317 01
• User manual
• Sheet of Mavic stickers
Specific tool:
• Front bearing:
• Rear bearing:
• Spoke wrench:
Refer to the website for quick and convenient access to maintenance information (replacement of an axle,
bearings, free wheel, spokes, and rims) www.tech-mavic.com
WHEEL REFERENCESWHEEL WEIGHT WITHOUT QUICK-RELEASE SKEWER
AND WITHOUT TYRE
Front
Rear M11
Rear ED11
820 g
1020 g
1005 g
Front
Rear M11
Rear ED 11
Pair M11
Pair ED11
354 675 10
354 676 11
354 677 12
354 678 14
354 679 14
RECOMMENDED TYRE WIDTH
Ø: 6.5 mm Dimensions: ETRTO 622x13C
Clincher width: 23 mm
When replacing the rear rim:
1. With the valve hole near you, turn the rim so that the “infobloc” label can be seen.
2. The second spoke to the right of the valve hole is a non-traction spoke and should be inserted in the drive side hub.
HUBS
Front and rear non-drive side:
Drive side:
329 768 01, length 289 mm (per 10, nipples included)
329 767 01, length 287 mm (per 10, nipples included)
LACING PATTERN:
Front: radial
Rear: 2-crossed drive side, radial non-drive side
TENSION:
Front: 80 to 90 kg
Rear drive side: 110 to 120 kg
ACCESSORIES WHEELS SUPPLIED WITH: MAINTENANCE
M40120
M40120 & 351 266 01
M40001
Front: 329 765 10
Rear: 329 765 13
5

366 458 01
366 459 01
M40078
351 173 01
996 045 01 995 000 01
308 728 01
M40578
308 711 01 (M11)
308 712 01 (ED11)
996 036 01
366 457 01
330 000 01
351 173 01
40
21
9,5
40
21
9,5

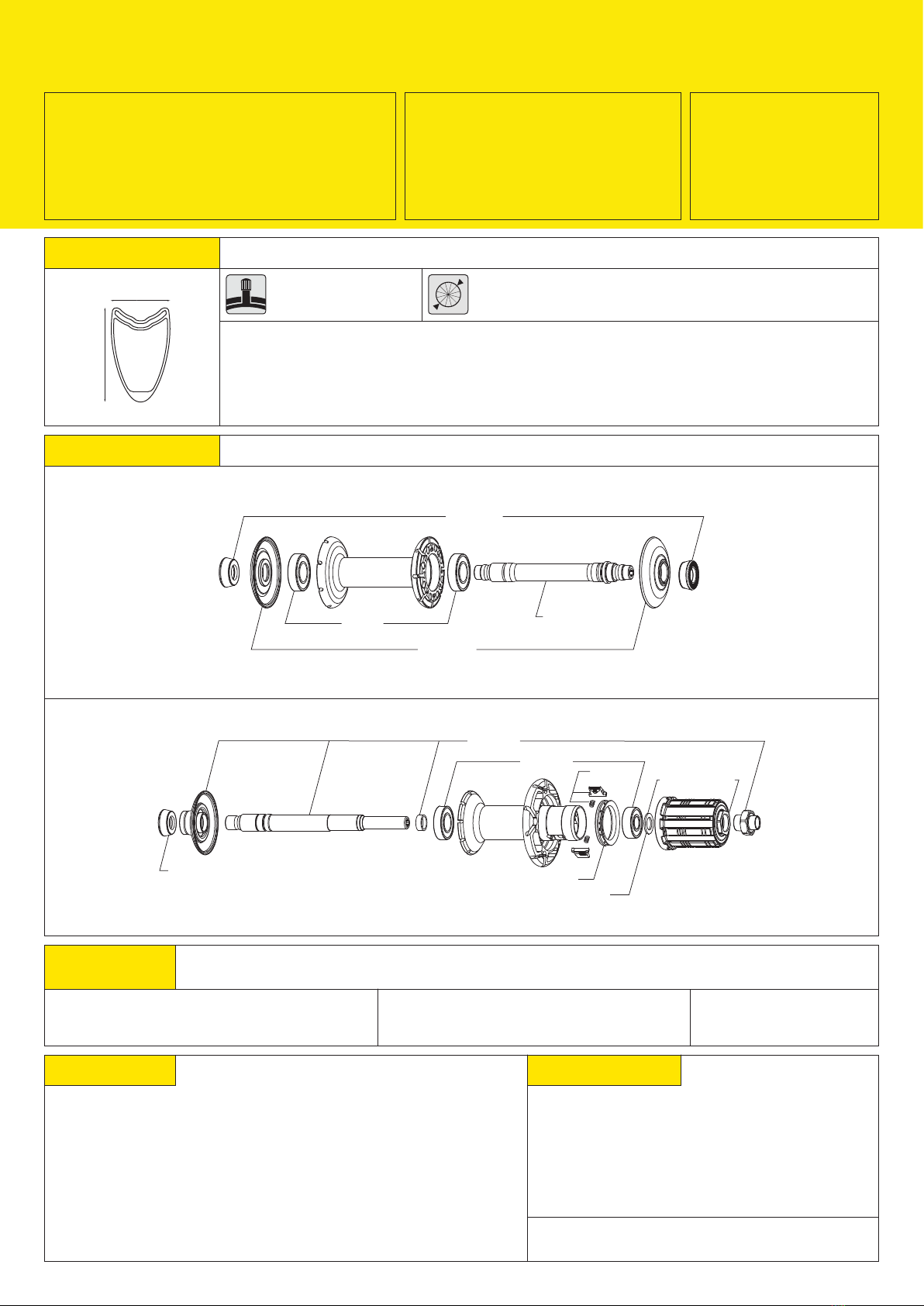

COSMIC CARBONE ULTIMATE 14
Use: for road bike use only. Any other use (such as on a tandem, cyclo-cross bike, or
off-road use...) is highly inadvisable, is the sole responsibility of the user and voids
the Mavic warranty.
Recommended maximum weight of the cyclist and equipment: 100 kg.
WHEEL BUILDING
FEATURES: Unidirectional R2R carbon fiber spokes with brass ABS type spoke nipples LACING PATTERN:
Front: 2-cross lacing on both sides
Rear: 2-crossed drive side, radial non-drive side
RIMS
HUBS MAINTENANCE: Clean with a dry cloth or soapy water if necessary.
Do not use a high-pressure washer.
Ø VALVE HOLE RECOMMENDED TYRE WIDTH
Dimensions: Ø 700 Tubular
Recommended tubular width: 19 to 28 mm
Ø: 6.5 mm
ACCESSORIES MAINTENANCE
WHEELS SUPPLIED WITH:
• BR 601 titanium front quick-release skewer 32348501
• BR 601 titanium rear quick-release skewer 32348601
• Wheel bags M40135
• Mavic brake pads for braking on a carbon brake track: HG/Sram/Mavic 120 131 01 or ED 120 132 01
• Valve extender 118 952 01
• Computer magnet M40540 (with front wheel)
• Multifunction adjustment wrench 325 423 01
• Yksion Pro SSC GripLink 23 mm front tubular (325 928 23)
• Yksion Pro SSC PowerLink 23 mm rear tubular (325 929 23)
• ED11 12D locking ring (with rear wheel ED11) 108 317 01
• User manual
• Sheet of Mavic stickers
Specific tool:
• Front bearing:
• Rear bearing:
Refer to the website for quick and convenient access to maintenance information
(replacement of an axle, bearings, free wheel, spokes, and rims)
www.tech-mavic.com
M40120
M40120
WHEEL REFERENCESWHEEL WEIGHT WITHOUT QUICK-RELEASE SKEWER
AND WITHOUT TUBULAR
Front
Rear M11
Rear ED11
520 g
680 g
665 g
Front
Rear M11
Rear ED 11
Pair M11
Pair ED11
356 491 10
356 492 11
356 493 12
356 494 14
356 495 14
6

329 857 01
M40078
351 173 01
308 700 01
330 000 01
308 701 01
M11: 308 711 01
ED11: 308 712 01
308 728 01
M40578
351 173 01 995 000 01
25
40,1
COSMIC CARBONE 40 (tubular version)
Use: for road bike use only. Any other use (such as on a tandem, cyclo-cross bike, or
off-road use...) is highly inadvisable, is the sole responsibility of the user and voids
the Mavic warranty.
Recommended maximum weight of the cyclist and equipment: 100 kg.
WHEEL BUILDING
FEATURES:
Black, swaged, bladed, straight pull steel spokes with integrated aluminum Fore
nipples
LACING PATTERN:
Front: radial
Rear: 2-crossed drive side, radial non-drive side
RIMS
HUBS MAINTENANCE: Clean with a dry cloth or soapy water if necessary.
Do not use a high-pressure washer.
When replacing the rear rim:
1. With the valve hole near you, the two raised indicator bumps must be to the right of the valve hole.
2. The first spoke to the right of the valve hole is a non-traction spoke and should be inserted in the drive side hub.
SALES REFERENCES
RECOMMENDED TYRE WIDTHØ VALVE HOLE
Dimensions: Ø 700 Tubular
Recommended tubular width: 19 to 32 mm
Ø: 6.5 mm
TENSION:
Front: 60 to 70 kg
Rear drive side: 100 to 110 kg
REFERENCES AND
LENGTHS:
Front and rear non-drive side:
Drive side:
366 451 01, length 272 mm (per 10, nipples included)
366 450 01, length 270 mm (per 10, nipples included)
ACCESSORIES MAINTENANCE
WHEELS SUPPLIED WITH:
• BR 601 front quick-release skewer M40149
• BR 601 rear quick-release skewer M40150
• Spoke wrench M40494 (with rear wheel)
• Wheel bags M40135
• Mavic brake pads for braking on a carbon brake track: HG/Sram/Mavic 120 131 01 or ED 120 132 01
• Computer magnet M40540 (with front wheel)
• Multifunction adjustment wrench 325 423 01
• Yksion Pro SSC GripLink 23 mm front tubular (325 928 23)
• Yksion Pro SSC PowerLink 23 mm rear tubular (325 929 23)
• ED11 12D locking ring (with rear wheel ED11) 108 317 01
• User manual
• Sheet of Mavic stickers
Specific tool:
• Front bearing:
• Rear bearing:
Refer to the website for quick and convenient access to maintenance information
(replacement of an axle, bearings, free wheel, spokes, and rims)
www.tech-mavic.com
M40120
M40120 & 351 266 01
WHEEL REFERENCESWHEEL WEIGHT WITHOUT QUICK-RELEASE SKEWER AND
WITHOUT TUBULAR
Front
Rear M11
Rear ED11
635 g
815 g
800 g
Front
Rear M11
Rear ED 11
Pair M11
Pair ED11
328 183 10
328 184 11
328 185 12
328 186 14
328 187 14
Front: 366 455 10
Rear: 366 456 13
7

18,9
40
329 857 01
M40078
351 173 01
308 700 01
330 000 01
308 701 01
M11: 308 711 01
ED11: 308 712 01
308 728 01
M40578
351 173 01 995 000 01
COSMIC CARBONE 40 (clincher version)
Use: for road bike use only. Any other use (such as on a tandem, cyclo-cross bike, or
off-road use...) is highly inadvisable, is the sole responsibility of the user and voids
the Mavic warranty.
Recommended maximum weight of the cyclist and equipment: 100 kg.
WHEEL REFERENCESWHEEL WEIGHT WITHOUT QUICK-RELEASE SKEWER AND
WITHOUT TYRE
WHEEL BUILDING
Front and rear non-drive side:
Drive side:
FEATURES:
Black, swaged, bladed, straight pull steel spokes with integrated aluminum Fore nipples
LACING PATTERN:
Front: radial
Rear: 2-crossed drive side, radial non-drive side
RIMS
HUBS MAINTENANCE: Clean with a dry cloth or soapy water if necessary.
Do not use a high-pressure washer.
SALES REFERENCES Front:
Rear:
329 782 10
329 782 13
RECOMMENDED TYRE WIDTHØ VALVE HOLE
Dimensions: ETRTO 622x13C
Recommended clincher width: 19 to 28 mm
Ø: 6.5 mm
TENSION:
Front: 90 to 100 kg
Rear drive side: 130 to 140 kg
REFERENCES AND
LENGTHS:
329 790 01, length 277 mm (per 10, integrated nipples)
329 789 01, length 275 mm (per 10, integrated nipples)
ACCESSORIES MAINTENANCE
WHEELS SUPPLIED WITH:
• BR 601 front quick-release skewer M40149
• BR 601 rear quick-release skewer M40150
• Spoke wrench M40494 (with rear wheel)
• Mavic brake pads for braking on a carbon brake track: HG/Sram/Mavic 120 131 01 or ED 120 132 01
• Yksion Pro SSC GripLink 23 mm front clincher (325 930 23)
• Yksion Pro SSC PowerLink 23 mm rear clincher (325 931 23)
• Mavic butyl inner tubes (127 385 01)
• ED11 12D locking ring (with rear wheel ED11) 108 317 01
• Technical manual
• Sheet of Mavic stickers
Specific tool:
• Front bearing:
• Rear bearing:
• Spoke wrench:
Refer to the website for quick and convenient access to maintenance information
(replacement of an axle, bearings, free wheel, spokes, and rims)
www.tech-mavic.com
M40120
M40120 & 351 266 01
M7/ 6 notches M40652
Front
Rear M11
Rear ED11
670 g
890 g
875 g
Front
Rear M11
Rear ED11
Pair M11
Pair ED11
359 914 10
359 915 11
359 916 12
359 917 14
359 918 14
When replacing the rear rim:
1. With the valve hole near you, the two raised indicator bumps must be to the right of the valve hole.
2. The first spoke to the right of the valve hole is a non-traction spoke and should be inserted in the drive side hub.
8

329 857 01
M40078
351 173 01
308 700 01
330 000 01
308 701 01
M11: 308 711 01
ED11: 308 712 01
308 728 01
M40578
351 173 01 995 000 01
10,3
18,6
52
COSMIC CARBONE SLS
Use: for road bike use only. Any other use (such as on a tandem, cyclo-cross bike, or
off-road use...) is highly inadvisable, is the sole responsibility of the user and voids
the Mavic warranty.
Recommended maximum weight of the cyclist and equipment: 100 kg.
WHEEL BUILDING
Front and rear non-drive side:
Drive side:
FEATURES:
Steel straight pull spokes with steel ABS type spoke nipples at the front and rear on non-drive side, and brass on
the drive side.
LACING PATTERN:
Front: radial
Rear: 2-crossed drive side, radial
non-drive side
RIMS
HUBS MAINTENANCE: Clean with a dry cloth or soapy water if necessary.
Do not use a high-pressure washer.
When replacing the rear rim:
1. The rib in the bottom of the rim must be placed on the drive side.
2. The first spoke to the right of the valve hole is a non-traction spoke and should be inserted in the drive side hub.
SALES REFERENCES
RECOMMENDED TYRE WIDTHØ VALVE HOLE
Dimensions: ETRTO 622x13C
Recommended clincher width: 19 to 28 mm
Ø: 6.5 mm
TENSION:
Front: 90 to 100 kg
Rear drive side: 120 to 130 kg
REFERENCES AND
LENGTHS:
366 445 01, length 289 mm (per 10, nipples included)
366 444 01, length 287 mm (per 10, nipples included)
ACCESSORIES MAINTENANCE
WHEELS SUPPLIED WITH:
• BR 301 front quick-release skewer M40149
• BR 301 rear quick-release skewer M40150
• Rim strip 18x622 (1 per wheel)
• Valve extender 118 952 01
• Multifunction adjustment wrench 325 423 01
• Yksion Pro White 23 mm front and rear clincher (328 351 23)
• Mavic butyl inner tubes (127 385 01)
• ED11 12D locking ring (with rear wheel ED11) 108 317 01
• Spoke wrench M40001
• User manual
• Sheet of Mavic stickers
Specific tool:
• Front bearing:
• Rear bearing:
• Spoke wrench:
Refer to the website for quick and convenient access to maintenance information
(replacement of an axle, bearings, free wheel, spokes, and rims)
www.tech-mavic.com
M40120
M40120 & 351 266 01
M40001
WHEEL REFERENCESWHEEL WEIGHT WITHOUT QUICK-RELEASE SKEWER AND
WITHOUT TYRE
Front
Rear M11
Rear ED11
765 g
945 g
930 g
Front
Rear M11
Rear ED11
Pair M11
Pair ED11
328 189 10
328 190 11
328 191 12
328 192 14
328 193 14
Front:
Rear:
120 171 10
120 171 13
9

M40318
99603801
99603701
12034401
M40318
99603801
99603701
12034401
99603901
M40578
99500001
M40067 308 711 01 M11
308 712 01 ED11
99603801
M40660
12034401
9,2
20,4
30,5
COSMIC ELITE S
Use: for road bike use only. Any other use (such as on a tandem, cyclo-cross bike, or
off-road use...) is highly inadvisable, is the sole responsibility of the user and voids
the Mavic warranty.
Recommended maximum weight of the cyclist and equipment: 100 kg.
WHEEL BUILDING
Front and rear non-drive side:
Drive side:
FEATURES:
Black, bladed, straight pull steel spokes with steel ABS type spoke nipples
LACING PATTERN:
Front: radial
Rear: 2-crossed drive side, radial non-drive side
RIMS
HUBS MAINTENANCE: Clean with a dry cloth or soapy water if necessary.
Do not use a high-pressure washer.
SALES REFERENCES
RECOMMENDED TYRE WIDTHØ VALVE HOLE
Dimensions: ETRTO 622x15C
Recommended clincher width: 19 to 32 mm
Ø: 6.5 mm
TENSION:
Front: 90 to 100 kg
Rear drive side: 150 to 160 kg
REFERENCES AND
LENGTHS:
366 448 01, length 276 mm (per 10, nipples included)
366 449 01, length 292mm (per 10, nipples included)
ACCESSORIES MAINTENANCE
WHEELS SUPPLIED WITH:
• BR 101 front quick-release skewer M40350
• BR 101 rear quick-release skewer M40351
• Rim strip 18x622 (1 per wheel)
• Yksion Comp 23 mm front and rear clincher (325 934 23)
• Mavic butyl inner tubes (127 385 01)
• ED11 12D locking ring (with rear wheel ED11) 108 317 01
• User manual
Specific tool:
• Front bearing:
• Rear bearing:
Refer to the website for quick and convenient access to maintenance information
(replacement of an axle, bearings, free wheel, spokes, and rims)
www.tech-mavic.com
M40373
M40373
WHEEL REFERENCESWHEEL WEIGHT WITHOUT QUICK-RELEASE SKEWER AND
WITHOUT TYRE
Front
Rear M11
Rear ED11
815 g
970 g
955 g
Front
Rear M11
Rear ED11
Pair M11
Pair ED11
328 205 10
328 206 11
328 207 12
328 208 14
328 209 14
Front and rear: 120 173 15
10

10846101
99603801
M40318
99603701
99500001
M40067
308 711 01 M11
308 712 01 ED11
99603801
M40660
10846101
99603901
M40578
21,3
8,4
21
AKSIUM S 14 (White and Red)
Use: for road bike use only. Any other use (such as on a tandem, cyclo-cross bike, or
off-road use...) is highly inadvisable, is the sole responsibility of the user and voids
the Mavic warranty.
Recommended maximum weight of the cyclist and equipment: 100 kg.
WHEEL BUILDING
Front and rear non-drive side:
Drive side:
FEATURES:
Black, bladed, straight pull steel spokes with steel ABS type spoke nipples
LACING PATTERN:
Front: radial
Rear: 2-crossed drive side, radial non-drive side
RIMS
HUBS MAINTENANCE: Clean with a dry cloth or soapy water if necessary.
Do not use a high-pressure washer.
SALES REFERENCES
RECOMMENDED TYRE WIDTHØ VALVE HOLE
Dimensions: ETRTO 622x15C
Recommended clincher width: 19 to 32 mm
Ø: 6.5 mm
TENSION:
Front: 100 to 110 kg
Rear drive side: 150 to 160 kg
REFERENCES AND
LENGTHS:
108 449 01, length 282 mm (per 10, nipples included)
108 450 01, length 298 mm (per 10, nipples included)
ACCESSORIES MAINTENANCE
WHEELS SUPPLIED WITH:
• BR 101 front quick-release skewer M40350
• BR 101 rear quick-release skewer M40351
• Rim strip 18x622 (1 per wheel)
• Aksion 23 front and rear clincher (White: 355 704 23 / Red: 355 706 23) or 25 (White: 355 707 23)
• ED11 12D locking ring (with rear wheel ED11) 108 317 01
• Mavic butyl inner tubes (127 385 01)
• User manual
Specific tool:
• Front bearing:
• Rear bearing:
Refer to the website for quick and convenient access to maintenance information
(replacement of an axle, bearings, free wheel, spokes, and rims)
www.tech-mavic.com
M40373
M40373
WHEEL REFERENCESWHEEL WEIGHT WITHOUT QUICK-RELEASE
SKEWER AND WITHOUT TYRE
Front
Rear M11
Rear ED11
800 g
950 g
935 g
Front
Rear M11
Rear ED11
Pair M11
Pair ED11
White: Front and rear: 308 608 15
Red: Front and rear: 308 609 15
WHITE 23 RED 23 WHITE 25
329 362 10 353 616 10 353 613 10
329 363 11 353 617 11 353 614 11
329 364 12 353 618 12 353 615 12
329 365 14 353 619 14 361 396 14
329 366 14 353 620 14 361 397 14
11

996 882 01
996 885 01
996 941 01
308 704 01
M40076
308 722 01
308 731 01 308 718 01
996 107 01
996 106 01
351 260 01
21,2
23,2
CROSSMAX SLR 650b (27.5)
Use: use only on a Cross-country or Cross-mountain MTB fitted with disc brakes.
Any other use (such as on a tandem, road bike, cyclo-cross bike, free-ride or
downhill bike…) is highly inadvisable, is the sole responsibility of the user and voids
the Mavic warranty.
Recommended maximum weight of the cyclist and equipment: 100 kg.
WHEEL BUILDING
Front:
Non-drive side:
Drive side:
FEATURES:
Black, bladed, straight pull Zircal spokes with integrated aluminum Fore nipples
LACING PATTERN:
Front: 2-cross lacing on both sides
Rear: Isopulse
RIMS
HUBS MAINTENANCE: Clean with a dry cloth or soapy water if necessary.
Do not use a high-pressure washer.
When replacing the front rim:
1. With the valve hole near you, the raised indicator bump must be to the right of the valve hole.
2. The spoke in the first hole to the right of the valve hole is a non-braking spoke and should be inserted in the disc side.
When replacing the rear rim:
1. With the valve hole near you, the two raised indicator bumps must be to the right of the valve hole.
2. The spoke in the first hole to the right of the valve hole should be introduced into the drive side in a hole marked on the hub.
SALES REFERENCES
RECOMMENDED TYRE WIDTHØ VALVE HOLE
Dimensions: ETRTO 584x19C
Recommended clincher width: 1.5” to 2.3”
Ø: 6.5 mm
TENSION:
Front: 105 to 115 kg
Rear drive side: 105 to 115 kg
REFERENCES AND
LENGTHS:
366 749 01, length 274 mm (per 10 + 1 decorated, integrated nipples)
366 750 01, length 281.5 mm (per 10 + 1 decorated, integrated nipples)
366 751 01, length 251.5 mm, (per 10+1 decorated, integrated nipples)
ACCESSORIES MAINTENANCE
WHEELS SUPPLIED WITH:
• BX 601 rear quick-release M40141
• Mavic wheel bags 857 144 01
• 2 Removable round UST valves 129 838 01
• Front Adapters 15=>9 mm 996 941 01
• Rear Adapter 12=>9.5 mm 308 731 01
• Rear Adapters 12x142 mm 308 593 01
• Computer magnet M40540 (with front wheel)
• Multifunction adjustment wrench 325 423 01
• 2 sets of specific disc screws (6 screws per set) 308 719 01
• User manual
• Sheet of Mavic stickers
Specific tool:
• Front bearing:
• Rear bearing:
• Spoke wrench:
Refer to the website for quick and convenient access to maintenance information
(replacement of an axle, bearings, free wheel, spokes, and rims)
www.tech-mavic.com
996 887 01
M40119
996 079 01
WHEEL REFERENCESWHEEL WEIGHT WITHOUT QUICK-RELEASE SKEWER
Front:
Rear:
710 g
830 g
Front:
Rear:
Pair:
356 026 10
356 027 13
356 028 14
Front:
Rear:
366 925 10
366 926 13
INTERNATIONAL
STANDARD
12

996 941 01
996 883 01
996 886 01
308 731 01
308 722 01
M40076
308 704 01
351 260 01
996 107 01
996 106 01
308 718 01
21,2
23,2

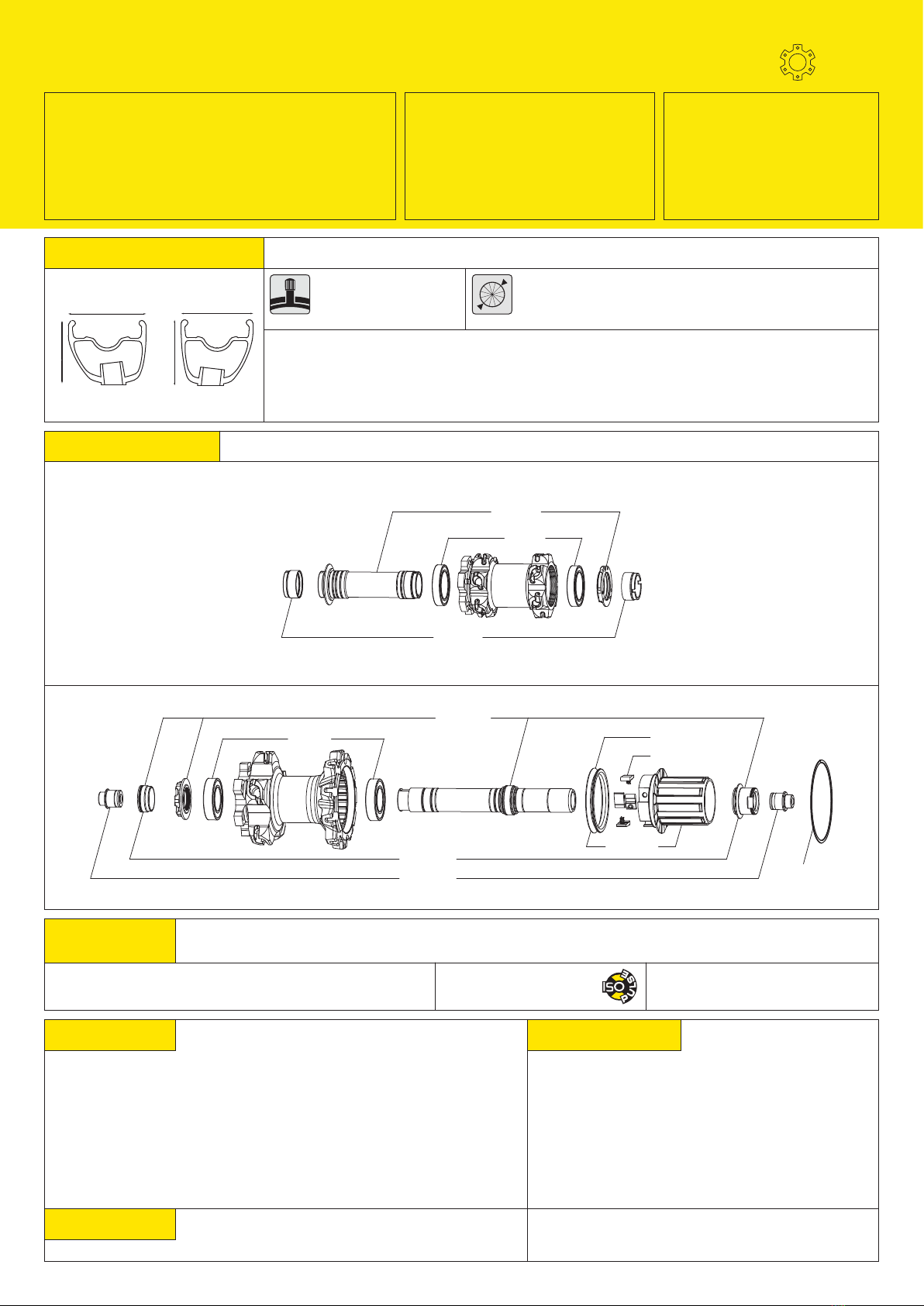

CROSSMAX SLR 650b(27.5) Center-Lock
Use: use only on a Cross-country or Cross-mountain MTB fitted with disc brakes.
Any other use (such as on a tandem, road bike, cyclo-cross bike, free-ride or
downhill bike…) is highly inadvisable, is the sole responsibility of the user and voids
the Mavic warranty.
Recommended maximum weight of the cyclist and equipment: 100 kg.
WHEEL BUILDING
Front:
Non-drive side:
Drive side:
FEATURES:
Black, bladed, straight pull Zircal spokes with integrated aluminum Fore nipples
LACING PATTERN:
Front: 2-cross lacing on both sides
Rear: Isopulse
RIMS
HUBS MAINTENANCE: Clean with a dry cloth or soapy water if necessary.
Do not use a high-pressure washer.
When replacing the front rim:
1. With the valve hole near you, the raised indicator bump must be to the right of the valve hole.
2. The spoke in the first hole to the right of the valve hole is a non-braking spoke and should be inserted in the disc side.
When replacing the rear rim:
1. With the valve hole near you, the two raised indicator bumps must be to the right of the valve hole.
2. The spoke in the first hole to the right of the valve hole should be introduced into the drive side in a hole marked on the hub.
SALES REFERENCES
RECOMMENDED TYRE WIDTHØ VALVE HOLE
Dimensions: ETRTO 584x19C
Recommended clincher width: 1.5” to 2.3”
Ø: 6.5 mm
TENSION:
Front: 105 to 115 kg
Rear drive side: 105 to 115 kg
REFERENCES AND
LENGTHS:
366 749 01, length 274 mm (per 10+1 decorated, integrated nipples)
366 750 01, length 281.5 mm (per 10 + 1 decorated, integrated nipples)
366 751 01, length 251.5 mm, (per 10+1 decorated, integrated nipples)
ACCESSORIES MAINTENANCE
WHEELS SUPPLIED WITH:
• BX 601 rear quick-release M40141
• Mavic wheel bags 857 144 01
• 2 Removable round UST valves 129 838 01
• Front Adapters 15=>9 mm 996 941 01
• Rear Adapter 12=>9.5 mm 308 731 01
• Rear Adapters 12x142 mm 308 593 01
• Multifunction adjustment wrench 325 423 01
• User manual
• Sheet of Mavic stickers
Specific tool:
• Front bearing:
• Rear bearing:
• Spoke wrench:
Refer to the website for quick and convenient access to maintenance information
(replacement of an axle, bearings, free wheel, spokes, and rims)
www.tech-mavic.com
M40119 & M40218
M40119
996 079 01
WHEEL REFERENCESWHEEL WEIGHT WITHOUT QUICK-RELEASE SKEWER
Front:
Rear:
710 g
830 g
Front:
Rear:
Pair:
356 032 10
356 033 13
356 034 14
Front:
Rear:
366 925 10
366 926 13
CENTER-LOCK
13

367 09 301
M40771
308 704 01
M40076
308 722 01
308 731 01 308 718 01
996 107 01
996 106 01
351 260 01
21,2
23,2

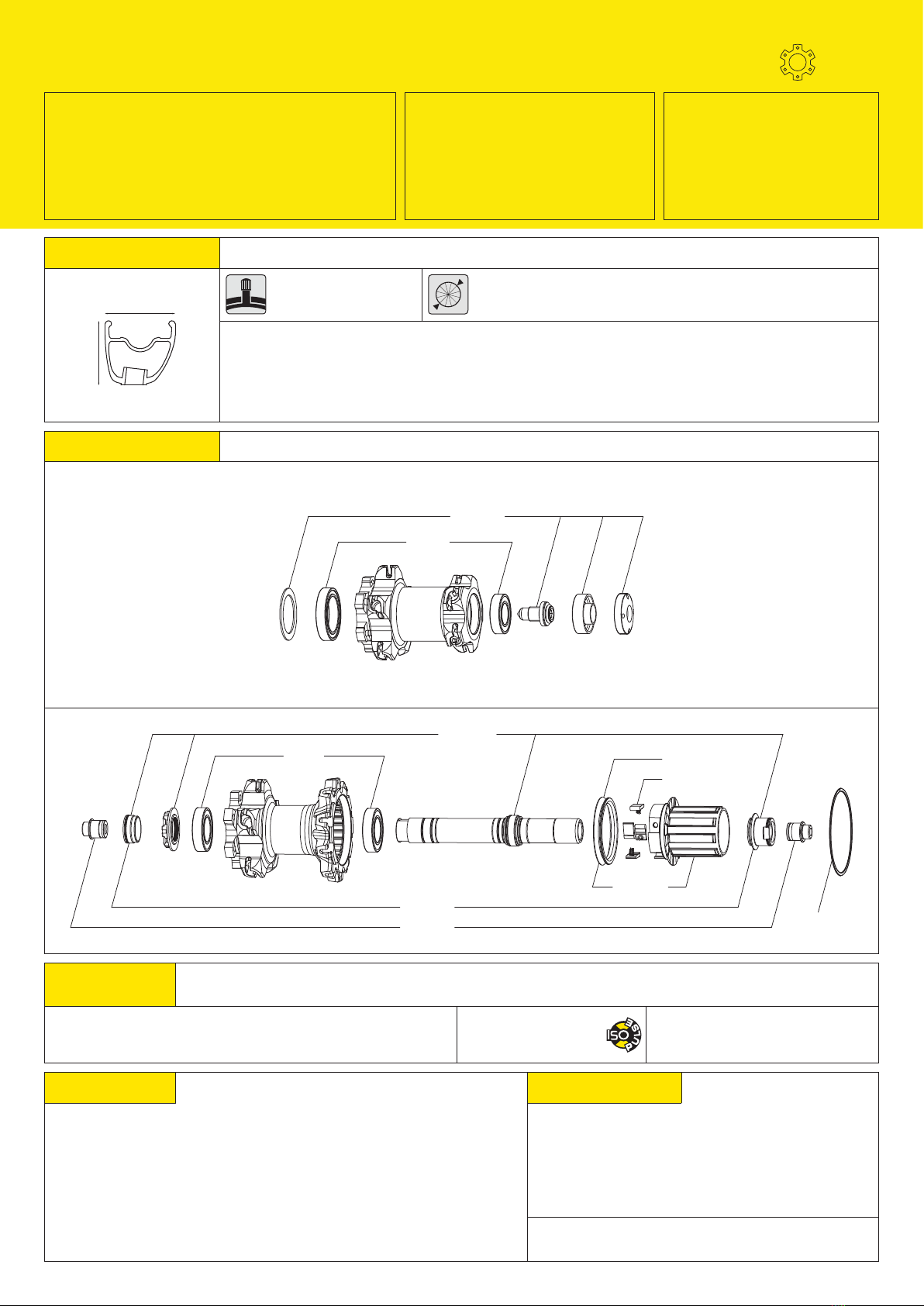

CROSSMAX SLR 650b (27.5) Lefty
Use: use only on a Cross-country or Cross-mountain MTB fitted with disc brakes.
Any other use (such as on a tandem, road bike, cyclo-cross bike, free-ride or
downhill bike…) is highly inadvisable, is the sole responsibility of the user and voids
the Mavic warranty.
Recommended maximum weight of the cyclist and equipment: 100 kg.
WHEEL BUILDING
Front:
Non-drive side:
Drive side:
FEATURES:
Black, bladed, straight pull Zircal spokes with integrated aluminum Fore nipples
LACING PATTERN:
Front: 2-cross lacing on both sides
Rear: Isopulse
RIMS
HUBS MAINTENANCE: Clean with a dry cloth or soapy water if necessary.
Do not use a high-pressure washer.
When replacing the front rim:
1. With the valve hole near you, the raised indicator bump must be to the right of the valve hole.
2. The spoke in the first hole to the right of the valve hole is a non-braking spoke and should be inserted in the disc side.
When replacing the rear rim:
1. With the valve hole near you, the two raised indicator bumps must be to the right of the valve hole.
2. The spoke in the first hole to the right of the valve hole should be introduced into the drive side in a hole marked on the hub.
SALES REFERENCES
RECOMMENDED TYRE WIDTHØ VALVE HOLE
Dimensions: ETRTO 584x19C
Recommended clincher width: 1.5” to 2.3”
Ø: 6.5 mm
TENSION:
Front: 105 to 115 kg
Rear drive side: 105 to 115 kg
REFERENCES AND
LENGTHS:
366 749 01, length 274 mm (per 10+1 decorated, integrated nipples)
366 750 01, length 281.5 mm (per 10 + 1 decorated, integrated nipples)
366 751 01, length 251.5 mm (per 10 + 1 decorated, integrated nipples)
ACCESSORIES MAINTENANCE
WHEELS SUPPLIED WITH:
• BX 601 rear quick-release M40141
• Mavic wheel bags 857 144 01
• 2 Removable round UST valves 129 838 01
• Rear Adapter 12=>9.5 mm 308 731 01
• Rear Adapters 12x142 mm 308 593 01
• Computer magnet M40540 (with front wheel)
• Multifunction adjustment wrench 325 423 01
• Lefty assembly accessories M40777
• 2 sets of specific disc screws (6 screws per set) 308 719 01
• User manual
• Sheet of Mavic stickers
Specific tool:
• Front bearing:
• Rear bearing:
• Spoke wrench:
Refer to the website for quick and convenient access to maintenance information
(replacement of an axle, bearings, free wheel, spokes, and rims)
www.tech-mavic.com
996 887 01 & M40218
M40119
996 079 01
CANNONDALE OEMWHEEL WEIGHT WITHOUT QUICK-RELEASE SKEWER
Front:
Rear:
710 g
830 g
Front: 366 925 10
Rear: 366 926 13
INTERNATIONAL
STANDARD
14

367 09 301
M40771
308 731 01
308 722 01
M40076
308 704 01
351 260 01
996 107 01 996 106 01
308 718 01
21,2
23,2

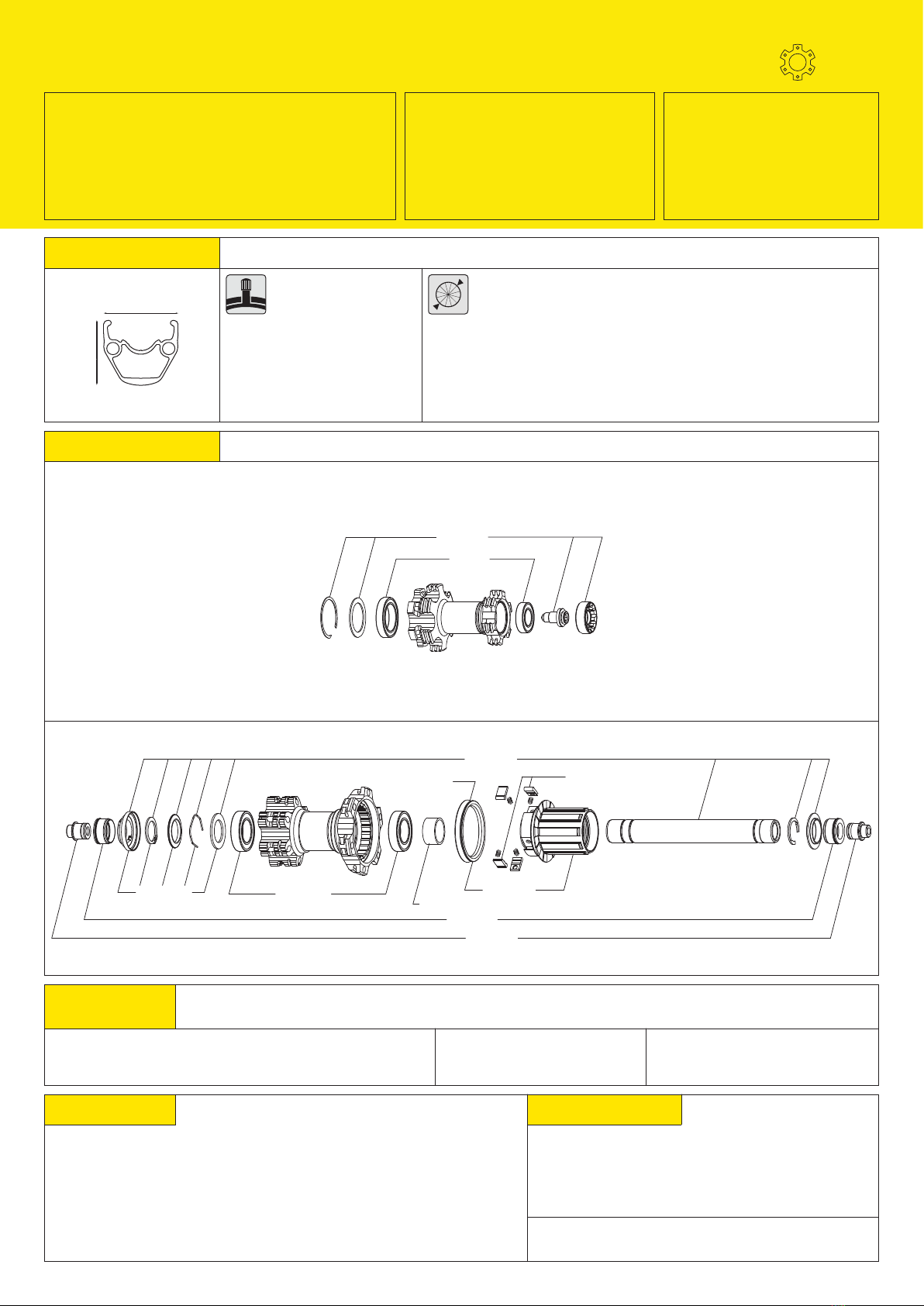

CROSSMAX ST 29 Lefty
Use: use only on a Cross-country or Cross-mountain MTB fitted with disc brakes.
Any other use (such as on a tandem, road bike, cyclo-cross bike, free-ride or
downhill bike…) is highly inadvisable, is the sole responsibility of the user and voids
the Mavic warranty.
Recommended maximum weight of the cyclist and equipment: 100 kg.
WHEEL BUILDING
Front:
Drive side:
Non-drive side:
FEATURES:
Black, round, straight pull Zircal spokes with integrated aluminum Fore nipples
LACING PATTERN:
Front: 2-cross lacing on both sides
Rear: Isopulse
RIMS
HUBS MAINTENANCE: Clean with a dry cloth or soapy water if necessary.
Do not use a high-pressure washer.
When replacing the front rim:
1. With the valve hole near you, the raised indicator bump must be to the right of the valve hole.
2. The spoke in the first hole to the right of the valve hole is a non-braking spoke and should be inserted in the disc side.
When replacing the rear rim:
1. With the valve hole near you, the two raised indicator bumps must be to the right of the valve hole.
2. The spoke in the first hole to the right of the valve hole should be introduced into the drive side in a hole marked on the hub.
SALES REFERENCES
RECOMMENDED TYRE WIDTHØ VALVE HOLE
Dimensions: ETRTO 622x19C
Recommended clincher width: 1.5” to 2.3”
Ø: 6.5 mm
TENSION:
Front: 110 to 125 kg
Rear drive side: 110 to 125 kg
REFERENCES AND
LENGTHS:
351 175 01, length 292.5 mm (per 12 + 1 decorated, integrated nipples)
351 176 01, length 270.5 mm (per 10 + 1 decorated, integrated nipples)
351 179 01, length 300.5 mm (per 10, integrated nipples)
ACCESSORIES MAINTENANCE
WHEELS SUPPLIED WITH:
• BX 601 rear quick-release M40141
• 2 Removable round UST valves 129 838 01
• Rear Adapter 12=>9.5 mm 308 731 01
• Rear Adapters 12x142 mm 308 593 01
• Computer magnet M40540 (with front wheel)
• Multifunction adjustment wrench 325 423 01
• Lefty assembly accessories M40777
• 2 sets of specific disc screws (6 screws per set) 308 719 01
• User manual
• Sheet of Mavic stickers
Specific tool:
• Front bearing:
• Rear bearing:
• Spoke wrench:
Refer to the website for quick and convenient access to maintenance information
(replacement of an axle, bearings, free wheel, spokes, and rims)
www.tech-mavic.com
996 887 01 & M40218
M40119
996 079 01
CANNONDALE OEMWHEEL WEIGHT WITHOUT QUICK-RELEASE SKEWER
Front:
Rear:
825 g
885 g
Front: 351 174 10
Rear: 351 174 13
INTERNATIONAL
STANDARD
15

M40179
308 705 01
129 829 01
308 704 01
M40076
308 722 01
308 731 01 308 718 01
996 107 01
996 106 01
351 260 01
26
21,2
21,2
23,2
CROSSMAX ENDURO WTS 26
Use: use only on a Cross-country or Cross-mountain MTB fitted with disc brakes.
Any other use (such as on a tandem, road bike, cyclo-cross bike, free-ride or
downhill bike…) is highly inadvisable, is the sole responsibility of the user and voids
the Mavic warranty.
Recommended maximum weight of the cyclist and equipment: 100 kg.
WHEEL BUILDING
Front:
Drive side:
Non-drive side:
FEATURES:
Bladed, straight pull Zircal spokes with integrated aluminum Fore nipples
LACING PATTERN:
Front: 2-cross lacing on both sides
Rear: Isopulse
RIMS
HUBS MAINTENANCE: Clean with a dry cloth or soapy water if necessary.
Do not use a high-pressure washer.
SALES REFERENCES
RECOMMENDED TYRE WIDTHØ VALVE HOLE
Dimensions: Front ETRTO 559x21C and Rear ETRTO 559x19C
Recommended clincher width: Front: 2.1” to 2.5”
Rear: 1.5” to 2.3”
Ø: 6.5 mm
TENSION:
Front: 105 to 125 kg
Rear drive side: 105 to 125 kg
REFERENCES AND
LENGTHS:
366 468 01, length 261.5 mm (per 11 + 1 decorated, integrated nipples)
366 472 01, length 239 mm (per 9 + 1 decorated, integrated nipples)
366 471 01, length 269 mm (per 10, integrated nipples)
ACCESSORIES MAINTENANCE
WHEELS SUPPLIED WITH:
• BX 601 rear quick-release M40141
• 2 Removable round UST valves 129 838 01
• Front Adapters 15 mm 129 828 01
• Front Adapters 20mm 129 829 01
• Rear Adapter 12=>9.5 mm 308 731 01
• Rear Adapters 12x142 mm 308 593 01
• Multifunction adjustment wrench 325 423 01
• Crossmax Charge front clincher 26x2.40 (356 296 24)
• Crossmax Roam XL rear clincher 26x2.30 (356 297 23)
• 2 sets of specific disc screws (6 screws per set) 308 719 01
• User manual
• Sheet of Mavic stickers
Specific tool:
• Front bearing:
• Rear bearing:
• Spoke wrench:
Refer to the website for quick and convenient access to maintenance information
(replacement of an axle, bearings, free wheel, spokes, and rims)
www.tech-mavic.com
M40119 & M40218
M40119
996 079 01
REFERENCESWHEEL WEIGHT WITHOUT QUICK-RELEASE SKEWER
AND WITHOUT TYRE
Front:
Rear:
825 g
835 g
Front:
Rear:
Pair:
355 217 10
355 218 13
355 219 14
Front: 366 460 10
Rear: 366 467 13
INTERNATIONAL
STANDARD
When replacing the front rim:
1. With the valve hole near you, the raised indicator bump must be to the right of the valve hole.
2. The spoke in the first hole to the right of the valve hole is a non-braking spoke and should be inserted in the disc side.
When replacing the rear rim:
1. With the valve hole near you, the two raised indicator bumps must be to the right of the valve hole.
2. The spoke in the first hole to the right of the valve hole should be introduced into the drive side in a hole marked on the hub.
OPTIONS
• Front Adapters 9 mm + quick-release skewer: 129 827 01
16

M40179
308 705 01
129 829 01
308 704 01
M40076
308 722 01
308 731 01 308 718 01
996 107 01
996 106 01
351 260 01
26
21,2
21,2
23,2
CROSSMAX ENDURO WTS 650b(27.5)
Use: use only on a Cross-country or Cross-mountain MTB fitted with disc brakes.
Any other use (such as on a tandem, road bike, cyclo-cross bike, free-ride or
downhill bike…) is highly inadvisable, is the sole responsibility of the user and voids
the Mavic warranty.
Recommended maximum weight of the cyclist and equipment: 100 kg.
WHEEL BUILDING
Front:
Drive side:
Non-drive side:
FEATURES:
Bladed, straight pull Zircal spokes with integrated aluminum Fore nipples
LACING PATTERN:
Front: 2-cross lacing on both sides
Rear: Isopulse
RIMS
HUBS MAINTENANCE: Clean with a dry cloth or soapy water if necessary.
Do not use a high-pressure washer.
When replacing the front rim:
1. With the valve hole near you, the raised indicator bump must be to the right of the valve hole.
2. The spoke in the first hole to the right of the valve hole is a non-braking spoke and should be inserted in the disc side.
When replacing the rear rim:
1. With the valve hole near you, the two raised indicator bumps must be to the right of the valve hole.
2. The spoke in the first hole to the right of the valve hole should be introduced into the drive side in a hole marked on the hub.
SALES REFERENCES
RECOMMENDED TYRE WIDTHØ VALVE HOLE
Dimensions: Front ETRTO 584x21C and Rear ETRTO 584x19C
Recommended clincher width: Front: 2.1” to 2.5”
Rear: 1.5” to 2.3”
Ø: 6.5 mm
TENSION:
Front: 105 to 125 kg
Rear drive side: 105 to 125 kg
REFERENCES AND
LENGTHS:
366 749 01, length 274 mm (per 11 + 1 decorated, integrated nipples)
366 751 01, length 251.5 mm (per 9 + 1 decorated, integrated nipples)
366 750 01, length 281.5 mm (per 10, integrated nipples)
ACCESSORIES MAINTENANCE
WHEELS SUPPLIED WITH:
• BX 601 rear quick-release M40141
• 2 Removable round UST valves 129 838 01
• Front Adapters 15 mm 129 828 01
• Front Adapters 20mm 129 829 01
• Rear Adapter 12=>9.5 mm 308 731 01
• Rear Adapters 12x142 mm 308 593 01
• Multifunction adjustment wrench 325 423 01
• Crossmax Charge front clincher 27.5x2.40 (356 364 24)
• Crossmax Roam XL rear clincher 27.5x2.20 (356 365 22)
• 2 sets of specific disc screws (6 screws per set) 308 719 01
• User manual
• Sheet of Mavic stickers
Specific tool:
• Front bearing:
• Rear bearing:
• Spoke wrench:
Refer to the website for quick and convenient access to maintenance information
(replacement of an axle, bearings, free wheel, spokes, and rims)
www.tech-mavic.com
M40119 & M40218
M40119
996 079 01
REFERENCESWHEEL WEIGHT WITHOUT QUICK-RELEASE SKEWER
AND WITHOUT TYRE
Front:
Rear:
850 g
860 g
Front:
Rear:
Pair:
356 087 10
356 088 13
356 089 14
Front: 366 923 10
Rear: 366 924 13
INTERNATIONAL
STANDARD
OPTIONS
• Front Adapters 9 mm + quick-release skewer: 129 827 01
17

108 462 01
108 473 01
996 885 01
351 263 01
308 731 01
351 182 01
996 106 01
996 107 01
351 245 01
351 247 01
351 246 01
329 650 01
21,2
23,9
CROSSROC WTS 26
Use: use only on a Cross-country or Cross-mountain MTB fitted with disc brakes.
Any other use (such as on a tandem, road bike, cyclo-cross bike, free-ride or
downhill bike…) is highly inadvisable, is the sole responsibility of the user and voids
the Mavic warranty.
Recommended maximum weight of the cyclist and equipment: 100 kg.
WHEEL BUILDING
Front and rear non-drive side:
Drive side:
FEATURES:
Black, swaged, bladed, straight pull steel spokes with steel ABS type spoke nipples
LACING PATTERN:
Front and rear: 2-cross lacing on both sides
RIMS
HUBS MAINTENANCE: Clean with a dry cloth or soapy water if necessary.
Do not use a high-pressure washer.
SALES REFERENCES
RECOMMENDED TYRE WIDTHØ VALVE HOLE
Dimensions: ETRTO 559x19C
Recommended clincher width: 1.5” to 2.3”
Ø: 6.5 mm
TENSION:
Front: 105 to 120 kg
Rear drive side: 105 to 120 kg
REFERENCES AND
LENGTHS:
366 752 01, length 263 mm (per 12, nipples included)
366 753 01, length 261 mm (per 12, nipples included)
ACCESSORIES MAINTENANCE
WHEELS SUPPLIED WITH:
• BR 101 rear quick-release skewer M40351
• Tubeless rim strip 19x559 (1 per wheel): 359 936 01
• 2 Removable round UST valves 129 838 01
• Rear Adapter 12=>9.5 mm 308 731 01
• Crossroc Roam front and rear clincher 26x2.30 (356 295 23)
• User manual
Specific tool:
• Front bearing:
• Rear bearing:
Refer to the website for quick and convenient access to maintenance information
(replacement of an axle, bearings, free wheel, spokes, and rims)
www.tech-mavic.com
108 850 01 & 996 887 01
M40119
WHEEL REFERENCESWHEEL WEIGHT WITHOUT QUICK-RELEASE SKEWER
AND WITHOUT TYRE
Front:
Rear:
815 g
940 g
Front and rear: 366 927 15
INTERNATIONAL
STANDARD
OPTIONS
• Front Adapters 9 mm + quick-release skewer: 996 941 01
Front:
Rear:
Pair:
354 010 10
354 011 13
354 012 14
18

108 462 01
108 473 01
996 885 01
351 263 01
308 731 01
351 182 01
996 106 01
996 107 01
351 245 01
351 247 01
351 246 01
329 650 01
21,2
23,9
CROSSROC WTS 650b (27.5)
Use: use only on a Cross-country or Cross-mountain MTB fitted with disc brakes.
Any other use (such as on a tandem, road bike, cyclo-cross bike, free-ride or
downhill bike…) is highly inadvisable, is the sole responsibility of the user and voids
the Mavic warranty.
Recommended maximum weight of the cyclist and equipment: 100 kg.
WHEEL BUILDING
Front and rear non-drive side:
Drive side:
FEATURES:
Black, swaged, bladed, straight pull steel spokes with steel ABS type spoke nipples
LACING PATTERN:
Front and rear: 2-cross lacing on both sides
RIMS
HUBS MAINTENANCE: Clean with a dry cloth or soapy water if necessary.
Do not use a high-pressure washer.
SALES REFERENCES
RECOMMENDED TYRE WIDTHØ VALVE HOLE
Dimensions: ETRTO 584x19C
Recommended clincher width: 1.5” to 2.3”
Ø: 6.5 mm
TENSION:
Front: 105 to 120 kg
Rear drive side: 105 to 120 kg
REFERENCES AND
LENGTHS:
366 892 01, length 277 mm (per 12, nipples included)
366 893 01, length 275 mm (per 12, nipples included)
ACCESSORIES MAINTENANCE
WHEELS SUPPLIED WITH:
• BR 101 rear quick-release skewer M40351
• Tubeless rim strip 19x584 (1 per wheel): 359 937 01
• 2 Removable round UST valves 129 838 01
• Rear Adapter 12=>9.5 mm 308 731 01
• Valve reduction M40381
• Crossroc Roam front and rear clincher 27.5x2.20 (356 289 22)
• User manual
Specific tool:
• Front bearing:
• Rear bearing:
Refer to the website for quick and convenient access to maintenance information
(replacement of an axle, bearings, free wheel, spokes, and rims)
www.tech-mavic.com
108 850 01 & 996 887 01
M40119
WHEEL REFERENCESWHEEL WEIGHT WITHOUT QUICK-RELEASE SKEWER
AND WITHOUT TYRE
Front:
Rear:
855 g
970 g
Front:
Rear:
Pair:
353 075 10
353 076 13
353 077 14
Front and rear: 366 928 15
INTERNATIONAL
STANDARD
OPTIONS
• Front Adapters 9 mm + quick-release skewer: 996 941 01
19

367 09 301
M40771
351 263 01
308 731 01
351 182 01
996 106 01
996 107 01
351 245 01
351 247 01
351 246 01
329 650 01
21,2
23,9
CROSSROC WTS 650b (27.5) Lefty Supermax
Use: use only on a Cross-country or Cross-mountain MTB fitted with disc brakes.
Any other use (such as on a tandem, road bike, cyclo-cross bike, free-ride or
downhill bike…) is highly inadvisable, is the sole responsibility of the user and voids
the Mavic warranty.
Recommended maximum weight of the cyclist and equipment: 100 kg.
WHEEL BUILDING
Front:
Drive side:
Non-drive side:
FEATURES:
Black, swaged, bladed, straight pull steel spokes with steel ABS type spoke nipples
LACING PATTERN:
Front and rear: 2-cross lacing on both sides
RIMS
HUBS MAINTENANCE: Clean with a dry cloth or soapy water if necessary.
Do not use a high-pressure washer.
SALES REFERENCES
RECOMMENDED TYRE WIDTHØ VALVE HOLE
Dimensions: ETRTO 584x19C
Recommended clincher width: 1.5” to 2.3”
Ø: 6.5 mm
TENSION:
Front: 105 to 120 kg
Rear drive side: 105 to 120 kg
REFERENCES AND
LENGTHS:
366 894 01, length 282 mm (per 12, nipples included)
366 893 01, length 275 mm (per 12, nipples included)
336 892 01, length 277 mm (per 12, nipples included)
ACCESSORIES MAINTENANCE
WHEELS SUPPLIED WITH:
• BR 101 rear quick-release skewer M40351
• Tubeless rim strip 19x584 (1 per wheel): 359 937 01
• 2 Removable round UST valves 129 838 01
• Rear Adapter 12=>9.5 mm 308 731 01
• Valve reduction M40381
• Crossroc Roam front and rear clincher 27.5x2.20 (356 289 22)
• Lefty assembly accessories M40777
• User manual
Specific tool:
• Front bearing:
• Rear bearing:
Refer to the website for quick and convenient access to maintenance information
(replacement of an axle, bearings, free wheel, spokes, and rims)
www.tech-mavic.com
996 887 01 & M40218
M40119
CANNONDALE OEMWHEEL WEIGHT WITHOUT QUICK-RELEASE SKEWER
AND WITHOUT TYRE
Front:
Rear:
855 g
970 g
Front and rear: 366 928 15
INTERNATIONAL
STANDARD
20
