Max-Ability PRESSALIT 1000 User manual

Showering table 1000 – Operation and maintenance manual en
www.max-ability.com
Pressalit 1000
User Manual
Height Adjustable
Changing Table
R8402 (Child Size)
R8403 (Adult Size)
MAX-Ability, Inc.
800.577.1555 [email protected]

www.max-ability.com
For more information about this product, click here or go to
max-ability.com/product/pc-1000-adult-changing-table/
The guarantee covers faults or defects in material or manufacture within a period
of 5 years. Products are subject to minor technical modifications and design
deviations. E.&O.E.
800.577.1555 [email protected]

3
en
Content
Mounting instruction ..................................................3
Operational signage ...................................................3
Symbols used in this manual............................................4
Specific safety .........................................................4
General safety .........................................................5
Product label..........................................................6
Intended use ..........................................................8
Intended operator profile ..........................................8
Intended user profile . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Operating environment............................................8
Versions ..............................................................9
Operating instructions ................................................10
Height adjustment....................................................11
Cleaning.............................................................12
Disinfection .....................................................12
Maintenance.........................................................13
Maintenance inspection ..........................................13
Trouble-shooting .....................................................15
Technical data........................................................16
Dimensions (mm) ....................................................17
Dimensions (inches) ..................................................18
Disposal and recycling ................................................19
Mounting instruction
A mounting instruction is included with the product. It can also
be downloaded from www.pressalit.com.
Operational signage
An operational signage is included with the product. It can also
be downloaded from www.pressalit.com.
800.577.1555 [email protected]
www.max-ability.com

en
Symbols used in this manual
The following symbols are used in this manual as well as the associated
documentation supplied with the product.
!WARNING
WARNING indicates a potentially hazardous situation which, if not
avoided, could result in death or serious injury.
!CAUTION
CAUTION indicates a potentially hazardous situation which, if not avoided,
may result in minor or moderate injury. It may also be used to alert against
unsafe practices.
IMPORTANT
IMPORTANT indicates important information about handling and use of
the product.
NOTICE
NOTICE is used to address practices not related to personal safety.
Hand injury
warning
Electricity or potentially
dangerous voltage.
Head injury warning.
Specific safety
!CAUTION
•
•
800.577.1555 [email protected]
Never leave a person lying on the changing table without supervision.
Always be careful when moving a person to and from the table.
www.max-ability.com

5
en
!CAUTION
• Please comply with these instructions to avoid the product becoming
damaged or destroyed.
• Do not perform repairs, disassembly, or assembly operations,
extensions, re-adjustments or modifications to this product. These
must be carried out by Pressalit or by persons authorized by Pressalit
only.
• Never allow children to operate this product unless under supervision.
The product is not intended for play.
• Never use the product if it is defective or damaged. Do not use a
defective product before it has been repaired.
General safety
!WARNING
• Read and understand the manual completely before use. Keep the
manual close to the unit.
• Comply with this manual to avoid accidents involving serious personal
injury.
• Never use or handle this product in other ways than are specified in
this manual, as this can put your safety at risk and cause damage to the
product.
• Make sure that everyone who is to install or use the product and its
systems has the necessary information and access to this manual.
NOTICE
• The information in this manual is based on correct fitting of the
product in accordance with our Assembly instruction.
• Pressalit cannot be held liable if the product is used in any way which
differs from that described in the guide.
• We reserve the right to amend this manual without prior notice.
800.577.1555 [email protected]
www.max-ability.com

6
en
⑩ ⑪ ⑫ ⑬ ⑭
⑮
⑯
⑰
⑱
⑲
①
②
③
④
⑤ ⑥ ⑦ ⑧ ⑨
2
min
18
min
Pressalit A/S, Pressalitvej 1 DK-8680 Ry
[phone], www.pressalit.com
REF
YYYY-MM-DD XXX V
XX-XX Hz
IPXX
XX WRZZZZYYYXXX-X
xxx kg
xxx lbs xxx kg xxx lbs xxx kg
xxx lbs
(01)0XXXXXXXXXXXXX(10)YYMMDD
①Article number
②Production date
③Maximum user weight
④Consult manual for use
⑤Safe working load
⑥Mains voltage
⑦Frequency
Product label
800.577.1555 [email protected]
www.max-ability.com

7
en
⑧Maximum power consumption
⑨IP class
⑩Name and address of manufacturer
⑪Consult manual for use
⑫Consult the manual for important cautionary information such as
warnings and precautions.
⑬Duty cycle. The motor on height-adjustable products can be used
for a maximum of 2 minutes of continuous operation, followed by
18 minutes pause.
⑭Type B applied part Part of the product in normal use necessarily
comes into physical contact with the patient to perform its function
The product complies with requirements of IEC 60601-1 to provide
protection against electric shock.
⑮GS1-128 barcode
⑯Product weight
⑰Do not dispose as unsorted municipal waste. The product should
be collected separately and returned to the designated recycling
service.
⑱This product does not contain any of the hazardous substances
mentioned in the Council Directive 2011/65/EC on RoHS.
⑲This product is CE-marked in accordance with the European
Medical Device Directive 93/42/EEC, including amendments
incorporated in Directive 2007/47/EEC. It also complies with all
relevant requirements in the Council Directive 2006/42/EC (of 17
May 2006) on machinery and with Council Directive 2011/65/EC
(of 8 June 2011) on RoHS. A declaration of conformity can be found
at www.pressalitcare.com.
800.577.1555 [email protected]

8
en
Product label placement ①.
NOTICE
If the product is installed in an atmosphere heavy in salt or chloride, the
warranty will be reduced from the normal 3 years to 1 year.
Salt and chloride have a corrosive effect on the products components and
will cause a decrease in the life expectancy of the product. The damaging
effects can, however, be reduced if the product is showered with tap water
on a daily basis.
Intended use
This product is intended for bathing a person who is unable to stand up or sit
down. The person is lying horizontally on the shower table.
Intended operator profile
The product is to be used by personnel trained in health care and trained in
washing a person in their care.
Intended user profile
The product can be used by all - adults, children, young, old, whose weight
does not exceed the maximum load of 150 kg / 330 lbs.
Operating environment
For indoor use in a wet environment, such as a bathroom or wash room.
The product is intended to be used at room temperature, in private homes,
nursing homes and hospitals under normal working conditions.
1
800.577.1555 [email protected]

9
en

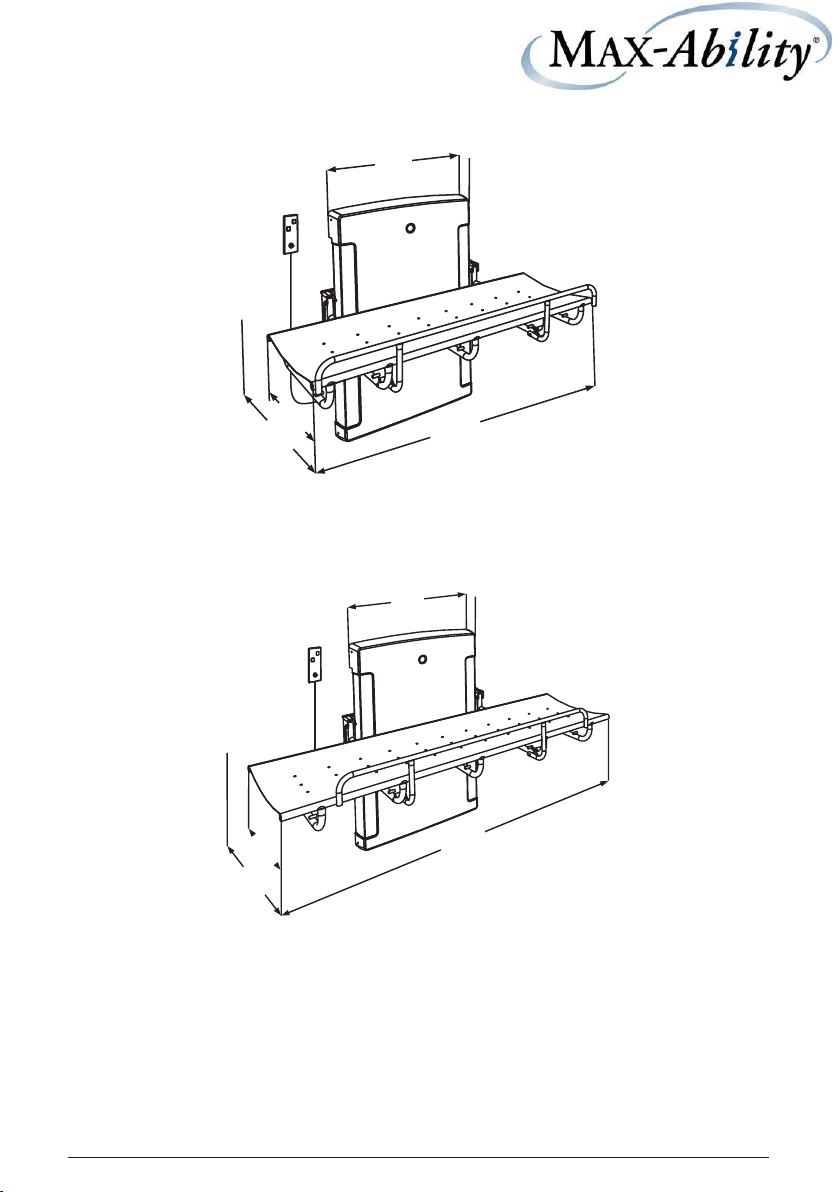

Versions
R8402
R8403
800.577.1555 [email protected]
www.max-ability.com

10
en
Operating instructions
1
2
22
To pull the safety rail up: Swing
the rail upwards from under the
shower table. The safety rail will
automatically lock into position.
Support the shower table using your hand
or body when folding it down, to avoid the
risk of damage.
The built-in gas cylinders make it easy to
fold the shower table up against the wall
after use.
Take care to avoid injury to
hands when in the vicinity of
closing mechanical parts ①.
To fold the safety rail away: Release the two locks ②simultaneously and
swing the safety rail down under the shower table.
800.577.1555 [email protected]
www.max-ability.com

11
en
Height adjustment
When the shower table is installed at the
recommended height , it can be adjusted between
480 and 880 mm
( 18.9" and 34.6") above the floor.
The height adjustment is controlled by the wired
remote control unit.
Press and hold the Up button to raise the shower
table, and press and hold the Down button to lower
the shower table.
Make sure that there is no
objects under the shower table
when operating the height
adjustment system.
800.577.1555 [email protected]
www.max-ability.com

12
en
Cleaning
Clean the shower table after each use. Use ordinary soapy water. Rinse off
with fresh water and dry with a soft cloth.
IMPORTANT
• Do not use an autoclave or other type of steam cleaner.
• Avoid aggressive cleaning agents containing acids or chloride.
• Never spray the shower table directly with a high pressure cleaner.
• Avoid use of aggressive, abrasive, corrosive or chloride-based cleaning
or disinfecting products.
Disinfection
When using the shower table for multiple patients, it is necessary to both
clean and disinfect the shower table between uses on different patients to
prevent the risk of cross infection.
A list of suitable cleaning agents and disinfectants can be found at www.
pressalit.com
!CAUTION
Always read the material safety data sheet (MSDS) and supplied
instructions of the cleaning, disinfecting or de-scaling agent and comply
with instructions for safe use, dilution, rinsing, drying, handling and
storage of the agent.
800.577.1555 [email protected]
www.max-ability.com

13
en
Maintenance
Expected service life of the shower table is 10 years, provided that
maintenance is carried out as described below:
It is recommended on a weekly basis to run the motors on the product to their
maximum positions by raising the shower table to its full height, and then
lowering it to its lowest position, so that the internal parts are lubricated.
It is recommended that maintenance inspection is done once a year.
Disconnect mains before
removing the covers.
Maintenance inspection
• Check the hinges ①on the shower table and the safety rail ②. Tighten if
necessary.
• Check the canvas ③for damage and replace if necessary.
1
13
2
2
800.577.1555 [email protected]
www.max-ability.com

14
en
44
4
4
• Remove the upper and
lower retaining screws ④
on the cover and remove it
carefully.
• Check the wall brackets ⑤
and tighten if necessary.
• Oil moving parts,
especially the sliding
brackets ⑥.
• Check all electrical
connections to the control
box ⑦.
• Put the unit cover back
again and tighten the
retaining screws.
• Reconnect mains.
5
5
5
5
7
6
6
800.577.1555 [email protected]
www.max-ability.com

15
en
Trouble-shooting
Symptom Cause Action
does not stay in
upright position.
The gas cylinders is
defective. .
The product will not
work, even though
the remote control is
used correctly.
Fault in power supply. Check that all wires and
plugs are intact and
correctly connected.
.
runs up and down
unevenly.
The sliding brackets
are not properly
lubricated.
Oil the sliding brackets
as described under
“Maintenance”.
800.577.1555 [email protected]
www.max-ability.com
The changing table
The changing table
Contact MAX-Ability.
Contact MAX-Ability.
Verify your purchase details before carrying out repairs so you don’t void your warranty:
We guarantee all product components against manufacturing defects for five years, and
parts repair/labor for one year, from the invoice date. In most instances the affected parts
are replaced, not repaired.
Parts damaged due to improper product assembly, installation, or procedure; lack of
recommended maintenance including cleaning; or lost after delivery cannot be included in
this warranty.

16
en
Technical data
Max load
Materials Powder laquered stainless steel
Plastics:
PVC (canvas)
Polystyrene (cover)
Weight R8402: 44.46 kg, 98.01 lbs
R8403: 45.92 kg, 101.23 lbs
IP class The product has an ingress protection class rating
of IPX6. The product may not be immersed in water,
but is designed to withstand powerful jets (12.5 mm
nozzle) of water from any direction.
Power specifications
Max consumption 70 W
Voltage Mains connection: 230V/120V/100V
Frequency 50/60 Hz
Current 0,3 A
330 lbs
800.577.1555 [email protected]
www.max-ability.com

17
en
Dimensions (mm)
600
1400
735
115
750
R8402
600
1800
735
115
750
R8403
800.577.1555 [email protected]
www.max-ability.com

18
en
4.52
29.52
55.11
23.62
28.93
R8402
1800
4.52
29.52
70.86
23.62
28.93
R8403
Dimensions (inches)
800.577.1555 [email protected]
www.max-ability.com

19
en
Disposal and recycling
The unit contains reusable materials. There are no known hazards or risks
associated with disposal of the product. All components can be discarded
after having been cleaned and disinfected.
When disposing of the product, we recommend that it be disassembled and
broken down into different waste groups for recycling or combustion.
The following table provides information on the recycling and handling of the
product.
Recyclable
components Material
Steel Steel can be recycled by being re-melted and included
as a secondary material in the production of new
steel.
Plastics Use plastic sorting and recycling systems where they
are locally available, otherwise incinerating plastic
has the added benefit of generating energy which can
be used for, for example, combined heat and power
production.
Electronics The electronic components should be collected
separately and returned to the designated recycling
service.
800.577.1555 [email protected]
www.max-ability.com
