Maxell MPC-CAC12800 User manual

Please be sure to observe it for safe use.
Caution:
Danger:
Warning:
Caution refers to misuse which might lead to injury*2and
may cause property damage*3.
Danger refers to misuse which might lead to death or
serious injury*1 to a high degree.
Warning refers to misuse which might lead to death or
serious injury.
Safety Precautions
*1: Severe injury refers to things that have after eects such as blindness, injury, burns,
electric shock, fractures, poisoning, etc., and those requiring hospitalization or long-
term regular hospital visits for treatment.
*2: Minor injury indicate injury, burns, electric shocks that do not require hospitalization
or long-term regular hospital visits for treatment.
*3: "Property damage" refers to indirect damage related to houses, household goods,
livestock and pets.
Symbol indication
stands for prohibited actions when handling the product. Details will
be illustrated inside or next to the symbol or with written description
next to it. (e.g. Do not decompose)
stands for caution to fire, explosion, high temperature when handling
the product. Details will be illustrated inside the symbol. (e.g.
Electric shock)
If it is used with insucient insertion, it may cause re due to the
combination of electric shock and accumulation of dust.
                                                        
When charging, please use the specied voltage of the dedicated AC
power adapter. Please do not connect to a direct current (DC) power
supply of a ship etc. It may cause overheating, re, malfunction, electric
shock or injury.
                                                     
      
     
Please keep away from re or do not heat it. It may cause overheating,
ignition, rupture or liquid leakage.
              
Please do not carry or store with metallic necklace or hairpin etc.
It may cause overheating, electric shock, failure or injury.
If liquids such as water, seawater, juice enters, it may cause overheating,
ignition, liquid leakage, electric shock or malfunction.
                
                   
                 
If liquid leaks from this device and gets into the eye, do not rub. Rinse
with plenty of clean water immediately and consult a doctor. It may
cause blindness.
Do not place it in a location where it will be hot such as near re, stove,
direct sunlight, under the car under the scorching sun. It may cause
deformation, liquid leakage, ignition, breakdown, malfunction.
                                      
Do not damage the cable, process it or twist it. Also, please do not place
heavy objects on the device and avoid being trapped underneath it.
When the core wire is exposed, be sure to replace the cable with a new
cable. If used under these circumstances, it may cause re, electric shock etc.
                  
                    
Due to internal short circuit, it may cause overheating, ignition, rupture,
liquid leakage or malfunction.
Do not connect to medical equipment
Because this product is a pseudo sine wave. The equipment may not work
properly and there is a risk of affecting medical behavior.
           
It may cause liquid leakage, overheating, fire, or rupture etc.
If the charging is not completed with in the predetermined charging time,
please do not charging
Do not use the product in locations with high humidity such as a bathroom
Avoid stong impact to the product by stepping on or allowing the product to
fall
It may cause overheating, electric shock or malfunction.
Doingsomaycause deformation ,leakage, overheating,ignition, rupture,
breakdown,etc.
It may cause overheating, smoke emission, fire or breakdown.
Do not place in cooking equipment such as microwave oven or high pressure
vessel
Do not use if there is abnormality such as overheating, discoloration,
Ignition, rupture, leakage or injury may result.
deformation, odor, etc. during storage or use
It may cause overheating, ignition, rupture or liquid leakage.
Do not place ammable materials or heavy objects on the product, or cover
or wrap with blankets or cushions
It may cause damage to the skin.
When leaked liquid from this product adheres to the skin and clothing,
immediately rinse with clean water
Do not connect to devices exceeding AC 100V and/ or 65W maximum
It may cause overheating, fire, or malfunction.
In case of smoke, if a strange smell or sound occurs, when water or foreign
matter enters inside, or if you dropped this product, immediately unplug
the power plug of your equipment from the AC OUT. If used under these
circumstances,itmaycause overheating, ignition, breakdown,electric shock.
In case of abnormality, unplug the power plug from the outlet
                                                        
                                           
(                   )

Charging Cable×1
(USB-A - Type-C)
PA1417-01
Pouch
         
Device×1
User Manual×1
(This booklet)
Unauthorized duplication of part or all of this instruction manual is
prohibited except for personal use. Moreover, without permission
unauthorized reprinting of this manual is strictly prohibited.
Introduction
Before reading the user manual
1
●
This instruction manual is subject to change without notice.
●
In order to improve the product, appearance of some parts or
specications may be changed without notice.
●
２
3
USB-A
USB
-
Type
-
C
Output terminal
USB-A port (OUT1/OUT2)
［Device］
［Charging Cable］
Part Names
Level indicator LED
Indicator LED
Power button
Output terminal
AC OUT
Input Output terminal
USB Type-C
port (IN/OUT3）
Content of the Package
Thankyou for purchasing theMaxellproduct. Please carefully readthisinstruction
manual before use and use it correctly.
10〜25%
0〜10%
0% ー
100%
（完成充电）
25〜50%
50〜75%
75〜100%
…Light on 
…Light flashing …Light off
Level indicator
Remaining Capacity LED Display
Charging Other than charging
LED display during discharge may experience deviation due to the load during discharge.
Mobile charging battery with electric outlet Mobile Battery
It may cause explosion or fire.
Do not use the product in locations where there is adanger of ignition or
explosion
Charge in the temperature range of 0 to 35°C
Do not place in locations where it is easy to fall or in locations with high
levels of magnetism and dust
Failure to do so may result in injury, overheating, fire, rupture, leakage,
malfunction.
Charging at temperatures outside this range may cause leakage,
overheating, explosion or failure.
Charge at least once every 6 months
Charging may not be possible if it is fully discharged.
Do not stretch or focibly fold the cable or swing around the product
Doing so may cause deformation, leakage, overheating, ignition, rupture
or breakdown.
      
Do not insert metal etc into the main unit and terminals
It may cause overheating, electric shock, malfunction, etc.
If lightning approaches while charging this product, immediately unplug the
cable and stop charging
It may cause electric shock fire or breakdown, malfunction, etc.
It may cause electric shock or injury.
Please check whether the product is used safely during use.
It may cause electric shock or injury.
In case when the product is used by children, parents should instruct
children how to use it in a safe manner
                              
It may cause overheating, electric shock, malfunction, etc.
Do not use with wet hands

Charging Method ０→100%
approx. 13hrs
approx. 7hrs
When using an AC adapter with 5V1A USB-A output
When using an AC adapter with 5V2A USB-A output
It can be charged faster by using a commercially available USB Type-C output
AC adapter and Type-C cable.
Caution
Caution
Charging Method
approx. 4hrs
０→100%
When using an AC adapter compatible with Type-C PD
(18W or more)
※1. Total up to 65W max.
※3. Total value of internal battery. Standard capacity is 12720 mAh.
7
Device
W109×D150×H26mm (excluding protrusions)
approx. 70cm
Plug shape USB-A –USB Type-C (56kΩ built-in resistance)
Rated input
Rated input
Rated output※1
Type-C port DC15V/1.2A, 12V/1.5A, 9V/2A,
5V/3A, 5V/2A(PD2.0 Correspondingmax.18W)
USB-A port DC5V/2.4A（2port total Max. 2.4A）
Type- C port DC15V/2A, 12V/2.5A, 9V/3A,
5V/3A(PD2.0 Corresponding max.30W)
AC OUT AC100V/Max. 65W※2 50Hz（
pseudo sine wave ）
approx. 530g
0～35℃
Lithium ion battery Rated voltage3.6V /
Rated capacity12000mAh
※3
（43.2Wh）
・                                                  
                   
(Recommended: USB Type-C output AC adapter MACA-TYC02 manufactured by
our company)
PD: Abbreviation for POWER DELIVERY. USB power extension standard
that enables supply and demand transmission up to 100W using a USB
cable.

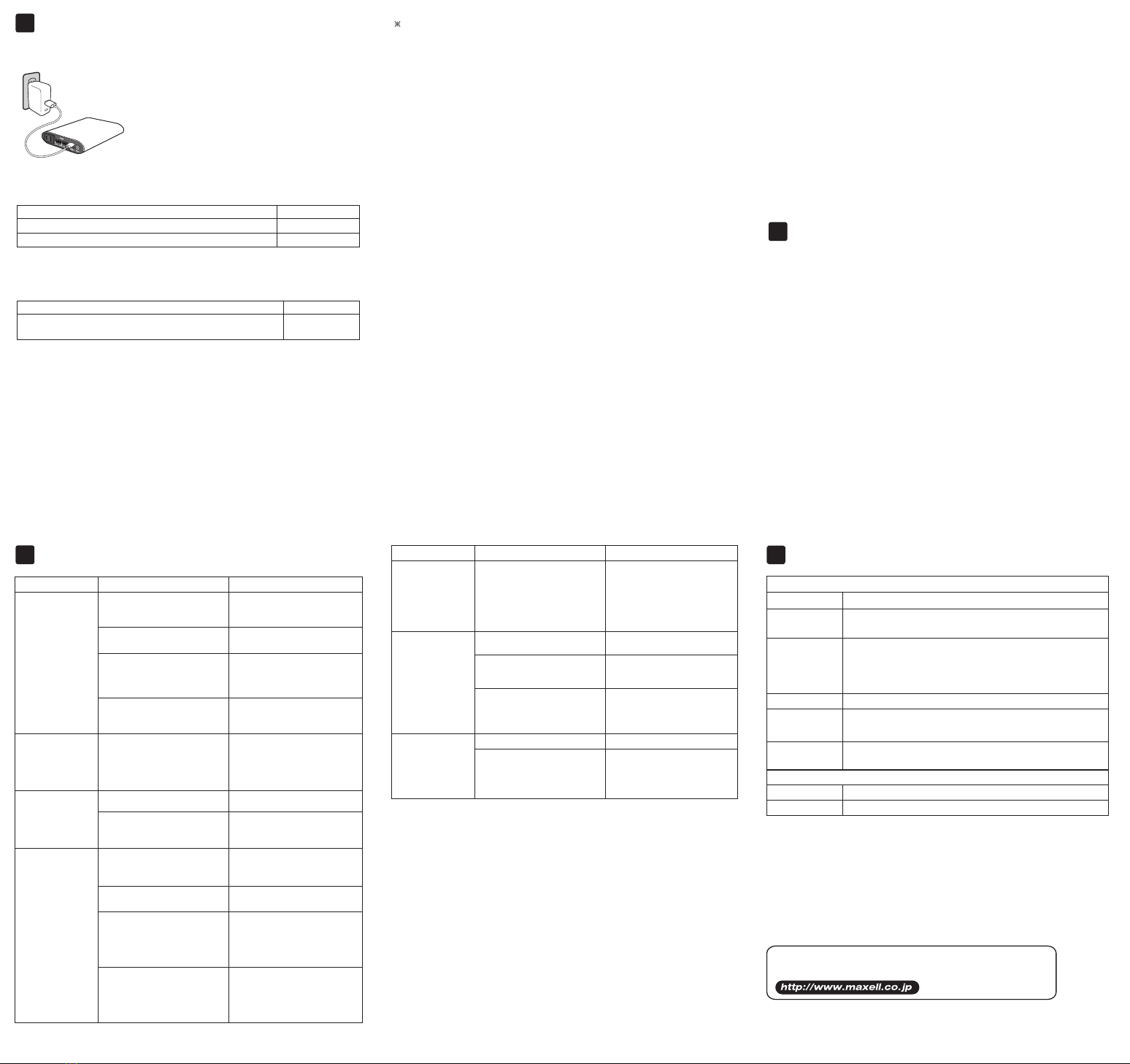

Charge this product
(After purchase, please charge before use.)
・Connect a commercially available AC adapter with
USB-A output and the charging cable that is
supplied with this product, and plug the Type-C
plug into the In/Out terminal (IN/OUT3) of the main
unit and plug the AC adapter into a household
outlet. While charging, the remaining capacity
indicator LED lights up and ashes according to the
battery capacity.
・When the battery is fully charged, the remaining
amount LED indicators will all be lit so please
disconnect the dedicated power adapter.


- Supply power to the device using the USB-A port (OUT1/OUT2)
(Example: charging a smartphone)
If the device uses a Type-C input, connect it to the device using the charging cable
that is supplied with this product and press the power button. If the device uses a
Micro-B input, connect to the device using the charging cable supplied with the
target device or a commercially available USB-A Micro-B cable. Also, when
connecting a USB-A-Lightning cable, OUT1 port can be used for fast charging up to
2.4A.
To stop the power supply, press the power button to turn o the output, and then
unplug the connected cable. In addition, when no load condition (less than 5W of
AC output, less than 100mA of USB output) is detected the power is automatically
turned o in about 60 seconds.
-Supply power to the device using the Type-C port (Example: charging a
smartphone) The Type-C port will automatically start supplying power when the
device is connected. Connect the device using a commercially available Type-C
cable. To stop the power supply, disconnect the connected cable. If the Type-C
port of the connected device is for both input and output (DRP mode), the
product may be charged. In that case, disconnect the cable and reconnect.
When the power button is pressed, the indicator LED and the remaining amount
indicator LED will light as soon as the output starts. Press the power button again
to stop the output and LED lights will be turned o.
●While charging this product, AC OUT and USB-A (OUT1/OUT2) can not be
used. Furthermore, AC OUT cannot be used while using Type-C (OUT3) output.
●The maximum total output of all connected devices at one time (USB port,
total of AC OUT) is 65 W. The maximum rating of each output terminal is: USB
port: DC 5 V / maximum 2.4 A (maximum 12 W), AC OUT: AC 100 V / 65 W
Type-C port: DC15V2A (max. 30W). When the supply current to the connected
equipment exceeds the rating, circuit protection may operate which will cut
the power supply.
●When the USB-A port is less than 0.1 A supply and AC OUT is 5W or less, the
automatic stop function operates and the power stops.
●When the battery's remaining capacity of this product is low, the output
current may be limited.
●In the unlikely event that data is lost whlist equipment is connected to this
product, we will not take responsibility for lost data whilst using this product.
●The charging time varies depending on the type of AC adapter used. ●If charging can not
be completed even after the elapse of the specied time, please discontinue charging. ●
Even if you do not use this product for a long period of time, please charge at least once
every 6 months. Charging may not be possible if it is fully discharged.
AC OUT and USB-A port, press the power button to start / Stop power feeding.
Power up the unit
- Using AC OUT (eg, powering a laptop PC)
Insert the dedicated AC plug of the AC adapter included with the laptop PC into
the output terminal AC OUT of this product, press the Power button.
Some equipment did not support with pseudo sine wave
Depending on the equipment you use, so please check before use.
Checking battery level
[Caution on AC OUT ]
●Please check beforehand that the equipment to be connected operates
normally before using.
●In some equipment the power consumption at startup may exceed the displayed
power consumption. The product can not be used when the power consumption
exceeds 65W at any time.
●Compared to household AC power supply (AC 100 V), the capability of the
equipment may be reduced.
●Noises may occur on radio or audio players connected to this product.
●If the battery level of this product is low (less than about 10%) it may not start
supplying power when the power button is presses. Please use it after charging.
[Caution on USB Port ]
●If the device communicates with the PC using data signal cable, power may not
be supplied.
● When the battery level of the equipment is 0, it may take time until the
equipment can be operated., or it may not able to charge.
Maintenance
Please remove any dirt on the device with a neutral detergent or cloth containing
water, and wipe it o with a soft, dry cloth. Do not use benzine, thinner, alcohol,
etc.
Dimensions
Operating
Temperature
Built-in Battery
Cable length
Cable
Specication
※                                                   
                                                    
                                              
          
Maxell,Ltd.
30-13 Motoyoyogi-Cho, Shibuya-Ku, Tokyo 151-8527
Approx. charging time
4Operating Instructions
5
6
The AC adapter output current
is insufficient and the
protection circuit is operated
Use an AC adapter that exceeds
the rated input current of this
product
Thepower consumption of the
deviceused is small andtheauto
poweroff function is operated
Powersupply automatically
stopsin about 60 secondswhen
itis less than 5W
The AC adapter is not
connected properly
Ensure proper connection
Ensure proper connection
         
Troubleshooting (When problems arise)
Useit after a while
Lowbattery Charge
Overcurrentcircuit protection
isactivated Check the operating current
(powerconsumption) of the
equipment.Charge it.
Outputstop
or,
RepeatON/OFF
Equipmentcould
notbe charged.
(ACOUT)
Outputstop
or,
RepeatON/OFF
Equipmentcould
notbe charged.
(ACOUT)
Equipmentis not connected
properly
Connectingdevices that
requirea stable accurate
waveformand frequency
Itcan not be used.
Pleasecheck the equipment
used.(This product has anoutput
ofAC100 V 50HZ pseudosine
wave)
Loadfluctuation of equipment
tobe used/charged is large Theproductcannot be used whenthe device's input power
exceedthe displayed power
consumption65W
Instantaneously
          
LED lights up and
does not flash
when charging this
product. Or, the
charging time is
longer than the
predetermined
time
The body of the
device is warm
LED does not light
up when the power
button is pushed
Temperature of charging
location exceeds working
temperature range
Thebattery is stored foralong
timewhile the remaining charge
inthe battery is 0
Ensure that the temperature
of the location where product is
being charged is within the
operating temperature range
Pleasecharge once every 6
monthsnot to discharge
completely
Itis not abnormal forthebody
ofthe main unit whilecharging
/discharging and immediately
Useit after a whileaftercharging/
dischargingto become warm
Thepower consumption of the
deviceused is small andtheauto
poweroff function is operated
TheUSB-A, Type-C port
automaticallyshuts off in about
60seconds when the load
currentis less than 100mA
         
Shortdischarge
time
Ensure proper connection
Equipmentis not connected
properly
Equipmentwith the maximum
ratingor more is beingusedor
charged
Lowbattery level Charge
Batteryhas reached the end
ofits life If the dischargetimebecomes extremelyshort even when itis
fullycharged, then the battery
hasreached the end ofitslife
Equipmentwith the maximum
ratingor more is beingusedor
charged,the protection circuit is
operated
Confirmcurrent usage (power
consumption)of equipment
Confirmcurrent usage (power
consumption)of equipment
(USB-A,
USBType-C）
Thedevice can
notbe charged
          
