MaxLite WWR-PL20A-W User manual

Operating Instructions R-PL20A-
MaxLite 120-277V Network (Bluetooth) 20A all Receptacle
© Copyright 2022. Max ite, Inc. All Rights Reserved.
12 York Ave, West Caldwell, NJ 07006 Tel: [phone] Fax: [phone] Email: [e-mail]
Page: 1
REV: 12/20/22
®
General Safety Information
• TO REDUCE THE RISK OF DEATH, PERSONAL INJURY OR PROPERTY DAMAGE
FROM FIRE, ELECTRIC SHOCK, FALLING PARTS, CUTS/ABRASIONS, AND OTHER
HAZARDS READ ALL ARNINGS AND INSTRUCTIONS INCLUDED ITH AND ON
THE FIXTURE BOX AND ALL FIXTURE LABELS.
• BEFORE INSTALLING, SERVICING, OR PERFORMING ROUTINE MAINTENANCE UPON
THIS EQUIPMENT, FOLLO THESE GENERAL PRECAUTIONS.
• COMMERCIAL INSTALLATION, SERVICE AND MAINTENANCE OF LUMINAIRES SHOULD
BE PERFORMED BY A QUALIFIED LICENSED ELECTRICIAN.
• DO NOT INSTALL DAMAGED PRODUCT!
ARNING: RISK OF ELECTRICAL SHOCK
• TURN OFF ELECTRICAL PO ER AT FUSE OR CIRCUIT BREAKER BOX BEFORE IRING
FIXTURE TO THE PO ER SUPPLY.
• TURN OFF THE PO ER HEN YOU PERFORM ANY MAINTENANCE.
• VERIFY THAT SUPPLY VOLTAGE IS CORRECT BY COMPARING IT ITH THE LUMINAIRE LABEL INFORMATION.
• MAKE ALL ELECTRICAL AND GROUNDED CONNECTIONS IN ACCORDANCE ITH THE NATIONAL ELECTRICAL
CODE AND ANY APPLICABLE LOCAL CODE REQUIREMENTS.
• ALL IRING CONNECTIONS SHOULD BE CAPPED ITH UL APPROVED IRE CONNECTORS.
CAUTION: RISK OF INJURY
• EAR GLOVES AND SAFETY GLASSES AT ALL TIMES HEN REMOVING LUMINAIRE FROM CARTON,
INSTALLING, SERVICING OR PERFORMING MAINTENANCE.
• AVOID DIRECT EYE EXPOSURE TO THE LIGHT SOURCE HILE IT IS ON.
CAUTION: RISK OF FIRE
• KEEP COMBUSTIBLE AND OTHER MATERIALS THAT CAN BURN A AY FROM LUMINAIRE AND LAMP/LENS.
• DISCONNECT PO ER AND ALLO FIXTURE TO COOL BEFORE CHANGING BULB OR HANDLING FIXTURE.
Models:
R-PL20A-
Installation Instructions
CAUTION: Turn off electrical power at fuse or circuit breaker box before wiring fixture to the power supply.
CAUTION: Control devices should never be used to supply power to medical and/or life support equipment.
CAUTION: These devices must be installed in standard UL listed outlet boxes.
1. Strip wires 5/8” (16mm) and wired as shown in diagram (Fig. 1)
Black lead to HOT wire
White lead to Neutral wire
Green lead to ground wire
2. Check connections are tight, and no bare conductors are exposed.
3. Insert WWR-P 20A-W receptacle into the outlet box attach to box
using the screws provided. Attach face plate.
4. Restore power and test the system.
Picture is for illustration
purposes only.
Your model may vary.
FIG. 1

Installation Instructions (Continued)
Note: The WWR-P 20A-W can be used in new installations or to replace existing wall receptacle.
Max ite Inc. warrants its products for a minimum period of FIVE (5) years from the date of original purchase from
Max ite or its authorized distributor/dealer (the “Warranty Period”), as follows: If a Product fails to operate during the
Warranty Period as a result of defects in materials or workmanship, Max ite will, at its option, repair it, replace it with
the same or like Product.
Please refer to Maxlite’s website (at http://maxlite.com/resources/warranties) for the complete
terms and conditions of our warranty.
imitation of iability
THE FOREGOING WARRANTY IS EXC USIVE, AND IS THE SO E REMEDY FOR ANY AND A C AIMS,
WHETHER IN CONTRACT, IN TORT OR OTHERWISE ARISING FROM THE FAI URE OF PRODUCT AND IS IN
IEU OF A OTHER WARRANTIES, EXPRESS OR IMP IED, INC UDING A WARRANTIES OF
MERCHANTABI ITY OR FITNESS FOR A PARTICU AR PURPOSE, WHICH WARRANTIES ARE HEREBY
EXPRESS Y DISC AIMED TO THE EXTENT PERMITTED BY AW AND, IN ANY EVENT, SHA BE IMITED TO
THE WARRANTY PERIOD SPECIFIED ABOVE. THE IABI ITY OF MAX ITE SHA BE IMITED TO THE TERMS
OF THE EXPRESS WARRANTY SET FORTH HEREIN. IN NO EVENT WI MAX ITE BE IAB E FOR ANY
SPECIA , INCIDENTA OR CONSEQUENTIA DAMAGES INC UDING, WITHOUT IMITATION, DAMAGES
RESU TING FROM OSS OF USE, PROFITS, BUSINESS OR GOODWI , ABOR COSTS, REMOVA OR
INSTA ATION COSTS, DECREASE IN THE IGHT OUTPUT OF THE AMP, AND/OR DETERIORATION IN THE
AMP’S PERFORMANCE, WHETHER OR NOT MAX ITE HAS BEEN ADVISED OF THE POSSIBI ITY THEREOF.
UNDER NO CIRCUMSTANCES SHA MAX ITE’S ENTIRE IABI ITY FOR A DEFECTIVE PRODUCT EXCEED
THE PURCHASE PRICE OF THAT PRODUCT. WARRANTY SERVICES PROVIDED UNDER THESE TERMS AND
CONDITIONS DO NOT ENSURE THE UNINTERRUPTED OPERATION OF PRODUCTS; MAX ITE SHA NOT BE
IAB E FOR DAMAGES CAUSED BY ANY DE AYS INVO VING WARRANTY SERVICE.
This imited Warranty gives you specific legal rights and you may also have other rights that may vary from state to
state. Because some states or jurisdictions do not allow the exclusion or limitation of liability for consequential or
incidental damages, this limitation may not apply to you.
arranty Information
© Copyright 2022. Max ite, Inc. All Rights Reserved.
12 York Ave, West Caldwell, NJ 07006 Tel: [phone] Fax: [phone] Email: [e-mail]
Page: 2
REV: 12/20/22
Operating Instructions R-PL20A-
MaxLite 120-277V Network (Bluetooth) 20A all Receptacle
®

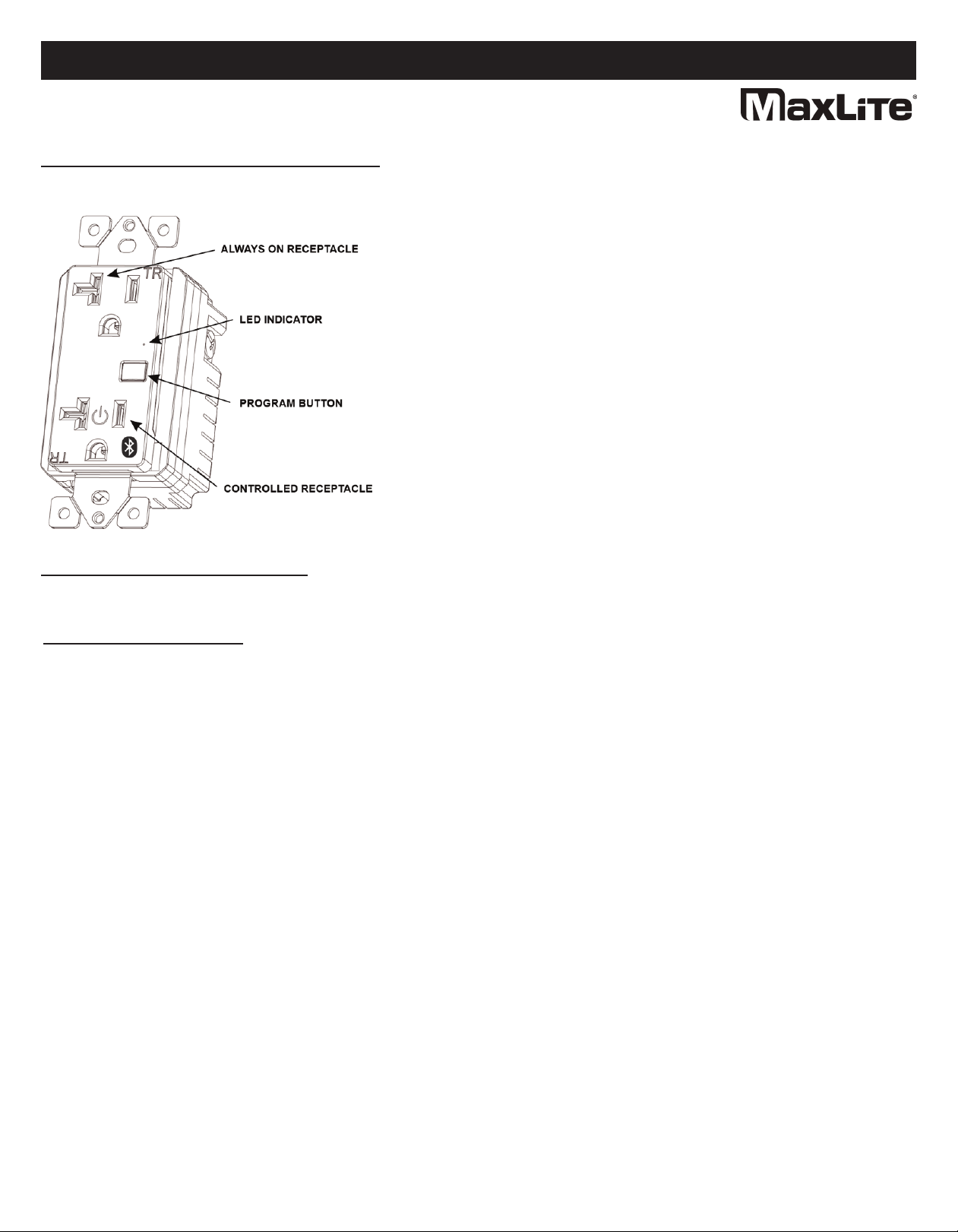

AL AYS ON RECEPTACLE: Always on constant outlet.
This outlet cannot be controlled by the c-Max app.
CONTROLLED RECEPTACLE: Controlled via c-Max app,
c-Max Network Wall Switches, and the program button found
on the receptacle. The controlled receptacle is marked with the
Bluetooth® logo.
LED INDICATOR: Flashes blue when receiving wireless
commands.
PROGRAM BUTTON:
SHORT PRESS: Turns ON/OFF CONTRO ED RECEPTAC E
ONG PRESS: Hold for 6 seconds to reset to factory settings.
A clicking sound will confirm the reset.
Visit us at www.maxlite.com/cmax for a complete guide to
commission c-Max products.
Commissioning Instructions
Commissioning with c-Max App. Refer to the c-Max Commissioning Guide on www.maxlite.com/cmax
