MaxLite AP Series User manual

Operating Instructions AP Series
MaxLite Air Purifier (AP215SF1)
© Copyright 2023. MaxLite, Inc. All Rights Reserved.
340 Changebridge Rd, STE 201, Pine Brook, NJ 07058 Tel: [phone] Fax: [phone] Email: [email protected]
Page: 1
REV: 02/06/23
®
Contents
Picture is for illustration
purposes only.
Your model may vary.
1Safety Precautions............................................................2
2Product Introduction..........................................................4
Description about the function of the control panel...........4
3Before Use........................................................................5
Removal and installation method of side cover plate........5
Place for air purifier...........................................................5
Install the filter...................................................................6
Understand the function of filter.........................................7
Multiple functions...............................................................7
Unique triple purification technology..................................7
4Using Method....................................................................8
Description about the function of the control panel...........8
Start the purifier.................................................................9
Manual mode.....................................................................9
Wind speed setting............................................................9
Sleeping function...............................................................9
Child lock function.............................................................9
Timing setting....................................................................9
5Maintenance and Cleaning Methods...............................10
Clean the air purifier........................................................10
Replace the filter..............................................................11
Operation steps..........................................................11-12
When it is unused for a long time....................................12
Reference time for replacement of filter..........................12
6Fault Handling.................................................................13
Warranty and service......................................................14
Ordering parts or accessories.........................................14
Accessories.....................................................................14
7Other Information............................................................14
Recycling.........................................................................14

1: Safety Precautions
Please pay attention to the following safety precautions to avoid the possibility of damage to you or others.
Note: If the power cord is damaged, it must be replaced by professionals or the manufacture in order to avoid dan-
Operating Instructions AP Series
MaxLite Air Purifier (AP215SF1)
®
Please don't touch the power plug
with wet hands.
Otherwise, it may cause electric shock.
Please don't use the power supply
or connected equipment exceeding
the specified values.
Only 120V~ power can be used.
The use of universal sockets or
equipment exceeding the specified
value may lead to overheating and fire
accidents.
Please don't damage the power cord
and socket.
Please don't bind wires when using this
product. The use of damaged wires or
sockets might result in electric shock
circuit, short circuit or fire accidents.
• Please don't cut, refit,
excessively twist, twist, and
pull wires, or place heavy
objects on wires or sockets.
Please don't disassemble or refit
this air purifier without
authorization.
Unauthorized disassembly or refitting
of electrical appliances may lead to
electric shock, failure or fire accidents.
Please be sure to disconnect the power
supply before cleaning the electrical
appliances.
Otherwise, the air purifier may
suddenly operate, resulting in an
electric shock accident.
Please fully plug in the plug into the
socket before starting the air
purifier. If the plug is not fully plugged
in the socket, it may lead to electric
shock, overheating and even fire
accidents.
• Please don't use the damaged
plug or the loose power socket
Please clean the power plug on
regularly.
If dust accumulates on the power plug,
its moisture may damage the insulation
part of the plug, resulting in a fire
accident.
• Unplug the power plug and wipe
it clean with a dry cloth (Please
don't use a wet cloth!).
• If the electrical appliance is not
used for a long time, the power
plug should be unplugged.
Please don't place rods or other metal
objects in air outlets or openings.
Otherwise, it may touch internal parts
and cause electric shock or damage.
© Copyright 2023. MaxLite, Inc. All Rights Reserved.
340 Changebridge Rd, STE 201, Pine Brook, NJ 07058 Tel: [phone] Fax: [phone] Email: [email protected]
Page: 2
REV: 02/06/23

Operating Instructions AP Series
MaxLite Air Purifier (AP215SF1)
®
1: Safety Precautions
Please don't use solvents such as
benzene or diluent to clean the air
purifier and avoid contact with
insecticidal spray.
Otherwise, the air purifier may rupture
and cause damage or even short circuit,
resulting in electric shock or fire
accidents.
Please hold the plug and not pull the
wire while unplugging the power plug.
If the wire is pulled directly, it may
cause short circuit, or damage the wire
and lead to fire or electric shock
accident.
• Please disconnect the power to the product first if you need to move the product.
• Please be sure to move slowly while moving the instrument.
• Please don't move the product by pulling the power cord.
• Please don't move the instrument while the product is running. If you need to move the instrument, turn off
the power.
Please cut off the power supply of the instrument immediately in case of the following situations:
• A switch does not work.
• The circuit breaker works or the fuse burns out.
• The power line or plug is heated abnormally.
• A burning smell or abnormal sound or vibration.
• Other abnormal phenomena or faults.
Please don't use solvents such as
benzene or diluent to clean the air
purifier and avoid contact with
insecticidal spray.
Otherwise, the air purifier may rupture
and cause damage or even short circuit,
resulting in electric shock or fire
accidents.
Please don't use this air purifier in
places with high temperature and
humidity or other places that will wet
the body, such as bathrooms.
Otherwise, air purifiers may occur
power leakage and cause electric shock
or fire accidents.
Please don't use this air purifier in
rooms with fumigation insecticides.
Otherwise, chemical residues may
accumulate in the instrument and then be
released from the air outlet, endangering
health.
• After using insecticides, the
room should be thoroughly
ventilated before using this air
purifier.
Please don't allow volatile substances
or combustible substances, such as
tobacco or sparks, to float into the
instrument.
Otherwise, it may lead to fire accidents.
Please don't wet the instrument body.
(Otherwise, it may cause fire disaster
and electric shock due to the short
circuit).
© Copyright 2023. MaxLite, Inc. All Rights Reserved.
340 Changebridge Rd, STE 201, Pine Brook, NJ 07058 Tel: [phone] Fax: [phone] Email: [email protected]
Page: 3
REV: 02/06/23

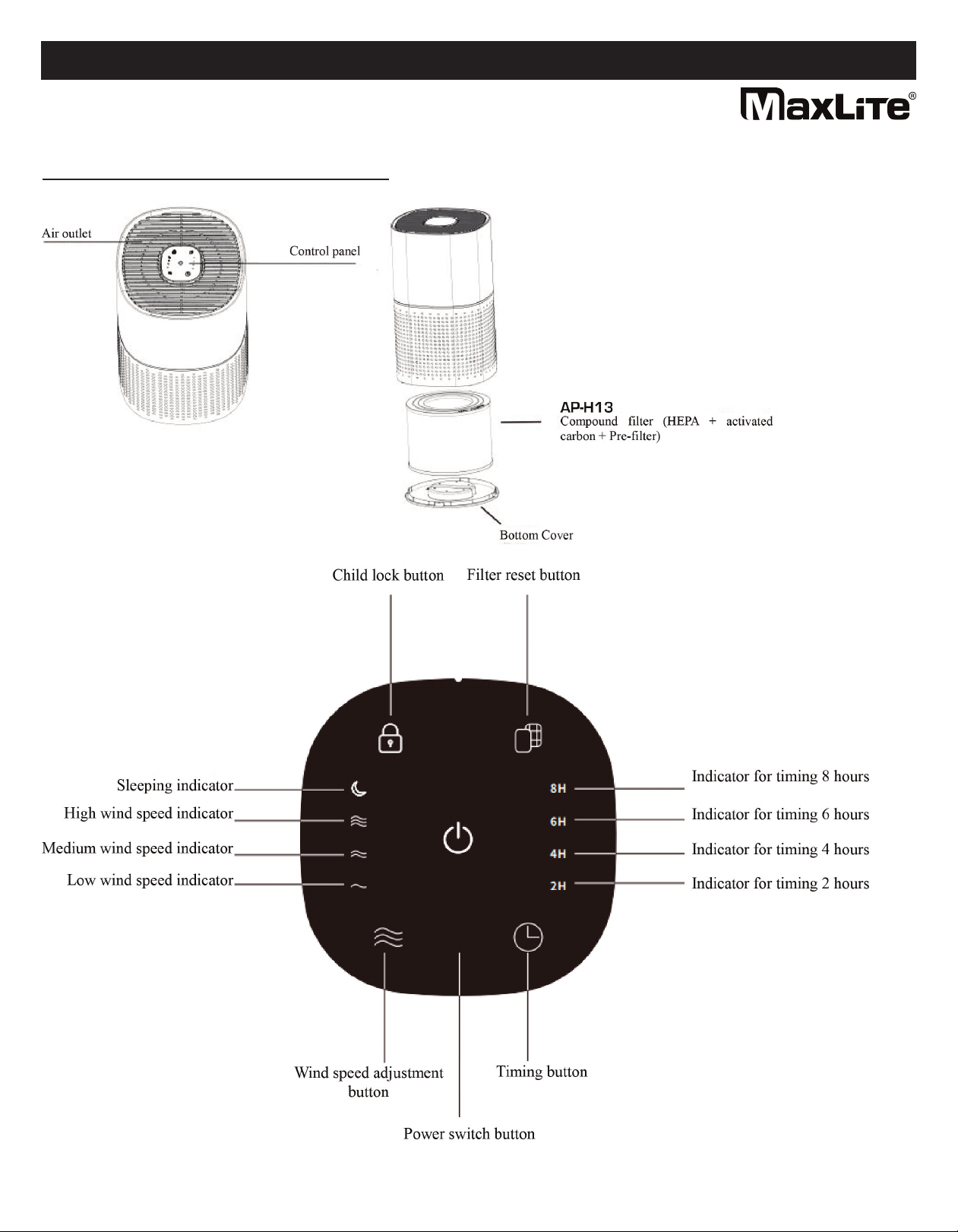

2: Product Introductions & Functions
Operating Instructions AP Series
MaxLite Air Purifier (AP215SF1)
®
© Copyright 2023. MaxLite, Inc. All Rights Reserved.
340 Changebridge Rd, STE 201, Pine Brook, NJ 07058 Tel: [phone] Fax: [phone] Email: [email protected]
Page: 4
REV: 02/06/23

3: Before Use
Operating Instructions AP Series
MaxLite Air Purifier (AP215SF1)
®
Removal and installation method of back cover plate:
1. Removal method of bottom cover
Press the indicator button to unscrew
the bottom cover
2. Installation method of bottom cover:
Reinstall the bottom cover, align by the unlock
button and tighten in the locking direction.
Choosing a place for the air purifier:
Make sure that the air inlet and air outlet of the
instrument are not less than 20cm away from
obstacles in order to make the air in your room
circulate well.
Use it more than 1 meter away from TV, radio
and other electrical appliances.
Please don't plug the power plug into the same
socket with the power plug of TV, radio and other
electrical appliances.
• If it is placed in the same place for a long time,
it will sometimes dirty the walls around the host.
• Please don't interfere with the air inlet and air
outlet to ensure that the instrument has sufficient
ventilation and maximum efficiency.
© Copyright 2023. MaxLite, Inc. All Rights Reserved.
340 Changebridge Rd, STE 201, Pine Brook, NJ 07058 Tel: [phone] Fax: [phone] Email: [email protected]
Page: 5
REV: 02/06/23

3: Before Use
Operating Instructions AP Series
MaxLite Air Purifier (AP215SF1)
®
Install the filter:
Information
The interior of this air purifier is equipped with a
filter, but the packaging of the filter must be
removed before using the product. Remove the
filter and its packaging according to the following
instructions, and then put it back into the purifier.
• Please ensure that the power plug is installed,
repaired and transported when the power supply is
disconnected.
• Please don't operate instruments without filter.
• Please remove the plastic packaging of the
filter before use.
Operation steps:
Please follow the following steps to correctly
install the filter when using the air purifier
for the first time.
1. Remove all packaging materials and place the
instrument on a dry, stable and horizontal surface.
3. Remove the filter inside the purifier.
4. Remove the packaging material of the filter.
2. Press the bottom cover with your fingers and
screw it out in the unlocking direction while taking
out the bottom cover upward.
5. Put the filter back into the purifier.
6. Press the indicator button to place the bottom
cover and tighten it.
Note: Be careful not to pinch hand when
installing the bottom cover.
© Copyright 2023. MaxLite, Inc. All Rights Reserved.
340 Changebridge Rd, STE 201, Pine Brook, NJ 07058 Tel: [phone] Fax: [phone] Email: [email protected]
Page: 6
REV: 02/06/23

Operating Instructions AP Series
MaxLite Air Purifier (AP215SF1)
®
3: Before Use
Understanding the filter function:
Multiple Functions:
• Formaldehyde removal
• Wind speed switching in fourth grade
• Timing setting
• Tips for replacing filter
• Configured with manual, sleep and child lock operation modes
© Copyright 2023. MaxLite, Inc. All Rights Reserved.
340 Changebridge Rd, STE 201, Pine Brook, NJ 07058 Tel: [phone] Fax: [phone] Email: [email protected]
Page: 7
REV: 02/06/23

Operating Instructions AP Series
MaxLite Air Purifier (AP215SF1)
®
4: Using Method
Description of control panel functions:
Plug in power supply
Plug in the power supply, the instrument will make a long
ring, all the indicators will be on, then half of the indicators
will be on, and the instrument will enter the standby state.
© Copyright 2023. MaxLite, Inc. All Rights Reserved.
340 Changebridge Rd, STE 201, Pine Brook, NJ 07058 Tel: [phone] Fax: [phone] Email: [email protected]
Page: 8
REV: 02/06/23

Operating Instructions AP Series
MaxLite Air Purifier (AP215SF1)
®
4: Starting the Purifier
Plug in the power supply. The instrument will make a
long ring, all the indicators will be on, then half of
the indicators will be on, and the instrument will
enter the standby state. This product adopts a fan
system composed of AC brushless motor, centrifugal
fan and air duct which makes indoor air circulate
and flow. After polluted air passes through the air
filter (HEPA filter) in the instrument, various
pollutants will be removed or adsorbed, thus
achieving the purpose of cleaning and purifying the
air.
Note: Pressing the on/off button again will turn off the
product. After turning off you can unplug the power
plug of the product.
Manual Mode:
After power-on, the air purifier is in a standby state.
Press the on/off button to start the air purifier and
enter themanual mode.
Wind Speed Setting:
Sleep
High grade
Medium
Low grade
Win
d
Press Wind button, the wind speed will change
circularly from Low, Medium, High and Sleep.
Sleep function:
When the product is running, press the "Wind
Speed" button to cycle until the sleep indicators are
on. Tip ring starts, enter the sleep mode, the sleep
indicator is on (the sleep indicator is off after 10
seconds), the fan sleep grade is running in the sleep
mode, other indicators are off, and press any button
to exit the sleep mode.
Sleeping indicator Win
d
Child-lock function:
When the product is running (except sleep mode),
press the child lock button for 3 seconds, the tip ring
starts, the child lock indicator is on, and the
instrument enters the child lock mode. Press any
button in child lock mode, and the button will fail.
Press the child lock button for another 3 seconds to
exit the child lock mode.
Child loc
k
Time setting:
Timing
button
Reset function:
When the filter is replaced and after the user has
replaced the filter, press the "Reset" button for 3
seconds, the filter is reset, and the filter replacement
indicator is off.
Reset button
© Copyright 2023. MaxLite, Inc. All Rights Reserved.
340 Changebridge Rd, STE 201, Pine Brook, NJ 07058 Tel: [phone] Fax: [phone] Email: [email protected]
Page: 9
REV: 02/06/23

© Copyright 2022. MaxLite, Inc. All Rights Reserved.
12 York Ave, West Caldwell, NJ 07006 Tel: [phone] Fax: [phone] Email: [email protected]
Page: 10
REV: 12/12/22
Operating Instructions AP Series
MaxLite Air Purifier (AP215SF1)
®
5: Maintenance and Cleaning
Please unplug power plug before cleaning the
product.
Please don't soak this product into water or other
liquids, nor immerse it with wet hands.
Please don't use abrasiveness. Use corrosive or
flammable detergents (such as bleach or alcohol) to
clean any parts of this product.
The composite filter cannot be washed with water.
Cleanser
Alkaline
Detergent
Benzene
Alcohol
Thinner
Clean Air Purifier:
Regularly clean the inside and outside of the purifier
body to prevent dust accumulation.
1. Use soft dry cloth to wipe off the dust on the
product body.
2. Clean the air inlet and air outlet with soft dry
cloth.

Operating Instructions AP Series
MaxLite Air Purifier (AP215SF1)
®
5: Replacing the Filter (AP-H13)
When the reset button indicator flashes, the user is
reminded to replace the filter.
Resetting
When the product works, the filter replacement
indicator flashes and the buzzer sends out a "ding,
ding" alarm to remind the user to replace the
filter, but the purifier can still work normally.
Please turn off the instrument and unplug
the power plug before replacing the filter. After
replacing the filter, if the replacement
indicator still flashes after starting up, please
press the reset button for 3 seconds to reset
the filter. The filter replacement indicator is
turned off and the filter reset is completed.
Note: Please remove the plastic packaging on the
filter before putting it into air purifier unit.
Operation Steps:
1. Instrument reminds to replace filter
Resetting
2. Turn off the power supply, stop the purifier, and
then unplug the power plug.
3. Press the bottom cover with your fingers and
screw it out in the unlocking direction while
taking out the bottom cover upward.
4. Remove the filter inside the purifier and
replace the filter.
5. Remove the packaging material of the new filter.
© Copyright 2023. MaxLite, Inc. All Rights Reserved.
340 Changebridge Rd, STE 201, Pine Brook, NJ 07058 Tel: [phone] Fax: [phone] Email: [email protected]
Page: 11
REV: 02/06/23

Operating Instructions AP Series
MaxLite Air Purifier (AP215SF1)
®
5: Replacing the Filter (Continued)
6. Put the filter into the purifier
7. Put in the filter again, press the indicator button
to put in the bottom cover and tighten it
8. After replacing the filter, plug in the power plug
and press the reset button for 3 seconds to
reset the instrument.
Resetting
When it’s unused for a long time:
Unplug the power plug. (Because the instrument
also consumes power in standby state.) Thoroughly
dry the interior.
Store the instrument in a dry and ventilated place for
safekeeping. (Storing it flat or upside down may
cause equipment failure)
Reference time for replacement of filter:
The filter of this product is Pre-filter + HEPA +
activated carbon filter. The filter cannot be washed
with water and is easy to damage. Please don't
press hard. Generally, the service period is six
months.
The above time is only a reference time, and users
can change it in advance according to the actual
use environment.
Please turn off the instrument and cut off the power
plug before replacing the filter.
© Copyright 2023. MaxLite, Inc. All Rights Reserved.
340 Changebridge Rd, STE 201, Pine Brook, NJ 07058 Tel: [phone] Fax: [phone] Email: [email protected]
Page: 12
REV: 02/06/23

Operating Instructions AP Series
MaxLite Air Purifier (AP215SF1)
®
6: Fault Handling
This chart lists the common problems when using this product. Please contact the Customer Service Center or the
distributor if you cannot solve the problem according to the below information.
Status Possible causes Possible solutions
The instrument cannot be turned on The power plug is not plugged well. Unplug the power plug and plug in the
power again
Power plug or wire is damaged Contact Customer Service Center or
Distributor
Fan does not work The instrument is not started Plug in the power and star the
instrument again
Motor damage Contact Customer Service Center or
Distributor
The motor is loose or foreign particles
are inside the instrument.
Contact Customer Service Center or
Distributor
Poor purification performance or lack
of optimal purification capacity The filter has not been replaced. Replace a new set of filter
The air inlet or air outlet of the
instrument is blocked.
Contact Customer Service Center or
distributor
The plastic packaging of the filter
has not been removed.
Remove the plastic packaging of the
filter and reuse it.
There is no suitable clearance or space
around the instrument to ventilate.
Ensure that the air inlet and air outlet
of the instrument are not less than
20cm away from the obstacle.
No filter in the instrument Ensure that the filter are put into the
instrument in the order indicated
Exceed expected room coverage Re-check whether the used room area
matches the specified area of the
instrument.
© Copyright 2023. MaxLite, Inc. All Rights Reserved.
340 Changebridge Rd, STE 201, Pine Brook, NJ 07058 Tel: [phone] Fax: [phone] Email: [email protected]
Page: 13
REV: 02/06/23

Operating Instructions AP Series
MaxLite Air Purifier (AP215SF1)
®
6: Warranty and Service
If you need information or have any questions, you
can contact our Customer Service Center or
distributor.
Ordering Parts or Accessories:
Please contact your Customer Service Center or
distributor to select accessories if you need to
replace parts or purchase additional parts.
Optional Accessories:
Pre-filter + HEPA + activated
carbon composite filter
7: Other Information
Please don't dispose with ordinary domestic
garbage when disposing the product. Please learn
about the local regulations on classified collection
of electronic or electrical products.
Proper disposal of old products helps to avoid
potential negative impacts on the environment and
human health.
© Copyright 2023. MaxLite, Inc. All Rights Reserved.
340 Changebridge Rd, STE 201, Pine Brook, NJ 07058 Tel: [phone] Fax: [phone] Email: [email protected]
Page: 14
REV: 02/06/23
